2AURH-V17Smart Watch

Connecting device "Searching” Please put the device close to the phone as much as possible ****(ID-0294) MAC:78:02:b7:3F:02:94 ****(ID-0352) MAC:78:02:b7:3F:03:52 Model:**** MAC:78:02:b7 3F:02:94 INSTRUCTION FOR QUICK USE ON/OFF 1.When the watch is off, charge it or press and hold for 3 seconds. The bracelet vibrates to turn on: 2. Change to shutdown interface in start-up state, and have a long press on shutdown interface for 3 seconds to power off. BAND OPERATION HOW TO INSTALL APP （SKETCH MAP） Wireless connection:After successful pairing, APP will automatically save watch Wireless address. When APP is opened or operated in the background,it will automatically search and connect the watch. Data synchronization: Manually drop APP main page down to synchronize data; the watch can save offline date of 7 days. The date is more, the synchronization time will be longer. lt will take no more than 2 seconds to synchronize data. After synchronization, "synchronization finish" will be popped up. Scan the following QR code or downloads the "Glory Fit " in application markets to install the paired APP. Demands on Device: IOS 9.0 or above; Android 5.0 or above. Scan QR code for download and installation "Glory Fit" CONNECT WITH DEVICE Open the APP click "Device" "Add Device" "Select Device"，click the corresponding model, and follow the prompts to connect (see the operation Demands on Device: IOS 9.0 or above; Android 5.0 or above. Smart watch English User Manual 1.Slide to light up screen or change display in start-up state; 2. No operation default five-second screen, users can connect to the mobile APP to modify the screen time: 3.The factory default setting of the band (heart rate monitor for 24 hours). Users can turn on or off in the general settings of APP interface. -1- TRAINING Click to enter the sports interface, multiple sport modes, select a specific sports item, click to start monitoring after three seconds, press the upper comer button or slide to the right to pause, click " " to end. STATUS Change to the status interface to view the current step count, distance, and calorie status. The distance and calories are calculated and displayed according to the current walking steps, the height and weight set by the APP personally. WEATHER Change to the weather interface, you can view the weather and temperature conditions. MUSIC After successfully connected with the paired APP "GloryFit", when the phone enters the music playing function, the watch can control the music playing such as pause, change song. ALARM CLOCK Enter the alarm clock interface, you can add or delete alarm clocks.and you can set up to multi group groups of alarm clocks,or APP side settings. MORE Stopwatch: Click to start timing, swipe to the right to exit back to the previous interface when the timing is stopped. Timer: Change to the timer interface, you can choose to set the time or add a custom time. Find a mobile phone: Change to the search interface, click to find a mobile phone in the connected state, and the mobile phone will send a ringtone to remind you. Flashlight: Click in and out to turn on the flashlight, swipe right to exit and turn it off. SET UP Watch face: Click this interface to change the watch face left and right, and click to select the watch face. Theme: Click this interface to choose from variety interaction modes. Brightness adjustment: Click to select different brightness, there are four levels of brightness. Bright screen duration adjustment: Click to select the bright screen duration, which are 5 seconds,10 seconds, and 15 seconds, or APP side settings. Sound setting: Click to enter the sound setting interface, you can choose to turn on or off the entertainment/call ringtone. About: Click this interface to view the firmware version number and Wireless address of the bracelet. Factory reset: Click this interface to choose factory reset (clear all data) or cancel. Shutdown: Click this interface to select shutdown or cancel shutdown. APP download: Click this interface, scan the QR code, and download the APP. -2- PRECAUTIONS Please prevent your watch from being shocked, or exposed under high temperature or blazing sun for a long time. Please don't disassemble, repair or change the device. The device should adopt current 0.5A to charge, it is forbidden to charge with over-voltage power supply. It should be used within the temperature of 0 degrees - 45 degrees. lt is forbidden to throw into fire, avoiding explosion. Please charge after drying the band with soft cloth, otherwise, it will corrode charging touch points, leading to charge fault. Please keep away from chemical substance such as gasoline, cleaning solvent, propanol, alcohol or insect repellent. Please don't use the product in high voltage and high magnetic environment. in case of sensitive dry skin or too- tight wearing, you may be uncomfortable. Please don't take a hot bath by wearing it. Please dry sweat in your wrist timely for its possibility to lead to skin itch or allergy by long-time touch with soap, sweat, allergens or contaminated ingredients.in case of frequent use, it is suggested to clean weekly. Please wipe with a damp cloth, and remove oil or dust by mild soap. Do not open more push without special requirements. COMMON PROBLEM How to do when it cannot connect with Wireless? (low speed/ failed to connect or reconnect) Please confirm whether your device is lOS9.0, Android 5.0 or above. lt takes time differently for each connection caused by the signal interference of wireless connection. lf it fails to connect for a long time，please confirm that you use it in environment without magnetic field or interference of multiple Wireless device . Turn on again after turning off the Wireless. Turn off the background applications of mobile phones or restart your mobile phones. Please don't make your mobile phones connect with other Wireless device or functions at the same time. Please check whether the APP is operated normally in the backgroun…

Text truncated - open the document above for the full version.

Shenzhen Changtai Electronics Co., Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen Changtai Electronics Co., Ltd Address: Building#A1, 8th floor, The third industrial Park DaWangShan, Shajing Town, BaoAn District, Shenzhen, China Product Name: Smart Watch FCC ID: 2AURH-V17 Model(s): V17, TF-H08, V17 Pro, V17 plus, LW-217 2.911(d)(5)(i) Equipment Type We, [Shenzhen Changtai Electronics Co., Ltd] certify that the equipment for which authorization is sought through certification is not: • Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. • Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Justin Wu Date: 2024/07/08 Title and Company name: Sales Manager/ Shenzhen Changtai Electronics Co., Ltd NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Changtai Electronics Co., Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Changtai Electronics Co., Ltd Address: Building#A1, 8th floor, The third industrial Park DaWangShan, Shajing Town, BaoAn District, Shenzhen, China Product Name: Smart Watch FCC ID: 2AURH-V17 Model(s): V17, TF-H08, V17 Pro, V17 plus, LW-217 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Changtai Electronics Co., Ltd] certify that, as of the date of the filing of the application, the applicant is not identified on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Justin Wu Date: 2024/05/20 Title and Company name: Product manager / Shenzhen Changtai Electronics Co., Ltd NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Changtai Electronics Co., Ltd 2.911 (d)(7)USA Agent v1.4 Section 2.911(d)(7) USA Agent for Service of Process Company name: Shenzhen Changtai Electronics Co., Ltd Address: Building#A1, 8th floor, The third industrial Park DaWangShan, Shajing Town, BaoAn District, Shenzhen, China Product Name: Smart Watch FCC ID: 2AURH-V17 Model(s): V17, TF-H08, V17 Pro, V17 plus, LW-217 2.911(d)(7) USA Designated Agent for Service of Process We, [Shenzhen Changtai Electronics Co., Ltd] designate [AOCE Corporation Inc.] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Shenzhen Changtai Electronics Co., Ltd 2.911 (d)(7)USA Agent v1.4 USA Agent Company name: AOCE Corporation Inc. USA Address: 6547 N Academy Bivd #2266, Colorado Springs, CO, 80918 United States FRN Number: 0033401381 Contact Name: Johnson.wang Telephone No: +1-346-582-5234 Email: [email protected] Applicant Company name: Shenzhen Changtai Electronics Co., Ltd Address: Building#A1, 8th floor, The third industrial Park DaWangShan, Shajing Town, BaoAn District, Shenzhen, China FRN Number: 0028875409 FCC Grantee Code: 2AURH Contact Name: Justin Wu Telephone No: 13410778119 Email: [email protected] Signature: Title: Manager Signature: Title: Product manager Date: 2024/07/08 Date: 2024/07/08 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to -the-communications-supply-chain-through-the

Shenzhen Changtai Electronics Co., Ltd Agent Authorization Company: Shenzhen Changtai Electronics Co., Ltd Address: Building#A1, 8th floor, The third industrial Park DaWangShan, Shajing Town, BaoAn District, Shenzhen, China Product Name: Smart Watch Model Number(s ): V17, TF-H08, V17 Pro, V17 plus, LW-217 Product Description: Smart Watch We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2024-07-08 Name: Justin Wu Title: Product manager Company: Shenzhen Changtai Electronics Co., Ltd

Shenzhen Changtai Electronics Co., Ltd Declaration on Model Differences We, Shenzhen Changtai Electronics Co., Ltd Building#A1, 8th floor, The third industrial Park DaWangShan, Shajing Town, BaoAn District, Shenzhen, 518104 China Declare that the following product(s): Product Name: Smart Watch Model No.: V17, TF-H08, V17 Pro, V17 plus, LW-217 FCC ID: 2AURH-V17 Utilize the identical circuit design, PCB layout, shielding and interface with (V17), only differ in appearance strap material, color and model name. Therefore this application can be regarded as identical in performance to the submitted test sample. The manufacturer would take all the responsibilities for the above product(s). For and on behalf of Shenzhen, 518104 China Authorized person Location Name: Justin Wu Position: Product manager Date of issue: 2024-0 7-08 *I hereby declare that I am entitled to sign on behalf of the applicant and that the information supplied is correct and complete.

Shenzhen Changtai Electronics Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024/07/08 Subject; Request for Confidentiality FCC ID: 2AURH-V17 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description FCC SW SECURITY DESCRIPTION In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Justin Wu Title: Product manager

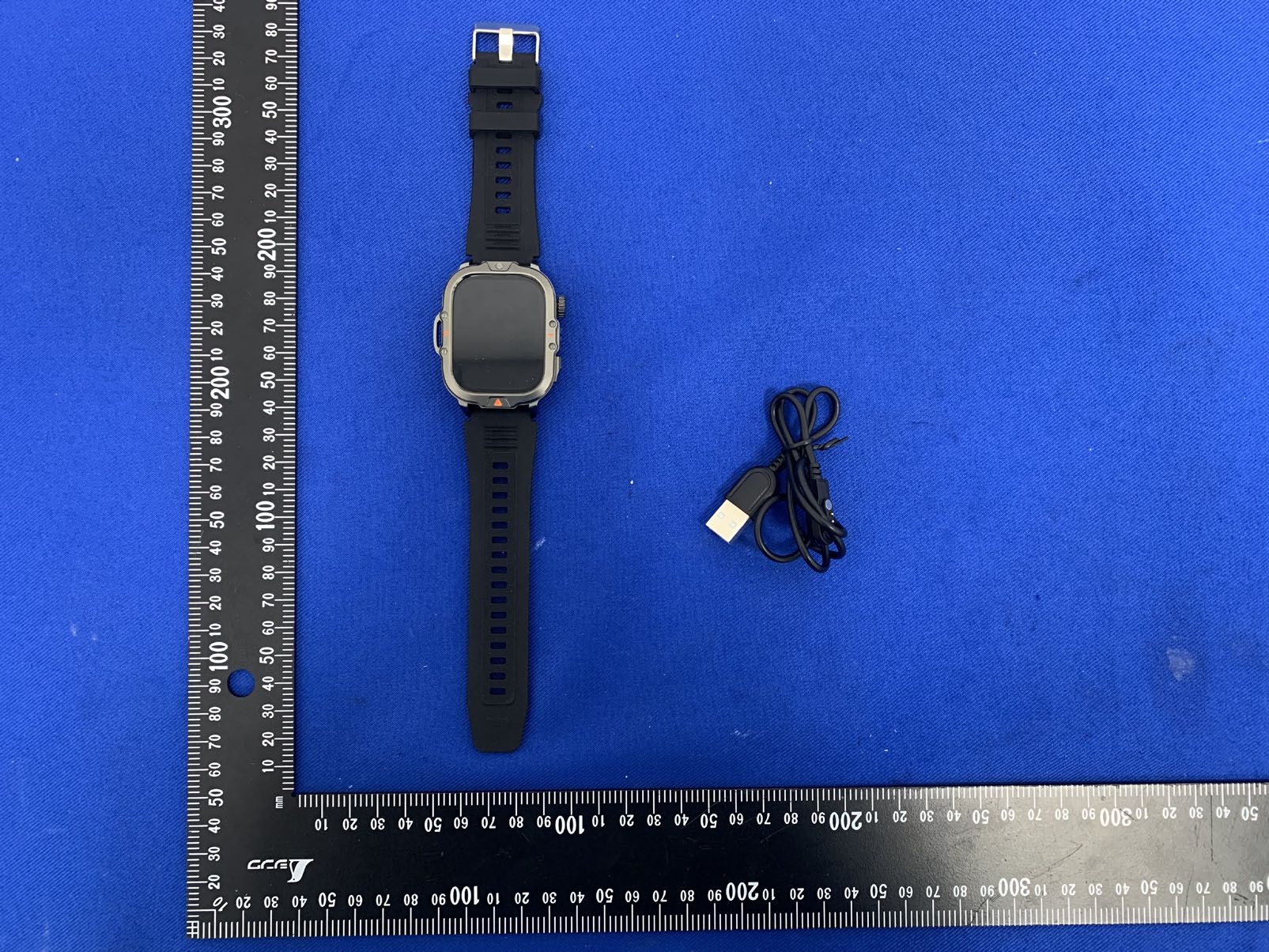

Page 1 of 4 Report No.: 8230EU011819W-AB ANNEX B EXTERNAL PHOTOS PHOTO 1 PHOTO 2 Page 2 of 4 Report No.: 8230EU011819W-AB PHOTO 3 PHOTO 4 Page 3 of 4 Report No.: 8230EU011819W-AB PHOTO 5 PHOTO 6 Page 4 of 4 Report No.: 8230EU011819W-AB PHOTO 7 --- End ---

Label Location: Label Size: 20*30mm FCC ID: 2AURH-V17

Page 1 of 3 Report No.: 8230EU011819W-AC ANNEX C INTERNAL PHOTOS PHOTO 1 PHOTO 2 Page 2 of 3 Report No.: 8230EU011819W-AC PHOTO 3 PHOTO 4 Wire Antenna Page 3 of 3 Report No.: 8230EU011819W-AC PHOTO 5 PHOTO 6 --- End ---

RF EXPOSURE EVALUATION FCC ID: 2AURH-V17 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b): Routine SAR evaluation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval. Channel (MHz) Maximum output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (dBm) Distance (mm) Calculation results Limit Operating Mode 2402 -1.31 -1.31±1 -0.31 5 0.289 3 BLE 2440 -1.23 -1.23±1 -0.23 5 0.296 3 2480 -1.94 -1.94±1 -0.94 5 0.254 3 Test Results: PASS.

TEST REPORT Report No.: 8230EU011819W Applicant: Shenzhen Changtai Electronics Co., Ltd Address: Building#A1, 8th floor, The third industrial Park DaWangShan, Shajing Town, BaoAn District, Shenzhen, China Product Name: Smart Watch Model No.: V17 (refer to clause 2.4) Trademark: OEM FCC ID: 2AURH-V17 Test Standard(s): 47 CFR Part 15 Subpart C Date of Receipt: Jun. 18, 2024 Test Date: Jun. 18, 2024 – Jul. 01, 2024 Date of Issue: Jul. 04, 2024 ISSUED BY: SHENZHEN EU TESTING LABORATORY LIMITED Prepared by: Reviewed and Approved by: ____________________ _____________________ Mikey Zhu/ Engineer Sally Zhang/ Manager Page 2 of 32 Report No.: 8230EU011819W TRF No.: FCC Part 15.247_BLE (A01) Revision Record Report Version Issued Date Description Status V0 Jul. 04, 2024 Original Valid Page 3 of 32 Report No.: 8230EU011819W TRF No.: FCC Part 15.247_BLE (A01) Table of Contents 1 COVER PAGE .................................................................................................................................. 1 2 GENERAL INFORMATION ...................................................................................................................... 5 2.1 APPLICANT INFORMATION .................................................................................................................. 5 2.2 MANUFACTURER INFORMATION .......................................................................................................... 5 2.3 FACTORY INFORMATION ..................................................................................................................... 5 2.4 GENERAL DESCRIPTION OF E.U.T. ..................................................................................................... 5 2.5 TECHNICAL INFORMATION OF E.U.T. .................................................................................................. 6 3 TEST SUMMARY ...................................................................................................................................... 7 3.1 TEST STANDARD ............................................................................................................................... 7 3.2 TEST VERDICT ................................................................................................................................... 7 3.3 TEST LABORATORY ........................................................................................................................... 7 4 TEST CONFIGURATION .......................................................................................................................... 8 4.1 TEST ENVIRONMENT .......................................................................................................................... 8 4.2 TEST EQUIPMENT .............................................................................................................................. 8 4.3 DESCRIPTION OF SUPPORT UNIT ........................................................................................................ 9 4.4 TEST MODE ...................................................................................................................................... 9 4.5 MEASUREMENT UNCERTAINTY ........................................................................................................... 9 4.6 DEVIATION FROM STANDARDS ........................................................................................................... 9 4.7 ABNORMALITIES FROM STANDARD CONDITION ................................................................................... 9 5 TEST ITEMS ........................................................................................................................................... 10 5.1 ANTENNA REQUIREMENT .................................................................................................................. 10 5.1.1 Test Requirement .............................................................................................................. 10 5.1.2 Antenna Anti-Replacement Construction .......................................................................... 10 5.1.3 Antenna Gain .................................................................................................................... 10 5.2 CONDUCTED EMISSION AT AC POWER LINE ..................................................................................... 11 5.2.1 Test Requirement .............................................................................................................. 11 5.2.2 Test Setup Diagram .......................................................................................................... 11 5.2.3 Test Procedure .................................................................................................................. 11 5.2.4 Test Data ........................................................................................................................... 11 5.3 OCCUPIED BANDWIDTH ................................................................................................................... 14 5.3.1 Test Requirement .............................................................................................................. 14 5.3.2 Test Setup Diagram .......................................................................................................... 14 5.3.3 Test Procedure .................................................................................................................. 14 5.3.4 Test Data ........................................................................................................................... 14 5.4 MAXIMUM CONDUCTED OUTPUT POWER .......................................................................................... 15 5.4.1 Test Requirement .............................................................................................................. 15 5.4.2 Test Setup Diagram ...................................…

Text truncated - open the document above for the full version.

Page 1 of 24 Report No.: 8230EU011819W-AD ANNEX D TEST DATA For Project No.: 8230EU011819W Client: Shenzhen Changtai Electronics Co., Ltd Product Name: Smart Watch Model No.: V17 FCC ID: 2AURH-V17 Technology: Bluetooth BLE Test Engineer: Test Date: 2024-06-22 Page 2 of 24 Report No.: 8230EU011819W-AD Test Summary Item Result Duty Cycle Pass Bandwidth Pass Maximum Conducted Output Power Pass Maximum Power Spectral Density Pass Unwanted Emissions In Non-restricted Frequency Bands Pass Page 3 of 24 Report No.: 8230EU011819W-AD 1. Duty Cycle 1.1 Ant1 1.1.1 Test Result Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 2.095 2.501 83.77 0.77 0.03 2440 2.094 2.500 83.76 0.77 0.03 2480 2.094 2.500 83.76 0.77 0.03 Page 4 of 24 Report No.: 8230EU011819W-AD 1.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 5 of 24 Report No.: 8230EU011819W-AD 1M_HCH_2480MHz_Ant1_NTNV Page 6 of 24 Report No.: 8230EU011819W-AD 2. Bandwidth 2.1 OBW 2.1.1 Test Result Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.017 / Pass 2440 1 1.017 / Pass 2480 1 1.016 / Pass Page 7 of 24 Report No.: 8230EU011819W-AD 2.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 8 of 24 Report No.: 8230EU011819W-AD 1M_HCH_2480MHz_Ant1_NTNV Page 9 of 24 Report No.: 8230EU011819W-AD 2.2 6dB BW 2.2.1 Test Result Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.643 >=0.5 Pass 2440 1 0.637 >=0.5 Pass 2480 1 0.637 >=0.5 Pass Page 10 of 24 Report No.: 8230EU011819W-AD 2.2.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 11 of 24 Report No.: 8230EU011819W-AD 1M_HCH_2480MHz_Ant1_NTNV Page 12 of 24 Report No.: 8230EU011819W-AD 3. Maximum Conducted Output Power 3.1 Power 3.1.1 Test Result Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 -1.31 <=30 Pass 2440 -1.23 <=30 Pass 2480 -1.94 <=30 Pass Page 13 of 24 Report No.: 8230EU011819W-AD 3.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 14 of 24 Report No.: 8230EU011819W-AD 1M_HCH_2480MHz_Ant1_NTNV Page 15 of 24 Report No.: 8230EU011819W-AD 4. Maximum Power Spectral Density 4.1 PSD 4.1.1 Test Result Mode TX Type Frequency (MHz) Maximum PSD (dBm/3kHz) Verdict ANT1 Limit 1M SISO 2402 -16.45 <=8 Pass 2440 -16.47 <=8 Pass 2480 -17.04 <=8 Pass Page 16 of 24 Report No.: 8230EU011819W-AD 4.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 17 of 24 Report No.: 8230EU011819W-AD 1M_HCH_2480MHz_Ant1_NTNV Page 18 of 24 Report No.: 8230EU011819W-AD 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Ref 5.1.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 -1.67 2440 1 -1.58 2480 1 -2.26 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. Page 19 of 24 Report No.: 8230EU011819W-AD 5.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 20 of 24 Report No.: 8230EU011819W-AD 1M_HCH_2480MHz_Ant1_NTNV Page 21 of 24 Report No.: 8230EU011819W-AD 5.2 CSE 5.2.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 -1.58 -21.58 Pass 2440 1 -1.58 -21.58 Pass 2480 1 -1.58 -21.58 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. Page 22 of 24 Report No.: 8230EU011819W-AD 5.2.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page 23 of 24 Report No.: 8230EU011819W-AD 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page 24 of 24 Report No.: 8230EU011819W-AD 1M_HCH_2480MHz_Ant1_NTNV --------- End of Report -------

ShenzhenChangtaiFuyuanElectronicsCo.,LTD 3rdFloor,BuildingG,No.2070,JinchengRoad,HaoxiangCommunity,ShajingStreet,BaoanDistrict,Shenzhen AntennaSpecification 1PRODUCTINFORMATION 1.1ManufacturerInformation ManufacturerShenzhenChangtaiFuyuanElectronicsCo.,LTD Address 3rdFloor,BuildingG,No.2070,JinchengRoad,Haoxiang Community,ShajingStreet,BaoanDistrict,Shenzhen 1.2GeneralDescriptionforEquipmentunderTest(EUT) ModelNameUnder Test 2.4GBT-ANT AntennaType WireAntenna Dimensions90mm*10mm MAX.Gain-2.70dBi AntennaType Wire 1.3TechnicalInformation Frequencies2400~2500MHz TestFrequencies 2400MHz,2410MHz,2420MHz,2430MHz,2440MHz,2450MHz 2460MHz,2470MHz,2480MHz,2490MHz,2500MHz 1.4Antennashape Testedby:LuoYouningCheckedby:LiChenjiaApprovedby:SallyYu ShenzhenChangtaiFuyuanElectronicsCo.,LTD 3rdFloor,BuildingG,No.2070,JinchengRoad,HaoxiangCommunity,ShajingStreet,BaoanDistrict,Shenzhen VSWR Frequency VSWR 2400MHz1.57 2450MHz1.76 2500MHz1.93 ShenzhenChangtaiFuyuanElectronicsCo.,LTD 3rdFloor,BuildingG,No.2070,JinchengRoad,HaoxiangCommunity,ShajingStreet,BaoanDistrict,Shenzhen 3DPattern B1.13DPatternfor2400MHz B1.23DPatternfor2450MHz ShenzhenChangtaiFuyuanElectronicsCo.,LTD 3rdFloor,BuildingG,No.2070,JinchengRoad,HaoxiangCommunity,ShajingStreet,BaoanDistrict, Shenzhen B1.33DPatternfor2500MHz ShenzhenChangtaiFuyuanElectronicsCo.,LTD 3rdFloor,BuildingG,No.2070,JinchengRoad,HaoxiangCommunity,ShajingStreet,BaoanDistrict,Shenzhen 1DRadiationPattern PHI=0 PHI=90 ShenzhenChangtaiFuyuanElectronicsCo.,LTD 3rdFloor,BuildingG,No.2070,JinchengRoad,HaoxiangCommunity,ShajingStreet,BaoanDistrict, Shenzhen THETA=90 Frequency(MHz)Gain(dBi)Efficiency(%) 2400-2.7018 2410-2.9217 2420-3.0717 2430-3.0916 2440-3.4815 2450-3.7315 2460-3.7714 2470-3.8114 2480-3.6914 2490-3.9314 2500-4.1814

Page 1 of 2 Report No.: 8230EU011819W-AA ANNEX A TEST SETUP PHOTOS PHOTO 1 Photo of Power Line Conducted Emission Test PHOTO 2 Photo of Radiated Emission Test (below 1GHz) Page 2 of 2 Report No.: 8230EU011819W-AA PHOTO 3 Photo of Radiated Emission Test (above 1GHz) --- End ---
