Wireless doorbell User Guide Congratulations on your purchase of our product. To ensure proper use and trouble-free operation, please carefully read this user guide first. Introduction This product is a modern and stylish wireless doorbell with 39 melodies and alarm chime, 8 volume levels and light ring. It can be expanded with multiple receivers and be set the independent ring tones for each transmitter, and remembers your last-set melody and volume level after a power outage.The transmitter uses a CR2032 lithium battery which has an ultra long five-year lifespan. In The Box Doorbell/Receiver x1 Push Button/Transmitter x1 (CR2032 battery and insulating film included) Push Button Mounting Adhesive Pad x1 User Guide x1 At a Glance Doorbell Push button Volume button Pairing/Reset /Music up button Music down button AC plug Light ring Light ring Push button Tamper switch (Optional) Battery cover Installation Before installation, please test the doorbell button range first. It is not advised to mount the transmitter onto metal surfaces as the material can block RF signals between the transmitter and the receiver. Plug the receiver into the socket. Peel the insulating film from the battery to power the transmitter on. Tear off one side of the double-sides adhesive tap and stick it to the underside of transmitter, tear off the other side and attach transmitter in the desired location. Pairing The transmitter(s) supplied with this kit is(are) paired with receiver. IF NOT or you want to pair more, you might easily pair the transmitter with receiver as followings.  Press Music Up Button or Music Down Button to choose your favorite ringtone.  Press and hold the pairing button until you hear one beep and indicator light blue, then the receiver goes into the pairing/sniffer mode.  Press the button on transmitter, then the receiver beep and flash once to indicate the pairing is complete. The receiver will beep and flash twice to indicate that the pairing fails if the transmitters are full (max to 100). Tip: One transmitter can be paired to more than one receivers and vice versa. Volume Adjustment Press the Volume Button to adjust the volume level of ringtone from highest to mute, then skip to highest. Changing Melody You need to pair the transmitter again if you want to change the chime tone. Please refer to Pairing. Reset /Deleting Transmitters This process resets the receiver to factory settings and removes all pairings. Press and hold Reset Button until you hear four beeps with light ring flashing four times. Specifications Doorbell Power Supply: 110/220VAC Consumption: <5mA @Standby Radio Frequency: 433.92Mhz Selectable Melodies: 38 Volume Levels: 8(mute included) Sound Level(typical): 85dBA Expandable: up to 100 receivers Operation Temperature: -10~55°C Push Button Power Supply: DC 3V (CR2032 Lithium Battery x1) Standby Current: <5uA Transmitting Distance: <80m (Without obstacles and no Interference) Radio Frequency: 433.92Mhz Operation Temperature: -10~55°C

C566091_X23_Ed2 1/1 USAgentforServiceofProcessLETTEROFATTESTATION TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USAgentforServiceofProcess: CompanyName:StoneTradingLimited FRN:0033401936 ContactName:DongmeiFang Address:6547NAcademyBlvd#2266,ColoradoSprings,CO80918,UnitedStates Telephone:+12134573118 Email:[email protected] ThisletteristoconfirmthattheUSAgentforServiceofProcessacceptsresponsibilitytoactas alocalrepresentativeonbehalfof(ShenzhenSmartrolTechnologyLimited). TheUSAgentforServiceofProcessisawareofandagreestocomplywiththerequirements outlinedintheFCCEquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause §2.911. Applicant: Companyname:ShenzhenSmartrolTechnologyLimited ProductDescription:Wirelessdoorbell Granteecode:2AURI FCCID:2AURI-ZX-DB10 ContactName:JiangJiang Address:6F,LeishiIndustrialPark,NO.1119,GuanlanGuanguangRoad,LonghuaDistrict, TelephoneNo:0755-23765848 Email:[email protected] TheApplicantisawareofandagreestocomplywiththerequirementsoutlinedintheFCC EquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause§2.911. ThisAgreementisvaliduntil(Apr.30,2024). Date:2023/03/17 Applicant’sName:JiangJiangUSAgent’sName:DongmeiFang Title:N/ATitle:manager SignatureSignature

C5266091_X24_Ed.1 1/1 “AttestationStatements” TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 TheCommissionadoptedrulesthatprohibitequipmentauthorizationfor“covered” telecommunicationsequipmentandvideosurveillanceequipmentproducedbyentitiesidentified ontheCommission’sCoveredList 1 ,whichisperiodicallyupdated.SeetheCoveredListformore details.ThisAttestationStatementistoconfirmthatwefollowtheSection2.911(d)(5)(i)-(ii) Applicant Companyname:ShenzhenSmartrolTechnologyLimited Granteecode:2AURI FCCID:2AURI-ZX-DB10 ContactName:JiangJiang Address:6F,LeishiIndustrialPark,NO.1119,GuanlanGuanguangRoad,LonghuaDistrict, TelephoneNo:0755-23765848 FaxNo:0755-23765848 Email:[email protected] i.[ShenzhenSmartrolTechnologyLimited](“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipment prohibitedfromreceivinganequipmentauthorizationpursuanttosection 2.903oftheFCCrules.Theapplicantmustsignthiscertification. ii.[ShenzhenSmartrolTechnologyLimited](“theapplicant”)certifiesthat,asof thedateofthefilingoftheapplication,theapplicant[isnot]identifiedonthe CoveredListasanentityproducing“covered”equipment.Theapplicant mustsignthiscertification. Date:2023/02/07 Applicant’sName:JiangJiang Title:N/A Signature 1 TheCommission’sCoveredListispublishedbythePublicSafetyandHomelandSecurityBureauandpostedonthe Commission’swebsite.ThisCoveredList,whichisperiodicallyupdated,identifiesparticularequipment,producedby particularentities,thatconstitutes“covered”equipment.https://www.fcc.gov/supplychain/coveredlist

Shenzhen Smartrol Technology Limited Product Similarity Declaration Product name: Wireless doorbell Model name: ZX-DB10, ZX-DB11, ZX-DB10B, ZXDB10T, ZXDB10R, ZXDB11B, ZX-DB13, ZX-D30T, ZX-DB20, ZX- DB20T FCC ID:2AURI-ZX-DB10 We (Shenzhen Smartrol Technology Limited) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name. Signature: Name: Jiang Jiang Title: N/A Place: 6F, Leishi Industrial Park, No.1119, Guanlan Guanguang Road, Longhua District, Shenzhen, China. Date: Mar. 21, 2023

C5266091_X8_Ed.1 1/1 LetterofAuthorization <ShenzhenSmartrolTechnologyLimited> Company:ShenzhenSmartrolTechnologyLimited Address:6F,LeishiIndustrialPark,NO.1119,GuanlanGuanguangRoad, LonghuaDistrict,Shenzhen,China ProductName:Wirelessdoorbell ModelNumber:ZX-DB10 ZX-DB11,ZX-DB10B,ZX-DB10T,ZX-DB10R,ZX-DB11B,ZX-DB13, ZX-D30T,ZX-DB20,ZX-DB20T FCCIdentifier:2AURI-ZX-DB10 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:JiangjiangDate:2023-02-06 Title:N/A Signatureofapplicant:

C5266091_X10_Ed.1 1/1 <ShenzhenSmartrolTechnologyLimited> OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2023-02-06 Subject:RequestforConfidentiality FCCID:2AURI-ZX-DB10 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo BlockDiagram Schematics TestReportNoNo TestSetupPhotosNo User’sManual InternalPhotos PartsList/TuneUp RFExposureInfo OperationalDescription CoverLetter(s)NoNo SDRSoftware/SecurityInfoNo Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. Sincerely, Signature: Name:Jiangjiang Title:N/A

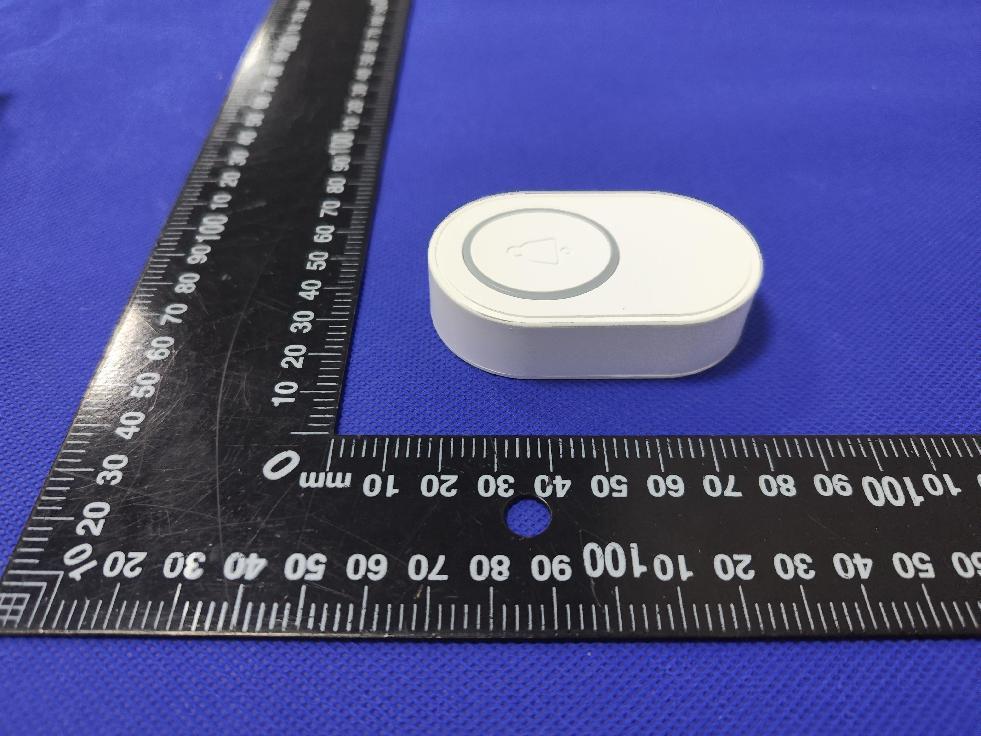

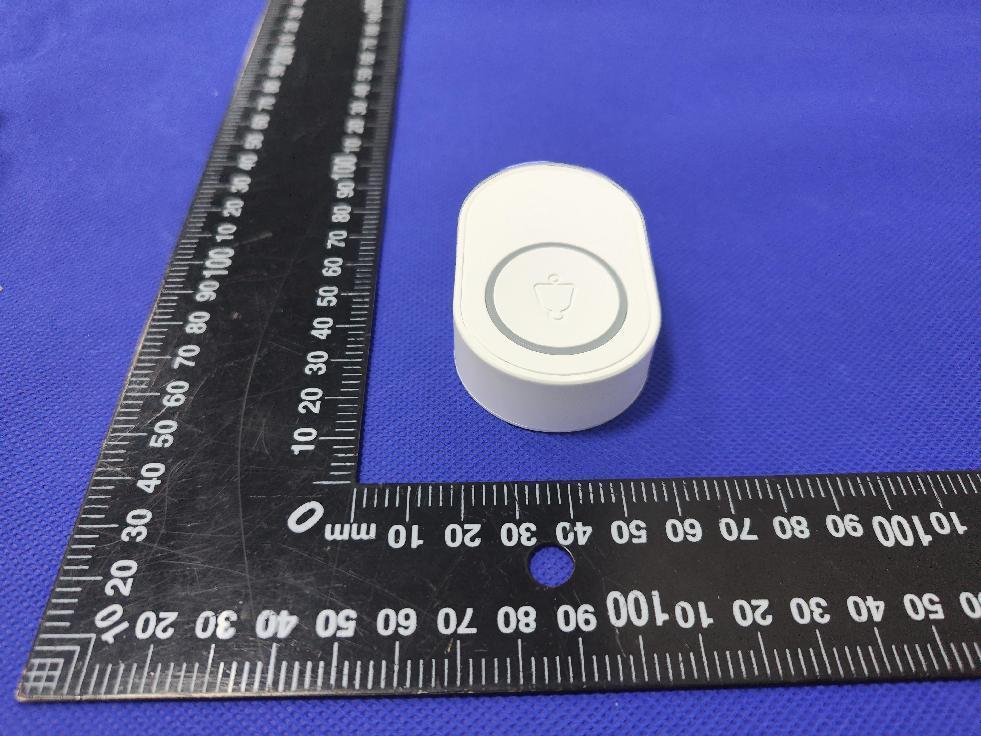

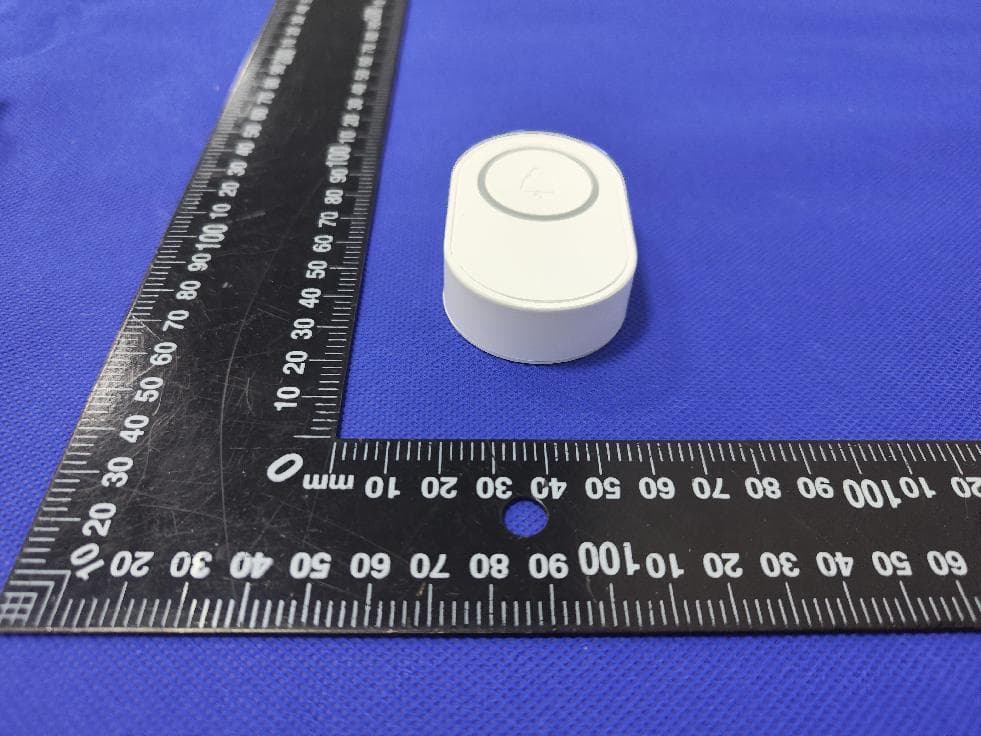

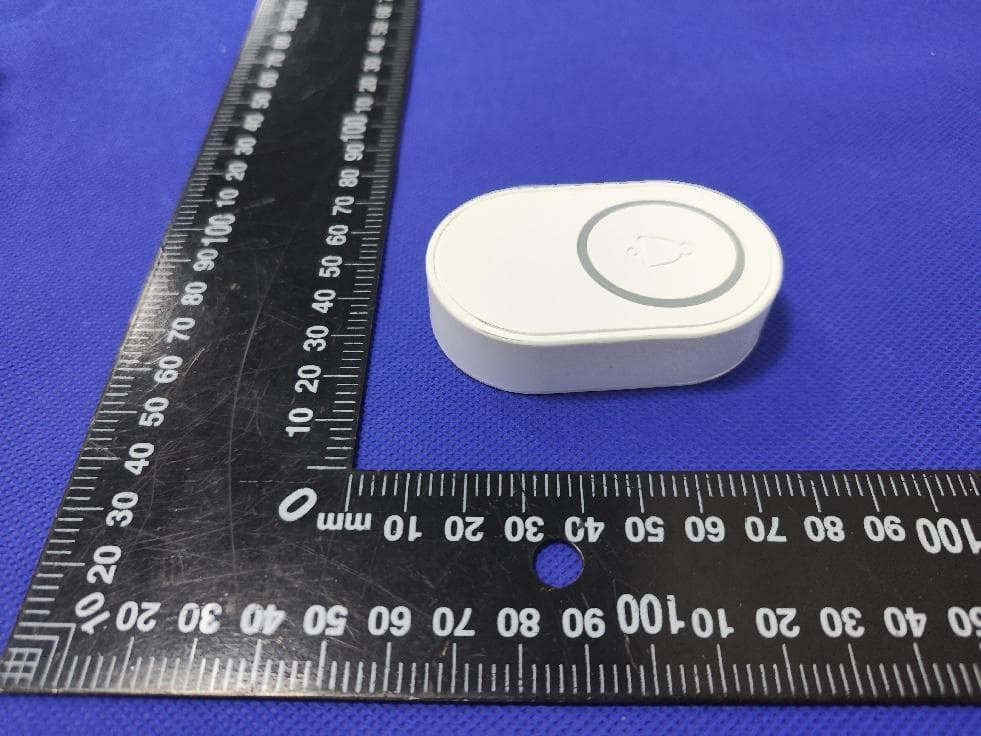

EUTPHOTO(ExternalPhotos)

Labelandlabellocation ShenzhenSmartrolTechnologyLimited FCCID:2AURI-ZX-DB10

EUTPHOTO(InternalPhotos) 433 ※※※※※ENDOFREPORT※※※※※

FCC ID:2AURI-ZX-DB10 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093 ， Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, For 433 ModeMax Power(dBm) Max Power(mW) Frequency(MHz)Min. distance(mm) Calc. thresholds limit ASK-27.6210.00172943350.00022783.0 So a SAR test is not required

PCBAntenna Manufacturedby:YutongCommunicationTechnology(Dongguan)Co.,Ltd. Address:Secondfloor,Building2,ZhufolingFoxingstreet,IndustrialPark#168,Tangxia town,DongguanCity Testreport 1.Antennastanding-wavedisgram 2. Antennaefficiency 3. Antennapattern TestingEquipmentandPrinciple 1.Testequipment: NetworkAnalyzers:Agilent8753D5071B CommunicationsTestSet: AgilentE5515CCMW5008820C 3DChamberTestSystem: 2.Testprinciple:

ProjectNo.:ZKT-2212129263 Page 1 of 30 FCCTESTREPORT FCCID:2AURI-ZX-DB10 ReportNumber...................................:ZKT-2212129263 DateofTest ....................................................... :Dec.19,2022toMar.21,2023 Dateofissue ......................................... :Mar.21,2023 Totalnumberofpages..........................30 TestResult .......................................... : PASS TestingLaboratory............................: ShenzhenZKTTechnologyCo.,Ltd. Address...............................................: 1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname.............................: ShenzhenSmartrolTechnologyLimited Address...............................................: 6F,LeishiIndustrialPark,NO.1119,GuanlanGuanguangRoad, LonghuaDistrict,Shenzhen,China Manufacturer'sname......................: ShenzhenSmartrolTechnologyLimited Address...............................................: 6F,LeishiIndustrialPark,NO.1119,GuanlanGuanguangRoad, LonghuaDistrict,Shenzhen,China Testspecification: Standard................................................: FCCCFRTitle47Part15SubpartCSection15.231 ANSIC63.10:2013 Testprocedure.....................................: / Non-standardtestmethod................:N/A TestReportFormNo........................: TRF-EL-108_V0 TestReportForm(s)Originator ..... :ZKTTesting MasterTRF ........................................ : Dated:2020-01-06 ThisdevicedescribedabovehasbeentestedbyZKT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZKT,thisdocumentmay bealteredorrevisedbyZKT,personalonly,andshallbenotedintherevisionofthedocument. Productname ..................................... :Wirelessdoorbell Trademark...........................................: N/A Model/Typereference ......................... :ZX-DB10 ZX-DB11,ZX-DB10B,ZX-DB10T,ZX-DB10R,ZX-DB11B,ZX-DB13, ZX-D30T,ZX-DB20,ZX-DB20T Ratings .................................................. :Input:DC3VBattery ProjectNo.:ZKT-2212129263 Page 2 of 30 Testingprocedureandtestinglocation: TestingLaboratory.......................................:ShenzhenZKTTechnologyCo.,Ltd. Address............................................................:1/F,No.101,BuildingB,No.6,TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China JimLiuTestedby(name+signature).......................: TomZou Reviewer(name+signature).......................: LakeXieApproved(name+signature) ....................... : ProjectNo.:ZKT-2212129263 Page 3 of 30 TableofContentsPage 1.VERSION5 2.SUMMARYOFTESTRESULTS6 2.1TESTFACILITY7 2.2MEASUREMENTUNCERTAINTY7 3.GENERALINFORMATION8 3.1GENERALDESCRIPTIONOFEUT8 3.2DESCRIPTIONOFTESTMODES9 3.3BLOCKDIGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED9 3.4DESCRIPTIONOFSUPPORTUNITS(CONDUCTEDMODE)9 3.5EQUIPMENTSLISTFORALLTESTITEMS10 4.EMCEMISSIONTEST12 4.1CONDUCTEDEMISSIONMEASUREMENT12 4.1.1POWERLINECONDUCTEDEMISSIONLIMITS12 4.1.2TESTPROCEDURE13 4.1.3DEVIATIONFROMTESTSTANDARD13 4.1.4TESTSETUP13 4.1.5EUTOPERATINGCONDITIONS13 4.1.6TESTRESULTS13 4.2RADIATEDEMISSIONMEASUREMENT14 4.2.1RADIATEDEMISSIONLIMITS14 4.2.2TESTPROCEDURE15 4.2.3TESTSETUP16 4.2.4EUTOPERATINGCONDITIONS17 4.2.5TESTRESULTS17 5.1APPLIEDPROCEDURES/LIMIT22 5.2TESTPROCEDURE22 5.3DEVIATIONFROMSTANDARD22 5.4TESTSETUP22 5.5EUTOPERATIONCONDITIONS22 5.6TESTRESULTS23 6.CALCULATIONOFAVERAGEFACTOR24 7.DWELLTIME27 7.1APPLICABLESTANDARD27 7.2TESTPROCEDURE27 7.5EUTOPERATIONCONDITIONS27 7.6TESTRESULTS28 ProjectNo.:ZKT-2212129263 Page 4 of 30 TableofContentsPage 8.ANTENNAREQUIREMENT29 9.TESTSETUPPHOTO30 10.EUTCONSTRUCTIONALDETAILS30 ProjectNo.:ZKT-2212129263 Page 5 of 30 1.VERSION ReportNo.VersionDescriptionApproved ZKT-2212129263Rev.01InitialissueofreportMar.21,2023 ProjectNo.:ZKT-2212129263 Page 6 of 30 2.SUMMARYOFTESTRESULTS Testproceduresaccordingtothetechnicalstandards: FCCPart15(15.231),SubpartC Standard Section TestItemJudgmentRemark 15.207ConductedEmissionN/A 15.209,15.231b Fundamental&RadiatedSpuriousEmission Measurement PASS 15.231cOccupyBandwidthPASS 15.231aDwelltimePASS 15.203AntennaRequirementPASS NOTE: (1)”N/A”denotestestisnotapplicableinthisTestReport ProjectNo.:ZKT-2212129263 Page 7 of 30 2.1TESTFACILITY ShenzhenZKTTechnologyCo.,Ltd. Add.:1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrialAvenue,FuhaiStreet,Bao'an District,Shenzhen,China FCCTestFirmRegistrationNumber:692225 DesignationNumber:CN1299 ICRegisteredNo.:27033 CABidentifier:CN0110 2.2MEASUREMENTUNCERTAINTY Thereporteduncertaintyofmeasurementy±U ， whereexpendeduncertaintyUisbasedonastandard uncertaintymultipliedbyacoveragefactorofk=2，providingalevelofconfidenceofapproximately95 % 。 No.ItemUncertainty 1 3mcamberRadiatedspurious emission(9KHz-30MHz) U=4.5dB 2 3mcamberRadiatedspurious emission(30MHz-1GHz) U=4.8dB 3 3mchamberRadiatedspurious emission(1GHz-6GHz) U=4.9dB 4 3mchamberRadiatedspurious emission(6GHz-40GHz) U=5.0dB 5ConducteddisturbanceU=3.2dB 6RFBandEdgeU=1.68dB 7RFpowerconductedU=1.86dB 8RFconductedSpuriousEmissionU=2.2dB 9RFOccupiedBandwidthU=1.8dB 10RFPowerSpectralDensityU=1.75dB 11humidityuncertaintyU=5.3% 12Temperatureuncertainty U=0.59 °C ProjectNo.:ZKT-2212129263 Page 8 of 30 3.GENERALINFORMATION 3.1GENERALDESCRIPTIONOFEUT Equipment Wirelessdoorbell TradeName N/A ModelName ZX-DB10 SerialModel ZX-DB11,ZX-DB10B,ZX-DB10T,ZX-DB10R,ZX-DB11B, ZX-DB13,ZX-D30T,ZX-DB20,ZX-DB20T ModelDifferenceOnlyfordifferentmodelname. Hardwareversion H1.0 Softwareversion S1.0 OperationFrequency:433.92MHz ModulationType:ASK AntennaType:PCBAntenna AntennaGain:-2.12dBi RatingsDC3VBattery ProjectNo.:ZKT-2212129263 Page 9 of 30 3.2DESCRIPTIONOFTESTMODES ForAllEmission FinalTestModeDescription TransmittingmodeKeeptheEUTincontinuouslytransmittingmode Note: (1)Fully-chargedbatteryisusedduringthetest 3.3BLOCKDIGRAMSHOWINGTHECONFIGURATIONOFS…
