2AUTI-DKR30Robot Vaccum Cleaner

7 FCC STATEMENT ： 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body IC warning - English: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. RF warning statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. - French: L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement Avertissement RF: Cet appareil est conforme à IC l’exposition aux rayonnements limites fixées pour un environnement non contrô lé. Cet appareil doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. Cet transmetteur ne doit pas être co-situé ou opérant en liaison avec toute autre antenne ou transmetteur.

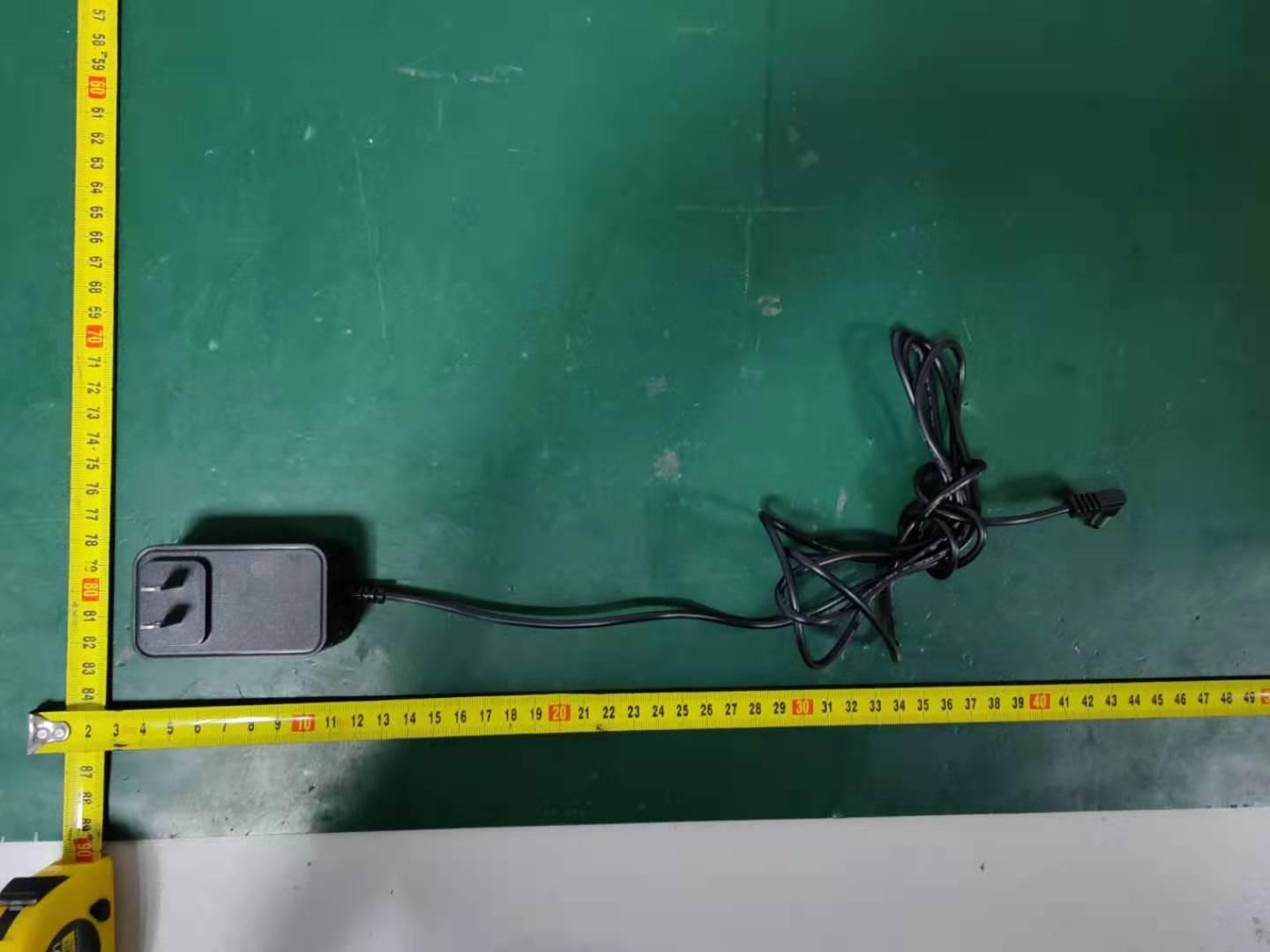

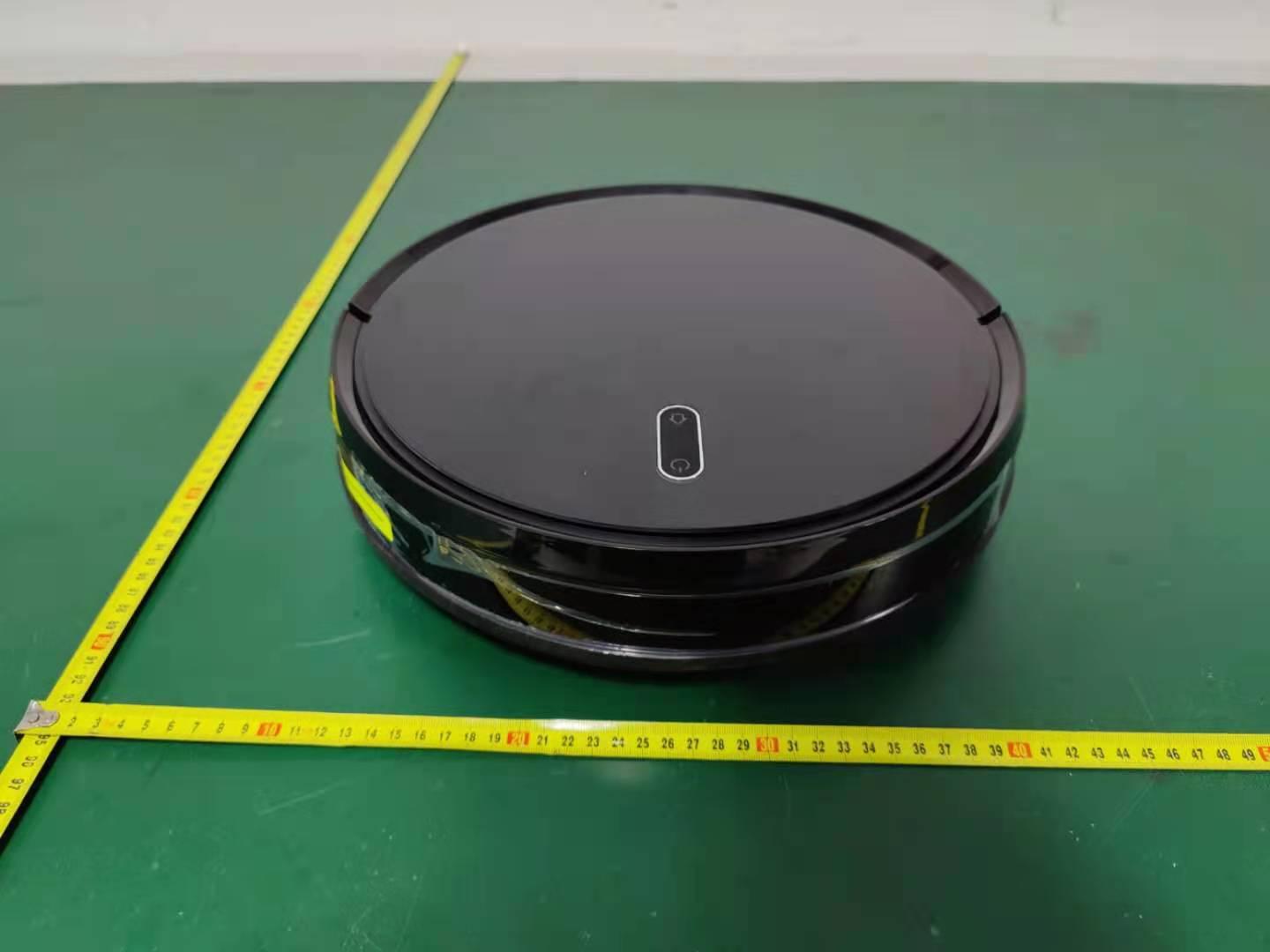

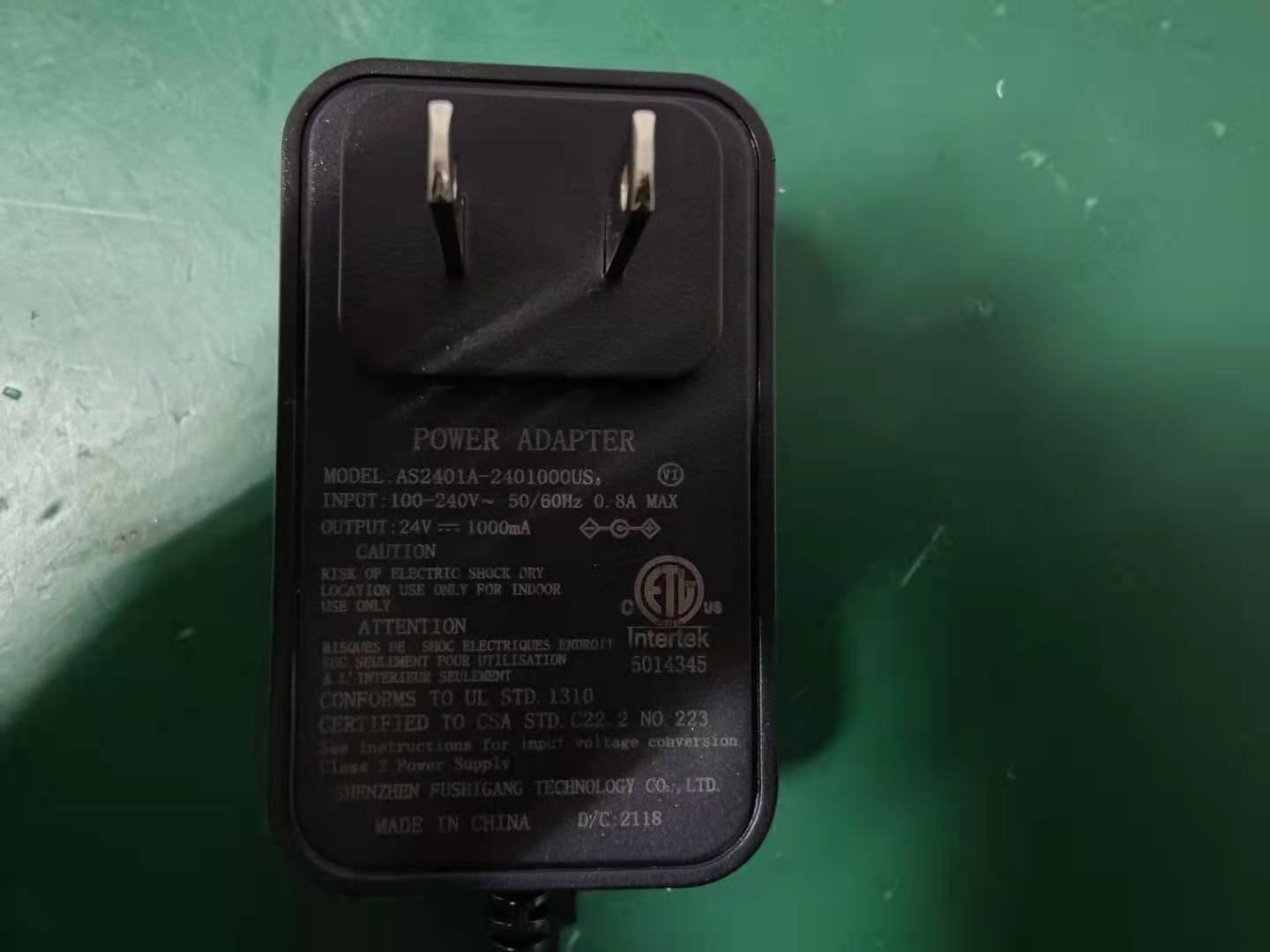

ExternalPhotos M/N:D30 ExternalPhotos M/N:D30 ExternalPhotos M/N:D30 PowerSupply

InternalPhotos M/N:D30 InternalPhotos M/N:D30 InternalPhotos M/N:D30 InternalPhotos M/N:D30 InternalPhotos M/N:D30 InternalPhotos M/N:D30 InternalPhotos M/N:D30 InternalPhotos M/N:D30 InternalPhotos M/N:D30 EndofTestReport

FCC ID:2AUTI-DKR30 EST Technology Co. ,Ltd Report No. ESTE-R2108198 Page 1 of 4 FCC 47 CFR MPE REPORT SHENZHEN MODERN BUSINESS TRADING CO.,LTD. Robotic Vacuum Cleaner Model Number: D30 Additional Model: D30Max FCC ID: 2AUTI-DKR30 Prepared for: SHENZHEN MODERN BUSINESS TRADING CO.,LTD. 302,no.4,lane 3,Yongxiang Road,Wuhe Community,Bantian Street, Longgang district,Shenzhen Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2108198 Date of Test: Aug. 13~20, 2021 Date of Report: Aug. 21, 2021 FCC ID:2AUTI-DKR30 EST Technology Co. ,Ltd Report No. ESTE-R2108198 Page 2 of 4 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID:2AUTI-DKR30 EST Technology Co. ,Ltd Report No. ESTE-R2108198 Page 3 of 4 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID:2AUTI-DKR30 EST Technology Co. ,Ltd Report No. ESTE-R2108198 Page 4 of 4 2. Conducted Power Result Antenna 0 Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) BLE 2402 4.26 2.6669 4 ±2 2.5 1.778 2440 4.44 2.7797 4±2 2.5 1.778 2480 4.36 2.7290 4±2 2.5 1.778 IEEE 802.11b 2412 18.27 67.143 18 ±2 2.5 1.778 2437 18.26 66.988 18±2 2.5 1.778 2462 18.38 68.865 18±2 2.5 1.778 IEEE 802.11g 2412 19.59 90.991 19 ±2 2.5 1.778 2437 19.95 98.855 19±2 2.5 1.778 2462 20.14 103.276 20±2 2.5 1.778 IEEE 802.11n HT20 2412 19.83 96.161 19 ±2 2.5 1.778 2437 20.29 106.905 20±2 2.5 1.778 2462 20.43 110.408 20±2 2.5 1.778 3. Calculated Result and Limit Antenna 0 Mode Target power (dBm) Antenna gain Power Density (S) (mW/cm 2 ) Limited of Power Density (S) (mW/cm 2 ) Test Result (dBi) (Linear) 2.4G Band BLE 6 2.5 1.7780.0014 1 Complies IEEE 802.11b 20 2.5 1.7780.03538 1 Complies IEEE 802.11g 22 2.5 1.7780.05607 1 Complies IEEE 802.11n HT20 22 2.5 1.7780.05607 1 Complies End of Test Report
