2AUUZD10D20D11Digital Enhanced Cordless Telecommunications

1 INTRODUCTION Thank you for purchasing our newest DECT single model, the manual is designed to familiarize you with this phone. To get the maximum use from the phone, we suggest that you read this instruction manual carefully before using. Important Notices: 1) Please charge the battery for at least 12 hours before using. You hear a beep when the handset is correctly in position on the charging cradle. 2) To keep the batteries charged, whenever you don’t need to use the handset (such as overnight, or when you go out), leave the handset on the charge cradle. 3) When the unit is powered on initially, the date and time will be blinking, please to set the date and time first according to use the method of DATE and TIME . SAFETY INSTRUCTION When using your telephone equipment, the following basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons:  Read, understand and follow all warnings and instructions  Unplug the product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a soft damp cloth for cleaning.  Do not place this product on unstable surfaces. The product may drop, causing serious damage to the product.  Do not overload wall outlets and extension cords as this can result in fire or electric shock.  Never push foreign objects of any kind into this product through cabinet slots as they may affect dangerous voltage points or short circuit parts that could result in fire or electric shock. Never spill liquid of any kind on the product.  Avoid moving or disconnecting this unit during a heavy storm, as there may be a remote risk of electric shock from lightning and thunder.  IMPORTANT – The base unit must be used with the mains adapter supplied with the unit.  Using any other adapter will may invalidate any approval given to this apparatus.  Unprofessional person cannot open the telephone even meets troubles, please send to service center. FEATURES  LCD 3 lines display  Maximum 5 handsets can be registered to the same base unit, and maximum 4 bases per handset  16 kinds of interface languages: Portuguese, Spanish, English, French, German, Italian, Dutch, Hungarian, Greek, Polish, Danish, Norwegian, Swedish, Turkish, Russian and Ukrainian  Pre-dial and edit function  Redial and pause function  30 incoming numbers memories and 10 outgoing numbers memories  50 phone book memories with 12 characters & 20 digits maximum  Call transfer to other handset and intercom call between two handsets  Conference call between external call and two handsets  10 ringing tones for selection  Ringing tone/earpiece/hands-free volume adjustable 2  Different melody for different call available  Alarm clock function  Tone/Pulse dialing mode can be set  Flash time 100/300/600/1000ms for selection  LCD backlight function  Auto/manual answering function  Dialing barring function  Keypad lock function  Mute function  In use and charge LED indicator LCD DISPLAY/LCD MAP/KEY PAD DESCRIPTION Icon Description Function ANTENNA The antenna icon will always be shown on the LCD, it indicates for signal strength, flashes when the handset is out of range, disappear when registration to base is lost. Talk The icon will be displayed when the user has pressed key once .The icon will be displayed when making an external call ALARM_IND The alarm icon will be shown as steady on when the alarm is set. The alarm icon will flash when the alarm is triggered. RING OFF Displayed when external ring set to off PHONEBOOK Displayed when viewing the phonebook entries. VMWI_IND Displayed when a new voice message is received from the network. NEW CID The icon will be displayed when a new call comes HANDSFREE The icon will be displayed when press key, in idle state. BATTERY_IND Displayed charging indication and indication of the current battery status. Intercom The icon will be displayed when making an internal call Key pad 3 Icon Description Function Definition off hook In standby mode press once to take the handset into off hook mode. hand free In standby mode press once to take the handset to hand free mode. MUNE/OK Entry to the menu functions from idle mode; Confirming selections & actions. In talk mode press the key to perform mute function. OFF/END In talk mode, press once to hang up the call; In standby mode, hold for 3 seconds to power down the handset. Phonebook/BACK This key is used to enter the phonebook both in standby mode and in talk mode. Press to exit present menu () UP Scrolling up through lists and menu options; Increasing the volume; Review incoming number, outgoing number and phonebook number. 4 () DOWN Scrolling down through lists and menu options; Decreasing the volume. Review incoming number, outgoing number and phonebook number. Mute In talk mode press the key to perform mute function. FL/CLR Flash/Delete The key is used to delete memory; Delete the current input by a short pressing during menu edit. RD/P Redial/Pause In on hook or off hook state, press it to insert a pause time between two digits numbers. Redial the last dialed number. keypad lock A Long press to activate keypad lock; To set up a conference call. ring on/off In addition to its use for text and number entry; Press and hold to switch the handset external call ring on/off Page Page the handset. Register the handset to a specified base. Intercom To set up an internal call to another handset; To transfer an incoming call to another handset; To set up a conference call with an external line and an internal handset. INSTALLATION 1) Plug the main power lead into the bottom of the base unit. 2) Plug the main adapter into mains socket with the switch on the socket set to off. 3) Switch on main power at the socket. 4) Fit the batteries in the handset Note: If you do not modify the password yourself, all the passwords in this manual are default as 0000. Menu Settings During idle state, press key to enter the menu setting, there are five sub…

Text truncated - open the document above for the full version.

SHENZHEN DAERXIN TECHNOLOGY CO.,LTD 3th FLOOR WEST, 1 ST BUILDING DAERXUN INDUSTRIAL PARK NO. 29 PINGXIN NORTH ROAD PINGHU, LONGGANG,SHENZHEN, CHINA Tel: 0755-8920 7199 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2019-12-02 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We SHENZHEN DAERXIN TECHNOLOGY CO.,LTD, the undersigned, hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Qingbin Guo General Manager

SHENZHEN DAERXIN TECHNOLOGY CO.,LTD 3th FLOOR WEST, 1 ST BUILDING DAERXUN INDUSTRIAL PARK NO. 29 PINGXIN NORTH ROAD PINGHU, LONGGANG,SHENZHEN, CHINA. Tel: 0755-8920 7199 Email: [email protected] FCC Confidential Authorization Date: 2019-12-02 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AUUZD10D20D11 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, SHENZHEN DAERXIN TECHNOLOGY CO.,LTDhereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Qingbin Guo General Manager

SHENZHEN DAERXIN TECHNOLOGY CO.,LTD Address: 3th FLOOR WEST, 1 ST BUILDING DAERXUN INDUSTRIAL PARK NO. 29 PINGXIN NORTH ROAD PINGHU, LONGGANG,SHENZHEN, CHINA Tel: 0755-8920 7199 Email: [email protected] Product Similarity Declaration Date: 2019-12-02 To : Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 Dear Sir/Madam, We, SHENZHEN DAERXIN TECHNOLOGY CO.,LTD , hereby declare that we have a product named as Digital Enhanced Cordless Telecommunications, (model: D1005, FCC ID: 2AUUZD10D20D11) was tested by BACL, Meanwhile, for our marketing purpose, we would like to list a series model(D1001/D1002/D1002B/D1002TAM/D1102/D1003/D1004/ D2002/D2005)on reports and certificate, all the models are identical schematics, they have different model name. No other changes are made to them. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Qingbin Guo General Manager

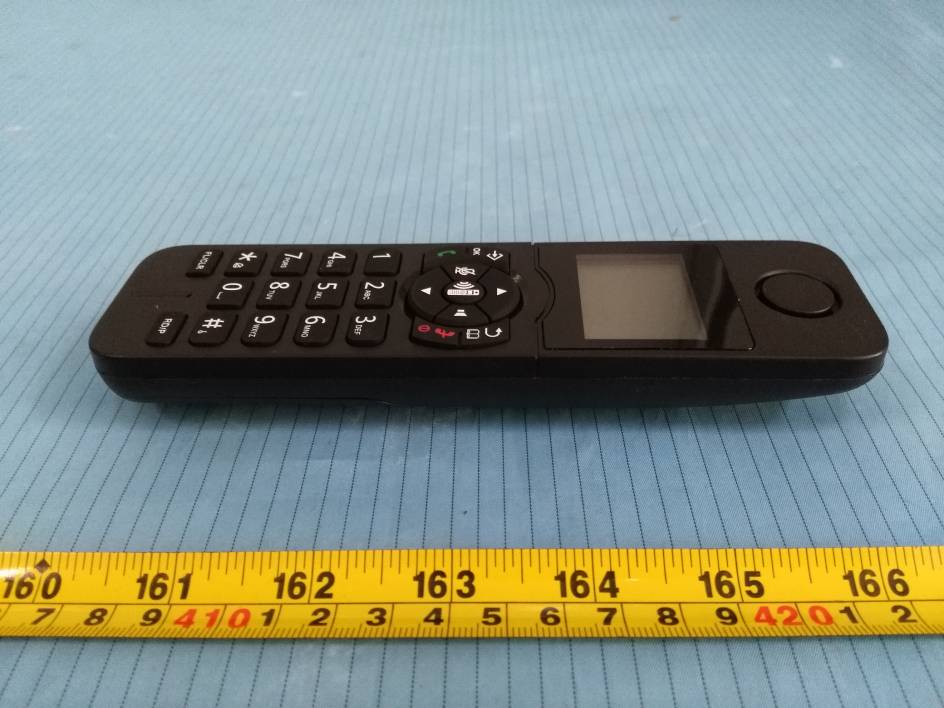

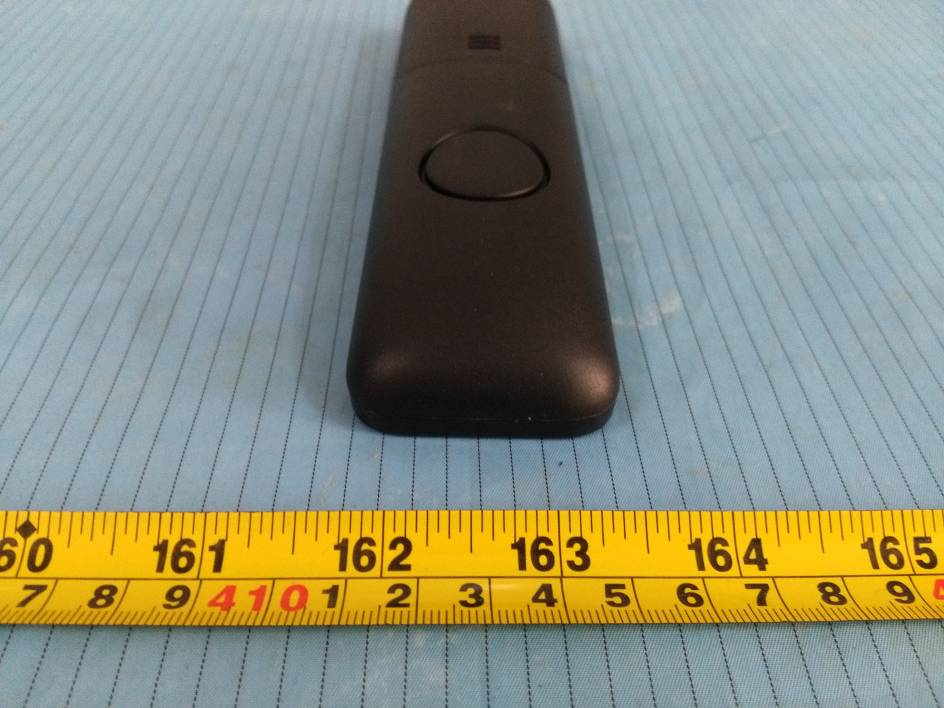

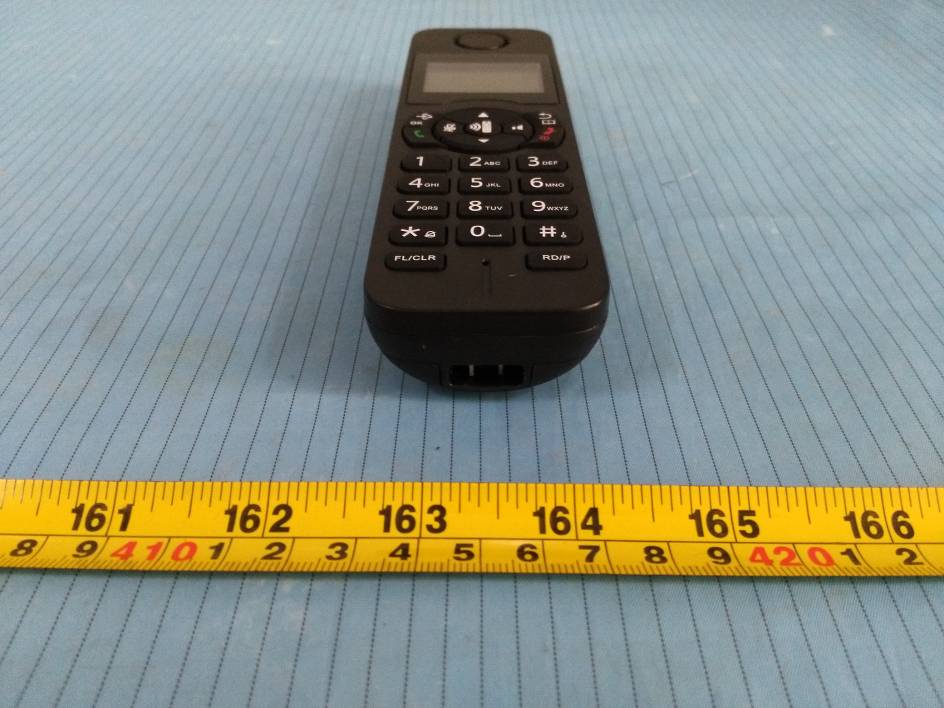

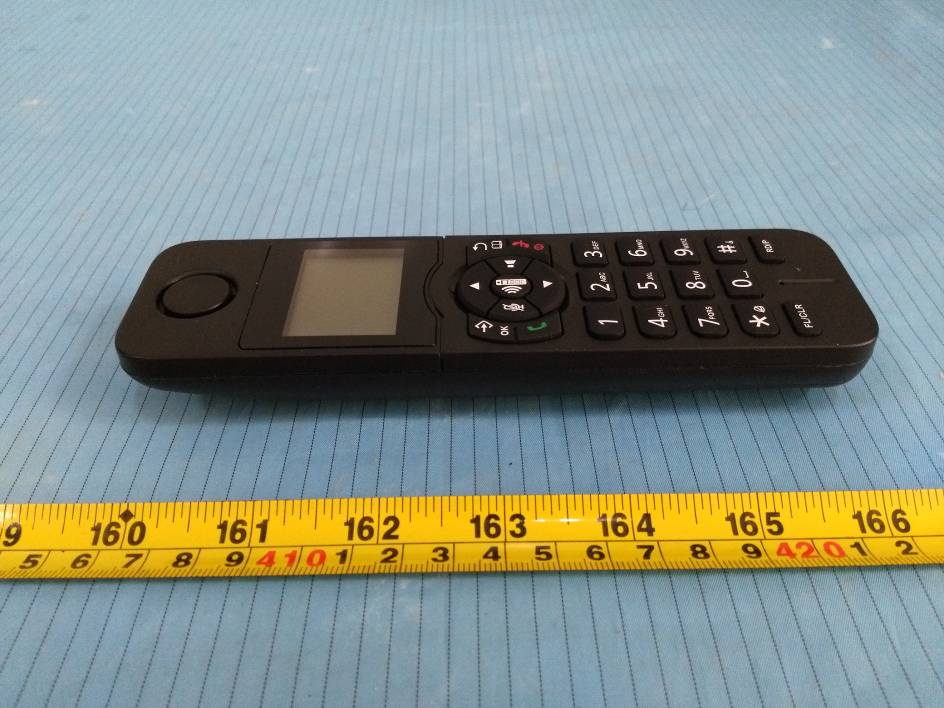

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left View EUT – Right View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View 1 EUT – Cover off View 2 EUT – Cover off View 3 EUT – Main Board Top View 1 EUT – Main Board Top View 2 EUT – Main Board Bottom View Antenna EUT – Main Board Bottom Shielding off View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”. SAR EVALUATION REPORT For SHENZHEN DAERXIN TECHNOLOGY CO.,LTD 3th FLOOR WEST, 1ST BUILDING DAERXUN INDUSTRIAL PARK, NO. 29 PINGXIN NORTH ROAD, PINGHU, LONGGANG,SHENZHEN, China FCC ID: 2AUUZD10D20D11 Report Type: Original Report Product Type: Digital Enhanced Cordless Telecommunications Report Number: RSZ191009001-20A Report Date: 2019-12-06 Reviewed By: Rocky Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RSZ191009001-20A SAR Evaluation Report 2 of 40 Attestation of Test Results EUT Information EUT Description Digital Enhanced Cordless Telecommunications Tested Model D1005 Multiple Models D1001, D1002, D1002B, D1002TAM, D1102, D1003, D1004, D2002,D2005 FCC ID 2AUUZD10D20D11 Serial Number 19100900121 Test Date 2019-11-08 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) DECT 1g Head SAR 0.06 1.6 1g Body SAR 0.03 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-2:2010 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Human models, instrumentation, and procedures-Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximit y to the human body (frequencyrange of 30 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reportin g v01r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RSZ191009001-20A SAR Evaluation Report 3 of 40 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION .................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 6 SAR LIMITS ................................................................................................................................................................. 7 FACILITIES .................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 15 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 15 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 16 LIQUID VERIFICATION ............................................................................................................................................... 16 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 17 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 18 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 19 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 19 CHEEK/TOUCH POSITION ........................................................................................................................................... 20 EAR/TILT POSITION ................................................................................................................................................... 20 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS .............................................................................. 21 TEST DISTANCE FOR SAR EVALUATION .................................................................................................................... 21 SAR EVALUATION PROCEDURE ............................................................................................................…

Text truncated - open the document above for the full version.

PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15D MEASUREMENT AND TEST REPORT For SHENZHEN DAERXIN TECHNOLOGY CO.,LTD 3th FLOOR WEST, 1ST BUILDING DAERXUN INDUSTRIAL PARK, NO. 29 PINGXIN NORTH ROAD, PINGHU, LONGGANG,SHENZHEN, China FCC ID: 2AUUZD10D20D11 Report Type: Original Report Product Type: Digital Enhanced Cordless Telecommunications Re port Number: RSZ191009001-00C Re port Date: 2019-11-19 Reviewed B y: Simon Wang RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ191009001-00C FCC Part 15D Page 2 of 47 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS ........................................................................................................ 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC §1.1307 & §2.1093 - RF EXPOSURE ................................................................................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST RESULT ............................................................................................................................................................. 10 FCC§15.317 & §15.203 - ANTENNA REQUIREMENT ......................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC§15.315 & §15.207 - CONDUCTED EMISSIONS ............................................................................................ 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 13 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 13 TEST RESULTS SUMMARY ..............................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View
