2AUVWPB1042InkPad Eo

User Manual Table of Contents SAFETY PRECAUTIONS .........................................................4 VISUAL APPEARANCE AND CONTROLS ................................8 TECHNICAL SPECIFICATIONS ................................................9 GETTING STARTED .............................................................10 Charging Battery 10 On/Off 11 USB data transfer/charging port 11 Audio support 12 Gestures 13 Working with On-Screen Keyboard 14 Connecting to the Internet 15 Bluetooth pairing 16 MAIN MENU ......................................................................18 Top Menu 19 Navigation buttons 19 Main control switch panel 19 Status panel 21 Side Menu 22 Notes 22 Library 23 Tasks 26 Apps 26 Browser 27 Office Docs 28 READING BOOKS ................................................................31 Navigation and page turning 31 XReader Reading menu 32 Handwritten notes 37 Long tap menu 38 PBReader Reading menu overview 39 PB Reader Reading menu 40 Long tap menu 43 PocketBook Cloud 44 Sync process 45 SETTINGS ...........................................................................47 Network & Internet 48 Connected devices 48 Power Management 48 Sidebar Applications 48 In this section you can select applications that will be displayed on the sidebar of your device. 48 Display 48 Controls 49 System 49 Firmware update 50 About the device 50 FIRMWARE UPDATE ...........................................................52 CUSTOMER SUPPORT .........................................................53 COMPLIANCE WITH INTERNATIONAL STANDARDS ...........54 Maintenance Do not leave the Device for a long time in poorly ventilated envi- ronment, e.g. in a car or in closed tight boxes/packaging. Neither drop nor try to bend the Device. Do not disassemble or modify the book reader. Safety Precautions Before start working with the Device, please, read this section care- fully. Following these instructions will help you ensure your safety and extend service life of the Device. Storage, Carriage and Usage Conditions Device operating temperature range is 0°C to 40°C, so don’t expose the Device to excessively high or low temperatures. Never leave ca- bles near heat sources. Heated cables or their insulation may be- come deformed or damaged, which could lead to fire or electric shock. Try to avoid next impacts: Direct sun- light Direct flame or smoke Liquids or damp Strong electro- magnetic fields UV electromag- netic radiation Electrostatic charges Excessive me- chanical pressure Safety Srecautions 5 Do not use the Device with a damaged battery or charger (broken case, poor contact, broken feed cable). If the battery is damaged (cracked case, leakage of electrolyte, off-shape etc.) it should be re- placed by the authorized personnel. Usage of home-made or modi- fied batteries may cause an explosion and/or damage the Device. Srotect the screen from objects that may scratch or damage it. To ensure adequate protection of the screen, we recommend storing the Device in a protective and/or hard cover. Do not use organic or inorganic solvents (e.g. benzoyl etc.) to clean the screen/case. Keep away from children. Use a soft cloth to remove dust from the Device’s surface. Apply a few drops of distilled water to remove dirt. Up to five faulty pixels are acceptable in the screen and do not con- stitute a warrantable defect of the screen. If the device has not been used for a long time, the battery charge indicator may not work when the charger is connected. In this case, connect the charger, let the device charge for 1 hour, then discon- nect and reconnect the charging device or USB cable. The device can then be used as normal. Safety Srecautions 6 By the end of product guarantee term, please contact the nearest authorized service facility for examination on the subject of security is maintained. For detailed information about service centres in your region please visit the official website: http://www.pocketbook.ch. To prevent possible hearing damage, do not listen at high volume levels for long periods. Warning! The screen of the device has a fragile basis! To avoid damage, make sure not to drop, bend, or apply pressure to the device, do not allow point pressure on the screen surface and any other actions that might break or damage the glass base. Also, the screen does not have any special protective layer so please avoid any contact between its surface and objects that might leave marks or scratches on it. To decrease the risk of damaging the device and its screen it is recommended to keep and transport it in a Socket- Book protection cover. RF Safety The Device receives and transmits radio frequencies and may inter- fere with radio communications and other electronic equipment. If you use personal medical Devices (e.g. a pacemaker or hearing aid) please contact your doctor or the manufacturer to learn whether or not such medical devices are protected against external RF signals. Safety Srecautions 7 Do not use wireless communication in places where it is prohibited, e.g. onboard a plane and in hospitals — this may affect airborne avionics or medical equipment. Utilization Incorrect disposal of this Device may have adverse im- pacts on the environment and public health. To prevent such consequences, follow the device-specific disposal requirements. Recycling of these materials helps preserve natural resources. For more information regarding recycling issues please contact local municipal authorities, your domestic waste collection service, store where you purchased the Device, or the authorized service center. Disposal of electric and electronic components (the Directive is ap- plicable to the EU and other European countries where separate waste disposal systems exist). In other countries dispose batteries accordingly to local laws. Do not destroy the battery by burning it to avoid the danger of explosion. Visual appearance and controls 1. Power button – turning device On/Off.. 2. LED indicator – de…

Text truncated - open the document above for the full version.

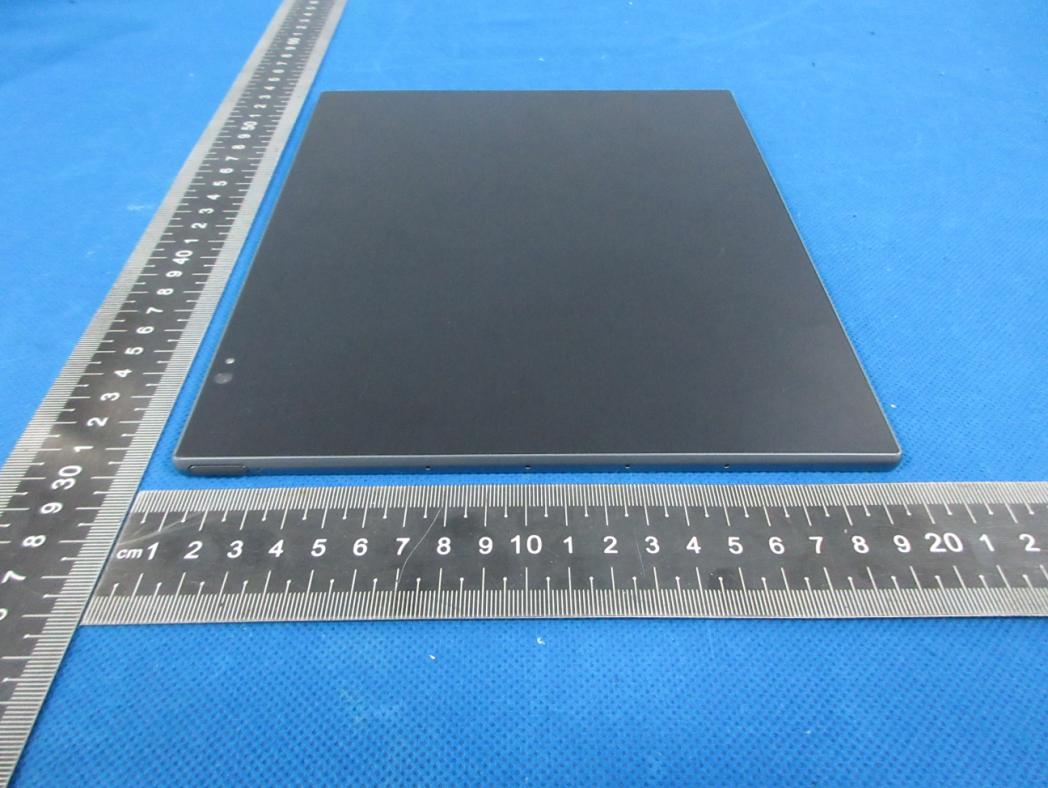

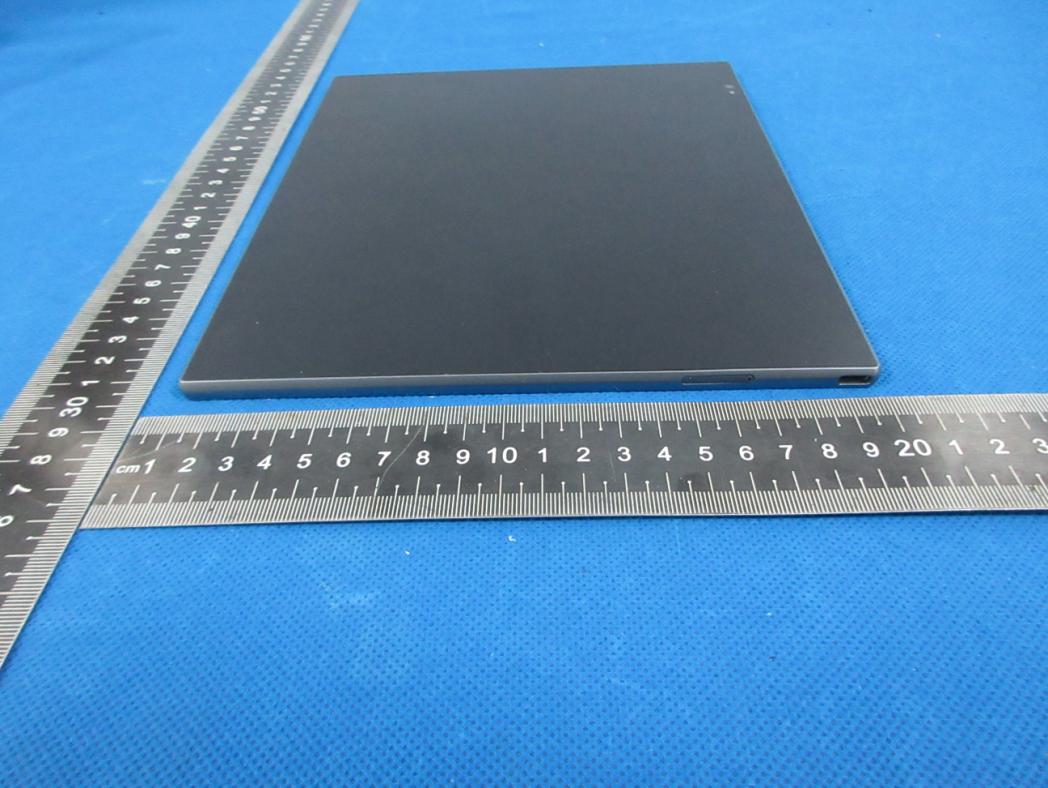

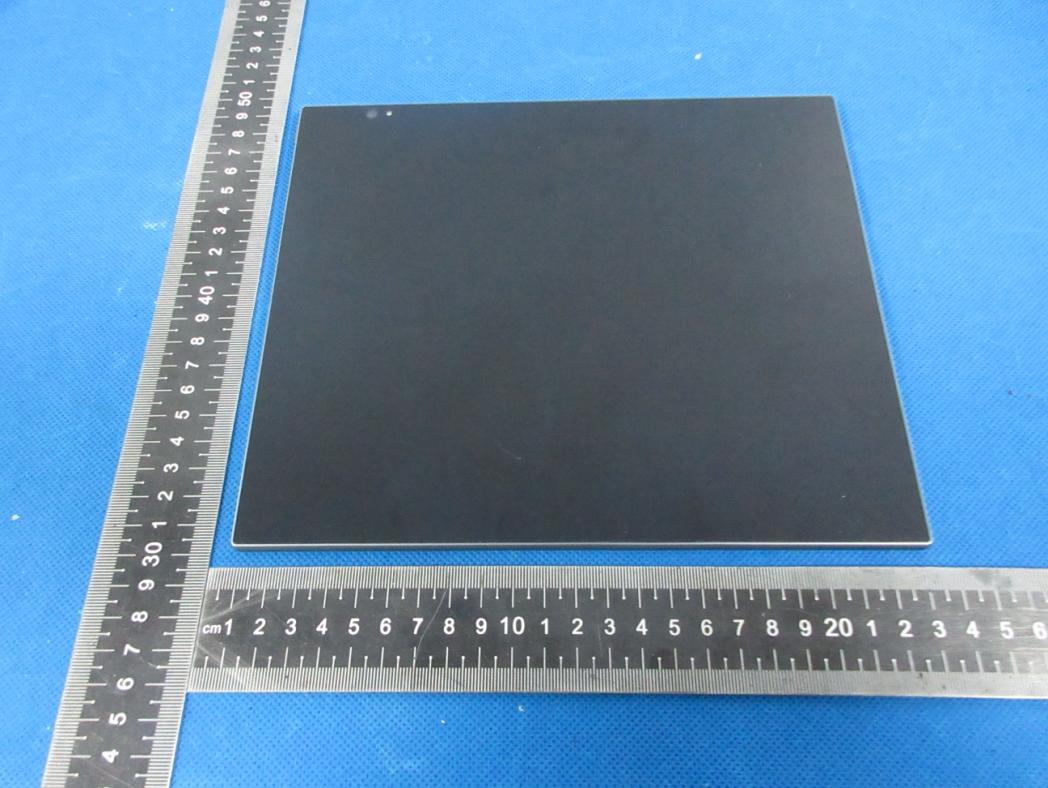

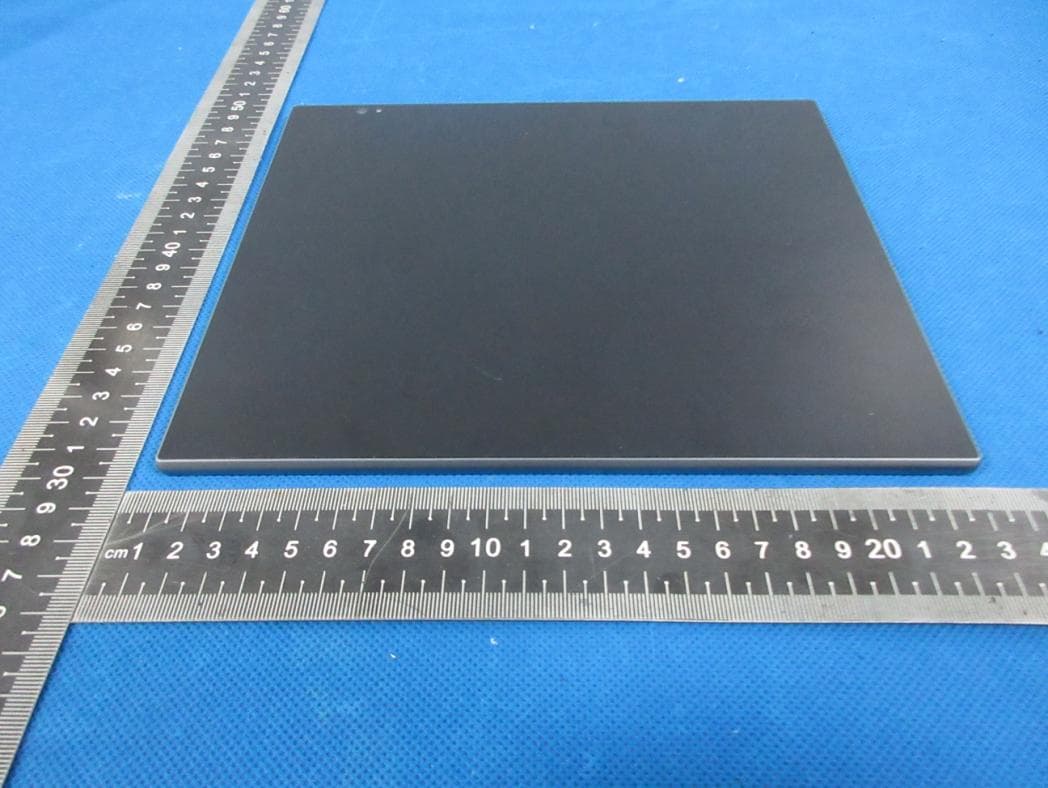

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 BT/WIFI ANT ANT Port

Page 1 of 81 Report No.: S23120703102001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： InkPad Eo Trademark： PocketBook Model Name： PB1042 Family Model： N/A Report No.： S23120703102001 FCC ID： 2AUVWPB1042 Prepared for Pocketbook International SA. Crocicchio Cortogna 6, 6900, Lugano, Switzerland Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1&5/F, Building C, 1&2/F, Building E, Fenda Science Park, Sanwei Community, Hangcheng Street, Baoan District, Shenzhen ,Guangdong, China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 81 Report No.: S23120703102001 TEST RESULT CERTIFICATION Applicant’s name ................. : Pocketbook International SA. Address .................................. : Crocicchio Cortogna 6, 6900, Lugano, Switzerland Manufacturer's Name ..................................... : Pocketbook International SA. Address .................................. : Crocicchio Cortogna 6, 6900, Lugano, Switzerland Product description Product name ......................... : InkPad Eo Trademark ............................ : PocketBook Model Name ......................... : PB1042 Family Model .......................... : N/A Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : Dec. 16, 2023 ~ Dec. 22, 2023 Date of Issue .......................................... : Dec.22, 2023 Test Result .............................................. : Pass Prepared By : Reviewed By : Approved By : Jack Li (Project Engineer) Aaron Cheng (Supervisor) Alex Li (Manager) Page 3 of 81 Report No.: S23120703102001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Dec.22, 2023 Jack Li Page 4 of 81 Report No.: S23120703102001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 8 1.5. Ambient Condition ................................................................................... 8 2. SAR Measurement System ................................................................................... 9 2.1. SATIMO SAR Measurement Set-up Diagram ............................................ 9 2.2. Robot ..................................................................................................... 10 2.3. E-Field Probe .......................................................................................... 11 2.3.1. E-Field Probe Calibration ................................................................. 11 2.4. SAM phantoms ...................................................................................... 12 2.4.1. Technical Data .................................................................................. 13 2.5. Device Holder ........................................................................................ 14 2.6. Test Equipment List ................................................................................ 15 3. SAR Measurement Procedures .......................................................................... 17 3.1. Power Reference ................................................................................... 17 3.2. Area scan & Zoom scan .......................................................................... 17 3.3. Description of interpolation/extrapolation scheme .............................. 19 3.4. Volumetric Scan ..................................................................................... 19 3.5. Power Drift ............................................................................................ 19 4. System Verification Procedure .......................................................................... 20 4.1. Tissue Verification ................................................................................. 20 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 21 4.2. System Verification Procedure .............................................................. 22 4.2.1. System Verification Results .............................................................. 23 5. SAR Measurement variability and uncertainty .................................................. 24 5.1. SAR measurement variability ................................................................. 24 5.2. SAR measurement uncertainty .............................................................. 24 6. RF Exposure Positions ........................................................................................ …

Text truncated - open the document above for the full version.

Page 75 of 81 Report No.: S23120703102001 Page 76 of 81 Report No.: S23120703102001 Page 77 of 81 Report No.: S23120703102001 Page 78 of 81 Report No.: S23120703102001 Page 79 of 81 Report No.: S23120703102001 <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 2450MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.18 - 56.30 - Mar. 01, 2021 -23.39 0.91 56.342 0.042 Feb. 28, 2022 -26.296 13.44 54.99 1.310 Feb. 20, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 80 of 81 Report No.: S23120703102001 <Head 5200MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -9.15 - 21.17 - Mar. 01, 2021 -9.1819 0.35 21.191 0.021 Feb. 28, 2022 -8.317 9.10 25.673 4.503 Feb. 20, 2023 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 81 of 81 Report No.: S23120703102001 <Head 5800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -14.30 - 54.74 - Mar. 01, 2021 -14.349 0.34 55.115 0.375 Feb. 28, 2022 -12.808 10.43 55.289 0.549 Feb. 27, 2023 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data _____________________________________ END_______________________________________

Productspecification Productnumber:B5 -WIFI-2.4/5 GHZ Productname:B5 -FPC-WIFI-ANT Productitem number:ANT-B5WIFIANT0-XT002 Pleaseacceptyour signatureand seal and returnone copy to our companyfor filing. Thankyou for your cooperation! Shenzhenxingtongwirelesstechnologyco., Telephone：+86-755-27850514Fax：+86-0755-27850514 Address:3/F, BuildingA1, QiangrongdongIndustrialZone, Jiuwei,Xixiang,BaoanDistrict,Shenzhen ShenzhenXingtongWieressTechnologyCo.,Ltd Date 20 23-11-06 Version A0 File number XT -YF -00 4 Productmodel XT-B5-WIFI-207 Product number B5 -WIFI-APP 第1页/共9页 1.ProductConstrution: 1.Antennamaterial：FPC 2.Adhesivetype：3M300 3.Antennasize：38.3*21.2（Tolerance±0.2） 4.Coaxialline size：207* 0.81singleheadthird-generationIPEXterminal (tolerance± 1.0mm) 2. parameters  Scopeof use:customer-suppliedmachines Antennafrequency:2412-2484Mhz 5150-5850Mhz Polarizationmethod:horizontal/vertical  Antennafree spacegain:2.4 G≥1.5 dbi5G≥2. 2dbi Installationmode:terminalwireis weldedto motherboardOUT Packingmethod:use PE bag+packingbox 3.S11valueof antenna(S11)  3.1： antennastandingwave ratio  3.2： Antennareturnloss value ShenzhenXingtongWieressTechnologyCo.,Ltd Date 20 23-11-06 Version A0 File number XT -YF -00 4 Productmodel XT-B5-WIFI-207 Product number B5 -WIFI-APP 第2页/共9页 4.Antennaperformance(OTA) 4.1：Antennamatchingrecommendations Matchingwithoutmodification 4.2：AntennaOTA/ efficiency/gain(test instruments:networkanalyzer,oscilloscope, customerengineeringprototype,variousstandardcards,etc.) 2.4G-2D 5G-2D Shenzhen Xingtong Wieress Technology Co., Ltd Date 2023-11-06 Version A0 File number XT-YF-004 Product model XT-B5-WIFI-207 Product number B5-WIFI-APP 第3页/共9页 3D-OTA-2.4G Shenzhen Xingtong Wieress Technology Co., Ltd Date 2023-11-06 Version A0 File number XT-YF-004 Product model XT-B5-WIFI-207 Product number B5-WIFI-APP 第6页/共9页 5850MHZ ShenzhenXingtongWieressTechnologyCo.,Ltd Date 20 23-11-06 Version A0 File number XT -YF -00 4 Productmodel XT-B5-WIFI-207 Product number B5 -WIFI-APP 第7页/共9页 5. Attachedfigure: 5.1：Finishedantennadrawing ShenzhenXingtongWieressTechnologyCo.,Ltd Date 20 23-11-06 Version A0 File number XT -YF -00 4 Productmodel XT-B5-WIFI-207 Product number B5 -WIFI-APP 第8页/共9页 6.Maintenanceverification: Tests/testitemsMaintainabilityInspectionorder number Product name/specification 2.4/5.8Gbluetooth/WIFI built-in fpc antenna Test quantity:5PCS Date of inspection:2023/10/23Completiondate:2023/10/23 Test/inspectionequipment: 1.The tensiletester tests 5 times.(The tester is shownin the figure) Note: Uniformspeedtest is required,not extremespeedtest. Projects Condition Maintainingforce betweenterminaland cable ≥ 0.6kgf. Test times 12345 test result 0.60.70.70.90.7 Test/inspectionresult:acceptable Test/inspectionjudgment:□Qualified□Unqualified□Make no judgment Test: Zhu YongjianAudit: Wu Yanlong ShenzhenXingtongWieressTechnologyCo.,Ltd Date 2023-11-06 Version A0 Filenumber XT-YF-004 ProductmodelB5-WIFIantenna Product number B5-WIFI-APP 第9页/共9页 7.Reliabilitytest: SerialnumbertestitemTestrequirementstestingtooltestresult 1 Resistancetotin melting 288°C,10S,no delamination,no foaming TinfurnaceOk 2 weldability 245°C,5s,smoothtin surface,solder surface≥95% TinfurnaceOk 3PullingforceN/AtautnessmeterOk 4Reversepulling force N/AtautnessmeterOk 5Peelstrength (coveringfilm) ≥0.35kg/cmpeel strength Ok 6 Peelstrength (copperfoil) ≥0.8kg/cmpeel strength tester Ok 7Hotmeltadhesive fluidity 0.1～0.15/Ok 7.Mattersneedingattention: Afteropening,pleasecarefullycheckwhetherthegoodsarecomplete.Ifthereisanydamage, pleasecontactusimmediately.

Report No.: S23120703101001 Version.1.3 Page 1 of 95 RADIO TEST REPORT FCC ID: 2AUVWPB1042 Product: InkPad Eo Trade Mark: PocketBook Model No.: PB1042 Family Model: N/A Report No.: S23120703101001 Issue Date: 21 Dec, 2023 Prepared for Pocketbook International SA. Crocicchio Cortogna 6, 6900, Lugano, Switzerland Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1&5/F, Building C, 1&2/F, Building E, Fenda Science Park, Sanwei Community, Hangcheng Street, Baoan District, Shenzhen ,Guangdong, China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S23120703101001 Version.1.3 Page 2 of 95 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 25 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 26 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 27 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 29 7.7 PEAK OUTPUT POWER .............................................................................................................................. 30 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 32 7.10 ANTENNA APPLICATION .......................................................................................................................... 33 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS ......................................... 34 8 TEST RESULTS ................................................................................................................................................... 35 8.1 DWELL TIME ................................................................................................................................................... 35 8.2 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 45 8.3 -20DB BANDWIDTH ........................................................................................................................................ 51 8.4 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 57 8.5 CARRIER FREQUENCIES SEPARATION .............................................................................................................. 63 8.6 NUMBER OF HOPPING CHANNEL ..................................................................................................................... 69 8.7 BAND EDGE .................................................................................................................................................... 72 8.8 BAND EDGE(HOPPING) ................................................................................................................................... 79 8.9 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 86 Report No.: S23120703101001 Version.1.3 Page 3 of 95 1 TEST RESULT CERTIFICATION Applicant’s name ........................ : Pocketbook International SA. Address ....................................... : Crocicchio Cortogna 6, 6900, Lugano, Switzerland Manufacturer's Name ................. : Pocketbook International SA. Address ....................................... : Crocicchio Cortogna 6, 6900, Lugan…

Text truncated - open the document above for the full version.

Report No.: S23120703101001 Version.1.3 Page 76 of 95 Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Emission Report No.: S23120703101001 Version.1.3 Page 77 of 95 Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Emission Report No.: S23120703101001 Version.1.3 Page 78 of 95 Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Emission Report No.: S23120703101001 Version.1.3 Page 79 of 95 8.8 BAND EDGE(HOPPING) Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 Hopping -57.28 -20 Pass NVNT 1-DH5 2480 Ant1 Hopping -58.56 -20 Pass NVNT 2-DH5 2402 Ant1 Hopping -56.42 -20 Pass NVNT 2-DH5 2480 Ant1 Hopping -57.9 -20 Pass NVNT 3-DH5 2402 Ant1 Hopping -57.04 -20 Pass NVNT 3-DH5 2480 Ant1 Hopping -57.5 -20 Pass Report No.: S23120703101001 Version.1.3 Page 80 of 95 Test Graphs Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Emission Report No.: S23120703101001 Version.1.3 Page 81 of 95 Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Emission Report No.: S23120703101001 Version.1.3 Page 82 of 95 Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Emission Report No.: S23120703101001 Version.1.3 Page 83 of 95 Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Emission Report No.: S23120703101001 Version.1.3 Page 84 of 95 Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Emission Report No.: S23120703101001 Version.1.3 Page 85 of 95 Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Emission Report No.: S23120703101001 Version.1.3 Page 86 of 95 8.9 CONDUCTED RF SPURIOUS EMISSION Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 -56.67 -20 Pass NVNT 1-DH5 2441 Ant1 -57.87 -20 Pass NVNT 1-DH5 2480 Ant1 -58.53 -20 Pass NVNT 2-DH5 2402 Ant1 -57.76 -20 Pass NVNT 2-DH5 2441 Ant1 -55.85 -20 Pass NVNT 2-DH5 2480 Ant1 -55.85 -20 Pass NVNT 3-DH5 2402 Ant1 -57.53 -20 Pass NVNT 3-DH5 2441 Ant1 -57.86 -20 Pass NVNT 3-DH5 2480 Ant1 -54.72 -20 Pass Report No.: S23120703101001 Version.1.3 Page 87 of 95 Test Graphs Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Emission Report No.: S23120703101001 Version.1.3 Page 88 of 95 Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Emission Report No.: S23120703101001 Version.1.3 Page 89 of 95 Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Emission Report No.: S23120703101001 Version.1.3 Page 90 of 95 Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Emission Report No.: S23120703101001 Version.1.3 Page 91 of 95 Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Emission Report No.: S23120703101001 Version.1.3 Page 92 of 95 Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Emission Report No.: S23120703101001 Version.1.3 Page 93 of 95 Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Emission Report No.: S23120703101001 Version.1.3 Page 94 of 95 Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Emission Report No.: S23120703101001 Version.1.3 Page 95 of 95 Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Emission END OF REPORT

Radiated Measurement Photos Conducted Measurement Photos

Test Positions Front Side (Separation distance of 0mm) Back Side (Separation distance of 0mm) Left Side (Separation distance of 0mm) Bottom Side (Separation distance of 0mm) END
