ISB180B Portable Bluetooth Speaker Please read this instruction manual before you operate the player and keep the manual for your reference in future. INSTRUCTION Pairing Bluetooth Enabled Devices The first time you use your Bluetooth device with this player, you will need to connect or "pair" it with the player first. 1. Switching to Bluetooth mode. The blue indicator will flash, indicating that the system has entered pairing mode and will be searchable by your Bluetooth enabled device. 2. Activate your Bluetooth enabled device and select the search mode. “ISB180 ”will appear on your Bluetooth device list. Select “ISB180 ” in the pairing list. 3.The blue indicator will light up if pairing succeeds. AUX IN Connect one end of a 3.5 mm audio cable to speaker’s AUX INPUT jack, then connect the other end to the output jack of your audio device. Micro SD card This speaker can play audio files such as MP3 that are stored on a micro SD card. Insert your micro SD card (not included) into the micro SD card socket for playback. Top view 1. LED Indicator 2. / : Under Bluetooth and Micro SD card mode, Short press this button to Play/Pause music playback. Under AUX mode, short press this button to mute/unmute the sound. Long press this button to disconnect the Bluetooth connection when the devices has successfully paired with speaker. 3. : Under Bluetooth and micro SD card mode, press this button to skip to previous track. 4. : Under Bluetooth and micro SD card mode, press this button to skip to next track. 5. /SOURCE : Long press to switch the unit between on and standby mode. Short Press to select your preferred source. 6. Micro SD card Socket 7. AUX : Use 3.5mm audio cable(not supplied) to connect speaker with external audio device. 8. DC 5V: Micro USB port is for connecting to DC 5V USB cable, to charge the speaker. Charging the speaker The speaker has a built-in, rechargeable lithium ion battery. To avoid damage, do not attempt to remove the battery.Red indicator lighted when charging, and off after fully charged. Please charge the speaker a minimum of 6 hours prior to first use. And the charging time is 4-5 hours in the future. (Important: To avoid a complete discharge of battery, charge the speaker at least once every month.) Technical data Product Warning and Maintenance 1..Do not drop speakers to avoid damaging internal structure. 2.Do not use this product in wet environment to avoid water droplets into the speaker. 3.Do not use any chemical solvent to wipe the surface of machine. 4.This speaker is high sealing design. Do not attempt to disassemble this speaker. Product Type Portable Bluetooth Speaker Port 1×TF card port 1×AUX IN Power output 2×3W Product dimension（L×W×H) 110×110×215MM Power supply DC 5V Channel 2.0CH NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ZHUHAI YALI TECHNOLOGY CO.,LTD Jan. 10, 2020 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AUW8-ISB180B Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Schematics 3: Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ZHUHAI YALI TECHNOLOGY CO.,LTD Contact person: MONICA LEE

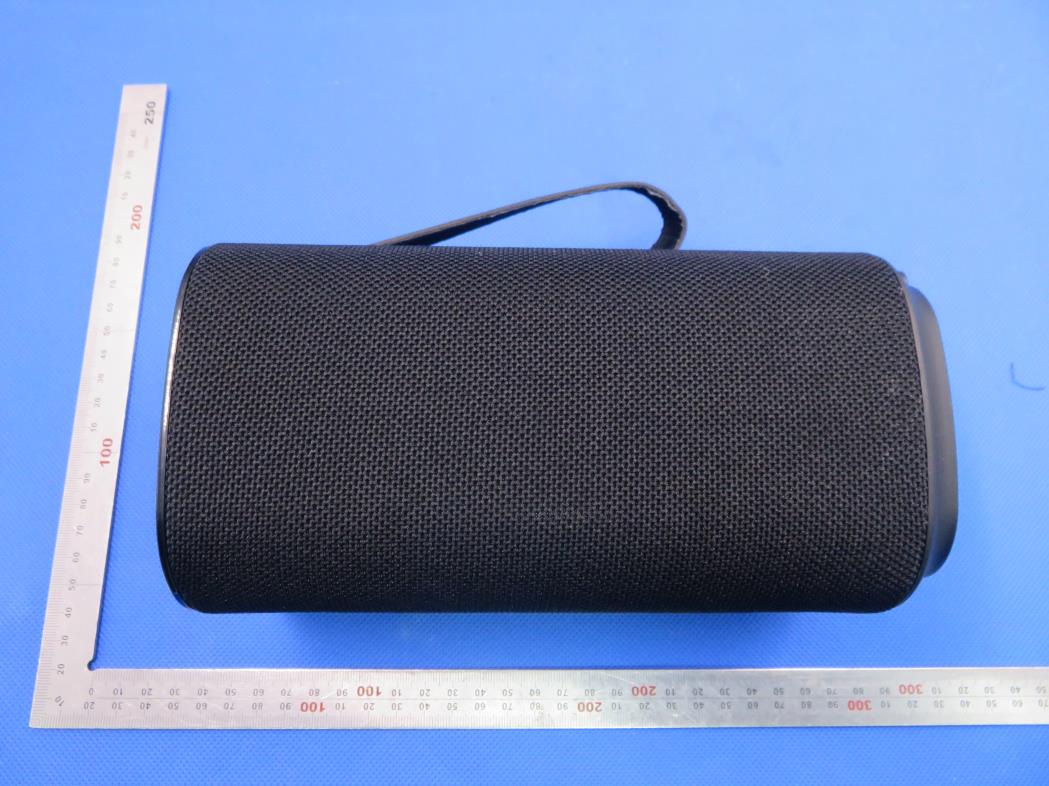

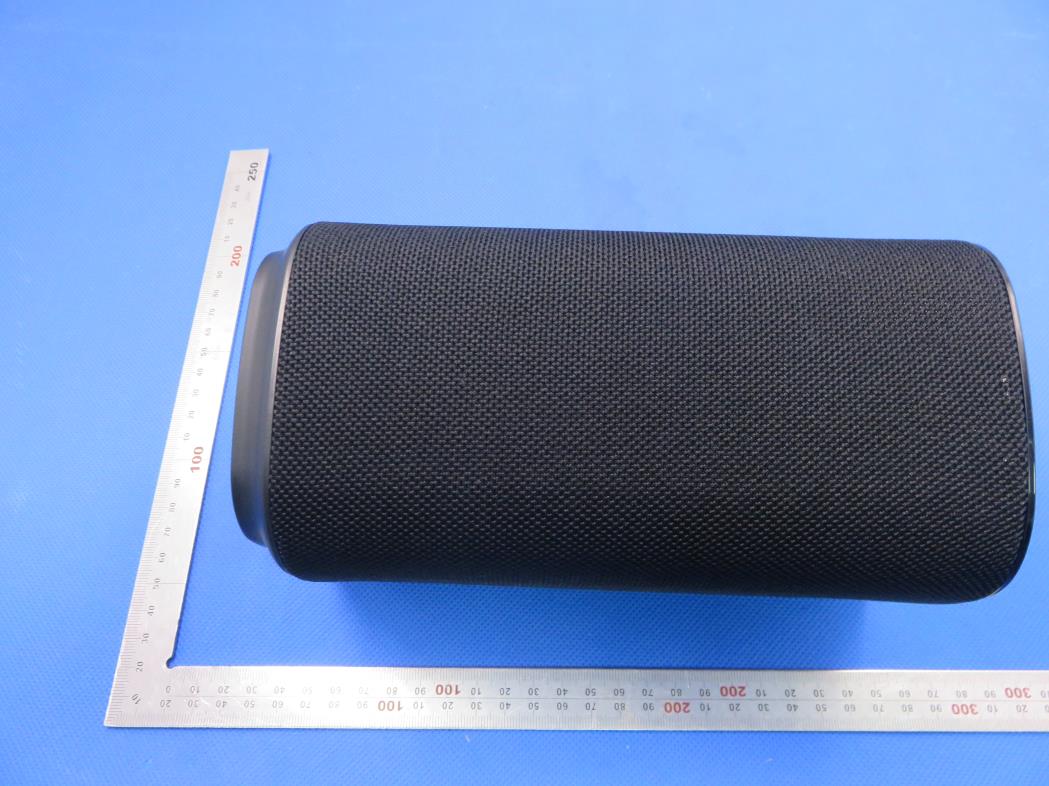

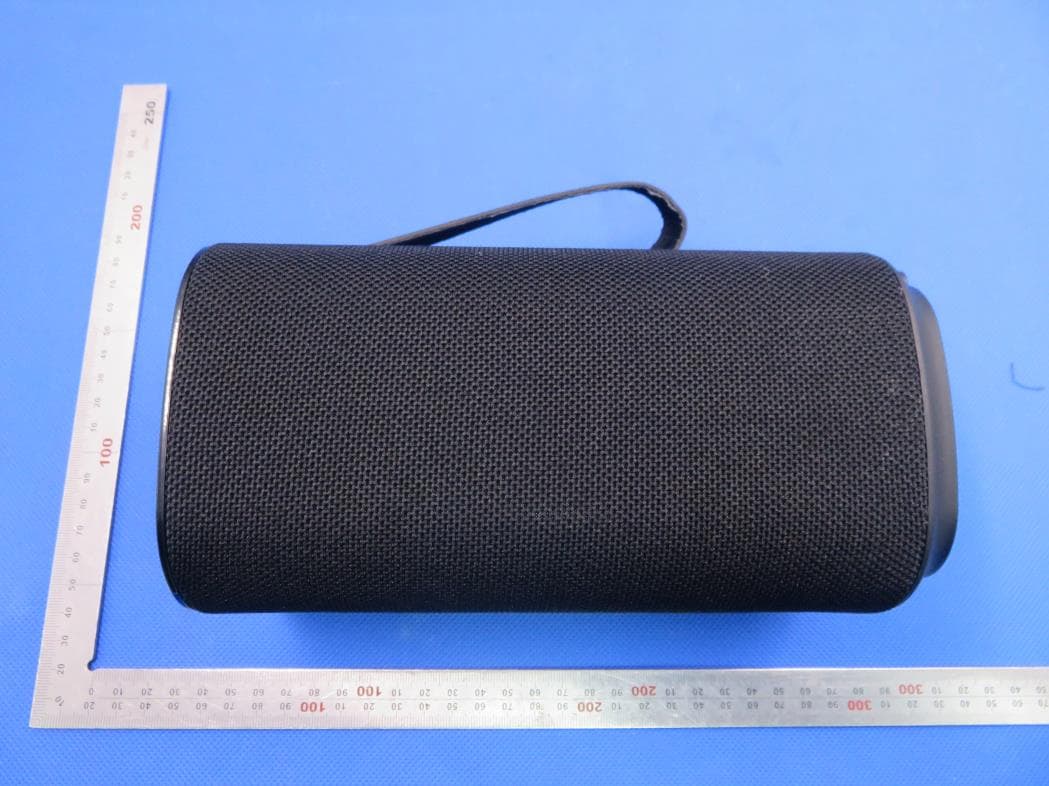

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2AUW8-ISB180B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 VIEW OF BATTERY

Page 1 of 63 FCC Test Report Report No.: AGC06815191201FE03 FCC ID : 2AUW8-ISB180B APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Portable Speaker BRAND NAME : iLIVE MODEL NAME : ISB180B, ISB180, B14, B14C APPLICANT : ZHUHAI YALI TECHNOLOGY CO.,LTD DATE OF ISSUE : Jan. 10, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC06815191201FE03 Page 2 of 63 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jan. 10, 2020 Valid Initial Release Report No.: AGC06815191201FE03 Page 3 of 63 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 8 2.7. TEST METHODOLOGY .......................................................................................................................... 8 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2 EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. PEAK OUTPUT POWER ............................................................................................................................. 13 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 14 8. 20DB BANDWIDTH ..................................................................................................................................... 18 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 18 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 18 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 18 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 23 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 23 Report No.: AGC06815191201FE03 Page 4 of 63 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 23 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 23 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 23 10. RADIATED EMISSION ............................................................................................................................... 31 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 31 10.2. TEST SETUP ....................................................................................................................................... 33 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 34 10.4. TEST RESULT ..................................................................................................................................... 34 11. NUMBER OF HOPPING FREQUENCY ..................................................................................................... 44 11.1. MEASUREMENT…
