2AUXB-DSW-080Smart Switch

Hangzhou Roombanker Technology Co., Ltd. A DUSUN company Hangzhou Roombanker Technology Co., Ltd. Floor 8, building A, Wantong center, Tel:86-571-86769027/8 8810480 Hangzhou 310004, china Website: www.dusuniot.com www.dusunremotes.com www.dusunlock.com User Manual Product Name: Smart Switch Model Name: DSW-080 Revision History Specification Sect. Update Description By Rev Date 1.0 2022-05-20 New version release Approvals Organization Name Title Date Hangzhou Roombanker Technology Co., Ltd. A DUSUN company Hangzhou Roombanker Technology Co., Ltd. Floor 8, building A, Wantong center, Tel:86-571-86769027/8 8810480 Hangzhou 310004, china Website: www.dusuniot.com www.dusunremotes.com www.dusunlock.com 1 Introduction ............................................................................................................................................................... 4 1.1 Purpose& Description ............................................................................................................................................. 4 1.2 Product Feature Summary ...................................................................................................................................... 4 1.3 Application .............................................................................................................................................................. 4 1.4 Hardware block ....................................................................................................................................................... 5 2 Mechanical Requirement ........................................................................................................................................... 5 2.1 Drawings ................................................................................................................................................................. 5 2.2 Outline size ............................................................................................................................................................. 6 3 Key components ........................................................................................................................................................ 6 4 Basic function ............................................................................................................................................................ 6 4.1 LED blinking and key description .......................................................................................................................... 6 4.2 Power-on initialization ............................................................................................................................................ 6 4.3 Pairing ..................................................................................................................................................................... 6 4.4 Restore factory settings ........................................................................................................................................... 6 4.5 Button function ....................................................................................................................................................... 7 4.6 Power-on default state setting ................................................................................................................................. 7 4.7 Configurable reporting time ................................................................................................................................... 7 4.8 OTA function .......................................................................................................................................................... 7 4.9 Voltage detection..................................................................................................................................................... 7 5 Electrical Characteristics ........................................................................................................................................... 7 5.1 Absolute Electrical .................................................................................................................................................. 7 5.2 Normal electrical conditions ................................................................................................................................... 7 5.3 TX power consumption during constant emission .................................................................................................. 8 5.4 working current ....................................................................................................................................................... 8 6 Zigbee RF features ..................................................................................................................................................... 8 6.1 Zigbee Basic RF features ........................................................................................................................................ 8 6.2 Zigbee Tx performance ........................................................................................................................................... 8 6.3 Zigbee Rx performance .......................................................................................................................................... 8 7 BT/BLE performance ................................................................................................................................................ 8 7.1 Transmitter（BLE） .............................................................................................................................................. 8 7.2 Receiver (BLE) ....................................................................................................................................................... 9 8 Inte…

Text truncated - open the document above for the full version.

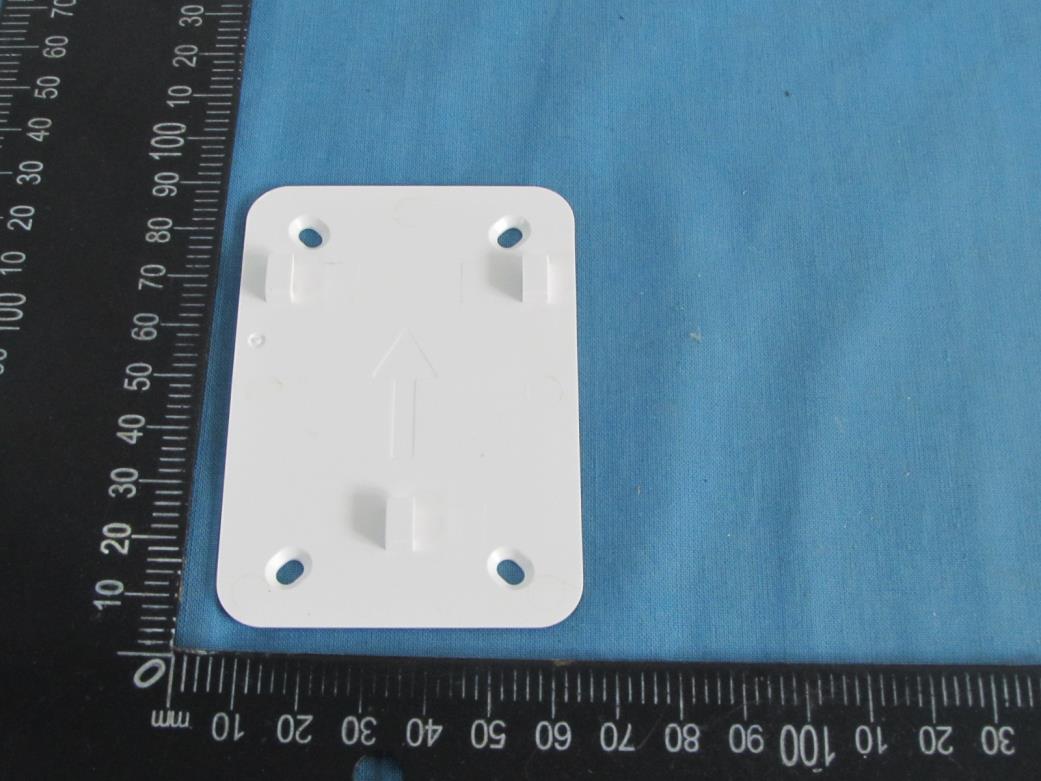

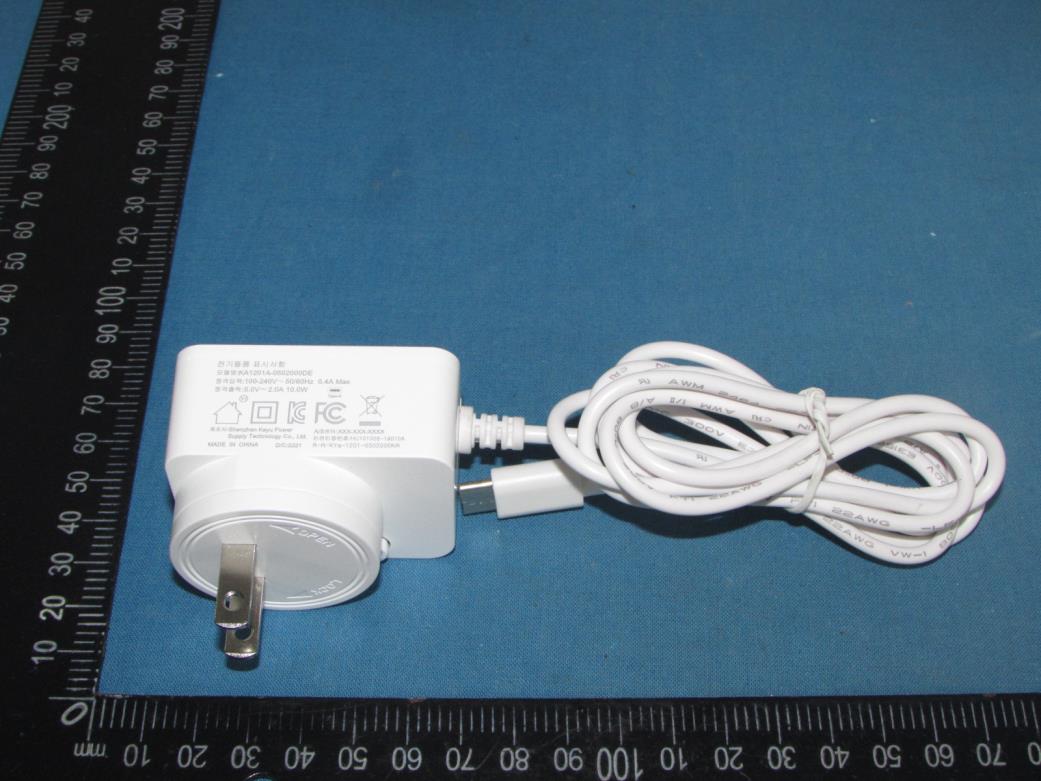

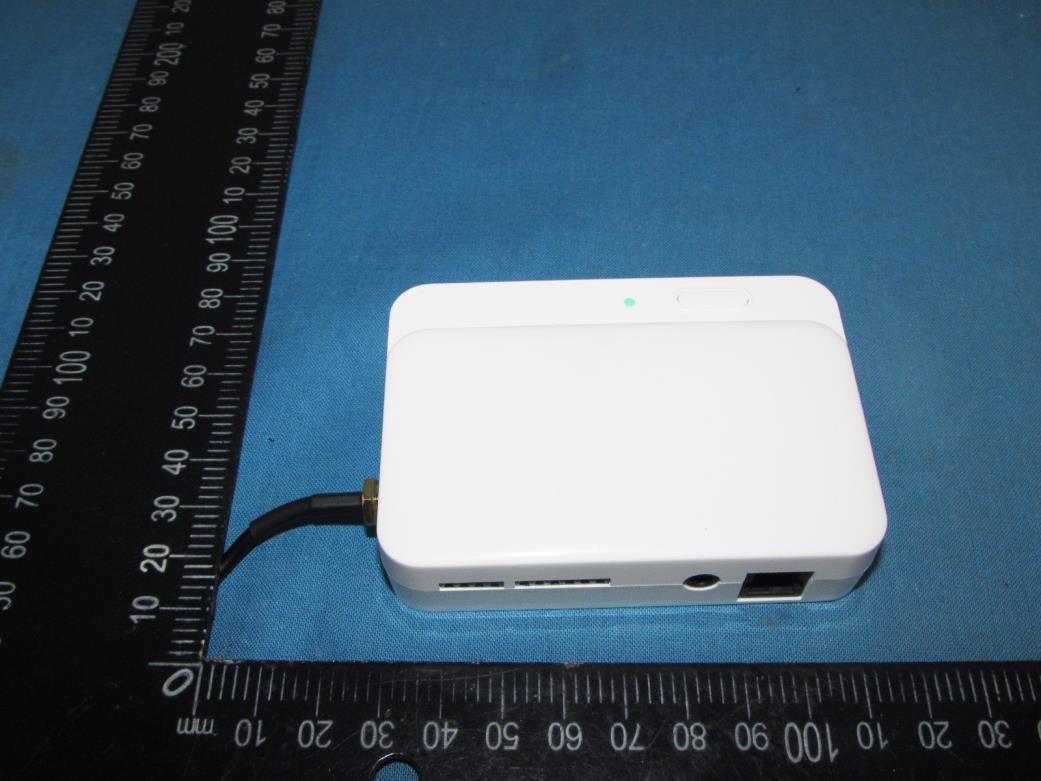

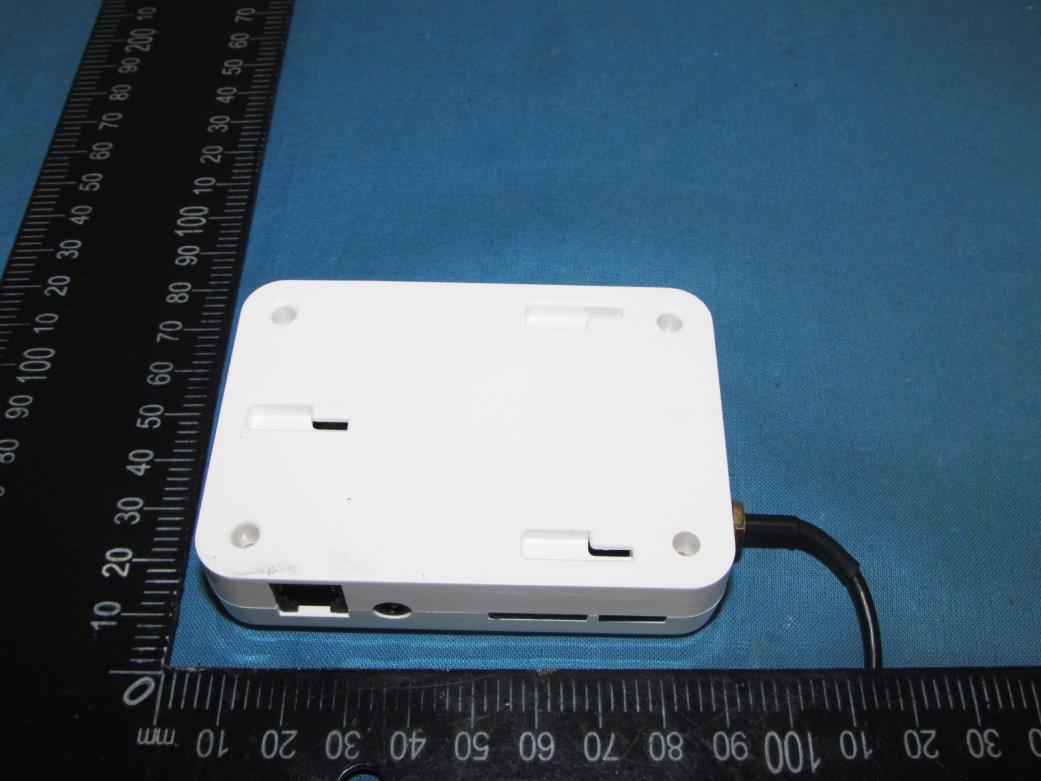

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 BLE antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9

Label Location: FCC ID: 2AUXB-DSW-080

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9 Zigbee antenna

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 1 of 7 Maximum Permissible Exposure Report Product Information EUT : Smart Switch Model Number : DSW-080 Model Declaration : N/A Test Model : DSW-080 Power Supply : 1,DC 3.7 by battery;2,Input:DC 5V,2A Hardware version : V1.0 Software version : V1.0 Sample ID : TZ220503261–1#&TZ220503261–2# Bluetooth Bluetooth Version : 5.2 Frequency Range : 2402MHz ~ 2480MHz Channel Number : 40 Channels Modulation Technology : GFSK Data Rates : 1/2Mbps Antenna Type And Gain : Sucker Antenna / 3.25 dBi Zigbee Frequency Range : 2405MHz ~ 2480MHz Channel Number : 16 Channels Modulation Technology : O-QPSK Data Rates : 250 kbps Antenna Type And Gain : PCB Antenna / 1.8 dBi Note 1: Antenna position refer to EUT Photos Note 2: The above information supplied by the applicant 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 2 of 7 The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 3 of 7 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information This Product can only use antennas certificated as follows provided by manufacturer; Antenna Gain and type refer to Product information Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 4 of 7 6. Conducted Power Bluetooth(BLE) TestMode Antenna Channel Result[dBm] BLE_1M Ant1 2402 5.13 2440 5.46 2480 5.63 BLE_2M Ant1 2402 5.68 2440 5.51 2480 5.65 Zigbee TestMode Antenna Channel Result[dBm] ZIGB Ant1 2405 8.17 2440 7.92 2480 7.93 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 5 of 7 7. Manufacturing Tolerance Bluetooth(BLE) GFSK(1Mbps) (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 4.5 5.0 5.0 Tolerance ±(dB) 1.0 1.0 1.0 GFSK(2Mbps) (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 5.0 5.0 5.0 Tolerance ±(dB) 1.0 1.0 1.0 Zigbee Zigbee (Peak) Channel Channel 11 Channel 18 Channel 26 Target (dBm) 7.5 7.5 7.5 Tolerance ±(dB) 1.0 1.0 1.0 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 6 of 7 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 1 of 25 Appendix Test Data for BT(BLE) (Conducted Measurement) Product Name: Smart Switch Trade Mark: Dusun Test Model: DSW-080 FCC ID: 2AUXB-DSW-080 Environmental Conditions Temperature: 22.8°C Relative Humidity: 59% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.624 2401.684 2402.308 0.5 PASS 2440 0.624 2439.680 2440.304 0.5 PASS 2480 0.620 2479.684 2480.304 0.5 PASS BLE_2M Ant1 2402 1.092 2401.452 2402.544 0.5 PASS 2440 1.112 2439.448 2440.560 0.5 PASS 2480 1.212 2479.364 2480.028 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 2 of 25 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 3 of 25 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 4 of 25 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0274 2401.488 2402.515 --- --- 2440 1.0221 2439.491 2440.513 --- --- 2480 1.0279 2479.486 2480.514 --- --- BLE_2M Ant1 2402 2.0720 2400.980 2403.052 --- --- 2440 2.0550 2438.991 2441.046 --- --- 2480 2.0610 2478.970 2481.031 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 5 of 25 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 6 of 25 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 7 of 25 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 5.13 ≤30 PASS 2440 5.46 ≤30 PASS 2480 5.63 ≤30 PASS BLE_2M Ant1 2402 5.68 ≤30 PASS 2440 5.51 ≤30 PASS 2480 5.65 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 8 of 25 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 9 of 25 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 10 of 25 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -9.82 ≤8.00 PASS 2440 -9.51 ≤8.00 PASS 2480 -9.37 ≤8.00 PASS BLE_2M Ant1 2402 -9.73 ≤8.00 PASS 2440 -9.93 ≤8.00 PASS 2480 -9.77 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 11 of 25 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 12 of 25 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 13 of 25 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 5.19 -45.92 ≤-14.81 PASS High 2480 5.70 -48.17 ≤-14.3 PASS BLE_2M Ant1 Low 2402 5.73 -27.52 ≤-14.27 PASS High 2480 5.71 -47.94 ≤-14.29 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 14 of 25 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 BLE_2M_Ant1_Low_2402 BLE_2M_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 15 of 25 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 16 of 25 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference 5.03 5.03 --- PASS 30~1000 5.03 -58.71 ≤-14.97 PASS 1000~26500 5.03 -51.82 ≤-14.97 PASS 2440 Reference 5.36 5.36 --- PASS 30~1000 5.36 -58.59 ≤-14.64 PASS 1000~26500 5.36 -50.33 ≤-14.64 PASS 2480 Reference 5.48 5.48 --- PASS 30~1000 5.48 -59.46 ≤-14.52 PASS 1000~26500 5.48 -50.81 ≤-14.52 PASS BLE_2M Ant1 2402 Reference 5.49 5.49 --- PASS 30~1000 5.49 -58.91 ≤-14.51 PASS 1000~26500 5.49 -50.89 ≤-14.51 PASS 2440 Reference 5.33 5.33 --- PASS 30~1000 5.33 -58.93 ≤-14.67 PASS 1000~26500 5.33 -50.91 ≤-14.67 PASS 2480 Reference -0.37 4.94 --- PASS 30~1000 -0.37 -57.67 ≤-15.06 PASS 1000~26500 -0.37 -51.51 ≤-15.06 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 17 of 25 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 18 of 25 BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 19 of 25 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 BLE_2M_Ant1_2402_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 20 of 25 BLE_2M_Ant1_2402_30~1000 BLE_2M_Ant1_2402_1000~26500 BLE_2M_Ant1_2440_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 21 of 25 BLE_2M_Ant1_2440_30~1000 BLE_2M_Ant1_2440_1000~26500 BLE_2M_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 22 of 25 BLE_2M_Ant1_2480_30~1000 BLE_2M_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E2 Page 23 of 25 Appendix G: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Tr…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E1 Page 1 of 16 Appendix Test Data for Zigbee (Conducted Measurement) Product Name: Smart Switch Trade Mark: Dusun Test Model: DSW-080 FCC ID: 2AUXB-DSW-080 Environmental Conditions Temperature: 22.8°C Relative Humidity: 59% ATM Pressure: 100.0 kPa Test : Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict ZIGB Ant1 2405 1.730 2404.170 2405.900 0.5 PASS 2440 1.740 2439.160 2440.900 0.5 PASS 2480 1.730 2479.170 2480.900 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E1 Page 2 of 16 Test Graphs ZIGB_Ant1_2405 ZIGB_Ant1_2440 ZIGB_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E1 Page 3 of 16 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict ZIGB Ant1 2405 2.2645 2403.836 2406.100 --- --- 2440 2.2614 2438.839 2441.101 --- --- 2480 2.2887 2478.820 2481.109 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E1 Page 4 of 16 Test Graphs ZIGB_Ant1_2405 ZIGB_Ant1_2440 ZIGB_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E1 Page 5 of 16 Appendix C: Maximum conducted output power Test Result TestMode Antenna Freq(MHz) Result[dBm] Limit[dBm] Verdict ZIGB Ant1 2405 8.17 ≤30 PASS 2440 7.92 ≤30 PASS 2480 7.93 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E1 Page 6 of 16 Test Graphs ZIGB_Ant1_2405 ZIGB_Ant1_2440 ZIGB_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E1 Page 7 of 16 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict ZIGB Ant1 2405 -5.08 ≤8.00 PASS 2440 -4.48 ≤8.00 PASS 2480 -4.44 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E1 Page 8 of 16 Test Graphs ZIGB_Ant1_2405 ZIGB_Ant1_2440 ZIGB_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E1 Page 9 of 16 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel[dBm] Result[dBm] Limit[dBm] Verdict ZIGB Ant1 Low 2405 4.34 -49.21 ≤-15.66 PASS High 2480 4.06 -44.69 ≤-15.94 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E1 Page 10 of 16 Test Graphs ZIGB_Ant1_Low_2405 ZIGB_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E1 Page 11 of 16 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict ZIGB Ant1 2405 Reference 3.14 3.14 --- PASS 30~1000 3.14 -61.47 ≤-16.86 PASS 1000~26500 3.14 -50.59 ≤-16.86 PASS 2440 Reference 3.93 3.93 --- PASS 30~1000 3.93 -60.06 ≤-16.07 PASS 1000~26500 3.93 -51.27 ≤-16.07 PASS 2480 Reference 4.80 4.80 --- PASS 30~1000 4.80 -60.31 ≤-15.2 PASS 1000~26500 4.80 -50.94 ≤-15.2 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E1 Page 12 of 16 Test Graphs ZIGB_Ant1_2405_0~Reference ZIGB_Ant1_2405_30~1000 ZIGB_Ant1_2405_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E1 Page 13 of 16 ZIGB_Ant1_2440_0~Reference ZIGB_Ant1_2440_30~1000 ZIGB_Ant1_2440_1000~26500 ZIGB_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E1 Page 14 of 16 ZIGB_Ant1_2480_30~1000 ZIGB_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E1 Page 15 of 16 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 1/B [kHz] ZIGB Ant1 2405 4.22 4.46 94.62 0.24 2440 4.21 4.46 94.39 0.24 2480 4.22 4.47 94.41 0.24 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXB-DSW-080 Report No.: TZ220503261-E1 Page 16 of 16 Test Graphs ZIGB_Ant1_2405 ZIGB_Ant1_2440 ZIGB_Ant1_2480

Report No.: TZ220503261-E1 Page 1 of 35 FCC TEST REPORT Test report On Behalf of Hangzhou Roombanker Technology Co., Ltd. For Smart Switch Model No.: DSW-080 FCC ID: 2AUXB-DSW-080 Prepared for : Hangzhou Roombanker Technology Co., Ltd. A#801 Wantong center,Hangzhou,China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: June.1, 2022~ June.16, 2022 Date of Report: June.16, 2022 Report Number: TZ220503261-E1 The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ220503261-E1 Page 2 of 35 TEST RESULT CERTIFICATION Applicant’s name ................. : Hangzhou Roombanker Technology Co., Ltd. Address .................................. : A#801 Wantong center,Hangzhou,China Manufacture's Name ............ : Hangzhou Roombanker Technology Co., Ltd. Address .................................. : A#801 Wantong center,Hangzhou,China Product description Trade Mark ............................. : Dusun Product name ......................... : Smart Switch Model and/or type reference : DSW-080 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : June.1, 2022~ June.16, 2022 Date of Issue .......................................... : June.16, 2022 Test Result .............................................. : Pass Testing Engineer : (Anna Hu) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ220503261-E1 Page 3 of 35 Revision History Revision Issue Date Revisions Revised By 000 June.16, 2022 Initial Issue Andy Zhang Report No.: TZ220503261-E1 Page 4 of 35 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 5 1.2 EUT CONFIGURATION .......................................................................................................................................... 6 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 6 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 7 1.6. MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 1.7. DESCRIPTION OF TEST MODES .......................................................................................................................... 7 1.8. FREQUENCY OF CHANNELS ................................................................................................................................ 7 2. TEST METHODOLOGY ......................................................................................................................................... 8 2.1. EUT CONFIGURATION......................................................................................................................................... 8 2.2. EUT EXERCISE ................................................................................................................................................... 8 2.3. GENERAL TEST PROCEDURES ........................................................................................................................... 8 3. SYSTEM TEST CONFIGURATION ...................................................................................................................... 9 3.1. JUSTIFICATION..................................................................................................................................................... 9 3.2. EUT EXERCISE SOFTWARE ................................................................................................................................ 9 3.3. SPECIAL ACCESSORIES ...................................................................................................................................... 9 3.4. BLOCK DIAGRAM/SCHEMATICS........................................................................................................................... 9 3.5. EQUIPMENT MODIFICATIONS .............................................................................................................................. 9 3.6. TEST SETUP ........................................................................................................................................................ 9 4. SUMMARY OF TEST RESULTS ........................................................................................................................ 10 5. TEST RESULT ....................................................................................................................................................... 11 5.1. ON TIME AND DUTY CYCLE ...................................…
