2AUXBDSGW-014Outdoor LoRa Gateway

杭州软库科技有限公司 Hangzhou Roombanker Technology Co., Ltd. A DUSUN company 杭州市大关路 189 号万通中心A 幢 8 楼,310004 Tel:86-571-86769027/8 8810480 Floor 8, building A, Wantong center, Hangzhou 310004, China www.dusunlock.com Website: www.dusuniot.com www.dusunremotes.com Product Specification Product Name: Outdoor LoRa Gateway Model Name: DSGW-014 Revision History Specification Sect. Update Description By Rev Date 1.0 2022-9-22 New version release Li 1.1 2022-10-9 Delete reset button Li Approvals Organization Name Title Date 杭州软库科技有限公司 Hangzhou Roombanker Technology Co., Ltd. A DUSUN company 杭州市大关路 189 号万通中心A 幢 8 楼,310004 Tel:86-571-86769027/8 8810480 Floor 8, building A, Wantong center, Hangzhou 310004, China www.dusunlock.com Website: www.dusuniot.com www.dusunremotes.com Region List Type Region Frequecy （ MHZ ） -CN China CN470 -EU Europe EU868 -US North America US915 -AS Asia AS923 -AU Australia AU915 -KR Korea KR920 -IN India IN865 -RU Russia RU864 杭州市大关路 189 号万通中心A 幢 8 楼,310004 Tel:86-571-86769027/8 8810480 Floor 8, building A, Wantong center, Hangzhou 310004, China www.dusunlock.com Website: www.dusuniot.com www.dusunremotes.com 杭州软库科技有限公司 Hangzhou Roombanker Technology Co., Ltd. A DUSUN company Contents 1. Introduction ................................................................................................................................ 4 1.1 Purpose& Description .............................................................................................................. 4 1.2 Product Feature Summary ...................................................................................................... 4 1.3 Hardware block diagram ......................................................................................................... 4 2. Mechanical Requirement ........................................................................................................... 5 3. Electrical Requirements ............................................................................................................. 6 3.1 Hardware Information ............................................................................................................. 6 3.2 Performance Requirement ....................................................................... 错误!未定义书签。 4 Solution ......................................................................................................................................... 7 5. Thrid-Part Platform ................................................................................................................... 8 6 QA Requirements ......................................................................................... 错误!未定义书签。 杭州市大关路 189 号万通中心A 幢 8 楼,310004 Tel:86-571-86769027/8 8810480 Floor 8, building A, Wantong center, Hangzhou 310004, China www.dusunlock.com Website: www.dusuniot.com www.dusunremotes.com 杭州软库科技有限公司 Hangzhou Roombanker Technology Co., Ltd. A DUSUN company 1. Introduction 1.1 Purpose& Description The DSGW-014 Outdoor LoRa Gateway is a high-efficiency gateway. It’s a smart Gateway with POE or DC power supply. It can be used in various scenarios flexibly, for example, it can be applied to Earn HNT cryptocurrency by mining Helium and building coverage for The People’s Network. It provides reliable connectivity for a wide range of devices through wireless protocol including Wi-Fi 2.4G/5G, Bluetooth, LoRa,LTE. 1.2 Product Feature Summary - Support the POE switch power supply - Base on the LoRa Concentrator Engine: Semtech SX1302 - Support Wi-Fi 2.4G/5G IEEE 802.11b/g/n/ac - Support Bluetooth - Support GPS，GLONASS，Galileo and QZSS - Support IP66 waterproof housing - Support OTA - Support LTE cat 1 - One WAN/LAN variable network port 1.3 Hardware block diagram DSOM-020R（PX30K） Quad-core Cortex- A35 Wifi /BLE BL-M8821 LTE cat 1 EG91/BG96 DDR3 GB LoRa SX1302 TPM ATECC608B Ethernet 杭州市大关路 189 号万通中心A 幢 8 楼,310004 Tel:86-571-86769027/8 8810480 Floor 8, building A, Wantong center, Hangzhou 310004, China www.dusunlock.com Website: www.dusuniot.com www.dusunremotes.com 杭州软库科技有限公司 Hangzhou Roombanker Technology Co., Ltd. A DUSUN company 2. Mechanical Requirement 2.1 Drawings 2.2 Interface 杭州市大关路 189 号万通中心A 幢 8 楼,310004 Tel:86-571-86769027/8 8810480 Floor 8, building A, Wantong center, Hangzhou 310004, China www.dusunlock.com Website: www.dusuniot.com www.dusunremotes.com 杭州软库科技有限公司 Hangzhou Roombanker Technology Co., Ltd. A DUSUN company 2.3 installation 3. Electrical Requirements 3.1 Hardware Information Category Specifications CPU Quad-core Cortex-A35 RAM 2GB ROM eMMC 32GB (up to 128GB) System Linux Security module ATECC608B Network Interface The network interface supports CAT-5/CAT-5E to transmit data and POE Power Supply (voltage range is 44~ 57V). It is WAN/LAN variable. Indicator LEDs 1) . Power LED normally on when powered on 2) . Network LED normally on when connected 3) . LTE Card indicator Wireless protocol Wifi, BLE, LoRa,LTE GPS GPS，GLONASS，Galileo and QZSS（LTE Integrated） Operating Temperature -20°C~65°C IP rating IP66 LTE Cat1 杭州市大关路 189 号万通中心A 幢 8 楼,310004 Tel:86-571-86769027/8 8810480 Floor 8, building A, Wantong center, Hangzhou 310004, China www.dusunlock.com Website: www.dusuniot.com www.dusunremotes.com 杭州软库科技有限公司 Hangzhou Roombanker Technology Co., Ltd. A DUSUN company 4. Solution 4.1Connect to third-party LoRaWan platforms(DSGW-014-※-L) 4.2 Build-in Network Server 杭州市大关路 189 号万通中心A 幢 8 楼,310004 Tel:86-571-86769027/8 8810480 Floor 8, building A, Wantong center, Hangzhou 310004, China www.dusunlock.com Website: www.dusuniot.com www.dusunremotes.com 杭州软库科技有限公司 Hangzhou Roombanker Technology Co., Ltd. A DUSUN company 5. Thrid-Part Platform 5.1 The Things Stack (DSGW-014-※-F-TTN) The Things Stack is an enterprise grade LoRaWAN network server, built on an open source core. The Things Stack allows you to build and manage LoRaWAN networks on your own hardware or in the cloud. The link for the things stack: https://www.thethingsindustries.com/docs/ …

Text truncated - open the document above for the full version.

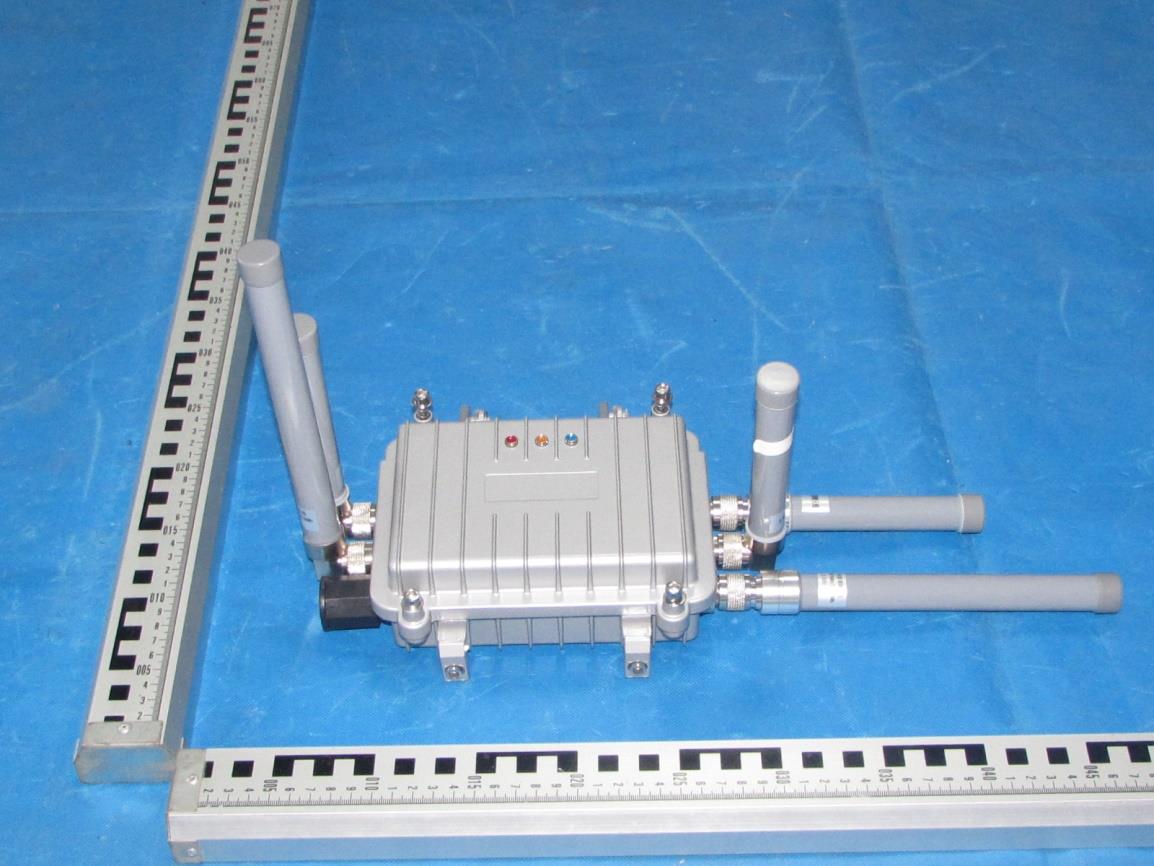

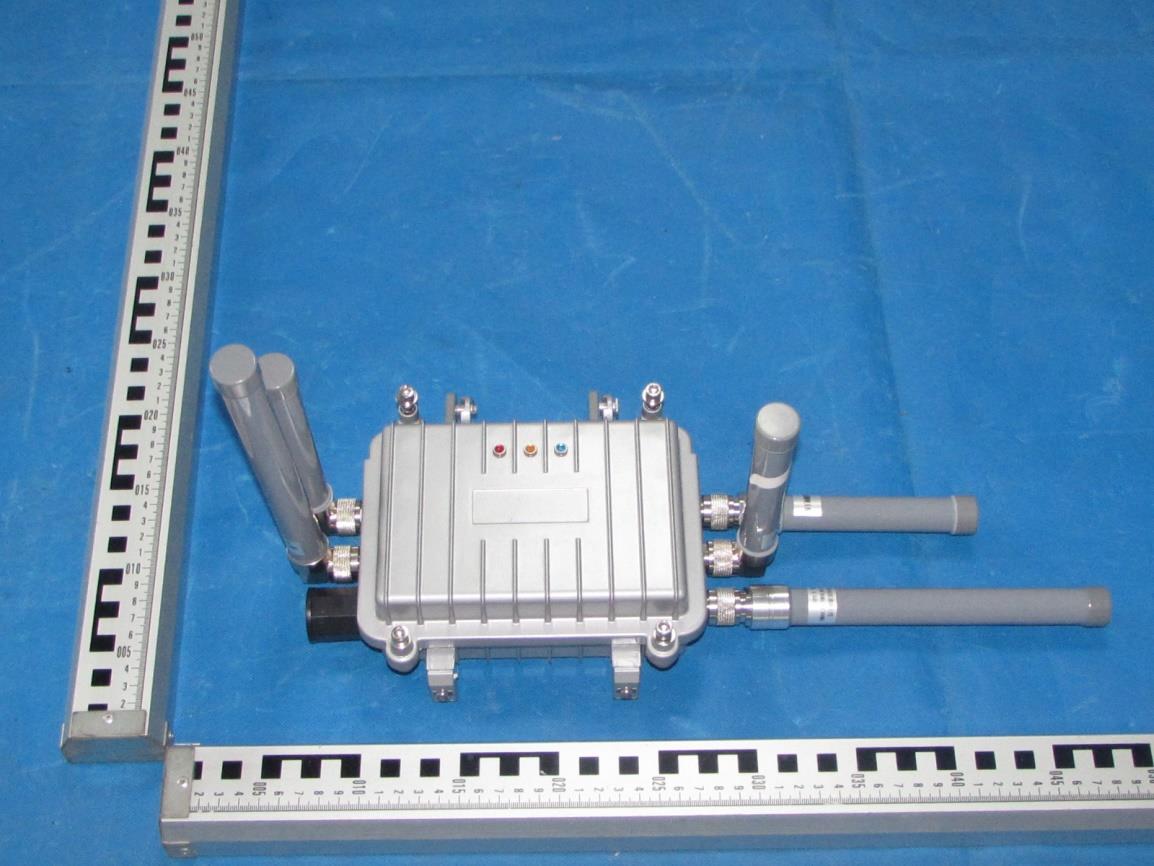

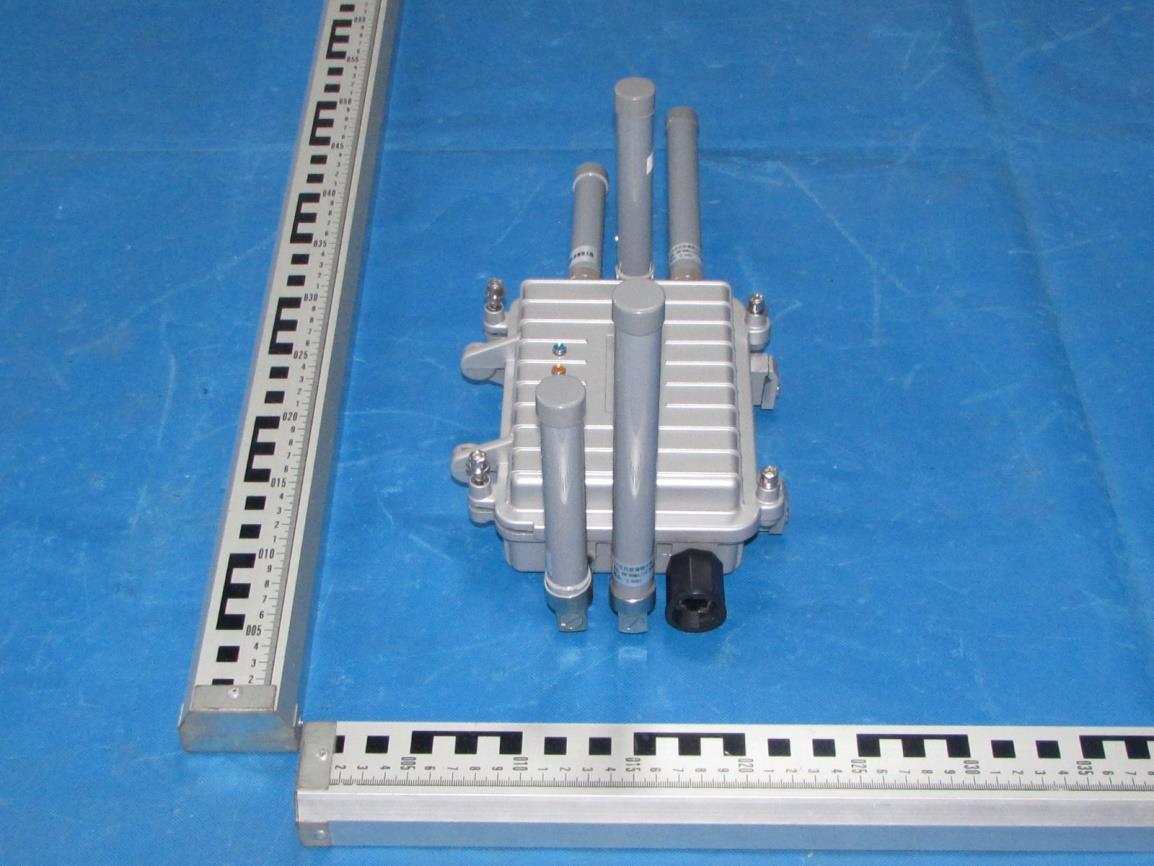

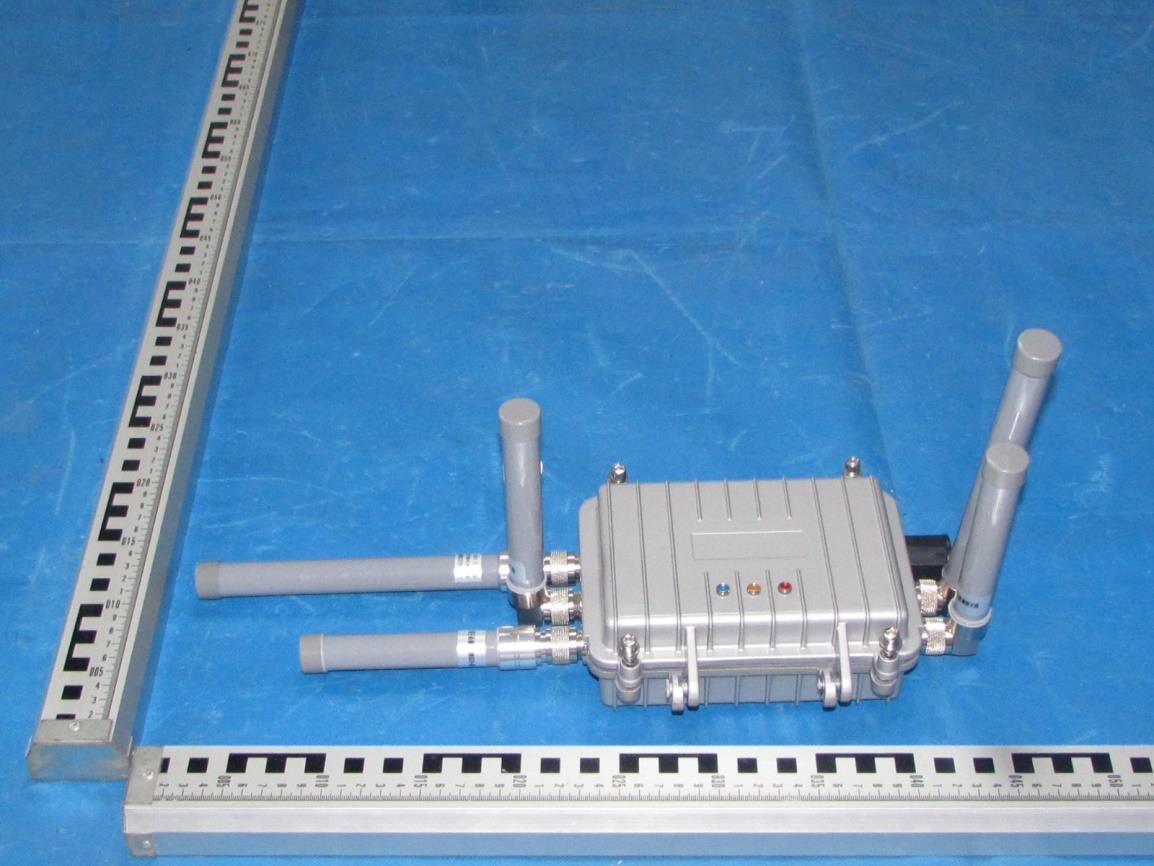

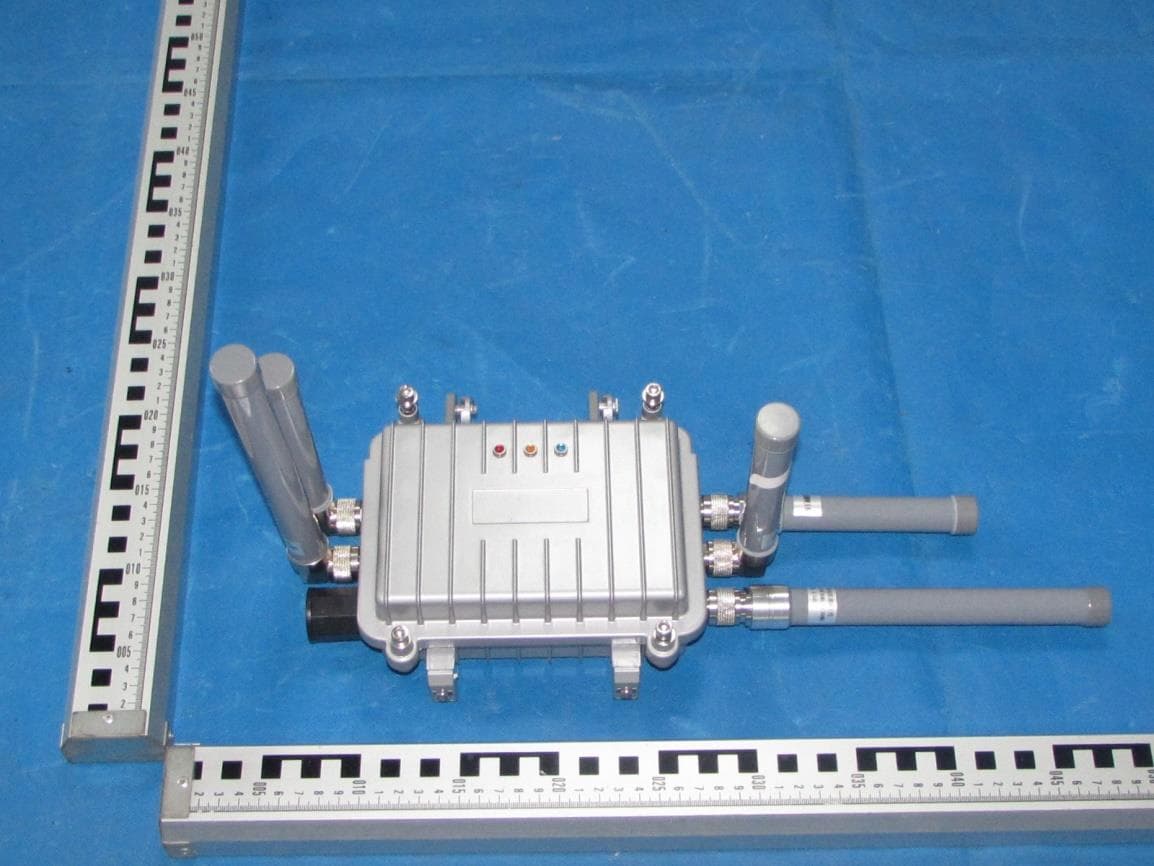

Shenzhen Tongzhou Testing Co.,Ltd. FCC ID:2AUXBDSGW-014 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 1 of 3 EXTERIOR PHOTOGRAPHS OF EUT External Photos Shenzhen Tongzhou Testing Co.,Ltd. FCC ID:2AUXBDSGW-014 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 2 of 3 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID:2AUXBDSGW-014 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 3 of 3 GSM/WCDMA/ LTE DIV Antenna GPS Antenna Bluetooth / WiFi antenna LoRa antenna GSM/WCDMA /LTE Main Antenna

Model Name:DSGW-014 FCCID: 2AUXBDSGW-014 Region: EU868 SN:20210402200001 MAC: 30:ae:7b:XX:XX Wi-Fi

Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AUXBDSGW-014 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 INTERIOR PHOTOGRAPHS OF EUT Internal Photos Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AUXBDSGW-014 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AUXBDSGW-014 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AUXBDSGW-014 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AUXBDSGW-014 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXBDSGW-014 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 10 Maximum Permissible Exposure Report Product Information Product Name : Outdoor LoRa Gateway Model Number : DSGW-014, DSGW-014-x(x:1~8) Model Difference Declaration : All the same except for the model name Test Model : DSGW-014 Power Supply : DC 48V supply by POE Hardware version : B45161209A Software version : V1.0 Sample ID : TZ230404203–1#&TZ230404203–2# LoRa LoRa-Hybrid Mode Frequency Range : 902.3 – 914.9 MHz Channel Number : 64 Channels Modulation Technology : LORA Antenna Type And Gain : External Antenna /1.2 dBi(Max) Bluetooth Bluetooth Version : V2.1 Operation Frenquency : 2402- 2480 MHz Channel Number : 79 Channels for Bluetooth BR/EDR(DSS) Modulation Technology : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth BR/EDR (DSS) Data Rates : Bluetooth BR/EDR (DSS): 1/2/3Mbps Antenna Type And Gain : External Antenna /3.0 dBi(Max) WiFi WLAN : Supported IEEE 802.11a/b/g/n/ac WLAN FCC Operation Frequency : IEEE 802.11b:2412-2462MHz IEEE 802.11g:2412-2462MHz IEEE 802.11n HT20:2412-2462MHz / 5180-5240MHz / 5745-5825MHz IEEE 802.11n HT40: 2422-2452MHz / 5190-5230MHz / 5755-5795MHz IEEE 802.11a: 5180-5240MHz / 5745-5825MHz IEEE 802.11ac VHT20: 5180-5240MHz / 5745-5825MHz IEEE 802.11ac VHT40: 5190-5230MHz / 5755-5795MHz IEEE 802.11ac VHT80: 5210MHz / 5775MHz WLAN Channel Number : 11 Channels for 2412-2462MHz(IEEE 802.11b/g/n HT20) 7 Channels for 2422-2452MHz(IEEE 802.11n HT40) 4 Channels for 5180-5240MHz (IEEE 802.11a/ac VHT20/n HT20) 2 Channels for 5190-5230MHz (IEEE 802.11ac VHT40/n HT40) 1 Channels for 5210MHz (IEEE 802.11ac VHT80) 5 Channels for 5745-5825MHz(IEEE 802.11a/ac VHT20/n HT20) 2 Channels for 5755-5795MHz(IEEE 802.11ac VHT40/n HT40) 1 Channels for 5775MHz(IEEE 802.11ac VHT80) WLAN Modulation Technology : IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXBDSGW-014 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 10 IEEE 802.11a: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11ac: OFDM (256QAM, 64QAM, 16QAM, QPSK, BPSK) Antenna Type And Gain : 3.00dBi (Max.), for TX/RX (WLAN 2.4G Band) 1.78dBi (Max.), for TX/RX (WLAN 5.2G Band) 2.09dBi (Max.), for TX/RX (WLAN 5.8G Band) UTRA UTRA FCC Operation Frequency : WCDMA BAND II (UL: 1850 –1910 MHz/DL: 1930 – 1990 MHz) WCDMA BAND IV (UL: 1710 – 1755 MHz/DL: 2110 – 2155 MHz) WCDMA BAND V (UL: 824 – 849 MHz/DL: 869 – 894 MHz) Channel Separation : 0.2MHz Modulation Technology : OFDM (16QAM, QPSK) Antenna Type And Gain : External Antenna WCDMA BAND II: 1.8dBi WCDMA BAND IV: 1.5dBi WCDMA BAND V: -0.6dBi E-UTRA E-UTRA FCC Operation Frequency : FDD Band 2 (UL: 1850 – 1910 MHz/DL: 1930 – 1990 MHz) FDD Band 4 (UL: 1710 – 1755 MHz/DL: 2110 – 2155 MHz) FDD Band 5 (UL: 824 – 849 MHz/DL: 869 – 894 MHz) FDD Band 12(UL: 699 – 716 MHz/DL: 729 – 746 MHz) FDD Band 13(UL: 777 – 787 MHz/DL: 746 – 756 MHz) FDD Band 25(UL: 1850 – 1915 MHz/DL: 1930 – 1995 MHz) FDD Band 26 (UL: 814 – 849 MHz/DL: 859 – 894 MHz) Channel Separation : 0.1 MHz Modulation Technology : OFDM (16QAM, QPSK) Antenna Type And Gain : External Antenna FDD Band 2:1.8 dBi FDD Band 4:1.5 dBi FDD Band 5:-0.6 dBi FDD Band 12:-1.2 dBi FDD Band 13:-1.1 dBi FDD Band 25:1.8dBi FDD Band 26:-0.6 dBi Note 1: Antenna position refer to EUT Photos. Note 2: the above information was supplied by the applicant. 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXBDSGW-014 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 10 separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AUXBDSGW-014 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 10 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radia…

Text truncated - open the document above for the full version.

深圳市维力谷无线技术股份有限公司 ShenZhenVLGWirelessTechnologyCo,.Ltd 表单编号： VLG-QR-EN-002 版本： A0 保存期限： 5 年生效日期： 2023-4-18 2 目录 (Content) 1 、封面 (Cover)...................................................................................1 2 、目录 (Content)................................................................................2 3 、产品图面 (ProductPicture)............................................................3 4 、产品规格描述（ Productspeciticationdescribes ） .........................4 5 、电气性测试报告 (RadiationReport)..............................................5 6 、尺寸报告 (ReliabilityReport).........................................................6 7 、可靠性测试报告 (ReliabilityReport).........................................7-8 深圳市维力谷无线技术股份有限公司 ShenZhen VLG Wireless Technology Co,.Ltd 表单编号： VLG-QR-EN-002 版本： A0 保存期限： 5 年生效日期： 2023-4-18 3 3、产品图面(Product Picture) 深圳市维力谷无线技术股份有限公司 ShenZhenVLGWirelessTechnologyCo,.Ltd 表单编号： VLG-QR-EN-002 版本： A0 保存期限： 5 年生效日期： 2023-4-18 4 4 、产品规格描述（ Productspeciticationdescribes ） 电气参数(Parameter) 频率范围（Frequency)700-960/1710-2690MHz 带宽（Bandwidth)/ 输入阻抗(Impedance)50Ω 驻波比(VSWR)＜3.5 增益(Gain)≤0.4dBi/≤3.0dBi 最大效率（Max.Efficiency)≤61%/≤83% 极化方式（Polarization）Linearpolarization/Vertical 辐射方向图（Radiationpattern）Omni-directional 接口类型（Connector）RP-N型连接器 机械参数(MechanicalParameter) 总长(Length)215mm 盐雾测试(SaltSprayTest)48H 环境参数(EnvironmentParameter) 工作温度(OperationTemperature)-30°C~65°C 储藏温度(StorageTemperature)-30°C~75°C 深圳市维力谷无线技术股份有限公司 ShenZhenVLGWirelessTechnologyCo,.Ltd 表单编号： VLG-QR-EN-002 版本： A0 保存期限： 5 年生效日期： 2023-4-18 5 5、电气性能测试报告(RadiationReport) 效率及增益 (EfficiencyAndGain) ANTO 频段效率增益Gain 700 35% -2.0 710 39% -1.5 720 42% -1.2 730 44% -0.9 740 47% -0.6 750 46% -0.8 760 46% -0.8 770 44% -1.1 780 44% -1.1 790 42% -1.3 深圳市维力谷无线技术股份有限公司 ShenZhenVLGWirelessTechnologyCo,.Ltd 表单编号： VLG-QR-EN-002 版本： A0 保存期限： 5 年生效日期： 2023-4-18 6 800 43% -1.3 810 46% -1.1 820 45% -1.3 830 48% -1.2 840 50% -1.0 850 54% -0.6 860 55% -0.3 870 57% -0.1 880 59% 0.1 890 60% 0.2 900 61% 0.2 910 60% 0.4 920 58% 0.4 930 55% 0.2 940 50% -0.1 950 49% -0.2 960 51% -0.1 ANTO 频段效率增益 1710 77% 1.3 1730 77% 1.3 1750 76% 1.3 1770 81% 1.5 1790 78% 1.3 1810 77% 1.3 1830 80% 1.4 1850 83% 1.6 1870 81% 1.6 1890 83% 1.8 1910 72% 1.2 1930 72% 1.2 1950 74% 1.5 1970 74% 1.7 1990 75% 1.8 深圳市维力谷无线技术股份有限公司 ShenZhenVLGWirelessTechnologyCo,.Ltd 表单编号： VLG-QR-EN-002 版本： A0 保存期限： 5 年生效日期： 2023-4-18 7 2010 74% 1.9 2030 74% 2.0 2050 74% 1.8 2070 74% 1.7 2090 77% 1.7 2110 79% 1.9 2130 76% 1.9 2150 75% 1.8 2170 72% 1.8 2190 71% 1.9 2210 75% 2.3 2230 78% 2.5 2250 80% 2.7 2270 82% 3.0 2290 76% 2.8 2310 71% 2.6 2330 71% 2.6 2350 74% 2.8 2370 72% 2.7 2390 66% 2.4 2410 64% 2.4 2430 60% 2.2 2450 56% 2.0 2470 57% 2.1 2490 57% 2.2 2510 56% 2.3 2530 56% 2.3 2550 56% 2.2 2570 57% 2.3 2590 56% 2.2 2610 58% 2.4 2630 64% 2.7 2650 66% 2.8 2670 69% 2.8 2690 68% 2.6 深圳市维力谷无线技术股份有限公司 ShenZhenVLGWirelessTechnologyCo,.Ltd 表单编号： VLG-QR-EN-002 版本： A0 保存期限： 5 年生效日期： 2023-4-18 8 700-960MHz 方向图 深圳市维力谷无线技术股份有限公司 ShenZhenVLGWirelessTechnologyCo,.Ltd 表单编号： VLG-QR-EN-002 版本： A0 保存期限： 5 年生效日期： 2023-4-18 9 1710-2690MHz 方向图 深圳市维力谷无线技术股份有限公司 ShenZhenVLGWirelessTechnologyCo,.Ltd 表单编号： VLG-QR-EN-002 版本： A0 保存期限： 5 年生效日期： 2023-4-18 10 6 、尺寸报告 (ReliabilityReport) 深圳市维力谷无线技术股份有限公司 ShenZhenVLGWirelessTechnologyCo,.Ltd 样品尺寸检测报告 客户名称 东胜 产品名称 DSGW-014/LTE玻 璃钢天线-母弯 头 产品类型 供应商名称产品料号 V2183-006-A-02 检验人员蒋涛 图纸版本R：A单位MM检验日期2022.12.15 序号 检测 项目 检测标准 实际测量尺寸 判定 结果 检测 仪器 穴号备注 12345 1外观见外观不良现象简述OKOKOKOKOK合格目测 2尺寸★32±1 31.3531.3131.4631.4031.39 合格卡尺 3尺寸★215±3 215214213214213 合格钢尺 4 尺寸20±0.220.0220.0520.0820.0420.01合格卡尺 最终判定:OK■NG□ 检验：姚飞龙审核：余江

RF TEST REPORT Applicant Quectel Wireless Solutions Co., Ltd FCC ID XMR201909EG91NAX Product LTE Module Brand Quectel Model EG91-NAX Report No. R1907A0406-R4 Issue Date November 19, 2019 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in FCC CFR47 Part 2 (2017)/ FCC CFR 47 Part 22H (2017). The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Performed by: Peng Tao Approved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86‐021‐50791141/2/3 FAX: +86‐021‐50791141/2/3‐8000 FCC RF Test Report Report No: R1907A0406-R4 TA Technology (Shanghai) Co., Ltd. TA-MB-05-001R Page 2 of 49 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENT 1. Test Laboratory ...................................................................................................................................... 4 1.1. Notes of the Test Report ............................................................................................................... 4 1.2. Testing Location ............................................................................................................................ 4 2. General Description of Equipment under Test ....................................................................................... 5 3. Applied Standards .................................................................................................................................. 6 4. Test Configuration .................................................................................................................................. 7 5. Test Case Results .................................................................................................................................. 9 5.1. RF Power Output ........................................................................................................................... 9 5.2. Effective Radiated Power ............................................................................................................ 13 5.3. Occupied Bandwidth ................................................................................................................... 16 5.4. Band Edge Compliance ............................................................................................................... 23 5.5. Peak-to-Average Power Ratio (PAPR) ....................................................................................... 29 5.6. Frequency Stability ...................................................................................................................... 31 5.7. Spurious Emissions at Antenna Terminals ................................................................................. 35 5.8. Radiates Spurious Emission ....................................................................................................... 41 6. Main Test Instruments ......................................................................................................................... 49 FCC RF Test Report Report No: R1907A0406-R4 TA Technology (Shanghai) Co., Ltd. TA-MB-05-001R Page 3 of 49 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Summary of measurement results No. Test Type Clause in FCC rules Verdict 1 RF power output 2.1046 PASS 2 Effective Radiated Power 22.913(a)(5) PASS 3 Occupied Bandwidth 2.1049 PASS 4 Band Edge Compliance 2.1051 / 22.917(a) PASS 5 Peak-to-Average Power Ratio 22.913(d)/ KDB 971168 D01(5.7) PASS 6 Frequency Stability 2.1055 / 22.355 PASS 7 Spurious Emissions at Antenna Terminals 2.1051 / 22.917(a) PASS 8 Radiates Spurious Emission 2.1053 / 22.917 (a) PASS Date of Testing: May 25, 2018 ~ June 27, 2018 Note: PASS: The EUT complies with the essential requirements in the standard. FAIL: The EUT does not comply with the essential requirements in the standard. EG91-NAX (Report No.: R1907A0406-R4) is a variant of the EG91-NA (Report No.: R1805A0250-R1).Test values duplicated from Original for variant. There is no test for variant in this report. FCC RF Test Report Report No: R1907A0406-R4 TA Technology (Shanghai) Co., Ltd. TA-MB-05-001R Page 4 of 49 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1. Test Laboratory 1.1. Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein .Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Testing Location Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong City: Shanghai Post code: 201201 Country: P. R. China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] FCC RF Test Report Report No: R1907A0406-R4 TA Technology (Shanghai) Co., Ltd. TA-MB-05-001R Page 5 of 49 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 2. General Description of Equipment under Test Client Information Applicant Quectel Wireless Solutions Co., Ltd Applicant address Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Manufacturer Quectel Wireless Solutions Co., Ltd Manufacturer address Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Min…

Text truncated - open the document above for the full version.

RF TEST REPORT Applicant Quectel Wireless Solutions Co., Ltd FCC ID XMR201909EG91NAX Product LTE Module Brand Quectel Model EG91-NAX Report No. R1907A0406-R1 Issue Date November 21, 2019 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in FCC CFR47 Part 2 (2018)/ FCC CFR 47 Part 22H (2018). The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Performed by: Peng Tao Approved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86‐021‐50791141/2/3 FAX: +86‐021‐50791141/2/3‐8000 RF Test Report Report No.: R1907A0406‐R1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-001R Page 2 of 43 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENT 1. Test Laboratory ...................................................................................................................................... 4 1.1. Notes of the Test Report ............................................................................................................... 4 1.2. Testing Location ............................................................................................................................ 4 2. General Description of Equipment under Test ....................................................................................... 5 2.1. Applicant and Manufacturer Information ....................................................................................... 5 2.2. General Information ....................................................................................................................... 5 3. Applied Standards .................................................................................................................................. 6 4. Test Configuration .................................................................................................................................. 7 5. Test Case Results .................................................................................................................................. 8 5.1. RF Power Output and Effective Radiated Power .......................................................................... 8 5.2. Occupied Bandwidth ................................................................................................................... 15 5.3. Band Edge Compliance ............................................................................................................... 22 5.4. Peak-to-Average Power Ratio (PAPR) ....................................................................................... 29 5.5. Frequency Stability ...................................................................................................................... 31 5.6. Spurious Emissions at Antenna Terminals ................................................................................. 34 5.7. Radiates Spurious Emission ....................................................................................................... 38 6. Main Test Instruments ......................................................................................................................... 43 RF Test Report Report No.: R1907A0406‐R1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-001R Page 3 of 43 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Summary of measurement results No. Test Case Clause in FCC rules Verdict 1 RF power output and Effective Radiated Power 2.1046 22.913(a)(5) PASS 2 Occupied Bandwidth 2.1049 PASS 3 Band Edge Compliance 2.1051 / 22.917(a) PASS 4 Peak-to-Average Power Ratio 22.913(d)/ KDB 971168 D01(5.7) PASS 5 Frequency Stability 2.1055 / 22.355 PASS 6 Spurious Emissions at Antenna Terminals 2.1051 / 22.917(a) PASS 7 Radiates Spurious Emission 2.1053 / 22.917 (a) PASS Date of Testing: October 22, 2019 ~ November 9, 2019 RF Test Report Report No.: R1907A0406‐R1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-001R Page 4 of 43 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1. Test Laboratory 1.1. Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein .Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Testing Location Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong City: Shanghai Post code: 201201 Country: P. R. China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] RF Test Report Report No.: R1907A0406‐R1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-001R Page 5 of 43 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 2. General Description of Equipment under Test 2.1. Applicant and Manufacturer Information Applicant Quectel Wireless Solutions Co., Ltd Applicant address Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Manufacturer Quectel Wireless Solutions Co., Ltd Manufacturer address Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 2.2. General Information EUT Description Model EG91-NAX IMEI 868050040003283 Hardware Version R1.0 Software Version EG91NAXGAR07A01M1G Power Supply External Power Supply A…

Text truncated - open the document above for the full version.

RF TEST REPORT Applicant Quectel Wireless Solutions Co., Ltd FCC ID XMR201909EG91NAX Product LTE Module Brand Quectel Model EG91-NAX Report No. R1907A0406-R6 Issue Date November 19, 2019 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in FCC CFR47 Part 2 (2017)/ FCC CFR 47 Part 24E (2017). The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Performed by: Peng Tao Approved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86‐021‐50791141/…

Text truncated - open the document above for the full version.
