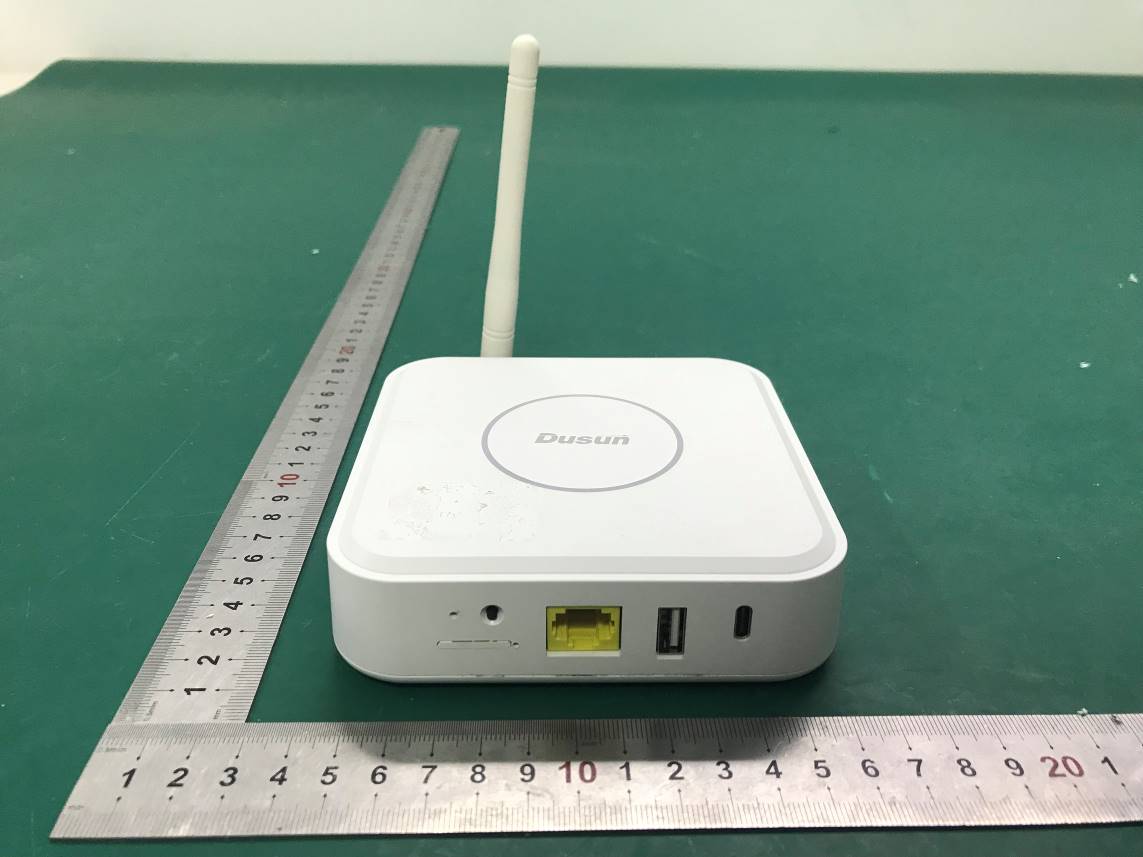

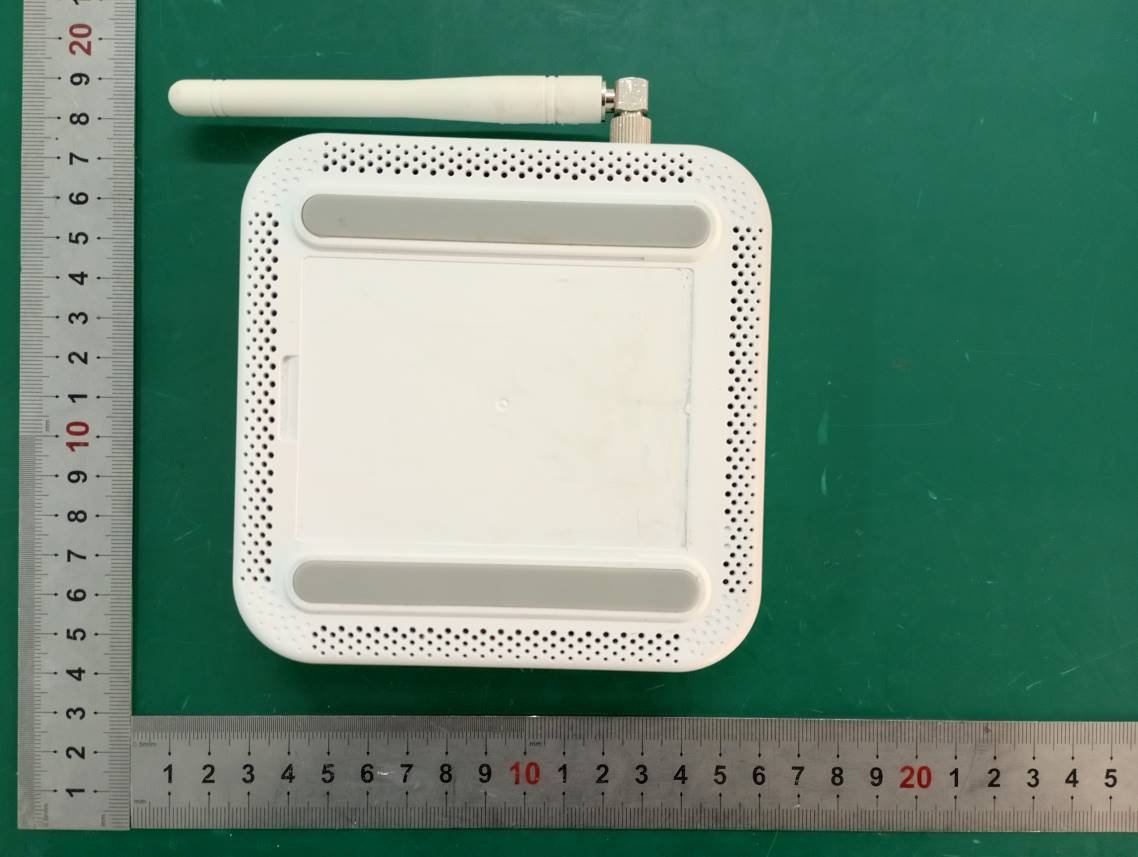

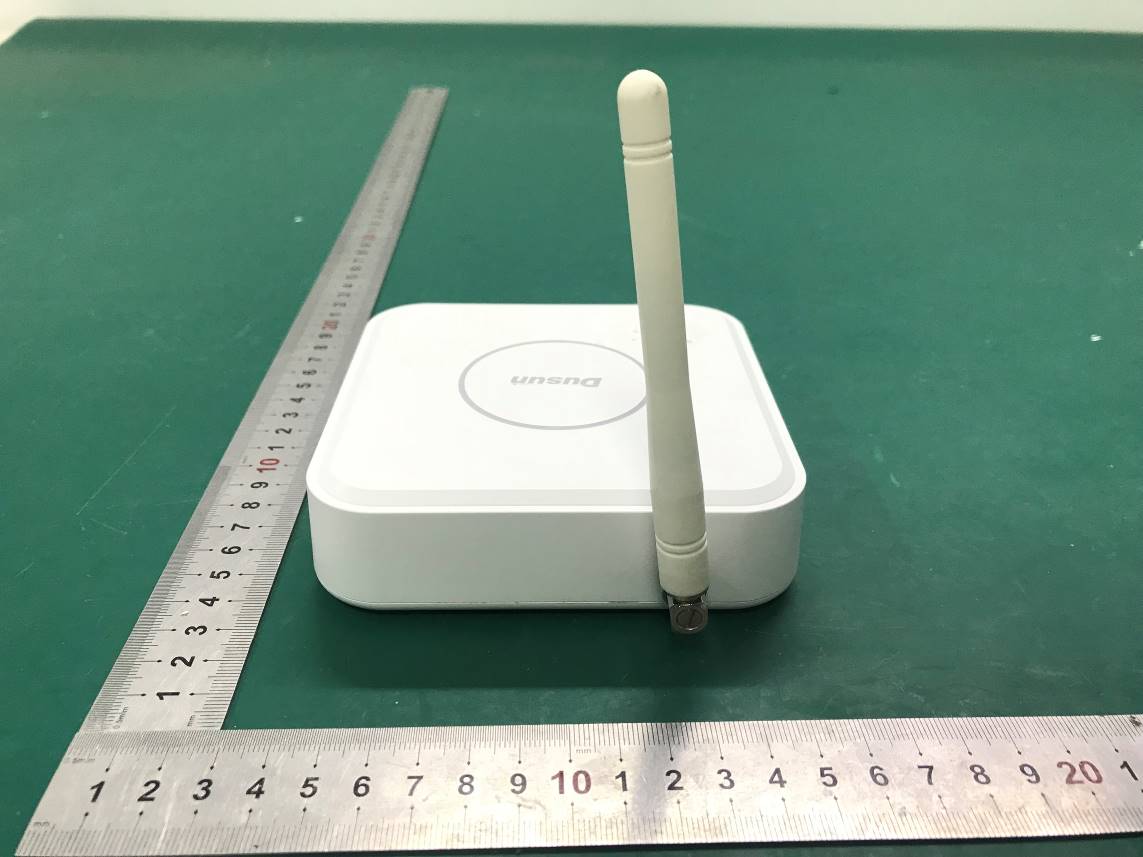

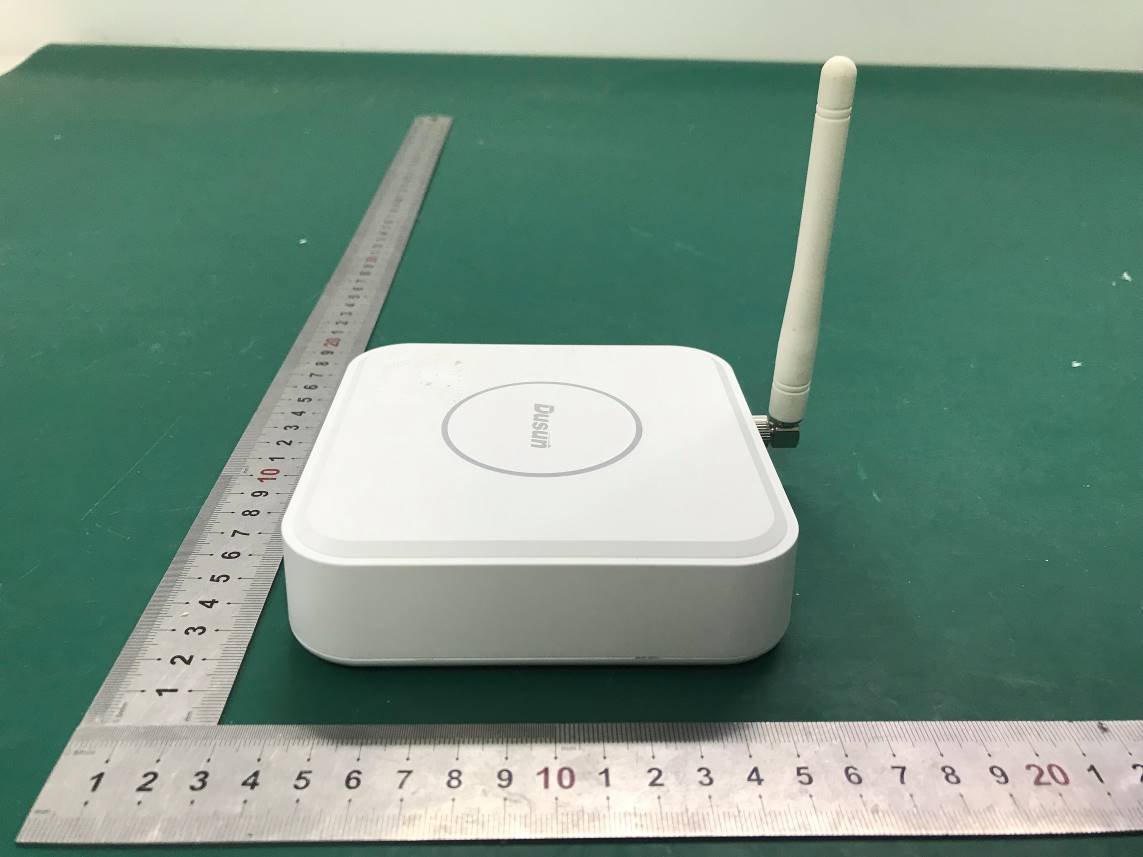

2AUXBDSGW-210IoT Edge Computer Gateway

A DUSUN company A#801 Wantong center, Hangzhou , China Tel:86-571-86769027/8 8810480 Website: www.dusuniot.com www.dusunremotes.com www.dusunremotes.com User Manual Product Name: IoT Edge Computer Gateway Model Name: DSGW‐210B Revision History Specification Sect. Update Description By Rev Date 1.0 2021-03-22 New version release 2.0 2021-05-21 Add LoRaWAN Protocol 3.0 2021-06-08 Add SD card 4.0 2021-07-12 Add new -2, USB/LTE 5.0 2021-08-10 Add different RAM and eMMC 6.0 2021-08-17 Add the new type -6 7.0 2021-08-18 Add the security module ECC608 8.0 2021-09-07 Add LTE CAT1 9.0 2021-10-11 Add new type -8 10.0 2021-11-16 Add new gateway model 11.0 2021-12-16 Add new Type-10 and Type-11 12.0 2021-12-21 Add new Type-12 and Type-13 13.0 2021-12-23 Add new Type-14 14.0 2022.01.11 Merging the LoRaWan Gateway 15.0 2022-01-17 Add the new Type-15 and 16 Approvals Organization Name Title Date A DUSUN company A#801 Wantong center, Hangzhou , China Tel:86-571-86769027/8 8810480 Website: www.dusuniot.com www.dusunremotes.com www.dusunremotes.com 1. Introduction ............................................................................................................................................................................................... 3 1.1 Purpose& Description ................................................................................................................................................................ 3 1.2 Product Feature Summary ........................................................................................................................................................ 3 1.3 Hardware block diagram ........................................................................................................................................................... 3 2. Mechanical Requirement ......................................................................................................................................................................... 4 2.1 Drawings .......................................................................................................................................................................................... 4 2.2 Interface and Dimension ........................................................................................................................................................... 4 3. Specifications ............................................................................................................................................................................................. 5 3.1 Technical Specification ............................................................................................................................................................... 5 4. Applications ................................................................................................................................................................................................ 6 5. QA Requirements ..................................................................................................................................................................................... 9 6. FCC ............................................................................................................................................................................................................... 10 A DUSUN company A#801 Wantong center, Hangzhou , China Tel:86-571-86769027/8 8810480 Website: www.dusuniot.com www.dusunremotes.com www.dusunremotes.com Bluetooth5.2 EFR32BG21 ZWAVE ZGM130S037 UARTUART DDR3/4 2GB SDIO eMMC 16GB RP3288 Quad-core Cortex- A53 Wi-Fi FG6211ASRC-00 UART RJ45 CAT-M1 BG96 Ethernet UARTI2C Lora SX1302 Zigbee EFR32MG1B Battery management BQ25895 Li battery 1. Introduction 1.1 Purpose& Description DSGW‐210B is an IoT gateway with multiple protocols and edge computing functions. It provides reliable connectivity for a wide range of wireless IoT devices. The gateway’s modular architecture provides the ability to customize many gateway features providing an off‐the‐shelf solution that meets your exact needs. Options include LTE, Bluetooth, Wi‐Fi, Ethernet, USB, ZigBee, Z‐wave, Lora, and Li battery backup. 1.2 Product Feature Summary • Support 5V USB type-c power supply • Support IEEE802.11n, IEEE802.11g, IEEE 802.11b Protocol • Support 4G LTE CAT M1, NB IoT • Support Bluetooth • Support ZigBee3.0 • Support Z-WAVE • Support LoRa • Support Thread and Matter protocol • One WAN/LAN variable network port • Support USB2.0 • Backup Li-battery • Supporting LoRaWAN CLASS A/B/C standard • Compatible with mainstream network servers like The Things Industries, AWS, etc. 1.3 Hardware block diagram A DUSUN company www.dusunlock.com Tel:86-571-86769027/8 8810480 Website: www.dusuniot.com www.dusunremotes.com A#801 Wantong center, Hangzhou , China 2. Mechanical Requirement 2.1 Drawings 2.2 Interface and Dimension Interface Dimension A DUSUN company www.dusunlock.com Tel:86-571-86769027/8 8810480 Website: www.dusuniot.com www.dusunremotes.com A#801 Wantong center, Hangzhou , China 3. Specifications 3.1 Technical Specification Category Specifications Power Supply USB Type-C 5V/3A Reset button The reset button is a hole button, After pressing the reset button for more than 5 seconds, the Locator will be restored to the factory settings. Switch On/Off power Network Interface WAN/LAN variable. USB USB2.0 SIM card Micro SIM card SD card slot 1 Indicator LEDs(RGB) 1).Power &battery LED 2). Wireless LED 3）LTE indicator Wireless protocol Zigbee, Z-WAVE, BLE ,Wi-Fi, LoRa Antenna Zigbee PCB Antenna, LTE/BLE/Z-WAVE/Wi-Fi FPC Antenna, LoRa Rubber Duck Antenna Li battery 6000mAH Installation method Flat, Ceiling, DIN RTC Real-Time Clock operated from an onboard battery Hardware encryption ECC608 Operating Temperature -10°C~60°C Storage Temperature -40°C~85°C Operating humidity 10%~90% IP rating IP22 Cooling Heat dissipation silicone/…
