2AUYFRMX2195Mobile Phone

RMX2195 This user manual provides the product safety information. Before using the phone, please read the Important Information Guide (IIG) carefully. This guide will show you how to use the phone and its important functions. You may also visit realme ocial website to get more information about the phone. Greetings from realme mobile Do not place the phone or battery near or inside the heating equipments, cooking equipments, high pressure vessels (such as microwave ovens, induction cooker, electric oven, heater, pressure cooker, water heater, gas stove, etc.) to prevent the battery overheating which may lead to an explosion. The original charger, data cable and battery shall be used. Unapproved chargers, data cables, or batteries that are not certied by the manufacturer may result in electric shock, re, explosion, or other hazards. Back cover can’t be removed. When charging, please place the device in an environment that has a normal room temperature and good ventilation. It is recommended to charge the device in an environment with temperature ranging from 5°C~35°C. How to Transfer Old Mobile Content to a New Mobile You can use realme Clone Phone to easily transfer photos, videos, music, contacts, messages, apps, etc from your old phone to the new one. 1. If you have an old Android phone, rst scan the QR code below, then download and install Clone Phone, next open Clone Phone on both the new and old phones, and follow the on-screen instructions to complete the operation. 2. If you have an old iPhone, open Clone Phone on the new phone directly, and follow on-screen instructions to sign in to iCloud account and sync the les. https://i.clonephone.coloros.com/download Warning How to reboot the phone Press and hold the Power Button and Volume Up Button at the same time until the realme boot animation is displayed to reboot the phone. You are provided with the following standard accessories: 1 Phone, 1 Charger, 1 USB data cable, 1 Safety Guide, 1 Quick Guide, 1 SIM Ejector Tool, 1 Protective Case. Standard accessories RMX2195 16.5cm(6.5'') SAR ValuesFCC SAR 0°C-35°C 5860mAh/22.67Wh(Min) 6000mAh/23.22Wh(Typ) 0.708W/kg(Head) 0.924W/kg(Body) 164.5×75.9×9.8(mm) Volume Key Front Camera Power Key Receiver Ambient Light Sensor 8Megapixels Front 13Megapixels+8Megapixels +2Megapixels+2Megapixels Rear 30±1dBm 29.5±1dBm 23±1dBm 23.3±1dBm 23±1dBm 23.3±1dBm 22.5±1dBm 23±1dBm 7±2dBm(EIRP) 15±2dBm(EIRP) LTE FDD LTE TDD Radio Radio Waves Specications Frequency Max. Output Power 1800MHz 32.5±1dBm 850MHz/900MHz 1900MHz Bands 1/2/4 Bands 5/8 Bands 1/2/3/4/66 Bands 5/8/12/17/26/28 Band 7 Bands 38/41 2.4-2.4835GHz 2.4-2.4835GHz GSM WCDMA 5212257V0.1 Cuádruple cámara trasera de 13 Mpx + 8 Mpx + 2 Mpx + 2 Mpx Cámara delantera de 8 Mpx 0.708W/kg(Cabeza) 0.924W/kg(Cuerpo) Especicaciones técnicas FCC SAR 0°C-35°C RMX2195 Batería Cámara Producto Dimensiones Valores SAR Tamaño de la pantalla Temperatura para el correcto funcionamiento 16,5cm(6,5Pulgadas) Características Eléctricas Entrada 100- 240Vca 50/60Hz 0,5A 9Vcc 2A or 5Vcc 2A Salida Especicación Eléctrica del terminal móvil 3,87 Vcc Accesorios incluidos 1 Teléfono, 1 Cargador, 1 Cable USB, 1 Guía de seguridad, 1 Guía rápida, 1 Herramienta de extracción de tarjeta SIM, 1 Funda protectora. 164,5×75,9×9,8(mm) Bienvenido a realme mobile Esta guía le mostrará el uso del teléfono además de sus funciones más importantes. También, puede visitar nuestra página web ocial de realme donde obtendrá mayor información sobre el mismo. Cómo forzar el reinicio del teléfono Mantenga presionados los botones de Encendido y Vol (+) hasta que aparezca la animación de inicio de realme para forzar el renicio del teléfono. Cómo transferir contenido antiguo a su nuevo teléfono Puede utilizar la función de realme "Clonar Teléfono" para transferir rápidamente sus fotos, vídeos, música, contactos y aplicaciones a su nuevo teléfono desde el antiguo. Para ello, siga estos pasos: 1. Si tiene un teléfono Android, primero escanee el código QR que aparece a continuación, seguidamente descargue e instale “Clonar Teléfono”, abra la aplicación en ambos teléfonos y siga las instrucciones que aparecen en pantalla para completar la operación. 2. Si tiene un iPhone antiguo, abra “Clonar Teléfono” directamente en el nuevo teléfono y siga las instrucciones que aparecen en pantalla para iniciar sesión en la cuenta de iCloud y sincronizar los archivos. Advertencia No coloque el teléfono o la batería cerca o dentro de equipos de calefacción, electrodomésticos (microondas, cocinas de cualquier tipo, hornos de cualquier tipo o calefactores etc.), menaje de cocina (ollas a presión etc.), para evitar que la batería se sobrecaliente y/o provoque daños en su dispositivo. Debe utilizar el cargador, cable y batería originales. Los cargadores, cables o baterías que no cuenten con la autorización y la certicación del fabricante pueden derivar en diversos problemas como; descargas elétricas, incendios, explosiones, daños en la batería u otros peligros. Al cargar el dispositivo, colóquelo en un entorno que tenga una temperatura ambiente y ventilación normales. Es recomendable que el dispositivo sea cargado en un entorno con una temperatura que oscile entre 5 °C y 35 °C. https://i.clonephone.coloros.com/download NOTA: Regulación Pasos para buscar la Regulación FCC : Diríjase a Ajustes – Información del teléfono – Regulador. fábrica) es necesario conectarse a una red de datos (WiFi / Datos móviles). Si no se La carcasa trasera no es extraible. 5860mAh/22,67Wh(Min) 6000mAh/23,22Wh(Typ) Bluetooth 2,4G Wi-Fi Especicaciones de ondas de radio FrecuenciaPotencia máx. de salida Radio 30±1dBm 29,5±1dBm 23±1dBm 23.3±1dBm 23±1dBm 23,3±1dBm 22,5±1dBm 23±1dBm 7±2dBm(EIRP) 15±2dBm(EIRP) LTE FDD LTE TDD 1800MHz 32,5±1dBm 850MHz/900MHz 1900MHz Bands 1/2/4 Bands 5/8 Bands 1/2/3/4/66 Bands 5/8/12/17/26/28 Band 7 Bands 38/41 2,4-2,4835GHz 2,4-2,4835GHz GSM WCDMA Auricular Botón de encendido y apagado Sensor de luz Botones de volume…

Text truncated - open the document above for the full version.

Realme Chongqing Mobile Telecommunications Corp., Ltd. Date: 2020-10-26 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Request of Confidentiality for FCC ID: 2AUYFRMX2195 To Whom it may concern: Pursuant to sections 0.457 and 0.459 of Commission’s Rules(CFR 47), and Section 552(b)(4) of the Freedom of Information Act, Realme Chongqing Mobile Telecommunications Corp., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Shor t-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA04-1705. This provision will give Realme Chongqing Mobile Telecommunications Corp., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 BOM 5 Tune up procedure SHORT-TERM 6 External Photos 7 Internal Photos 8 Te s t-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Signatory: Name: Yang LiangPing Company name: Realme Chongqing Mobile Telecommunications Corp., Ltd. Address: No.178 Yulong Avenue, Yufengshan, Yubei District, Chongqing,China Tel: 86 76986076999 Email: [email protected]

Realme Chongqing Mobile Telecommunications Corp., Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 20201029 SUBJECT: FCC Application for 2AUYFRMX2195 To Whom It May Concern: We, the undersigned, hereby authorize Zhou Fangai at Shenzhen Academy of Metrology and Quality Inspection on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Academy of Metrology and Quality Inspection on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signature： Printed Name:Yang Liangping

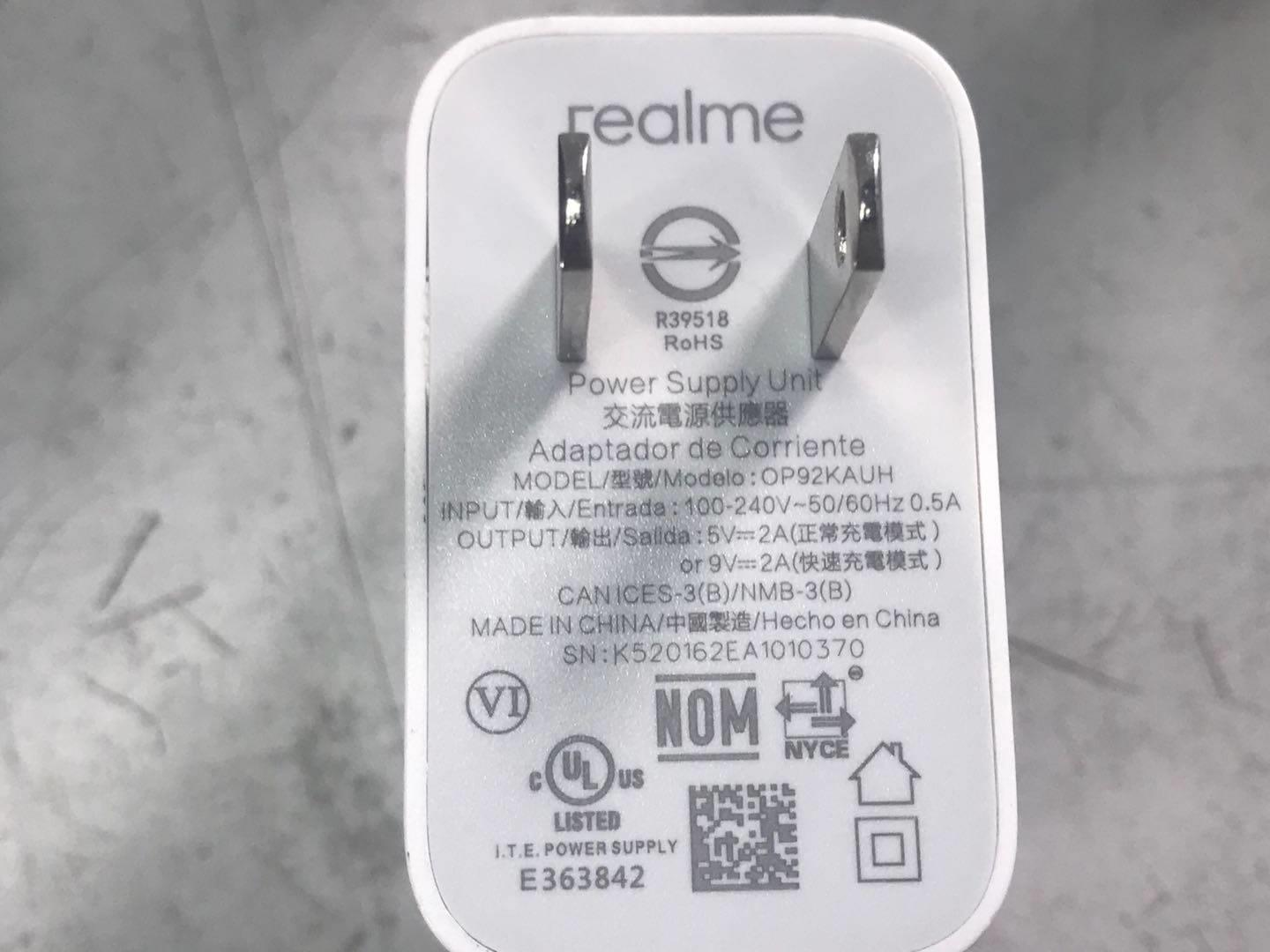

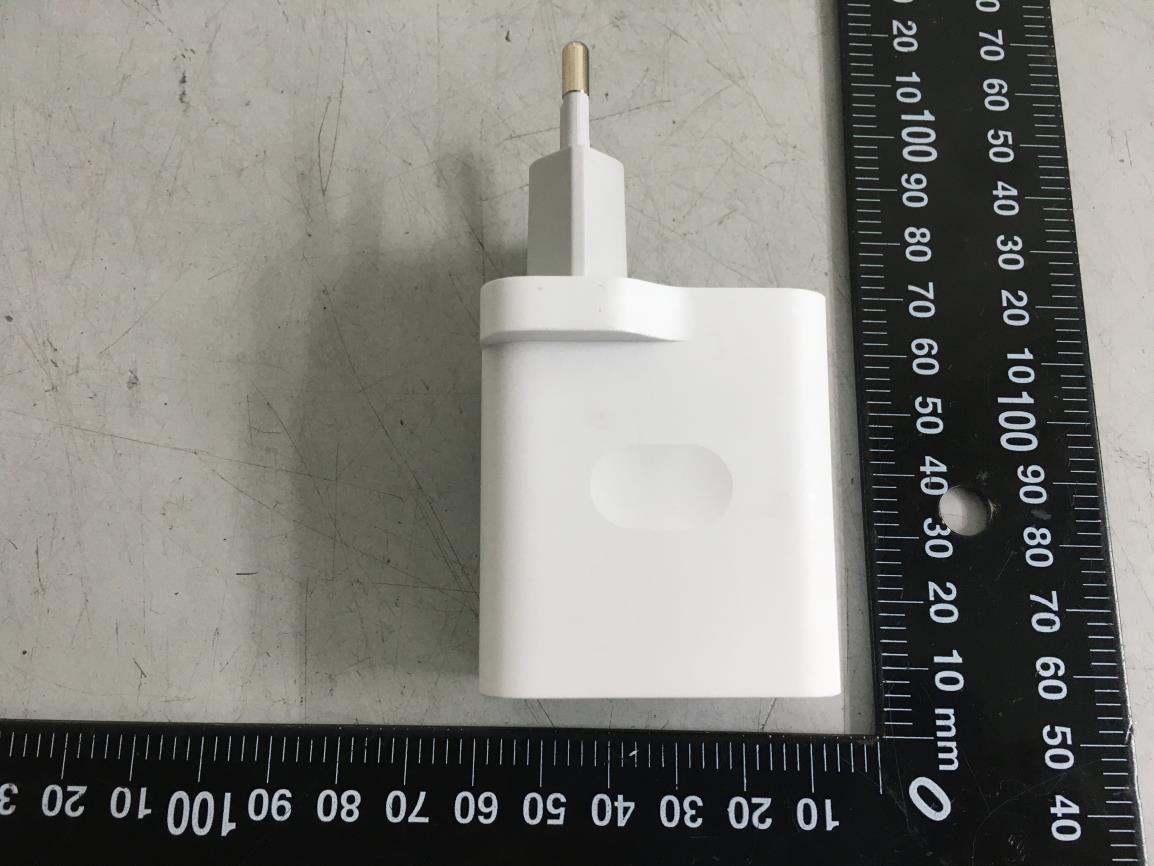

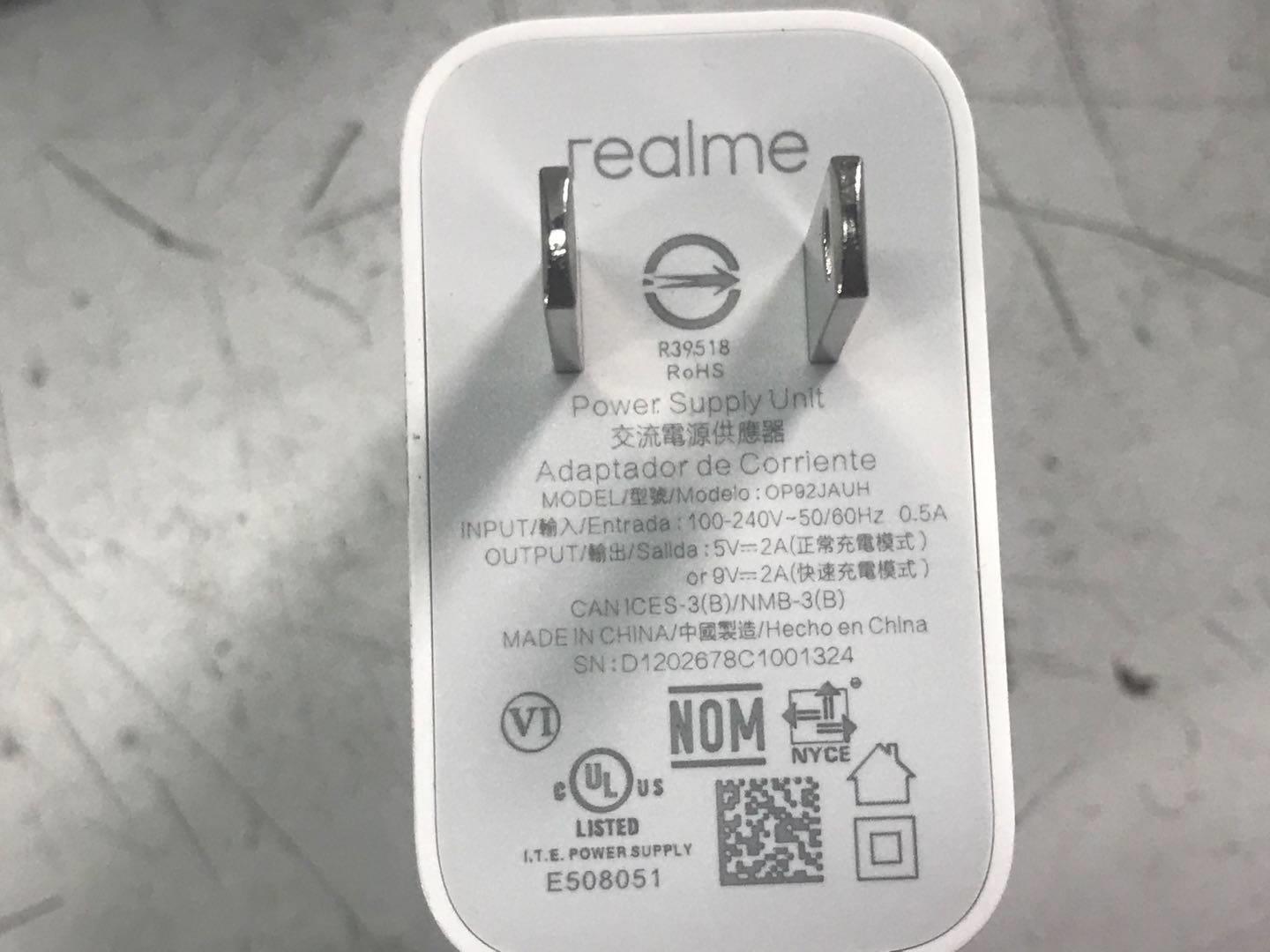

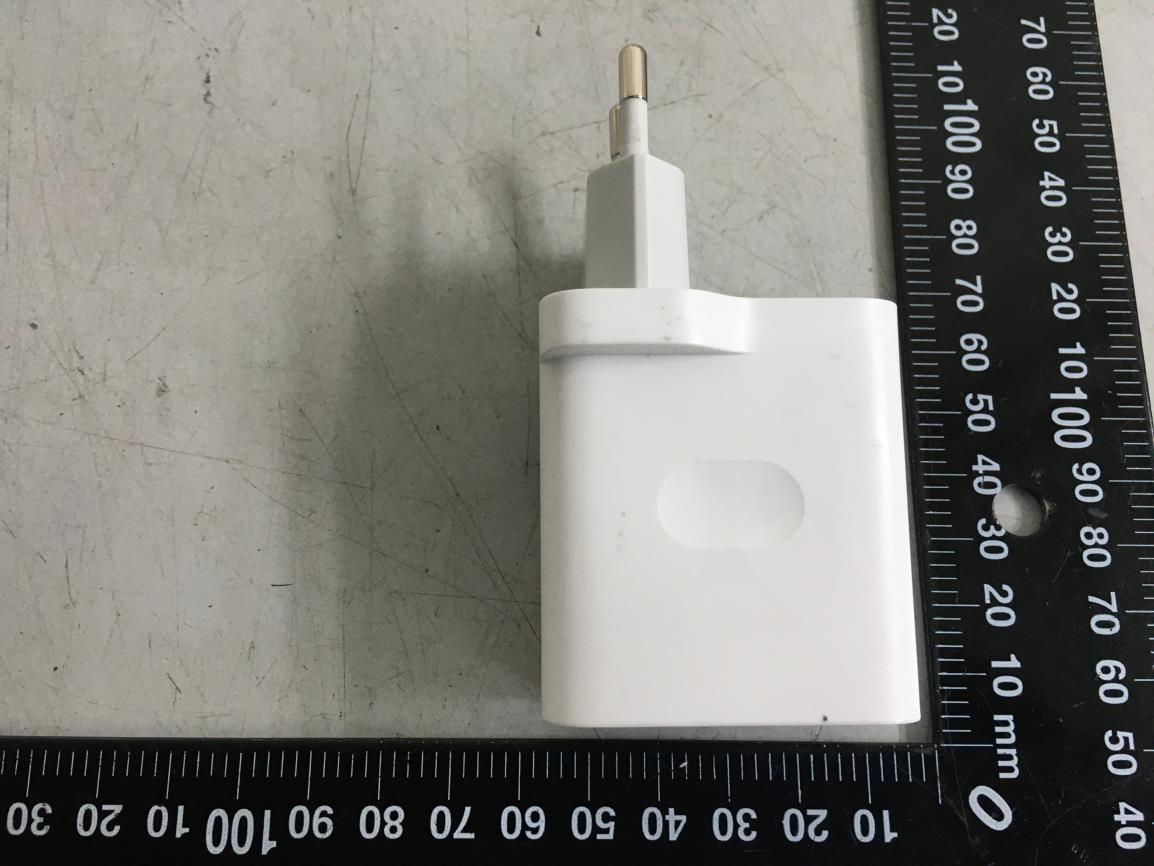

Photo 1 Appearance of EUT Photo 2 Appearance of EUT Photo 3 Appearance of EUT Photo 4 Appearance of EUT Photo 5 Appearance of EUT Photo 6 Appearance of EUT Photo 7 Appearance of AC adaptor OP92JAUH Photo 8 Appearance of AC adaptor OP92JAUH Photo 9 Appearance of AC adaptor OP92KAUH Photo 10 Appearance of AC adaptor OP92KAUH Photo 11 Appearance of AC adaptor OP92JAEH Photo 12 Appearance of AC adaptor OP92JAEH Photo 13 Appearance of AC adaptor OP92KAEH Photo 14 Appearance of AC adaptor OP92KAEH Photo 15 Appearance of USB Cable

label location SIM card

IMEI1: xxxxxxxxxxxxxxx S/N : xxxxxxxx MODELO: RMX2195 FCC ID: 2AUYFRMX2195 Realme Chongqing Mobile Telecommunications Corp., Ltd. PRODUCIDO POR REALMEENSAMBLADO EN CHINA TELÉFONO CELULAR IMEI2: xxxxxxxxxxxxxxx ALIMENTACIÓN : 3.87Vcc ; 2.2A

Photo 1 Inside of EUT GSM/WCDMA/LTE Diversity Antenna BT/WiFi Antenna GSM/WCDMA/LTE Main Antenna Photo 2 Inside of EUT Photo 3 Inside of EUT Photo 4 Inside of EUT Photo 5 Inside of EUT Photo 6 Inside of EUT Photo 7 Inside of EUT Photo 8 Inside of EUT Photo 9 Inside of EUT Photo 10 Inside of EUT Photo 11 Inside of EUT Photo 12 Inside of EUT Photo 13 Inside of EUT Photo 14 Inside of EUT

Report No.: WT208002436 Page 1 of 8 APPENDIX A: SYSTEM CHECKING SCANS Report No.: WT208002436 Page 2 of 8 SystemPerformanceCheck-D750 for Head Date: 2020.10.16. DUT: Dipole 750MHz D750V3; Type SN: 1103; Communication System: CW; Communication System Band: D750 (750.0 MHz); Frequency: 750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 750 MHz; σ = 0.88mho/m; εr = 41.3; ρ = 1000 kg/m3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(9.70,9.70,9.70); Calibrated: 2020.06.16.; Electronics: DAE4 Sn876; Calibrated: 2020.03.03. Head/Dipole750 2/Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 49.533 V/m; Power Drift = -0.07 dB Fast SAR: SAR(1 g) = 2.06 mW/g; SAR(10 g) = 1.37 mW/g Maximum value of SAR (interpolated) = 2.22 W/kg Head/Dipole750 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 49.533 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 3.017 mW/g SAR(1 g) = 2.04 mW/g; SAR(10 g) = 1.34 mW/g Maximum value of SAR (measured) = 2.20 W/kg 0 dB = 2.22 W/kg = 6.94 dB W/kg Report No.: WT208002436 Page 3 of 8 SystemPerformanceCheck-D835MHz for Head Date: 2020.10.17. DUT: Dipole 835 MHz D835V2; Type: D835V2 SN: 4d141; Communication System: CW; Communication System Band: D835 (835.0 MHz); Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.93 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(9.43, 9.43, 9.43); Calibrated: 2020.06.16.; Electronics: DAE4 Sn876; Calibrated: 2020.03.03. Head/Dipole835/Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 50.047 V/m; Power Drift = -0.02 dB Fast SAR: SAR(1 g) = 2.31 mW/g; SAR(10 g) = 1.41 mW/g Maximum value of SAR (interpolated) = 2.28 W/kg Head/Dipole835/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 50.047 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.120 mW/g SAR(1 g) = 2.31 mW/g; SAR(10 g) = 1.51 mW/g Maximum value of SAR (measured) = 2.28 W/kg 0 dB = 2.28 W/kg = 7.16 dB W/kg Report No.: WT208002436 Page 4 of 8 SystemPerformanceCheck-D1750 for Head Date: 2020.10.18 DUT: Dipole 1750 MHz D1750V2; Type: D1750V2 SN:1108; Communication System: CW; Communication System Band: D1750 (1750.0 MHz); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1750 MHz; σ = 1.40 mho/m; ε r = 39.72; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(8.14, 8.14, 8.14); Calibrated: 2020.06.16.; Electronics: DAE4 Sn876; Calibrated: 2020.03.03. Head/Dipole1750 /Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 82.933 V/m; Power Drift = 0.05 dB Fast SAR: SAR(1 g) = 9.1 mW/g; SAR(10 g) = 4.88 mW/g Maximum value of SAR (interpolated) = 10.4 W/kg Head/Dipole1750 /Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 82.933 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 16.726 mW/g SAR(1 g) = 9.01 mW/g; SAR(10 g) = 4.7 mW/g Maximum value of SAR (measured) = 10.0 W/kg 0 dB = 10.4 W/kg = 20.34 dB W/kg Report No.: WT208002436 Page 5 of 8 SystemPerformanceCheck-D1900 for Head Date: 2020.10.19. DUT: Dipole 1900 MHz D1900V2; Type: D1900V2 SN:5d162; Communication System: CW; Communication System Band: D1900 (1900.0 MHz); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 39.65; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(7.92,7.92,7.92); Calibrated: 2020.06.16.; Electronics: DAE4 Sn876; Calibrated: 2020.03.03. Head/Dipole1900 5/Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 84.175 V/m; Power Drift = 0.03 dB Fast SAR: SAR(1 g) = 9.33 mW/g; SAR(10 g) = 5.01 mW/g Maximum value of SAR (interpolated) = 10.7 W/kg Head/Dipole1900 5/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 84.175 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 17.108 mW/g SAR(1 g) = 9.23 mW/g; SAR(10 g) = 4.82 mW/g Maximum value of SAR (measured) = 10.2 W/kg 0 dB = 10.7 W/kg = 20.55 dB W/kg Report No.: WT208002436 Page 6 of 8 SystemPerformanceCheck-D2300 for Head Date: 2020.10.20 DUT: Dipole 2300 MHz D2300V2; Type: D2300V2 SN:818; Communication System: CW; Communication System Band: D2300 (2300.0 MHz); Frequency: 2300 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2300 MHz; σ = 1.48 mho/m; ε r = 38.45; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(7.72,7.72,7.72); Calibrated: 2020.06.16.; Electronics: DAE4 Sn876; Calibrated: 2020.03.03. Head/Dipole2300/Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 84.317 V/m; Power Drift = 0.05 dB Fast SAR: SAR(1 g) = 12.8 mW/g; SAR(10 g) = 5.69 mW/g Maximum value of SAR (interpolated) = 17.4 W/kg Head/Dipole2300/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 84.317 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 28.853 mW/g SAR(1 g) = 12.3 mW/g; SAR(10 g) = 5.99 mW/g Maximum value of SAR (measured) = 13.1 W/kg 0 dB = 17.4 W/kg = 24.79 dB W/kg Report No.: WT208002436 Page 7 of 8 SystemPerformanceCheck-D2450 for Head Date: 2020.10.21. DUT: Dipole 2450 MHz D2450V2; Type: D2450V2 SN:818; Communication System: CW; Communication System Band: D2450 (2450.0 MHz); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.76 mho/m; ε r = 37.97; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(7.49,7…

Text truncated - open the document above for the full version.

Report No.: WT208002436 Page 1 of 14 APPENDIX C: RELEVANT PAGES FROM PROBE CALIBRATION REPORT(S) Report No.: WT208002436 Page 2 of 14 Report No.: WT208002436 Page 3 of 14 Report No.: WT208002436 Page 4 of 14 Report No.: WT208002436 Page 5 of 14 Report No.: WT208002436 Page 6 of 14 Report No.: WT208002436 Page 7 of 14 Report No.: WT208002436 Page 8 of 14 Report No.: WT208002436 Page 9 of 14 Report No.: WT208002436 Page 10 of 14 Report No.: WT208002436 Page 11 of 14 Report No.: WT208002436 Page 12 of 14 Report No.: WT208002436 Page 13 of 14 Report No.: WT208002436 Page 14 of 14

Report No.: WT208002436 Page 1 of 91 APPENDIX D: RELEVANT PAGES FROM DAE& DIPOLE VALIDATION KIT REPORT(S) Report No.: WT208002436 Page 2 of 91 Report No.: WT208002436 Page 3 of 91 Report No.: WT208002436 Page 4 of 91 Report No.: WT208002436 Page 5 of 91 Report No.: WT208002436 Page 6 of 91 Report No.: WT208002436 Page 7 of 91 Report No.: WT208002436 Page 8 of 91 Report No.: WT208002436 Page 9 of 91 Report No.: WT208002436 Page 10 of 91 Report No.: WT208002436 Page 11 of 91 Report No.: WT208002436 Page 12 of 91 Report No.: WT208002436 Page 13 of 91 Report No.: WT208002436 Page 14 of 91 Report No.: WT208002436 Page 15 of 91 Report No.: WT208002436 Page 16 of 91 Report No.: WT208002436 Page 17 of 91 Report No.: WT208002436 Page 18 of 91 Report No.: WT208002436 Page 19 of 91 Report No.: WT208002436 Page 20 of 91 Report No.: WT208002436 Page 21 of 91 Report No.: WT208002436 Page 22 of 91 Report No.: WT208002436 Page 23 of 91 Report No.: WT208002436 Page 24 of 91 Report No.: WT208002436 Page 25 of 91 Report No.: WT208002436 Page 26 of 91 Report No.: WT208002436 Page 27 of 91 Report No.: WT208002436 Page 28 of 91 Report No.: WT208002436 Page 29 of 91 Report No.: WT208002436 Page 30 of 91 Report No.: WT208002436 Page 31 of 91 Report No.: WT208002436 Page 32 of 91 Report No.: WT208002436 Page 33 of 91 Report No.: WT208002436 Page 34 of 91 Report No.: WT208002436 Page 35 of 91 Report No.: WT208002436 Page 36 of 91 Report No.: WT208002436 Page 37 of 91 Report No.: WT208002436 Page 38 of 91 Report No.: WT208002436 Page 39 of 91 Report No.: WT208002436 Page 40 of 91 Report No.: WT208002436 Page 41 of 91 Report No.: WT208002436 Page 42 of 91 Report No.: WT208002436 Page 43 of 91 Report No.: WT208002436 Page 44 of 91 Report No.: WT208002436 Page 45 of 91 Report No.: WT208002436 Page 46 of 91 Report No.: WT208002436 Page 47 of 91 Report No.: WT208002436 Page 48 of 91 Report No.: WT208002436 Page 49 of 91 Report No.: WT208002436 Page 50 of 91

Report No.: WT2080002436 Page 1 of 164 SAR TEST REPORT For Mobile Phone Model Number: RMX2195 FCC ID: 2AUYFRMX2195 Report Number : WT208002436 Test Laboratory : Shenzhen Academy of Metrology and Quality Inspection National Digital Electronic Product Testing Center Site Location : NETC Building, No.4 Tongfa Road, Xili Town, Nanshan District, Shenzhen, Guangdong, China Tel : 0086-755-86928965 Fax : 0086-755-86009898-31396 Web : www.smq.com.cn Email : [email protected] Report No.: WT2080002436 Page 2 of 164 Test report declaration Applicant : Realme Chongqing Mobile Telecommunications Corp., Ltd. Address : No.178 Yulong Avenue, Yufengshan, Yubei District, Chongqing, Chin a. Manufacturer : Realme Chongqing Mobile Telecommunications Corp., Ltd. Address : No.178 Yulong Avenue, Yufengshan, Yubei District, Chongqing, Chin a. EUT Description : Mobile Phone Model No : RMX2195 Trade mark : realme FCC ID: 2AUYFRMX2195; Test Standards: IEEE Std 1528-2013, KDB941225 D01, KDB941225 D05, KDB941225 D06, KDB447498 D01,KDB648474 D04,KDB248227 D01,KDB 865664 D01,KDB865664 D02,KDB690783 D01 The EUT described above is tested by Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory to determine the compliance of the applicable standards stated above. Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory is assumed full responsibility for the accuracy of the test results. The results documented in this report only apply to the tested sample, under the conditions and modes of operation as described herein. The test report shall not be reproduced in part without written approval of the laboratory. Project Engineer: Date: Oct.25,2020 (Liu Zheng) Checked by: Date: Oct.25,2020 (Lin Yixiang) Approved by: Date: Oct.25,2020 (Lin Bin) Report No.: WT2080002436 Page 3 of 164 TABLE OF CONTENTS 1. REPORTED SAR SUMMARY .................................................................................................. 5 1.1. Statement of Compliance .............................................................................................. 5 1.2. RF exposure limits.......................................................................................................... 7 1.3 Ratings and System Details ............................................................................................... 8 1.4 Product Function and Intended Use ................................................................................. 9 1.4 Power Reduction Description ............................................................................................. 9 1.5 Test specification(s) ............................................................................................................. 9 1.6 List of Test and Measurement Instruments .............................................................. 10 2. GENERAL INFORMATION ..................................................................................................... 13 2.1. Report information ........................................................................................................ 13 2.2. Laboratory Accreditation and Relationship to Customer ....................................... 13 3. SAR MEASUREMENT SYSTEM CONFIGURATION ........................................................ 14 3.1. SAR Measurement Set-up .......................................................................................... 14 3.2. Probe description.......................................................................................................... 15 3.3. Phantom description .................................................................................................... 16 3.4. Device holder description ............................................................................................ 17 4. SAR MEASUREMENT PROCEDURE .................................................................................. 18 4.1. Scanning procedure ..................................................................................................... 18 5. SYSTEM VERIFICATION PROCEDURE ............................................................................. 24 5.1. Tissue Verification ........................................................................................................ 24 6. SAR MEASUREMENT VARIABILITY AND UNCERTAINTY ............................................ 28 6.1. SAR measurement variability ..................................................................................... 28 6.2. SAR measurement uncertainty .................................................................................. 28 7. TEST CONFIGURATION ........................................................................................................ 29 8. TUNE-UP LIMIT ........................................................................................................................ 37 9. MEASUREMENT RESULTS .................................................................................................. 44 9.1. Conducted Power ......................................................................................................... 44 9.2. SAR measurement Results ...................................................................................... 119 9.3. ............................................................................................................................................ 119 Report No.: WT2080002436 Page 4 of 164 9.3. GSM850 SAR results ................................................................................................. 121 9.4. PCS1900 SAR results ............................................................................................... 123 9.5. WCDMA II SAR results.............................................................................................. 125 9.6. WCDMA IV SAR results ............................................................................................ 127 9.7. WCDMA V SAR results ................…

Text truncated - open the document above for the full version.

Report No.:WT208002438 Page 1 of 73 FCC TEST REPORT For Mobile Phone Model Number: RMX2195 FCC ID: 2AUYFRMX2195 Report Number : WT208002438 Test Laboratory : Shenzhen Academy of Metrology and Quality Inspection Site Location : NETC Building, No.4 Tongfa Rd., Xili, Nanshan, Shenzhen, China Tel : 0086-755-86928965 Fax : 0086-755-86009898-31396 Web : www.smq.com.cn E-mail : [email protected] Report No.:WT208002438 Page 2 of 73 TEST REPORT DECLARATION Applicant : Realme Chongqing Mobile Telecommunications Corp., Ltd. Address : No.178 Yulong Avenue, Yufengshan, Yubei District, Chongqing, China. Manufacturer : Realme Chongqing Mobile Telecommunications Corp., Ltd. Address : No.178 Yulong Avenue, Yufengshan, Yubei District, Chongqing, China. EUT Description : Mobile Phone Model No : RMX2195 Trade mark : realme Serial Number : / FCC ID : 2AUYFRMX2195 Test Standards: FCC Part 15 15.207, 15.209, 15.247 (2019) The EUT described above is tested by Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory to determine the maximum emissions from the EUT. Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory is assumed full responsibility for the accuracy of the test results. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with FCC Rules Part 15.207, 15.209, 15.247. The test report is valid for above tested sample only and shall not be reproduced in part without written approval of the laboratory. Project Engineer: Date: Oct.29, 2020 (Huang Si黄思) Oct.29, 2020 Checked by: Date: (Lin Yixiang 林奕翔) Oct.29, 2020 Approved by: Date: (Lin Bin 林斌) Report No.:WT208002438 Page 3 of 73 TABLE OF CONTENTS TEST REPORT DECLARATION ......................................................................................................... 2 1. TEST RESULTS SUMMARY ................................................................................................... 5 2. GENERAL INFORMATION ...................................................................................................... 6 2.1. Report Information ......................................................................................................... 6 2.2. Laboratory Accreditation and Relationship to Customer ......................................... 6 2.3. Measurement Uncertainty ............................................................................................. 7 3. PRODUCT DESCRIPTION ...................................................................................................... 8 3.1. EUT Description ............................................................................................................. 8 3.2. Related Submittal(s) / Grant (s) ................................................................................... 9 3.3. Block Diagram of EUT Configuration .......................................................................... 9 3.4. Operating Condition of EUT ......................................................................................... 9 3.5. Directional Antenna Gain .............................................................................................. 9 3.6. Support Equipment List ............................................................................................... 10 3.7. Test Conditions ............................................................................................................. 10 3.8. Special Accessories ..................................................................................................... 10 3.9. Equipment Modifications ............................................................................................. 10 4. TEST EQUIPMENT USED ..................................................................................................... 11 5. DUTY CYCLE ........................................................................................................................... 12 5.1. Limits of Duty Cycle ..................................................................................................... 12 5.2. Test Procedure ............................................................................................................. 12 5.3. Test Setup ..................................................................................................................... 12 5.4. Test Data ....................................................................................................................... 12 6. 6DB BANDWIDTH MEASUREMENT .................................................................................. 15 6.1. Limits of 6dB Bandwidth Measurement .................................................................... 15 6.2. Test Procedure ............................................................................................................. 15 6.3. Test Setup ..................................................................................................................... 15 6.4. Test Data ....................................................................................................................... 15 7. MAXIMUM CONDUCTED OUTPUT POWER MEASUREMENT ................................... 20 Report No.:WT208002438 Page 4 of 73 7.1. Limits of Maximum Conducted Output Power Measurement .....................…

Text truncated - open the document above for the full version.
