2AUYFRMX3063Mobile Phone

RMX3063 This user manual provides the product safety information. Before using the phone, please read the Important Information Guide (IIG) carefully. You are provided with the following standard accessories: 1 Phone, 1 Charger, 1 USB data cable, 1 Safety Guide, 1 Quick Guide, 1 SIM Ejector Toole. Standard accessories RMX3063 16.5cm(6.5'') SAR ValuesFCC SAR 0°C-35°C 4880mAh/18.88Wh(Min) 5000mAh/19.35Wh(Typ) 165.2×76.4×8.9mm 8Megapixels Rear 5Megapixels Front 0.533W/kg(Head) 0.568W/kg(Body) This guide will show you how to use the phone and its important functions. You may also visit realme ocial website to get more information about the phone. Greetings from realme mobile Volume Key Front Camera Power Key Do not place the phone or battery near or inside the heating equipments, cooking equipments, high pressure vessels (such as microwave ovens, induction cooker, electric oven, heater, pressure cooker, water heater, gas stove, etc.) to prevent the battery overheating which may lead to an explosion. The original charger, data cable and battery shall be used. Unapproved chargers, data cables, or batteries that are not certied by the manufacturer may result in electric shock, re, explosion, or other hazards. Back cover can’t be removed. When charging, please place the device in an environment that has a normal room temperature and good ventilation. It is recommended to charge the device in an environment with temperature ranging from 5°C~35°C. How to Transfer Old Mobile Content to a New Mobile You can use realme Clone Phone to easily transfer photos, videos, music, contacts, messages, apps, etc from your old phone to the new one. 1. If you have an old Android phone, rst scan the QR code below, then download and install Clone Phone, next open Clone Phone on both the new and old phones, and follow the on-screen instructions to complete the operation. 2. If you have an old iPhone, open Clone Phone on the new phone directly, and follow on-screen instructions to sign in to iCloud account and sync the les. https://i.clonephone.coloros.com/download How to reboot the phone Press and hold the Power Button and Volume Up Button at the same time until the realme boot animation is displayed to reboot the phone. Bluetooth2.4-2.4835GHz7±2dBm(EIRP) 2.4G Wi-Fi2.4-2.4835GHz15±2dBm(EIRP) Radio Frequenc y Max . Output Pow er Radio Waves Specications 850MHz/900MHz32.5±0.8dBm 1800MHz/1900MHz29.5±0.8dBm GSM WCDMA LTE FDD Bands 38/41 23±0.8dBmLTE TDD Bands 1/2/423±0.8dBm Bands 5/823.2±0.8dBm Bands 1/2/3/4/6623±0.8dBm Bands 5/8/12/17/26/28 23.5±0.8dBm Band 722.7±0.8dBm 5212xxxV0.1 Accesorios incluidos 1 Teléfono, 1 Cargador, 1 Cable USB, 1 Guía de seguridad, 1 Guía rápida, 1 Herramienta de extracción de tarjeta SIM. Especificaciones técnicas Advertencia No coloque el teléfono o la batería cerca o dentro de equipos de calefacción, electrodomésticos (microondas, cocinas de cualquier tipo, hornos de cualquier tipo o calefactores etc.), menaje de cocina (ollas a presión etc.), para evitar que la batería se sobrecaliente y/o provoque daños en su dispositivo. Debe utilizar el cargador, cable y batería originales. Los cargadores, cables o baterías que no cuenten con la autorización y la certicación del fabricante pueden derivar en diversos problemas como; descargas elétricas, incendios, explosiones, daños en la batería u otros peligros. Al cargar el dispositivo, colóquelo en un entorno que tenga una temperatura ambiente y ventilación normales. Es recomendable que el dispositivo sea cargado en un entorno con una temperatura que oscile entre 5 °C y 35 °C. Cómo forzar el reinicio del teléfono Mantenga presionados los botones de Encendido y Vol (+) hasta que aparezca la animación de inicio de realme para forzar el renicio del teléfono. Cómo transferir contenido antiguo a su nuevo teléfono Puede utilizar la función de realme "Clonar Teléfono" para transferir rápidamente sus fotos, vídeos, música, contactos y aplicaciones a su nuevo teléfono desde el antiguo. Para ello, siga estos pasos: 1. Si tiene un teléfono Android, primero escanee el código QR que aparece a continuación, seguidamente descargue e instale “Clonar Teléfono”, abra la aplicación en ambos teléfonos y siga las instrucciones que aparecen en pantalla para completar la operación. 2. Si tiene un iPhone antiguo, abra “Clonar Teléfono” directamente en el nuevo teléfono y siga las instrucciones que aparecen en pantalla para iniciar sesión en la cuenta de iCloud y sincronizar los archivos. https://i.clonephone.coloros.com/download Bienvenido a realme mobile Esta guía le mostrará el uso del teléfono además de sus funciones más importantes. También, puede visitar nuestra página web ocial de realme donde obtendrá mayor información sobre el mismo. Botones de volumen Botón de encendido Cámara frontal NOTA: La carcasa trasera no es extraible. 4880mAh/18,88Wh(Min) 5000mAh/19 ,35Wh(Typ) x,xxxW/kg(Cabeza) x,xxxW/kg(Cuerpo) FCC SAR RMX3063 165,2×76,4×8,9(mm) Batería Producto Dimensiones Valores SAR Tamaño de la pantalla 0°C-35°C Temperatura para el correcto funcionamiento 16,5cm(6,5 Pulgadas) Características Eléctricas Entrada 100-240Vca 50/60Hz 0,4A 5Vcc 2A Salida Especicación Eléctrica del terminal móvil 3 ,87 Vcc Cámara Cámara trasera de 8 Mpx Cámara delantera de 5 Mpx Regulación Pasos para buscar la Regulación FCC : Diríjase a Ajustes – Información del teléfono – Regulador. Para realizar la conguración inicial (al adquirir el dispositivo o realizar un reseteo de fábrica) es necesario conectarse a una red de datos (WiFi / Datos móviles). Si no se tiene disponible la red de datos, realice la conguración sin tarjeta SIM insertada. Bluetooth2.4-2.4835GHz7±2dBm(EIRP) 2.4G Wi-Fi2.4-2.4835GHz15±2dBm(EIRP) Radio FrecuenciaPotencia máx. de salida Especicaciones de ondas de radio 850MHz/900MHz32.5±0.8dBm 1800MHz/1900MHz29.5±0.8dBm GSM WCDMA LTE FDD Bands 38/41 23±0.8dBmLTE TDD Bands 1/2/423±0.8dBm Bands 5/823.2±0.8dBm Bands 1/2/3/4/6623±0.8dBm Bands 5/8/12/17/26/28 23.5±0.8dBm …

Text truncated - open the document above for the full version.

Realme Chongqing Mobile Telecommunications Corp., Ltd. Date: 2020-10-26 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Request of Confidentiality for FCC ID: 2AUYFRMX3063 To Whom it may concern: Pursuant to sections 0.457 and 0.459 of Commission’s Rules(CFR 47), and Section 552(b)(4) of the Freedom of Information Act, Realme Chongqing Mobile Telecommunications Corp., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Shor t-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA04-1705. This provision will give Realme Chongqing Mobile Telecommunications Corp., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 BOM 5 Tune up procedure SHORT-TERM 6 External Photos 7 Internal Photos 8 Te s t-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Signatory: Name: Yang LiangPing Company name: Realme Chongqing Mobile Telecommunications Corp., Ltd. Address: No.178 Yulong Avenue, Yufengshan, Yubei District, Chongqing,China Tel: 86 76986076999 Email: [email protected]

Realme Chongqing Mobile Telecommunications Corp., Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 20201102 SUBJECT: FCC Application for 2AUYFRMX3063 To Whom It May Concern: We, the undersigned, hereby authorize Zhou Fangai at Shenzhen Academy of Metrology and Quality Inspection on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Academy of Metrology and Quality Inspection on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signature： Printed Name:yangliangping

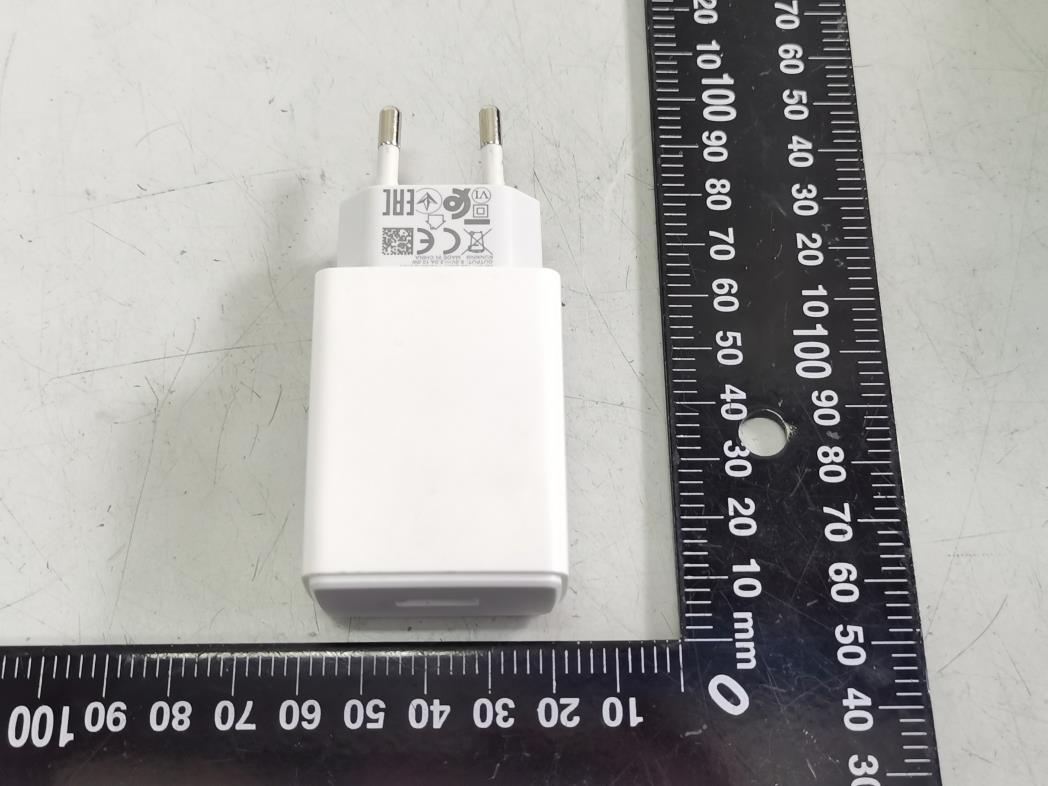

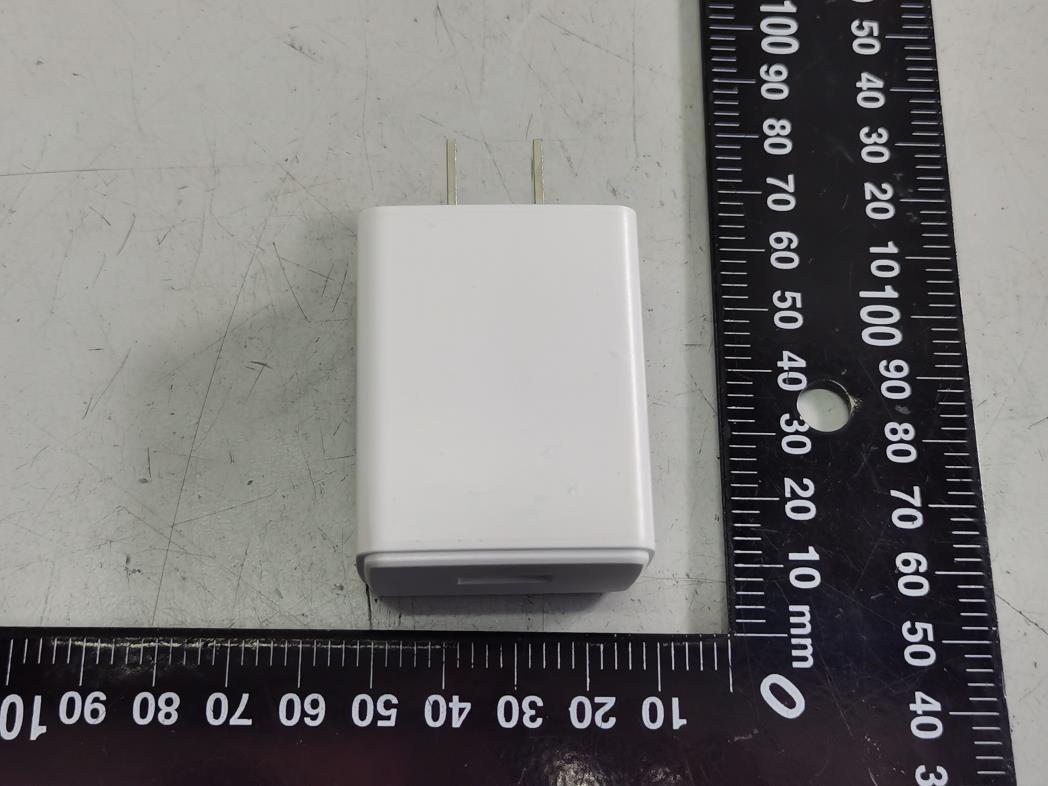

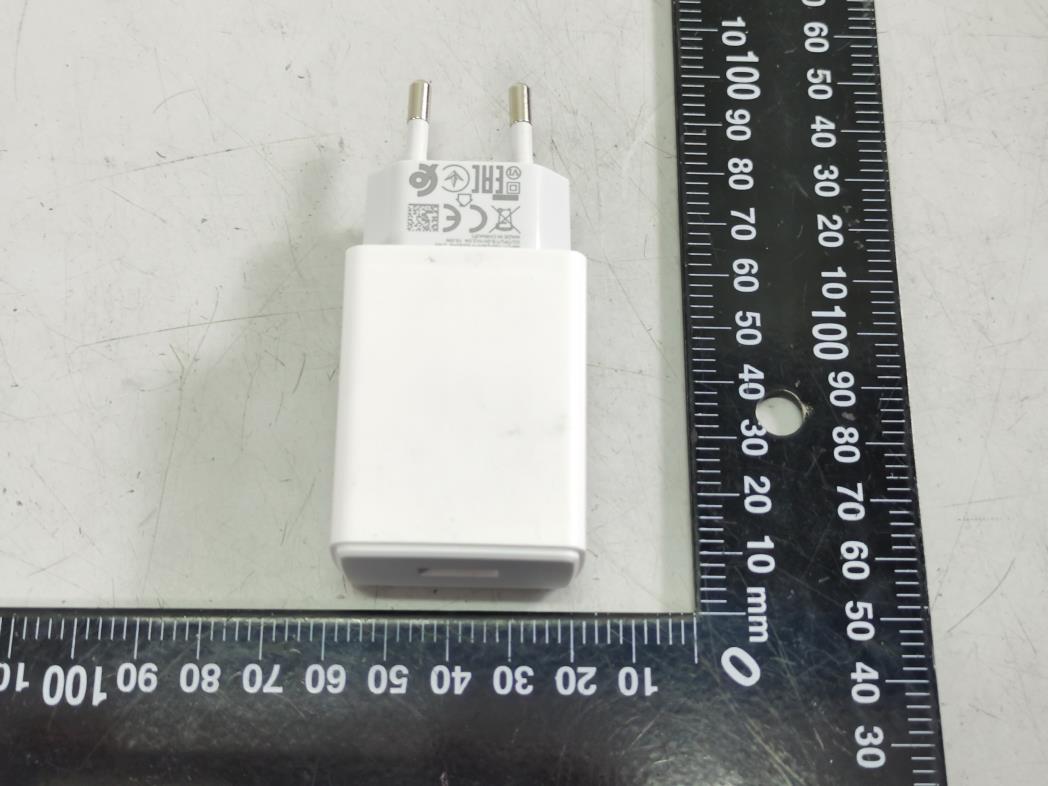

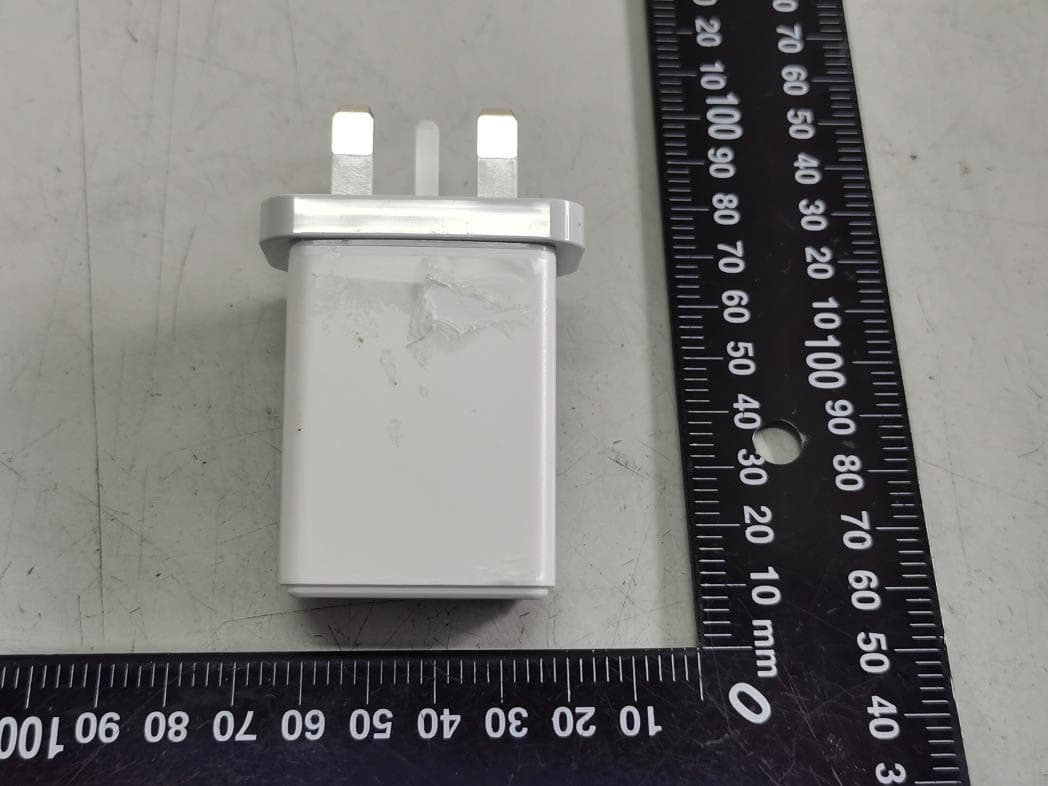

Photo 1 Appearance of EUT Photo 2 Appearance of EUT Photo 3 Appearance of EUT Photo 4 Appearance of EUT Photo 5 Appearance of EUT Photo 6 Appearance of EUT Photo 7 Appearance of AC adaptor OP52KAEH Photo 8 Appearance of AC adaptor OP52KAEH Photo 9 Appearance of AC adaptor OP52JAEH Photo 10 Appearance of AC adaptor OP52JAEH Photo 11 Appearance of AC adaptor OP52CAEH Photo 12 Appearance of AC adaptor OP52CAEH Photo 13 Appearance of AC adaptor OP52YAUH Photo 14 Appearance of AC adaptor OP52YAUH Photo 15 Appearance of AC adaptor OP52KAYH Photo 16 Appearance of AC adaptor OP52KAYH Photo 17 Appearance of AC adaptor OP52KAUH Photo 18 Appearance of AC adaptor OP52KAUH Photo 19 Appearance of AC adaptor OP52JAYH Photo 20 Appearance of AC adaptor OP52JAYH Photo 21 Appearance of AC adaptor OP52JAUH Photo 22 Appearance of AC adaptor OP52JAUH Photo 23 Appearance of USB Cable

RealmeChongqingMobile TelecommunicationsCorp.,Ltd. Date:20201124 SUBJECT:FCCApplicationfor2AUYFRMX3063 ToWhomItMayConcern: We,theundersigned,Candoitseveraltimes. 1.1UserStepstoAccessInformation Usersmustbeabletoaccesstheregulatoryinformationwithoutrequiringspecialaccesscodesor permissions,andinallcasestheinformationmustbeaccessibleinnomorethanthreestepsfrom aproduct’smainorhomemenu.accessprocessisasfollows. StartingfromMainorHomeMenu: Step1–accessingsubmenu“Settings” Step2–accesssubmenu“Aboutphone” Step3-Accessthesubmenu"CertificateInformation",whichdisplaystheinformationofFCC E-Label 1.2Productsmustnotrequirespecialaccessoriesorsupplementalplug-ins(e.g.,the installationofaSIM/USIMcard)toaccesstheinformation. Instructionsmustbeprovidedwiththeproductatthetimeofpurchase,intheusermanual, operatinginstructions,packagingmaterial,quickguidepamphlet,etc.Alternatively,a product-relatedwebsiteispermitted,ifareference(URL)toobtainthewebsiteinformationis providedatthetimeofpurchaseintheusermanual,operatinginstructions,packagingmaterial, quickguidepamphlet,etc. Accesstoregulatoryinformationmustbeprovidedwithoutspecialcodes,accessories,or permissionsbeyondthenormalsecurityprotectiontounlockthescreen,sign-inpage,oroverall productaccess 1.3ReadabilityofRegulatoryInformation TheFCCID,warningstatements,orotherinformationmustbedisplayedelectronicallyina mannerthatisclearlylegiblewithouttheaidofmagnification. 1.4RegulatoryInformationmustbeSecure Bothregulatoryinformationanddedicatedexclusiveapplication(s)orscript(s)mustbesecured andimplementedinafactory-set-unalterableformat. Theregulatoryinformationmustbecapableofbeingretrievedanddisplayedlocally,andunder thecontroloftheenduserinpossessionoftheproduct. Themethodmustbesecure,suchthattheapplicationorscriptensuresthattheregulatory informationcorrectlydisplayed. Regards, Signature： PrintedName:YangLiangping

labellocation E-Label：

Photo 1 Inside of EUT GSM/WCDMA/LTE Diversity Antenna BT/WiFi Antenna GSM/WCDMA/LTE Main Antenna Photo 2 Inside of EUT Photo 3 Inside of EUT Photo 4 Inside of EUT Photo 5 Inside of EUT Photo 6 Inside of EUT Photo 7 Inside of EUT Photo 8 Inside of EUT Photo 9 Inside of EUT Photo 10 Inside of EUT Photo 11 Inside of EUT Photo 12 Inside of EUT Photo 13 Inside of EUT

Report No.: WT208003086 Page 1 of 8 APPENDIX A: SYSTEM CHECKING SCANS Report No.: WT208003086 Page 2 of 8 SystemPerformanceCheck-D750 for Head Date: 2020.10.16. DUT: Dipole 750MHz D750V3; Type SN: 1103; Communication System: CW; Communication System Band: D750 (750.0 MHz); Frequency: 750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 750 MHz; σ = 0.88mho/m; εr = 41.3; ρ = 1000 kg/m3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(9.70,9.70,9.70); Calibrated: 2020.06.16.; Electronics: DAE4 Sn876; Calibrated: 2020.03.03. Head/Dipole750 2/Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 49.533 V/m; Power Drift = -0.07 dB Fast SAR: SAR(1 g) = 2.06 mW/g; SAR(10 g) = 1.37 mW/g Maximum value of SAR (interpolated) = 2.22 W/kg Head/Dipole750 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 49.533 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 3.017 mW/g SAR(1 g) = 2.04 mW/g; SAR(10 g) = 1.34 mW/g Maximum value of SAR (measured) = 2.20 W/kg 0 dB = 2.22 W/kg = 6.94 dB W/kg Report No.: WT208003086 Page 3 of 8 SystemPerformanceCheck-D835MHz for Head Date: 2020.10.17. DUT: Dipole 835 MHz D835V2; Type: D835V2 SN: 4d141; Communication System: CW; Communication System Band: D835 (835.0 MHz); Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.93 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(9.43, 9.43, 9.43); Calibrated: 2020.06.16.; Electronics: DAE4 Sn876; Calibrated: 2020.03.03. Head/Dipole835/Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 50.047 V/m; Power Drift = -0.02 dB Fast SAR: SAR(1 g) = 2.31 mW/g; SAR(10 g) = 1.41 mW/g Maximum value of SAR (interpolated) = 2.28 W/kg Head/Dipole835/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 50.047 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.120 mW/g SAR(1 g) = 2.31 mW/g; SAR(10 g) = 1.51 mW/g Maximum value of SAR (measured) = 2.28 W/kg 0 dB = 2.28 W/kg = 7.16 dB W/kg Report No.: WT208003086 Page 4 of 8 SystemPerformanceCheck-D1750 for Head Date: 2020.10.18 DUT: Dipole 1750 MHz D1750V2; Type: D1750V2 SN:1108; Communication System: CW; Communication System Band: D1750 (1750.0 MHz); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1750 MHz; σ = 1.40 mho/m; ε r = 39.72; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(8.14, 8.14, 8.14); Calibrated: 2020.06.16.; Electronics: DAE4 Sn876; Calibrated: 2020.03.03. Head/Dipole1750 /Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 82.933 V/m; Power Drift = 0.05 dB Fast SAR: SAR(1 g) = 9.1 mW/g; SAR(10 g) = 4.88 mW/g Maximum value of SAR (interpolated) = 10.4 W/kg Head/Dipole1750 /Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 82.933 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 16.726 mW/g SAR(1 g) = 9.01 mW/g; SAR(10 g) = 4.7 mW/g Maximum value of SAR (measured) = 10.0 W/kg 0 dB = 10.4 W/kg = 20.34 dB W/kg Report No.: WT208003086 Page 5 of 8 SystemPerformanceCheck-D1900 for Head Date: 2020.10.19. DUT: Dipole 1900 MHz D1900V2; Type: D1900V2 SN:5d162; Communication System: CW; Communication System Band: D1900 (1900.0 MHz); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 39.65; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(7.92,7.92,7.92); Calibrated: 2020.06.16.; Electronics: DAE4 Sn876; Calibrated: 2020.03.03. Head/Dipole1900 5/Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 84.175 V/m; Power Drift = 0.03 dB Fast SAR: SAR(1 g) = 9.33 mW/g; SAR(10 g) = 5.01 mW/g Maximum value of SAR (interpolated) = 10.7 W/kg Head/Dipole1900 5/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 84.175 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 17.108 mW/g SAR(1 g) = 9.23 mW/g; SAR(10 g) = 4.82 mW/g Maximum value of SAR (measured) = 10.2 W/kg 0 dB = 10.7 W/kg = 20.55 dB W/kg Report No.: WT208003086 Page 6 of 8 SystemPerformanceCheck-D2300 for Head Date: 2020.10.20 DUT: Dipole 2300 MHz D2300V2; Type: D2300V2 SN:818; Communication System: CW; Communication System Band: D2300 (2300.0 MHz); Frequency: 2300 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2300 MHz; σ = 1.48 mho/m; ε r = 38.45; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(7.72,7.72,7.72); Calibrated: 2020.06.16.; Electronics: DAE4 Sn876; Calibrated: 2020.03.03. Head/Dipole2300/Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 84.317 V/m; Power Drift = 0.05 dB Fast SAR: SAR(1 g) = 12.8 mW/g; SAR(10 g) = 5.69 mW/g Maximum value of SAR (interpolated) = 17.4 W/kg Head/Dipole2300/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 84.317 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 28.853 mW/g SAR(1 g) = 12.3 mW/g; SAR(10 g) = 5.99 mW/g Maximum value of SAR (measured) = 13.1 W/kg 0 dB = 17.4 W/kg = 24.79 dB W/kg Report No.: WT208003086 Page 7 of 8 SystemPerformanceCheck-D2450 for Head Date: 2020.10.21. DUT: Dipole 2450 MHz D2450V2; Type: D2450V2 SN:818; Communication System: CW; Communication System Band: D2450 (2450.0 MHz); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.76 mho/m; ε r = 37.97; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(7.49,7…

Text truncated - open the document above for the full version.

Report No.: WT208003086 Page 1 of 58 Appendix B. MEASUREMENT SCANS Report No.: WT208003086 Page 2 of 58 1.1.1 GSM850 Head Right Cheek Mid Medium: HSL900 Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.89 mho/m; ε r = 41.478; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(9.43, 9.43, 9.43); Calibrated: 2020.06.16.; Electronics: DAE4 Sn876; Calibrated: 2020.03.03. GSM 850_Right Cheek/Mid 2/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 4.324 V/m; Power Drift = 0.18 dB Fast SAR: SAR(1 g) = 0.182 mW/g; SAR(10 g) = 0.125 mW/g Maximum value of SAR (interpolated) = 0.193 W/kg GSM 850_Right Cheek/Mid 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.324 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 0.230 mW/g SAR(1 g) = 0.182 mW/g; SAR(10 g) = 0.136 mW/g Maximum value of SAR (measured) = 0.192 W/kg 0 dB = 0.193 W/kg = -14.29 dB W/kg Report No.: WT208003086 Page 3 of 58 1.1.2 GSM850 Body Back Side Mid 10mm Medium: HSL900 Communication System: GPRS FDD(TDMA,GSMK); Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Duty Cycle: 1:4.1 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.89 mho/m; ε r = 41.478; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(9.43, 9.43, 9.43); Calibrated: 2020.06.16.; Electronics: DAE4 Sn876; Calibrated: 2020.03.03. GPRS 850_Facedown/Mid -10mm 2/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 10.075 V/m; Power Drift = -0.00 dB Fast SAR: SAR(1 g) = 0.291 mW/g; SAR(10 g) = 0.181 mW/g Maximum value of SAR (interpolated) = 0.324 W/kg GPRS 850_Facedown/Mid -10mm 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.075 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 0.500 mW/g SAR(1 g) = 0.292 mW/g; SAR(10 g) = 0.168 mW/g Maximum value of SAR (measured) = 0.320 W/kg 0 dB = 0.324 W/kg = -9.78 dB W/kg Report No.: WT208003086 Page 4 of 58 1.1.3 GSM850 Body Back Side Mid 0mm Medium: HSL900 Communication System: GPRS FDD(TDMA,GSMK); Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Duty Cycle: 1:4.1 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.89 mho/m; ε r = 41.478; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(9.43, 9.43, 9.43); Calibrated: 2020.06.16.; Electronics: DAE4 Sn876; Calibrated: 2020.03.03. GPRS 850_Facedown/Mid -0mm 2 2/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 20.186 V/m; Power Drift = -0.05 dB Fast SAR: SAR(1 g) = 1.74 mW/g; SAR(10 g) = 0.979 mW/g Maximum value of SAR (interpolated) = 2.07 W/kg GPRS 850_Facedown/Mid -0mm 2 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.186 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 4.599 mW/g SAR(1 g) = 1.68 mW/g; SAR(10 g) = 0.801 mW/g Maximum value of SAR (measured) = 1.84 W/kg 0 dB = 2.07 W/kg = 6.32 dB W/kg Report No.: WT208003086 Page 5 of 58 1.1.4 GSM850 Body Back Side Mid 15mm Medium: HSL900 Communication System: GPRS FDD(TDMA,GSMK); Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.89 mho/m; ε r = 41.478; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(9.43, 9.43, 9.43); Calibrated: 2020.06.16.; Electronics: DAE4 Sn876; Calibrated: 2020.03.03. GSM 850_Facedown/Mid -15mm/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 6.874 V/m; Power Drift = 0.07 dB Fast SAR: SAR(1 g) = 0.130 mW/g; SAR(10 g) = 0.083 mW/g Maximum value of SAR (interpolated) = 0.144 W/kg GSM 850_Facedown/Mid -15mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.874 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.218 mW/g SAR(1 g) = 0.132 mW/g; SAR(10 g) = 0.078 mW/g Maximum value of SAR (measured) = 0.144 W/kg 0 dB = 0.144 W/kg = -16.84 dB W/kg Report No.: WT208003086 Page 6 of 58 1.1.5 GSM1900 Head Right Cheek Mid Medium: HSL1900 Communication System: Generic GSM; Communication System Band: PCS 1900 (1850.0 - 1910.0 MHz); Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 39.74; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(7.92, 7.92, 7.92); Calibrated: 2020.06.16.; Electronics: DAE4 Sn876; Calibrated: 2020.03.03. 1900_Right GSM Head/1900 GSM Cheek-Mid down 2/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 3.343 V/m; Power Drift = -0.20 dB Fast SAR: SAR(1 g) = 0.103 mW/g; SAR(10 g) = 0.058 mW/g. Maximum value of SAR (interpolated) = 0.123 W/kg 1900_Right GSM Head/1900 GSM Cheek-Mid down 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.343 V/m; Power Drift = -0.20 dB Peak SAR (extrapolated) = 0.164 mW/g SAR(1 g) = 0.111 mW/g; SAR(10 g) = 0.070 mW/g Maximum value of SAR (measured) = 0.119 W/kg 0 dB = 0.123 W/kg = -18.22 dB W/kg 1.1.6 GSM1900 Body Back Side Mid 10mm Report No.: WT208003086 Page 7 of 58 Medium: HSL1900 Communication System: GPRS FDD(TDMA,GSMK); Communication System Band: PCS 1900 (1850.0 - 1910.0 MHz); Frequency: 1850.2 MHz;Duty Cycle: 1:4.1 Medium parameters used: f = 1850.2 MHz; σ = 1.42 mho/m; ε r = 39.87; ρ = 1000 kg/m 3 Phantom section: Flat Section Measur…

Text truncated - open the document above for the full version.

Report No.: WT208003086 Page 1 of 14 APPENDIX C: RELEVANT PAGES FROM PROBE CALIBRATION REPORT(S) Report No.: WT208003086 Page 2 of 14 Report No.: WT208003086 Page 3 of 14 Report No.: WT208003086 Page 4 of 14 Report No.: WT208003086 Page 5 of 14 Report No.: WT208003086 Page 6 of 14 Report No.: WT208003086 Page 7 of 14 Report No.: WT208003086 Page 8 of 14 Report No.: WT208003086 Page 9 of 14 Report No.: WT208003086 Page 10 of 14 Report No.: WT208003086 Page 11 of 14 Report No.: WT208003086 Page 12 of 14 Report No.: WT208003086 Page 13 of 14 Report No.: WT208003086 Page 14 of 14

Report No.: WT208003086 Page 1 of 91 APPENDIX D: RELEVANT PAGES FROM DAE& DIPOLE VALIDATION KIT REPORT(S) Report No.: WT208003086 Page 2 of 91 Report No.: WT208003086 Page 3 of 91 Report No.: WT208003086 Page 4 of 91 Report No.: WT208003086 Page 5 of 91 Report No.: WT208003086 Page 6 of 91 Report No.: WT208003086 Page 7 of 91 Report No.: WT208003086 Page 8 of 91 Report No.: WT208003086 Page 9 of 91 Report No.: WT208003086 Page 10 of 91 Report No.: WT208003086 Page 11 of 91 Report No.: WT208003086 Page 12 of 91 Report No.: WT208003086 Page 13 of 91 Report No.: WT208003086 Page 14 of 91 Report No.: WT208003086 Page 15 of 91 Report No.: WT208003086 Page 16 of 91 Report No.: WT208003086 Page 17 of 91 Report No.: WT208003086 Page 18 of 91 Report No.: WT208003086 Page 19 of 91 Report No.: WT208003086 Page 20 of 91 Report No.: WT208003086 Page 21 of 91 Report No.: WT208003086 Page 22 of 91 Report No.: WT208003086 Page 23 of 91 Report No.: WT208003086 Page 24 of 91 Report No.: WT208003086 Page 25 of 91 Report No.: WT208003086 Page 26 of 91 Report No.: WT208003086 Page 27 of 91 Report No.: WT208003086 Page 28 of 91 Report No.: WT208003086 Page 29 of 91 Report No.: WT208003086 Page 30 of 91 Report No.: WT208003086 Page 31 of 91 Report No.: WT208003086 Page 32 of 91 Report No.: WT208003086 Page 33 of 91 Report No.: WT208003086 Page 34 of 91 Report No.: WT208003086 Page 35 of 91 Report No.: WT208003086 Page 36 of 91 Report No.: WT208003086 Page 37 of 91 Report No.: WT208003086 Page 38 of 91 Report No.: WT208003086 Page 39 of 91 Report No.: WT208003086 Page 40 of 91 Report No.: WT208003086 Page 41 of 91 Report No.: WT208003086 Page 42 of 91 Report No.: WT208003086 Page 43 of 91 Report No.: WT208003086 Page 44 of 91 Report No.: WT208003086 Page 45 of 91 Report No.: WT208003086 Page 46 of 91 Report No.: WT208003086 Page 47 of 91 Report No.: WT208003086 Page 48 of 91 Report No.: WT208003086 Page 49 of 91 Report No.: WT208003086 Page 50 of 91

Report No.: WT208003086 Page 1 of 135 SAR TEST REPORT For Mobile Phone Model Number: RMX3063 FCC ID: 2AUYFRMX3063 Report Number : WT208003086 Test Laboratory : Shenzhen Academy of Metrology and Quality Inspection National Digital Electronic Product Testing Center Site Location : NETC Building, No.4 Tongfa Road, Xili Town, Nanshan District, Shenzhen, Guangdong, China Tel : 0086-755-86928965 Fax : 0086-755-86009898-31396 Web : www.smq.com.cn Email : [email protected] Report No.: WT208003086 Page 2 of 135 Test report declaration Applicant : Realme Chongqing Mobile Telecommunications Corp., Ltd. Address : No.178 Yulong Avenue, Yufengshan, Yubei District, Chongqing, Chin a. Manufacturer : Realme Chongqing Mobile Telecommunications Corp., Ltd. Address : No.178 Yulong Avenue, Yufengshan, Yubei District, Chongqing, Chin a. EUT Description : Mobile Phone Model No : RMX3063 Trade mark : realme FCC ID: 2AUYFRMX3063; Test Standards: IEEE Std 1528-2013, KDB941225 D01, KDB941225 D05, KDB941225 D06, KDB447498 D01,KDB648474 D04,KDB248227 D01,KDB 865664 D01,KDB865664 D02,KDB690783 D01 The EUT described above is tested by Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory to determine the compliance of the applicable standards stated above. Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory is assumed full responsibility for the accuracy of the test results. The results documented in this report only apply to the tested sample, under the conditions and modes of operation as described herein. The test report shall not be reproduced in part without written approval of the laboratory. Project Engineer: Date: Oct.30,2020 (Liu Zheng) Checked by: Date: Oct.30,2020 (Lin Yixiang) Approved by: Date: Oct.30,2020 (Lin Bin) Report No.: WT208003086 Page 3 of 135 TABLE OF CONTENTS 1. REPORTED SAR SUMMARY .................................................................................................. 5 1.1. Statement of Compliance .............................................................................................. 5 1.2. RF exposure limits.......................................................................................................... 6 1.3 Ratings and System Details ............................................................................................... 8 1.4 Product Function and Intended Use ................................................................................. 9 1.4 Power Reduction Description ............................................................................................. 9 1.5 Test specification(s) ............................................................................................................. 9 1.6 List of Test and Measurement Instruments .............................................................. 10 2. GENERAL INFORMATION ..................................................................................................... 13 2.1. Report information ........................................................................................................ 13 2.2. Laboratory Accreditation and Relationship to Customer ....................................... 13 3. SAR MEASUREMENT SYSTEM CONFIGURATION ........................................................ 14 3.1. SAR Measurement Set-up .......................................................................................... 14 3.2. Probe description.......................................................................................................... 15 3.3. Phantom des…

Text truncated - open the document above for the full version.
