2AUYFRMX3242Mobile Phone

This guide will show you how to use the phone and its important functions. You may also visit realme ocial website to get more information about the phone. Greetings from realme Mobile Standard accessories Warning: Do not place the phone or battery near or inside the heating equipments, cooking equipments, high pressure vessels (such as microwave ovens, induction cooker, electric oven, heater, pressure cooker, water heater, gas stove, etc.) to prevent the battery overheating which may lead to an explosion. The original charger, data cable and battery shall be used. Unapproved chargers, data cables, or batteries that are not certied by the manufacturer may result in electric shock, re, explosion, or other hazards. Back cover can’t be removed. How to reboot the phone: Press and hold the Power Button and Volume Up Button at the same time until the realme boot animation is displayed to reboot the phone. How to transfer contents from an old phone to a new phone You can quickly transfer contents such as photos, videos, music, contacts, messages, and apps from an old phone to a new phone via realme Clone Phone. 1 Scan the QR code below using the old phone to install "Clone Phone"; on the new phone, launch "Clone Phone" directly. 2 Follow the prompts on the screen to complete the data transfer. When charging, please place the device in an environment that has a normal room temperature and good ventilation. It is recommended to charge the device in an environment with temperature ranging from 5 °C~35°C. realme realme realme realme RMX3242 You are provided with the following standard accessories: 1 Phone, 1 Charger, 1 USB data cable, 1 SIM Ejector Tool, 1 Safety Guide, 1 Quick Guide, 1 Protective Case. Power Key / Fingerprint Scanner Volume Key Front Camera / English <2.0W/kg(Head) <2.0W/kg(Body) Radio Waves Specications Radio Frequency Max. Output Power RMX3242 16.5cm(6.5”) 162.5×74.8×8.5(mm) 4890mAh/18.92Wh(Min) 5000mAh/19.35Wh(Typ) 48Megapixels+2Megapixels +2Megapixels Rear 16Megapixels Front 6.5 162.5×74.8×8.5 350 16 48 2 2 2.0W/kg 2.0W/kg RMX3242 4890mAh/18.92Wh(Min) 5000mAh/19.35Wh(Typ) WCDMA LTE FDD GSM 850MHz 900MHz 1800MHz 1900MHz Bands 1/2/4 Bands 5/6/8/19 32.5±0.8dBm 33±0.8dBm 29.5±0.8dBm 29.5±0.8dBm 23±0.8dBm 23.5±0.8dBm Bluetooth 2.4G Wi-Fi NFC LTE TDD 5G NR 5G Wi-Fi Bands 5/8/12/17/18/19/20/26/28 Bands 1/2/3/4/66 Bands 38/39/40/41 2.4-2.4835GHz 2.4-2.4835GHz 5.15-5.35GHz; 5.47-5.725GHz 5.725-5.85GHz 13.56MHz 23.5±0.8dBm Band 722.7±0.8dBm 23±0.8dBm 23±0.8dBm 8.5±3dBm(EIRP) 15±2dBm(EIRP) 14±2.5dBm(EIRP) 10.5±2.5dBm(EIRP) ≤42dBuA/m @10m 22.7±0.8dBm 23±0.8dBm n5/n8/n20/n2823.5±0.8dBm n1/n3/n38/n40/n41/n77/n78 n7 WCDMA LTE FDD GSM 850MHz 900MHz 1800MHz 1900MHz Bands 1/2/4 Bands 5/6/8/19 32.5±0.8dBm 33±0.8dBm 29.5±0.8dBm 29.5±0.8dBm 23±0.8dBm 23.5±0.8dBm Bluetooth 2.4G Wi-Fi NFC LTE TDD 5G NR 5G Wi-Fi Bands 5/8/12/17/18/19/20/26/28 Bands 1/2/3/4/66 Bands 38/39/40/41 2.4-2.4835GHz 2.4-2.4835GHz 5.15-5.35GHz; 5.47-5.725GHz 5.725-5.85GHz 13.56MHz 23.5±0.8dBm Band 722.7±0.8dBm 23±0.8dBm 23±0.8dBm 8.5±3dBm(EIRP) 15±2dBm(EIRP) 14±2.5dBm(EIRP) 10.5±2.5dBm(EIRP) ≤42dBuA/m @10m 22.7±0.8dBm 23±0.8dBm n5/n8/n20/n2823.5±0.8dBm n1/n3/n38/n40/n41/n77/n78 n7

Caution: Changes or modifications not expressly approved by the party responsible FCC Regulations: installation If this equipment does cause harmful interference to radio or This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular television reception, which can be determined by turning the equipment oÿ and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit diÿerent from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Note: for compliance could void the user‘s authority to operate the equipment. RF Exposure Information (SAR) This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. During SAR testing, this device was set to transmit at its highest certified power level in all tested frequency bands, and placed in positions that simulate RF exposure in usage against the head with no separation, and near the body with the separation of XX mm. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. The exposure standard for wireless devices employing a unit of measurement is known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. This device is complied with SAR for general population /uncontrolled exposure limits in ANSI/IEEE C95.1-1992 and had been tested in accordance with the measurement methods and procedures specified in IEEE1528. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: 2AUYFRMX3242. For this device, the highest reported SAR value for usage against the head is x.xxx W/kg, for usage near the body is x.xxx W/kg. While there may be diÿerences between the SAR levels of various phones and at various positions, they all meet the government requirements. SAR compliance for body-worn operation is based on a separation distance of 15 mm between the unit and the human body. Carry this device at least 15 mm away from your body to ensure RF exposure level compliant or lower to the reported level. To support body-worn operation, choose the belt clips or holsters, which do not contain metallic components, to maintain a separation of 15 mm between this device and your body.RF exposure compliance with any body-worn accessory, which contains metal, was not tested and certified, and use such body-worn accessory should be avoided. 5G WIFI statement The device is restricted to indoor use when operated in 5150MHz~5350MHz to reduce the potential for interference.

RealMe重庆移动通信有限公司Realme Chongqing Mobile Telecommunications Corp., Ltd. 重庆市渝北区回兴街道霓裳大道24号2幢 No.2 Building, No.24 Nichang Boulevard, Huixing Block, Yubei District, Chongqing, China Date: April 9, 2021 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Realme Chongqing Mobile Telecommunications Corp., Ltd., the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen BALUN Technology Co., Ltd., to act on the behalf of the Realme Chongqing Mobile Telecommunications Corp., Ltd. solely in matters relating to the application for an FCC equipment authorization for FCC ID: 2AUYFRMX3242 including the signing of documents in connection with this Application. Necessary acts carried out by Shenzhen BALUN Technology Co., Ltd. in connection with the Application shall have the same effect as acts of the Realme Chongqing Mobile Telecommunications Corp., Ltd. The Realme Chongqing Mobile Telecommunications Corp., Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. Yours Sincerely, Name of the Manager: Yang Liangping Position: Manager Date: April 9, 2021 Signature:

RealMe重庆移动通信有限公司Realme Chongqing Mobile Telecommunications Corp., Ltd. 重庆市渝北区回兴街道霓裳大道24号2幢 No.2 Building, No.24 Nichang Boulevard, Huixing Block, Yubei District, Chongqing, China To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 RE: Realme Chongqing Mobile Telecommunications Corp., Ltd FCC ID: 2AUYFRMX3242 FCC Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Realme Chongqing Mobile Telecommunications Corp., Ltd requests that the following documents regarding this submission for FCC ID: 2AUYFRMX3242 be kept Long-Term confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operational Description Operational Description.pdf Part list BOM.pdf Tune-Up-Procedure Tune up procedure.pdf And below exhibit kept short-term confidential (180 days): Exhibit Type File Name External Photos External Photos.pdf Internal Photos Internal Photos.pdf Test Setup Photos Test Setup Photos.pdf Users Manuals Users Manual.pdf Those documents contain detailed system and equipment description and related information about the product which Realme Chongqing Mobile Telecommunications Corp., Ltd considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Realme Chongqing Mobile Telecommunications Corp., Ltd considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Thank you for your attention to this matter. Yours Sincerely, Name of the Manager: Yang Liangping Position: Manager Date: April 6, 2021 Signature:

RealMe重庆移动通信有限公司Realme Chongqing Mobile Telecommunications Corp., Ltd. 重庆市渝北区回兴街道霓裳大道24号2幢 No.2 Building, No.24 Nichang Boulevard, Huixing Block, Yubei District, Chongqing, China Test data referencing statement Date: April 13, 2021 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: With regards to the FCC ID: 2AUYFRMX3242 application, according to the designer, Realme Chongqing Mobile Telecommunications Corp., Ltd, we hereby declare that Circuit, Electrical Parts, and Software are identical to the original FCC ID: 2AUYFRMX3241. According to KDB 484596 D01 Referencing Test Data v01, we would like reuse the original FCC ID: 2AUYFRMX3241 test date: 1. Original grant FCC ID: 2AUYFRMX3241, Under application FCC ID: 2AUYFRMX3242 2. Circuit, Electrical Parts, and Software are identical to the original FCC ID, except from Memory difference，and the model name changed into RMX3242 Thank you for your attention to this matter Yours Sincerely, Realme Chongqing Mobile Telecommunications Corp. Manager: Yang Liangping

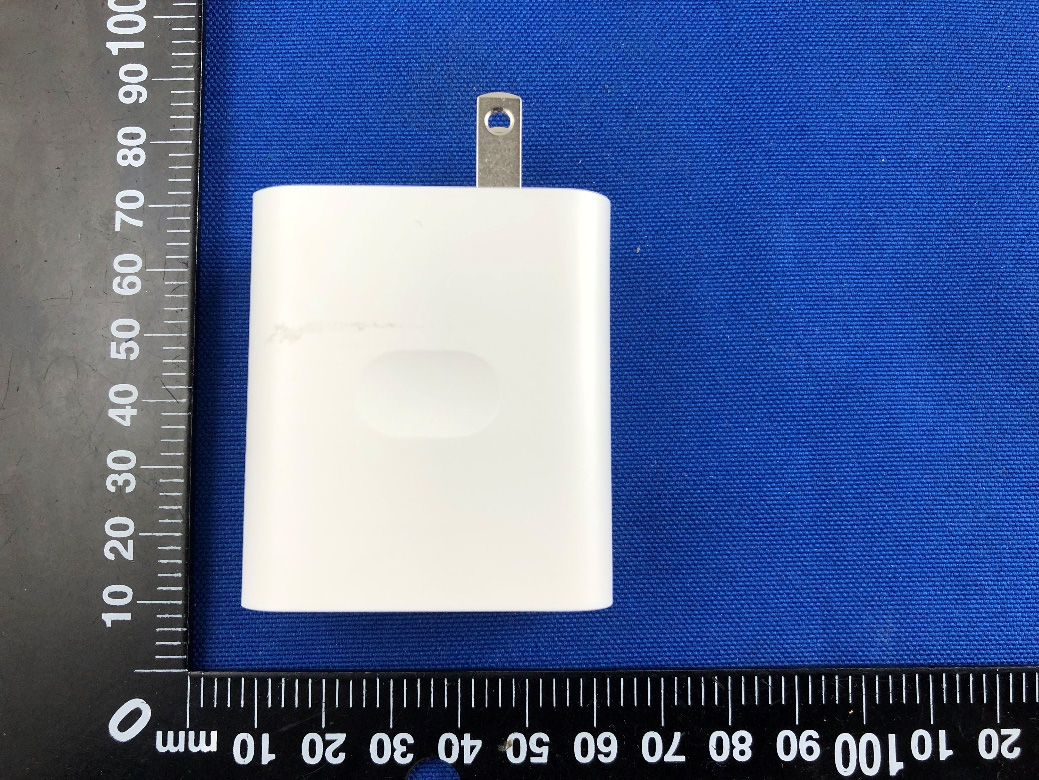

Annex No.: BL-SZ2140154-AW 1 / 7 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Annex No.: BL-SZ2140154-AW 2 / 7 LEFT SIDE VIEW OF EUT RIGHT SIDE OF EUT Annex No.: BL-SZ2140154-AW 3 / 7 TOP VIEW OF EUT BOTTOM VIEW OF EUT Annex No.: BL-SZ2140154-AW 4 / 7 Accessory- Power Adapter (OP92KAUH(US Plug)) CLOSE-UP Annex No.: BL-SZ2140154-AW 5 / 7 Accessory- Power Adapter (OP92CAUH(US Plug)) CLOSE-UP

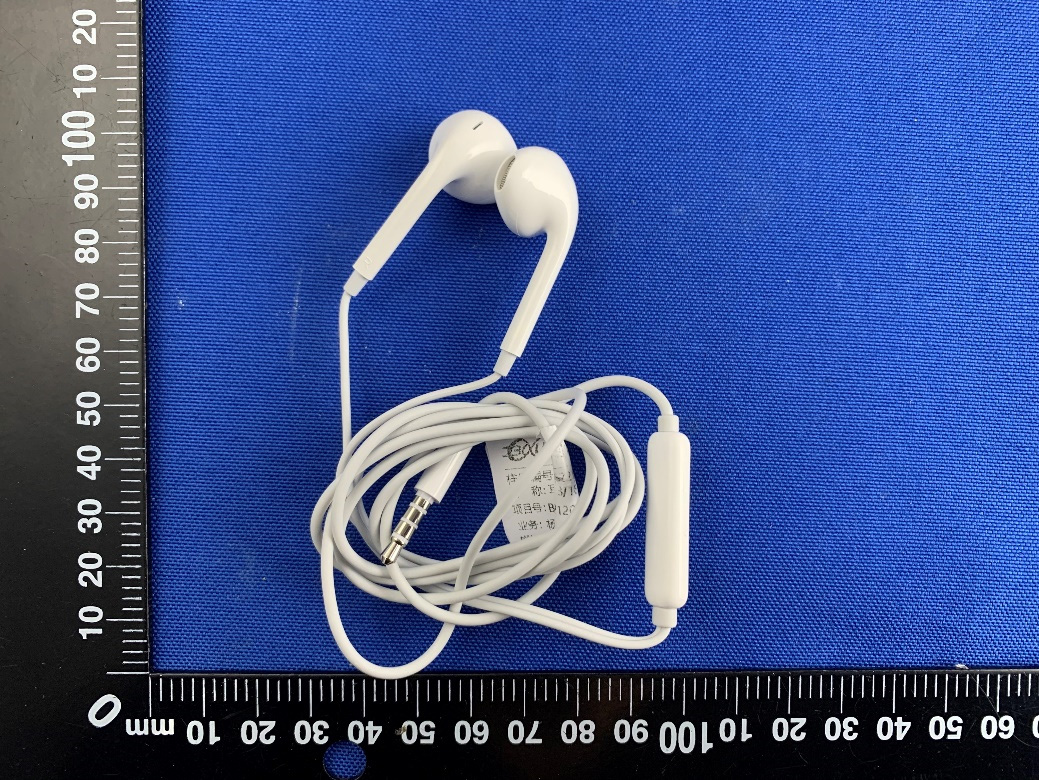

Annex No.: BL-SZ2140154-AW 6 / 7 Accessory- Power Adapter (OP92JAUH(US Plug)) CLOSE-UP Annex No.: BL-SZ2140154-AW 7 / 7 Accessory-Earphone Accessory-USB Cable

Label Location (on the back of the device) Label 35x25mm 7.3x5.0mm 4.52x7.2mm IMEI2: 864425050019989 IMEI1: 864425050019997 S/N: E42C7715 Model: RMX3242 FCC ID: 2AUYFRMX3242 Mobile Phone Designed by realmeAssembled in China Realme Chongqing Mobile Telecommunications Corp., Ltd. IMEI2: 864425050019989 IMEI1: 864425050019997 S/N: E42C7715 Model: RMX3242 FCC ID: 2AUYFRMX3242 Mobile Phone Designed by realmeAssembled in China Realme Chongqing Mobile Telecommunications Corp., Ltd.

Annex No.: BL-SZ2140154-AI 1 / 8 EUT INTERNAL PHOTOS EUT UNCOVER VIEW EUT UNCOVER VIEW ANTENNA: LMHB PRX+B20PRX(B20+N28) NR PRX(L+MH/MH+MH) NR DRX(MH+L) LTE DRX(L+MH) LTE PRX (MH+L) ANTENNA: LBMHB DRX+N28PRX(B20+N28) N1/3/5/7/20/28/38/40/41 PRX(SA) NR PRXMIMO(L+MH) LTE PRX (L+MH/MH+MH) ANTENNA: MHB PRXMIMO N38/41 DRX(L+MH) NR DRX(L+MH/MH+MH) LTE PRX(MH+L/MH+MH) BT/2.4G/5G WIFI ANTENNA GPS+N77/78 PRXMIMO ANTENNA ANTENNA: N77/78 PRX N38/41 PRXMIMO(SA) N38/41 PRXMIMO(L+MH) ANTENNA: MHB+N38/41/77/78BRXMIMO N//3/7/38/40/41 DRXMIMO(SA) NR DRXMIMO (L+MH) ANTENNA: N28/B20 DRX Annex No.: BL-SZ2140154-AI 2 / 8 EUT UNCOVER VIEW MAIN BOARD TOP VIEW (WITH SHIELDING) Annex No.: BL-SZ2140154-AI 3 / 8 MAIN BOARD REAR VIEW (WITH SHIELDING) b MAIN BOARD TOP VIEW (WITHOUT SHIELDING) c Annex No.: BL-SZ2140154-AI 4 / 8 MAIN BOARD REAR VIEW (WITHOUT SHIELDING) SUB BOARD TOP VIEW RF Chip Annex No.: BL-SZ2140154-AI 5 / 8 SUB BOARD REAR VIEW Battery Photo (Sunwoda Electronic CO., LTD. (FRONT)) Annex No.: BL-SZ2140154-AI 6 / 8 Battery Photo (REAR) Battery Photo (PT. BATTERY TECHNOLOGY INDONESIA (FRONT)) Annex No.: BL-SZ2140154-AI 7 / 8 Battery Photo (REAR) Battery Photo (Huizhou Desay Battery Co., Ltd (FRONT)) Annex No.: BL-SZ2140154-AI 8 / 8 Battery Photo (REAR)

Report No.: BL-SZ2140154-701 2 / 222 Revision History Version Issue Date Revisions Content Rev. 01 Apr. 12, 2021 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ..................................................................................................................... 5 1.1 Identification of the Testing Laboratory ...................................................................................... 5 1.2 Identification of the Responsible Testing Location ..................................................................... 5 1.3 Test Environment Condition ....................................................................................................... 5 1.4 Announce ................................................................................................................................... 5 2 PRODUCT INFORMATION ..................................................................................................................... 6 2.1 Applicant Information .................................................................................................................. 6 2.2 Manufacturer Information ........................................................................................................... 6 2.3 Factory Information .................................................................................................................... 6 2.4 General Description for Equipment under Test (EUT) ............................................................... 6 2.5 Ancillary Equipment .................................................................................................................... 7 2.6 Technical Information ................................................................................................................. 8 3 SUMMARY OF TEST RESULT ............................................................................................................. 10 3.1 Test Standards ......................................................................................................................... 10 3.2 Device Category and SAR Limit ............................................................................................... 11 3.3 Test Result Summary ............................................................................................................... 12 3.4 Test Uncertainty ....................................................................................................................... 14 4 MEASUREMENT SYSTEM ................................................................................................................... 15 4.1 Specific Absorption Rate (SAR) Definition ............................................................................... 15 4.2 DASY SAR System .................................................................................................................. 16 5 SYSTEM VERIFICATION ...................................................................................................................... 23 5.1 Purpose of System Check ........................................................................................................ 23 5.2 System Check Setup ................................................................................................................ 23 6 TEST POSITION CONFIGURATIONS .................................................................................................. 24 6.1 Head Exposure Conditions ....................................................................................................... 24 6.2 Body-worn Position Conditions ................................................................................................ 26 Report No.: BL-SZ2140154-701 3 / 222 6.3 Hotspot Mode Exposure Position Conditions ........................................................................... 27 6.4 Product Specific 10g Exposure Consideration ......................................................................... 27 7 MEASUREMENT PROCEDURE ........................................................................................................... 28 7.1 Measurement Process Diagram ............................................................................................... 28 7.2 SAR Scan General Requirement ............................................................................................. 29 7.3 Measurement Procedure .......................................................................................................... 30 7.4 Area & Zoom Scan Procedure ................................................................................................. 30 8 CONDUCTED RF OUPUT POWER ...................................................................................................... 31 8.1 GSM ......................................................................................................................................... 31 8.2 WCDMA ................................................................................................................................... 31 8.3 LTE ........................................................................................................................................... 31 8.4 Intra-Band Uplink CA Power .................................................................................................... 31 8.5 LTE Downlink CA Power .......................................................................................................... 31 8.6 5G NR ...................................................................................................................................... 31 8.7 Bluetooth .................................................................................................................................. 32 8.8 Power Reduction List ............................................................................................................... 33 9 TEST EXCLUSION CONSIDERATION .…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2140154-701 CALIBRATION REPORT F.1 E-Field Probe(EX3DV4 - SN:7607) Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 F.2 E-Field Probe(EX3DV4 - SN:7510) Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701

Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 F.3 Data Acquisition Electronics (DAE4 - SN:878) Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 F.4 Data Acquisition Electronics (DAE4 - SN:1454) Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 F.5 750MHz Dipole Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 F.6 835 MHz Dipole Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 F.7 1750 MHz Dipole Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 F.8 1900 MHz Dipole Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 F.9 2450 MHz Dipole

Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 F.10 2600 MHz Dipole Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 F.11 5GHz Dipole Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 Report No.: BL-SZ2140154-701 --END OF REPORT--

8 CONDUCTED RF OUPUT POWER 8.1 GSM Output Power 8.2 WCDMA Output Power 8.3 LTE Output Power 8.3.1 LTE Band2 Output Power 8.3.2 LTE Band4 Output Power 8.3.3 LTE Band5 Output Power 8.3.4 LTE Band7 Output Power 8.3.5 LTE Band12 Output Power 8.3.6 LTE Band17 Output Power 8.3.7 LTE Band26 Output Power 8.3.8 LTE Band66 Output Power 8.3.9 LTE Band38 Output Power 8.3.10 LTE Band41 Output Power 8.4 Intra-Band Uplink CA Power 8.4.1 LTE Band7 Uplink CA Output Power 8.4.2 LTE Band38 Uplink CA Output Power 8.4.3 LTE Band41 Uplink CA Output Power 8.5 LTE Downlink CA Power 8.5.1 LTE Downlink Carrier Aggregation Setup Configurations 8.5.2 Downlink Bandwidth Combination sets for Intra-Band CA 8.5.3 Power Confirmation for SAR test Exclusion for LTE Downlink CA 8.5.3.1 EUT Antenna1 without Power Reduction (Level1) 8.5.3.2 EUT Antenna1 without Power Reduction (Level2&3) 8.5.3.3 EUT Antenna1 without Power Reduction (Level4) 8.5.3.4 EUT Antenna1 without Power Reduction (Level5&6) 8.5.3.5 EUT Antenna0 without Power Reduction (Level1) 8.5.3.6 EUT Antenna0 without Power Reduction (Level2&3) 8.5.3.7 EUT Antenna0 without Power Reduction (Level4) 8.5.3.8 EUT Antenna0 without Power Reduction (Level5&6) 8.6 5G NR Output Power 8.6.1NR Band5 (Ant.0) Output Power 8.5.2NR Band5 (Ant.1) Output Power 8.5.3NR Band7 (Ant.0) Output Power 8.5.4NR Band7 (Ant.1) Output Power 8.5.5NR Band38 (Ant.0) Output Power 8.5.6NR Band38 (Ant.1) Output Power 8.5.7NR Band41 (Ant.0) Output Power 8.5.8NR Band41 (Ant.1) Output Power 8.1GSM Output Power GSM-Level1-Ant.1 GSM850 Band Burst Average Tune-up Power(dBm) Division Factors Frame-Averaged Tune-up Power (dBm） Channel128190251128190251 GSM (GMSK, 1-Slot) 28.06 28.20 28.29 29.80 9.19 18.87 19.01 19.10 20.61 GPRS (GMSK, 1-Slot) 28.07 28.20 28.27 29.80 9.19 18.88 19.01 19.08 20.61 GPRS (GMSK, 2-Slots) 25.48 25.62 25.69 26.30 6.13 19.35 19.49 19.56 20.17 GPRS (GMSK, 3-Slots) 23.94 24.08 24.16 25.30 4.42 19.52 19.66 19.74 20.88 GPRS (GMSK, 4-Slots) 22.93 23.08 23.14 24.30 3.18 19.75 19.90 19.96 21.12 EGPRS (8PSK, 1-Slot) 22.61 22.43 22.60 23.30 9.19 13.42 13.24 13.41 14.11 EGPRS (8PSK, 2-Slots) 21.12 21.25 21.35 22.30 6.13 14.99 15.12 15.22 16.17 EGPRS (8PSK, 3-Slots) 19.00 19.00 19.09 20.30 4.42 14.58 14.58 14.67 15.88 EGPRS (8PSK, 4-Slots) 17.80 17.86 17.94 19.30 3.18 14.62 14.68 14.76 16.12 GSM1900 Band Burst Average Tune-up Power(dBm) Division Factors Frame-Averaged Tune-up Power (dBm） Channel512661810512661810 GSM (GMSK, 1-Slot) 21.36 21.44 21.32 22.80 9.19 12.17 12.25 12.13 13.61 GPRS (GMSK, 1-Slot) 21.36 21.43 21.30 22.80 9.19 12.17 12.24 12.11 13.61 GPRS (GMSK, 2-Slots) 17.77 17.87 17.74 18.80 6.13 11.64 11.74 11.61 12.67 GPRS (GMSK, 3-Slots) 17.20 17.30 17.18 18.30 4.42 12.78 12.88 12.76 13.88 GPRS (GMSK, 4-Slots) 15.76 15.81 15.69 16.80 3.18 12.58 12.63 12.51 13.62 EGPRS (8PSK, 1-Slot) 17.51 18.48 18.33 19.30 9.19 8.32 9.29 9.14 10.11 EGPRS (8PSK, 2-Slots) 15.90 15.78 15.67 16.80 6.13 9.77 9.65 9.54 10.67 EGPRS (8PSK, 3-Slots) 13.39 13.46 13.25 14.30 4.42 8.97 9.04 8.83 9.88 EGPRS (8PSK, 4-Slots) 12.13 12.18 11.91 13.30 3.18 8.95 9.00 8.73 10.12 GSM-Level1-Ant.0 GSM850 Band Burst Average Tune-up Power(dBm) Division Factors Frame-Averaged Tune-up Power (dBm） Channel128190251128190251 GSM (GMSK, 1-Slot) 31.78 32.07 32.00 33.30 9.19 22.59 22.88 22.81 24.11 GPRS (GMSK, 1-Slot) 31.72 31.99 31.92 33.30 9.19 22.53 22.80 22.73 24.11 GPRS (GMSK, 2-Slots) 29.66 29.89 29.85 30.30 6.13 23.53 23.76 23.72 24.17 GPRS (GMSK, 3-Slots) 28.12 28.38 28.29 29.30 4.42 23.70 23.96 23.87 24.88 GPRS (GMSK, 4-Slots) 27.11 27.38 27.31 28.30 3.18 23.93 24.20 24.13 25.12 EGPRS (8PSK, 1-Slot) 26.44 26.64 26.69 27.30 9.19 17.25 17.45 17.50 18.11 EGPRS (8PSK, 2-Slots) 25.18 25.28 25.26 26.30 6.13 19.05 19.15 19.13 20.17 EGPRS (8PSK, 3-Slots) 22.93 23.17 23.11 24.30 4.42 18.51 18.75 18.69 19.88 EGPRS (8PSK, 4-Slots) 21.67 22.23 21.78 23.30 3.18 18.49 19.05 18.60 20.12 GSM1900 Band Burst Average Tune-up Power(dBm) Division Factors Frame-Averaged Tune-up Power (dBm） Channel512661810512661810 GSM (GMSK, 1-Slot) 29.20 29.00 28.75 30.30 9.19 20.01 19.81 19.56 21.11 GPRS (GMSK, 1-Slot) 29.12 28.90 28.66 30.30 9.19 19.93 19.71 19.47 21.11 GPRS (GMSK, 2-Slots) 27.02 26.79 26.57 27.80 6.13 20.89 20.66 20.44 21.67 GPRS (GMSK, 3-Slots) 25.42 25.16 24.89 26.30 4.42 21.00 20.74 20.47 21.88 GPRS (GMSK, 4-Slots) 24.93 24.66 24.39 25.80 3.18 21.75 21.48 21.21 22.62 EGPRS (8PSK, 1-Slot) 25.35 24.84 24.70 26.30 9.19 16.16 15.65 15.51 17.11 EGPRS (8PSK, 2-Slots) 23.70 23.39 23.18 24.30 6.13 17.57 17.26 17.05 18.17 EGPRS (8PSK, 3-Slots) 21.14 20.76 20.84 21.80 4.42 16.72 16.34 16.42 17.38 EGPRS (8PSK, 4-Slots) 19.76 19.78 19.07 20.30 3.18 16.58 16.60 15.89 17.12 GSM-Level2&3-Ant.1 GSM850 Band Burst Average Tune-up Power(dBm) Division Factors Frame-Averaged Tune-up Power (dBm） Channel128190251128190251 GSM (GMSK, 1-Slot) 25.50 25.64 25.72 27.30 9.19 16.31 16.45 16.53 18.11 GPRS (GMSK, 1-Slot) 25.46 25.59 25.67 27.30 9.19 16.27 16.40 16.48 18.11 GPRS (GMSK, 2-Slots) 22.89 23.04 23.12 23.80 6.13 16.76 16.91 16.99 17.67 GPRS (GMSK, 3-Slots) 21.26 21.41 21.49 22.30 4.42 16.84 16.99 17.07 17.88 GPRS (GMSK, 4-Slots) 20.33 20.49 20.57 21.30 3.18 17.15 17.31 17.39 18.12 EGPRS (8PSK, 1-Slot) 19.95 20.01 20.16 21.30 9.19 10.76 10.82 10.97 12.11 EGPRS (8PSK, 2-Slots) 18.79 18.76 18.87 19.80 6.13 12.66 12.63 12.74 13.67 EGPRS (8PSK, 3-Slots) 16.35 17.13 16.79 17.80 4.42 11.93 12.71 12.37 13.38 EGPRS (8PSK, 4-Slots) 15.31 15.32 15.50 16.30 3.18 12.13 12.14 12.32 13.12 GSM1900 Band Burst Average Tune-up Power(dBm) Division Factors Frame-Averaged Tune-up Power (dBm） Channel512661810512661810 GSM (GMSK, 1-Slot) 19.84 19.89 19.77 21.30 9.19 10.65 10.70 10.58 12.11 GPRS (GMSK, 1-Slot) 19.83 19.86 19.75 21.30 9.19 10.64 10.67 10.56 12.11 GPRS (GMSK, 2-Slots) 16.22 16.34 16.22 17.30 6.13 10.09 10.21 10.09 11.17 GPRS (GMSK, 3-Slots) 15.73 15.78 15.68 16.80 4.42 11.31 11.36 11.26 12.38 GPRS (GMSK, 4-Slots) 14.16 14.23 14.12 15.30 3.18 10.98 11.05 10.94 12.12 EG…

Text truncated - open the document above for the full version.

2 / 17 1 GENERAL INFORMATION 1.1Introduction This document contains a summary of the requirements set forth by the IEEE 1528, FCC KDB 865664 D01 for reference dipoles used for SAR measurement system validations. Instead of the typical annual calibration recommended by measurement standards, the reference dipoles were demonstrated that the SAR target, impedance and return loss have remain stable, so the longer calibration interval is acceptable. 1.2General Description for Equipment under Test (EUT) EUT TypeDASY 5 Reference Dipoles ManufacturerSpeag ParameterEUT 1EUT 2EUT 3EUT 4EUT 5EUT 6 ModelD835V2D1750V2D1900V2D2450V2D2600V2D5GHzV2 Frequency835 MHz1750 MHz1900 MHz2450MHz2600 MHz5GHz-6GHz Serial NumberSN 4d187SN 1130SN 5d193SN 952SN 1095SN 1200 Product Condition (New/ Used) UsedUsedUsedUsedUsedUsed Last Cal. Date2019/6/112019/09/122019/6/112019/6/102019/11/042020/2/17 Current meas. Date2020/6/012020/09/082020/6/012020/6/022020/11/012021/2/04 3 / 17 1.3EUT Photos D835V2 D1750V2 D1900V2 D2450V2 D2600V2 4 / 17 D5GHzV2 5 / 17 2 DIPOLE IMPEDANCE AND RETURN LOSS The dipoles are designed to have low return loss when presented against a flat phantom at the specified distance. A Vector Network Analy…
