2AUYFRMX3261Mobile Phone

This user manual provides the product safety information. Before using the phone, please read the Important Information Guide (IIG) carefully. This guide will show you how to use the phone and its important functions. You may also visit realme ocial website to get more information about the phone. Greetings from realme mobile Do not place the phone or battery near or inside the heating equipments, cooking equipments, high pressure vessels (such as microwave ovens, induction cooker, electric oven, heater, pressure cooker, water heater, gas stove, etc.) to prevent the battery overheating which may lead to an explosion. The original charger, data cable and battery shall be used. Unapproved chargers, data cables, or batteries that are not certied by the manufacturer may result in electric shock, re, explosion, or other hazards. Back cover can’t be removed. When charging, please place the device in an environment that has a normal room temperature and good ventilation. It is recommended to charge the device in an environment with temperature ranging from 5°C~35°C. Warning How to use he phone Press and hold the Power Button until the realme animation is displayed to start the phone. You can use the phone by following the instructions appeared on the screen. For more information, please visit realme official website: https://www.realme.com/eu/ How to reboot the phone Press and hold the Power Button and Volume Up Button at the same time until the realme boot animation is displayed to reboot the phone. Standard accessories You are provided with the following standard accessories: 1 Phone, 1 Charger, 1 USB data cable, 1 Safety Guide, 1 Quick Guide, 1 SIM Ejector Tool. RMX3261 16.5cm(6.5'') SAR Values FCC SAR 0°C-35°C 13Megapixels+2Megapixels +2Megapixels Rear 5Megapixels Front 164.5x76.0x9.1(mm RMX3261 Radio Frequency Max. Output Power 850MHz/900MHz32.5±0.8dBm 1800MHz30±0.8dBm Bands 1/2/4 23±0.8dBm Bands 5/823.5±0.8dBm Bands 1/2/3/4/6623±0.8dBm Bands 5/8/12/17/26/2823.3±0.8dBm Band 722.5±0.8dBm LTE TDDBands 38/41 23±0.8dBm Bluetooth2.4-2.4835GHz6.5±3dBm(EIRP) 2.4G Wi-Fi2.4-2.4835GHz15±2.5dBm(EIRP) Radio Waves Specications GSM WCDMA LTE FDD 42dBuA/[email protected] 1900MHz29.5±0.8dBm Receiver Volume Button Proximity sensor & light sensor 4880mAh/18.88Wh(Min) 5000mAh/19.35Wh(Typ) 0.870W/kg(Head) 1.152W/kg(Body) Power Key /Lock Screen Key Front Camera

FCC Regulatory Conformance FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Caution Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Conformité avec la réglementation FCC Déclaration FCC Cet appareil est conforme avec la partie 15 des règles de la FCC. Son utilisation est soumise aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférences nuisibles ; (2) cet appareil doit accepter les interférences reçues, y compris les interférences susceptibles de provoquer un fonctionnement indésirable. À l’issue des tests dont il a fait l’objet, cet appareil a été déclaré conforme aux normes des appareils numériques de classe B, conformément à la partie 15 des règles de la FCC. Ces limites sont destinées à assurer une protection raisonnable contre les interférences nuisibles dans une installation résidentielle. Cet appareil génère, utilise et peut émettre de l’énergie de radiofréquence et, s’il n’est pas installé et utilisé conformément aux instructions, peut provoquer des interférences nuisibles aux communications radio. Cependant, il n’existe aucune garantie qu’aucune interférence ne se produira dans une installation particulière. La présence d’interférences peut être déterminée en éteignant et rallumant l’appareil. Si cet appareil provoque des interférences nuisibles à la réception de la radio ou de la télévision, l’utilisateur est invité à corriger ce problème en appliquant une ou plusieurs des mesures suivantes : - Réorienter ou déplacer l’antenne de réception. - Augmenter la distance entre l’appareil et le récepteur. - Raccorder l’appareil à une prise d’un circuit diérent de celui sur lequel est branché le récepteur. - Consulter le revendeur ou un technicien radio/télévision expérimenté. Attention : Tout changement ou toute modication n’ayant pas été expressément approuvés par la partie responsable de la conformité peut entraîner la révocation du droit de l’utilisateur à utiliser cet appareil. Information concernant l’exposition aux fréquences radio (DAS) Cet appareil est conforme aux spécications de radiofréquence si vous l’utilisez près de votre oreille ou à une distance de 1,5 cm de votre corps. Veillez à ce que les attaches de ceinture, étuis de poitrine et accessoires similaires ne contiennent pas de composants métalliques. Gardez l’appareil éloigné de votre corps pour répondre à l’exigence de distance. Cet appareil est conçu et fabriqué de manière à ne pas dépasser les limites d’émissions pour l’exposition à l’énergie de radiofréquence (RF) dénie par la Federal Communications Commission du gouvernement des États-Unis. L’antenne ou les antennes utilisées pour cet émetteur ne doivent pas être placées au même endroit ou utilisées en association avec une quelconque autre antenne ou un quelconque autre émetteur. La limite de DAS xée par la FCC est de 1,6 W/kg. La valeur de DAS la plus élevée pour ce type d’appareil est conforme à cette limite. Consultez par ailleurs le « Guide rapide » pour déterminer la valeur de DAS la plus élevée déclarée à la FCC. Konformität mit den FCC-Bestimmungen FCC-Erklärung Dieses Gerät entspricht Teil 15 der FCC-Bestimmungen. Der Betrieb unterliegt den folgenden zwei Bedingungen: (1) Dieses Gerät darf keine schädlichen Störungen verursachen und (2) Dieses Gerät muss alle empfangenen Störungen akzeptieren, einschließlich Störungen, die einen unerwünschten Betrieb verursachen können. Dieses Gerät wurde getestet und entspricht den Grenzwerten für digitale Geräte der Klasse B gemäß Teil 15 der FCC-Bestimmungen. Diese Grenzen wurden aufgestellt,um angemessenen Schutz gegen schädliche Beeinträchtigungen in Wohnbereichen zu bieten. Von diesem Gerät wird Energie in Form von Funkfrequenzen erzeugt, verwendet und womöglich ausgestrahlt, die zu Störungen des Funkverkehrs führen kann, falls das Gerät nicht ordnungsgemäß installiert und verwendet wird. Es gibt jedoch keine Garantie dafür, dass bei einer bestimmten Installation keine Störungen auftreten. Wenn dieses Gerät den Radio- oder Fernsehempfang beeinträchtigt, was durch Aus- und Einschalten des Geräts festgestellt werden kann, wird dem Benutzer geraten, diese Störungen durch eine oder mehrere der folgenden Maßnahmen zu beheben: - Richten Sie die Empfangsantenne neu aus . - Vergrößern Sie den Abstand zwischen Gerät und Empfänger. - Schließen Sie das Gerät an eine Steckdose eines Stromkreises an,der unterschiedlich zu dem des Empfängers ist. - Wenden Sie sich für Hilfe an Ihre Vertriebsstelle oder an einen erfahrenen Radio-/Fernsehtechniker. Achtung: Alle Änderungen oder Modikationen, die nicht ausdrücklich vo…

Text truncated - open the document above for the full version.

FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID:2AUYFRMX3261. PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram,Schematics,Operational Description,PartsList,TuneUp BlockDiagram.pdf,Schematics.pdf, OperationalDescription.pdf,PartsList.pdf, TuneUp.pdf Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. PursuanttoDA04-1705June15,2004oftheCommission’spublicnotice,wealsorequest temporaryconfidentialtreatmentofinformationaccompanyingthisapplicationasoutlinedbelow (180days): ExhibitTypeFileName ExternalPhotos,InternalPhotos,TestSetup Photos,UserManual ExternalPhotos.pdf,InternalPhotos.pdf,Test SetupPhotos.pdf,UserManual.pdf Sincerely, LiangPingYang

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2021-05-14 SUBJECT: FCC Application for 2AUYFRMX3261 To Whom It May Concern: We, the undersigned, hereby authorize Zhou Fangai at Shenzhen Academy of Metrology and Quality Inspection on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Academy of Metrology and Quality Inspection on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby authorize Shenzhen Academy of Metrology and Quality Inspection to submit relevant documents to TCB and FCC (Certification Body (ies)), if required by application procedures. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, (Must be signed by the person that is listed on the FCC Website) LiangPing Yang

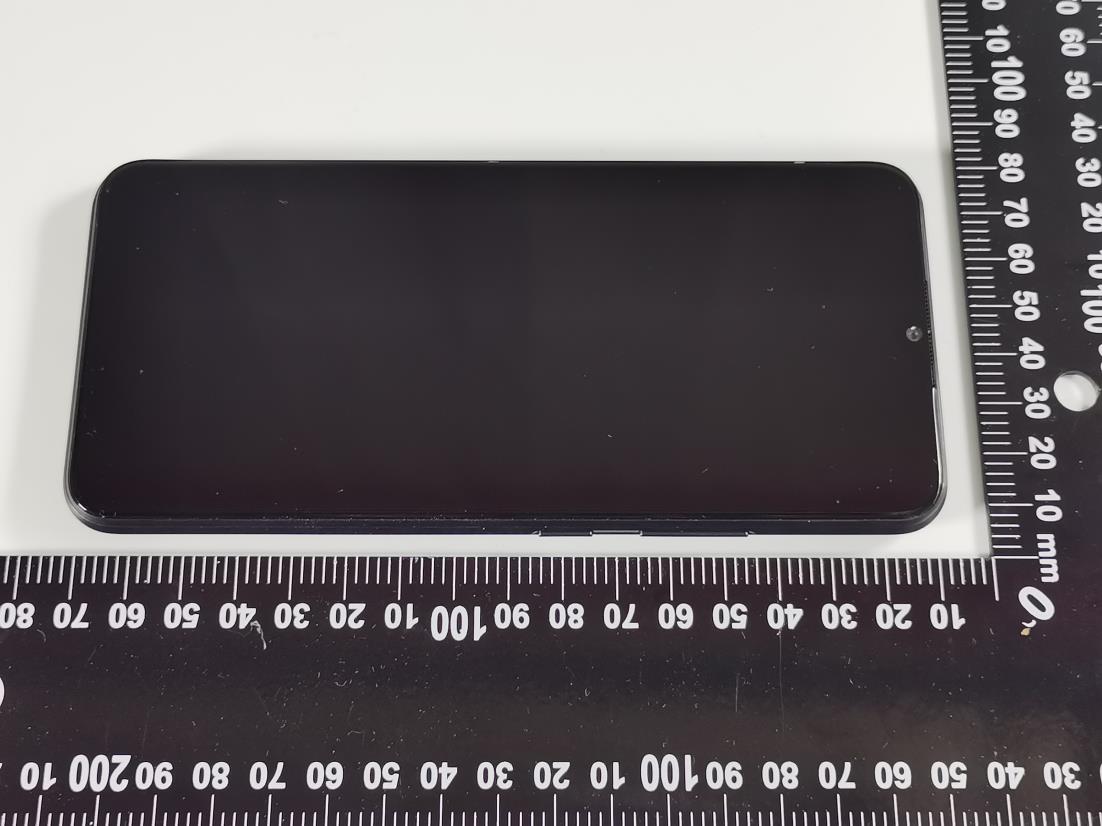

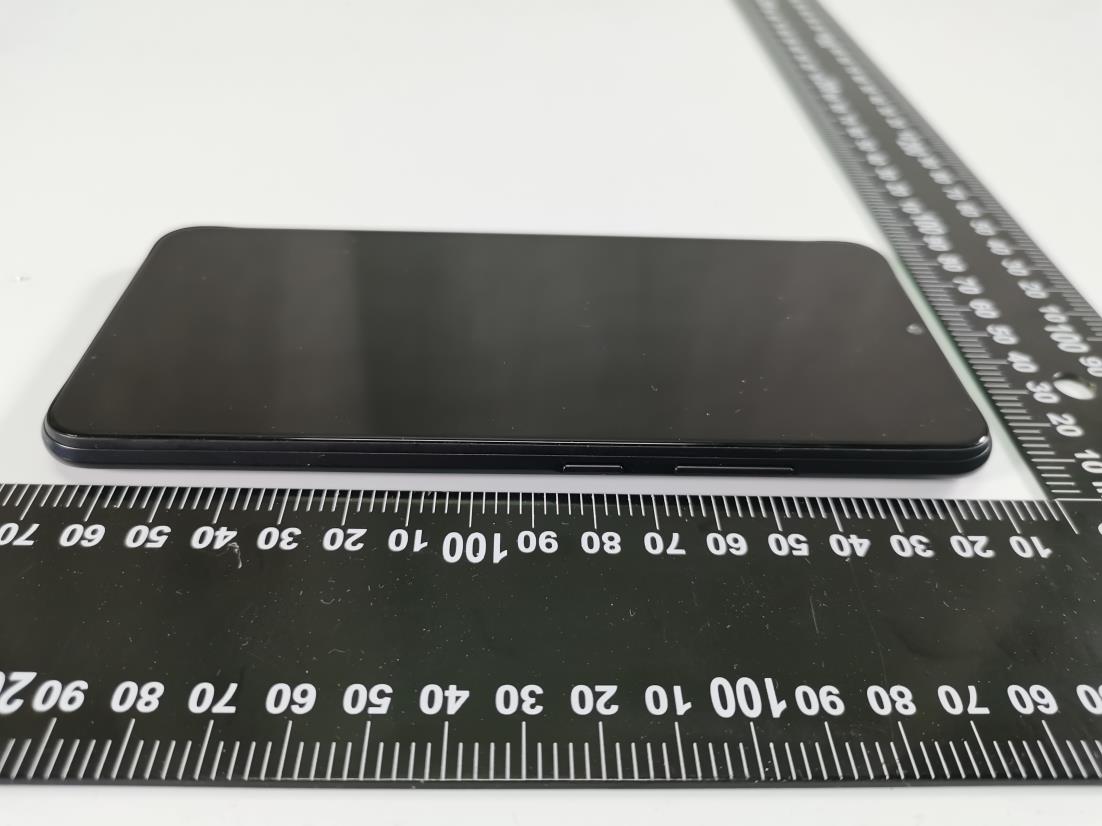

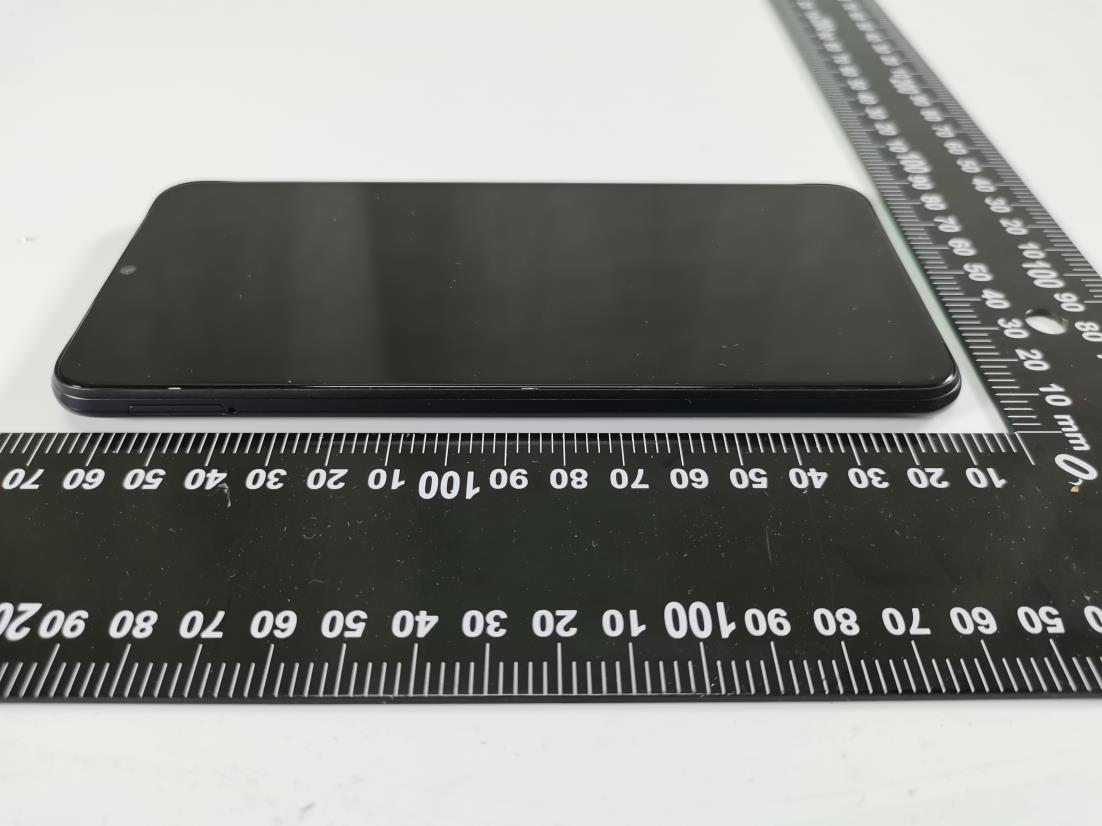

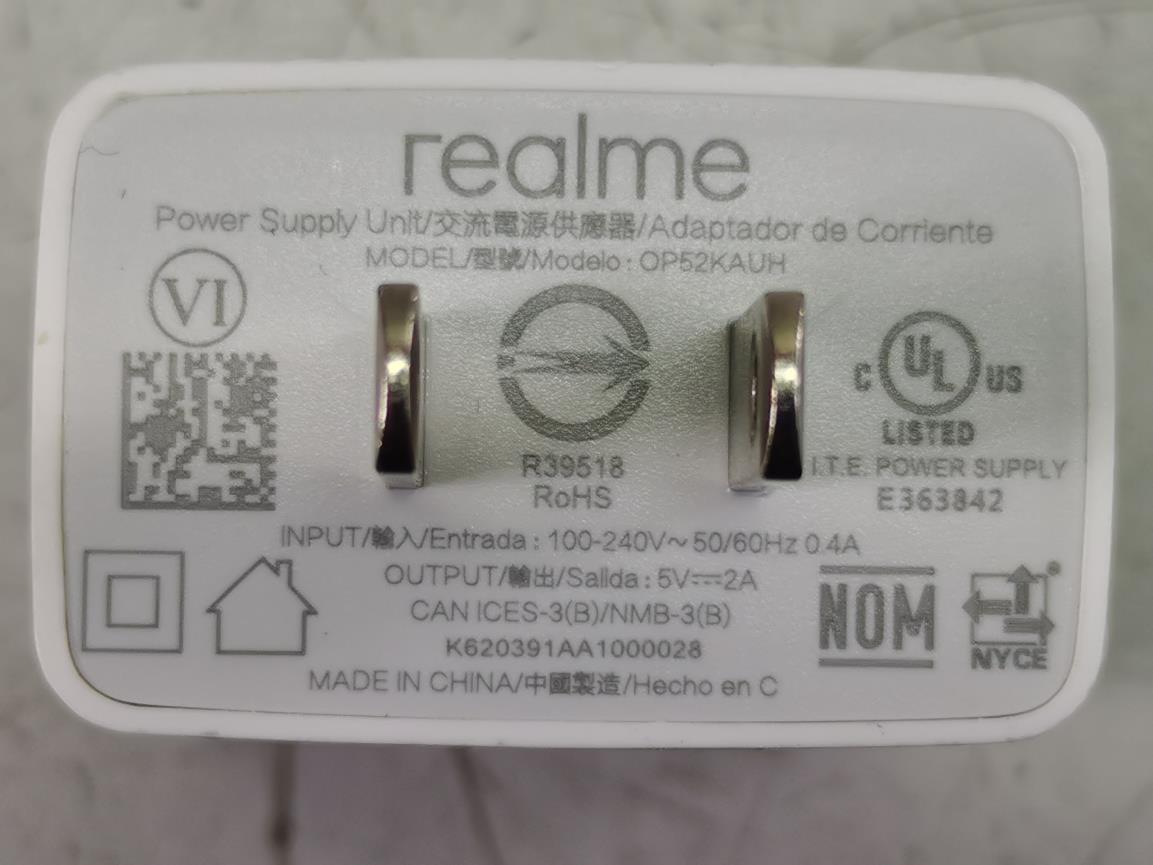

Photo 1 Appearance of EUT Photo 2 Appearance of EUT Photo 3 Appearance of EUT Photo 4 Appearance of EUT Photo 5 Appearance of EUT Photo 6 Appearance of EUT Photo 7 Appearance of AC adaptor OP52KAUH Photo 8 Appearance of AC adaptor OP52KAUH Photo 9 Appearance of AC adaptor OP52YAUH Photo 10 Appearance of AC adaptor OP52YAUH Photo 11 Appearance of AC adaptor OP52JAUH Photo 12 Appearance of AC adaptor OP52JAUH Photo 13 Appearance of USB Cable

Rea lme Chon gqing Mob ile Te leco mmunication s Corp., Ltd. Date: 20210520 SUBJECT: FCC Application for 2AUYFRMX3261 To Whom It May Concern: We, the undersigned,Can do it several times. 1.1 User Steps to Access Information Users must be able to access the regulatory information without requiring special access codes or permissions, and in all cases the information must be accessible in no more than three steps from a product’s main or home menu.access process is as follows. Starting from Main or Home Menu: Step 1 – accessing submenu “Settings” Step 2 – access submenu “About phone” Step 3-Access the submenu "Certificate Information", which displays the information of FCC E-Label 1.2 Products must not require special accessories or supplemental plug-ins (e.g., the installation of a SIM/USIM card) to access the information. Instructions must be provided with the product at the time of purchase, in the user manual, operating instructions, packaging material, quick guide pamphlet, etc. Alternatively, a product-related website is permitted, if a reference (URL) to obtain the website information is provided at the time of purchase in the user manual, operating instructions, packaging material, quick guide pamphlet, etc. Access to regulatory information must be provided without special codes, accessories, or permissions beyond the normal security protection to unlock the screen, sign-in page, or overall product access 1.3 Readability of Regulatory Information The FCC ID, warning statements, or other information must be displayed electronically in a manner that is clearly legible without the aid of magnification. 1.4 Regulatory Information must be Secure Both regulatory information and dedicated exclusive application(s) or script(s) must be secured and implemented in a factory-set-unalterable format. Theregulatoryinformationmustbecapableofbeingretrievedanddisplayedlocally,andunder thecontroloftheenduserinpossessionoftheproduct. Themethodmustbesecure,suchthattheapplicationorscriptensuresthattheregulatory informationcorrectlydisplayed. Regards, Signature： PrintedName:YangLiangping

E-Label： USA Model:RMX3261 FCCID:2AUYFRMX3261 Thisdevicecomplieswithpart15oftheFCCrules.Operationis subjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference;and (2)Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation.

E-Label： United States FCC ID: 2AUYFRMX3261

Photo 1 Inside of EUT GSM/WCDMA/LTE Diversity Antenna BT/WiFi Antenna GSM/WCDMA/LTE Main Antenna NFC Antenna Photo 2 Inside of EUT Photo 3 Inside of EUT Photo 4 Inside of EUT Photo 5 Inside of EUT Photo 6 Inside of EUT Photo 7 Inside of EUT Photo 8 Inside of EUT Photo 9 Inside of EUT Photo 10 Inside of EUT Photo 11 Inside of EUT Photo 12 Inside of EUT Photo 13 Inside of EUT Photo 14 Inside of EUT Photo 15 Inside of EUT

Report No.: WT218001266 Page 1 of 8 APPENDIX A: SYSTEM CHECKING SCANS Report No.: WT218001266 Page 2 of 8 SystemPerformanceCheck-D750 for Head Date: 2021.05.06. DUT: Dipole 750MHz D750V3; Type SN: 1103; Communication System: CW; Communication System Band: D750 (750.0 MHz); Frequency: 750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 750 MHz; σ = 0.88mho/m; εr = 41.3; ρ = 1000 kg/m3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(9.70,9.70,9.70); Calibrated: 2020.06.16.; Electronics: DAE4 Sn1637; Calibrated: 2020.11.17. Head/Dipole750 2/Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 49.533 V/m; Power Drift = -0.07 dB Fast SAR: SAR(1 g) = 2.06 mW/g; SAR(10 g) = 1.37 mW/g Maximum value of SAR (interpolated) = 2.22 W/kg Head/Dipole750 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 49.533 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 3.017 mW/g SAR(1 g) = 2.04 mW/g; SAR(10 g) = 1.34 mW/g Maximum value of SAR (measured) = 2.20 W/kg 0 dB = 2.22 W/kg = 6.94 dB W/kg Report No.: WT218001266 Page 3 of 8 SystemPerformanceCheck-D835MHz for Head Date: 2021.05.07. DUT: Dipole 835 MHz D835V2; Type: D835V2 SN: 4d141; Communication System: CW; Communication System Band: D835 (835.0 MHz); Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.93 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(9.43, 9.43, 9.43); Calibrated: 2020.06.16.; Electronics: DAE4 Sn1637; Calibrated: 2020.11.17. Head/Dipole835/Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 50.047 V/m; Power Drift = -0.02 dB Fast SAR: SAR(1 g) = 2.31 mW/g; SAR(10 g) = 1.41 mW/g Maximum value of SAR (interpolated) = 2.28 W/kg Head/Dipole835/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 50.047 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.120 mW/g SAR(1 g) = 2.31 mW/g; SAR(10 g) = 1.51 mW/g Maximum value of SAR (measured) = 2.28 W/kg 0 dB = 2.28 W/kg = 7.16 dB W/kg Report No.: WT218001266 Page 4 of 8 SystemPerformanceCheck-D1750 for Head Date: 2021.05.08 DUT: Dipole 1750 MHz D1750V2; Type: D1750V2 SN:1108; Communication System: CW; Communication System Band: D1750 (1750.0 MHz); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1750 MHz; σ = 1.40 mho/m; ε r = 39.72; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(8.14, 8.14, 8.14); Calibrated: 2020.06.16.; Electronics: DAE4 Sn1637; Calibrated: 2020.11.17. Head/Dipole1750 /Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 82.933 V/m; Power Drift = 0.05 dB Fast SAR: SAR(1 g) = 9.1 mW/g; SAR(10 g) = 4.88 mW/g Maximum value of SAR (interpolated) = 10.4 W/kg Head/Dipole1750 /Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 82.933 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 16.726 mW/g SAR(1 g) = 9.01 mW/g; SAR(10 g) = 4.7 mW/g Maximum value of SAR (measured) = 10.0 W/kg 0 dB = 10.4 W/kg = 20.34 dB W/kg Report No.: WT218001266 Page 5 of 8 SystemPerformanceCheck-D1900 for Head Date: 2021.05.09 DUT: Dipole 1900 MHz D1900V2; Type: D1900V2 SN:5d162; Communication System: CW; Communication System Band: D1900 (1900.0 MHz); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 39.65; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(7.92,7.92,7.92); Calibrated: 2020.06.16.; Electronics: DAE4 Sn1637; Calibrated: 2020.11.17. Head/Dipole1900 5/Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 84.175 V/m; Power Drift = 0.03 dB Fast SAR: SAR(1 g) = 9.33 mW/g; SAR(10 g) = 5.01 mW/g Maximum value of SAR (interpolated) = 10.7 W/kg Head/Dipole1900 5/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 84.175 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 17.108 mW/g SAR(1 g) = 9.23 mW/g; SAR(10 g) = 4.82 mW/g Maximum value of SAR (measured) = 10.2 W/kg 0 dB = 10.7 W/kg = 20.55 dB W/kg Report No.: WT218001266 Page 6 of 8 SystemPerformanceCheck-D2300 for Head Date: 2021.05.10 DUT: Dipole 2300 MHz D2300V2; Type: D2300V2 SN:818; Communication System: CW; Communication System Band: D2300 (2300.0 MHz); Frequency: 2300 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2300 MHz; σ = 1.48 mho/m; ε r = 38.45; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(7.72,7.72,7.72); Calibrated: 2020.06.16.; Electronics: DAE4 Sn1637; Calibrated: 2020.11.17. Head/Dipole2300/Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 84.317 V/m; Power Drift = 0.05 dB Fast SAR: SAR(1 g) = 12.8 mW/g; SAR(10 g) = 5.69 mW/g Maximum value of SAR (interpolated) = 17.4 W/kg Head/Dipole2300/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 84.317 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 28.853 mW/g SAR(1 g) = 12.3 mW/g; SAR(10 g) = 5.99 mW/g Maximum value of SAR (measured) = 13.1 W/kg 0 dB = 17.4 W/kg = 24.79 dB W/kg Report No.: WT218001266 Page 7 of 8 SystemPerformanceCheck-D2450 for Head Date: 2021.05.11 DUT: Dipole 2450 MHz D2450V2; Type: D2450V2 SN:818; Communication System: CW; Communication System Band: D2450 (2450.0 MHz); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.76 mho/m; ε r = 37.97; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(7.4…

Text truncated - open the document above for the full version.

Report No.: WT218001266 Page 1 of 16 APPENDIX C: RELEVANT PAGES FROM PROBE CALIBRATION REPORT(S) Report No.: WT218001266 Page 2 of 16 Report No.: WT218001266 Page 3 of 16 Report No.: WT218001266 Page 4 of 16 Report No.: WT218001266 Page 5 of 16 Report No.: WT218001266 Page 6 of 16 Report No.: WT218001266 Page 7 of 16 Report No.: WT218001266 Page 8 of 16 Report No.: WT218001266 Page 9 of 16 Report No.: WT218001266 Page 10 of 16 Report No.: WT218001266 Page 11 of 16 Report No.: WT218001266 Page 12 of 16 Report No.: WT218001266 Page 13 of 16 Report No.: WT218001266 Page 14 of 16 Report No.: WT218001266 Page 15 of 16 Report No.: WT218001266 Page 16 of 16

Report No.: WT218001266 Page 1 of 57 Appendix B. MEASUREMENT SCANS Report No.: WT218001266 Page 2 of 57 1. GSM850 Head Right Cheek Mid Medium: HSL900 Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.89 mho/m; ε r = 41.478; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(9.43, 9.43, 9.43); Calibrated: 2020.06.16.; Electronics: DAE4 Sn1637; Calibrated: 2020.11.17. GSM 850_Right Cheek/Mid/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 12.644 V/m; Power Drift = -0.05 dB Fast SAR: SAR(1 g) = 0.150 mW/g; SAR(10 g) = 0.104 mW/g Maximum value of SAR (interpolated) = 0.160 W/kg GSM 850_Right Cheek/Mid/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.644 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.190 mW/g SAR(1 g) = 0.154 mW/g; SAR(10 g) = 0.118 mW/g Maximum value of SAR (measured) = 0.160 W/kg 0 dB = 0.160 W/kg = -15.91 dB W/kg Report No.: WT218001266 Page 3 of 57 2. GSM850 Body Facedown Mid-10mm Medium: HSL900 Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Duty Cycle: 1:4.1 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.89 mho/m; ε r = 41.478; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(9.43, 9.43, 9.43); Calibrated: 2020.06.16.; Electronics: DAE4 Sn1637; Calibrated: 2020.11.17. GSM 850_Back/Mid/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 12.644 V/m; Power Drift = 0.08 dB Fast SAR: SAR(1 g) = 0.207 mW/g; SAR(10 g) = 0.147 mW/g Maximum value of SAR (interpolated) = 0.217 W/kg GSM 850_Back/Mid/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.644 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.262 mW/g SAR(1 g) = 0.208 mW/g; SAR(10 g) = 0.159 mW/g Maximum value of SAR (measured) = 0.218 W/kg 0 dB = 0.218 W/kg = -13.24 dB W/kg Report No.: WT218001266 Page 4 of 57 3. GSM850 Body Facedown Mid-15mm Medium: HSL900 Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.89 mho/m; ε r = 41.478; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(9.4, 9.4, 9.4); Calibrated: 2019.03.25.; Electronics: DAE4 Sn1637; Calibrated: 2020.11.17. GSM 850_Back 15mm/Mid/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 12.644 V/m; Power Drift = 0.11 dB Fast SAR: SAR(1 g) = 0.145 mW/g; SAR(10 g) = 0.103 mW/g Maximum value of SAR (interpolated) = 0.152 W/kg GSM 850_Back 15mm/Mid/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.644 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.179 mW/g SAR(1 g) = 0.144 mW/g; SAR(10 g) = 0.110 mW/g Maximum value of SAR (measured) = 0.150 W/kg 0 dB = 0.150 W/kg = -16.46 dB W/kg Report No.: WT218001266 Page 5 of 57 4. GSM1900 Head Right Cheek Mid Medium: HSL1900 Communication System: Generic GSM; Communication System Band: PCS 1900 (1850.0 - 1910.0 MHz); Frequency: 1880 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 39.74; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(7.92, 7.92, 7.92); Calibrated: 2020.06.16.; Electronics: DAE4 Sn1637; Calibrated: 2020.11.17. 1900_Right GSM Head/1900 GSM Cheek-Mid up/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 3.840 V/m; Power Drift = 0.07 dB Fast SAR: SAR(1 g) = 0.109 mW/g; SAR(10 g) = 0.064 mW/g Maximum value of SAR (interpolated) = 0.121 W/kg 1900_Right GSM Head/1900 GSM Cheek-Mid up/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.840 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.155 mW/g SAR(1 g) = 0.111 mW/g; SAR(10 g) = 0.073 mW/g Maximum value of SAR (measured) = 0.119 W/kg 0 dB = 0.119 W/kg = -18.49 dB W/kg Report No.: WT218001266 Page 6 of 57 5. GSM1900 Body Bottom Mid-10mm Medium: HSL1800 Communication System: GPRS FDD(TDMA,GSMK); Communication System Band: PCS 1900 (1850.0 - 1910.0 MHz); Frequency: 1850.2 MHz;Duty Cycle: 1:4.1 Medium parameters used: f = 1850.2 MHz; σ = 1.42 mho/m; ε r = 39.87; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - SN3881; ConvF(7.92, 7.92, 7.92); Calibrated: 2020.06.16.; Electronics: DAE4 Sn876; Calibrated: 2020.03.03. 1900_GPRS/GPRS1900 Bottom-Mid/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 14.401 V/m; Power Drift = 0.05 dB Fast SAR: SAR(1 g) = 0.768 mW/g; SAR(10 g) = 0.392 mW/g Maximum value of SAR (interpolated) = 0.870 W/kg 1900_GPRS/GPRS1900 Bottom-Mid/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.401 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 1.226 mW/g SAR(1 g) = 0.744 mW/g; SAR(10 g) = 0.387 mW/g Maximum value of SAR (measured) = 0.855 W/kg 0 dB = 0.870 W/kg = -0.40 dB W/kg Report No.: WT218001266 Page 7 of 57 6. GSM1900 Body Facedown Mid-15mm Medium: MSL1900 Communication System: Generic GSM; Communication System Band: PCS 1900 (1850.0 - 1910.0 MHz); Frequency: 1880 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 1880 MHz; σ = 1.57 mho/m; ε r = 51.14; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration:Probe: EX3DV4 - S…

Text truncated - open the document above for the full version.

Report No.: WT218001266 Page 1 of 91 APPENDIX D: RELEVANT PAGES FROM DAE& DIPOLE VALIDATION KIT REPORT(S) Report No.: WT218001266 Page 2 of 91 Report No.: WT218001266 Page 3 of 91 Report No.: WT218001266 Page 4 of 91 Report No.: WT218001266 Page 5 of 91 Report No.: WT218001266 Page 6 of 91 Report No.: WT218001266 Page 7 of 91 Report No.: WT218001266 Page 8 of 91 Report No.: WT218001266 Page 9 of 91 Report No.: WT218001266 Page 10 of 91 Report No.: WT218001266 Page 11 of 91 Report No.: WT218001266 Page 12 of 91 Report No.: WT218001266 Page 13 of 91 Report No.: WT218001266 Page 14 of 91 Report No.: WT218001266 Page 15 of 91 Report No.: WT218001266 Page 16 of 91 Report No.: WT218001266 Page 17 of 91 Report No.: WT218001266 Page 18 of 91 Report No.: WT218001266 Page 19 of 91 Report No.: WT218001266 Page 20 of 91 Report No.: WT218001266 Page 21 of 91 Report No.: WT218001266 Page 22 of 91 Report No.: WT218001266 Page 23 of 91 Report No.: WT218001266 Page 24 of 91 Report No.: WT218001266 Page 25 of 91 Report No.: WT218001266 Page 26 of 91 Report No.: WT218001266 Page 27 of 91 Report No.: WT218001266 Page 28 of 91 Report No.: WT218001266 Page 29 of 91 Report No.: WT218001266 Page 30 of 91 Report No.: WT218001266 Page 31 of 91 Report No.: WT218001266 Page 32 of 91 Report No.: WT218001266 Page 33 of 91 Report No.: WT218001266 Page 34 of 91 Report No.: WT218001266 Page 35 of 91 Report No.: WT218001266 Page 36 of 91 Report No.: WT218001266 Page 37 of 91 Report No.: WT218001266 Page 38 of 91 Report No.: WT218001266 Page 39 of 91 Report No.: WT218001266 Page 40 of 91 Report No.: WT218001266 Page 41 of 91 Report No.: WT218001266 Page 42 of 91 Report No.: WT218001266 Page 43 of 91 Report No.: WT218001266 Page 44 of 91 Report No.: WT218001266 Page 45 of 91 Report No.: WT218001266 Page 46 of 91 Report No.: WT218001266 Page 47 of 91 Report No.: WT218001266 Page 48 of 91 Report No.: WT218001266 Page 49 of 91 Report No.: WT218001266 Page 50 of 91

Report No.: WT218001266 Page 1 of 84 SAR TEST REPORT For Mobile Phone Model Number: RMX3261 FCC ID: 2AUYFRMX3261 Report Number : WT218001266 Test Laboratory : Shenzhen Academy of Metrology and Quality Inspection National Digital Electronic Product Testing Center Site Location : NETC Building, No.4 Tongfa Road, Xili Town, Nanshan District, Shenzhen, Guangdong, China Tel : 0086-755-86928965 Fax : 0086-755-86009898-31396 Web : www.smq.com.cn Email : [email protected] Report No.: WT218001266 Page 2 of 84 Test report declaration Applicant : Realme Chongqing Mobile Telecommunications Corp., Ltd. Address : No.178 Yulong Avenue, Yufengshan, Yubei District, Chongqing, Chin a. Manufacturer : Realme Chongqing Mobile Telecommunications Corp., Ltd. Address : No.178 Yulong Avenue, Yufengshan, Yubei District, Chongqing, Chin a. EUT Description : Mobile Phone Model No : RMX3261 Trade mark : realme FCC ID: 2AUYFRMX3261; Test Standards: IEEE Std 1528-2013, KDB941225 D01, KDB941225 D05, KDB941225 D06, KDB447498 D01,KDB648474 D04,KDB248227 D01,KDB 865664 D01,KDB865664 D02,KDB690783 D01 The EUT described above is tested by Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory to determine the compliance of the applicable standards stated above. Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory is assumed full responsibility for the accur…

Text truncated - open the document above for the full version.
