2AUYFRMX3840Mobile phone

实物尺寸：70mm*140mm 材质：90g哑粉 李梦园 电话：13129565976 邮箱：[email protected]

This user manual provides the product safety information. Before using the phone, please read the Safety Guide carefully. Statement 'The Safety Guide' contains information regarding safety, operation and customer service. Before using the realme smartphone, please read all the instructions and the security information below, and keep it for backup. More detailed instructions are kept in this product as an electronic le. Please read the built-in instructions on the realme smartphone. For the latest information, please visit https://www.realme.com. Safety & security information Read all information before using the device to ensure safe and proper use. This mobile phone is suitable for working in an environment of 0°C to 35°C. Temperature for storage should be between -20°C and 45°C. Excessively high or low temperatures may damage the mobile phone or reduce the battery's lifespan. When charging, please keep the device in a well-ventilated area. Please charge this mobile phone in an environment between 5°C and 35°C. If the phone has a ash charging function, it may not be able to enter the ash charging mode when the temperature is below 15°C or over 35°C. Do not charge the battery over 12 hours. Do not replace, disassemble, modify, mechanically crush or cut the battery, as it may cause battery leakage, overheating, explosion or e. The adapter, as the disconnect device from the mains, shall be installed near the device and easily accessible. Use manufacturer-approved chargers, data cables, batteries and other accessories to prevent potential electric shock, re, explosion or other hazards. Back cover can't be removed. To prevent damage to your device's parts or internal circuits, do not use it in dusty, smoky, damp or dirty environments or near magnetic elds. Do not place the phone or battery directly in sunlight, near/inside sources of heat or in a low air pressure location, which may lead to an explosion or battery leakage. If any part of the product is cracked or damaged, discontinue use immediately and contact the realme Service Center. Power o your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. The battery can be charged and discharged hundreds of times at least, but it will eventually wear out. Precautions for using the device: Observe all safety instructions for any places, especially in hospital/health care facilities, service stations, schools, professional garages and in an aircraft. Do not use your device and adhere to all safety warnings/regulations regarding mobile device usage while driving. Persons with electronic implants (pacemakers, insulin pumps, neurostimulators, etc.) are recommended to place the mobile telephone 15 cm away from the implant or on the opposite side of the implant. To prevent hearing damage by high sound pressure, do not listen at high volume levels for long periods. Listening to a portable device at high volume may damage the user's ears and cause auditory disorders (temporary or permanent deafness, buzzing in the ears, tinnitus or hyperacusis). It is therefore strongly recommended not to use the portable device at full volume or more than one hour a day at medium volume. Recommendations for use: 1. No danger relating to the use of a mobile telephone has been observed and this is purely a preventive measure. The operating system of this product supports ocial system updates. If the user rooted the ROM system of any third party or modied the system le by cracking, it may lead to security risks of the system. realme will not provide any support nor take any responsibility for the nal use in these cases. To better understand how we protect your personal information, please see the privacy policy at realme ocial website. For more information, please check the User Guide on your device. All personal information may be removed during or after the product software upgrade. Please back up your personal information before upgrading. 2. To reduce the level of exposure to radiation, you should use the mobile telephone: A. In good reception conditions: when the signal indicator displays a full signal on the signal reception bar. B. With a hands-free kit or speaker. C. Giving priority to the use of data, SMS and MMS messages rather than calls. 3. Pregnant women should keep the mobile phone away from their abdomen and teenagers should keep the mobile phone away from their lower abdomen. 4. It is recommended to make reasonable use of the mobile phone by children and adolescents, for example by limiting the number of calls and their durations or by limiting the night use of the device. Do not leave your phone and its accessories within the reach of small children or allow them to play with it. They could hurt themselves or others, or may accidentally damage the phone. Your phone contains small parts with sharp edges that may cause an injury or which could become detached and create a choking hazard. Waste Electrical and Electronic Equipment (WEEE) realme Mobiles will seek shared responsibility and cooperation from customers in reducing the environmental impact of their products. realme Mobiles will comply with all the applicable laws related to WEEE management. This symbol (with or without a solid bar) means that according to local laws and regulations your product and/or its battery shall be disposed of separately from household waste. When this product reaches its end of life, user has the choice to give his product to a competent recycling organization. Proper recycling of your product will protect human health and the environment. FCC Regulatory Conformance FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limi…

Text truncated - open the document above for the full version.

realme Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date:2023/12/12 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2AUYFRMX3840 Realme Chongqing Mobile Telecommunications Corp., Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) Print name: Yang liangping realme Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023/12/12 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID:2AUYFRMX3840 Realme Chongqing Mobile Telecommunications Corp., Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) Print name: Yang liangping

realme U.S. Agent Designation for Service of Process TO:Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Innopeak Technology, Inc. FRN ： 0033456872 Contact Name: Richard Wahng Physical U.S. address: 2479 E Bayshore Rd #120, Palo Alto, CA 94303 Email: [email protected] This letter is to confirm that weInnopeak Technology, Inc.have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of theApplicantnoted below. U.S. Agent Signature: Date:February 15, 2023 Signed by (Printed Name/Title):Richard Wahng /General Counsel The applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Realme Chongqing Mobile Telecommunications Corp., Ltd. Grantee Code: 2AUYFRMX3840 Contact Name: Mega Huang Address: No.178 Yulong Avenue, Yufengshan, Yubei District, Chongqing, P.R. China. Email: [email protected] Applicant Signature: Date: December 13, 2023 Signed by (Printed Name/Title): Mega Huang / Compliance Manager

FCC, Request for non-disclosure Date: 02-01-2022 RF_501, Issue 10 Company Name: Realme Chongqing Mobile Telecommunications Corp., Ltd. Address: No.178 Yulong Avenue,Yufengshan,Yubei District City: Chongqing Country: China To: Kiwa Netherlands B.V., Dept. FCC TCB Wilmersdorf 50 7327 AC Apeldoorn The Netherlands Subject: Request for confidentiality FCC ID: 2AUYFRMX3840 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: we request temporary confidential treatment of information accompanying this application for a period of 180day Date: 2023/12/12 Name and signature of applicant: Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should state in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Kiwa NL B.V. at least 7 days before date of actual marketing or before expiration of the STC period

RF_160_05 Declaration of Authorisation Date of issue 02-01-2023 (On manufacturer’s company letter heading) Declaration of Authorization We Name: Realme Chongqing Mobile Telecommunications Corp., Ltd. Address: No.178 Yulong Avenue,Yufengshan,Yubei District City: Chongqing Country: China Declare that: Name Representative of agent: Zhang Yan (1) Agent Company name: SAICT Address: Building G,Shenzhen International Innovation Center, No.1006 Shennan Road City: Shenzhen Country China is authorized to apply for Certification of the following product(s): Product description: Mobile Phone Type designation: RMX3840 Trademark: realme Validity/ expiry date on our behalf. Date: 2023/12/12.. City: .. Name: yangliangping.. (2) Function: .........Manager...................... Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

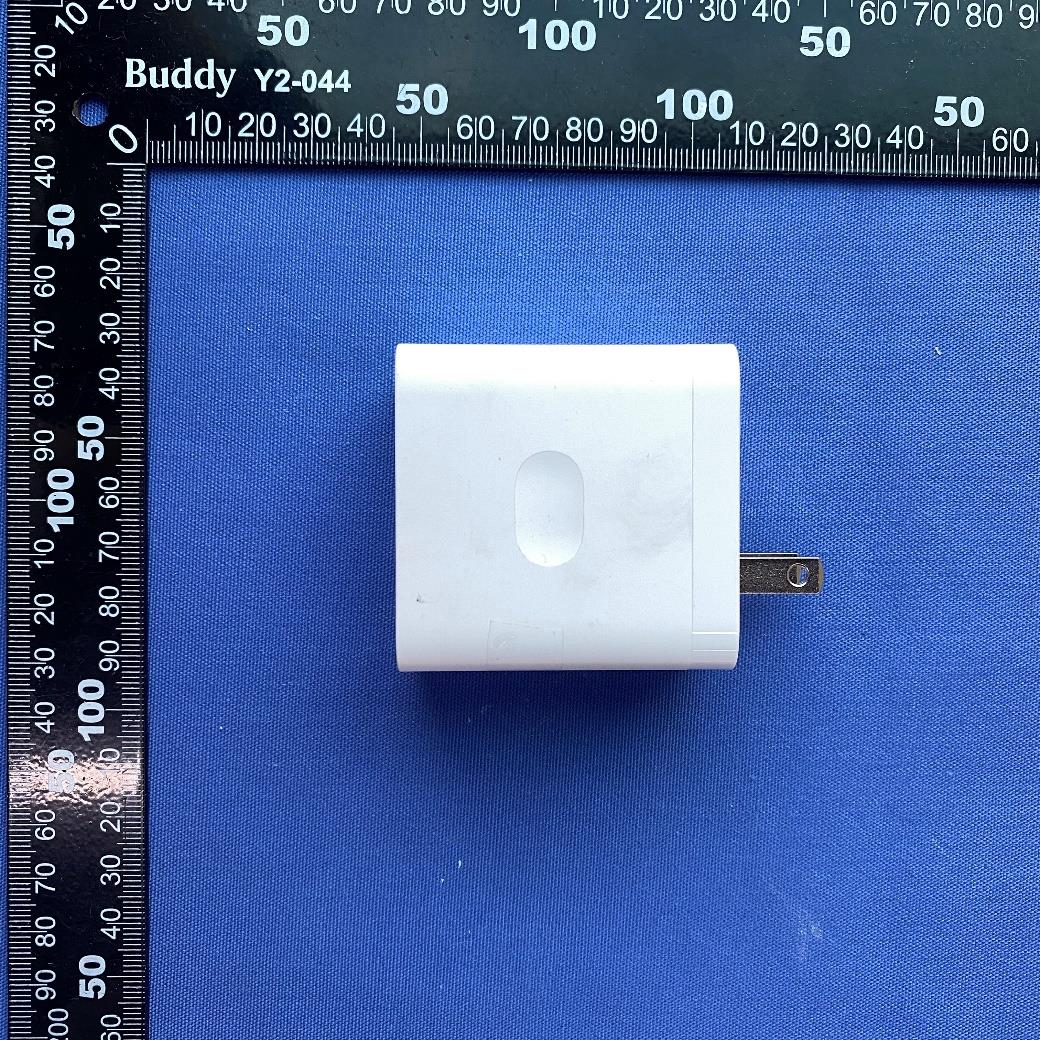

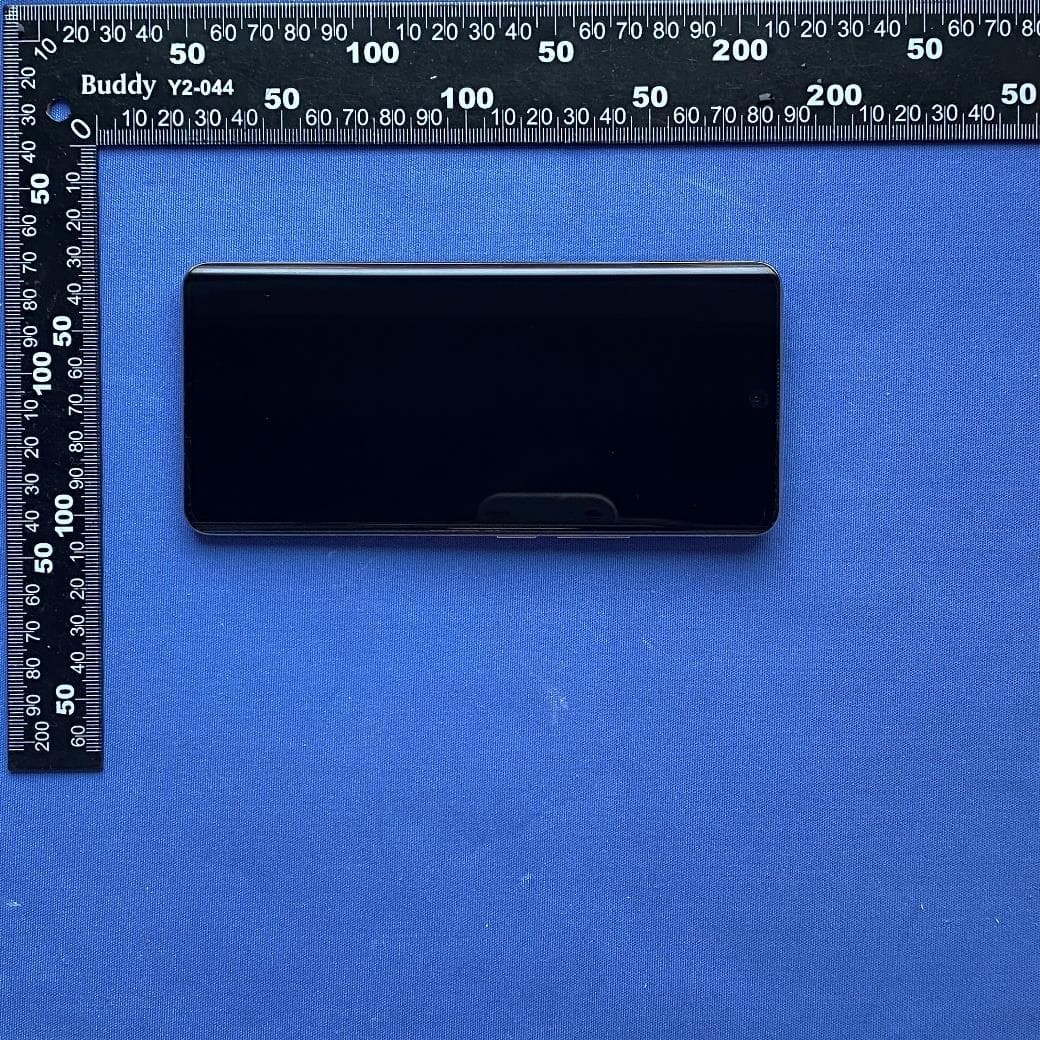

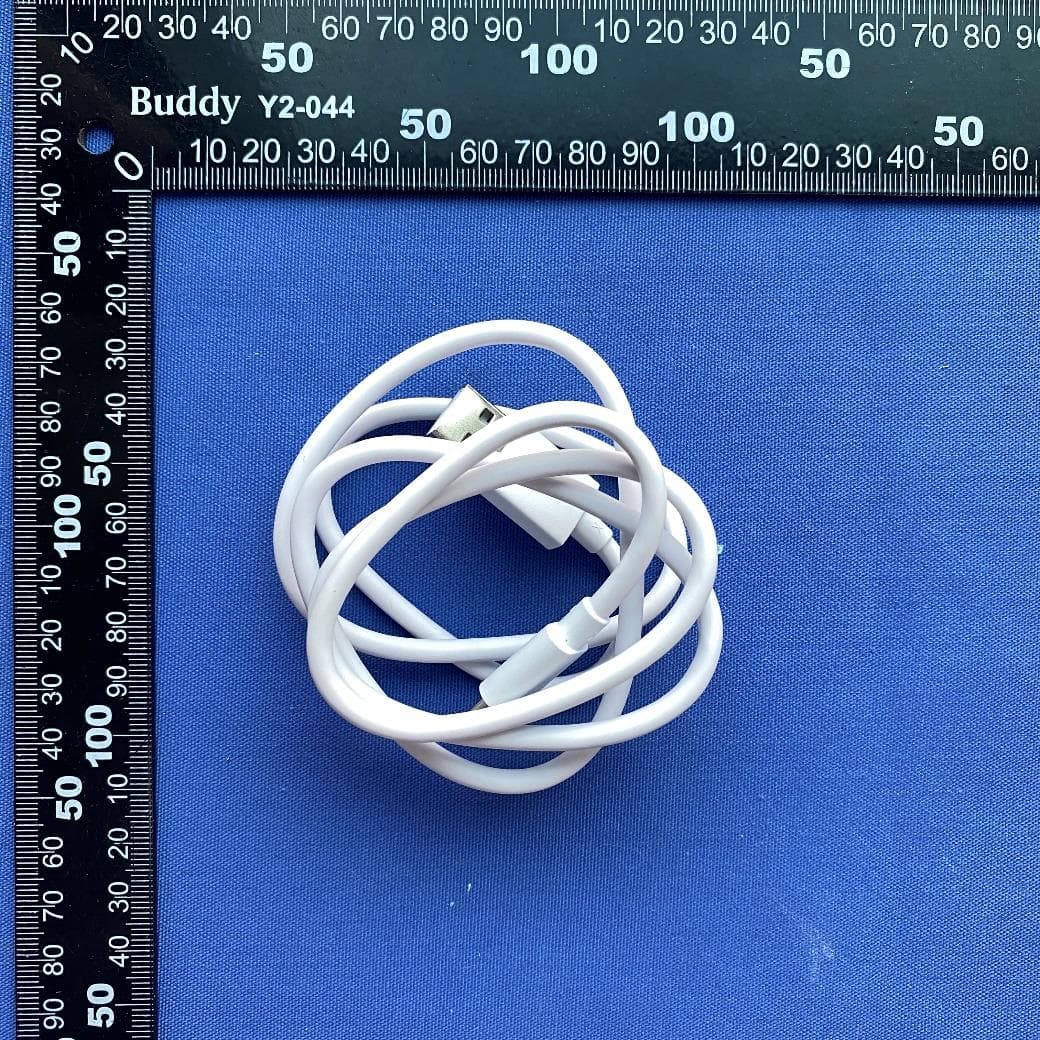

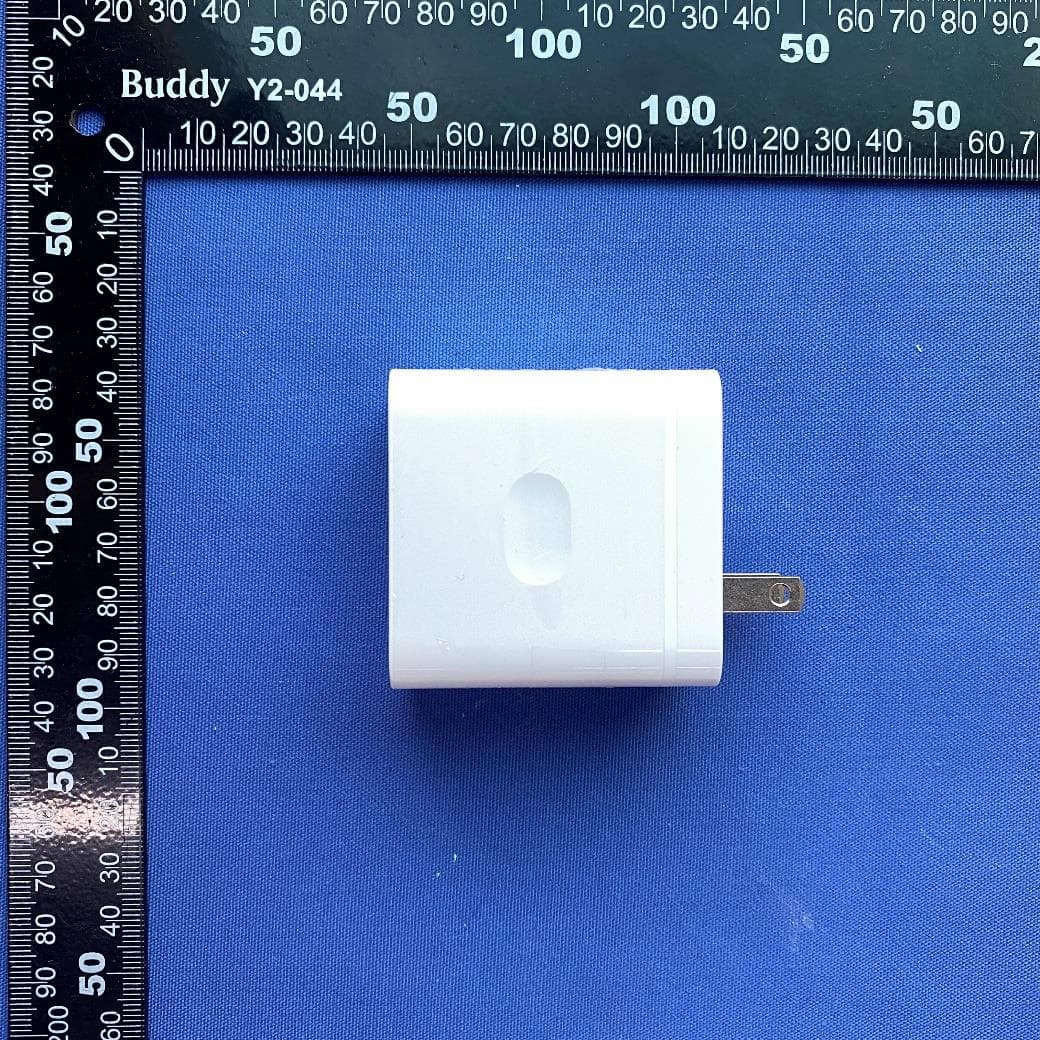

Back of EUT

©Copyright. All rights reserved by CTTL. Page 1 of 133 PART 2 Test Under Dynamic Transmission Condition No. 23T04Z80315-01 For Realme Chongqing Mobile Telecommunications Corp., Ltd. Mobile Phone Model Name: RMX3840 with Hardware Version: 11 Software Version: realme UI 5.0 FCC ID: 2AUYFRMX3840 Issued Date: 2023-12-12 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn ©Copyright. All rights reserved by CTTL. Page 2 of 133 REPORT HISTORY Report Number Revision Issue Date Description 23T04Z80315-01 Rev.0 2023-12-12 Initial creation of test report ©Copyright. All rights reserved by CTTL. Page 3 of 133 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................ 4 2 INTRODUCTION ........................................................................................................................ 5 3 TX VARYING TRANSMISSION TEST CASES AND TEST PROPOSAL ................................ 6 4 SAR TIME AVERAGING VALIDATION TEST PROCEDURES ................................................ 9 5 TEST CONFIGURATIONS ...................................................................................................... 20 6 CONDUCTED POWER TEST RESULTS FOR SUB-6 SMART TRANSMIT FEATURE VALIDATION ............................................................................................................................... 23 7 SAR TEST RESULTS FOR SUB-6 SMART TRANSMIT FEATURE...................................... 66 8 CONCLUSIONS ....................................................................................................................... 82 APPENDIX A. TEST SEQUENCES ........................................................................................... 83 APPENDIX B TEST PROCEDURES FOR SUB6 NR + LTE RADIO ........................................ 86 APPENDIX C DASY6 SYSTEM VALIDATION ........................................................................... 88 APPENDIX D CALIBRATION CERTIFICATE OF PROBE AND DIPOLE ................................ 93 ©Copyright. All rights reserved by CTTL. Page 4 of 133 1 Test Laboratory 1.1. Introduction & Accreditation Telecommunication Technology Labs, CAICT is an ISO/IEC 17025:2017 accredited test laboratory under American Association for Laboratory Accreditation (A2LA) with lab code 7049.01, and is also an FCC accredited test laboratory (CN1349), and ISED accredited test laboratory (CAB identifier:CN0066). The detail accreditation scope can be found on A2LA website. 1.2. Testing Location Location 1: CTTL(huayuan North Road) Address: No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191 1.3. Testing Environment Normal Temperature: 15-35°C Extreme Temperature: -10/+55°C Relative Humidity: 20-75% 1.4. Project data Testing Start Date: 2023-12-01 Testing End Date: 2023-12-11 1.5. Signature Wang Meng (Prepared this test report) Qi Dianyuan (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) ©Copyright. All rights reserved by CTTL. Page 5 of 133 2 Introduction The equipment under test (EUT) is a smart phone. It contains the Qualcomm modem supporting 2G/3G/4G technologies and 5G NR Sub-6 GHz technologies. These modems enable Qualcomm Smart Transmit feature to control and manage transmitting power in real time and to ensure at all times the time-averaged RF exposure is in compliance with the FCC requirement. This purpose of the Part 2 report is to demonstrate the EUT complies with FCC RF exposure requirement under Tx varying transmission scenarios, thereby validity of Qualcomm Smart Transmit feature for FCC equipment authorization of Model RMX3840. This EUT does not support mmW 5G WWAN therefore disregard all references to mmW PD. The Plimit used in this report is determined in Part 0 reports. Refer to Compliance summary report for product description and terminology used in this report. DUT contains embedded file system (EFS) version 19 configured for the Second generation (GEN2). ©Copyright. All rights reserved by CTTL. Page 6 of 133 3 Tx Varying Transmission Test Cases and Test Proposal To validate time averaging feature and demonstrate the compliance in Tx varying transmission conditions, the following transmission scenarios are covered in Part 2 test: 1. During a time-varying Tx power transmission: To prove that the Smart Transmit feature accounts for Tx power variations in time accurately. 2. During a call disconnect and re-establish scenario: To prove that the Smart Transmit feature accounts for history of past Tx power transmissions accurately. 3. During technology/band handover: To prove that the Smart Transmit feature functions correctly during transitions in technology/band. 4. During DSI (Device State Index) change: To prove that the Smart Transmit feature functions correctly during transition from one device state (DSI) to another. 5. During antenna (or beam) switch: To prove that the Smart Transmit feature functions correctly during transitions in antenna (such as AsDiv scenario) or beams (different antenna array configurations). 6. SAR vs. PD exposure switching during sub-6+mmW transmission: To prove that the Smart Transmit feature functions correctly and ensures total RF exposure compliance during transitions in SAR dominant exposure, SAR+PD exposure, and PD dominant exposure scenarios. 7. During time window switch: To prove that the Smart Transmit feature correctly handles the transition from one time window to another specified by FCC, and maintains the normalized time- averaged RF exposure to be less than nor…

Text truncated - open the document above for the full version.

©Copyright. All rights reserved by CTTL. Page 106 of 133 ©Copyright. All rights reserved by CTTL. Page 107 of 133 ©Copyright. All rights reserved by CTTL. Page 108 of 133 ©Copyright. All rights reserved by CTTL. Page 109 of 133 ©Copyright. All rights reserved by CTTL. Page 110 of 133 ©Copyright. All rights reserved by CTTL. Page 111 of 133 ©Copyright. All rights reserved by CTTL. Page 112 of 133 ©Copyright. All rights reserved by CTTL. Page 113 of 133 ©Copyright. All rights reserved by CTTL. Page 114 of 133 ©Copyright. All rights reserved by CTTL. Page 115 of 133 ©Copyright. All rights reserved by CTTL. Page 116 of 133 1750 MHz Dipole Calibration Certificate ©Copyright. All rights reserved by CTTL. Page 117 of 133 ©Copyright. All rights reserved by CTTL. Page 118 of 133 ©Copyright. All rights reserved by CTTL. Page 119 of 133 ©Copyright. All rights reserved by CTTL. Page 120 of 133

TEST REPORT No. I23N01711-SAR For Realme Chongqing Mobile Telecommunications Corp., Ltd. Mobile Phone Model Name: RMX3840 With Hardware Version: 11 Software Version: realme UI 5.0 FCC ID: 2AUYFRMX3840 Issued Date: 2023-12-15 Designation Number: CN1210 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of SAICT. Test Laboratory: SAICT, Shenzhen Academy of Information and Communications Technology Building G, Shenzhen International Innovation Center, No.1006 Shennan Road, Futian District, Shenzhen, Guangdong, P. R. China 518000. Tel:+86(0)755-33322000, Fax:+86(0)755-33322001 Email: [email protected]. www.saict.ac.cn No. I23N01711-SAR ©Copyright. All rights reserved by SAICT Page 2 of 322 REPORT HISTORY Report Number Revision Description Issue Date I23N01711-SAR Rev.0 1st edition 2023-12-15 No. I23N01711-SAR ©Copyright. All rights reserved by SAICT Page 3 of 322 CONTENTS 1. SUMMARY OF TEST REPORT ................................................................................................... 5 1.1. TEST ITEMS .................................................................................................................................... 5 1.2. TEST STANDARDS ........................................................................................................................... 5 1.3. TEST RESULT .................................................................................................................................. 5 1.4. TESTING LOCATION ......................................................................................................................... 5 1.5. PROJECT DATA ............................................................................................................................... 5 1.6. SIGNATURE ..................................................................................................................................... 5 2. STATEMENT OF COMPLIANCE ................................................................................................. 6 3. CLIENT INFORMATION ............................................................................................................... 8 3.1. APPLICANT INFORMATION ................................................................................................................ 8 3.2. MANUFACTURER INFORMATION ........................................................................................................ 8 4. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 9 4.1. ABOUT EUT .................................................................................................................................... 9 4.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ............................................................. 10 4.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................... 10 5. TEST METHODOLOGY ............................................................................................................. 11 5.1. APPLICABLE LIMIT REGULATIONS .................................................................................................... 11 5.2. APPLICABLE MEASUREMENT STANDARDS ........................................................................................ 11 6. SMART TRANSMIT FEATURE FOR RF EXPOSURE COMPLIANCE .................................... 12 7. SPECIFIC ABSORPTION RATE (SAR) ..................................................................................... 14 7.1. INTRODUCTION .............................................................................................................................. 14 7.2. SAR DEFINITION ........................................................................................................................... 14 8. TISSUE SIMULATING LIQUIDS ................................................................................................ 15 8.1. TARGETS FOR TISSUE SIMULATING LIQUID ....................................................................................... 15 8.2. DIELECTRIC PERFORMANCE .......................................................................................................... 15 9. SYSTEM VERIFICATION ........................................................................................................... 20 9.1. SYSTEM SETUP ............................................................................................................................. 20 9.2. SYSTEM VERIFICATION .................................................................................................................. 21 10. MEASUREMENT PROCEDURES ........................................................................................... 22 10.1. TESTS TO BE PERFORMED ........................................................................................................... 22 10.2. GENERAL MEASUREMENT PROCEDURE ........................................................................................ 24 10.3. WCDMA MEASUREMENT PROCEDURES FOR SAR ....................................................................... 25 10.4. SAR MEASUREMENT FOR LTE ..................................................................................................... 26 10.5. LTE (TDD) CONSIDERATIONS ...................................................................................................... 27 10.6. BLUETOOTH & WLAN MEASUREMENT PROCEDURES FOR SAR..................................................... 28 10.7. POWER DRIFT ............................................................................................................................. 28 No. I23N01711-SAR ©Copyright. All rights reserved by SAICT Page 4 of 322 11. CONDUCTED OUTPUT POWER ........................................................................…

Text truncated - open the document above for the full version.

No. I23N01711-SAR ©Copyright. All rights reserved by SAICT Page 184 of 322 WCDMA Band 4 Head Date: 2023-11-17 Electronics: DAE4 Sn1790 Medium: Head 1750MHz Medium parameters used (interpolated): f = 1732.6 MHz; σ = 1.368 S/m; ε r = 39.377; ρ = 1000 kg/m 3 Communication System: UID 0, WCDMA (0) Frequency: 1732.6 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7683 ConvF (8.81, 8.81, 8.81) Right Cheek Middle/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.49 W/kg Right Cheek Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.20 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.53 W/kg SAR(1 g) = 0.850 W/kg; SAR(10 g) = 0.467 W/kg Maximum value of SAR (measured) = 1.09 W/kg Fig.7 WCDMA Band 4 Head No. I23N01711-SAR ©Copyright. All rights reserved by SAICT Page 185 of 322 WCDMA Band 4 Body Date: 2023-11-17 Electronics: DAE4 Sn1790 Medium: Head 1750MHz Medium parameters used (interpolated): f = 1712.4 MHz; σ = 1.35 S/m; ε r = 39.456; ρ = 1000 kg/m 3 Communication System: UID 0, WCDMA (0) Frequency: 1712.4 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7683 ConvF (8.81, 8.81, 8.81) Bottom Side Low/Area Scan (41x71x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.08 W/kg Bottom Side Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.05 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 1.40 W/kg SAR(1 g) = 0.834 W/kg; SAR(10 g) = 0.458 W/kg Maximum value of SAR (measured) = 1.11 W/kg Fig.8 WCDMA Band 4 Body No. I23N01711-SAR ©Copyright. All rights reserved by SAICT Page 186 of 322 WCDMA Band 5 Head Date: 2023-11-12 Electronics: DAE4 Sn1790 Medium: Head 835MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.91 S/m; ε r = 40.828; ρ = 1000 kg/m 3 Communication System: UID 0, WCDMA (0) Frequency: 836.6 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7683 ConvF (10.75, 10.75, 10.75) Right Cheek Middle/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.15 W/kg Right Cheek Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.91 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.77 W/kg SAR(1 g) = 0.789 W/kg; SAR(10 g) = 0.463 W/kg Maximum value of SAR (measured) = 1.16 W/kg Fig.9 WCDMA Band 5 Head No. I23N01711-SAR ©Copyright. All rights reserved by SAICT Page 187 of 322 WCDMA Band 5 Body Date: 2023-11-12 Electronics: DAE4 Sn1790 Medium: Head 835MHz Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.901 S/m; ε r = 40.951; ρ = 1000 kg/m 3 Communication System: UID 0, WCDMA (0) Frequency: 826.4 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7683 ConvF (10.75, 10.75, 10.75) Rear Side Low/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.370 W/kg Rear Side Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.13 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.452 W/kg SAR(1 g) = 0.258 W/kg; SAR(10 g) = 0.154 W/kg Maximum value of SAR (measured) = 0.353 W/kg Fig.10 WCDMA Band 5 Body No. I23N01711-SAR ©Copyright. All rights reserved by SAICT Page 188 of 322 LTE Band 2 Head Date: 2023-11-24 Electronics: DAE4 Sn1790 Medium: Head 1900MHz Medium parameters used: f = 1860 MHz; σ = 1.376 S/m; ε r = 39.728; ρ = 1000 kg/m 3 Communication System: UID 0, LTE_FDD (0) Frequency: 1860 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7683 ConvF (8.55, 8.55, 8.55) Right Cheek Low 100RB/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.46 W/kg Right Cheek Low 100RB/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.22 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 1.56 W/kg SAR(1 g) = 0.815 W/kg; SAR(10 g) = 0.434 W/kg Maximum value of SAR (measured) = 1.17 W/kg Fig.11 LTE Band 2 Head No. I23N01711-SAR ©Copyright. All rights reserved by SAICT Page 189 of 322 LTE Band 2 Body Date: 2023-11-24 Electronics: DAE4 Sn1790 Medium: Head 1900MHz Medium parameters used: f = 1860 MHz; σ = 1.376 S/m; ε r = 39.728; ρ = 1000 kg/m 3 Communication System: UID 0, LTE_FDD (0) Frequency: 1860 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7683 ConvF (8.55, 8.55, 8.55) Top Side Low 1RB0/Area Scan (41x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.03 W/kg Top Side Low 1RB0/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.70 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.34 W/kg SAR(1 g) = 0.767 W/kg; SAR(10 g) = 0.429 W/kg Maximum value of SAR (measured) = 1.07 W/kg Fig.12 LTE Band 2 Body No. I23N01711-SAR ©Copyright. All rights reserved by SAICT Page 190 of 322 LTE Band 4 Head Date: 2023-11-17 Electronics: DAE4 Sn1790 Medium: Head 1750MHz Medium parameters used: f = 1720 MHz; σ = 1.357 S/m; ε r = 39.425; ρ = 1000 kg/m 3 Communication System: UID 0, LTE_FDD (0) Frequency: 1720 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7683 ConvF (8.81, 8.81, 8.81) Right Cheek Low 1RB99/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.27 W/kg Right Cheek Low 1RB99/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.077 V/m; Power Drift = -0.10 dB Peak SAR (…

Text truncated - open the document above for the full version.
