2AUYZ-SMPLABSBT2TAG6

TAG6 The TAG6 is a battery-powered, wearable Bluetooth device containing a single button used to signal for duress as part of the SMP Staff Secure solution. The TAG6 is designed so that it can be easily worn as part of an individual badge real on their uniform. Specifications WirelessBLE 5.0 Power Consumption < 15 μA in normal mode < 200mA during alert mode Operating temperature-20° C to 60° C Battery TypeCR2477 Battery Life10 – 12 years Dimensions & Material 38 x 54 x 16 mm 1.50 x 2.13 x 0.62 in ABS WaterproofIP66 CertificationCE; FCC Features •Double-tap activation mechanism •Raised, protective button edge to minimize accidental button presses •Soft carbon-pill based, ergonomic button designed for comfort and durability •Designed to work with the Strongline Staff Safety system •Easily mounted •Operational self-check feature •Piezoelectric speaker used to provide audible feedback on alert trigger •Flashing red light to indicate alert receipt by Strongline Cloud Services •Minimal radio spectrum footprint FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SMP Labs, Inc Covered Equipment Certification Attestation Letter 6/6/2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AUYZ-SMPLABSBT2 SMP Labs, Inc (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. SMP Labs, Inc (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Shan.Sinha Title: CEO Company Name: SMP Labs, Inc Date: 6/6/2023

SMP Labs, Inc * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter DATE Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AUYZ-SMPLABSBT2 Per section 2.911(d)(7) of the FCC rules, SMP Labs, Inc certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: SMP Labs, Inc Physical U.S. Company Address: 868 Southampton Dr Palo Alto, CA 94303 USA Agent name: Shan.Sinha Agent Email Address: [email protected] FRN: 0028947984 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant): Signed: Signed: Printed name: Shan.Sinha Printed name: Shan.Sinha Title: CEO Title: CEO Company Name: SMP Labs, Inc Company Name: SMP Labs, Inc Date: 6/6/2023 Date: 6/6/2023

SMP Labs, Inc 7/19/2023 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT - FCC On our behalf, I appoint SMP Labs, Inc 868 Southampton Dr Palo Alto, CA 94303 USA to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, Printed name: Shan.Sinha

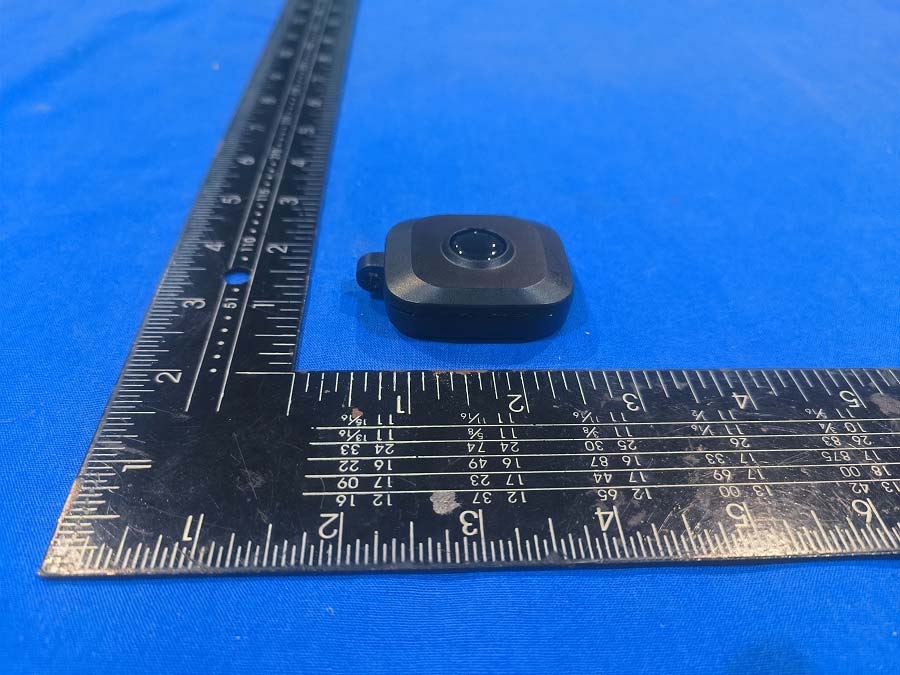

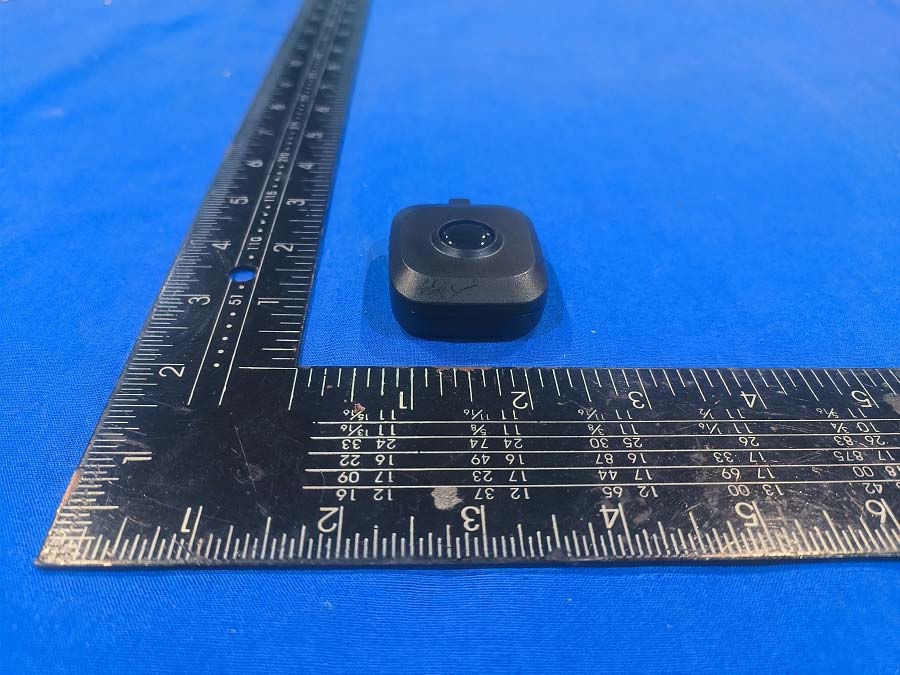

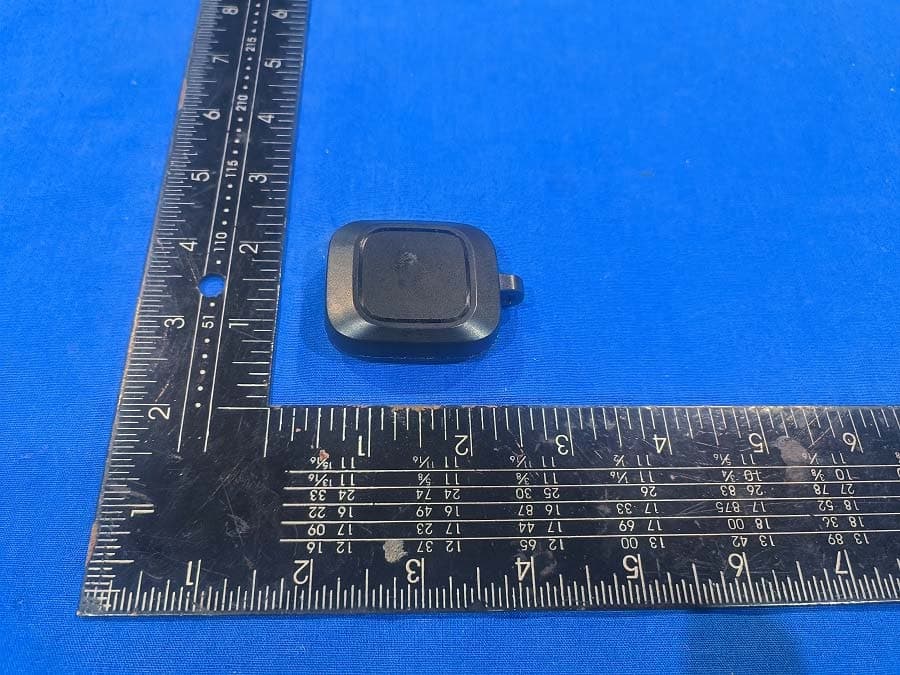

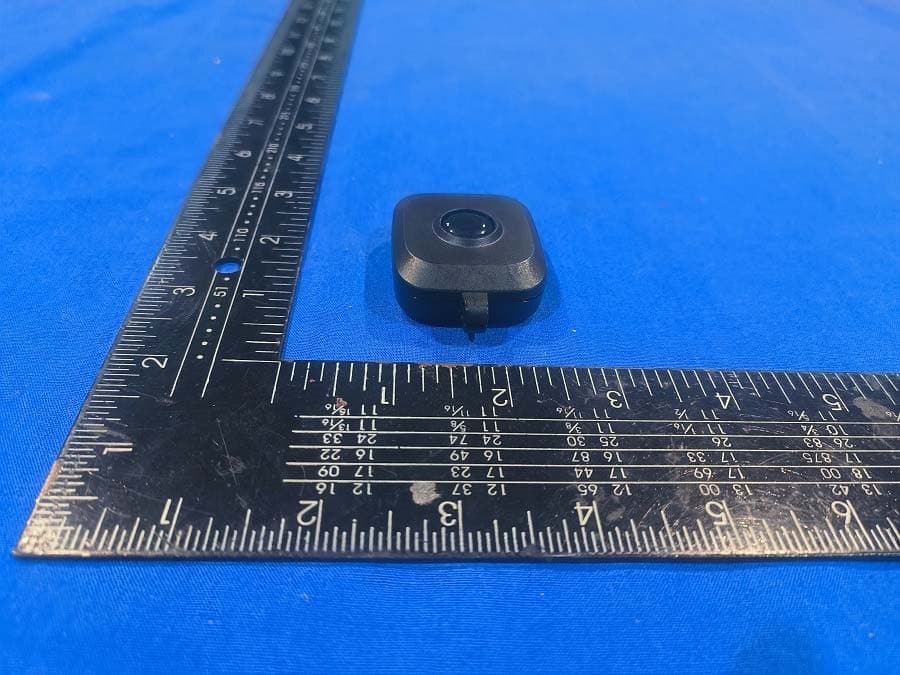

FCC ID: 2AUYZ-SMPLABSBT2 Page 1/3 External photo FCC ID: 2AUYZ-SMPLABSBT2 Page 2/3 FCC ID: 2AUYZ-SMPLABSBT2 Page 3/3 --END---

Label Location

FCC ID: 2AUYZ-SMPLABSBT2 Page 1/3 Internal photo FCC ID: 2AUYZ-SMPLABSBT2 Page 2/3 2402-2480MHz BT Antenna FCC ID: 2AUYZ-SMPLABSBT2 Page 3/3 ---END---

Page 1 of 2 Address: No.11, WuSong Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 GuangdongProvince,China523117 http://www.cpcteam.com RF EXPOSURE EVALUATION EUT Specification EUT TAG6 Model Number SMPLABSBT2 FCC ID 2AUYZ-SMPLABSBT2 Antenna gain (Max) 3.21dBi Operation Frequency 2402-2480MHz Input Rating DC 3.6V Standard 47 CFR Part 1.1307 47 CFR Part 1.1310 KDB447498D01 General RF Exposure Guidance v06 Modulation BLE Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation17 • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 90413-23-72-23-PP002 Page 2 of 2 Address: No.11, WuSong Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 GuangdongProvince,China523117 http://www.cpcteam.com Calculated Result and Limit Operation Mode: GFSK Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) GFSK -Lowest (2402MHz) 3.87 4±1 5 3.16 1.00 3.0 GFSK -Middle (2440MHz) 4.03 4±1 5 3.16 1.00 GFSK -Highest (2480MHz) 4.20 4±1 5 3.16 1.00 Conclusion: the calculated value ≤3.0, SAR is exempted. Remark: The Max Conducted Peak Output Power data refer to report Report No.: 90413-23-72-23-PP001.

Page 1 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com TEST REPORT Report Number. ........................ : 90413-23-72-23-PP001 Date of issue ............................ : 2023.07.21 Tested by (+signature) ............ : Duke Chen Approved by (+signature) ....... : Jason Gao Testing Laboratory name ........ : SLG-CPC Testlaboratory Co., Ltd. Address .................................... : No. 11, Wu Song Road, Dongcheng District, Dongguan, Guangdong Province, China 523117 Applicant’s name ..................... : SMP Labs, Inc Address .................................... : 868 Southampton Dr Palo Alto, CA 94303 USA Manufacturer’s name ............. : MOKO TECHNOLOGY Ltd Address .................................... : Factory 201, 107 Pinshun Rd Guixiang community, Guanlan Street, Longhua, Shenzhen, China 518110 Factory’s name ....................... : MOKO TECHNOLOGY Ltd Address .................................... : Factory 201, 107 Pinshun Rd Guixiang community, Guanlan Street, Longhua, Shenzhen, China 518110 Standard(s) ............................... : FCC 47 CFR Part 15, Subpart C EUT ............................................ : TAG6 Model/Type reference .............. : SMPLABSBT2 FCC ID ....................................... : 2AUYZ- SMPLABSBT2 Date of receipt of test item ..... : 2023.05.29 Date (s) of performance of test: 2023.05.29- 2023.06.05 Summary of Test Results ........ : Pass The Summary of Test Results based on a technical opinion belongs to the standard(s). General disclaimer: This report shall not be reproduced except in full, without the written approval of SLG-CPC Testlaboratory Co., Ltd. The test results in the report only apply to the tested sample. 90413-23-72-23-PP001 Page 2 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com Table of Contents 1 EUT TECHNICAL DESCRIPTION ............................................................................................. 4 2 SUMMARY OF TEST RESULT ................................................................................................. 5 3 TEST METHODOLOGY ............................................................................................................ 6 3.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .................................................... 6 3.2 MEASUREMENT EQUIPMENT USED .............................................................................. 6 3.3 DESCRIPTION OF TEST MODES ..................................................................................... 7 4 FACILITIES AND ACCREDITATIONS ....................................................................................... 8 4.1 FACILITIES ........................................................................................................................ 8 4.2 LABORATORY ACCREDITATIONS AND LISTINGS .......................................................... 8 5 TEST SYSTEM UNCERTAINTY ............................................................................................... 9 6 SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 RADIO FREQUENCY TEST SETUP 1 ............................................................................ 10 6.2 RADIO FREQUENCY TEST SETUP 2 ............................................................................ 10 7 TEST REQUIREMENTS ......................................................................................................... 12 7.1 DTS 6DB BANDWIDTH ................................................................................................... 12 7.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER ....................................................... 15 7.3 MAXIMUM POWER SPECTRAL DENSITY ..................................................................... 17 7.4 RADIATED SPURIOUS EMISSION ................................................................................. 20 7.5 ANTENNA APPLICATION ................................................................................................ 30 90413-23-72-23-PP001 Page 3 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com Modified Information Version Report No. Revision Data Summary Ver.1.0 90413-23-72-23-PP001 2023-07-21 Original Version 90413-23-72-23-PP001 Page 4 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com 1 EUT TECHNICAL DESCRIPTION Product: TAG6 Model Number: SMPLABSBT2 Power supply: : DC 3.6V :Adapter information Modulation: BLE Frequency Range: 2402MHz～2480MHz Number of Channels: 40channels Channel Space: 1MHz Antenna Gain: 3.21dBi Antenna: PCB Antenna Temperature Range: -20°C ~ +60°C Note: for more details, please refer to the User’s manual of the EUT. 90413-23-72-23-PP001 Page 5 of 30 Address: No. 11, Wu Song Road, Tel: 86-769-22607797 DongchengDistrict,Dongguan, Fax: 86-769-22607907 Guangdong Province, China 523117 http://www.cpcteam.com 2 SUMMARY OF TEST RESULT FCC Part Clause Test Parameter Verdict Remark 15.247(a)(2) DTS (6dB) Bandwidth PASS 15.247(b)(3) Maximum Peak Conducted Output Power PASS 15.247(e) Maximum Power Spectral Density Level PASS 15.247(d) Unwanted Emission Into Non-Restricted Frequency Bands PASS 15.247(d) 15.209 Radiated Spurious Emission PASS 15.207 Conducted Emission Test N/A 15.247(b) Antenna Application PASS NOTE1: N/A (Not Applicable) NOTE2: According to FCC OET KDB 558074, the report use radiated measurements in the restricted frequency bands. In addition, the radiated test is also performed to ensure the emissions emanating from the device cabinet also comply with the applicable…

Text truncated - open the document above for the full version.

Confidential Data Project Name: SSH1_V3 Author: Yang Update: 2022-12-27 Antenna Test Report Index: 1.Overview 2.Revision History 3.Test Item &Equipment 4.Matching Circuit 5.SParameter Test 6.Active Test 7.Conducted EmissionTest 8.Environmental Processing Applicant’s name : SMP Labs, Inc Address : 868 Southampton Dr Palo Alto, CA 94303 USA M/N:SSH1 Confidential Data OverView CUSTOMER NAMEMOKOPROJECT NAMESSH1_V3 ItemsDetails •FREQUENCY2400MHz-2500MHz •PROJECT TYPE •ANTENNA SPACE •FEED & GROUNDPAD •SENSITIVE ELEMENTS •ANTENNA TYPE •PCB •OTHERS Confidential Data DateRevisionAuthorDescription of changes Revision History Confidential Data ListTest ItemEquipment 1.SParameterVSWR, Return LossAgilent VNA 2.Active TestTRP, TISAgilent 8960 RayZone1800 3.Passive TestGain, Efficiency, PatternAgilent E5071C Test Item & Equipment Confidential Data Antenna Confidential Data VSWRVSWR Confidential Data Smith Confidential Data S11 Confidential Data PASSIVE TEST（plastic） Freq （Mhz） Gain(dB)Effi(%) 24002.5655.63 24103.0060.64 24202.9160.53 24302.7960.18 24402.5258.41 24502.4857.44 24602.7560.38 24703.0063.79 24803.0464.20 24903.1264.88 25003.2166.57 Confidential Data 3D Antenna Radiation Pattern（2450MHz ） Confidential Data 2D Antenna Radiation Pattern（2450MHz ） XOY XOZ Y0Z

FCC ID: 2AUYZ-SMPLABSBT2 Test photo Radiated emission FCC ID: 2AUYZ-SMPLABSBT2
