2AUZ8AW12HPHPUE Module

AW12-HP User Manual 1 AW12-HP User Manual Assured Wireless Corporation 16885 W. Bernardo Dr Suite 300 San Diego CA 92127 USA 858-859-2942 [email protected] AW12-HP User Manual 2 Index 1. About this Manual ............................................................................ 3 2. Product Overview ............................................................................. 3 3. How to use it ...................................................................................... 3 3.1 picture both top and bottom side ................................................................... 3 3.2 power on device ........................................................................................... 4 4. Contact information ........................................................................ 4 AW12-HP User Manual 3 1. About this Manual The content of this User Manual has been made as accurate as possible. However, due to continual product improvements, specifications and other information are subject to change without notice. 2. Product Overview AW12-HP supports B14 power class1 transmit power of 31dBm and supports other AT&T bands in the US market. Main features are the followings 1) Cellular bands: AT&T band: B2/B4/B5/B12/B14/B29/B30/B66; WCDMA Band: B2/4/5 2) Based on Quectel EM12-AW NGFF module, supports LTE cat12. 3) B14 power class1 of 31dBm transmit power, the max TX power in other bands are power class3 of 23dBm. 4) RF performance match 3GPP standard. 5) Power supply is from 5V to 12V by additional power port. 6) Support GPS function. 3. How to use it 3.1 picture both top and bottom side AW12-HP User Manual 4 3.2 power on device 1) Insert USIM card 2) Connect antennas according above pictures 3) Add power, please note that input power voltage range is 5V to 12V, and recommend input power voltage is 12V 4) The device will connect internet automatically 4. Contact information Assured Wireless Corporation Address: 16885 W. Bernardo Dr., suite 300, San Diego CA 92127 USA Phone: 858-859-2942 Email: [email protected] Website: http://www.assured-wireless.com Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This AW12-HP User Manual 5 equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference 2) this device must accept any interference received, including interference that may cause undesired operation of the device. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC RF Radiation Exposure Statement: To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. End Product Labeling: This module is designed to comply with the FCC statement, FCC ID : 2AUZ8AW12HP The host system using this module, should have label in a visible area indicated the following texts: "Contains FCC ID: 2AUZ8AW12HP ". The FCC ID can be used only when all FCC compliance requirements are met. Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as shown in AW12-HP User Manual 6 this manual. Antenna Installation 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, 2) The transmitter module may not be co-located with any other transmitter or antenna. 3) Only antennas of the same type and with equal or less gains as shown below may be used with this module. Other types of antennas and/or higher gain antennas may require additional authorization for operation. Antenna type LTE Band2 LTE Band4 LTE Band5 LTE Band12 LTE Band14 External 9.0dBi 6.0dBi 10.0dBi 1.0dBi 1.0dBi Antenna type LTE Band30 LTE Band66 External 6.0dBi 6.0dBi In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (i…

Text truncated - open the document above for the full version.

Assured Wireless Corporation 16885 W.Bernardo Dr.Suite 300,San Diego,CA,US 92127 Tel: 6197870087, Fax: 8582015025 Date: February 18, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: 2AUZ8AW12HP To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________ Sheikh Hafiz [email protected]

Assured Wireless Corporation 16885 W. Bernardo Dr., Suite 300, San Diego, CA 92127 Tel:8588592942 Date: February 18, 2020 To whom it may concern, Please be notified that I, Sheikh Hafiz have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This authorization is limited to the product of as following: FCC ID: 2AUZ8AW12HP If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please don’t hesitate to contact me. Sincerely yours, Sheikh Hafiz Ph#6197870087 [email protected]

Assured Wireless Corporation 16885 W. Bernardo Dr., Suite 300, San Diego, CA 92127 Tel:8588592942 Date: February 18, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 SUBJECT: FCC Application for FCC ID:2AUZ8AW12HP To Whom It May Concern: We hereby attest that, LTE release 10 limitations and support restrictions of FCC ID:2AUZ8AW12HP are: a) LTE Rel. 12, Category 12. b) Only Downlink CA is supported. Uplink CA is NOT supported. c) Support both inter-band and intra-band downlink CA d) Support CA Downlink-2CA CA_2A-2A[0], CA_2A-4A[0,1,2], CA_2A-5A[0,1], CA_2A-12A[0,1,2], CA_2A-14A[0], CA_2A-29A[0,1,2], CA_2A-30A[0], CA_4A-4A[0,1], CA_4A-5A[0,1], CA_4A-12A[0,1,2,3,4,5], CA_4A-29A[0,1,2], CA_4A-30A[0], CA_5A-30A[0], CA_14A-30A[0], CA_14A-66A[0], CA_66A-66A[0], CA_66B[0], CA_66C[0] Downlink-3CA CA_2A-4A-5A[0], CA_2A-5A-30A[0], CA_2A-12A-30A[0], CA_2A-29A-30A[0], CA_4A-5A-30A[0], CA_4A-12A-30A[0], CA_4A-29A-30A[0], CA_5A-30A-66A[0] e) Following 3GPP, the max CA bandwidth is 40MHz f) Uplink Tx power would not be different w/ or w/o CA. g) Enhanced SC-FDMA is not supported. h) SVLTE is not supported. Sincerely yours, Sheikh Hafiz [email protected]

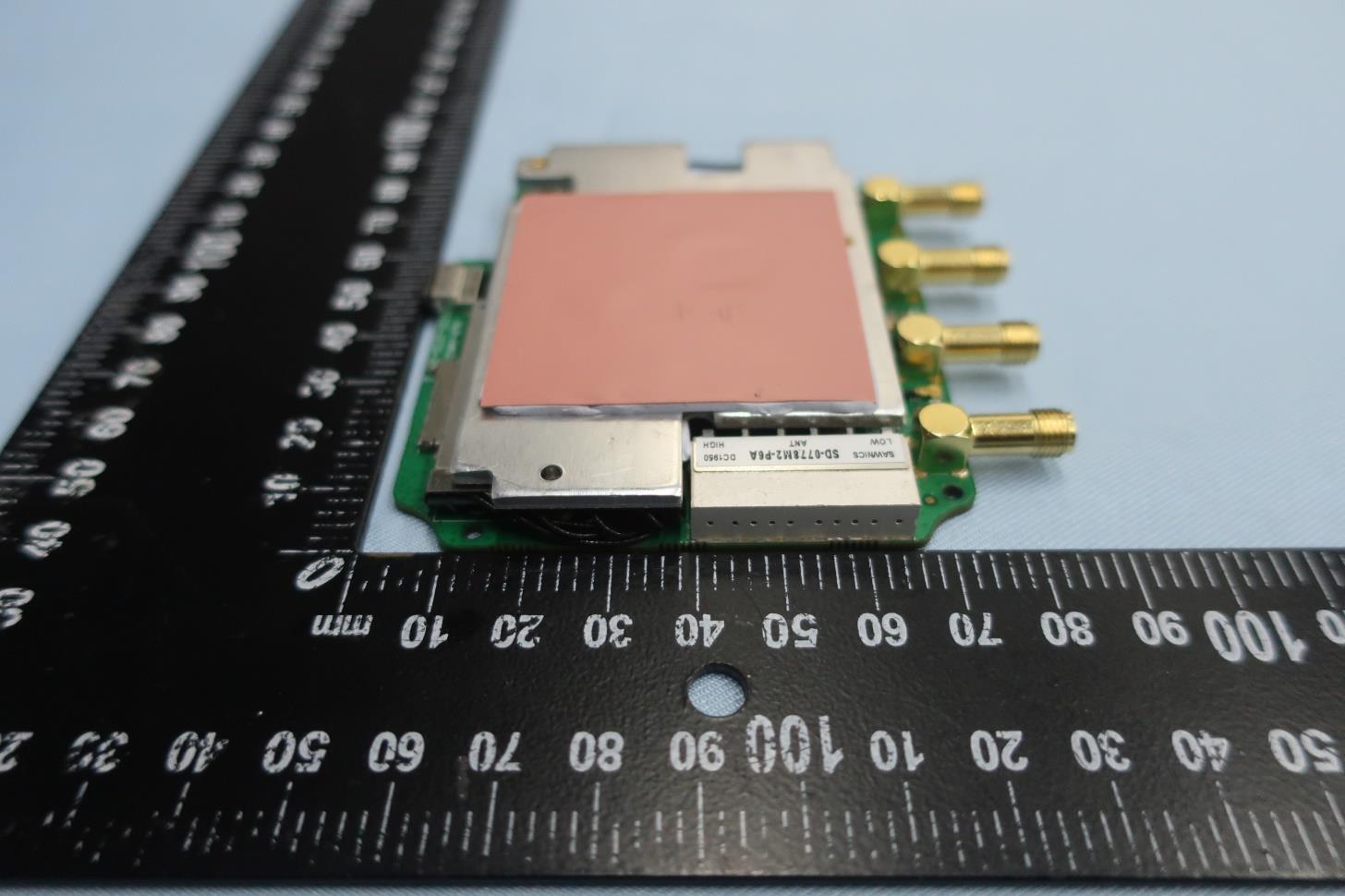

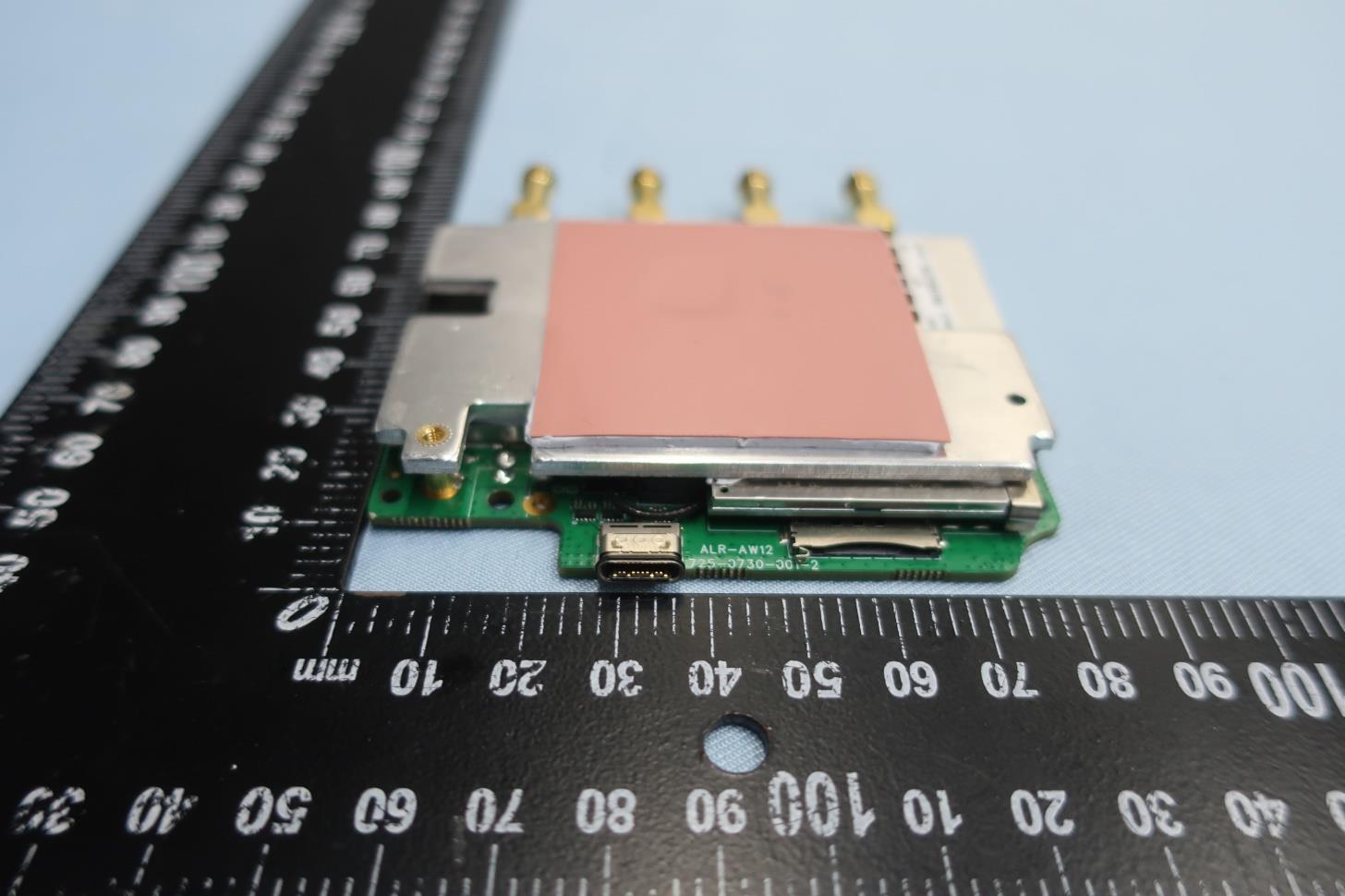

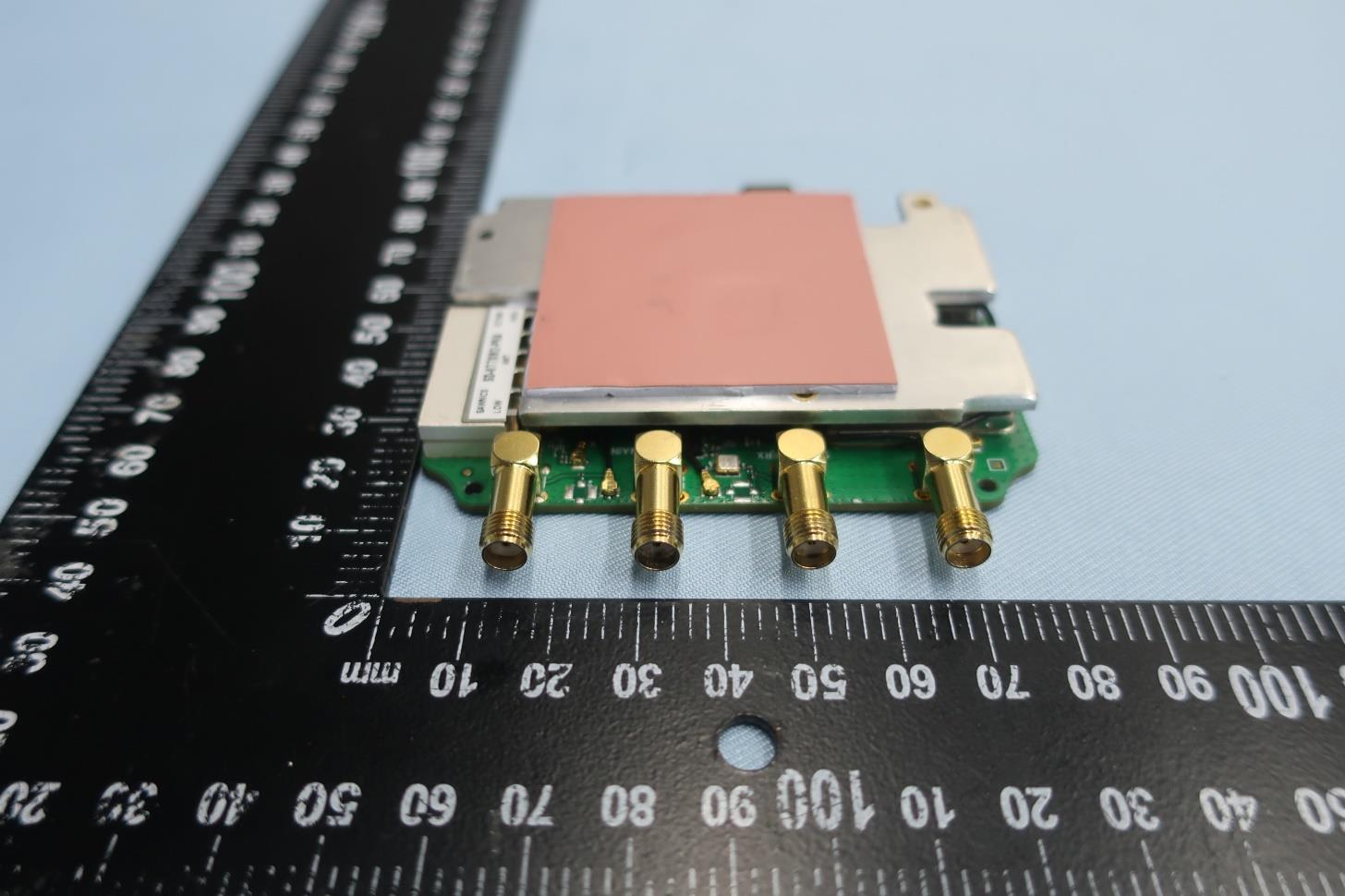

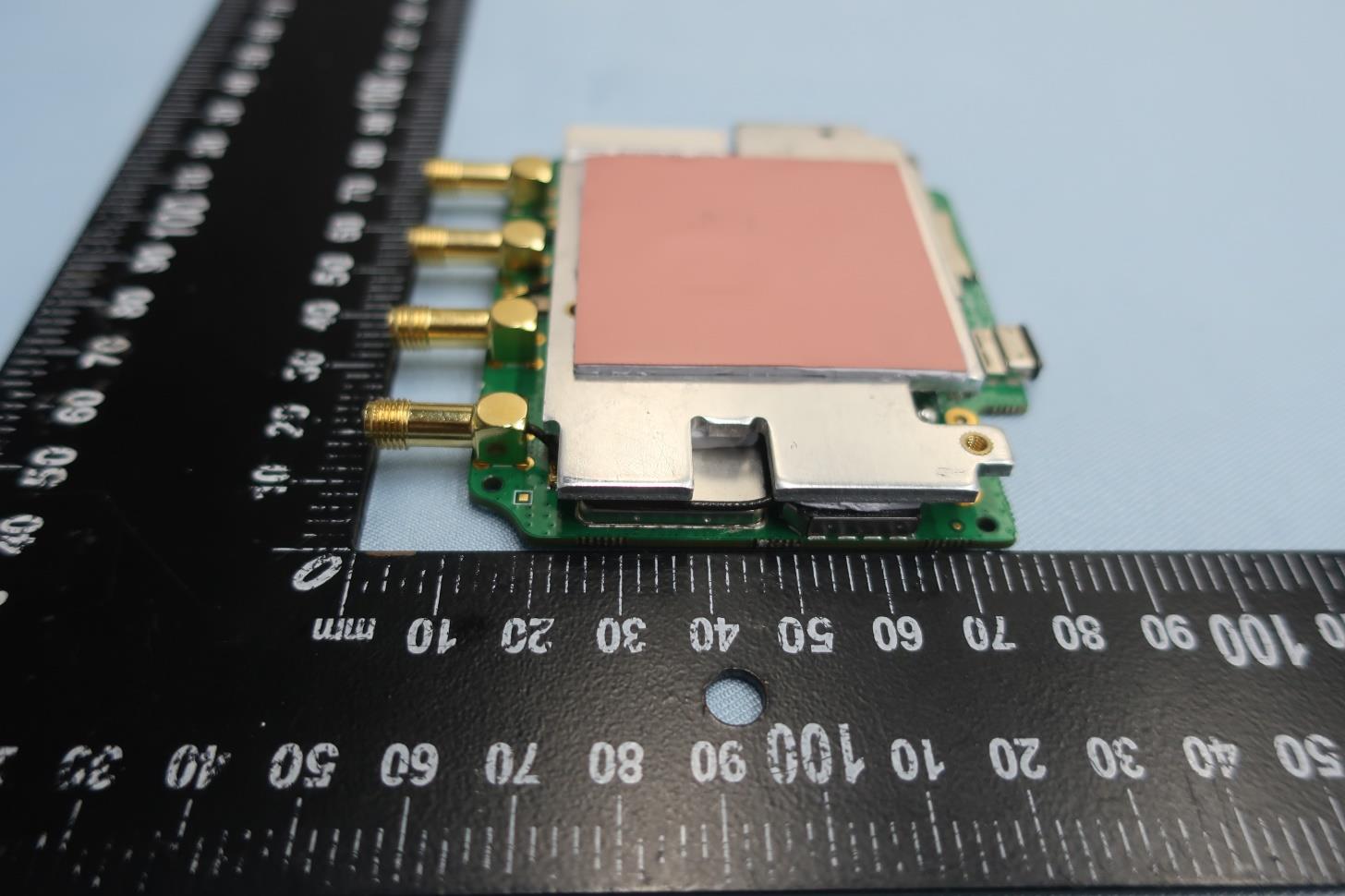

Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 1 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 2 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 3 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 4 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 5 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 6 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP

Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 7 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP 2. Internal Photograph of EUT 720510 Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 8 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP 720510 Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 9 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 10 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 11 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 12 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 13 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 14 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 15 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 16 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 17 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 18 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 19 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 20 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 21 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 22 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 23 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 24 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 25 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 26 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Photographs of EUT Report No.: EP9N0606 Brand Name: Assured Wireless; Model Name: AW12-HP Sporton International (Kunshan) Inc. Page Number : 27 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 20, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Antenna

Sporton International (Shenzhen) Inc. Page Number : 1 of 11 TEL : 86-755-8637-9589 Report Issued Date : Feb. 20, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP RF Exposure Evaluation Report Report No. : FA9N0606 RF Exposure Evaluation Report APPLICANT : Assured Wireless EQUIPMENT : HPUE Module BRAND NAME : Assured Wireless MODEL NAME : AW12-HP FCC ID : 2AUZ8AW12HP STANDARD : 47 CFR Part 2.1091 FCC KDB 447498 D01 v06 We, Sporton International (Kunshan) Inc., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091 and FCC KDB 447498 D01 v06, and pass the limit. Without written approval of Sporton International (Kunshan) Inc., the test report shall not be reproduced except in full. Reviewed by: Rose Wang / Supervisor Approved by: Kat Yin / Manager Sporton International (Kunshan) Inc. No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China Sporton International (Shenzhen) Inc. Page Number : 2 of 11 TEL : 86-755-8637-9589 Report Issued Date : Feb. 20, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP RF Exposure Evaluation Report Report No. : FA9N0606 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 6 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 7 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 8 5.1. Standalone Power Density Calculation ............................................................................................. 8 5.2. Collocated Power Density Calculation............................................................................................... 9 Sporton International (Shenzhen) Inc. Page Number : 3 of 11 TEL : 86-755-8637-9589 Report Issued Date : Feb. 20, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP RF Exposure Evaluation Report Report No. : FA9N0606 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA9N0606 Rev. 01 Initial issue of report Feb. 20, 2020 Sporton International (Shenzhen) Inc. Page Number : 4 of 11 TEL : 86-755-8637-9589 Report Issued Date : Feb. 20, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP RF Exposure Evaluation Report Report No. : FA9N0606 1. Administration Data 1.1. Testing Laboratory Sporton International (Kunshan) Inc. is accredited to ISO/IEC 17025:2017 by American Association for Laboratory Accreditation with Certificate Number 5145.02. Testing Laboratory Test Firm Sporton International (Kunshan) Inc. Test Site Location No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China TEL : +86-512-57900158 FAX : +86-512-57900958 Test Site No. FCC Designation No. FCC Test Firm Registration No. CN1257 314309 Applicant Company Name Assured Wireless Address 16885 W. Bernardo Dr., Suite 300, San Diego, CA 92127 Manufacturer Company Name Assured Wireless Address 16885 W. Bernardo Dr., Suite 300, San Diego, CA 92127 Sporton International (Shenzhen) Inc. Page Number : 5 of 11 TEL : 86-755-8637-9589 Report Issued Date : Feb. 20, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP RF Exposure Evaluation Report Report No. : FA9N0606 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type HPUE Module Brand Name Assured Wireless Model Name AW12-HP FCC ID 2AUZ8AW12HP Wireless Technology and Frequency Range WCDMA Band II: 1852.4 MHz ~ 1907.6 MHz WCDMA Band IV: 1712.4 MHz ~ 1752.6 MHz WCDMA Band V: 826.4 MHz ~ 846.6 MHz LTE Band 2: 1850.7 MHz ~ 1909.3 MHz LTE Band 4: 1710.7 MHz ~ 1754.3 MHz LTE Band 5: 824.7 MHz ~ 848.3 MHz LTE Band 12: 699.7 MHz ~ 715.3 MHz LTE Band 14: 790.5 MHz ~ 795.5 MHz LTE Band 30: 2307.5 MHz ~ 2312.5 MHz LTE Band 66: 1710.7 MHz ~1779.3 MHz Mode RMC 12.2Kbps HSDPA HSUPA DC-HSDPA HSPA+ (16QAM uplink is not supported) LTE: QPSK, 16QAM, 64QAM HW Version R1.0 SW Version EM12AWPAR01A07M4G EUT Stage Production Unit Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Sporton International (Shenzhen) Inc. Page Number : 6 of 11 TEL : 86-755-8637-9589 Report Issued Date : Feb. 20, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP RF Exposure Evaluation Report Report No. : FA9N0606 3. Maximum RF average output power among production units <WCDMA> Mode Maximum Average power(dBm) WCDMA Band II 24.00 Band IV 24.00 Band V 24.00 <LTE> Mode Maximum Average power(dBm) LTE Band 2 24.00 Band 4 24.00 Band 5 24.00 Band 12 24.00 Band 14 33.00 Band 30 24.00 Band 66 24.00 Sporton International (Shenzhen) Inc. Page Number : 7 of 11 TEL : 86-755-8637-9589 Report Issued Date : Feb. 20, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP RF Exposure Evaluation Report Report No. : FA9N0606 4. RF Exposure Limit Introduction According to ANSI/IEEE C95.1-1992, the criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in §1.1310. The MPE was calculated at 20 cm to show comp…

Text truncated - open the document above for the full version.

Sporton International (Kunshan) Inc. Page Number : 1 of 22 TEL : +86-512-57900158 Report Issued Date : Feb. 20, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Report Template No.: BU5-FG22/24/27 Version 2.0 FCC RF Test Report Report No. : FG9N0606A FCC RF Test Report APPLICANT : Assured Wireless EQUIPMENT : HPUE Module BRAND NAME : Assured Wireless MODEL NAME : AW12-HP FCC ID : 2AUZ8AW12HP STANDARD : 47 CFR Part 2, 22(H), 24(E), 27(L) CLASSIFICATION : PCS Licensed Transmitter (PCB) The product was received on Nov. 06, 2019 and completely tested on Jan. 12, 2020. We, Sporton International (Kunshan) Inc., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.26-2015 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International (Kunshan) Inc., the test report shall not be reproduced except in full. Reviewed by: Jason Jia / Supervisor Approved by: James Huang / Manager Sporton International (Kunshan) Inc. No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China Sporton International (Kunshan) Inc. Page Number : 2 of 22 TEL : +86-512-57900158 Report Issued Date : Feb. 20, 2020 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : 2AUZ8AW12HP Report Template No.: BU5-FG22/24/27 Version 2.0 FCC RF Test Report Report No. : FG9N0606A TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Product Feature of Equipment Under Test ....................................................................................... 5 1.4 Product Specification of Equipment Under Test ............................................................................... 6 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Maximum Conducted Power, Frequency Tolerance, and Emission Designator ............................... 7 1.7 Testing Location ................................................................................................................................ 7 1.8 Test Software .................................................................................................................................... 7 1.9 Applicable Standards ........................................................................................................................ 8 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 9 2.1 Test Mode.......................................................................................................................................... 9 2.2 Connection Diagram of Test System .............................................................................................. 10 2.3 Support Unit used in test configuration ........................................................................................... 10 2.4 Measurement Results Explanation Example .................................................................................. 10 2.5 Frequency List of Low/Middle/High Channels ................................................................................. 11 3 CONDUCTED TEST RESULT ................................................................................................................... 12 3.1 Measuring Instruments .................................................................................................................... 12 3.2 Test Setup ....................................................................................................................................... 12 3.3 Test Result of Conducted Test ........................................................................................................ 12 3.4 Conducted Output Power and ERP/EIRP ....................................................................................... 13 3.5 Peak-to-Average Ratio .................................................................................................................... 14 3.6 99% Occupied Bandwidth and 26dB Bandwidth Measurement...................................................... 15 3.7 Conducted Band Edge .................................................................................................................... 16 3.8 Conducted Spurious Emission ........................................................................................................ 17 3.9 Frequency Stability .......................................................................................................................... 18 4 RADIATED TEST ITEMS .......................................................................................................................... 19 4.1 Measuring Instruments .................................................................................................................... 19 4.2 Test Setup ....................................................................................................................................... 19 4.3 Test Result of…

Text truncated - open the document above for the full version.
