Quick Installation Guide RAX1801 Smart Wi-Fi Router Package Contents Wireless Router × 1 Power Adapter × 1 Quick Installation Guide × 1 Network cable × 1 24hour Online After-Sales Service Scan QR Code To Visit https://hnk.afterservice.vip HUIZHOU MTN WEIYE TECHNOLOGY DEVELOPMENT CO.,LTD. Address: NO.2 Huitai Road,Huinan High-tech Industrial Park,Huiao Avenue,Huizhou City, Guangdong Province,China More detailed instruction can be downloaded from www.hnknet.com More Features In addition to some of the settings described above, there are more functions. Including QOS, Firewall, Port Mapping, Static Route, etc. For more instructors, please refer to the website: https://hnk.after- service.vip II. Hardware 1.Power Button: Press the Power Button to power on/off the router. 2.LED Button: Press the LED Button to light on/off the LED indica- tor lights. 3.Wi-Fi Button: Press the Wi-Fi Button to startup/shutdown the rout- er’s Wi-Fi. 4.Reset Pinhole: Keep stick the Reset Pinhole for more than 10 seconds, the product will restore factory settings. 5.DC Port: The DC Port can connect to the power. 6.WAN Port: The WAN Port can connect this router to the internet. 7.LAN Port: There are 4 LAN Ports in total. The LAN Ports can con- nect wired devices such as computers or switches. 8.USB Port: The USB Port is used to connect devices that support USB 3.0, and can also support USB 2.0. 9.Power LED Indicator: • Solid green: The device is ready. • Off: Power is not supplied to the router. 10.WAN LED Indicator: • Solid green: WAN port has been connected with network cable. • Blinks green: WAN port has data transmission. • Off: The router is not connected to the internet. 11.LAN LED Indicator: • Solid green: LAN port has been connected with network cable. • Blinks green: LAN port has data transmission. • Off: The router is not connected to the LAN. 12.2.4G LED Indicator: • Solid green: There are devices connected to the 2.4G band of the router. • Off: There are no device connected to the 2.4G band of the router. 13.5G LED Indicator: • Solid green: There are devices connected to the 5G band of the router. • Off: There are no device connected to the 5G band of the router. 14.USB LED Indicator: • Solid green: U disk has been inserted. • Off: No U disk has been inserted. Note: The product model diagram is on the next page. 2.Q: How can I reset the router? A: Method 1: When the power is on, sting the router's "Reset" pin- hole for 10 seconds to restore the factory settings. Method 2: Please log in to the management page (IP address is “192.168.0.1”) and click the “Management>>System Admin>>Sys- tem”, then click on “Restore Factory” button to restore the factory setting. 3.Q: How can I change my admin password? A: Please log in to the management page (IP address is “192.168.0.1”) and click the “Management>>System Admin”. In this interface, you can change the admin password. 4.Q: How to change my network name and password? A: Please log in to the management page (IP address is “192.168.0.1”) and click the ”Settings>>Wireless”. In this interface, you can change your network name and password. 5.Q: How can I select my connection type? A: Please log in to the management page (IP address is “192.168.0.1”) and click the “Settings>>Internet”. In this Interface, you can choose your connection type. III. FAQ 1.Q: Why can’t I log in to the web UI of the router? A: Step 1: Please confirm that your devices connect to the HNK-AX1800 router. Step 2: Please confirm if your IP address is “192.168.0.1”. Step 3: Please confirm both the user name and password is “admin”. Reset LED DC IN 123 4 1 2 91011121314 3 4 8 675 Step 3: Configure your internet connection Please select your Internet connection type. Note: The password you entered in this step is not the Wi-Fi pass- word, it is the password for the router’s management interface. If you cannot log into the web UI of the router, refer to the Q1 in FAQ. Step 2: Open the configuration wizard page If this is the first time using the router, the page will automatically jump to the configuration wizard page. If the configuration wizard page doesn’t show up, you can click the “Settings>>Wizard” for your initial setup. I. Set up the new router for internet access Step 1: Enter the IP address. 1.Launch a web browser from a computer or mobile device that is connected to the network. 2.Enter 192.168.0.1 to open a login window. 3.In the Password field, type the password to log into the manage- ment interface. The default admin password is empty. Step 5: Set your device admin password By default, your new device does not have a password configured for administrator access to the Web-based configuration utility. To secure your new device, please create a password below. Step 6: Check out the setting summary and finish initial setting A setting summary will show up to you for checking. If everything is okay, click on “Next” to finish the initial setting steps. Guest Network 1.Please log in to the management page. The IP address is “192.168.0.1”. 2.Click “Settings>>Wireless>>Guest Zone” to the guest network setting page. 3.Configure the settings for your guest, including time limit, internet resources, 2.4GHz settings. 4.Click on the “Save” button to save your configuration settings. Then you can separate your network route to your guest. 5.If you want more settings of the dual band, click on “Advance Set tings”. Then the advance settings interface will show on. 6.Click on the “Save” button to save your configuration settings. Dual Band Settings 1.Please log in to the management page. The IP address is “192.168.0.1”. 2.Click “Settings>>Wireless” to the wireless setting page. 3.Turn off the “Smart Connect” button, then show on the dual band settings. 4.Configure the router 2.4G or 5G Wi-Fi SSID and password. Step 4: Set up your Wi-Fi To setup a Wi-Fi network you need to give your Wi-Fi network a name(SSID) and password. FCC Radiation Exposure Statement: This equipment complies with FCC radiation expo…

Text truncated - open the document above for the full version.

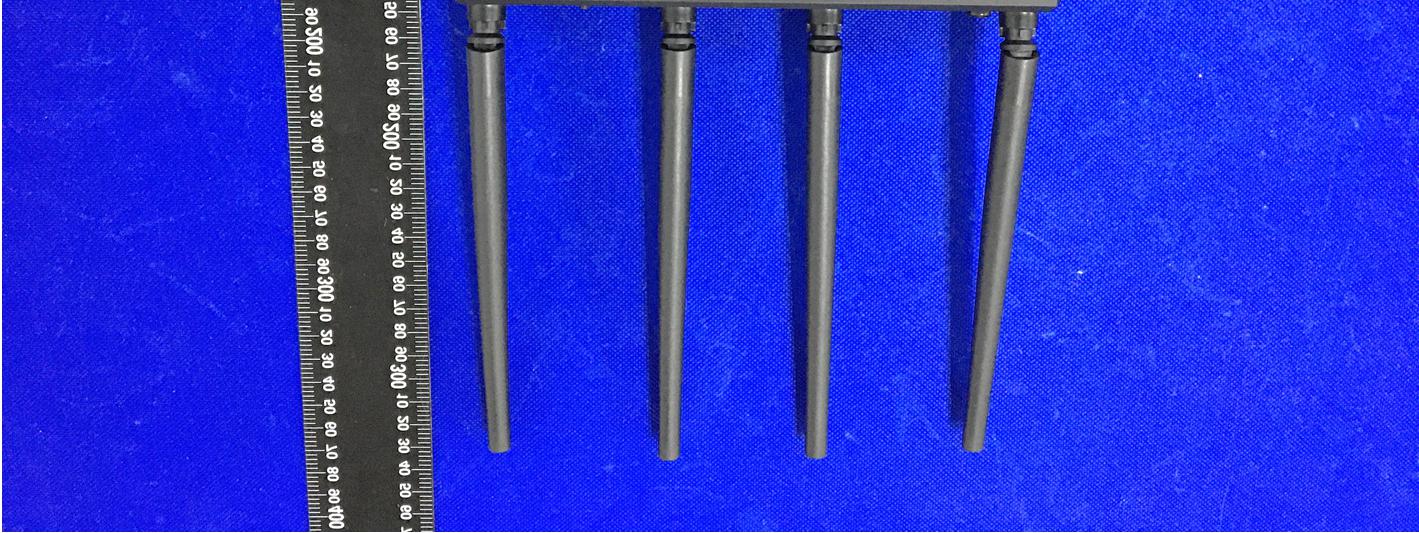

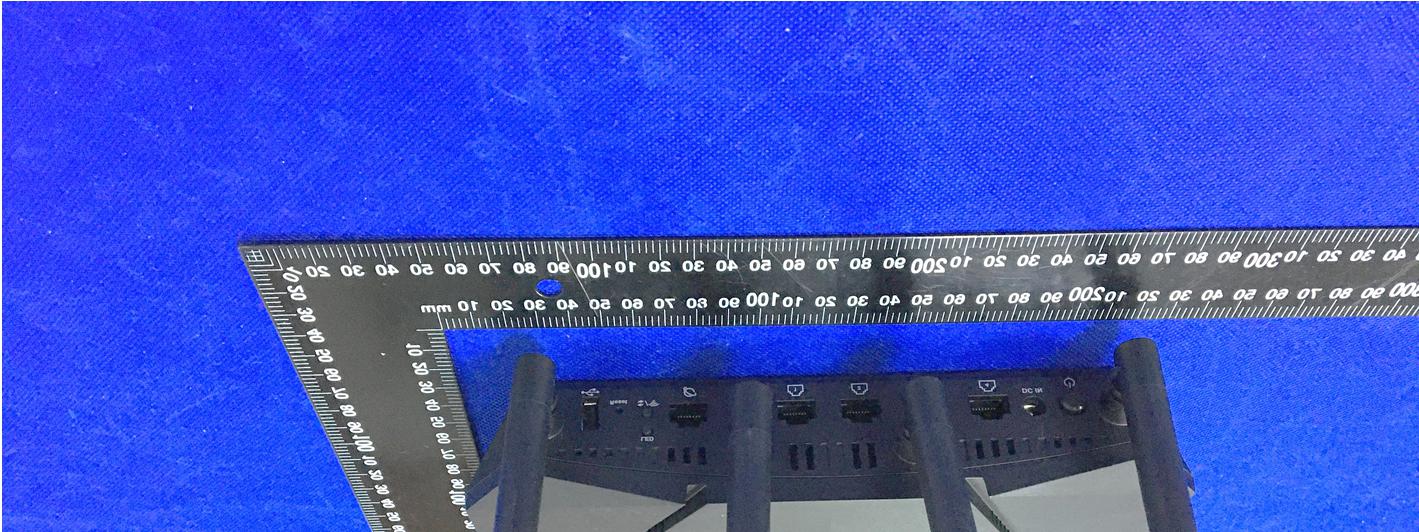

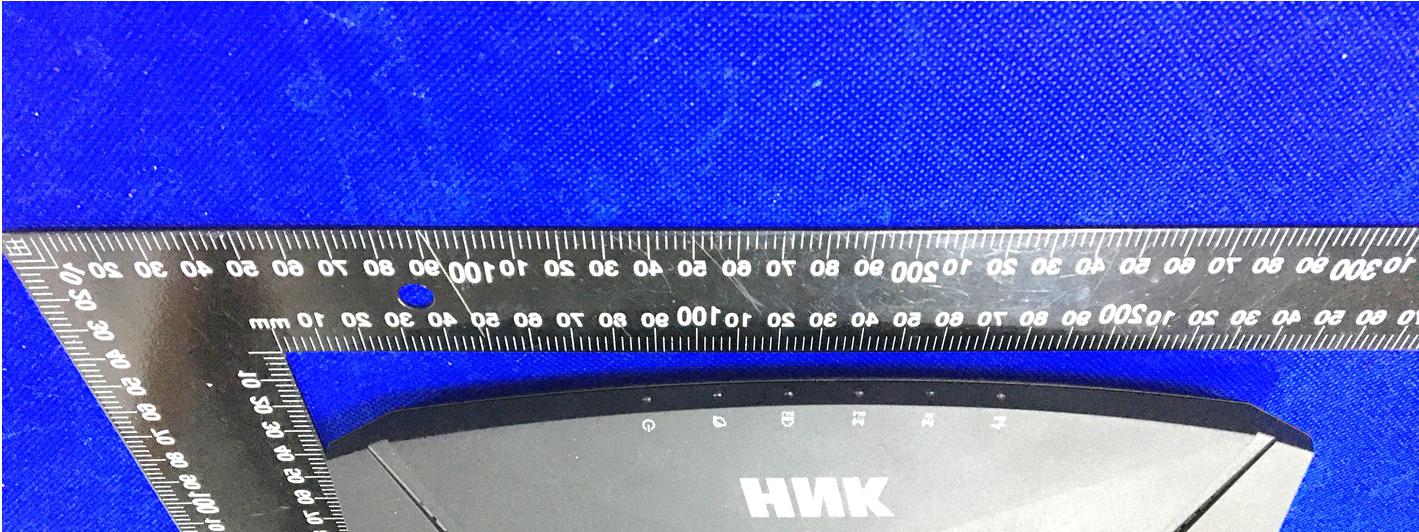

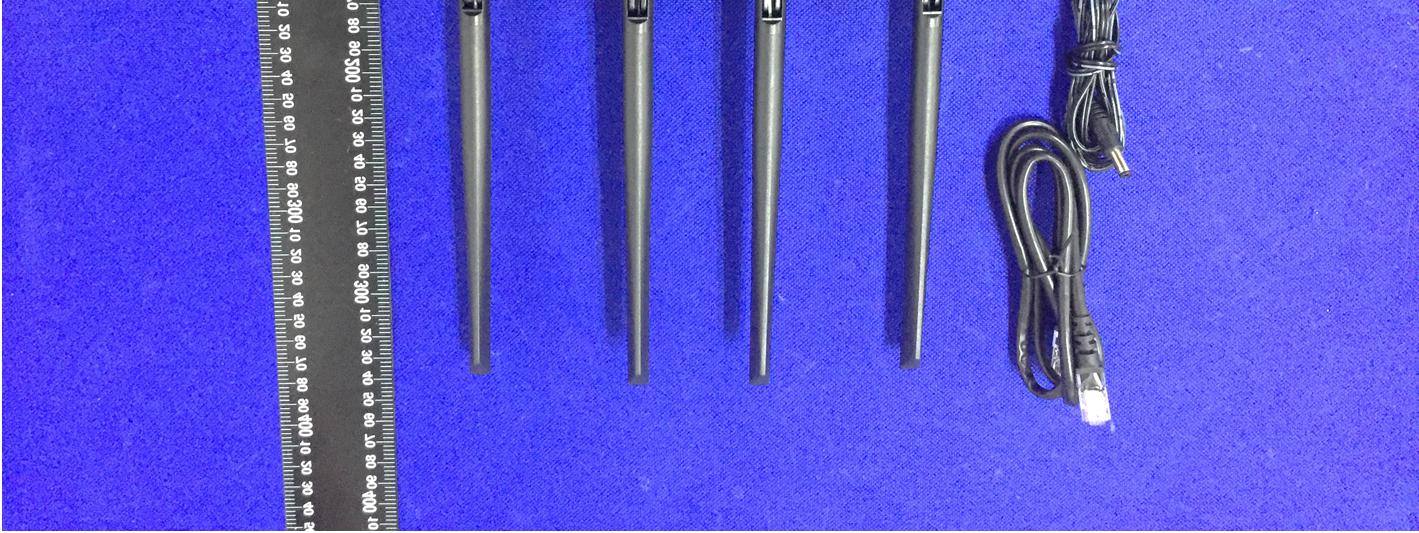

Reference No.: WTH20X11091968W-1/2 Page 2 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTH20X11091968W-1/2 Page 3 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 3 EUT View 4 Reference No.: WTH20X11091968W-1/2 Page 4 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 5 EUT View 6 Reference No.: WTH20X11091968W-1/2 Page 5 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 7

Reference No.: WTH20X11091968W-1/2 Page 1 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTH20X11091968W-1/2 Page 6 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTH20X11091968W-1/2 Page 7 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTH20X11091968W-1/2 Page 8 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn

Reference No.: WTH20X11091968W-1/2 Page 9 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 3 Antenna View

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 General Information Client Information Applicant: SHENZHEN ZK TECHNOLOGY CO., LTD Address of applicant: SHENZHEN CITY LONGGANG DISTRICT STREETS QINGLIN ROAD SHENZHEN CITY STUDENTS (LONGGANG) BUSINESS PA... CHINA 518172 Manufacturer: HUIZHOU MTN WEIYE TECHNOLOGY DEVELOPMENT CO.,LTD. Address of manufacturer: NO.2 Huitai Road,Huinan High-tech Industrial Park,Huiao Avenue, Huizhou City,Guangdong Province,China General Description of EUT: Product Name: Wireless Router Trade Name: HNK Model No.: RAX1801 Adding Model(s): / Rated Voltage: DC12V Power Adapter Model: MODEL: RD1201500-C55-153MG INPUT: AC100-240V, 50/60Hz, 0.6A OUTPUT: DC12V,1.5A FCC ID: 2AUZB-RAX1801 Equipment Type: Mobile Technical Characteristics of EUT: Wi-Fi (2.4G) Support Standards: 802.11b, 802.11g, 802.11n-HT20, 802.11ax-HE20, 802.11n-HT40, 802.11ax-HE40 Frequency Range: 2412-2462MHz for 802.11b/g/n(HT20) 2422-2452MHz for 802.11n(HT40) RF Output Power: 15.72dBm (Conducted) Type of Modulation: DBPSK, BPSK, DQPSK, QPSK,16QAM, 64QAM, 256QAM, 1024QAM Data Rate: 1-11Mbps, 6-54Mbps, up to 574Mbps Quantity of Channels: 11 for 802.11b/g/n(HT20)/AX(EH20) 7 for 802.11n(HT40)/AX(HE40) Channel Separation: 5MHz Type of Antenna: External Antenna Antenna Gain: 5.0dBi Wi-Fi (5G) Support Standards: 802.11a, 802.11n(HT20) , 802.11n-HT40, 802.11ax-HE20, 802.11ax-HE40, 802.11ac-VH80, 802.11ax-HE80 Frequency Range: 5150-5250MHz, 5725-5850MHz RF Output Power: 5150-5250MHz: 19.61dBm (Conducted) 5725-5850MHz: 19.48dBm (Conducted) Type of Modulation: BPSK, QPSK,16QAM,64QAM, 256QAM, 1024QAM Data Rate: 6-54Mbps, up to 1201Mbps Type of Antenna: External Antenna Antenna Gain: 5dBi 1.2 Standard Applicable According to §1.1307(b)(1) and KDB 447498 D01 General RF Exposure Guidance v06, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 / / F/300 6 1500-100000 / / 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100000 / / 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.3 MPE Calculation Method S = (30*P*G) / (377*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.4 MPE Calculation Result For Wi-Fi (2.4G): Maximum Tune-Up output power: 16(dBm) Maximum peak output power at antenna input terminal: 39.81 (mW) Prediction distance: >20(cm) Prediction frequency: 2412 (MHz) Antenna gain:5.0(dBi) Directional gain (numeric gain): 3.16 The worst case is power density at prediction frequency at 20cm: 0.0250(mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) For Wi-Fi (5G): Maximum Tune-Up output power: 20(dBm) Maximum peak output power at antenna input terminal: 100.00(mW) Prediction distance: >20(cm) Prediction frequency: 5200 (MHz) Antenna gain: 5.0(dBi) Directional gain (numeric gain): 3.16 The worst case is power density at prediction frequency at 20cm: 0.0629 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) Mode for Simultaneous Multi-band Transmission Wi-Fi (2.4G) + Wi-Fi (5G) The worst case is power density at prediction frequency at 20cm: 0.0250+0.0629 =0.0879(mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) Result: Pass

Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 1 of 137 TEST REPORT Reference No. .................... : WTH20X11091968W-1 FCC ID ................................ : 2AUZB-RAX1801 Applicant ........................... : SHENZHEN ZK TECHNOLOGY CO., LTD Address.............................. : SHENZHEN CITY LONGGANG DISTRICT STREETS QINGLIN ROAD SHENZHEN CITY STUDENTS (LONGGANG) BUSINESS PA... CHINA 518172 Product Name ................... : Wireless Router Test Model. ........................ : RAX1801 Standards .......................... : FCC Part 15.407 Date of Receipt sample .... : Nov.30, 2020 Date of Test........................ : Nov.30, 2020 to Dec.15, 2020 Date of Issue ..................... : Dec.16, 2020 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Mike Shi / Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTH20X11091968W-1 Page 2 of 137 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ...............................................................................4 1.2 TEST STANDARDS ...................................................................................................................................................5 1.3 TEST METHODOLOGY .............................................................................................................................................5 1.4 TABLE FOR PARAMETERS OF TEST SOFTWARE SETTING .........................................................................................6 1.5 EUT OPERATING DURING TEST ..............................................................................................................................7 1.6 TEST FACILITY .......................................................................................................................................................7 1.7 EUT SETUP AND TEST MODE .................................................................................................................................8 1.8 MEASUREMENT UNCERTAINTY ..............................................................................................................................9 1.9 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 10 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 12 3. ANTENNA REQUIREMENT ................................................................................................................................ 13 3.1 STANDARD APPLICABLE ....................................................................................................................................... 13 3.2 EVALUATION INFORMATION................................................................................................................................. 13 4. AUTOMATICALLY DISCONTINUE TRANSMISSION .................................................................................. 14 4.1 STANDARD APPLICABLE ....................................................................................................................................... 14 4.2 SUMMARY OF TEST RESULTS ............................................................................................................................... 14 5. POWER SPECTRAL DENSITY ........................................................................................................................... 15 5.1 STANDARD APPLICABLE ....................................................................................................................................... 15 5.2 TEST PROCEDURE ................................................................................................................................................. 15 5.3 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 16 6. EMISSION BANDWIDTH AND OCCUPIED BANDWIDTH ........................................................................... 17 6.1 STANDARD APPLICABLE ....................................................................................................................................... 17 6.2 TEST PROCEDURE ................................................................................................................................................. 17 6.3 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 19 7. MAXIMUM CONDUCTED OUTPUT POWER .................................................................................................. 20 7.1 STANDARD APPLICABLE ....................................................................................................................................... 20 7.2 TEST PROCEDURE ................................................................................................................................................. 20 7.3 SUMMARY OF TEST RESULTS/PLOTS ............................…

Text truncated - open the document above for the full version.

Reference No.: WTH20X11091968W-1/2 Page 10 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Reference No.: WTH20X11091968W-1/2 Page 11 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (1GHz to 18GHz) Reference No.: WTH20X11091968W-1/2 Page 12 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Radiation Emission Test Setup (Above 18GHz) ***** END OF REPORT *****
