2AUZI-819628ASekstant Gateway

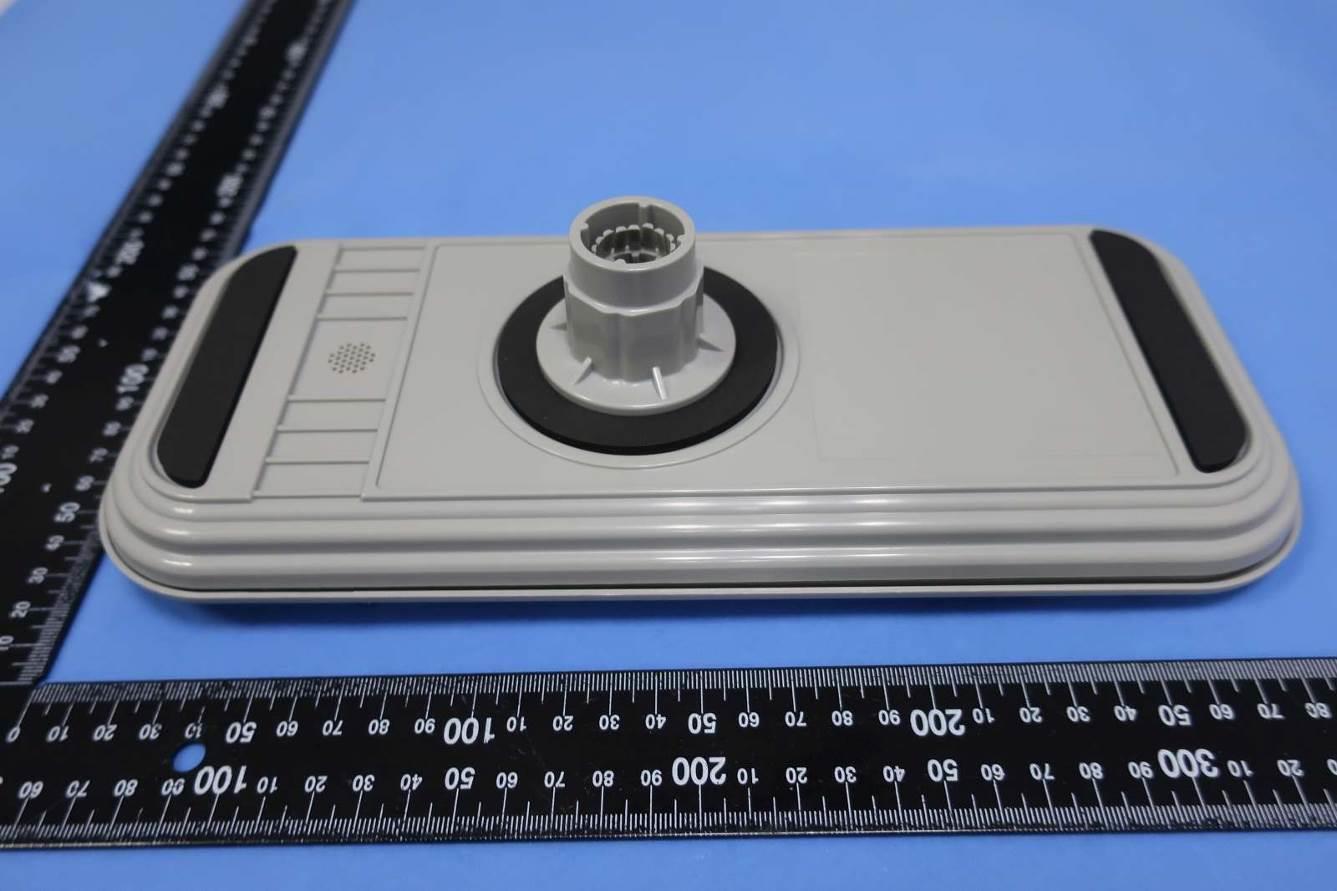

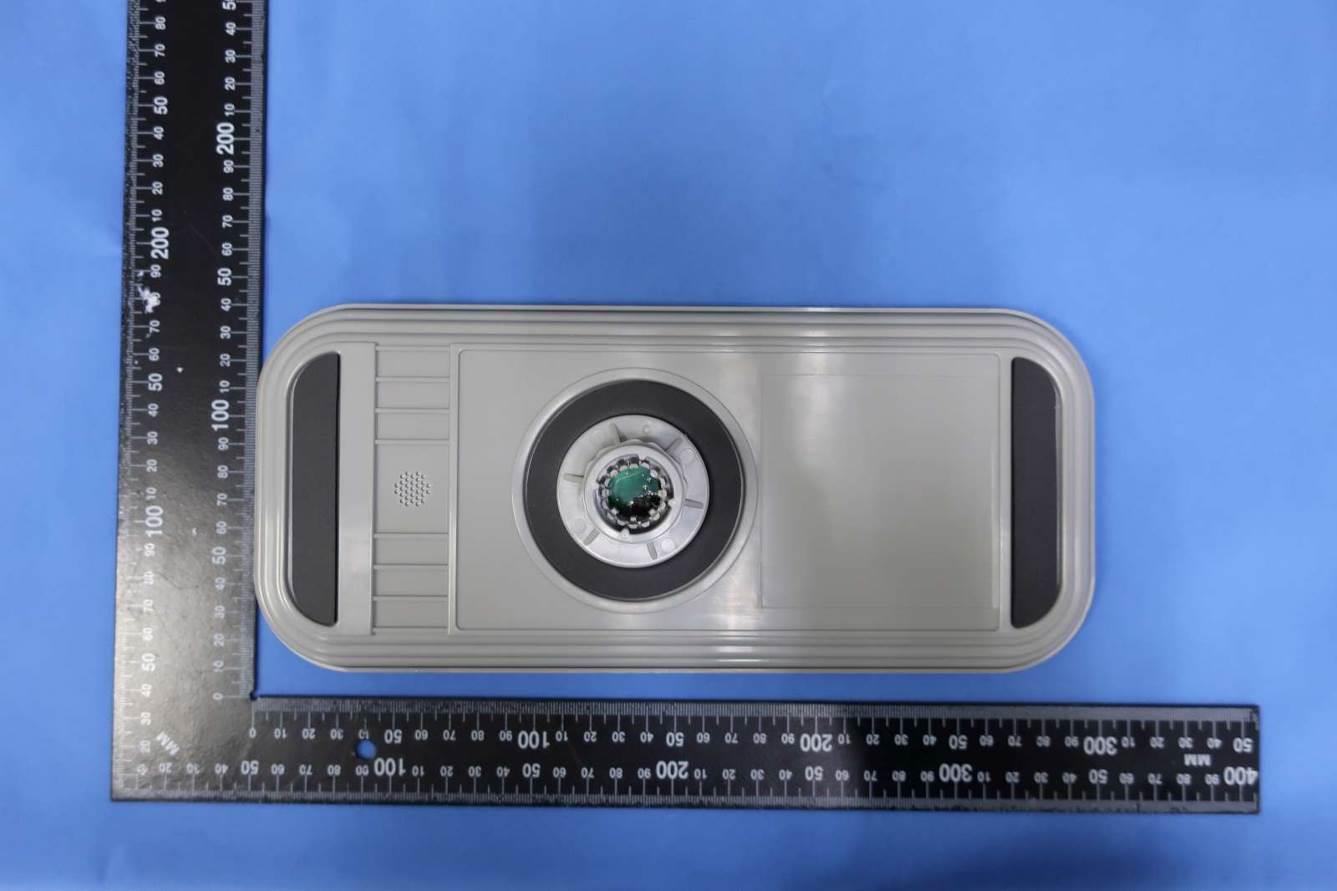

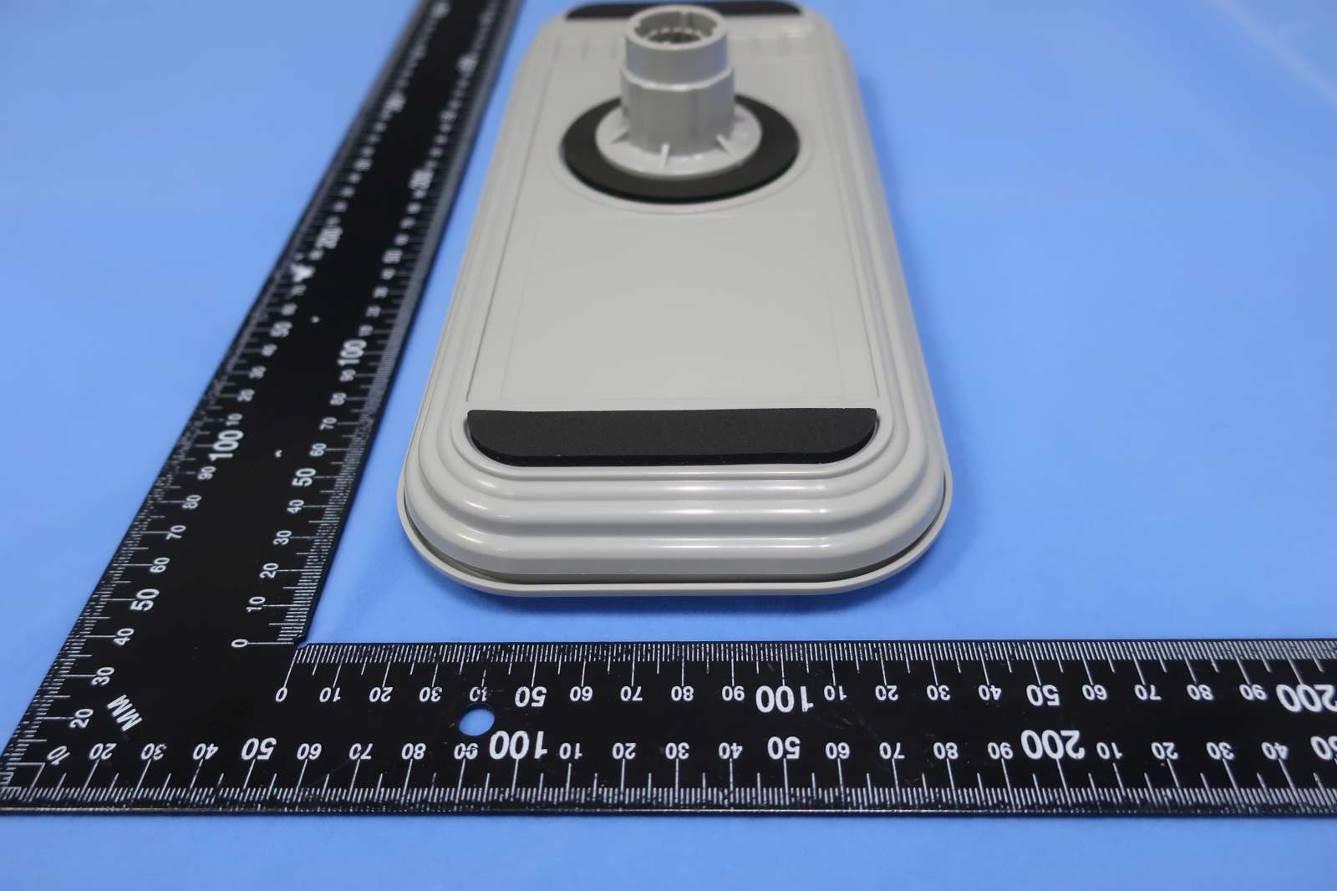

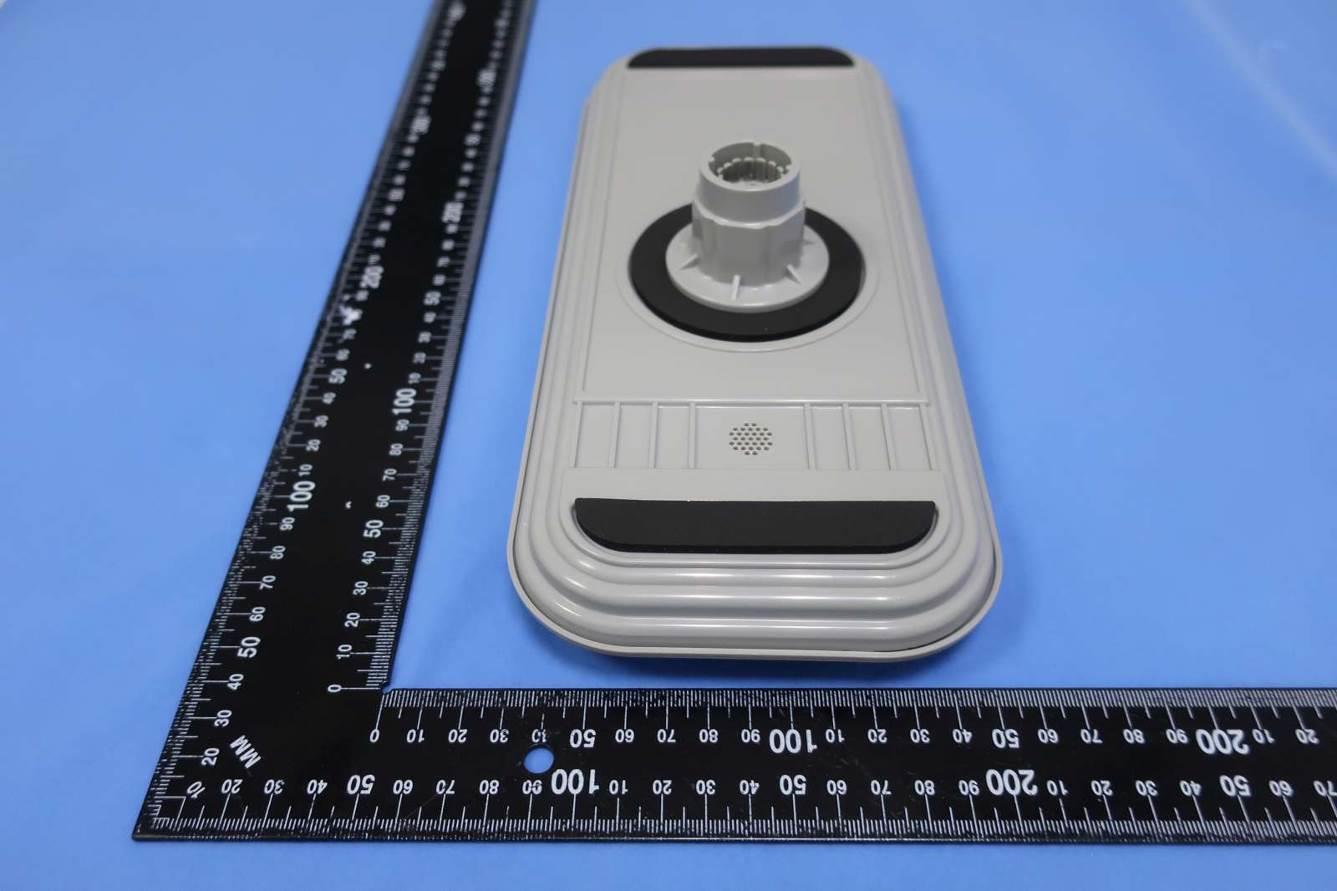

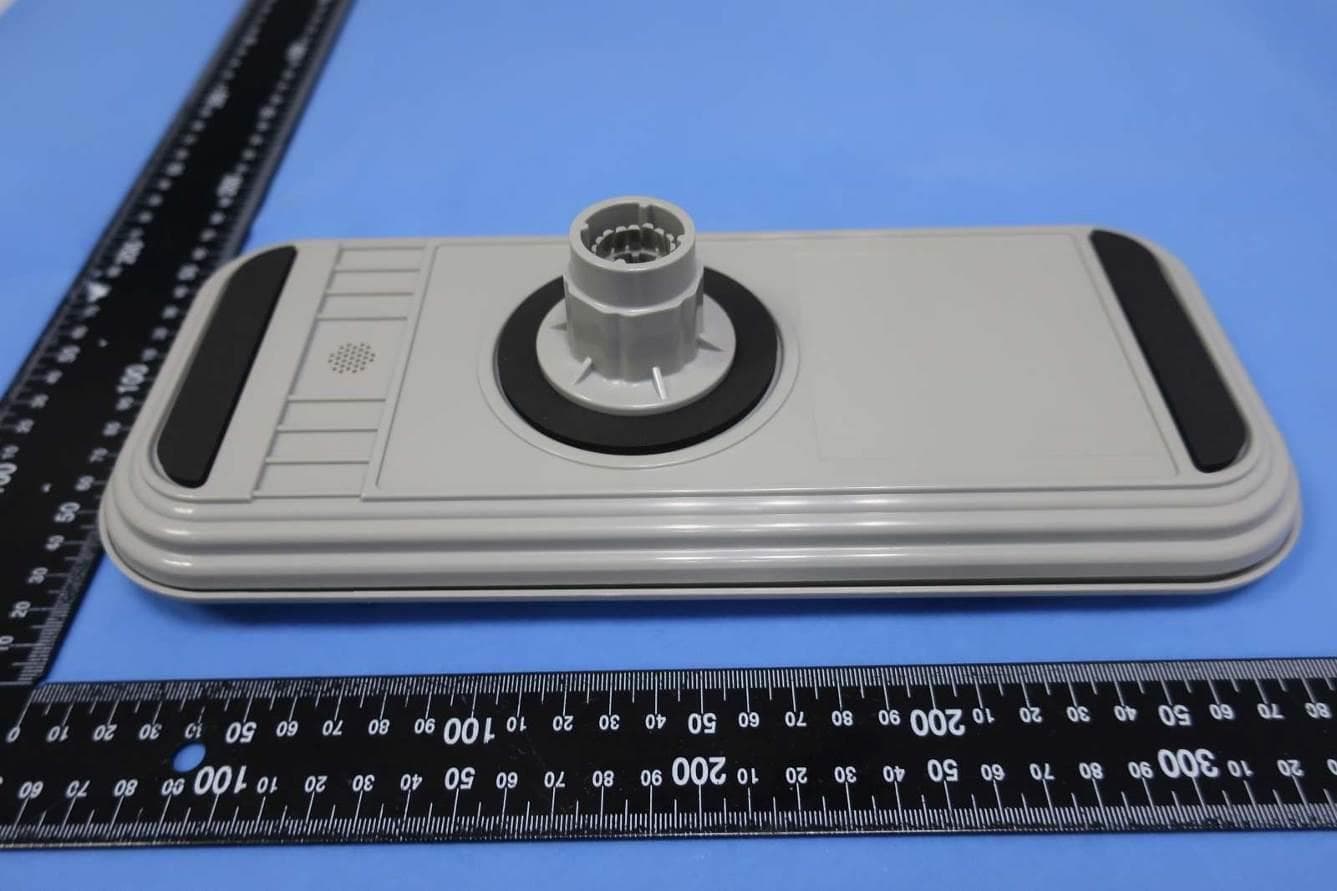

Sekstant Gateway Data Sheet The Sekstant Gateway is a fully encapsulated and rugged secure communication device specifically designed for the marine environment according to MCIs reefer standards. The Sekstant Gateway is designed to be mounted on the outside of the reefer with a self-tightening nut. It includes the antennas, global LTE cellular technology with 2G and 3G fallback, GNSS as well as Bluetooth Low Energy. Connected to the Star Cool Reefer controller system, the Sekstant Gateway together with the Sekstant platform form a unique ecosystem to remote control, update and monitor the Star Cool reefer. A simple device user interface, combined with a mobile app, enables the user to quickly monitor the state of the device and troubleshoot if necessary. Features & Benefits - One-piece design enables rapid installation and reduced complexity. - Truly global LTE connectivity with 2G and 3G fallback. - Global positioning feedback. GNSS receiver (GPS / QZSS, GLONASS, Galileo, BeiDou). - Simple user interface combined with mobile app ensures fast monitoring and troubleshooting. - Fully automated commissioning process. - Rugged design for harsh marine environments (IP66 and IP67). - Easy replacement and installation of battery (shared with the reefer controller). - Secure communication on all interfaces. Datasheet - Sekstant Gateway V1.0 | Page 2 Power supply input voltages18-36V AC/DC, 13W max. (50/60Hz +- 2.5Hz) External fuse neededNo External battery backup input voltage range 6-15V DC Shared battery supply with Star Cool reefer controller Yes Note: Battery with higher capacity needed to operate reefer controller and Gateway. Polarity protectionYes Over and under voltage protectionYes Power Supply Datasheet - Sekstant Gateway V1.0 | Page 3 Wireless Connectivity 2G GSM (SMS, GPRS, EDGE)QUAD band GSM/GPRS (850/900/1800/1900 MHz) SMS, GPRS, EDGE 3G UMTS (HSPA, HSPA+ Cat8)Seven Bands UMTS (WCDMA/FDD): 800, 850, 900, 1700/2100 (AWS), 1800, 1900 and 2100 MHz (bands 1, 2, 4, 5, 8, 9, 19) 4G LTE Cat 1Wide band LTE support Twelve Bands FDD-LTE: 700, 800, 850, 900, 1700/2100 (AWS), 1800, 1900, 2100, 2600 MHz (bands 1, 2, 3, 4, 5, 7, 8, 12, 18, 19,20, 28) Bluetooth Low EnergyBLE 5.0. SIM technologyMFF2 eSIM (soldered). Serial communication - Reefer controller communication via RS232 - RS485 Digital Inputs & Outputs GNSS technologiesGPS / QZSS, GLONASS, Galileo, BeiDou. Concurrent reception of up to 3 GNSS. GeofencesRemote geofence updates. Geofences with up to 10 vertices - Up to 2.000 individual geofences supported. Global Positioning Datasheet - Sekstant Gateway V1.0 | Page 4 Commissioning, Troubleshooting & Service CommissioningAutomatic commissioning process without user interaction. TroubleshootingSekstant Assistant App via mobile phone. Multicolor LED. Device user interfaceMulticolor LED on gateway for gateway operation verification. Security Secure communicationYes. On RS485 and all wireless interfaces. Storage conditions-40°C to +85°C (-40°F to 185°F) , 15-100% relative humidity. Operating conditions-40°C to +75°C (-40°F to 167°F), 15-100% relative humidity. Marine environment with direct sun exposure, industrial pollutants, cleaning/ washing, urban areas. Salt laden air and sea spray, according to EN 60068-2-52 (severity level 1). Environmental Specifications Datasheet - Sekstant Gateway V1.0 | Page 5 Ingress protection classIP 66 IP 67 Mounting methodOne-hole mounting (27mm hole). Fully integrated and protected into Star Cool reefers via communication plate. Mechanical conceptOne-piece design. No additional antenna is needed Dimensions289.3 x 126.4 x 26/64.1 mm 11,4 x 5,00 x 1,02 in Physical Specifications Approvals- FCC/IC - CE - RED - RoHS - WEEE Approvals / Directives / Regulatory / Compliance USA: FCC ID: 2AUZI-819628A Contains FCC ID: QIPPLS62-W FCC statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Notes: Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. RF Exposure Information This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. Datasheet - Sekstant Gateway V1.0 | Page 6 Canada: ISED ID: 25568-819628A Contains IC: 7830A-PLS62W ISED Notice T…
