2AV2K-L1550CRobot Vacuum Cleaner

Please read this manual carefully before use and keep it properly for future reference. The power adapter of the product applies to an altitude below 2000m., Manual of Robot Vacuum Cleaner (Dust Collection Suit) 1 Productintroduction Intelligentrecharge Shortpressthebuttontoenable intelligentrecharge. Iftheorangeindicatorremainslit,it suggeststhattheProducthasalow battery. Power-on/off/sweepingplanning Shortpress“Start/Pause”tosweep. Longpressthisbuttonfor3stopoweronoroff. Iftheindicatorremainslitinblue,itsuggests successfulnetworkconfiguration,normal runningorastandbystate. Iftheindicatorisbreathinginblue,itsuggestsa power-onorrechargestateoftheProduct. Iftheindicatorisbreathinginblue,itsuggests thattheProductisinahardwareupgradeor restorationtoitsdefaults. Iftheindicatorisflashingslowlyinblue,it suggeststhatastateofnetworkconfiguration. Iftheindicatorremainslitinorange,itsuggests talowbattery. Iftheindicatorisflashingquicklyinred,it suggeststhattheProductisabnormal. Iftheindicatorisout,itsuggeststhatthe Producthaspoweredofforissleeping. Infraredreceivingsensor Reset:Forforcedpower-off Shortpressthisbutton(forlessthan3s)to poweroff. Networkconfiguration Pressbuttons“”and“”atthe sametimefor5safterpower-onand releasethemuponavoicepromptthat “WiFihasbeenreset”toenterthe networconfiguration. 2 Productintroduction Mainbodyandsensors LaserradarButtonCollisionsensorChargeelectrodeRangesensorRollerbrushLeftwheel TopcoverInfraredreceivingsensorMecanumwheelSidebrushRollerbrushcover RightwheelMoppingmodule Maintenancetips Contents Onlyspeciallytrainedpersonswithacertificateforrobotvacuummaintenancecan maintaintheProduct. Productintroduction············· 1 Toavoidseriousconsequences,otherpersonsshouldnotmaintaintheProductwithoutpermission. Installationinstructions············ 4 IftheProducthasfailed,pleasetrytosolvetheproblemwithreferencetoAnalysisand EliminationofCommonFaultsbeforecontactingourcustomerservicedepartment. Directionsforuse·············· 5 Ifyoucannoteliminatethefaultbyyourself,pleaseunplugthepowercableandcontactus. WaytoconfigureWiFinetwork·········· Routinemaintenance············· Basicparmeters·············· 6 7 11 Pleasereadthismanualcarefullyforcorrectuse. Namesandcontentsofhazardoussubstancesinproduct·· Troubleshooting··············· 11 12 Environmentalimpactstatementforuser Cautions················ 13 1.AllthepackingmaterialsoftheProductareenvironmentfriendlyandrecyclable. Pleasedisposethemproperlytoprotecttheenvironment. 2.Thepackingmaterials,includingtheplasticfilmandthepackingbox,cancause asphyxiaaccidents.Theyarenottoys.Pleasekeepchildrenfromplayingwiththem. 3.IftheProductisoldandcannolongerbeused,discarditaftermakingitunusable. TheoldProductcontainsrecyclablematerials.Pleasehelptodisposethese recyclablematerialscorrectlyorrecyclethemtoprotecttheenvironment. Pleasereadthismanualcarefullyforcorrectuse. 3 Productintroduction Two-in-onewatertank Topcover Openthetopcovertoputthe dustbaginortakeitout. Dustbagchamber Mopholder Mop Strainerholder Strainer Statesofchargingpileindicator IndicatorOrangeWhiteOut Descrip tion Theindicatorremainslit inorangewhenthe dustinthedustbagis fullorthedustbagis notcorrectlymounted. Theindicatorremains litinwhiteafter power-on. Theindciatorisoutwhenthemain bodyisbeingrechargedor disconnectedfromthepowersource. Remarks*Theindicatorremainslitinorangewhenthedustcollectorhasfailed. Waterinlet Watertank Dustcontainerreleasebutton Dustcontainerbuckle Dustcontainer Dustcollector(dustcollectionandrecharge) Indicator Dustcollector’schargingelectrode Infraredlens Dustinlet Dustinthemainbodyissuckedintothe dustbagviahere. 4 Productintroduction Installationinstructions Installaitonofthedustcollector 1.Putthedustcollectoronaflatfloorbyawallandinsertthepowerplugintoa properpowersocket. Putontheflatfloorbyawall. Fanstrainer 2.Makesurethereisnobarrierinfrontoforbehindthedustcollectororon anylateralsideofit. Dustbag Dustbag(Thereisalreadyoneonthedustcollector) Reminder:Thedustbagisaconsumable.Pleasereplaceitatregularintervals. Dustbaghandle 5 Directionsforuse 1.Power-on/off Longpressbutton“”for3sforpower-on:Thepowerindicatorwillflash slowlyinbluefor4sandthenremainlitinblue,suggestingthattheProductis standby. WhentheProductisnotmoving,longpressbutton“”for3sto poweritoff.Thepowerindicatorwillthengoout.= IftheProducthasnotbeenoperatedformorethan10minutesinthiscase,it willsleep.TheProductinsleepcanbeawakenedafteranybuttonofitisshort pressed. Reminder:TheProductcannotbepoweredofforenterthesleepmodewhen inrecharge. 6.Faultstate WhentheProducthasanyfault,itwillgiveavoiceprompt,andthepower indicatorwillflashquicklyinred.Tosolvethisproblem,pleaserefertothe correspondingsolutioninthesectionabout“Troubleshooting”. IftheProducthasnotbeenoperatedinmorethan10minutesinthiscase,it willenterthesleepmodeautomatically. Use 1.PuttheProductonanindoorflatflooranddismountthestoppersattwo endsofthebumperonitsfront. 2.Sweeping Ifbutton“”isshortpressedafterpower-on,therewillbeavoicepromptthat “Sweepinghasbegun”. Ifbutton“”isshortpressedinsweeping,theProductwillstopsweeping. Reminder:Thesweepingfunctioncannotbeenabledwhenthebatteryislow. 3.Automatic/manualrecharge Aftersweeping,therewillbeavoicepromptthat“Sweepingfinished. Rechargehasbegun”,andtheProductwillberechargedautomatically.When thebatteryislowinsweeping,theProductwillberechargedautomatically, too. 4.Wateraddingtothewatertank,ormopcleaningduringsweeping Shortpressbutton“”,theProductwillpause.Dismountthemopping module/Two-in-onewatertank,addwaterorcleanthemop,remountthe moppingmoduleandshortpressbutton“”againtocontinuewiththe sweeping. 5.Networkconfiguration,andhardwareupgrade ScantheQRcodetodownloadtheAPP.ResettheWiFiasinstructedbythe APP(refertothecontentofsection“WaytoconfigureWiFinetwork”on page6).TheAPPsupportsdirectinquiriesandupgradingofthehardware.In hardwareupgrading,makesuretheProductisbeingrechargedandhasbeen rechargedby30%atleast.Forthestepsofhardwareupgrading,refertothe APP.AfterdownloadingoftheAPP,configuretheWiFinetwo…

Text truncated - open the document above for the full version.

Guangdong Joy Intelligent Technology Co., Ltd Agent Authorization Company: Guangdong Joy Intelligent Technology Co., Ltd Address: Room 1201, No. 58, Second Street, Mawu New Village, Changping Town, Dongguan, Guangdong,China Model Number(s): JL1550C, Q6 SE, L6 Nex Product Description: Robot Vacuum Cleaner We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022.10.27 Name: Yuanfang Lee Title: Manager Company: Guangdong Joy Intelligent Technology Co., Ltd

Guangdong Joy Intelligent Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022.10.27 Subject; Request for Confidentiality FCC ID:2AV2K-L1550C To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yuanfang Lee Title: Manager

Model Confirmation Letter We, Guangdong Joy Intelligent Technology Co., Ltd. Product Name: Robot Vacuum Cleaner Model No.: JL1550C, Q6 SE, L6 Nex The difference between each model is only for the model name and appearance colors are different, the rest circuit principle, the internal structure, the PCB Layout and the safety key parts are the same, does not affect the RF test. Signature: Company Name: Guangdong Joy Intelligent Technology Co., Ltd. Date: 2022-10-20

Guangdong Joy Intelligent Technology Co., Ltd Responsibility Declaration Letter v1.0 Responsibility Declaration Letter Company name: Guangdong Joy Intelligent Technology Co., Ltd Address: Room 1201, No. 58, Second Street, Mawu New Village, Changping Town, Dongguan, Guangdong,China Product Name: Robot Vacuum Cleaner FCC ID: 2AV2K-L1550C Model(s):JL1550C, Q6 SE, L6 Nex Model(s) Difference Description: Only the model name is different We, Guangdong Joy Intelligent Technology Co., Ltd, hereby acknowledge that all the product information (including all original, drafted, or modified documents) provided to the TCB either by us or our agent or representative(s) for the purposes of FCC certification will meet FCC regulations and requirements; and that any modifications or changes made as a result of TCB review of the documents will be formally implemented into the manufacturing process and product documentation shipped with equipment. We also confirm that all information provided is legitimate and does not contain any false content such as forgery, fabrication, alteration, tampering and concealment. We assume all economic and legal responsibilities in matters that may arise as a result of disclosure on sample products and associated product documentation provided for product certification that may subsequently be found to be a mis-representation of the final product and accompanying documentation when produced, marketed, or sold in the United States, Canada, or anywhere in the world. Your sincerely, Name: Yuanfang Lee Date: 2022-10-27 Title and Company name: Manager/ Guangdong Joy Intelligent Technology Co., Ltd

Label Robot Vacuum Cleaner JL1550C FCC ID:2AV2K-L1550C Guangdong Joy Intelligent Technology Co., Ltd

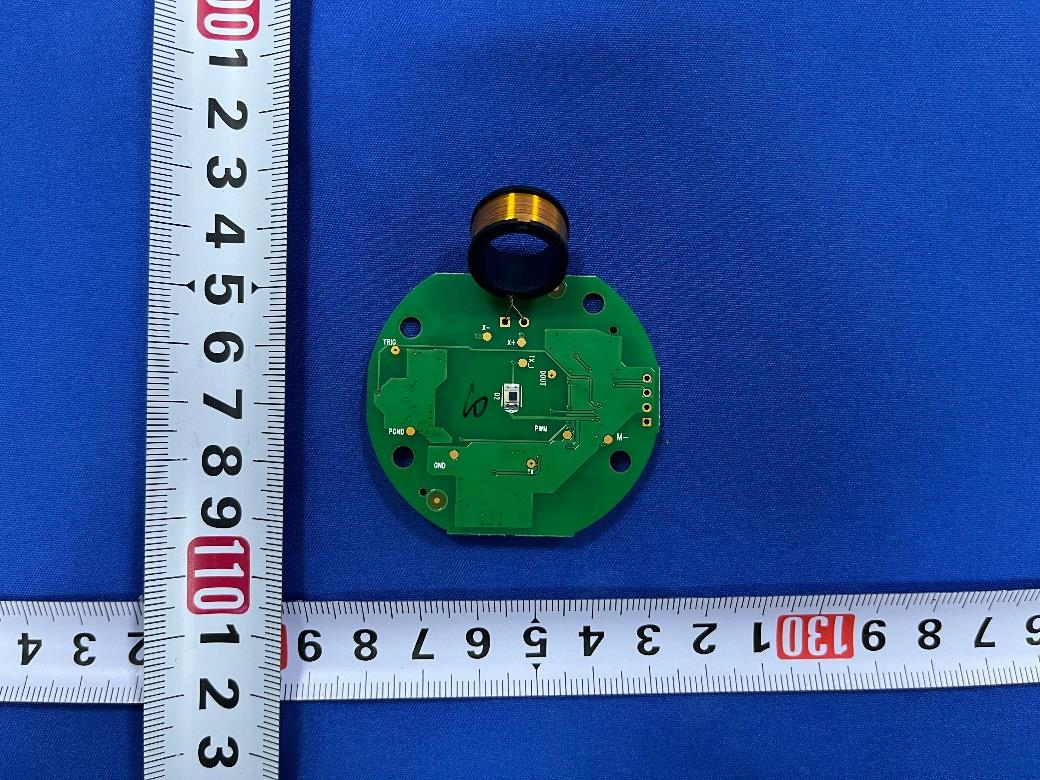

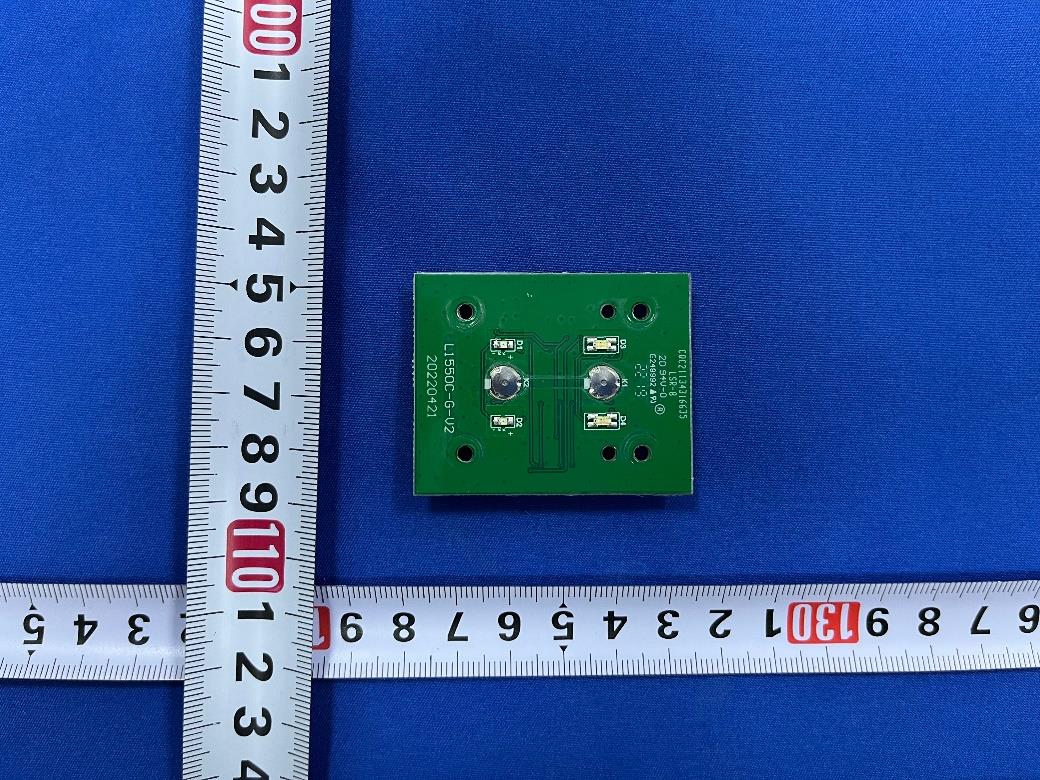

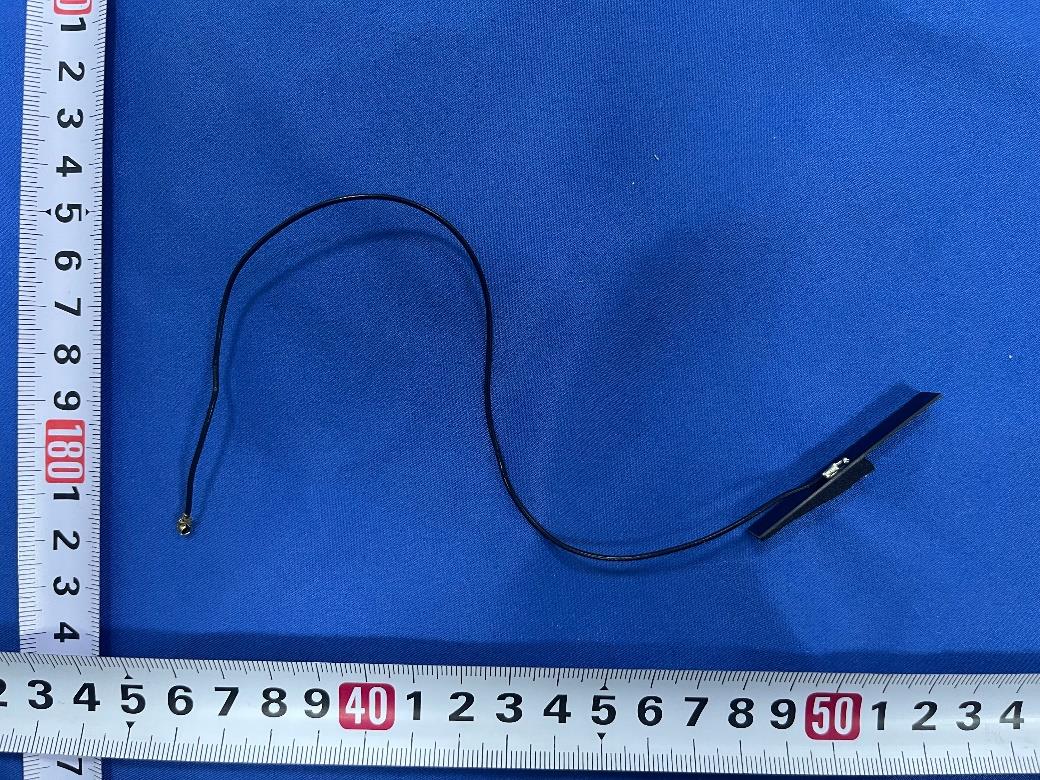

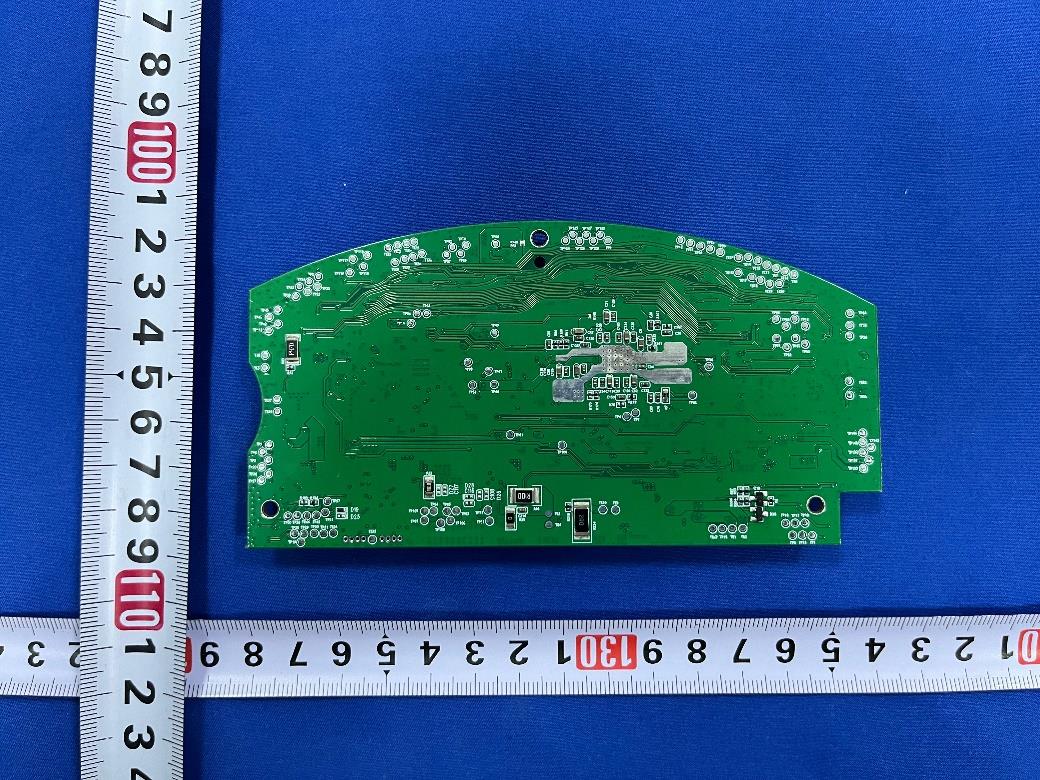

Page 1 of 7 Report No.: LGT22H004 Appendix - Internal Photographs of EUT Constructional Details Model Name: JL1550C Photo 1 Photo 2 Page 2 of 7 Report No.: LGT22H004 Photo 3 Photo 4 Page 3 of 7 Report No.: LGT22H004 Photo 5 Photo 6 Page 4 of 7 Report No.: LGT22H004 Photo 7 Photo 8 Page 5 of 7 Report No.: LGT22H004 Photo 9 Photo 10 ANT Page 6 of 7 Report No.: LGT22H004 Photo 11 Photo 12 Page 7 of 7 Report No.: LGT22H004 Photo 13

RF Exposure Report FCC-ID: 2AV2K-L1550C RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over- prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) F= Frequency in MHz Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 2.4G WIFI Mode 802.11b/g/n20:2412-2462MHz 802.11n40:2422-2452MHz Detector PEAK 802.11b 18.5±1dBm 802.11g 20.5±1dBm 802.11n20 20±1dBm 802.11n40 20±1dBm ANT Gain (G) Antenna number: 1 Antenna gain : 4.2dBi 802.11 b2.63246218.6773.62070.038541 802.11 g2.63246221.47140.28140.073441 802.11 n202.63246220.68116.94990.061221 802.11 n402.63245220.53112.97960.059141 Power Density (mW/cm²) Limit (mW/cm²) ANT Gain(gain of antenna in linear scale) Protocol Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Note: From the above calculation results, it can be concluded that the results meet the requirements of the limit and comply with the regulatory requirements.

深圳市联笙科技有限公司 ShengZhenLianShengTechnologyCo.,Ltd. 规格承认书 SPECIFICATIONFORAPPROVAL 客户 CUSTOMER: 日期 Date 编号 FileNo 1.0版本 Revision 客户料号 CUSTOMERNO: 品名 供方料号 送样日期 Date: 送样数量 Q"TY:PCS 客户确认CUSTOMERAPPROVEDBY APPROVALCHIEFSUPERVISOR 供方确认SUPPLIERSIGNATURE APPROVALCHECKDESIGN ChenGuoqiangWenXue ChenXingcheng Add：深圳市龙华新区民治民康路秋瑞大厦6楼609室Tel:0755-82885545MP:13823198410 2020/12/02 SA000844 WIFI Antenna LSP.A887.B113.01 L1250 承认书项目表 NO . 内 容 （Contents） 页 数 （Number of Page） 页 码 （Page Code） 1 承认书封面 （Spec Cover） 1 1 2 承认书项目表（Spec Item ） 1 2 3 工程成品图 （Drawing） 1 3 4 天线规格 （Antenna Specification） 1 4 5 S参数测试 （S Parameter ） 1 5 6 无源测试 （Passive Test ） 5 6 ~ 10 7 有源测试 （ Active Test） 4 11 ~ 14 8 天线装配图（Antenna Profile）） 3 15 ~ 17 9 10 11 N/A N/A N/A 12 - - - 13 - - - - - - - - - LSP.A887.B113.01 Tel:0755-82885545MP:13823198410 天线规格 Antenna Specification Electrical Properties Frequency 2.4-2.5GHz Impedance 50 Ohm Nominal V.S.W.R 2.0 Max Gain [email protected] Radiation Omni-directional Polarization Linear Physical Properties Connector 1代IPEX Cable Type O.D.1.13mm Cable Length 244mm Cable Color Black Operating Temp. -40 ~ +85 ̊C Storage Temp / Humidity. 25±5 / <70% Agilent E5071B S Parameter Test // WiFi Antenna Antenna Passive Test Z Y X Z Y X Passive Test For WiFi 2.4G Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 2400 62.7 -2.0 4.1 2410 62.8 -2.0 4.2 2420 61.4 -2.1 4.0 2430 61.2 -2.1 4.2 2440 58.9 -2.3 3.9 2450 59.4 -2.3 4.1 2460 57.7 -2.4 3.9 2470 61.1 -2.1 4.3 2480 59.8 -2.2 4.3 2490 60.1 -2.2 4.3 2500 58.3 -2.3 4.0 Radiation Pattern For WiFi Antenna(2400MHz) Radiation Pattern For WiFi Antenna(2450MHz) Radiation Pattern For WiFi Antenna(2500MHz) Antenna Active Test Active Test For WIFI Band Channel Data Rate TRP EIRP Data Rate TIS EIS WIFI 2.4G 802.11b 1 11Mbps 20.7 27.7 11Mbps -85.8 -92.0 6 20.4 25.8 -85.9 -91.4 11 18.4 24.1 -86.4 -92.1 Active Test For WIFI Band Channel Data Rate TRP EIRP Data Rate TIS EIS WIFI 2.4G 802.11g 1 6Mbps 13.6 19.3 54Mbps -70.9 -76.4 6 14.3 19.6 -72.2 -77.4 11 12.8 18.1 -72.7 -78.0 Active Test For WIFI Band Channel Data Rate TRP EIRP Data Rate TIS EIS WIFI 2.4G 802.11n 1 6.5Mbps 11.4 17.1 65Mbps -67.2 -73.0 6 12.4 17.4 -67.8 -72.5 11 11.0 16.3 -68.6 -73.9 Device WiFi Antenna WiFi Ant

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China RF TEST REPORT Product Name: Robot Vacuum Cleaner Model Name: JL1550C, Q6 SE, L6 Nex FCC ID: 2AV2K-L1550C Issued For : Guangdong Joy Intelligent Technology Co., Ltd. Room 1201, No. 58, Second Street, Mawu New Village, Changping Town, Dongguan, 523586 Guangdong, P.R. China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China Report Number: LGT22H004RF01 Sample Received Date: Aug. 04, 2022 Date of Tested: Aug. 04, 2022 ~ Sep. 19, 2022 Date of Issue: Sep. 19, 2022 Report No.: LGT22H004RF01 Page 2 of 86 TEST REPORT CERTIFICATION Applicant Guangdong Joy Intelligent Technology Co., Ltd. Address Room 1201, No. 58, Second Street, Mawu New Village, Changping Town, Dongguan, 523586 Guangdong, P.R. China Manufacturer Guangdong Joy Intelligent Technology Co., Ltd. Address Room 1201, No. 58, Second Street, Mawu New Village, Changping Town, Dongguan, 523586 Guangdong, P.R. China Product Name Robot Vacuum Cleaner Trade Mark N/A Model Name JL1550C, Q6 SE, L6 Nex Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247, Subpart C ANSI C63.10-2013 PASS Prepared by: Approved by: Terry Zhao Vita Li Engineer Technical Director Report No.: LGT22H004RF01 Page 3 of 86 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3. EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.2 RADIATED EMISSION MEASUREMENT 17 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 29 4.1 LIMIT 29 4.2 TEST PROCEDURE 29 4.3 TEST SETUP 29 5. POWER SPECTRAL DENSITY TEST 30 5.1 LIMIT 30 5.2 TEST PROCEDURE 30 5.3 TEST SETUP 30 5.4 TEST RESULTS 30 FOR THE MEASUREMENT RECORDS, REFER TO THE APPENDIX I. 30 6. BANDWIDTH TEST 31 6.1 LIMIT 31 6.2 TEST PROCEDURE 31 6.3 TEST SETUP 31 6.4 TEST RESULTS 31 FOR THE MEASUREMENT RECORDS, REFER TO THE APPENDIX I. 31 7. PEAK OUTPUT POWER TEST 32 7.1 LIMIT 32 7.2 TEST PROCEDURE 32 7.3 TEST SETUP 32 Report No.: LGT22H004RF01 Page 4 of 86 Table of Contents Page 7.4 TEST RESULTS 32 FOR THE MEASUREMENT RECORDS, REFER TO THE APPENDIX I. 32 8. ANTENNA REQUIREMENT 33 8.1 STANDARD REQUIREMENT 33 8.2 EUT ANTENNA 33 APPENDIX I:TEST RESULTS 34 DUTY CYCLE 34 MAXIMUM AVERAGE CONDUCTED OUTPUT POWER 41 MAXIMUM PEAK CONDUCTED OUTPUT POWER 48 -6DB BANDWIDTH 49 MAXIMUM POWER SPECTRAL DENSITY LEVEL 56 BAND EDGE 63 CONDUCTED RF SPURIOUS EMISSION 72 APPENDIX II:PHOTOS OF TEST SETUP 85 Report No.: LGT22H004RF01 Page 5 of 86 Revision History Rev. Issue Date Contents 00 Sep. 19, 2022 Initial Issue Report No.: LGT22H004RF01 Page 6 of 86 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Report No.: LGT22H004RF01 Page 7 of 86 1.1 TEST FACTORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China Accreditation Certificate FCC Registration No.: 746540 A2LA Certificate No.: 6727.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.63dB 2 Unwanted Emissions, conducted ±2.946dB 3 All emissions, radiated 9K-30MHz ±2.50dB 4 All emissions, radiated 30M-1GHz ±4.40dB 5 All emissions, radiated 1G-6GHz ±5.10dB 6 All emissions, radiated>6G ±5.49dB 7 Conducted Emission (9KHz-150KHz) ±3.18dB 8 Conducted Emission (150KHz-30MHz) ±2.70dB Report No.: LGT22H004RF01 Page 8 of 86 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Robot Vacuum Cleaner Trade Mark N/A Model Name JL1550C Series Model Q6 SE, L6 Nex Model Difference Only the model name is different Product Description The EUT is a Robot Vacuum Cleaner Operation Frequency: 802.11b/g/n 20: 2412~2462 MHz 802.11n(40MHz):2422~2452MHz Modulation Type: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM Bit Rate of Transmitter: 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6Mbps 802.11n(20MHz): 65/58.5/52/39/26/19.5/13/6.5Mbps 802.11n(40MHz): 135/121.5/108/81/54/40.5/37/13.5Mbps Number of Channel: 802.11b/g/n20: 11CH 802.11n 40: 7CH Antenna Designation: FPCB antenna Antenna Gain (dBi): 4.2 Channel List Please refer to the Note 2. Rating 19VDC 0.6A Battery Capacity: 2600 mAh Rated Voltage: 14.4 V Hardware version number N/A Software version number N/A Connectin…

Text truncated - open the document above for the full version.

Page 1 of 2 Report No.: LGT22H004 Appendix - Test Setup photos Radiated Spurious Emission Test Setup Photo - Below 1GHz Radiated Spurious Emission Test Setup Photo - Above 1GHz Page 2 of 2 Report No.: LGT22H004 Conducted Emission Test Setup Photo
