2AV3I-MP130digital voice broadcasting system

成至LTE系列无人机数字语音广播说明书 Instructions for the Chengzhi LTE series of UAV digital voice broadcasting MP130 LTE MP118 LTE 型号 model MP130 LTE 尺寸 size 140mm*140mm*132mm 重量 weight 560g 最大声压 Maximum sound pressure 130dB 声音传播距离 Sound propagation distance 500m 功率 power 25w 俯仰角度 Pitch Angle 0°---90° 通信链路 Communications link 4G 载荷接口 Load interface 成至通用接口 Common interface of Chengzhi 控制距离 Control distance ∞ 工作温度 Working temperature -20C°-----40C° App支持系统 App support system Android5.0及以上 Android5.0 and above 喊话方式 Play mode 实时喊话 Real-time express 录音广播 Upload the recording 文字转语音 text-to-speech 内存播放 Use SD card to play 混合播放 Mixed play 音频文件储存格式 Audio file storage format MP3/WAV 其他 The other 支持AUX输入音频流 AUX input audio streams are supported 型号 model MP118 LTE 尺寸 size 73mm*73mm*70mm 重量 weight 260g 最大声压 Maximum sound pressure 118dB 声音传播距离 Sound propagation distance 100m 功率 power 15w 俯仰角度 Pitch Angle 固定角度 Fixed Angle 防护等级 Protection grade IP67 通信链路 Communications link 4G 载荷接口 Load interface M2螺纹孔 M2 threaded hole 控制距离 Control distance ∞ 工作温度 Working temperature -20C°-----40C° App支持系统 App support system Android5.0及以上 Android5.0 and above 喊话方式 Play mode 实时喊话 Real-time express 录音上传 Upload the recording 文字转语音 text-to-speech 内存播放 Use SD card to play 混合播放 Mixed play 音频文件储存格式 Audio file storage format MP3/WAV 其他 The other 内置电池时间大于1.5h The built-in battery lasts longer than 1.5 hours 软件使用教程Tutorial on using software Android下载地址 Android download address （请使用浏览器下载）(please use browser to download) 使用流程Using the process 1.app注册登陆，邮箱或者手机注册 1.Open the app, register by email or mobile phone and log in. 2.喊话器绑定和解绑Loudspeaker binding and untying app 扫码或者手动输入Scan code or enter it manually 3.功能使用Use of functions 文字转语音，可以编辑文本或者快速复制粘贴微信或者网页等内容， TTS发音清晰，避免公众场合发音问题。 Text to speech, can edit text or quickly copy and paste WeChat or web pages and other content, TTS clear pronunciation, avoid public pronunciation problems. 录音喊话，可以将喊话内容保存起来，重复播放。可以重命名，删除。 下次使用刷新目录，播放即可。 The recording upload broadcast function can save the message and play it again.It can also be renamed and deleted.Next time, refresh the directory and play. 实时广播，可以像对讲机一样按住快速喊话 The live broadcast function can shout as fast as a walkie-talkie. 背景音播放 ，可以播放警报声等一些常用的行业背景音 Background music playback function can play alarm and other common industry background sound. 喊话器角度俯仰调节，可以让声音准确的传播到想要到达的方向 The Angle pitch adjustment function of the megaphone enables the sound to have an accurate propagation direction. 成至语音库，可以下载各种行业常用的警报声，音乐，以及各行业常 用的一些宣传用语。 Chengzhi audio library, you can download a variety of industry used alarm, music, as well as some of the industry used to promote the language. If you have any questions or suggestions on the manual, please contact us through the following email:[email protected] FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Note: the product is only installed on the drone for use

Guangzhou Chengzhi Intelligent Machinery Technology Co., Ltd. No. 500 Guangshan Road, Tianhe District, Guangzhou City, Guangdong Province, China Series Models Description Date: 2020/05/27 Dear Sir/Madam, FCC ID: 2AV3I-MP130 We, Guangzhou Chengzhi Intelligent Machinery Technology Co., Ltd. Hereby declares the following statement for EU certificate, PCB board, Schematic, Hardware version, Software version, structure and internal photos are same except for the model’s name; named differently due to marketing purposes. Product name: digital voice broadcasting system Model no.: MP130, MP140,MP140 LTE,MP130 LTE,MP120,MP120 LTE,MP118, MP118 LTE Sincerely yours Name / Title: XUEHAI ZHENG / The R&D manager Company: Guangzhou Chengzhi Intelligent Machinery Technology Co., Ltd. Address: No. 500 Guangshan Road, Tianhe District, Guangzhou City, Guangdong Province, China Phone: 13263090340 Fax: / E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-05-27> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AV3I-MP130 MP130 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name / Title: XUEHAI ZHENG / The R&D manager Company: Guangzhou Chengzhi Intelligent Machinery Technology Co., Ltd. Address: No. 500 Guangshan Road, Tianhe District, Guangzhou City, Guangdong Province, China Phone: 13263090340 Fax: / E-Mail: [email protected]

Guangzhou Chengzhi Intelligent Machinery Technology Co., Ltd. No. 500 Guangshan Road, Tianhe District, Guangzhou City, Guangdong Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/05/27 To whom it may concern: We, Guangzhou Chengzhi Intelligent Machinery Technology Co., Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AV3I-MP130 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: XUEHAI ZHENG / The R&D manager Company: Guangzhou Chengzhi Intelligent Machinery Technology Co., Ltd. Address: No. 500 Guangshan Road, Tianhe District, Guangzhou City, Guangdong Province, China Phone: 13263090340 Fax: / E-Mail: [email protected]

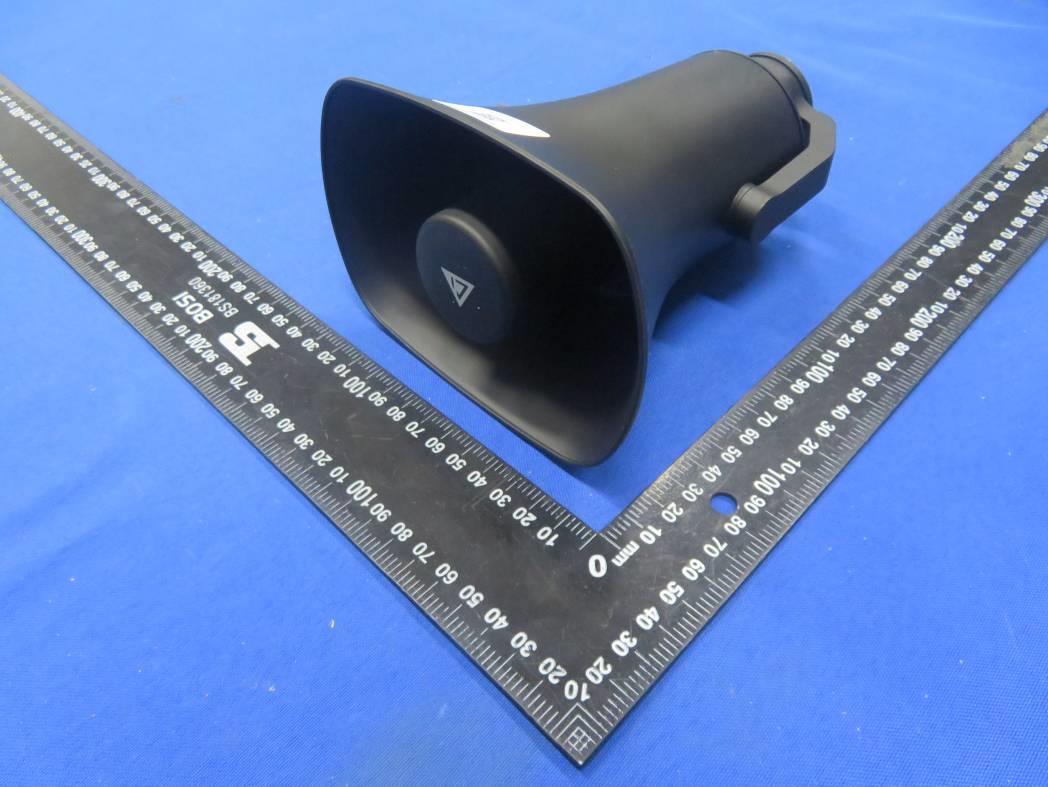

FCCID：2AV3I-MP130 Fig. 1 Fig. 2 FCCID：2AV3I-MP130 Fig. 3 Fig. 4

LABEL AND LOCATION (Size: L6.0cm x 5.0cm) Label Location

FCCID：2AV3I-MP130 Fig. 1 Fig. 2 WCDMA/LTE MAIN Antenna LTE Diversity Antenna FCCID：2AV3I-MP130 Fig. 3 Fig. 4 FCCID：2AV3I-MP130 Fig. 5 Fig. 6 FCCID：2AV3I-MP130 Fig. 7 Fig. 8 FCCID：2AV3I-MP130 Fig. 9 Fig. 10 FCCID：2AV3I-MP130 Fig. 11 Fig. 12 FCCID：2AV3I-MP130 Fig. 13 Fig. 14 FCCID：2AV3I-MP130 Fig. 15 Fig. 16

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No. .................. : FCC ID. .......................................... : GTS20191018017-1-8 2AV3I-MP130 Compiled by ( position+printed name+signature): File administrators Tracy Hu Supervised by ( position+printed name+signature): Test Engineer Moon Tan Approved by ( position+printed name+signature): Manager Simon Hu Date of issue .................................. : Jun. 01, 2020 Representative Laboratory Name: Shenzhen Global Test Service Co.,Ltd. Address ......................................... : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ......................... : Guangzhou Chengzhi Intelligent Machinery Technology Co., Ltd. Address ......................................... : No. 500 Guangshan Road, Tianhe District, Guangzhou City, Guangdong Province, China Test specification ........................ : Standard ........................................ : 47CFR §1.1310 47CFR §2.1091 KDB447498 v06 TRF Originator ............................... : Shenzhen Global Test Service Co.,Ltd. Master TRF .................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................. : digital voice broadcasting system Trade Mark .................................... : Manufacturer ................................. : Guangzhou Chengzhi Intelligent Machinery Technology Co., Ltd. Model/Type reference .................... : MP130 Listed Models ............................... : MP140,MP140 LTE,MP130 LTE,MP120,MP120 LTE,MP118, MP118 LTE Modulation Type ............................ : QPSK, 16QAM Operation Frequency ..................... : WCDMA:band 2, 4, 5 LTE:band 2, 4, 5, 7, 12, 17 Rating ............................................ : Input: 12V 2.1A Result............................................. : PASS Report No.: GTS20191018017-1-8 Page 2 of 10 T E S T R E P O R T Test Report No. : GTS20191018017-1-8 Jun. 01, 2020 ______________________________________________________________________________________________ Date of issue Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Equipment under Test : digital voice broadcasting system Model /Type : MP130 Listed model : MP140,MP140 LTE,MP130 LTE,MP120,MP120 LTE,MP118, MP118 LTE Applicant : Guangzhou Chengzhi Intelligent Machinery Technology Co., Ltd. Address : No. 500 Guangshan Road, Tianhe District, Guangzhou City, GuangdongProvince, China Manufacturer : Guangzhou Chengzhi Intelligent Machinery Technology Co., Ltd. Address : No. 500 Guangshan Road, Tianhe District, Guangzhou City, GuangdongProvince, China Report No.: GTS20191018017-1-8 Page 3 of 10 Contents 1. SUMMARY ....................................................................................................................................................... 4 1.1. EUT configuration ................................................................................................................................... 4 1.2. Product Description ................................................................................................................................ 4 2. TEST ENVIRONMENT ..................................................................................................................................... 5 2.1. Address of the test laboratory ................................................................................................................ 5 2.2. Test Facility ............................................................................................................................................ 5 2.3. Environmental conditions ....................................................................................................................... 5 2.4. Statement of the measurement uncertainty ........................................................................................... 5 3. METHOD OF MEASUREMENT ....................................................................................................................... 6 3.1. Applicable Standard ............................................................................................................................... 6 3.2. Requirement ........................................................................................................................................... 6 3.3. Limit ........................................................................................................................................................ 6 3.4. MPE Calculation Method ........................................................................................................................ 7 3.5. Antenna Information ............................................................................................................................... 7 4. Conducted Power ........................................................................................................................................... 8 5. Manufacturing Tolerance ...........................................................................…

Text truncated - open the document above for the full version.

FCCID: 2AV3I-MP130 1 / 80 Appendix A: Peak-to-Average Ratio(CCDF) Test Result Band Bandwidth Modulation Channel RB Configuration Result(dB) Limit(dB) Verdict Band2 1.4MHz QPSK 18607 6RB#0 5.77 13 PASS Band2 1.4MHz QPSK 18900 6RB#0 5.65 13 PASS Band2 1.4MHz QPSK 19193 6RB#0 5.22 13 PASS Band2 1.4MHz 16QAM 18607 6RB#0 6.29 13 PASS Band2 1.4MHz 16QAM 18900 6RB#0 6.52 13 PASS Band2 1.4MHz 16QAM 19193 6RB#0 6.09 13 PASS Band2 3MHz QPSK 18615 15RB#0 5.51 13 PASS Band2 3MHz QPSK 18900 15RB#0 5.71 13 PASS Band2 3MHz QPSK 19185 15RB#0 5.33 13 PASS Band2 3MHz 16QAM 18615 15RB#0 6.32 13 PASS Band2 3MHz 16QAM 18900 15RB#0 6.61 13 PASS Band2 3MHz 16QAM 19185 15RB#0 6.20 13 PASS Band2 5MHz QPSK 18625 25RB#0 5.68 13 PASS Band2 5MHz QPSK 18900 25RB#0 5.77 13 PASS Band2 5MHz QPSK 19175 25RB#0 5.48 13 PASS Band2 5MHz 16QAM 18625 25RB#0 6.35 13 PASS Band2 5MHz 16QAM 18900 25RB#0 6.49 13 PASS Band2 5MHz 16QAM 19175 25RB#0 6.26 13 PASS Band2 10MHz QPSK 18650 50RB#0 5.65 13 PASS Band2 10MHz QPSK 18900 50RB#0 5.71 13 PASS Band2 10MHz QPSK 19150 50RB#0 5.54 13 PASS Band2 10MHz 16QAM 18650 50RB#0 6.41 13 PASS Band2 10MHz 16QAM 18900 50RB#0 6.55 13 PASS Band2 10MHz 16QAM 19150 50RB#0 6.35 13 PASS Band2 15MHz QPSK 18675 75RB#0 5.97 13 PASS Band2 15MHz QPSK 18900 75RB#0 5.91 13 PASS Band2 15MHz QPSK 19125 75RB#0 5.74 13 PASS Band2 15MHz 16QAM 18675 75RB#0 6.52 13 PASS Band2 15MHz 16QAM 18900 75RB#0 6.55 13 PASS Band2 15MHz 16QAM 19125 75RB#0 6.38 13 PASS Band2 20MHz QPSK 18700 100RB#0 5.65 13 PASS Band2 20MHz QPSK 18900 100RB#0 5.65 13 PASS Band2 20MHz QPSK 19100 100RB#0 5.42 13 PASS Band2 20MHz 16QAM 18700 100RB#0 6.49 13 PASS Band2 20MHz 16QAM 18900 100RB#0 6.46 13 PASS Band2 20MHz 16QAM 19100 100RB#0 6.29 13 PASS FCCID: 2AV3I-MP130 2 / 80 Test Graphs Band2-1.4MHz-QPSK-18607-6RB#0 Band2-1.4MHz-QPSK-18900-6RB#0 Band2-1.4MHz-QPSK-19193-6RB#0 FCCID: 2AV3I-MP130 3 / 80 Band2-1.4MHz-16QAM-18607-6RB#0 Band2-1.4MHz-16QAM-18900-6RB#0 Band2-1.4MHz-16QAM-19193-6RB#0 FCCID: 2AV3I-MP130 4 / 80 Band2-3MHz-QPSK-18615-15RB#0 Band2-3MHz-QPSK-18900-15RB#0 Band2-3MHz-QPSK-19185-15RB#0 FCCID: 2AV3I-MP130 5 / 80 Band2-3MHz-16QAM-18615-15RB#0 Band2-3MHz-16QAM-18900-15RB#0 Band2-3MHz-16QAM-19185-15RB#0 FCCID: 2AV3I-MP130 6 / 80 Band2-5MHz-QPSK-18625-25RB#0 Band2-5MHz-QPSK-18900-25RB#0 Band2-5MHz-QPSK-19175-25RB#0 FCCID: 2AV3I-MP130 7 / 80 Band2-5MHz-16QAM-18625-25RB#0 Band2-5MHz-16QAM-18900-25RB#0 Band2-5MHz-16QAM-19175-25RB#0 FCCID: 2AV3I-MP130 8 / 80 Band2-10MHz-QPSK-18650-50RB#0 Band2-10MHz-QPSK-18900-50RB#0 Band2-10MHz-QPSK-19150-50RB#0 FCCID: 2AV3I-MP130 9 / 80 Band2-10MHz-16QAM-18650-50RB#0 Band2-10MHz-16QAM-18900-50RB#0 Band2-10MHz-16QAM-19150-50RB#0 FCCID: 2AV3I-MP130 10 / 80 Band2-15MHz-QPSK-18675-75RB#0 Band2-15MHz-QPSK-18900-75RB#0 Band2-15MHz-QPSK-19125-75RB#0 FCCID: 2AV3I-MP130 11 / 80 Band2-15MHz-16QAM-18675-75RB#0 Band2-15MHz-16QAM-18900-75RB#0 Band2-15MHz-16QAM-19125-75RB#0 FCCID: 2AV3I-MP130 12 / 80 Band2-20MHz-QPSK-18700-100RB#0 Band2-20MHz-QPSK-18900-100RB#0 Band2-20MHz-QPSK-19100-100RB#0 FCCID: 2AV3I-MP130 13 / 80 Band2-20MHz-16QAM-18700-100RB#0 Band2-20MHz-16QAM-18900-100RB#0 Band2-20MHz-16QAM-19100-100RB#0 FCCID: 2AV3I-MP130 14 / 80 FCCID: 2AV3I-MP130 15 / 80 Appendix B: 26dB Bandwidth and Occupied Bandwidth Test Result Band Bandwidth Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Band2 1.4MHz QPSK 18607 6RB#0 1.093 1.290 PASS Band2 1.4MHz QPSK 18900 6RB#0 1.088 1.300 PASS Band2 1.4MHz QPSK 19193 6RB#0 1.093 1.300 PASS Band2 1.4MHz 16QAM 18607 6RB#0 1.098 1.300 PASS Band2 1.4MHz 16QAM 18900 6RB#0 1.098 1.325 PASS Band2 1.4MHz 16QAM 19193 6RB#0 1.098 1.315 PASS Band2 3MHz QPSK 18615 15RB#0 2.686 2.910 PASS Band2 3MHz QPSK 18900 15RB#0 2.686 2.920 PASS Band2 3MHz QPSK 19185 15RB#0 2.696 2.920 PASS Band2 3MHz 16QAM 18615 15RB#0 2.676 2.910 PASS Band2 3MHz 16QAM 18900 15RB#0 2.676 2.920 PASS Band2 3MHz 16QAM 19185 15RB#0 2.676 2.900 PASS Band2 5MHz QPSK 18625 25RB#0 4.525 5.220 PASS Band2 5MHz QPSK 18900 25RB#0 4.525 5.200 PASS Band2 5MHz QPSK 19175 25RB#0 4.525 5.230 PASS Band2 5MHz 16QAM 18625 25RB#0 4.525 5.130 PASS Band2 5MHz 16QAM 18900 25RB#0 4.525 5.130 PASS Band2 5MHz 16QAM 19175 25RB#0 4.525 5.140 PASS Band2 10MHz QPSK 18650 50RB#0 8.985 10.233 PASS Band2 10MHz QPSK 18900 50RB#0 9.052 10.333 PASS Band2 10MHz QPSK 19150 50RB#0 9.018 10.233 PASS Band2 10MHz 16QAM 18650 50RB#0 8.985 10.133 PASS Band2 10MHz 16QAM 18900 50RB#0 8.985 10.100 PASS Band2 10MHz 16QAM 19150 50RB#0 9.018 10.067 PASS Band2 15MHz QPSK 18675 75RB#0 13.577 15.250 PASS Band2 15MHz QPSK 18900 75RB#0 13.577 15.300 PASS Band2 15MHz QPSK 19125 75RB#0 13.527 15.350 PASS Band2 15MHz 16QAM 18675 75RB#0 13.478 15.400 PASS Band2 15MHz 16QAM 18900 75RB#0 13.527 15.150 PASS Band2 15MHz 16QAM 19125 75RB#0 13.527 15.100 PASS Band2 20MHz QPSK 18700 100RB#0 18.037 20.067 PASS Band2 20MHz QPSK 18900 100RB#0 18.103 20.333 PASS Band2 20MHz QPSK 19100 100RB#0 18.037 20.067 PASS Band2 20MHz 16QAM 18700 100RB#0 18.17 20.000 PASS FCCID: 2AV3I-MP130 16 / 80 Band2 20MHz 16QAM 18900 100RB#0 18.037 20.067 PASS Band2 20MHz 16QAM 19100 100RB#0 18.103 20.067 PASS FCCID: 2AV3I-MP130 17 / 80 Test Graphs Band2-1.4MHz-QPSK-18607-6RB#0-1.093 Band2-1.4MHz-QPSK-18900-6RB#0-1.088 Band2-1.4MHz-QPSK-19193-6RB#0-1.093 FCCID: 2AV3I-MP130 18 / 80 Band2-1.4MHz-16QAM-18607-6RB#0-1.098 Band2-1.4MHz-16QAM-18900-6RB#0-1.098 Band2-1.4MHz-16QAM-19193-6RB#0-1.098 FCCID: 2AV3I-MP130 19 / 80 Band2-3MHz-QPSK-18615-15RB#0-2.686 Band2-3MHz-QPSK-18900-15RB#0-2.686 Band2-3MHz-QPSK-19185-15RB#0-2.696 FCCID: 2AV3I-MP130 20 / 80 Band2-3MHz-16QAM-18615-15RB#0-2.676 Band2-3MHz-16QAM-18900-15RB#0-2.676 Band2-3MHz-16QAM-19185-15RB#0-2.676 FCCID: 2AV3I-MP130 21 / 80 Band2-5MHz-QPSK-18625-25RB#0-4.525 Band2-5MHz-QPSK-18900-25RB#0-4.525 Band2-5MHz-QPSK-19175-25RB#0-4.525 FCCID: 2AV3I-MP130 22 / 80 Band2-5MHz-16QAM-18625-25RB#0-4.525 Band2-5MHz-16QAM-18900-25RB#0-4.525 Band2-5MHz-16QAM-19175-25RB#0-4.525 FCCID: 2AV3I-MP130 23 / 80 Band2-10MHz-QPSK-18650-50RB#0-8.985…

Text truncated - open the document above for the full version.

FCCID: 2AV3I-MP130 1 / 83 Appendix A: Peak-to-Average Ratio(CCDF) Test Result Band Bandwidth Modulation Channel RB Configuration Result(dB) Limit(dB) Verdict Band4 1.4MHz QPSK 19957 1RB#0 4.49 13 PASS Band4 1.4MHz QPSK 19957 6RB#0 4.90 13 PASS Band4 1.4MHz QPSK 20175 1RB#0 4.29 13 PASS Band4 1.4MHz QPSK 20175 6RB#0 4.90 13 PASS Band4 1.4MHz QPSK 20393 1RB#0 4.43 13 PASS Band4 1.4MHz QPSK 20393 6RB#0 5.10 13 PASS Band4 1.4MHz 16QAM 19957 1RB#0 5.59 13 PASS Band4 1.4MHz 16QAM 19957 6RB#0 5.77 13 PASS Band4 1.4MHz 16QAM 20175 1RB#0 5.22 13 PASS Band4 1.4MHz 16QAM 20175 6RB#0 5.94 13 PASS Band4 1.4MHz 16QAM 20393 1RB#0 5.51 13 PASS Band4 1.4MHz 16QAM 20393 6RB#0 5.86 13 PASS Band4 3MHz QPSK 19965 15RB#0 4.96 13 PASS Band4 3MHz QPSK 20175 15RB#0 4.96 13 PASS Band4 3MHz QPSK 20385 15RB#0 5.10 13 PASS Band4 3MHz 16QAM 19965 15RB#0 5.86 13 PASS Band4 3MHz 16QAM 20175 15RB#0 5.91 13 PASS Band4 3MHz 16QAM 20385 15RB#0 6.00 13 PASS Band4 5MHz QPSK 19975 25RB#0 4.93 13 PASS Band4 5MHz QPSK 20175 25RB#0 4.87 13 PASS Band4 5MHz QPSK 20375 25RB#0 5.07 13 PASS Band4 5MHz 16QAM 19975 25RB#0 5.91 13 PASS Band4 5MHz 16QAM 20175 25RB#0 5.77 13 PASS Band4 5MHz 16QAM 20375 25RB#0 6.06 13 PASS Band4 10MHz QPSK 20000 50RB#0 4.99 13 PASS Band4 10MHz QPSK 20175 50RB#0 4.81 13 PASS Band4 10MHz QPSK 20350 50RB#0 5.13 13 PASS Band4 10MHz 16QAM 20000 50RB#0 5.91 13 PASS Band4 10MHz 16QAM 20175 50RB#0 5.74 13 PASS Band4 10MHz 16QAM 20350 50RB#0 6.00 13 PASS Band4 15MHz QPSK 20025 75RB#0 5.13 13 PASS Band4 15MHz QPSK 20175 75RB#0 5.10 13 PASS Band4 15MHz QPSK 20325 75RB#0 5.10 13 PASS Band4 15MHz 16QAM 20025 75RB#0 6.00 13 PASS Band4 15MHz 16QAM 20175 75RB#0 5.97 13 PASS Band4 15MHz 16QAM 20325 75RB#0 5.94 13 PASS FCCID: 2AV3I-MP130 2 / 83 Band4 20MHz QPSK 20050 100RB#0 8.49 13 PASS Band4 20MHz QPSK 20175 100RB#0 8.46 13 PASS Band4 20MHz QPSK 20300 100RB#0 8.46 13 PASS Band4 20MHz 16QAM 20050 100RB#0 5.94 13 PASS Band4 20MHz 16QAM 20175 100RB#0 5.91 13 PASS Band4 20MHz 16QAM 20300 100RB#0 5.88 13 PASS FCCID: 2AV3I-MP130 3 / 83 Test Graphs Band4-1.4MHz-QPSK-19957-1RB#0 Band4-1.4MHz-QPSK-19957-6RB#0 Band4-1.4MHz-QPSK-20175-1RB#0 FCCID: 2AV3I-MP130 4 / 83 Band4-1.4MHz-QPSK-20175-6RB#0 Band4-1.4MHz-QPSK-20393-1RB#0 Band4-1.4MHz-QPSK-20393-6RB#0 FCCID: 2AV3I-MP130 5 / 83 Band4-1.4MHz-16QAM-19957-1RB#0 Band4-1.4MHz-16QAM-19957-6RB#0 Band4-1.4MHz-16QAM-20175-1RB#0 FCCID: 2AV3I-MP130 6 / 83 Band4-1.4MHz-16QAM-20175-6RB#0 Band4-1.4MHz-16QAM-20393-1RB#0 Band4-1.4MHz-16QAM-20393-6RB#0 FCCID: 2AV3I-MP130 7 / 83 Band4-3MHz-QPSK-19965-15RB#0 Band4-3MHz-QPSK-20175-15RB#0 Band4-3MHz-QPSK-20385-15RB#0 FCCID: 2AV3I-MP130 8 / 83 Band4-3MHz-16QAM-19965-15RB#0 Band4-3MHz-16QAM-20175-15RB#0 Band4-3MHz-16QAM-20385-15RB#0 FCCID: 2AV3I-MP130 9 / 83 Band4-5MHz-QPSK-19975-25RB#0 Band4-5MHz-QPSK-20175-25RB#0 Band4-5MHz-QPSK-20375-25RB#0 FCCID: 2AV3I-MP130 10 / 83 Band4-5MHz-16QAM-19975-25RB#0 Band4-5MHz-16QAM-20175-25RB#0 Band4-5MHz-16QAM-20375-25RB#0 FCCID: 2AV3I-MP130 11 / 83 Band4-10MHz-QPSK-20000-50RB#0 Band4-10MHz-QPSK-20175-50RB#0 Band4-10MHz-QPSK-20350-50RB#0 FCCID: 2AV3I-MP130 12 / 83 Band4-10MHz-16QAM-20000-50RB#0 Band4-10MHz-16QAM-20175-50RB#0 Band4-10MHz-16QAM-20350-50RB#0 FCCID: 2AV3I-MP130 13 / 83 Band4-15MHz-QPSK-20025-75RB#0 Band4-15MHz-QPSK-20175-75RB#0 Band4-15MHz-QPSK-20325-75RB#0 FCCID: 2AV3I-MP130 14 / 83 Band4-15MHz-16QAM-20025-75RB#0 Band4-15MHz-16QAM-20175-75RB#0 Band4-15MHz-16QAM-20325-75RB#0 FCCID: 2AV3I-MP130 15 / 83 Band4-20MHz-QPSK-20050-100RB#0 Band4-20MHz-QPSK-20175-100RB#0 Band4-20MHz-QPSK-20300-100RB#0 FCCID: 2AV3I-MP130 16 / 83 Band4-20MHz-16QAM-20050-100RB#0 Band4-20MHz-16QAM-20175-100RB#0 Band4-20MHz-16QAM-20300-100RB#0 FCCID: 2AV3I-MP130 17 / 83 FCCID: 2AV3I-MP130 18 / 83 Appendix B: 26dB Bandwidth and Occupied Bandwidth Test Result Band Bandwidth Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Band4 1.4MHz QPSK 19957 6RB#0 1.103 1.365 PASS Band4 1.4MHz QPSK 20175 6RB#0 1.103 1.310 PASS Band4 1.4MHz QPSK 20393 6RB#0 1.098 1.305 PASS Band4 1.4MHz 16QAM 19957 6RB#0 1.088 1.345 PASS Band4 1.4MHz 16QAM 20175 6RB#0 1.088 1.295 PASS Band4 1.4MHz 16QAM 20393 6RB#0 1.103 1.325 PASS Band4 3MHz QPSK 19965 15RB#0 2.705 2.990 PASS Band4 3MHz QPSK 20175 15RB#0 2.696 3.000 PASS Band4 3MHz QPSK 20385 15RB#0 2.705 2.990 PASS Band4 3MHz 16QAM 19965 15RB#0 2.696 2.990 PASS Band4 3MHz 16QAM 20175 15RB#0 2.696 3.000 PASS Band4 3MHz 16QAM 20385 15RB#0 2.696 3.000 PASS Band4 5MHz QPSK 19975 25RB#0 4.515 5.060 PASS Band4 5MHz QPSK 20175 25RB#0 4.515 5.050 PASS Band4 5MHz QPSK 20375 25RB#0 4.515 5.050 PASS Band4 5MHz 16QAM 19975 25RB#0 4.515 5.030 PASS Band4 5MHz 16QAM 20175 25RB#0 4.515 5.080 PASS Band4 5MHz 16QAM 20375 25RB#0 4.515 5.030 PASS Band4 10MHz QPSK 20000 50RB#0 8.985 10.500 PASS Band4 10MHz QPSK 20175 50RB#0 8.985 10.000 PASS Band4 10MHz QPSK 20350 50RB#0 8.952 10.000 PASS Band4 10MHz 16QAM 20000 50RB#0 8.985 11.400 PASS Band4 10MHz 16QAM 20175 50RB#0 8.985 9.967 PASS Band4 10MHz 16QAM 20350 50RB#0 8.985 9.867 PASS Band4 15MHz QPSK 20025 75RB#0 13.478 15.000 PASS Band4 15MHz QPSK 20175 75RB#0 13.478 15.000 PASS Band4 15MHz QPSK 20325 75RB#0 13.478 14.800 PASS Band4 15MHz 16QAM 20025 75RB#0 13.478 14.850 PASS Band4 15MHz 16QAM 20175 75RB#0 13.478 14.850 PASS Band4 15MHz 16QAM 20325 75RB#0 13.478 14.750 PASS Band4 20MHz QPSK 20050 100RB#0 18.037 19.867 PASS Band4 20MHz QPSK 20175 100RB#0 17.97 19.800 PASS Band4 20MHz QPSK 20300 100RB#0 18.037 19.867 PASS FCCID: 2AV3I-MP130 19 / 83 Band4 20MHz 16QAM 20050 100RB#0 18.037 19.867 PASS Band4 20MHz 16QAM 20175 100RB#0 18.103 19.867 PASS Band4 20MHz 16QAM 20300 100RB#0 18.037 19.800 PASS FCCID: 2AV3I-MP130 20 / 83 Test Graphs Band4-1.4MHz-QPSK-19957-6RB#0-1.103 Band4-1.4MHz-QPSK-20175-6RB#0-1.103 Band4-1.4MHz-QPSK-20393-6RB#0-1.098 FCCID: 2AV3I-MP130 21 / 83 Band4-1.4MHz-16QAM-19957-6RB#0-1.088 Band4-1.4MHz-16QAM-20175-6RB#0-1.088 Band4-1.4MHz-16QAM-20393-6RB#0-1.103 FCCID: 2AV3I-MP130 22 / 83 Band4-3MHz-QPSK-19965-15RB#0-2.705 Band4-3MHz-…

Text truncated - open the document above for the full version.

FCCID: 2AV3I-MP130 1 / 45 Appendix A: Peak-to-Average Ratio(CCDF) Test Result Band Bandwidth Modulation Channel RB Configuration Result(dB) Limit(dB) Verdict Band5 1.4MHz QPSK 20407 6RB#0 4.64 13 PASS Band5 1.4MHz QPSK 20525 6RB#0 4.84 13 PASS Band5 1.4MHz QPSK 20643 6RB#0 4.49 13 PASS Band5 1.4MHz 16QAM 20407 6RB#0 5.51 13 PASS Band5 1.4MHz 16QAM 20525 6RB#0 5.74 13 PASS Band5 1.4MHz 16QAM 20643 6RB#0 8.49 13 PASS Band5 3MHz QPSK 20415 15RB#0 4.70 13 PASS Band5 3MHz QPSK 20525 15RB#0 5.01 13 PASS Band5 3MHz QPSK 20635 15RB#0 4.67 13 PASS Band5 3MHz 16QAM 20415 15RB#0 5.62 13 PASS Band5 3MHz 16QAM 20525 15RB#0 5.80 13 PASS Band5 3MHz 16QAM 20635 15RB#0 5.51 13 PASS Band5 5MHz QPSK 20425 25RB#0 4.70 13 PASS Band5 5MHz QPSK 20525 25RB#0 4.87 13 PASS Band5 5MHz QPSK 20625 25RB#0 4.70 13 PASS Band5 5MHz 16QAM 20425 25RB#0 5.62 13 PASS Band5 5MHz 16QAM 20525 25RB#0 8.43 13 PASS Band5 5MHz 16QAM 20625 25RB#0 5.57 13 PASS Band5 10MHz QPSK 20450 50RB#0 4.70 13 PASS Band5 10MHz QPSK 20525 50RB#0 4.87 13 PASS Band5 10MHz QPSK 20600 50RB#0 4.78 13 PASS Band5 10MHz 16QAM 20450 50RB#0 5.62 13 PASS Band5 10MHz 16QAM 20525 50RB#0 5.83 13 PASS Band5 10MHz 16QAM 20600 50RB#0 8.49 13 PASS FCCID: 2AV3I-MP130 2 / 45 Test Graphs Band5-1.4MHz-QPSK-20407-6RB#0 Band5-1.4MHz-QPSK-20525-6RB#0 Band5-1.4MHz-QPSK-20643-6RB#0 FCCID: 2AV3I-MP130 3 / 45 Band5-1.4MHz-16QAM-20407-6RB#0 Band5-1.4MHz-16QAM-20525-6RB#0 Band5-1.4MHz-16QAM-20643-6RB#0 FCCID: 2AV3I-MP130 4 / 45 Band5-3MHz-QPSK-20415-15RB#0 Band5-3MHz-QPSK-20525-15RB#0 Band5-3MHz-QPSK-20635-15RB#0 FCCID: 2AV3I-MP130 5 / 45 Band5-3MHz-16QAM-20415-15RB#0 Band5-3MHz-16QAM-20525-15RB#0 Band5-3MHz-16QAM-20635-15RB#0 FCCID: 2AV3I-MP130 6 / 45 Band5-5MHz-QPSK-20425-25RB#0 Band5-5MHz-QPSK-20525-25RB#0 Band5-5MHz-QPSK-20625-25RB#0 FCCID: 2AV3I-MP130 7 / 45 Band5-5MHz-16QAM-20425-25RB#0 Band5-5MHz-16QAM-20525-25RB#0 Band5-5MHz-16QAM-20625-25RB#0 FCCID: 2AV3I-MP130 8 / 45 Band5-10MHz-QPSK-20450-50RB#0 Band5-10MHz-QPSK-20525-50RB#0 Band5-10MHz-QPSK-20600-50RB#0 FCCID: 2AV3I-MP130 9 / 45 Band5-10MHz-16QAM-20450-50RB#0 Band5-10MHz-16QAM-20525-50RB#0 Band5-10MHz-16QAM-20600-50RB#0 FCCID: 2AV3I-MP130 10 / 45 FCCID: 2AV3I-MP130 11 / 45 Appendix B: 26dB Bandwidth and Occupied Bandwidth Test Result Band Bandwidth Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Band5 1.4MHz QPSK 20407 6RB#0 1.098 1.310 PASS Band5 1.4MHz QPSK 20525 6RB#0 1.093 1.300 PASS Band5 1.4MHz QPSK 20643 6RB#0 1.093 1.315 PASS Band5 1.4MHz 16QAM 20407 6RB#0 1.103 1.310 PASS Band5 1.4MHz 16QAM 20525 6RB#0 1.098 1.300 PASS Band5 1.4MHz 16QAM 20643 6RB#0 1.098 1.310 PASS Band5 3MHz QPSK 20415 15RB#0 2.705 2.990 PASS Band5 3MHz QPSK 20525 15RB#0 2.715 2.990 PASS Band5 3MHz QPSK 20635 15RB#0 2.696 2.980 PASS Band5 3MHz 16QAM 20415 15RB#0 2.696 2.990 PASS Band5 3MHz 16QAM 20525 15RB#0 2.696 2.980 PASS Band5 3MHz 16QAM 20635 15RB#0 2.696 2.990 PASS Band5 5MHz QPSK 20425 25RB#0 4.515 5.070 PASS Band5 5MHz QPSK 20525 25RB#0 4.505 5.060 PASS Band5 5MHz QPSK 20625 25RB#0 4.515 5.050 PASS Band5 5MHz 16QAM 20425 25RB#0 4.505 5.020 PASS Band5 5MHz 16QAM 20525 25RB#0 4.525 5.050 PASS Band5 5MHz 16QAM 20625 25RB#0 4.515 5.080 PASS Band5 10MHz QPSK 20450 50RB#0 8.985 9.967 PASS Band5 10MHz QPSK 20525 50RB#0 9.018 10.033 PASS Band5 10MHz QPSK 20600 50RB#0 8.952 9.967 PASS Band5 10MHz 16QAM 20450 50RB#0 8.985 9.867 PASS Band5 10MHz 16QAM 20525 50RB#0 8.985 9…
