APP Bluetooth Controlling Marquee RGB Neon Lights User Manual Application Instructions • Any indoor space, for both residential and commercial spaces. Can be used outdoors but only in covered areas and in dry weather. The lights must be stored indoors. Features of the Light • The main body of the light is made of steel sheet and RGB neon silicon strip. • Whole set of the light is FCC and SAA approved. • The light can be hung on the wall using the key hole or placed on a flat surface to stand alone. Usage of Light • Do not attempt to adjust or change any part of the structure. • The light should not be placed in a location where it be easily knocked over. • neon light input voltage is 12V, so 12V adaptor is needed. Each adaptor (100W) can drive max 2pc letters together. It means you could use 1 adaptor to operate 1 letter or 2 letter, can’t dive 3 letter or more at same time. Usage of Bluetooth LED Controller Operation Instruction Each light has a Bluetooth controller inside as below image. 1. Features: • Long distance APP remote control via Bluetooth; • With 18 kinds of effects; • User setting saving; 2. Download and install the APP: • Both IOS version and Android OS version are available. (hardware should support Bluetooth) • Requires IOS version 10.0 or later; • Requires Android OS version 4.4 or later; • Search “LED Chord” in App Store or Google Play or scan this QR code to download and install the APP: 3. APP Operating: • Make sure you have turn on Bluetooth on your phone; • Open the APP, drag to refresh the device list, select device name “SP107E” to connect the controller, once connected you will able to rename your controller; 3. choose WS2811 RGB type 4. Adjust pixel number to ensure pixel is more 300 5.Press ENTER. &tĂƌŶŝŶŐ^ƚĂƚĞŵĞŶƚŚĂŶŐĞƐŽƌŵŽĚŝĨŝĐĂƚŝŽŶƐŶŽƚĞdžƉƌĞƐƐůLJĂƉƉƌŽǀĞĚďLJƚŚĞƉĂƌƚLJƌĞƐƉŽŶƐŝďůĞĨŽƌĐŽŵƉůŝĂŶĐĞĐŽƵůĚǀŽŝĚƚŚĞƵƐĞƌ͛ƐĂƵƚŚŽƌŝƚLJƚŽŽƉĞƌĂƚĞƚŚĞĞƋƵŝƉŵĞŶƚ͘dŚŝƐĞƋƵŝƉŵĞŶƚŚĂƐďĞĞŶƚĞƐƚĞĚ ĂŶĚĨŽƵŶĚƚŽĐŽŵƉůLJǁŝƚŚƚŚĞůŝŵŝƚƐĨŽƌĂůĂƐƐĚŝŐŝƚĂůĚĞǀŝĐĞ͕ƉƵƌƐƵĂŶƚƚŽWĂƌƚϭρŽĨƚŚĞ&ZƵůĞƐ͘dŚĞƐĞůŝŵŝƚƐĂƌĞĚĞƐŝŐŶĞĚƚŽƉƌŽǀŝĚĞƌĞĂƐŽŶĂďůĞƉƌŽƚĞĐƚŝŽŶĂŐĂŝŶƐƚŚĂƌŵĨƵů ŝŶƚĞƌĨĞƌĞŶĐĞŝŶĂƌĞƐŝĚĞŶƚŝĂůŝŶƐƚĂůůĂƚŝŽŶ͘dŚŝƐĞƋƵŝƉŵĞŶƚŐĞŶĞƌĂƚĞƐƵƐĞƐĂŶĚĐĂŶƌĂĚŝĂƚĞƌĂĚŝŽĨƌĞƋƵĞŶĐLJĞŶĞƌŐLJĂŶĚ͕ŝĨŶŽƚŝŶƐƚĂůůĞĚĂŶĚƵƐĞĚŝŶĂĐĐŽƌĚĂŶĐĞǁŝƚŚƚŚĞŝŶƐƚƌƵĐƚŝŽŶƐ͕ ŵĂLJĐĂƵƐĞŚĂƌŵĨƵůŝŶƚĞƌĨĞƌĞŶĐĞƚŽƌĂĚŝŽĐŽŵŵƵŶŝĐĂƚŝŽŶƐ͘,ŽǁĞǀĞƌ͕ƚŚĞƌĞŝƐŶŽŐƵĂƌĂŶƚĞĞƚŚĂƚŝŶƚĞƌĨĞƌĞŶĐĞǁŝůůŶŽƚŽĐĐƵƌŝŶĂƉĂƌƚŝĐƵůĂƌŝŶƐƚĂůůĂƚŝŽŶ͘/ĨƚŚŝƐĞƋƵŝƉŵĞŶƚĚŽĞƐĐĂƵƐĞ ŚĂƌŵĨƵůŝŶƚĞƌĨĞƌĞŶĐĞƚŽƌĂĚŝŽŽƌƚĞůĞǀŝƐŝŽŶƌĞĐĞƉƚŝŽŶ͕ǁŚŝĐŚĐĂŶďĞĚĞƚĞƌŵŝŶĞĚďLJƚƵƌŶŝŶŐƚŚĞĞƋƵŝƉŵĞŶƚŽĨĨĂŶĚŽŶ͕ƚŚĞƵƐĞƌŝƐĞŶĐŽƵƌĂŐĞĚƚŽƚƌLJƚŽĐŽƌƌĞĐƚƚŚĞŝŶƚĞƌĨĞƌĞŶĐĞďLJŽŶĞ ŽƌŵŽƌĞŽĨƚŚĞĨŽůůŽǁŝŶŐŵĞĂƐƵƌĞƐ͗ ϋϋZĞŽƌŝĞŶƚŽƌƌĞůŽĐĂƚĞƚŚĞƌĞĐĞŝǀŝŶŐĂŶƚĞŶŶĂ͘ ϋϋ/ ŶĐƌĞĂƐĞƚŚĞƐĞƉĂƌĂƚŝŽŶďĞƚǁĞĞŶƚŚĞĞƋƵŝƉŵĞŶƚĂŶĚƌĞĐĞŝǀĞƌ͘ ϋϋŽŶŶĞĐƚƚŚĞĞƋƵŝƉŵĞŶƚŝŶƚŽĂŶŽƵƚůĞƚŽŶĂĐŝƌĐƵŝƚĚŝĨĨĞƌĞŶƚĨƌŽŵƚŚĂƚƚŽǁŚŝĐŚƚŚĞƌĞĐĞŝǀĞƌŝƐĐŽŶŶĞĐƚĞĚ͘ ϋϋŽŶƐƵůƚƚŚĞĚĞĂůĞƌŽƌĂŶĞdžƉĞƌŝĞŶĐĞĚƌĂĚŝŽͬdsƚĞĐŚŶŝĐŝĂŶĨŽƌŚĞůƉ͘ dŚŝƐĚĞǀŝĐĞĐŽŵƉůŝĞƐǁŝƚŚƉĂƌƚϭρŽĨƚŚĞ&ZƵůĞƐ͘KƉĞƌĂƚŝŽŶŝƐƐƵďũĞĐƚƚŽƚŚĞĨŽůůŽǁŝŶŐƚǁŽĐŽŶĚŝƚŝŽŶƐ͗;ϭͿdŚŝƐĚĞǀŝĐĞŵĂLJŶŽƚĐĂƵƐĞŚĂƌŵĨƵůŝŶƚĞƌĨĞƌĞŶĐĞ͕ĂŶĚ;ϮͿƚŚŝƐĚĞǀŝĐĞ ŵƵƐƚĂĐĐĞƉƚĂŶLJŝŶƚĞƌĨĞƌĞŶĐĞƌĞĐĞŝǀĞĚ͕ŝŶĐůƵĚŝŶŐŝŶƚĞƌĨĞƌĞŶĐĞƚŚĂƚŵĂLJĐĂƵƐĞƵŶĚĞƐŝƌĞĚŽƉĞƌĂƚŝŽŶ͘

Fushun Lusheng Machine Co., Ltd. Agent Authorization Company: Fushun Lusheng Machine Co., Ltd. Address: D2 Huashan Industrial Park, Fushun, China Product Name: Lighting letter Model Number(s ): WOWORK-220-5, WOWORK-220-X(X can be “6-70”) Product Description: Lighting letter We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: April. 08, 2020 Name: Wei Ding Title: Manager Company: Fushun Lusheng Machine Co., Ltd.

Fushun Lusheng Machine Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: April. 08, 2020 Subject; Request for Confidentiality FCC ID: 2AV4N-WOWORK To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wei Ding Title: Manager

Model Difference Declaration To Whom It May Concern, We, Fushun Lusheng Machine Co., Ltd.(Lighting letter) Trademark:N/A; Model Number: WOWORK-220-5, WOWORK-220-X(X can be “6-70”) ;All model’s the function, software and electric circuit are the same, only with a product color and model named different for commercial purpose. Test sample model: WOWORK-220-5. Please contact me if you have any question. Name: Wei Ding Date: April. 08, 2020 Title: Manager Signature of applicant:

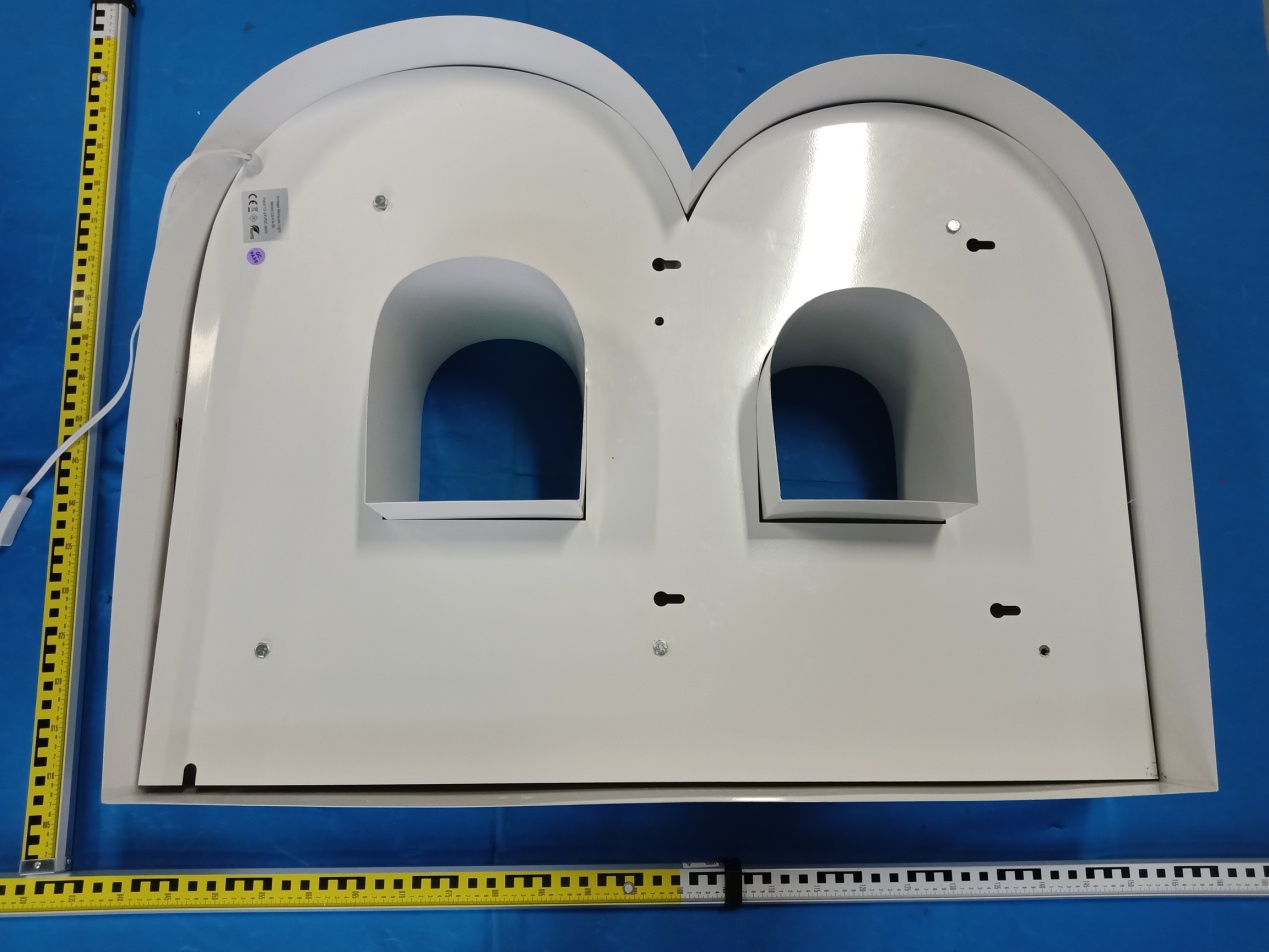

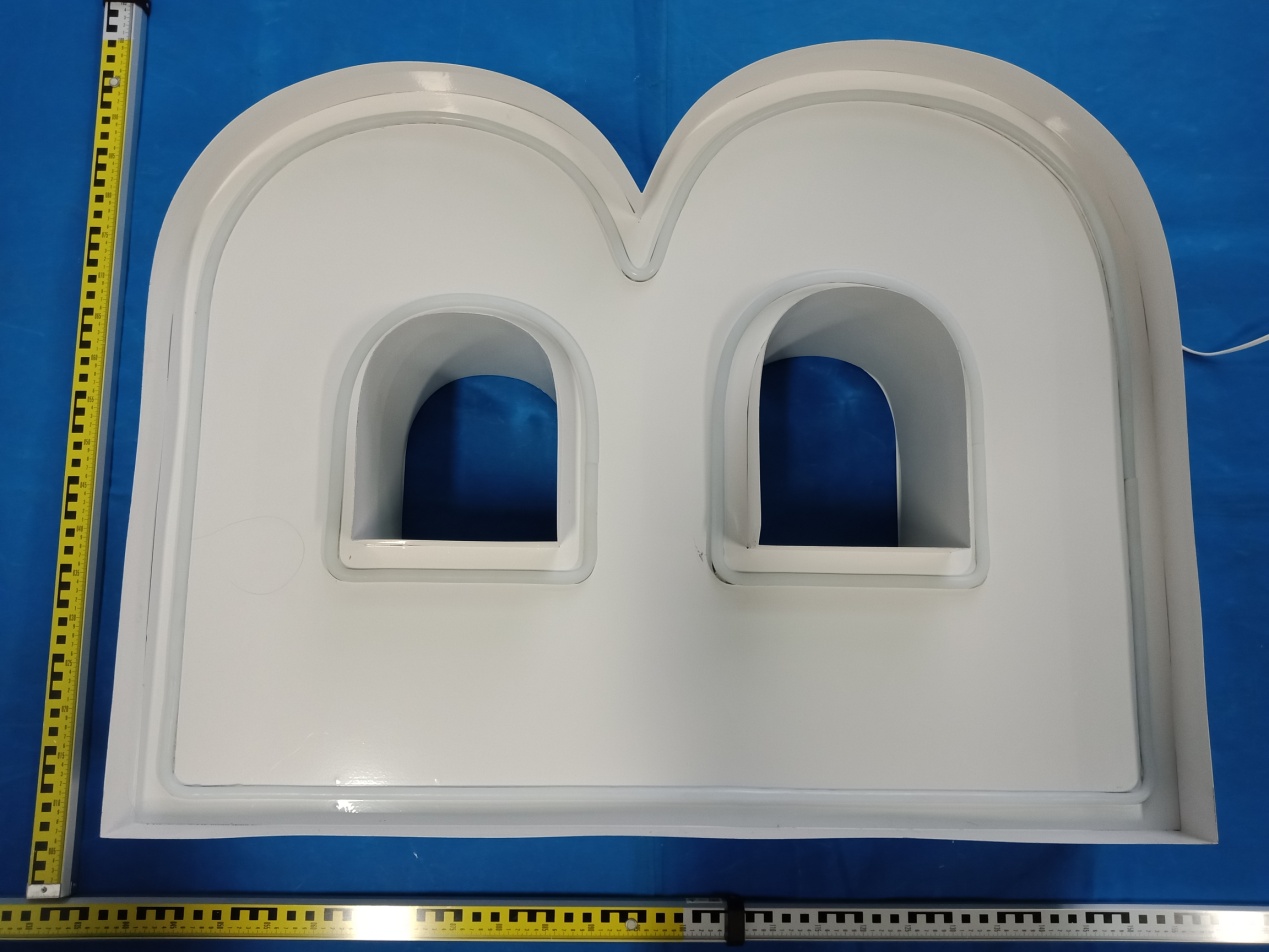

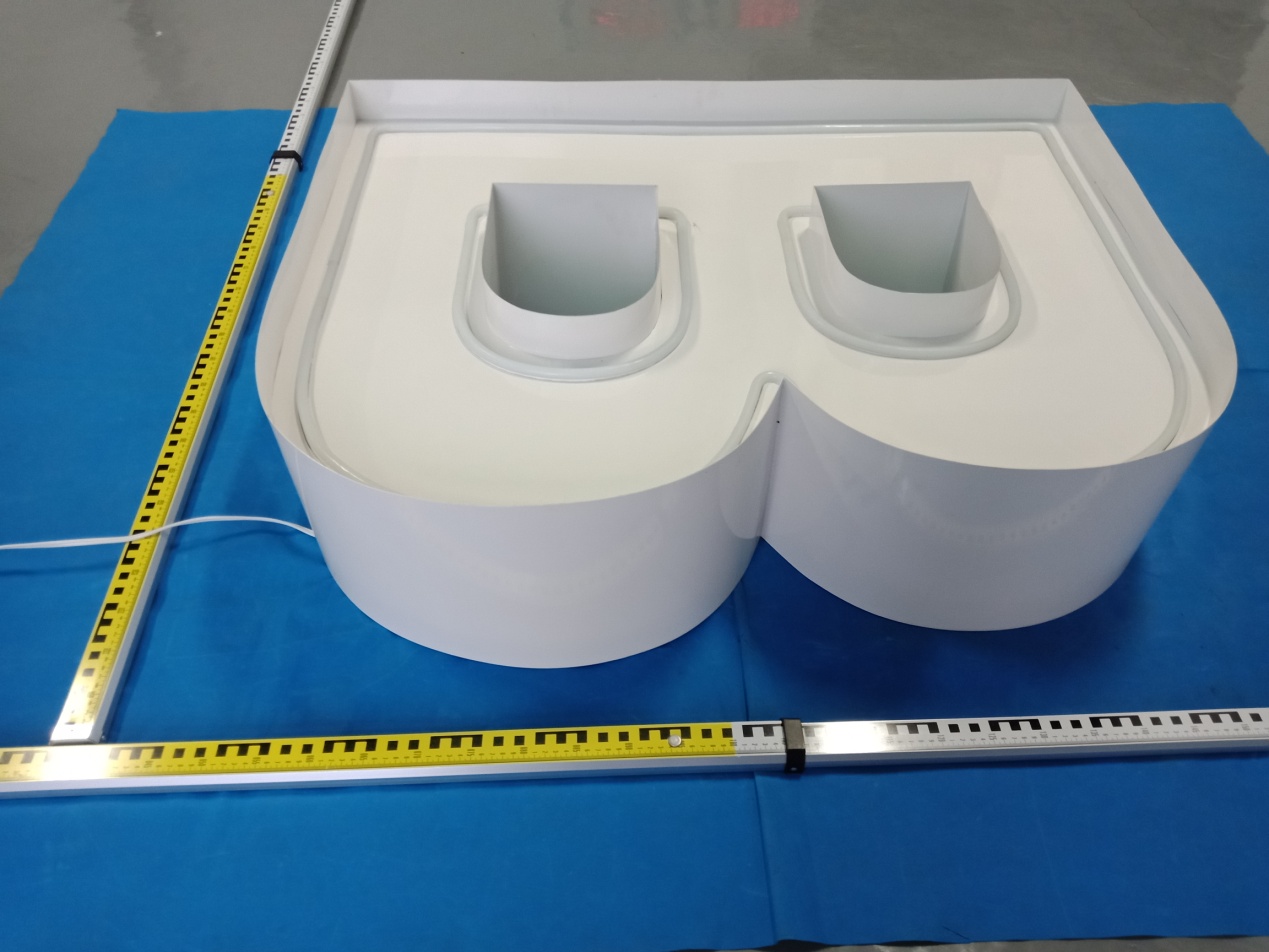

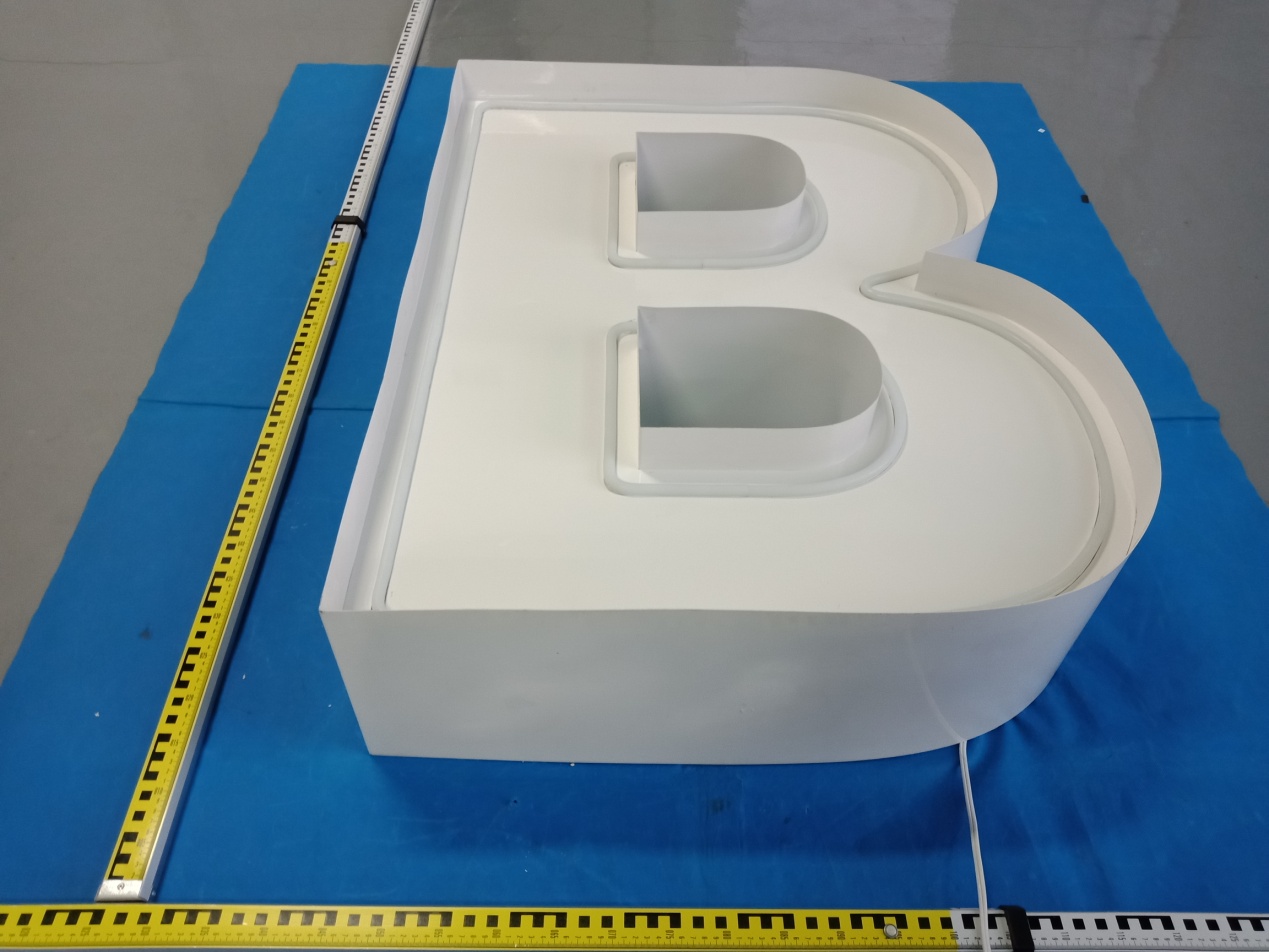

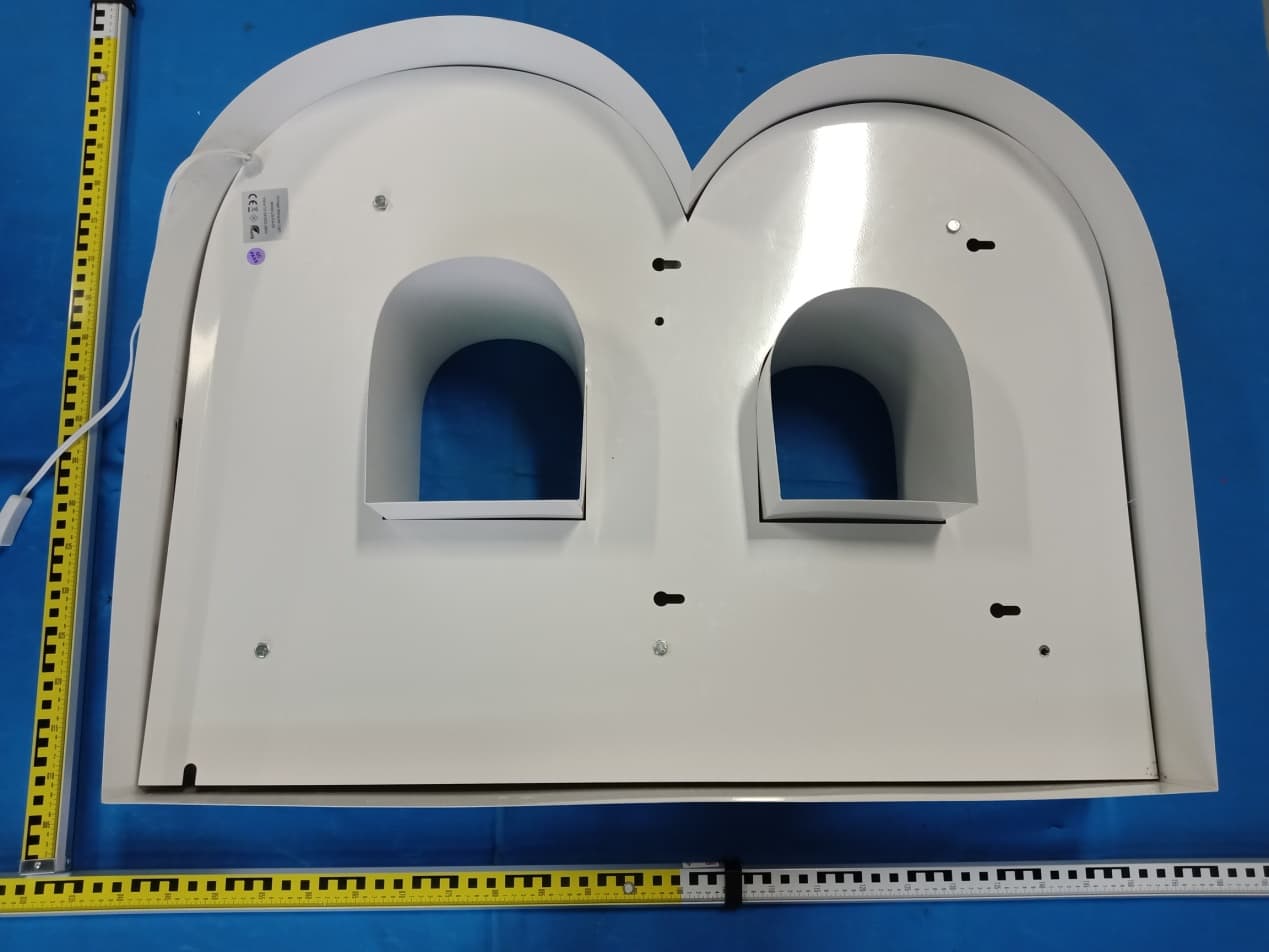

Annex A External Photos Report No.: HK2003020233-E Page 1 of 4 Report No.: HK2003020233-E Page 2 of 4 Report No.: HK2003020233-E Page 3 of 4 Report No.: HK2003020233-E Page 4 of 4

FCC ID LABEL: Label Location Width: 2cm Long: 4cm FCC ID: 2AV4N-WOWORK Product name: Lighting letter Model No.:WOWORK-220-5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

Annex B Internal Photo Report No.: HK2003020233-E Page 1 of 9 Report No.: HK2003020233-E Page 2 of 9 Report No.: HK2003020233-E Page 3 of 9 Report No.: HK2003020233-E Page 4 of 9 Report No.: HK2003020233-E Page 5 of 9 Report No.: HK2003020233-E Page 6 of 9 Report No.: HK2003020233-E Page 7of 9 Report No.: HK2003020233-E Page 8 of 9 Antenna Report No.: HK2003020233-E Page 9 of 9

Page 1 of 26 Report No.: HK2003020233-E FCC TEST REPORT Test report On Behalf of Fushun Lusheng Machine Co., Ltd. For Lighting letter Model No.: WOWORK-220-5, WOWORK-220-X(X can be “6-70”) FCC ID: 2AV4N-WOWORK Prepared for : Fushun Lusheng Machine Co., Ltd. D2 Huashan Industrial Park, Fushun, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Feb. 26, 2020 ~ Mar. 04, 2020 Date of Report: Mar. 04, 2020 Report Number: HK2003020233-E Page 2 of 26 Report No.: HK2003020233-E TEST RESULT CERTIFICATION Applicant’s name ................. : Fushun Lusheng Machine Co., Ltd. Address ................................. : D2 Huashan Industrial Park, Fushun, China Manufacture's Name ............ : Fushun Lusheng Machine Co., Ltd. Address ................................. : D2 Huashan Industrial Park, Fushun, China Product description Trade Mark: WOWORK Product name ........................... : Lighting letter Model and/or type reference : WOWORK-220-5, WOWORK-220-X(X can be “6-70”) Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.249 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Feb. 26, 2020 ~ Mar. 04, 2020 Date of Issue ........................................... : Mar. 04, 2020 Test Result .............................................. : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 26 Report No.: HK2003020233-E Table of Contents Page 1 . TEST SUMMARY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 Carrier Frequency of Channels 6 2.3 Operation of EUT during testing 6 2.4 DESCRIPTION OF TEST SETUP 6 2.5 MEASUREMENT INSTRUMENTS LIST 7 3 . CONDUCTED EMISSIONS TEST 8 3.1 Conducted Power Line Emission Limit 8 3.2 Test Setup 8 3.3 Test Procedure 8 3.4 Test Result 9 4 RADIATED EMISSION TEST 11 4.1 Radiation Limit 11 4.2 Test Setup 11 4.3 Test Procedure 12 4.4 Test Result 12 5 BAND EDGE 18 5.1 Limits 18 5.2 Test Procedure 18 5.3 Test Result 19 6 OCCUPIED BANDWIDTH MEASUREMENT 21 6.1 Test Setup 21 6.2 Test Procedure 21 6.3 Measurement Equipment Used 21 6.4 Test Result 21 7 ANTENNA REQUIREMENT 23 8 PHOTOGRAPH OF TEST 24 8.1 Radiated Emission 24 8.2 Conducted Emission 25 9 PHOTOS OF THE EUT 26 Page 4 of 26 Report No.: HK2003020233-E 1. TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS DESCRIPTION OF TEST RESULT CONDUCTED EMISSIONS TEST 15.207 COMPLIANT RADIATED EMISSION TEST 15.249(a) /15.209 COMPLIANT BAND EDGE 15.249(d)/15.205 COMPLIANT OCCUPIED BANDWIDTH MEASUREMENT 15.215（c） COMPLIANT ANTENNA REQUIREMENT 15.203 COMPLIANT 1.2 TEST FACILITY Test Firm ： Shenzhen HUAK Testing Technology Co., Ltd. Address ： 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China 1.3 MEASUREMENT UNCERTAINTY Measurement Uncertainty Conducted Emission Expanded Uncertainty = 2.23dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.08dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz) = 4.42dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.06dB, k=2 Page 5 of 26 Report No.: HK2003020233-E 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Lighting letter Model Name WOWORK-220-5 Serial Model WOWORK-220-X(X can be "6-70") Model Difference All model’s the function, software and electric circuit are the same, only with a product color and model named different. Test sample model: WOWORK-220-5 FCC ID 2AV4N-WOWORK Antenna Type PCB Antenna Antenna Gain 0 dBi Equipment Lighting letter Operation frequency 2402-2480MHz Number of Channels 40CH Modulation Type GFSK Power Source AC 120V/60Hz Power Rating AC 120V/60Hz Page 6 of 26 Report No.: HK2003020233-E 2.2 Carrier Frequency of Channels Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 01 2402 11 2422 21 2442 31 2462 02 2404 12 2424 22 2444 32 2464 03 2406 13 2426 23 2446 33 2466 04 2408 14 2428 24 2448 34 2468 05 2410 15 2430 25 2450 35 2470 06 2412 16 2432 26 2452 36 2472 07 2414 17 2434 27 2454 37 2474 08 2416 18 2436 28 2456 38 2476 09 2418 19 2438 29 2458 39 2478 10 2420 20 2440 30 2460 40 2480 2.3 Operation of EUT during testing Operating Mode The mode is used: Transmitting mode Low Channel: 2402MHz Middle Channel: 2440MHz High Channel: 2480MHz 2.4 DESCRIPTION OF TEST SETUP Operation of EUT during testing: AC Plug The sample was placed (0.1m below 1GHz, 0.1m above 1GHz) above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. The worst case is X position EUT Page 7 of 26 Report No.: HK2003020233-E 2.5 MEASUREMENT INSTRUMENTS LIST Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. L.I.S.N. Artificial Mains Network R&S ENV216 HKE-002 Dec. 26, 2019 1 Year 2. Receiver R&S ESCI 7 HKE-010 Dec. 26, 2019 1 Year 3. RF automatic control unit Tonscend JS0806-2 HKE-060 Dec. 26, 2019…
