MINI Bluetooth Speaker User Manual 1.Speaker 3.Hole for mic 5.Micro USB socket 7.Hole for cord 2.Color LED indincator 4.Charging LED indicator 6.On/Off button Charging the battery: 1.lnsert the charging cable into the Micro USB input port,connect the USB plug into 5V USB power terminal. The charging LED indicator will turn on. 2.After charging compeleted,the LED indicator will turn off. Note: When music sound becomes smaller and you hear the warning tone, please charge this speaker in time. Bluetooth pairing for music/phone call Power on two M003. Double press” ”oon one M003. Connected prompts are heard once the speakers are paired successfully. After the first pairing,the M003 will\automatically connect when you turn them both on. 2. Turn in your device and activate the Bluetooth function. 3. Search for Bluetooth pairing name“M003"and click to pair,the speaker will pair automatically and the speaker will have a voice prompt, the blue indicator will light on. Then, you just need to press " " button to answer the call when the call is coming or press for play/pause. 4. Turn off the speaker by pressing " " burron for 4 seconds and the speaker will have a voice prompt. NOTE: When you can't play the music, please refresh the Bluetooth connection. Specification: Power Rating Frequency Response THD S/N Speaker Parameter Battery Bluetooth Version Product Size Product Weight 3W 20HZ=20KHZ <1% ≥80DB 4Ω 3W diameter 36mm 3.7V/450mAh Bluetooth V5.0 Φ50X33mm 70g 1 234567 1. a. Turn on the speaker by pressing” “button for 3 seconds.The speaker will have a voice prompt and blue indicator will flash. b. Stereo mode (only for two speakers): 迷你蓝牙音箱 使用手册 1.扬声器 3.麦克风孔 5.微型 USB 插座 7.绳子的孔 2.彩色 LED 显示器 4.充电 LED 指示灯 6.开 / 关按钮 给电池充电: 1. 将充电电缆插入 Micro USB 输入端口，将 USB 插头连接到5V USB 电源终端。 充电的 LED 指示灯将会打开。 2. 充电完成后，LED 指示灯将关闭。 注意: 当音乐声音变小，听到警告音时，请及时给扬声器充电。 规格: 功率等级 频率响应 THD S/N 扬声器参数 电池 蓝牙版本 产品尺寸 产品重量 3W 20HZ=20KHZ <1% ≥80DB 4Ω 3W diameter 36mm 3.7V/450mAh Bluetooth V5.0 Φ50X33mm 70g 1.按下“按钮”3秒钟打开扬声器。扬声器将有一个语音提示和蓝色指示灯将闪烁。 立体声模式(只为两个扬声器)：电源对两个M003。双按“ ”通过一个M003。一旦 说话者成功配对，就会听到连接的提示。在第一组配对之后，当你打开它们时，M003 会自动连接。 2.打开你的设备并激活蓝牙功能。 3. 搜索蓝牙配对名称“ M003”并点击配对，扬声器将自动配对，扬声器将有一个 语音提示，蓝色指示灯将亮起。 然后，你只需要按下“ ”按钮来接听电话，或按播放 / 暂停键。 4. 按“ ”键关闭扬声器4秒钟，扬声器就会有一个语音提示。 注意: 当您无法播放音乐时，请刷新蓝牙连接。 1 234567 音乐/电话蓝牙配对 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment The devices has been evaluated to meet general RF exposure requirement， the device can be used in portable exposure condition with restriction

Model difference declaration letter Differences Description We DONGGUAN MANSI ELECTRONICS CO., LTD. state: Product： Bluetooth Speaker Wireless Speaker Model Name： M003,M3,M01,M7,U3,M9,U10,M10,U8,U9 Trade Name: NA The electrical circuit design, layout, components used and internal wiring for above models are identical, only different in model name and appearance. Signatory Date: 2020-04-15 Signature Name: Sam Zhou Title: Manager Company: DONGGUAN MANSI ELECTRONICS CO.,LTD. Address: 2/F,Building B,No.2,Shuixin Industrial 1st Road,Youganpu,Fenggang,Dongguan,China

DONGGUAN MANSI ELECTRONICS CO.,LTD. (April 15. 2020) MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR EUT: Bluetooth Speaker Wireless Speaker Model: M003, M3, M01, M7, U3, M9, U10, M10, U8, U9 FCC ID: 2AV56-M003 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the -Schematic -Block diagram -Operation description required to be submitted with this application be permanently withheld from public review. the above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely, Signature Name: Sam Zhou Title: Manager Company: DONGGUAN MANSI ELECTRONICS CO.,LTD. Address: 2/F,Building B,No.2,Shuixin Industrial 1st Road,Youganpu,Fenggang,Dongguan,China

DONGGUAN MANSI ELECTRONICS CO.,LTD. (April 15. 2020) Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Flux Compliance Service Laboratory to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature Name: Sam Zhou Title: Manager Company: DONGGUAN MANSI ELECTRONICS CO.,LTD. Address: 2/F,Building B,No.2,Shuixin Industrial 1st Road,Youganpu,Fenggang,Dongguan,China

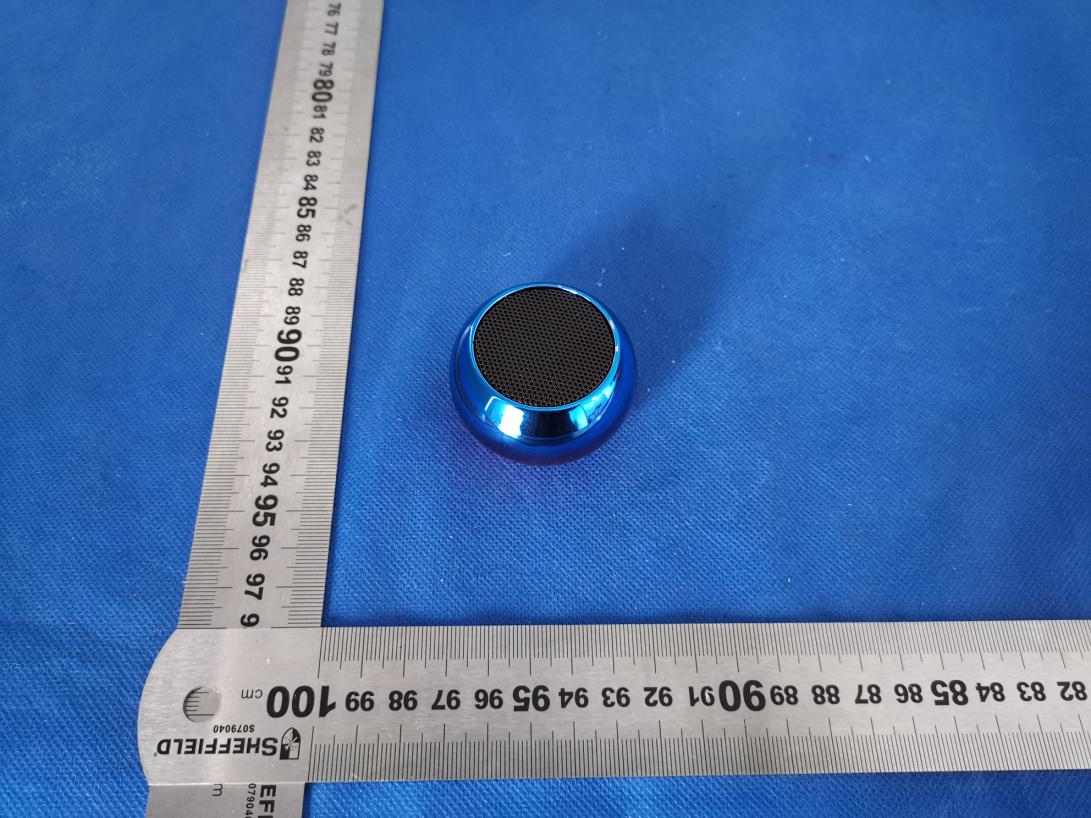

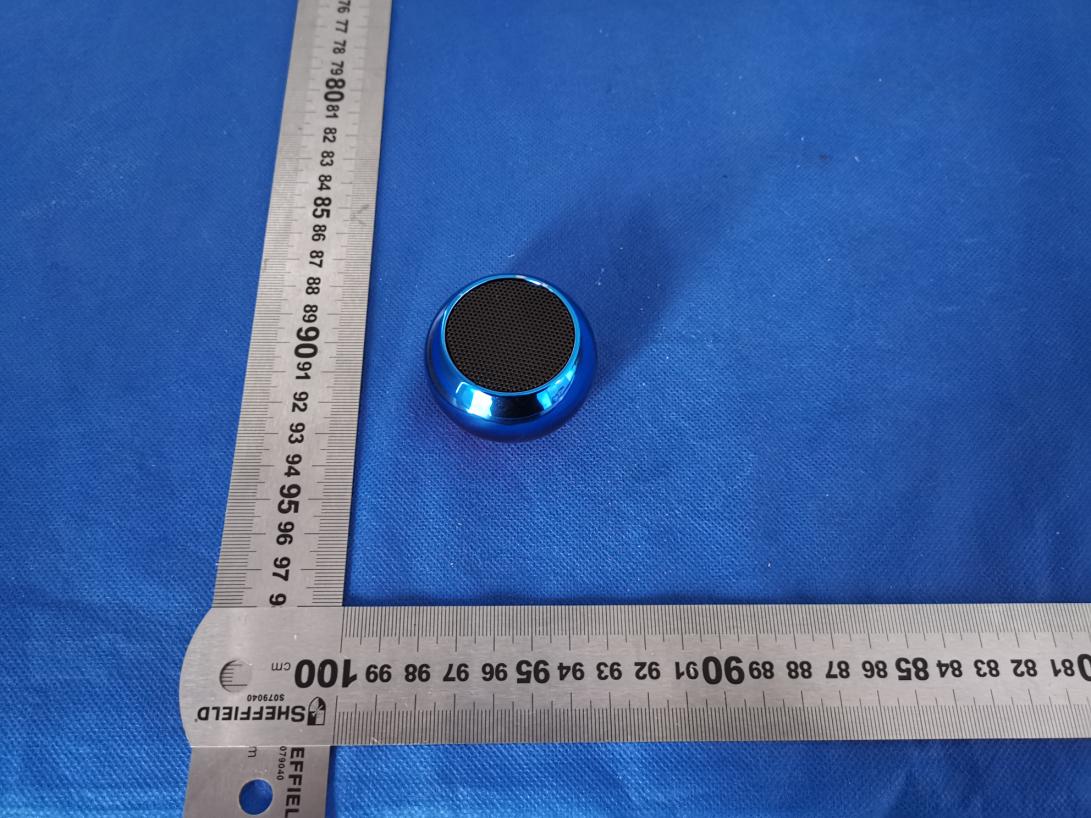

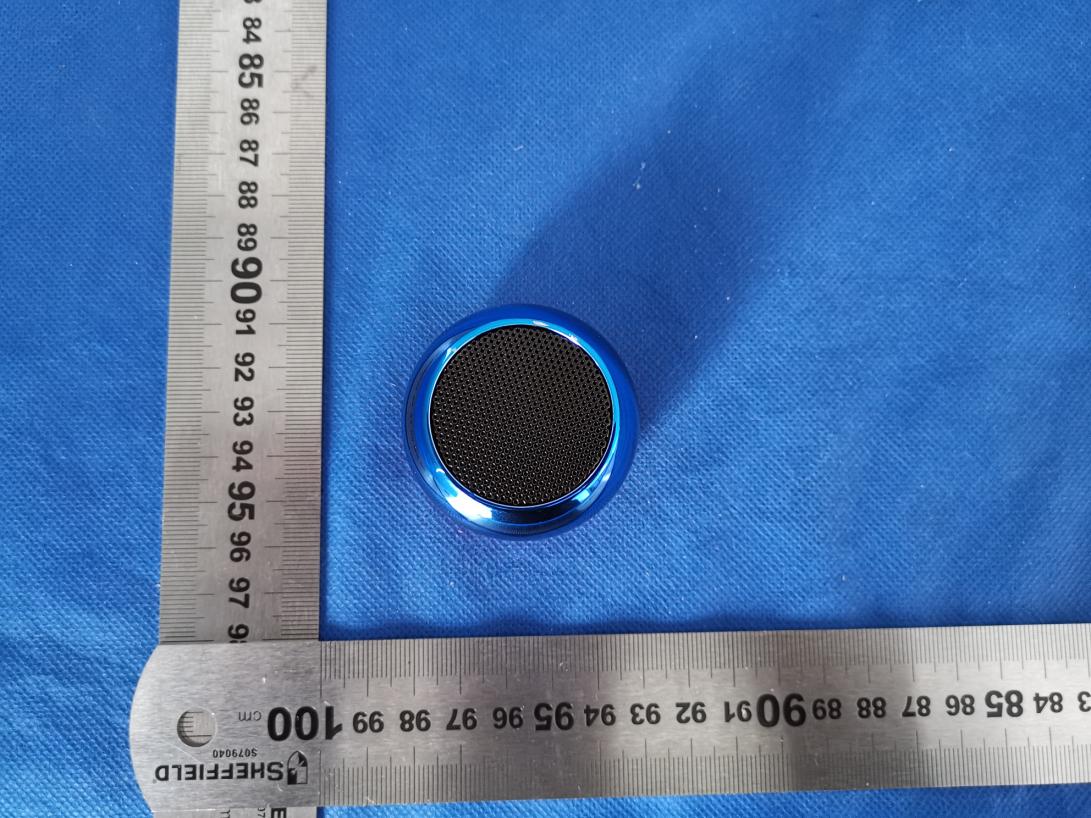

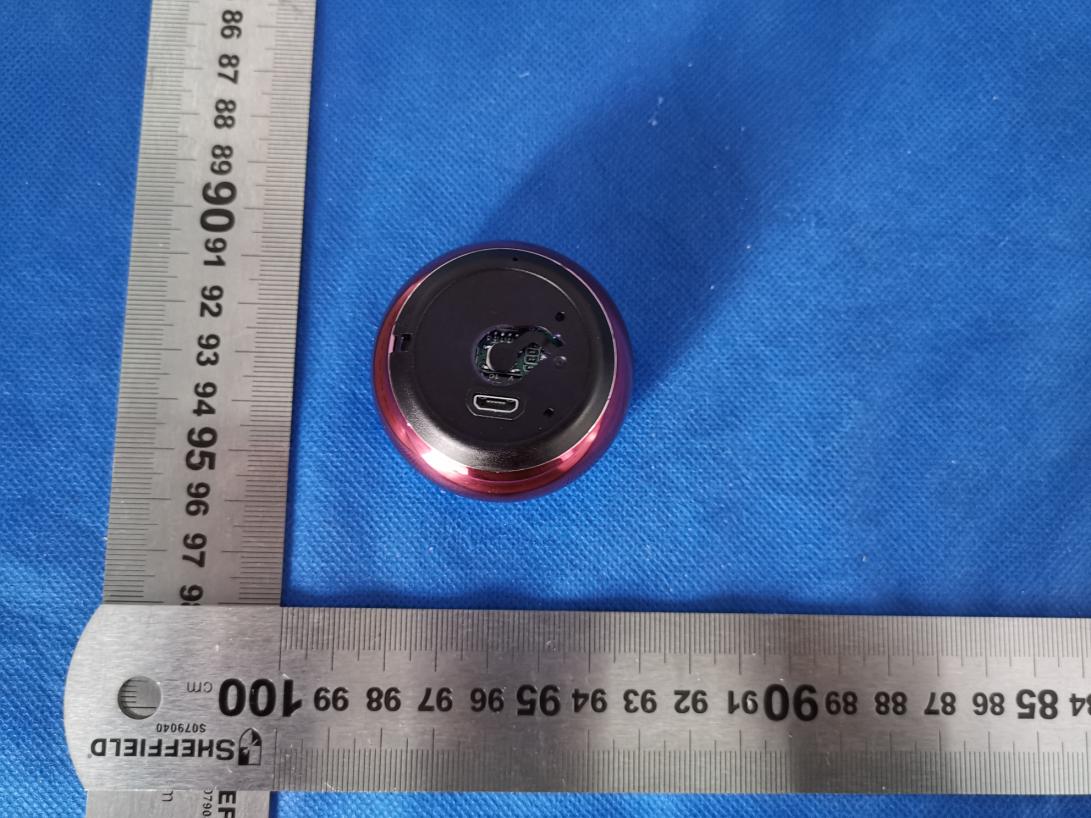

External photos Photo 1 Photo 2 Photo3 Photo4 Photo5 Photo6
