2AV6Y-ASIUR-PC101Tablet PC

FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

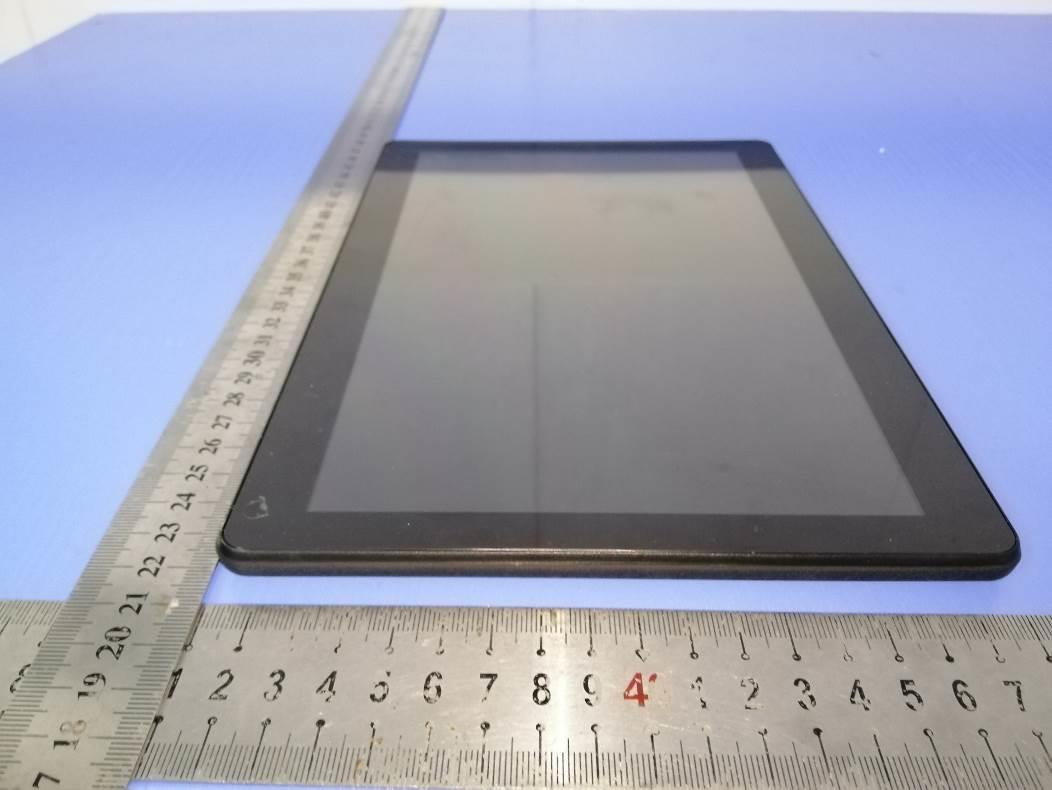

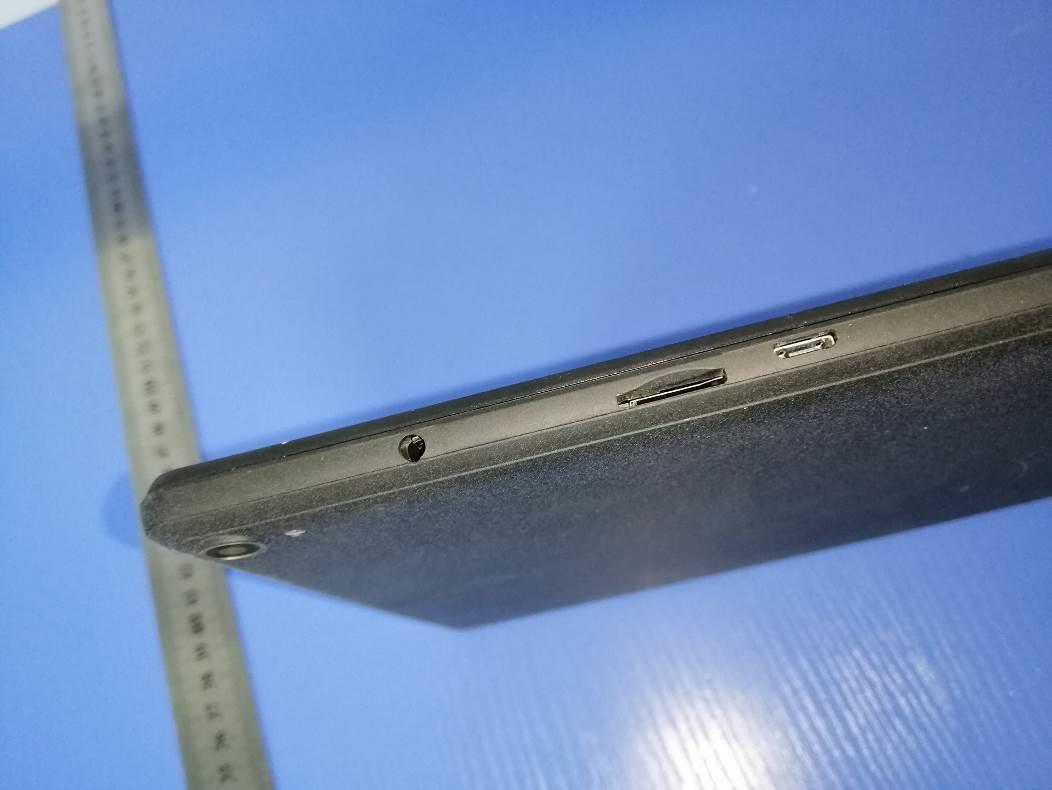

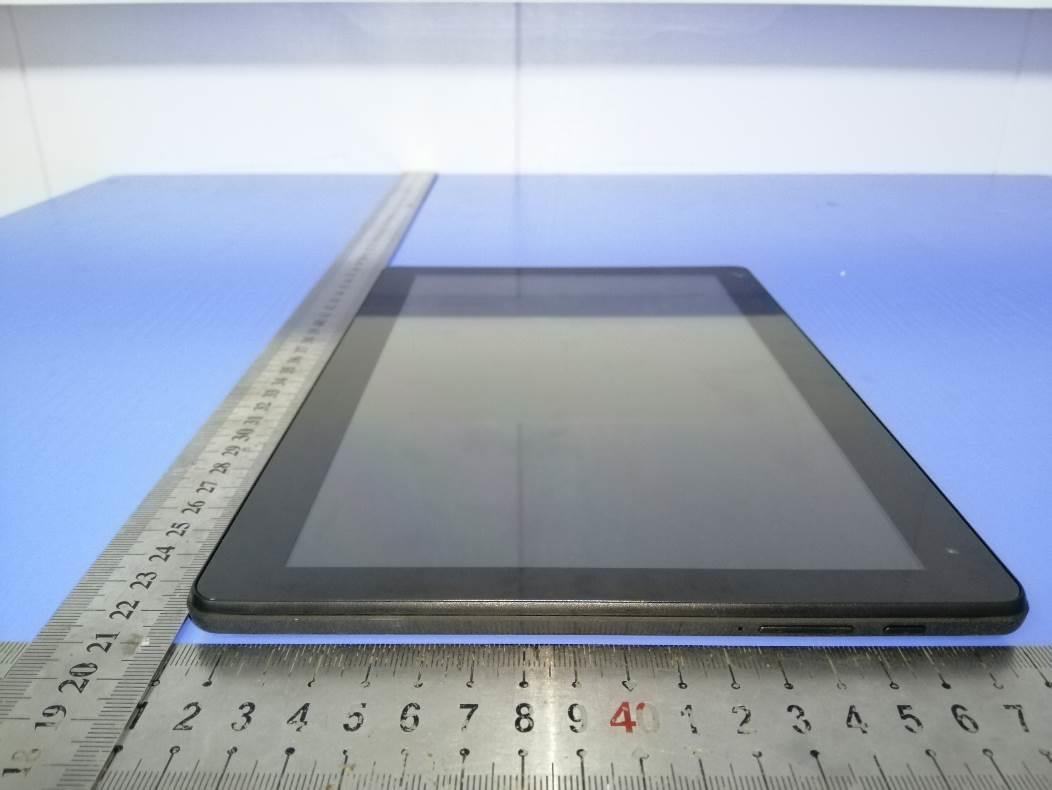

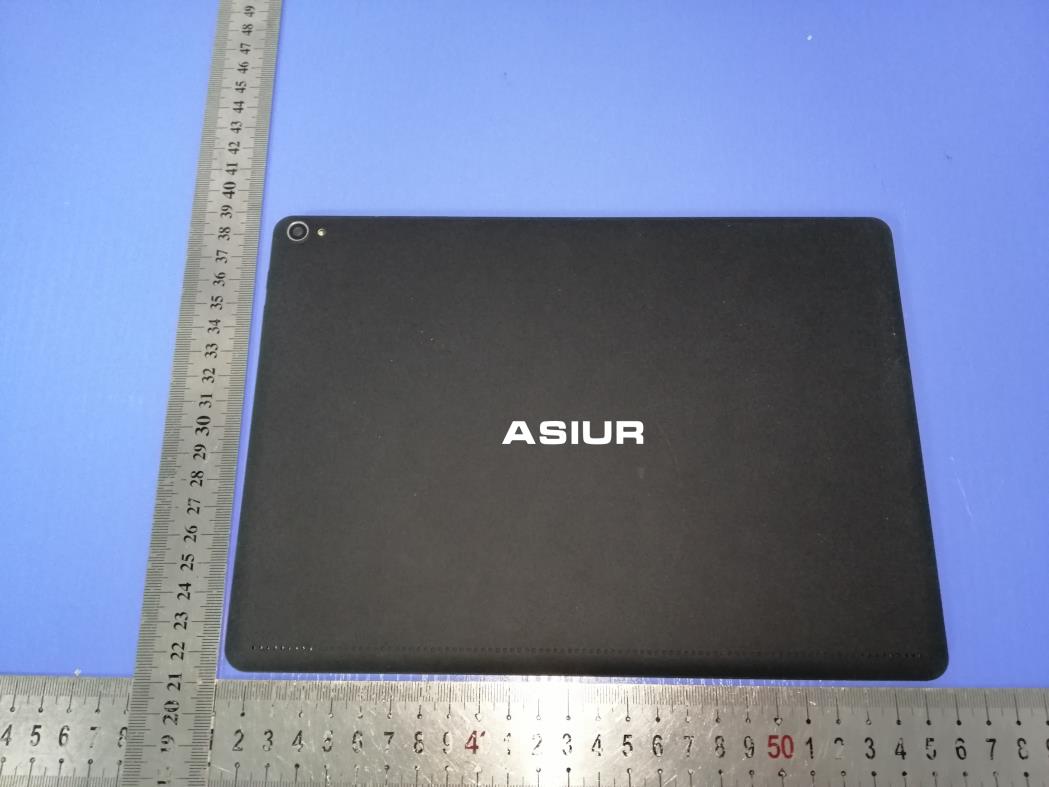

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L5cm*W4cm Label Location Tablet PC Model No.: ASIUR-101 FCC ID: 2AV6Y-ASIUR-PC101 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 5 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 BT/WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 5 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 5 Fig.9

version01 SHENZHEN PEICHENG TECHNOLOGY CO., LTD Declaration concerning Antenna Specification It is hereby declared that the product Model No.: ASIUR-101, ASIUR-102 FCC ID: 2AV6Y-ASIUR-PC101 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: (if applicable) Type of antenna: FPC Antenna permanently attached ( built into the housing) Gain of the antenna: -3.26 dBi Frequency range: 2400-2483.5 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: SHENZHEN PEICHENG TECHNOLOGY CO., LTD Address: 5th floor, B building, Yingxin factory, Baotian 3rd Rd., Xixiang, Bao’an District City: Shenzhen ZIP / Postal code: 518126 Country: China Place: China Date: 7/13/2020 Signature:

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AV6Y-ASIUR-PC101 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AV6Y-ASIUR-PC101 Product name Tablet PC Model number ASIUR-101 Power supply DC 3.8V by Rechargeable Li-Polymer Battery(6000mAh) Recharged by DC 5V Adapter Operation frequency Bluetooth: 2402MHz-2480MHz WIFI: 2412MHz-2462MHz Modulation Type GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V4.2 (DSS) GFSK for Bluetooth V4.2 (DTS) IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Channel Number 79 Channels for Bluetooth V4.2(DSS) 40 channels for Bluetooth V4.2(DTS) 11 Channels for 20MHz bandwidth (2412~2462MHz) Antenna Type FPC Antenna Antenna Gain -3.26 dBi(Max.) Hardware version SD863H-G-MB-1.0 2020-04-20 Software version ASIUR_101_V1.0 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Protable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AV6Y-ASIUR-PC101 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results [BT Max Conducted Power] Mode Channel Frequency(MHz) Average Conducted Output Power (dBm) GFSK 0 2402 3.378 39 2441 1.836 78 2480 0.457 π/4DQPSK 0 2402 1.380 39 2441 -1.417 78 2480 -2.791 8DPSK 0 2402 1.594 39 2441 0.109 78 2480 -1.565 [BLE Max Conducted Power] Mode Channel Frequency(MHz) Average Conducted Output Power (dBm) GFSK 0 2402 0.818 19 2440 0.132 39 2480 -7.386 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AV6Y-ASIUR-PC101 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 [2.4GWIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) IEEE 802.11b 1 2412 8.83 6 2437 8.58 11 2462 8.16 IEEE 802.11g 1 2412 9.10 6 2437 8.80 11 2462 8.12 IEEE 802.11n HT20 1 2412 8.57 6 2437 8.22 11 2462 8.79 5. Manufacturing tolerance BT GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3.0 1.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 -1.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 0.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 BLE BT LE (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 0.0 0.0 -7.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 1 of 47 Appendix A RF Test Data for BT V4.2(BDR/EDR) (Conducted Measurement) Product Name: Tablet PC Trade Mark: ASIUR Test Model: ASIUR-101 Environmental Conditions Temperature: 24.1  C Relative Humidity: 53.8% ATM Pressure: 100.0 kPa Test Engineer: Qu Xin Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 3.378 21 PASS MCH 1.836 21 PASS HCH 0.457 21 PASS π/4DQPSK LCH 1.380 21 PASS MCH -1.417 21 PASS HCH -2.791 21 PASS 8DPSK LCH 1.594 21 PASS MCH 0.109 21 PASS HCH -1.565 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9453 Not Specified PASS MCH 0.9469 Not Specified PASS HCH 0.9447 Not Specified PASS π/4DQPSK LCH 1.289 Not Specified PASS MCH 1.289 Not Specified PASS HCH 1.290 Not Specified PASS 8DPSK LCH 1.303 Not Specified PASS MCH 1.301 Not Specified PASS HCH 1.300 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.988 0.631 PASS MCH 0.828 0.631 PASS HCH 0.906 0.631 PASS π/4DQPSK LCH 1.024 0.860 PASS MCH 1.016 0.860 PASS HCH 1.130 0.860 PASS 8DPSK LCH 1.032 0.869 PASS MCH 1.148 0.869 PASS HCH 1.138 0.869 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.89 106.7 0.308 0.4 PASS DH5 MCH 2.89 106.7 0.308 0.4 PASS DH5 HCH 2.89 106.7 0.308 0.4 PASS π/4DQPSK 2DH5 LCH 2.89 106.7 0.307 0.4 PASS 2DH5 MCH 2.89 106.7 0.307 0.4 PASS 2DH5 HCH 2.89 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.89 106.7 0.307 0.4 PASS 3DH5 MCH 2.89 106.7 0.307 0.4 PASS 3DH5 HCH 2.89 106.7 0.307 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 2.826 -37.511 -17.174 PASS MCH 1.485 -37.957 -18.515 PASS HCH 0.101 -37.115 -19.899 PASS π/4DQPSK LCH -1.262 -38.487 -21.262 PASS MCH -4.034 -36.769 -24.034 PASS HCH -6.084 -38.046 -26.084 PASS 8DPSK LCH -0.868 -58.321 -20.868 PASS MCH -2.583 -37.917 -22.583 PASS HCH -4.409 -37.393 -24.409 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATOR…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 38 FCC TEST REPORT For SHENZHEN PEICHENG TECHNOLOGY CO., LTD Tablet PC Test Model: ASIUR-101 Additional Model No. : ASIUR-102 Prepared for : SHENZHEN PEICHENG TECHNOLOGY CO., LTD Address : 5 th floor, B building, Yingxin factory, Baotian 3 rd Rd., Xixiang, Bao’an District, Shenzhen China. Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 22, 2020 Number of tested samples : 1 Sample No. : 200619008A Serial number : Prototype Date of Test : June 22, 2020 ~ July 01, 2020 Date of Report : July 02, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 38 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200619008AEA Date of Issue .................................. : July 02, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : SHENZHEN PEICHENG TECHNOLOGY CO., LTD Address .......................................... : 5 th floor, B building, Yingxin factory, Baotian 3 rd Rd., Xixiang, Bao’an District, Shenzhen China. Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No.................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Tablet PC Trade Mark ..................................... : ASIUR Test Model ...................................... : ASIUR-101 Ratings ........................................... DC 3.8V by Rechargeable Li-Polymer Battery(6000mAh) Recharged by DC 5V Adapter Result ............................................ : Positive Compiled by: Supervised by: Approved by: Jin Wang / Administrators Linda He/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 38 FCC -- TEST REPORT Test Model............................... : ASIUR-101 EUT......................................... : Tablet PC Applicant............................... : SHENZHEN PEICHENG TECHNOLOGY CO., LTD Address.................................. : 5 th floor, B building, Yingxin factory, Baotian 3 rd Rd., Xixiang, Bao’an District, Shenzhen China. Telephone............................... : Fax.......................................... : Manufacturer........................ : SHENZHEN PEICHENG TECHNOLOGY CO., LTD Address................................... : 5 th floor, B building, Yingxin factory, Baotian 3 rd Rd., Xixiang, Bao’an District, Shenzhen China. Telephone............................... : Fax.......................................... : Factory................................... : / Address................................... : / Telephone............................... : Fax.......................................... : Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200619008AEA July 02, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 38 Revision History Revision Issue Date Revisions Revised By 000 July 02, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 Report No.: LCS200619008AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 38 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1.3. EXTERNAL I/O CABLE ....................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 (Below 1GHz) Fig. 2 (Above 1GHz) SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV6Y-ASIUR-PC101 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Test Setup Photo of Line Conducted Emissions Measurement AC Conducted Emission of charge from power adapter mode
