2AV7N-BKKW10Wireless Microphone

GUANGZHOU RANTION TECHNOLOGY CO., LTD.
Wireless Microphone - FCC ID 2AV7N-BKKW10 - GUANGZHOU RANTION TECHNOLOGY CO., LTD.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Sep 28, 2022
Application Purpose
Original Equipment
Date of Application
Sep 28, 2022
Equipment Note
Wireless Microphone
Frequency Range
902.80000000 - 926.80000000
Company
GUANGZHOU RANTION TECHNOLOGY CO., LTD.
Country
China

Documents & Files

Select a file to view

Users Manual

โ†—

Cover Letter(s)

โ†—
โ†—
โ†—

External Photos

โ†—

ID Label/Location Info

โ†—

Internal Photos

โ†—

RF Exposure Info

โ†—

Test Report

โ†—

Test Setup Photos

โ†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

BKK-W10 Antenna V1.0 Product Specification Version information Date Version Description 2022-07-16 V1.0 First revision BKK-W10 Antenna V1.0 Electrical specifications Antenna type Battery antenna Frequency range(MHz) 600-950 VSWR โ‰ค2.0@600-950 Impedance(Ohm) 50 Peak Gain(dBi) 3@600-950 Polarization Type Vertical Mechanical specifications Dimensions(mm) ฮฆ13.7-14.5mmx100mm Antenna pattern BKK-W10 Antenna V1.0 Circuit design considerations: 1. The reference circuit is shown in the reference diagram below. 2. Single end adopts 50 ฮฉ impedance. 3. The difference adopts 100 ฮฉ impedance. 4. The electronic components are grounded nearby and GND vias are drilled. Manufacturer: Jiangsu ainuoxin Circuit Technology Co., Ltd

External Photos

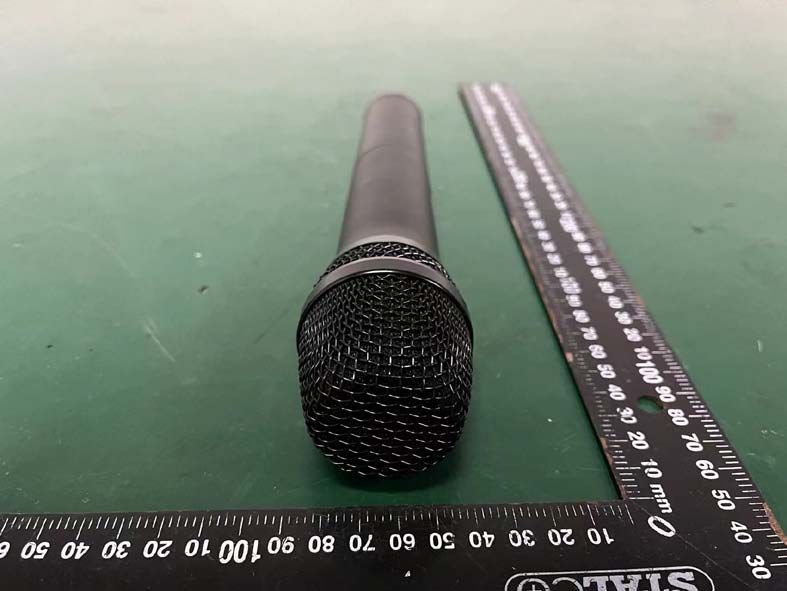

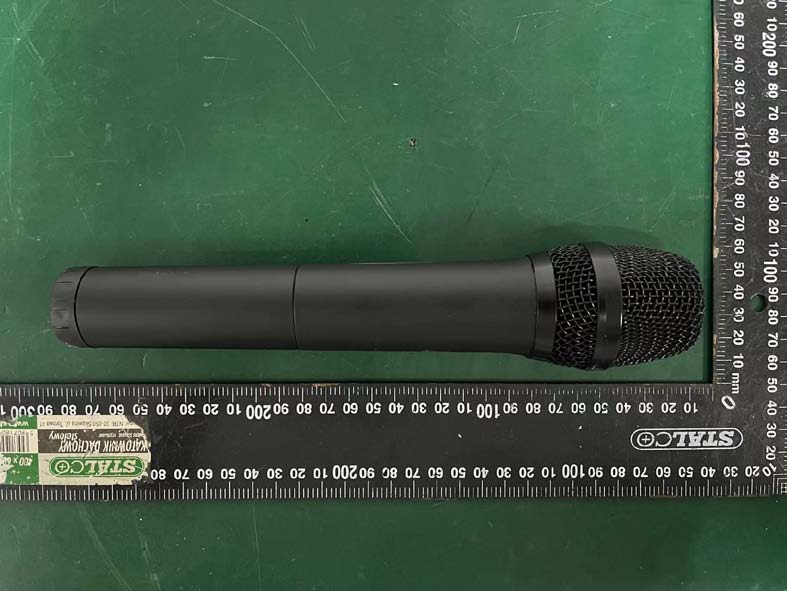

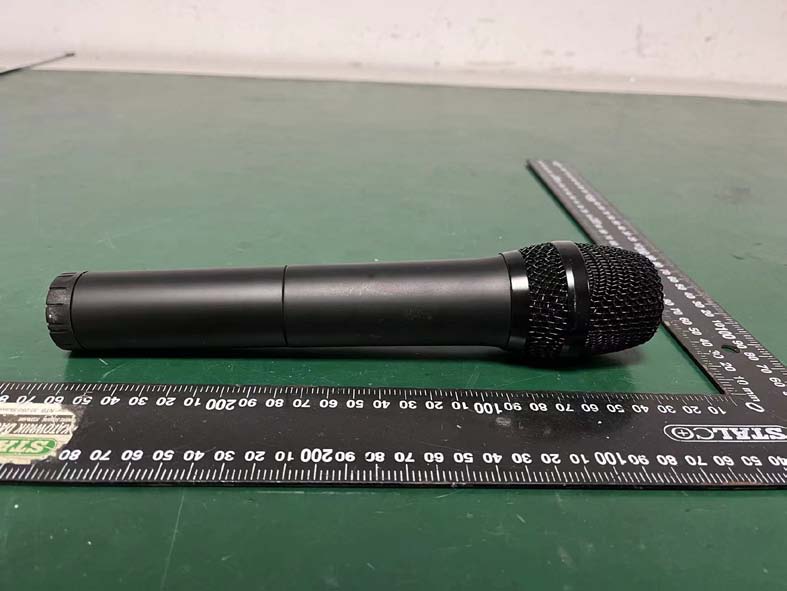

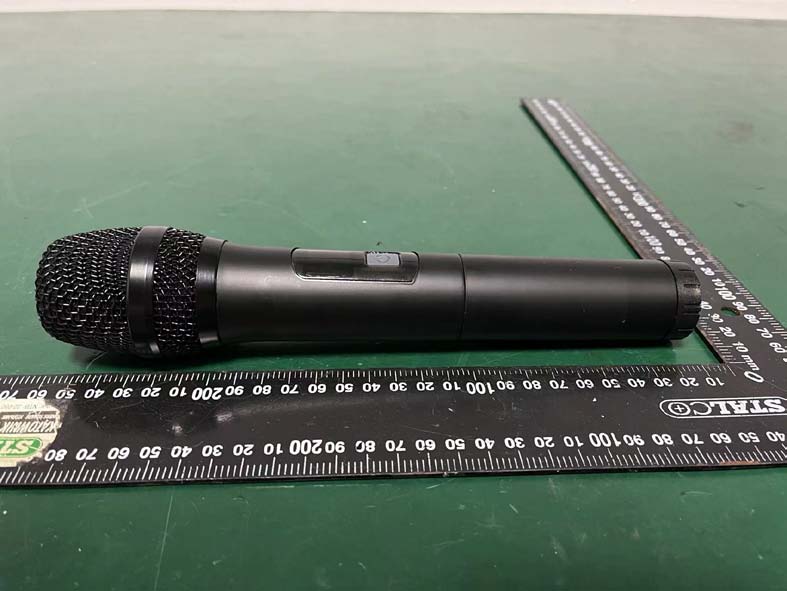

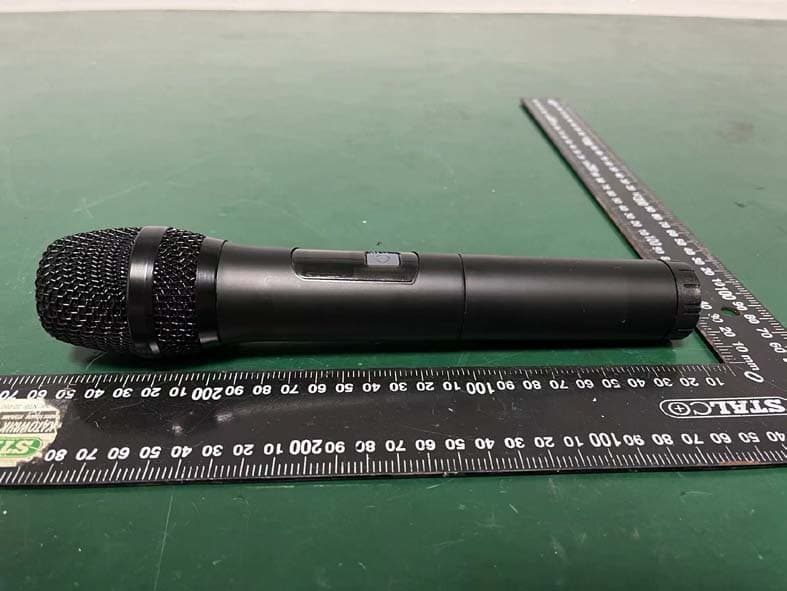

External photos M/N: BKK-W10 External photos M/N: BKK-W10 External photos M/N: BKK-W10

Internal Photos

Internal photos M/N: BKK-W10 Internal photos M/N: BKK-W10 RF antenna Internal photos M/N: BKK-W10

RF Exposure Info

FCC ID: 2AV7N-BKKW10 EST Technology Co., Ltd Report No. ESTE-R2209094 Page 1 of 3 FCC RF EXPOSURE REPORT GUANGZHOU RANTION TECHNOLOGY CO., LTD. Wireless Microphone Model Number: BKK-W10 FCC ID: 2AV7N-BKKW10 Applicant: GUANGZHOU RANTION TECHNOLOGY CO., LTD. Address: Room 7002 and 7003,7th Floor, Digital Entertainment, Industrial Park, Greater Bay Area, No.28, Huangpu Park West Road, Huangpu District, Guangzhou, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2209094 Date of Test: Aug. 09~Sep. 30, 2022 Date of Report: Sep. 30, 2022 FCC ID: 2AV7N-BKKW10 EST Technology Co., Ltd Report No. ESTE-R2209094 Page 2 of 3 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KDB 447498 D04 Interim General RF Exposure Guidance v01 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR ยง2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR ยง2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. The test exclusions are applicable only when the minimum test separation distance is โ‰ค 50 mm and for transmission frequencies between 300 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: 2AV7N-BKKW10 EST Technology Co., Ltd Report No. ESTE-R2209094 Page 3 of 3 3. Evaluation Results Ant gain=3dBi Ant numeric gain=1.995 Field strength = 58.61dBuV/m@3m P={ [10 (58.61 /20) /10 6 *3] 2 / (30*2) }*1000mW =0.000218mW Limited=2040*f*(0.5/20)^x, x=-log(60/(2040*f*โˆšf))= 7.97mW Antenna gain=3-2.15=0.85dBd Ant numeric gain=1.22 EPR=0.000218mW*1.22=0.000266<7.97mW Note: 1. We choose f=0.928GHz to calculate MPE limit as higher frequency will have lower MPE limits. 2. SAR Test Exclusion Thresholds is 7.97mW for separation distance 5mm. Therefore, SAR test is not required. End of Test Report

Test Report

FCC ID: 2AV7N-BKKW10 EST Technology Co., Ltd Report No.ESTE-R2209094 Page 1 of 51 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of GUANGZHOU RANTION TECHNOLOGY CO., LTD. Wireless Microphone Model Number: BKK-W10 FCC ID: 2AV7N-BKKW10 Applicant GUANGZHOU RANTION TECHNOLOGY CO., LTD. Address: Room 7002 and 7003,7th Floor, Digital Entertainment, Industrial Park, Greater Bay Area, No.28, Huangpu Park West Road, Huangpu District, Guangzhou, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2209094 Date of Test: Aug. 09~Sep. 30, 2022 Date of Report: Sep. 30, 2022 FCC ID: 2AV7N-BKKW10 EST Technology Co., Ltd Report No.ESTE-R2209094 Page 2 of 51 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 4 1.1. Description of Device (EUT) ........................................................................................................... 4 1.2. Antenna Information ........................................................................................................................ 4 1.3. Information of RF Cable .................................................................................................................. 4 2. SUMMARY OF TEST ......................................................................................................................... 5 2.1. Summary of test result ...................................................................................................................... 5 2.2. Test Facilities ................................................................................................................................... 6 2.3. Measurement uncertainty ................................................................................................................. 7 2.4. Assistant equipment used for test ..................................................................................................... 7 2.5. Block Diagram ................................................................................................................................. 7 2.6. Test Mode ......................................................................................................................................... 8 2.7. Power Setting of Test Software ........................................................................................................ 8 2.8. Channel List ..................................................................................................................................... 8 2.9. Test Equipment List ......................................................................................................................... 9 3. FIELD STRENGTH OF FUNDAMENTAL ............................................................................................ 11 3.1. Limit ............................................................................................................................................... 11 3.2. Test Setup ....................................................................................................................................... 11 3.3. Spectrum Analyzer Setting ............................................................................................................. 11 3.4. Test Procedure ................................................................................................................................ 12 3.5. Test Result ...................................................................................................................................... 13 4. RADIATED SPURIOUS EMISSIONS AND BAND EDGE ...................................................................... 20 4.1. Limit ............................................................................................................................................... 20 4.2. Test Setup ....................................................................................................................................... 22 4.3. Spectrum Analyzer Setting ............................................................................................................. 23 4.4. Test Procedure ................................................................................................................................ 24 4.5. Test Result ...................................................................................................................................... 25 5. 20DB BANDWIDTH ........................................................................................................................ 41 5.1. Limit ............................................................................................................................................... 41 5.2. Test Setup ....................................................................................................................................... 41 5.3. Spectrum Analyzer Setting ............................................................................................................. 41 5.4. Test Procedure ................................................................................................................................ 41 5.5. Test Condition ................................................................................................................................ 41 5.6. Test Result ...................................................................................................................................... 42 6. ANTENNA REQUIREMENTS ............................................................................................................ 44 6.1. Limit .............โ€ฆ

Text truncated - open the document above for the full version.

Test Setup Photos

Radiated emission test: Below 1GHz Radiated emission test: Above 1GHz

Contact Information

Applicant

Linzhan Liang(Engineer)
[email protected]020-81401406Fax: 020-81401406

Test Firm

EST Technology Co., Ltd.Iceman Hu
[email protected]+86 0769-83081888

Technical Specifications

#Rule PartsFrequency RangePower Output
115C902.8 MHz - 926.8 MHz-
