Moukey MBRT1 Bluetooth 5.0 Audio Transmitter and Receiver Owner’s Manual Precautions Read Carefully Before Proceeding Please keep this manual in a convenient place for future reference Power Supply Please connect the original USB cable to the USB charger, make sure the charger is DC 5V, 1A above current. Connections Always turn off the power before connecting or disconnecting. This will help prevent malfunction and damages. Environment Considerations Avoid using the unit in any of the following conditions that could cause malfunction: ●Extremely hot or cold places ●Under direct sunlight ●Magnetic fields ●Near heaters and other heat sources ●Sandy or dusty places ●Places that are extremely humid or exposed to splashing water ●Places with lots of vibrations Electrical Interference Devices that are very susceptible to interference or that emits powerful electromagnetic waves (e.g. radios and TVs) should not be placed near this unit, as interference could occur. Electromagnetic interference could cause malfunction and could corrupt or destroy data. Always operate this unit at a suitable distance from these devices Handling Do not apply excessive force to the switches and other controls, exposing the unit to strong impacts, which could cause it to break. Do not put foreign objects or liquids into the unit. Never open the case or attempt to modify the product in any way since this can result in damage to the unit. Clean only with a soft, dry cloth. Manufacturer: Guangzhou Rantion Technology Co., Ltd Main Features Moukey MBRT1 Bluetooth 5.0 Audio 2 in 1 Transmitter and Receiver is a wireless long range audio transmitter & receiver incorporating the „aptX‟ and „aptX low-latency‟ technology for CD-like quality sound with virtually no delay. Featuring the Bluetooth 5.0 and support for Qulacomm aptX LL, aptX, AAC decoding, FS decoding and SBC decoding, Moukey MBRT1 will bring you ultimate music listening experience. Moukey MBRT1 can receive a range of the Bluetooth signal up to 30m in doors. Easy to plug via Coaxial Cable, Optical Cable,RCA cable or 3.5mm stereo aux cable, pair with Bluetooth audio device, it will provide the best solution to enable your TV or home audio system to wirelessly stream hi-fi audio directly to any wireless headphones or speakers. ● CSR Bluetooth 5.0, supports aptX LL, aptX, AAC decoding, FS decoding and SBC decoding, transmit HIFI Level audio signal with low latency. ● 2 in 1 Transmitter and Receiver, providing the best solution to enable your TV or home audio system to wirelessly stream hi-fi audio directly to any wireless headphones or speakers. ● Up to 30m distance wireless ● Supports Optical (SPDI/F), Coaxial, AUX, RCA audio outputs / inputs, compatible with 99% of TVs, Bluetooth headphones or speakers and Home stereo system. ● Supports 2 pairs of Bluetooth equipment (Bluetooth Headphone/Bluetooth Speaker) in TX mode. ● Easy to plug and Bluetooth pairing. Function Button Function Operation Mode RCA/ Coaxial / SPDI/F /AUX Switch Press once to switch between RCA/ Coaxial / SPDI/F /AUX audio mode. The Led will indicate the input/output status. Power Power ON/OFF Press and hold once to switch the power ON/OFF. RX/TX Switch Transmitter Mode Press once to switch between transmitting mode or receiving mode. The Led will indicate the RX/TX status and show the audio decoding mode. Hold RX/TX Switch for 2S, it will disconnect and clear the pairing device for reconnecting，the LED will flash to indicate. Receiver Mode Indicator Status RCA Inputs/outputs the audio signal via RCA. CDO Inputs/outputs the audio signal via Coaxial. SPDI/F Inputs/outputs the audio signal via SPDI/F In/ SPDI/F Out. AUX Inputs/outputs the audio signal via AUX. SBC Using SBC decoding mode. FS Using FastStream decoding mode. LL Using AptX Low Latency (AptX LL) mode. AAC Using AAC decoding mode. APTX Using AptX mode. Note: 1. Operation range can be affected by Wi-Fi routers, Wireless TV adapters, physical obstructions like walls, metal obstacles etc, and also depended on receiving device. 2. To take advantage of the better performance of the APTX Low Latency codec (~40ms), the other side device must support the same codec. If the other side device only supports the normal AptX codec, or the SBC one, those codecs will be used instead. 3. After Bluetooth connected, the LED will indicate the decoding mode automatically. If your headphones or speakers do not support aptX LL, the LL LED will not light. 4. Moukey MBRT1 does not support simultaneous transmit and receive functions. 5. Digital Optical / Coaxial Audio sources for transmitting must be set to PCM or Stereo. Dolby / DTS input is not supported. Setup Instruction Use as a transmitter (TX mode) 1. Connect audio source (TV, DVD etc.) to MBRT1 audio jacks (RCA/ Coaxial / SPDI/F /AUX) with the audio cables (RCA/ Coaxial / SPDI/F /AUX). 2. Connect MBRT1 to a power source (Highly recommended connecting to power adapter) with a USB-C to USB-A cable. 3. Press the Power button to turn on MBRT1. 4. Select the correct audio input mode (RCA/ Coaxial / SPDI/F /AUX) by pressing the Mode button (Very Important). 5. Press RX/TX switch to the "TX" position. 6. Pairing - Pair MBRT1 with your Bluetooth-enabled headsets/speakers. • Set your headsets/speakers to pairing mode refer to its user manual. • Wait until connected (For quick pairing, better keep them within 1 meter when pairing). • MBRT1 Supports pairing with 2 pairs of Bluetooth equipment. After pairing with one successfully, press the “Power” button twice, MBRT1 will pair the other Bluetooth equipment automatically. (For quick pairing, better keep them within 1 meter when pairing). USB-C Cable USB Adapter Power RCA/ Coaxial / SPDI/F /AUX 1 2 Press the Power button 3 Select the correct audio input mode (RCA/ Coaxial / SPDI/F /AUX) 4 Press RX/TX switch to the "TX" position Use as a Receiver (RX mode) 1. Connect audio source (Speakers,Amplifier etc.) to MBRT1 audio jacks (RCA/ Coaxial / SPDI/F /AUX) with the audio c…

Text truncated - open the document above for the full version.

Guangzhou Rantion Technology Co., Ltd Building D, Kengkou digital base, No.9, Huaxi Road, Liwan District, Guangzhou, China Agent Authorization Company: Guangzhou Rantion Technology Co., Ltd Address: Building D, Kengkou digital base, No.9, Huaxi Road, Liwan District, Guangzhou, China Product Name: Bluetooth 5.0 Audio Transmitter and Receiver Model Number(s): MBRT1, MBRT2 Product Description: Bluetooth 5.0 Audio Transmitter and Receiver We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: May 27, 2021 Name: joe huang Title: General Manager Company: Guangzhou Rantion Technology Co., Ltd

Guangzhou Rantion Technology Co., Ltd Building D, Kengkou digital base, No.9, Huaxi Road, Liwan District, Guangzhou, China May 27, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID: 2AV7N-MBRT Models: MBRT1, MBRT2 To Whom It May Concern: We, The Guangzhou Rantion Technology Co., Ltd hereby declare that the model : MBRT2 is identical with the model : MBRT1, except the model name and the appearance color. Except for the different above, no other modification is performed. Sincerely, Guangzhou Rantion Technology Co., Ltd Signature: [joe huang, Engineer]

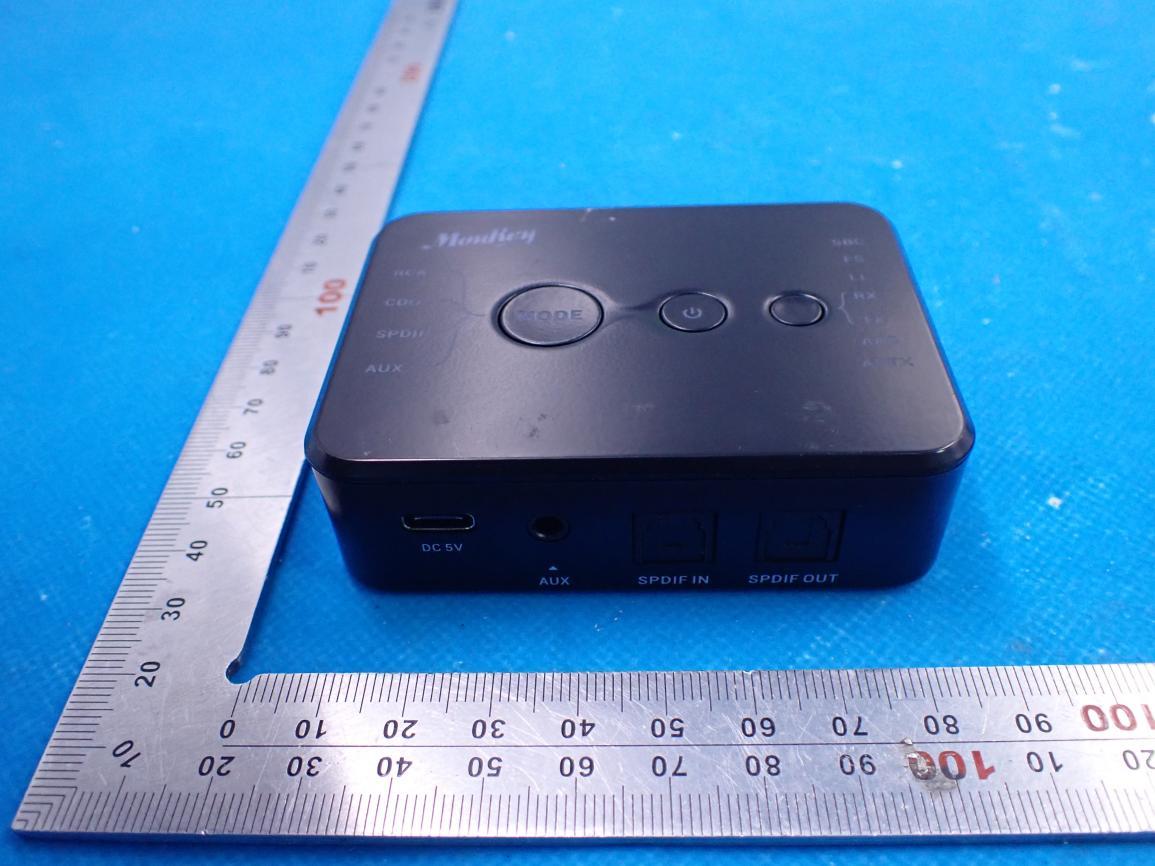

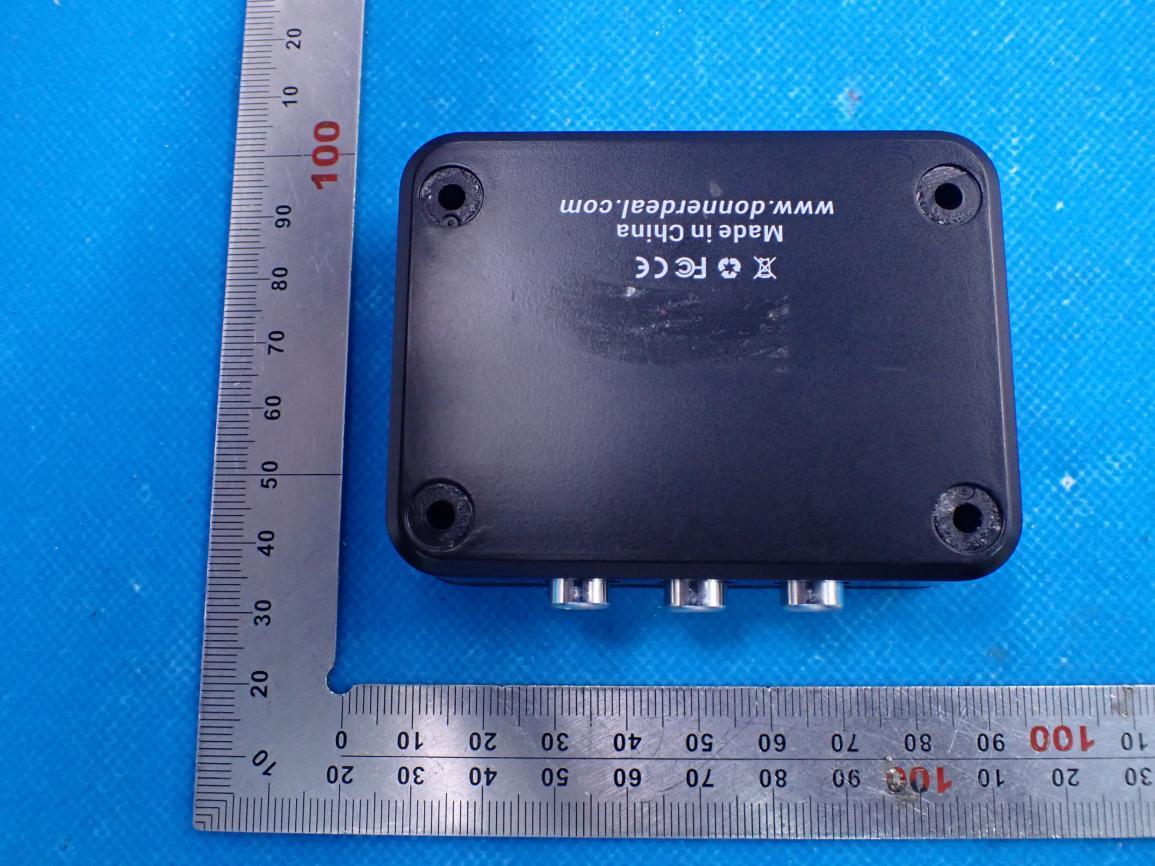

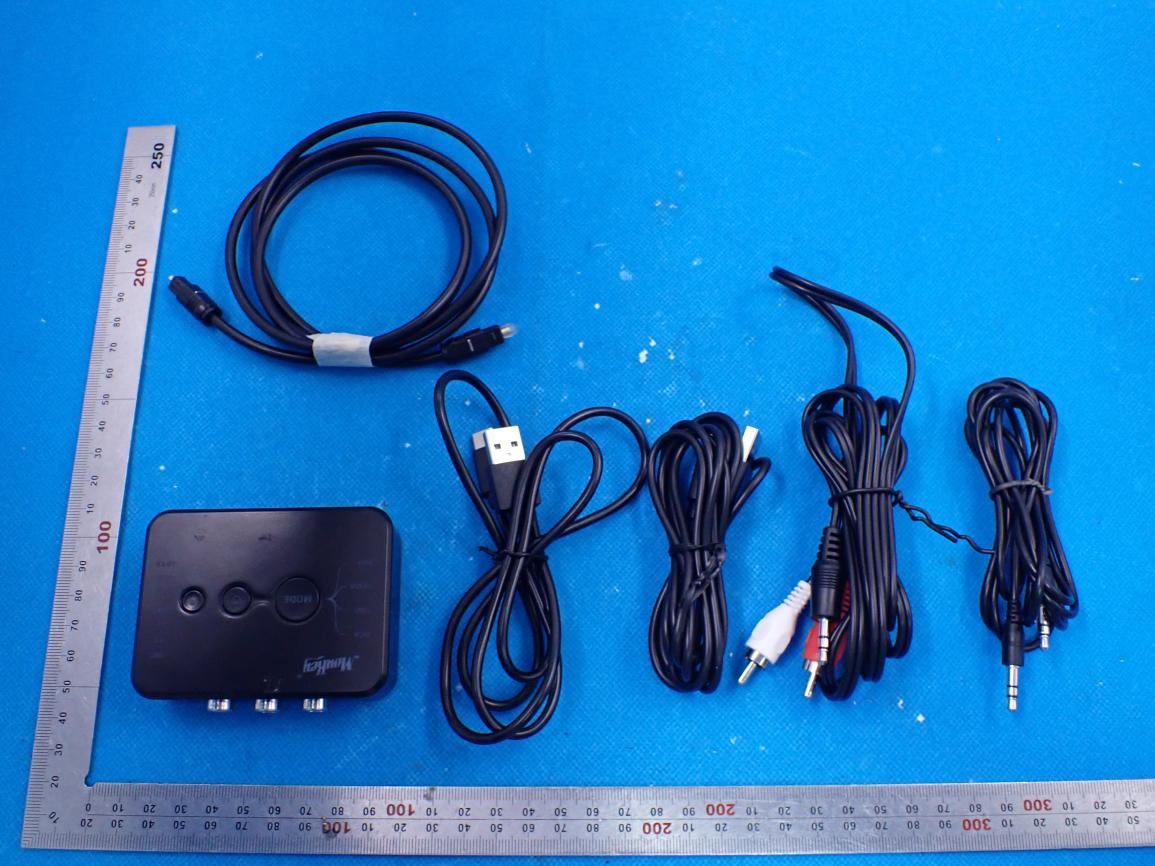

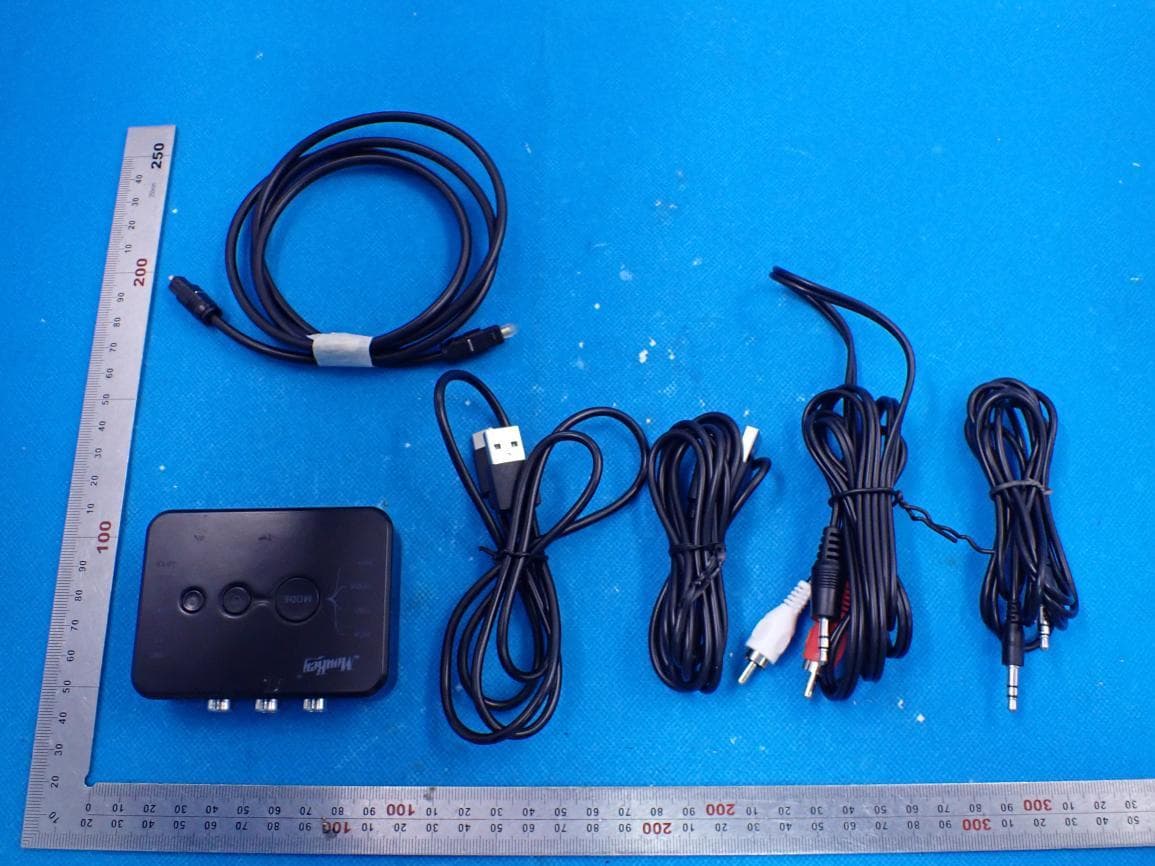

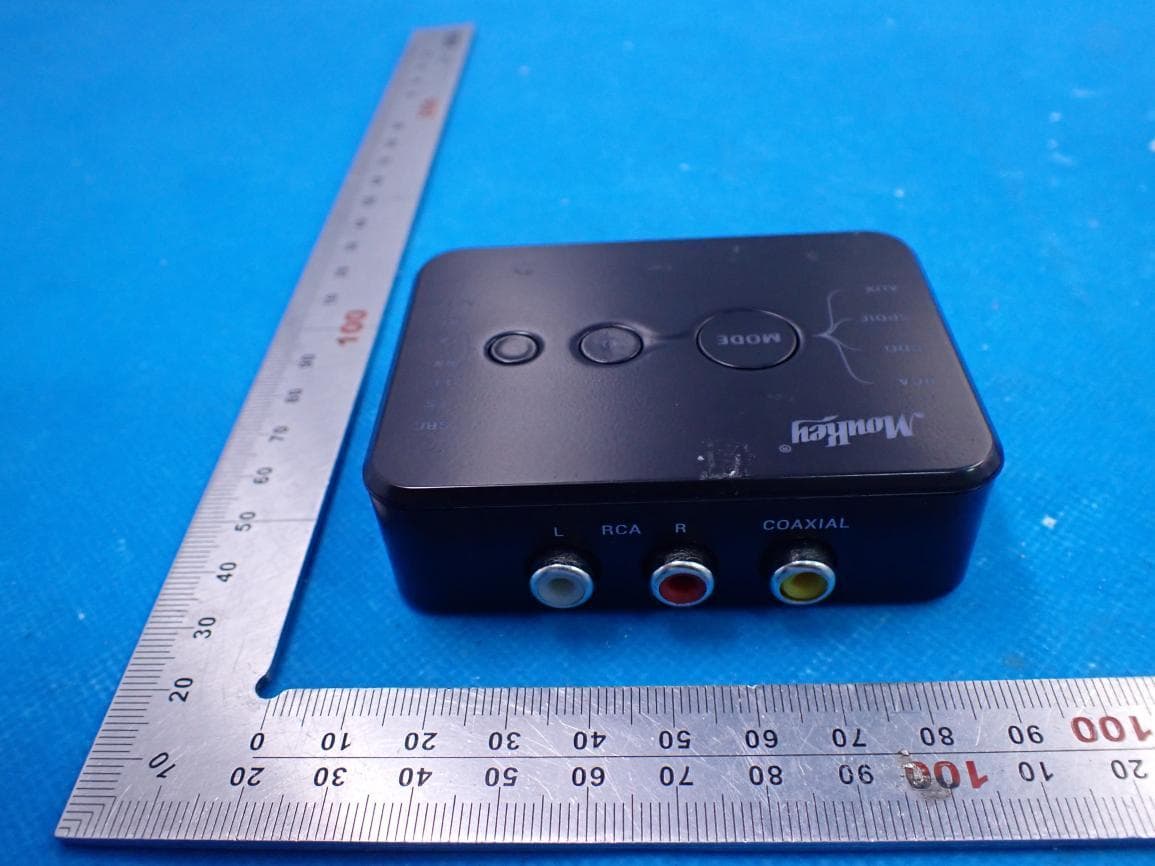

External Photos Test Model: MBRT1 WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)-1 VIEW OF EUT(PORT)-2

FCC ID Label Location 20mm*15mm FCC ID: 2AV7N-MBRT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos Test Model: MBRT1 OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 BT Antenna

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Bluetooth 5.0 Audio Transmitter and Receiver Model Name MBRT1 FCC ID 2AV7N-MBRT 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =8.919dBm=7.796mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(7.796mW /5mm) .[√2.480GHz)]= 2.45<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.
