2AV7VMLD-R06Voice Broadcaster

R User's Manual 使用说明书 MLD-B02 MLD-R06 & 目录 Contents 配件清单 2 2 3 3 4 6 7 8 9 10 产品介绍 Product Introduction 注意事项 Precautions List of Accessories 装车说明 Instruction for Installation 传感器配对步骤 Matching Procedures for Sensors 语音接收器绑定 Binding of Voice player App更多功能介绍 Introduction for More App Function 规格参数 Specification 常见问题及解决方法 Common Problems and Solutions 产品保修 Warranty 语音播报器说明 Voice Broadcaster Introduction 安装步骤 Procedures of Installation 5 10 产品介绍 马力德蓝牙胎压监测系统(Malide BLE Tire Pressure Monitoring System,以下简称:Malide TPMS)可实时监测汽车轮胎的胎压 与胎温,并可通过App 精确显示数值。若胎温胎压发生异常，App会通过语音及警示图标及时向您发出警报。 Product Introduction Malide BLE Tire Pressure Monitoring System (hereinafter referred to as Malide TPMS) can monitor the pressure and temperature of car’s tire,and the value can be correctly displayed through App.If the abnormalities occurs on the tire’s pressure and temperature,the App will send the alarm to you through the voice and warning icon. 注意事项 Precautions Users should match the sensor and APP before driving, please do not match during This product performs the wireless signal transmission. If the If the temperature and pressure of tire display abnormally, please drive your car to the When indicate that the battery is too low, please replace the battery or the sensor in time If the sensor is not used properly due to the use of a gas-filled puncture sealant or other the driving to avoid the unnecessary property losses and personal injuries, otherwise,you will undertake the all the responsibilities and risks. environment of wireless communication is special, the installation method is incorrect or there are other special signal will be reduced or lost. repair shop where it is closer to you for inspection to avoid the abnormal operation of tire pressure external human factors, or the accident occurs, the company will not bear any responsibility. 1、使用者应在行车前将传感器与App配对好,切勿在行驶中进行配对，以免造成不必要的财产损失和人员伤亡，否则您将承担所有责任与风险。 2、此产品进行无线信号运输，若无线通信环境特殊、安装方式有误或者其他特殊原因，无线信号有可能受到干扰而导致信号衰减或者丢失。 3、若胎温胎压显示异常，请及时将车辆驾驶到附近维修店进行检查维修，以免发生意外。 4、当提示电池电量过低时，请及时更换电池或传感器，以免因电量过低导致胎压监测系统不能正常工作。 5、若因使用气嘴填充的补胎剂或其它外在人为因素而导致传感器不能正常使用，或因此导致发生事故，本公司将不承担因此造成的任何责任。 reasons, the wireless signal may be interfered and the and repair to avoid the accident. detection system due to low battery. Instruction for Installation on the Car When the product leaves the factory, the sensors and ID codes of four tires have been configured (each sensor has an independent ID code), just List of Accessories 配件清单 装车说明 产品出厂时，已经配置好四个轮胎的传感器及ID码（每套传感器都有独立ID码），只需先将传感器安装至相应的位置轮胎上，即可使用； 若想用手机App查看数据，需先把传感器与手机App配对好（配对方法详看“传感器配对步骤”）。 need to installthe sensor to the corresponding 左前左后 右后 LR LF RR 右前 RF positions of tires, and use it.You need to match the App with sensors first when you want to watch Matching Procedures for Sensors" for the matching method). the datas(See the " 信 号 传 输 信 号 传 输



voice Broadcaster×1 语音播报器×1 Sensor×1 传感器×4 D、从车轮上拆下轮胎 螺丝钉 传感器 阀杆、橡胶环 阀芯组件 螺母 气嘴盖 安装步骤 Procedures of Installation E、用钳子拆下原轮胎 气嘴 F、将阀杆放入阀门孔 中，借助套筒扳手 用4Nm拧紧螺母， 并用3Nm拧紧螺丝钉 H、将轮胎重新充气 Screw Sensor Valve stem,Rubber ring,Valve core components Nut Air nozzle cover A、内置传感器外观 Outer image of internal sensor B、内置传感器分解图 Decomposition diagram os internal sensor C、松开轮胎 Loosen the tireRemove the tire from car wheel Remove the original tire nozzle with pliers Place the valve rod into the valve hole,tighten the nut with a socket wrench of 4Nm,and tighten the screw with 3Nm G、安装轮胎 Install the tire Re-inflating the tire 语音播报器说明 功能说明： 1 USB插头：接到USB插口中，为语音播报器供 5.0V直流电 2 按键：与App配对时使用，配对方法详见“传感 器配对步骤” 3 喇叭：播报轮胎状况语音 4 指示灯：当轮胎有异常时,指示灯红灯闪烁;当轮胎 正常时,指示灯蓝灯常亮 语音说明： 1 语音播报器刚上电时，会播报“祝您一路平安”语音 2 短按按键一次，会播报“祝您一路平安”语音 3 当轮胎气压过低、气压过高、温度过高、漏气或者传感器电量过低时，会播出相应的 警示语音。如： “左前轮胎气压过低” “左后轮胎气压过高” “右后轮胎温度过高” “右前轮胎漏气”“左前轮胎电量过低” Voice Broadcaster Introduction Function Discription: 喇叭 Horn USB Plug:Plug the USB plug into the USB port and support 5V DV for the voice broadcaster Button:Used when matching the App,see the“Matching Procedures for Sensors”for the matching method Horn:Broadcast the voice of tire condition Indicator light:When the tire is abnormal,it will flash red light;When the tires are normal, the blue light will be on Voice Discription The voice broadcaster will broadcast “Have a nice trip”just after powering up The voice broadcaster will broadcast “Have a nice trip”when press the button in a short time When the tire is abnormal,it will broadcast the corresponding warning voice.Such as: “Left front tire pressure is too low”、“Left rear tire pressure is too high”、“Right rear tire tempareture is too high” “Right front tire leakage”、“Left front tire battery is too low” 按键 Button 指示灯 Indicator light USB插头 USB PlugUSB Plug Matching Procedures for Sensors Click the symbol in the upper right corner of the Click "Binding new device" to enter the interface Manual matching: Click the tire selection box to Automatic matching: Click the tire selection box QR matching: Click the tire selection box to enter main interface of Figure A to enter the system setting interface, as shown in Figure B. shown in Figure C. be matched, input the ID engraved on the sensor and click to complete the matching. to be matched, enter the 120 second search countdown, click “Confirm” after the ID appears, and then the matching is completed. (Note: Whenusing automatic matching, you need to ensure that the sensor is awaken, otherwise the App will not be able the scanning code state, scan the QR code on the sensor shell. As soon as the scanning is completed, the matching will be completed. 传感器配对步骤 1、点击图A主界面右上角设置符号，进行系统设置界面，如图B所示 2、点击“绑定新设备”，进入图C所示界面 3、手动匹配：点击需配对的轮胎选框，输入传感器上雕刻的ID再点击即可完 成配对 4、自动配对：点击需配对的轮胎选框,进入120秒搜索倒计时,当出现ID后,点击 "确认"即可完成配对(注意:使用自动配对时,需确保传感器处于唤醒状态,否则 App将无法搜索到ID码,建议在上电池后20分钟内进行配对,因为此时传感器 处于学习模式,大约每25秒发一次) 5、QR匹配：点击需配对的轮胎选框进入到扫码状态，扫描传感器外壳上的二 维码，扫描成功即可完成配对 A B D C E F 车辆1 ?? ?? 系统设置 语音提醒 语言简体中文 车辆设定 系统参数设定 绑定新设备 调胎设定 配套设备绑定 日志报告 帮助 手动匹配 自动匹配 QR匹配 绑定新设备 手动匹配 ?? ?? ? 说明 点击要配对的轮胎选框，手动输入设备 码，点击确认完成该轮胎绑定 ID 我知道了 自动匹配 ?? ?? ? 说明 点击要配对的轮胎选框，进入120秒倒计 时搜索,搜…

Text truncated - open the document above for the full version.

C5266091_X8_Ed.1 1/1 Letter of Authorization < Shenzhen Malide Technology Co.,Ltd > Company: Shenzhen Malide Technology Co.,Ltd Address: Room 201, No.26A, Xin'E Industrial Zone, E'GongLing, Pinghu Street, Longgang District, Shenzhen,Guangdong Province,China Product Name: TPMS Voice Broadcaster Model Number: MLD-R06 FCC Identifier: 2AV7VMLD-R06 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Tony Lee Date: May 28,2020 Title:CEO Signature of applicant:

C5266091_X10_Ed.1 1/1 Shenzhen Malide Technology Co.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020-05-28 Subject: Request for Confidentiality FCC ID: 2AV7VMLD-R06 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Tony Lee Title:CEO

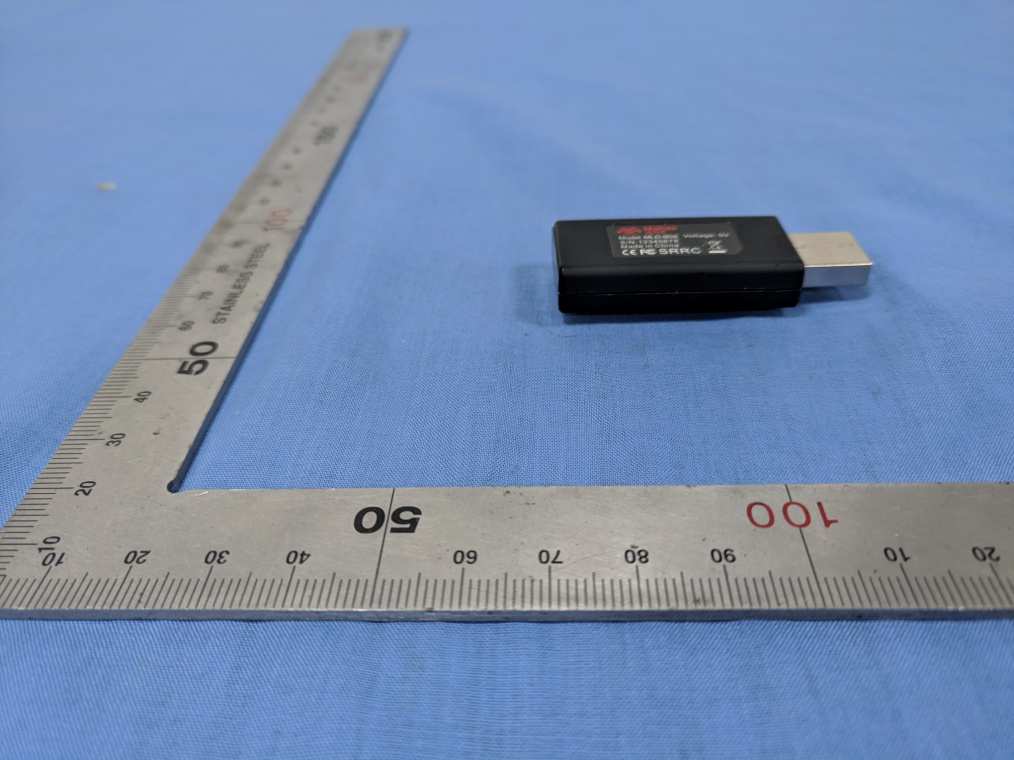

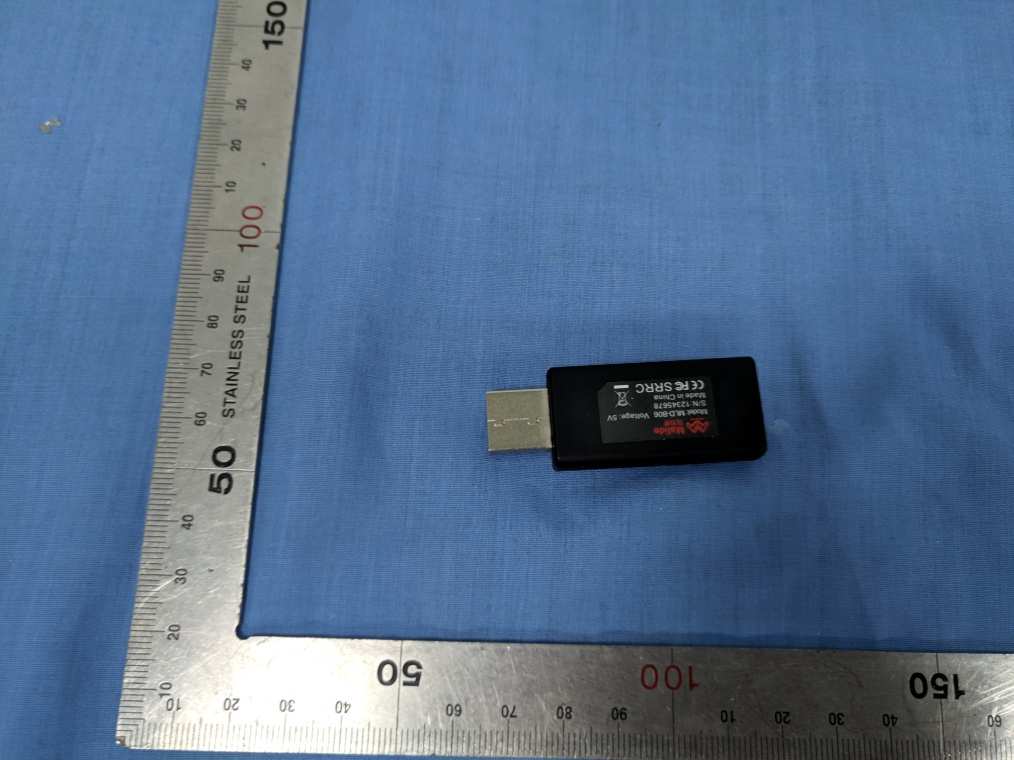

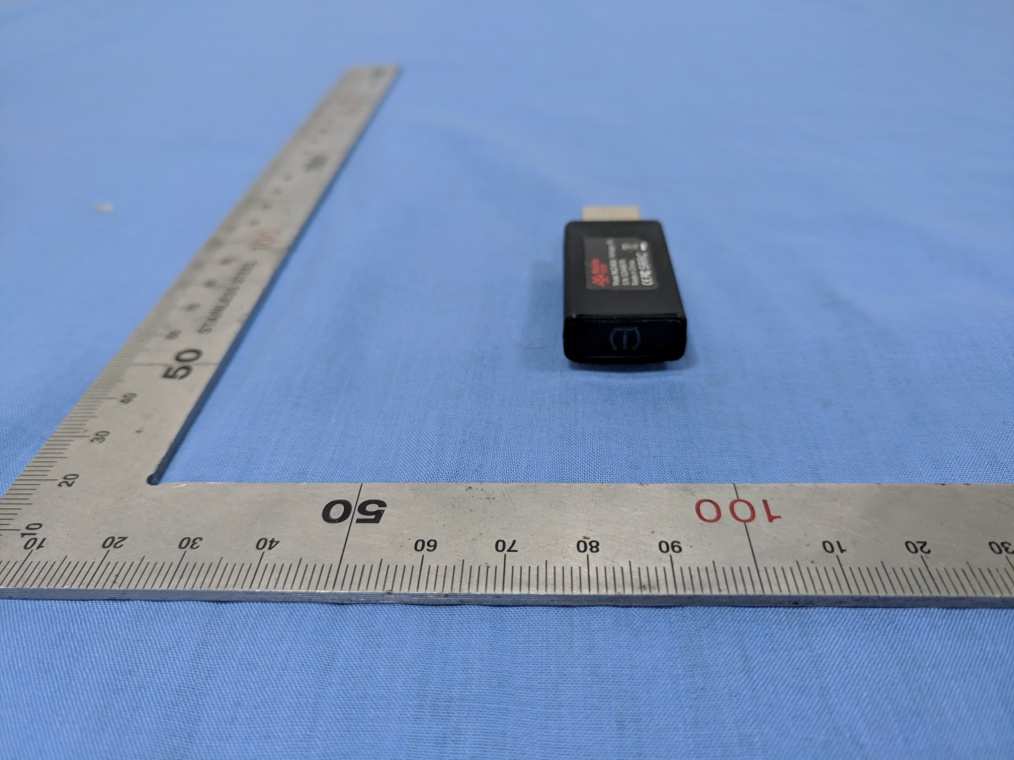

Page 1 of 7 External Photos EUT-1 EUT-2 FCC ID:2AV7VMLD-R06 Page 2 of 7 EUT-3 EUT-4 Page 3 of 7 EUT-5 EUT-6

Label location:

Page 4 of 7 Internal Photos EUT-7 EUT-8 FCC ID:2AV7VMLD-R06 Page 5 of 7 EUT-9 EUT-10 Page 6 of 7 EUT-11 EUT-12

RF exposure Estimation 1. Introduction MLD-R06 (FCC ID: 2AV7VMLD-R06) is a Voice Broadcaster with Bluetooth Low Energy which contain Bluetooth function inside. 2. Limit and Guidelines on Exposure to Electromagnetic Fields §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 Mobile Portable RF Exposure, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation 25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 3. Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 Conducted Power + tune up tolerance =-17.41dBm + 1 =0.023mW Distance = 5 mm f =2.402 [0.018/5] * SQRT(2.402) =0.0071 0.0071 ≤ 3.0 Therefore, excluded from SAR testing.

Guangzhou GRG Metrology & Test Co., Ltd. Address:No.163 Pingyun Road, West of Huangpu Avenue, Guangzhou Guangdong China Tel:+86-20-38699960 Fax:+86-20-38695185 Email: [email protected] http://www.grgtest.com TEST REPORT Verified code: Report No.: E202003308171-4 Application No.: E202003308171 Client: Shenzhen Malide Technology Co.,Ltd Address: Room 201, No.26A, Xin'E Industrial Zone, E'GongLing, Pinghu Street, Longgang District, Shenzhen, Guangdong Province Sample Description: Voice Broadcaster Model: MLD-R06 Test Location: Guangzhou GRG Metrology & Test Co., Ltd. Test Specification: CFR 47 FCC Part 15 Subpart C 10-1-2019 Edition KDB 558074 DO1: DTS measurement guidance v0502 ANSI C63.10:2013 Issue Date: Test Result: PASS Prepared By: Test Engineer Reviewed By: Technical Manager Approved By: Manager Other Aspects: Note:/ Abbreviations: ok / P = passed; fail / F = failed; n.a. / N = not applicable; The test result in this test report refers exclusively to the presented test sample. This report shall not be reproduced except in full, without the written approval of GRGT. 257799 2020/06/23 Report No.: Application No.: Page 1 of 46 DIRECTIONS OF TEST 1. This company carries out test task according to the national regulation of verifications which can be traced to National Primary Standards and BIPM. 2. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. 3. If there is any objection concerning the test, the client should inform the laboratory within 15 days from the date of receiving the test report. E202003308171E202003308171-4 Report No.: Application No.: Page 2 of 46 TABLE OF CONTENTS 1. TEST RESULT SUMMARY ............................................................................................................................ 5 2. GENERAL DESCRIPTION OF EUT .............................................................................................................. 6 2.1. APPLICANT .............................................................................................................................................. 6 2.2. MANUFACTURER ................................................................................................................................... 6 2.3. FACTORY ................................................................................................................................................. 6 2.4. BASIC DESCRIPTION OF EQUIPMENT UNDER TEST ...................................................................... 6 2.5. TEST OPERATION MODE ...................................................................................................................... 7 2.6. LOCAL SUPPORTIVE .............................................................................................................................. 7 3. LABORATORY AND ACCREDITATIONS .................................................................................................. 8 3.1. LABORATORY ......................................................................................................................................... 8 3.2. ACCREDITATIONS ................................................................................................................................. 8 3.3. MEASUREMENT UNCERTAINTY ........................................................................................................ 8 4. LIST OF USED TEST EQUIPMENT AT GRGT........................................................................................... 9 5. CONDUCTED EMISSION MEASUREMENT ............................................................................................ 10 5.1. LIMITS ..................................................................................................................................................... 10 5.2. TEST PROCEDURES .............................................................................................................................. 10 5.3. TEST SETUP ........................................................................................................................................... 11 5.4. DATA SAMPLE ...................................................................................................................................... 11 5.5. TEST RESULTS ...................................................................................................................................... 12 6. RADIATED SPURIOUS EMISSIONS .......................................................................................................... 14 6.1. LIMITS ..................................................................................................................................................... 14 6.2. TEST PROCEDURES .............................................................................................................................. 14 6.3. TEST SETUP ........................................................................................................................................... 18 6.4. DATA SAMPLE ...................................................................................................................................... 19 6.5. TEST RESULTS ...................................................................................................................................... 20 7. 6DB BANDWIDTH .......................................................................................................................................... 29 7.1. LIMITS ..................................................................................................................................................... 29 7.2. TEST PROCEDURES .............................................................................................................................. 29 7.3. TEST SETUP ...............................................…

Text truncated - open the document above for the full version.

APPENDIX A: PHOTOGRAPH OF THE TEST ARRANGEMENT RSE（Below 1GHz） RSE（Above 1GHz） Page 46 of 46 Conducted Emissions
