2AV8F-KF-92014 USB wireless charger

4 USB wireless charger KF-9201 Instruction Manual 7141-20 1 x Lunation Wireless Charging Station 1 x 1.2m AC Removable Power Cable 1 x Instruction Manual Input power: AC 100-240V 50-60HZ USB Outputs: 5V/2.4A max , total 5.4A. Wireless Output: DC 5V/1A Long press the LED Nightlight to turn light ON, repeat to turn the light OFF. Connecting charging station: Take provided AC removable power c able, insert cable into the power cable inport on the charging station. Once connected to the charging station, plug in power c able to wall power source. Charging mobile phones and other electronic devices: The charging station has 4xUSB output ports,with a maximum out 2.4A Connect the desired cable to your mobile phone/dev ice using the appropriate connector. Connect the other end of the charging station. Remove desired cable from your mobile device when it is fully charged. Charging Mobile phones and other electronic devices with wireless output. Place wireless charging enable device on Wireless Charging Pad by setting device on the phone stand. It will automatically charge. Note: In order to charge devices, use only the accessory cable or the cable included with your own device by the manufacturer. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Warning: approved by the party responsible for compliance could void the user’s authority to operate the equipment. WARNING–When using this product, basic precautions should always be followed, including the following: Read all the instructions before using the product. Charge the power bank fully before initial use. The unit’s full performance is achieved only after 2 or 3 completed charge and discharge cycles. To reduce the risk of injury, close supervision is necessary when the product is used near children. Do not expose the device to moisture. Do not use the device in excess of its output rating. Overload outputs above Do not use the device if damaged or explosion or risk of injury. Do not disassemble the device. Take it to or repair is required. Incorrect reassembly or temperatures above 212ºF may cause explosion. repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. What’s included: Features: LED Nightlight: Instructions: FCC Statement: SAFETY PRECAUTIONS: Wireless Charging Pad LED Nightlight Phone Stand Power Cable Inport 4x USB Output Ports Made in China WIRELESS CHARGING ENABLED DEVICES: iPhone 8/8Plus/X, Samsung Galaxy S8/ S8+/S7/S7 Edge/S6/S6 Edge, Nokia Lumia 1020/920/928, HTC 8X, HTC Droid DNA, HTC Rzound, HTC Incredibly 4G LTE, Moto Droid Turbo, Motorola Moto 360 Smart Watch, Moto Droid Maxx, Droid Mini, Google Nexus 6/4/5/7 (2013), LG D1L, LG LTE2, LG G2 (Verizon), Blackberry Z30 (Verizon) FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interferenc e by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this dev ice may not cause harmful interference, and (2) this device must accept any interferenc e received, including interference that may cause undesired operation. This equipment complies with FCC radiation ex posure limits set forth for an uncontrolled environment. This equipment should be installed and operated With minimum distance 20cm between the radiator & your body.

Shenzhen Kafulle Electronics Co., Ltd. No.12 Zhengkeng Road, Liuhe, Community, Pingshan New District, Shenzhen, China Statement Product: 4 USB wireless charger Model: KF-9201 Additional Model: MA-KFL027 Trademark: N/A We hereby state that All models above are identical in interior structure, electrical circuits and components, and j ust model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2020/07/13 Name: Guilin Zang Company Name: Shenzhen Kafulle Electronics Co., Ltd. Address: No.12 Zhengkeng Road, Liuhe, Community, Pingshan New District, Shenzhen, China Tel / Fax: +0755-89666321/+0755-89666321 E-Mail: [email protected]

Shenzhen Kafulle Electronics Co., Ltd. 2020-07-13 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Tongce Testing Lab. / 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Kafulle Electronics Co., Ltd. / No.12 Zhengkeng Road, Liuhe, Community, Pingshan New District, Shenzhen, China (Applicant Name and address) <Signature> Name: Guilin Zang Title: N/A Applicant Company: Shenzhen Kafulle Electronics Co., Ltd.

Shenzhen Kafulle Electronics Co., Ltd. 2020-07-13 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AV8F-KF-9201 Product Name: 4 USB wireless charger Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Guilin Zang Title: N/A Company: Shenzhen Kafulle Electronics Co., Ltd.

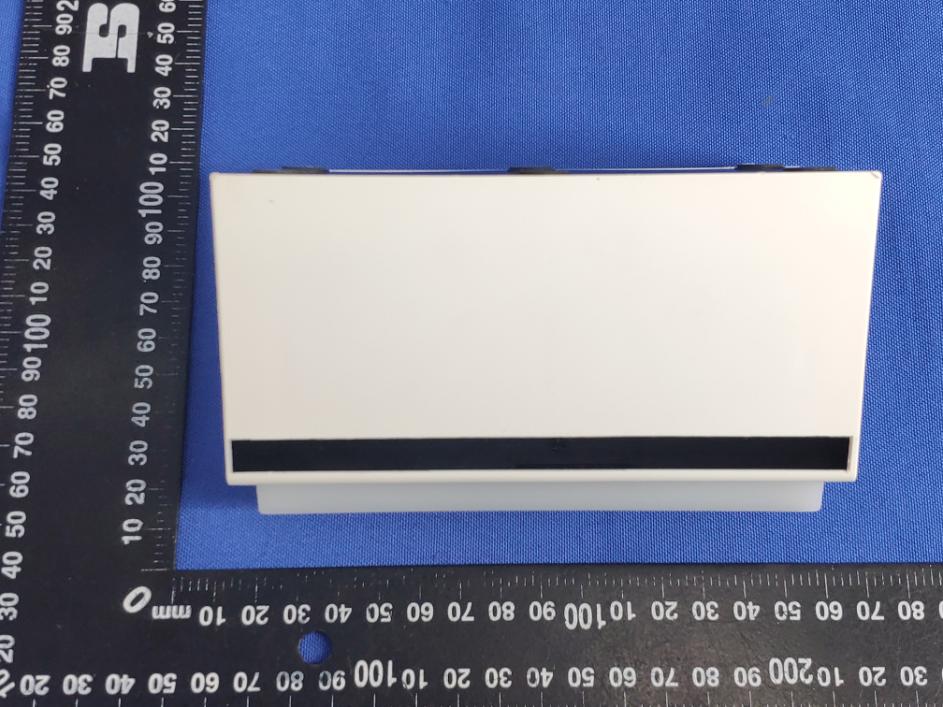

Page 1 of 4 Appendix B: Photographs of EUT Product: 4 USB wireless charger Model: KF-9201 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: KF-9201 Label: Size: L*W=38*30mm 4 USB wireless charger Model: KF-9201 FCC ID: 2AV8F-K F-9201 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Location

Page 1 of 6 Appendix B: Photographs of EUT Product: 4 USB wireless charger Model: KF-9201 Internal Photos Page 2 of 6 Page 3 of 6 Page 4 of 6 Page 5 of 6 Page 6 of 6 Antenna

Report No.: TCT200702E027 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Page 1 of 10 RF Exposure REPORT FCC ID: 2AV8F-KF-9201 Product: 4 USB wireless charger Model No.: KF-9201 Additional Model No.: MA-KFL027 Trade Mark: N/A Report No.: TCT200702E027 Issued Date: Jul. 09, 2020 Issued for: Shenzhen Kafulle Electronics Co., Ltd. No.12 Zhengkeng Road, Liuhe, Community, Pingshan New District, Shenzhen, China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full , without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab . personnel only, and shall be noted in the revision section of the document. The tes t results in the report only apply to the tested sample. Report No.: TCT200702E027 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Page 2 of 10 TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. EUT Description ....................................................................................... 4 3. Facilities and Accreditations .................................................................. 5 3.1. Facilities ................................................................................................................. 5 3.2. Location ................................................................................................................. 5 4. Technical Requirements Specification .................................................. 6 4.1. Measuring Standard .............................................................................................. 6 4.2. Requirements ......................................................................................................... 6 4.3. Test Setup .............................................................................................................. 7 4.4. Test Procedure ...................................................................................................... 7 4.5. Test Equipment List .............................................................................................. 7 4.6. Test Result ............................................................................................................. 8 4.7. Test Set-up Photo ................................................................................................ 10 Report No.: TCT200702E027 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Page 3 of 10 1.Test Certification Product: 4 USB wireless charger Model No.: KF-9201 Additional Model No.: MA-KFL027 Trade Mark: N/A Applicant: Shenzhen Kafulle Electronics Co., Ltd. Address: No.12 Zhengkeng Road, Liuhe, Community, Pingshan New District, Shenzhen, China Manufacturer: Shenzhen Kafulle Electronics Co., Ltd. Address: No.12 Zhengkeng Road, Liuhe, Community, Pingshan New District, Shenzhen, China Date of Test: Jul. 03, 2020 – Jul. 08, 2020 Applicable Standards: KDB 680106 D01 RF Exposure Wireless Charging App v03 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Jul. 08, 2020 Brave Zeng Reviewed By: Date: Jul. 09, 2020 Beryl Zhao Approved By: Date: Jul. 09, 2020 Tomsin Report No.: TCT200702E027 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Page 4 of 10 2.EUT Description Product: 4 USB wireless charger Model No.: KF-9201 Additional Model No.: MA-KFL027 Trade Mark: N/A Operation Frequency: 112.62KHz -171.88KHz Modulation Technology: Load modulation Antenna Type: Annular loaded Antenna Power Supply: DC 5V Report No.: TCT200702E027 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Page 5 of 10 3. Facilities and Accreditations 3.1. Facilities The test facility is recognized, certified, or accredited by the following organizations: ● FCC - Registration No.: 645098 Shenzhen Tongce Testing Lab The 3m Semi-anechoic chamber has been registered and fully described in a report with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. ● IC - Registration No.: 10668A-1 The 3m Semi-anechoic chamber of Shenzhen TCT Testing Technology Co., Ltd. has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing 3.2. Location Shenzhen Tongce Testing Lab. Address: 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 Report No.: TCT200702E027 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Page 6 of 10 4. Technical Requirements Specification 4.1. Measuring Standard KDB 680106 D01 RF Exposure Wireless Charging Apps v03 4.2. Requirements According to the item 5.b of KDB 680106 D01v03: Inductive wireless power transfer applications with supporting field strength results and meeting all of the following requirements are not required to submit a KDB inquiry for devices approved using SDoC or a PAG for equipment approved using certification to address RF exposure compliance. However, the responsible party is required to keep a copy of the test report in accordance with KDB 865664 D02. A copy of the test report is to be submitted with the application if the device is approved using certification. (1) Power transfer frequency is less than 1 MHz. (2) Outp…

Text truncated - open the document above for the full version.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AV8F-KF-9201 Product: 4 USB wireless charger Model No.: KF-9201 Additional Model No.: MA-KFL027 Trade Mark: N/A Report No.: TCT200702E017 Issued Date: Jul. 09, 2020 Issued for: Shenzhen Kafulle Electronics Co., Ltd. No.12 Zhengkeng Road, Liuhe, Community, Pingshan New District, Shenzhen, China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200702E017 Page 2 of 32 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 6 4.1. Test environment and mode ................................................................................. 6 4.2. Description of Support Units ................................................................................ 6 5. Facilities and Accreditations .................................................................. 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty ..................................................................................... 7 6. Test Results and Measurement Data ..................................................... 8 6.1. Antenna requirement ............................................................................................ 8 6.2. Conducted Emission ............................................................................................. 9 6.3. Radiated Spurious Emission Measurement ...................................................... 13 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT200702E017 Page 3 of 32 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1.Test Certification Product: 4 USB wireless charger Model No.: KF-9201 Additional Model No.: MA-KFL027 Trade Mark: N/A Applicant: Shenzhen Kafulle Electronics Co., Ltd. Address: No.12 Zhengkeng Road, Liuhe, Community, Pingshan New District, Shenzhen, China Manufacturer: Shenzhen Kafulle Electronics Co., Ltd. Address: No.12 Zhengkeng Road, Liuhe, Community, Pingshan New District, Shenzhen, China Date of Test: Jul. 03, 2020 – Jul. 08, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Jul. 08, 2020 Brave Zeng Reviewed By: Date: Jul. 09, 2020 Beryl Zhao Approved By: Date: Jul. 09, 2020 Tomsin Report No.: TCT200702E017 Page 4 of 32 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Spurious Emission §15.209(a)(f) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT200702E017 Page 5 of 32 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3.EUT Description Product: 4 USB wireless charger Model No.: KF-9201 Additional Model No.: MA-KFL027 Trade Mark: N/A Operation Frequency: 112.62KHz -171.88KHz Modulation Technology: Load modulation Antenna Type: Annular loaded Antenna Power Supply: DC 5V Report No.: TCT200702E017 Page 6 of 32 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 4.General Information 4.1. Test environment and mode Operating Environment: Condition Conducted Emission Radiated Emission Temperature: 25.0 C 25.0 C Humidity: 55 % RH 55 % RH Atmospheric Pressure: 1010 mbar 1010 mbar Test Mode: Engineering mode: Keep the EUT in continuous transmitting The sample was placed 0.8m & 1.5m for the measurement below & above 1GHz above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case( Z axis) are shown in Test Results of the following pages. 4.2. Description of Support Units The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a…

Text truncated - open the document above for the full version.

Page 1 of 2 Appendix A: Photographs of Test Setup Product: 4 USB wireless charger Model: KF-9201 Radiated Emission Page 2 of 2 Conducted Emission
