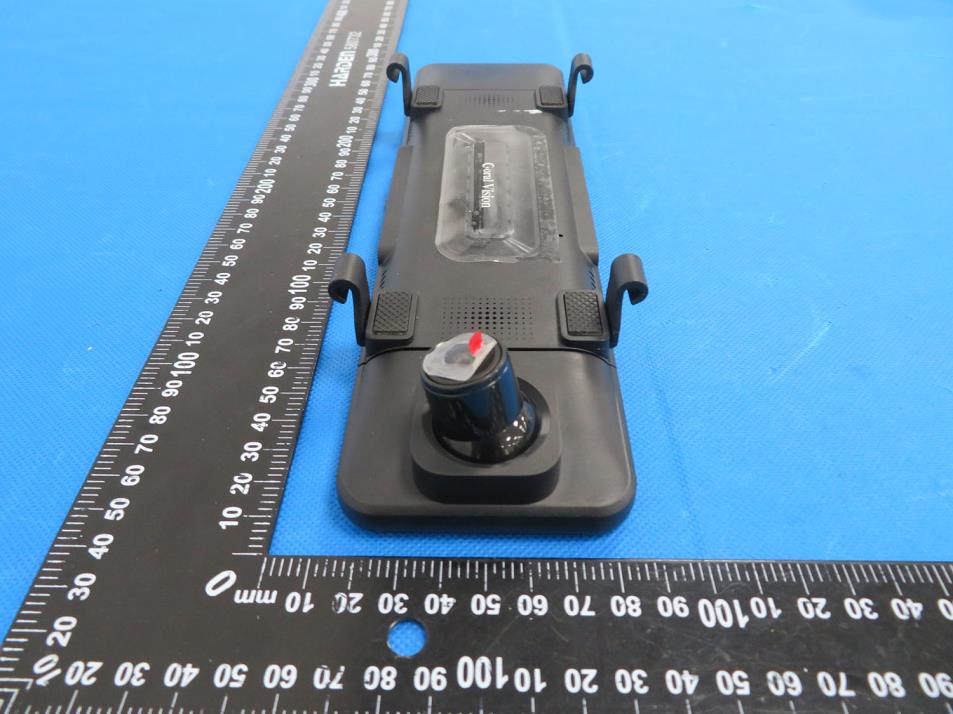

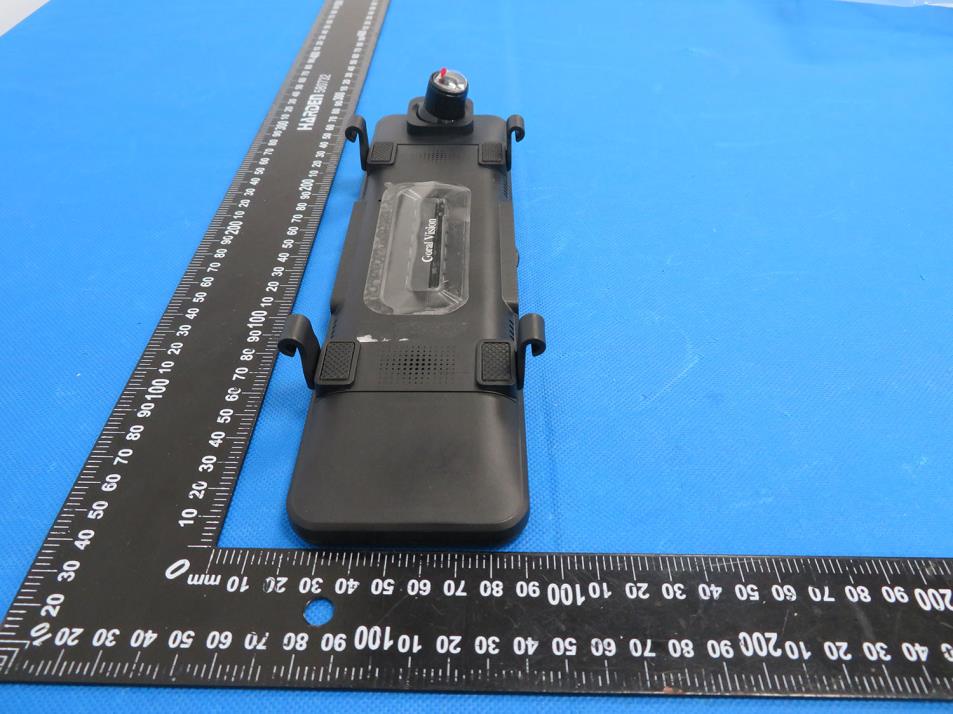

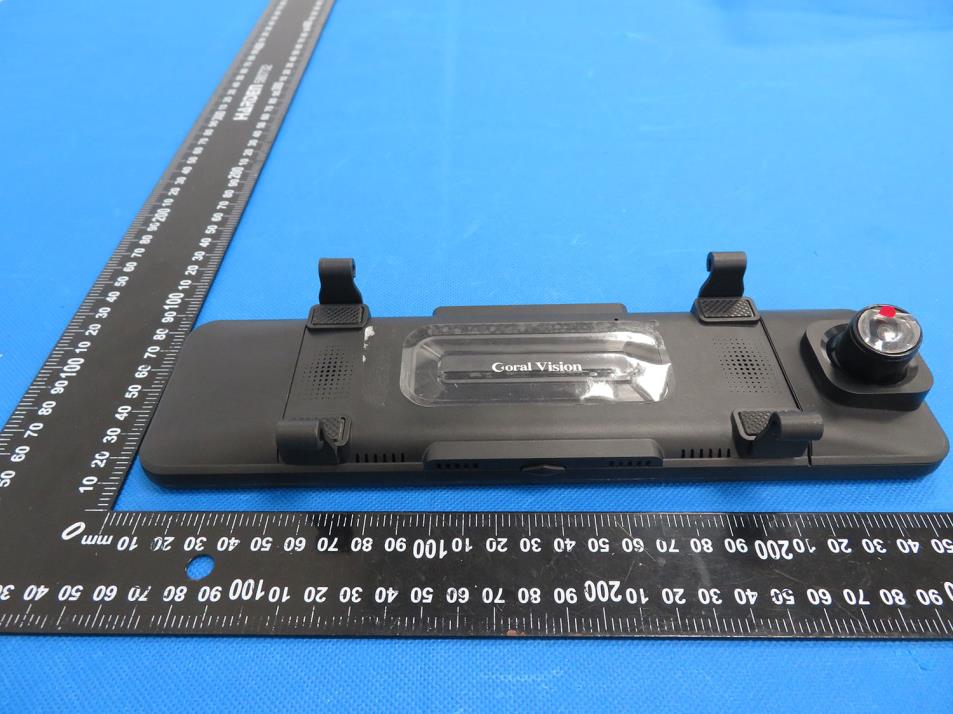

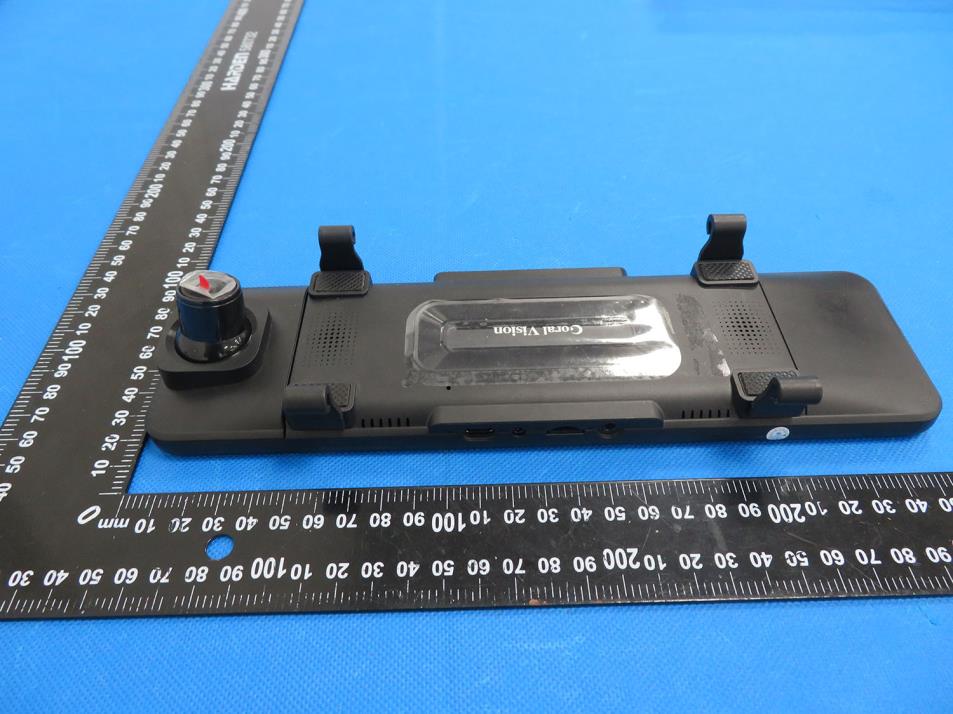

1 / 15 Instructions Thank you for purchasing the CarPlay Dashcam. Before starting, please read this manual carefully to enjoy the best performance and a longer product lifetime. Coral Vision strives to improve the quality of this product and provide a complete warranty. This product does not affect the original equipment of the car, it is a beautiful, convenient and durable multi-functional product. Designed with the most advanced and innovative technology, this CarPlay dash cam integrates with Apple CarPlay, Android Auto, and dashcam to provide you with safe, convenient, smart, and effortless driving. In order to continuously improve the product, Coral Vision reserves the right to update or modify the information contained in this manual. CarPlay copyright belongs to Apple Inc. Android Auto copyright belongs to Google. Quick Installation Guide 2 / 15 INSERT THE TF CARD BEFORE INSTALLATION. Fix the main unit on the rearview mirror with a rubber band, and plug the power cord into the Type-C port and the rear lens cable into the AV port. Power and GPS (optional and Taiwan only) wiring diagram 3 / 15 Rear lens wiring diagram Plug the power cord into the cigarette lighter, wait for about 15 seconds to complete the startup, and then start to operate. Recommends you to wire and install by a professional if you are not familiar with car installation. 4 / 15 Catalog 1. Appearance ................................................................... 5 2. Basic operation ........................................................... 6 3. Home screen ............................................................... 6 4. Features ...................................................................... 7 4.1. CarPlay ............................................................... 7 4.2. Android Auto ................................................... 8 4.3. FM .................................................................... 9 4.4. Help ................................................................. 10 4.5. Playback ........................................................... 11 4.6. Settings ............................................................ 12 4.7. Dashcam related .............................................. 13 5. Specification ................................................................ 14 6. FCC WARNING ............................................................. 15 5 / 15 1. Appearance 1.TYPE-C port 2.Rear lens port 3.TF slot 4.GPS port 5.Screen 6.Power 7.MIC 8. Vents 9.Front lens 10.Speaker 11.Reset hole 12.Strap hook 6 / 15 2. Basic operation 2.1 Power: After power plug in, the machine will turn on automatically. Press the power button to switch the home screen, clock, and off the screen. Tap on the screen to light the screen if the screen is off. 2.2 Touch: The main operations are performed on the screen through touch operations. 3. Home screen System side / Dashcam side 1. Carplay 2. Android Auto 3. FM 4. Help 5. PlayBack 6. Settings 7. Record status 8. TF card status 9. Full screen 7 / 15 4. Features 4.1. CarPlay Connect your phone and the machine (ID is CORAL_R9_xxxxxx) via Bluetooth pairing, and follow the instructions on the phone screen to connect. Please agree to turn on WiFi to perform CarPlay if first connecting. After completion, it will automatically connect and shows the CarPlay menu on the left screen of the machine. Then you can operate CarPlay including Siri, iTunes music player, Apple map, SMS service, etc. Manually turn off the Bluetooth and WiFi on the phone, or move away from the machine and it will automatically disconnect. The machine will automatically connect and launch the CarPlay interface after the machine starts up if it has ever connected. 8 / 15 4.2. Android Auto Connect your Android phone (Android 11 or later) and the machine (ID is CORAL_R9_xxxxxx) via Bluetooth pairing, and follow the instructions on the phone screen to connect. Please agree to turn on WiFi to perform Android Auto if first connecting. After completion, it will automatically connect and shows the Android Auto on the left screen of the machine. Then you can operate Android Auto including voice control, Spotify, Google map, SMS service, etc. Manually turn off the Bluetooth and WiFi on the phone, or move away from the machine and it will automatically disconnect. The machine will automatically connect and launch the Android Auto interface after the machine starts up if it has ever connected. 9 / 15 4.3. FM Tap the icon to enter the following screen. After the channel setting is completed, tap Home to back the home screen, and the channel and on/off settings will be automatically saved. 1 Freq. Range Divided by countries 2 On/ Off Transmitter on/ off 3 Freq. fine tune Up/ down 0.1MHz per step 4 Home Back to home screen 5 Freq. tune Up/down 1MHz per step 6 Band pre-setting Non-adjustable 10 / 15 4.4. Help Built-in simple installation, operation, and exception instructions. 1. Installation 2. Operating 3. Exception 11 / 15 4.5. Playback Playback the videos and photos on the TF card. 1. Front Normal 2. Rear Normal 3. Front_Photo 4. Rear_Photo 5. Front Emergency 6. Rear Emergency 12 / 15 4.6. Settings 1. Date/Time 2.Microphone 3. Volume 4. Screen saver 5. Auot brightnedd 6. G-sensor 7. Reverse line 8. Resolution 9. Loop recording 10. Language 11. Timezone 12. Frequency 13. Format 14. Reset settings 15. Video stamp 16. About 13 / 15 4.7. Dashcam related System side / Dashcam side 1. Record status 2. SD card status 3. Full screen Swipe left or right on the Dashcam side to switch front/ rear camera videos. Tap on Dashcam side, there are brightness/ volume control icons pup out. Record status: Red (working) / White (standby) Tap on “Full screen” to enter the dashcam full screen. There are voice record, video range, and capture a photo functions on the dashcam full screen. 14 / 15 5. Specification Monitor 11 inches (1920 x 462) Front lens Sony Sensor 4K/ 2K, 160° Rear lens FHD 1080P, 140° Video f…
