2AV93-EF40RCElectric Fireplace

© 2020 British Fires // INSTALLATION & USER INSTRUCTIONS NEW FOREST ELECTRIC FIRE // INSTALLATION & USER INSTRUCTIONS SectionContents Page 1.0Important Notes01–03 2.0Grounding Instructions03 3.0Appliance Data for EF40-48B04 4.0Component Checklist05 5.0Site Requirements05 6.0Clearances To Combustibles06 7.0Unpacking The Appliance06 8.0Installation07 8.1Installation – Stud Wall0 8 –10 8.2Installation – Floating11–13 9.0Preparing The appliance14 10.0Forest View Fuel Bed Layout15–16 10.1Slate Fuel Bed Layout17–18 10.2Diamond Light Fuel Bed Layout19–20 11.0Pairing The Remote Control21 12.0Operating The Appliance21–25 13.0Safety Cut-out System26 14.0Cleaning and Maintenance26 15.0Troubleshooting Guide27 16.0Appliance Dimensions29 17.0Three Year Guarantee 30 17.0Terms and Conditions30 // 1.0 IMPORTANT NOTES Important – these instructions should be read carefully and retained for future reference. When using this electrical appliance, basic precautions should be followed to reduce the risk of fire, electric shock and injury to person, including the following: 1) Read all instructions before using this heater. 2) This heater is hot when in use. To avoid burns, do not let bare skin touch hot surface. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, 3) Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended. 4) Do not operate any heater after it malfunctions. Disconnect power at service panel and have heater inspected by a reputable electrician before reusing. 5) Do not use outdoors. 6) To disconnect heater, turn controls to off, and turn off power to heater circuit at main disconnect panel (or operate internal disconnect switch if provided). 7) Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire,or damage the heater. 8) To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked. 9) A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored. 10) Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. 11) If heater may include an audible or visual alarm to warn that parts of the heater are getting excessively hot. If the alarm sounds (or illuminates), immediately turn the heater off and inspect for any objects on or adjacent to the heater that may have blocked the airflow or otherwise caused high temperatures to have occurred. DO NOT OPERATE THE HEATER WITH THE ALARM SOUNDING OR ILLUMINATING. 12) SAVE THESE INSTRUCTIONS This heater must be used on an AC supply only and the voltage marked on the heater’s rating label must correspond to the supply voltage. DO NOT switch the appliance on until it is properly installed as described in this manual. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. CAUTION: Some parts of this appliance can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. Check that all parts included are intact and not damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Never use the appliance if the cord or any part of the appliance shows signs of damage. The heater must not be located immediately below a socket-outlet. DO NOT use this heater in the immediate surroundings of a bath, a shower or a swimming pool. WARNING: In order to avoid overheating, do not cover the fan of the heater. DO NOT use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut- out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided. Keep furniture, curtains and other fabric material away from the appliance. DO NOT leave the appliance unattended during use. DO NOT run the mains cable under carpets, rugs etc. DO NOT cover or obstruct the heater in any way. Overheating will result if it is accidentally covered. Never immerse the appliance in water or any other liquids. DO NOT use the appliance outdoors. Before cleaning the appliance, ensure it is unplugged from the power and that it is completely cool. DO NOT clean the appliance with abrasive chemicals. Never use accessories that…

Text truncated - open the document above for the full version.

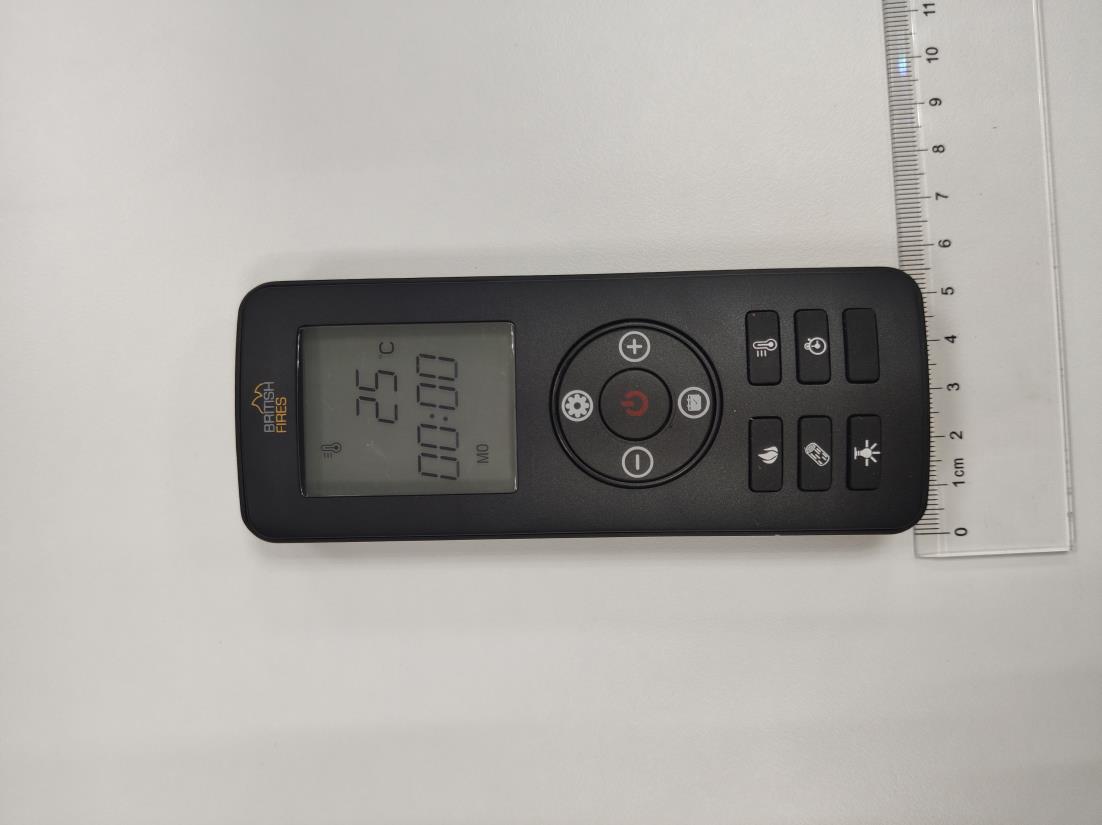

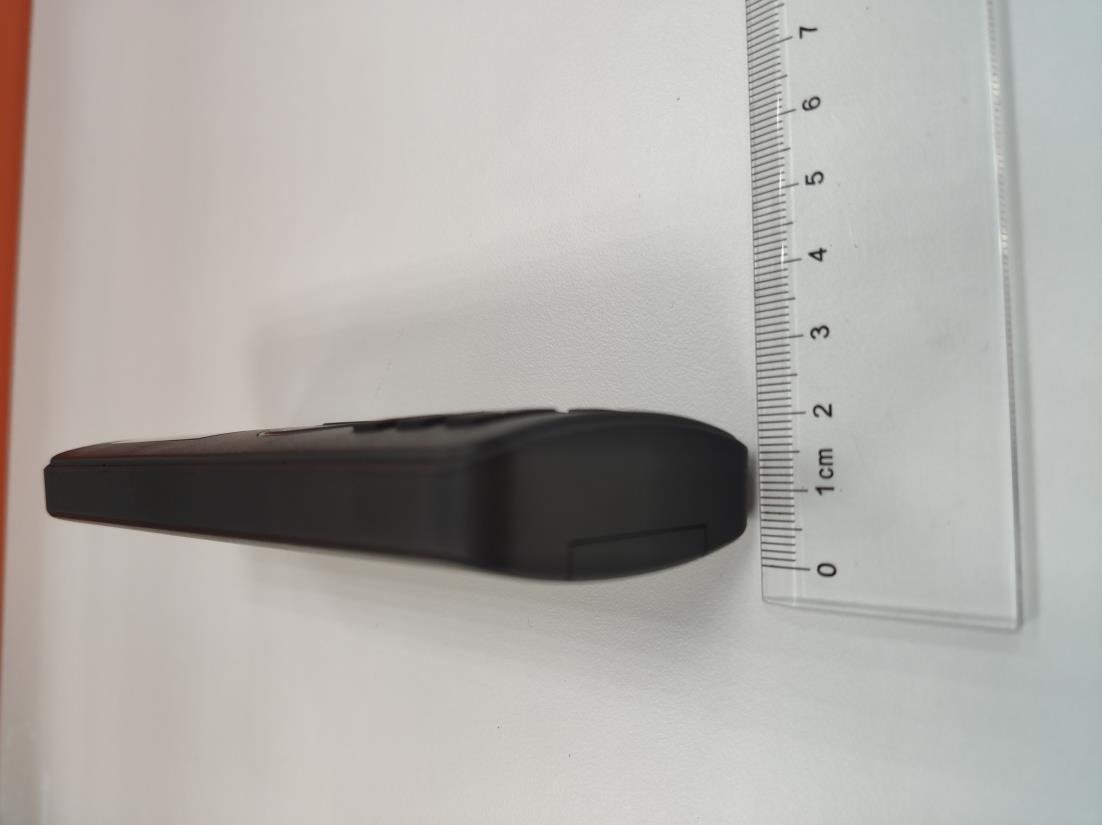

External photo

FCC ID: 2AV93-EF40RC This device complies with Part 15 of the FCC Rules. Operation is subject to the following tw o conditions: (1 ) thi s device may no t cause harmful interference, and (2 ) thi s device must accept any interference received, including interference that may cause undesired operation. RC

Internal Photo

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401150706 Page: 1 of 29 FCC ID: 2AV93-EF40RC Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZEM2012016941CR Applicant: FOCAL POINT FIRES LTD Address of Applicant: Unit 10, Avon Trading Park CHRISTCHURCH BH23 2BT UNITED KINGDOM Manufacturer: Guangdong Paite Electrical Technology Co., Ltd. Address of Manufacturer: No.2 South Shenghui Rd, Nantou town, Zhongshan, Guangdong, China Factory: Guangdong Paite Electrical Technology Co., Ltd. Address of Factory: No.2 South Shenghui Rd, Nantou town, Zhongshan, Guangdong, China Equipment Under Test (EUT): FCC ID: 2AV93-EF40RC EUT Name: Electric Fireplace Model No.: EF40-48B, EF40-32B, EF40-63B ¤ ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Standard(s): 47 CFR Part 15, Subpart C 15.231 Date of Receipt: 2020-12-02 Date of Test: 2020-12-04 to 2020-12-28 Date of Issue: 2020-06-12 (for original report: GZEM200401150702) 2020-09-23 (for copy report: GZEM200401150704) 2020-12-30 (for copy report: GZEM200401150706) Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401150706 Page: 2 of 29 Revision Record Version Chapter Date Modifier Remark 01 2020-06-12 Original 02 2020-09-23 Copy report: Added model: EF40-63B. 03 2020-12-30 Copy report: Alternative remote control. Authorized for issue by: Tested By 2020-12-04 to 2020-12-28 Curry_Wu /Project Engineer Date Checked By 2020-12-30 Ricky_Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401150706 Page: 3 of 29 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.231 N/A 47 CFR Part 15, Subpart C 15.203 Pass N/A: Not applicable Radio Spectrum Matter Part Item Standard Method Requirement Result 20dB Bandwidth 47 CFR Part 15, Subpart C 15.231 ANSI C63.10 (2013) Section 6.9 47 CFR Part 15, Subpart C 15.231(c) Pass Dwell Time (15.231(a)) 47 CFR Part 15, Subpart C 15.231 ANSI C63.10 (2013) Section 7.8.4 47 CFR Part 15, Subpart C 15.231(a) Pass Field Strength of the Fundamental Signal (15.231(b)) 47 CFR Part 15, Subpart C 15.231 ANSI C63.10 (2013) Section 6.5 47 CFR Part 15, Subpart C 15.231(b) Pass Radiated Emissions & Restricted bands 47 CFR Part 15, Subpart C 15.231 ANSI C63.10 (2013) Section 6.4&6.5&6.6 47 CFR Part 15, Subpart C 15.231(b) & 15.209 Pass Remark for original report GZEM200401150702: ¤ Declaration of EUT Family Grouping: Model No.: EF40-48B, EF40-32B According to the declaration from the applicant, the electrical circuit design, l ayout, components used and internal wiring were identical for all models, with only difference on appearance size and Lamp plate length of receiver. Therefore only models EF40-48B was tested in this report. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401150706 Page: 4 of 29 Remark for copy report GZEM200401150704: The GZEM200401150704 report was an additional report based on and only valid with the report GZEM200401150702. Only added new model EF40-63B. Model no.: EF40-48B, EF40-32B, EF40-63B According the declaration from applicant, the model EF40-63B added in GZEM200401150704 report and models in GZEM200401150702 report were identical, with difference on main electric control board ，size and LED light panel. Both of this model’s transmitter are identical. Therefore all test data was keep in this report. Remark for the report GZEM200401150706: This report GZEM200401150706 was an additional report based on the GZEM200401150704 original/previous report, just Alternative remote control. Considering the updated, full tests were performed on the remote control used for all the original models in GZEM200401150706 report. Therefore new data were recorded in this report GZEM200401150706. Tests for original data please refer to report GZEM200401150704 for details. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200401150706 Page: 5 of 29 3 Contents Page 1 Cover Page .............................................................................................................................................. 1 2 Test Summary ........................................................................................................................................ 3 3 Contents ................................................................................................................................................. 5 4 General Information ............................................................................................................................... 6 4.1 Details of E.U.T................................................................................................................................ 6 4.2 Description of Support Units............................................................................................................. 6 4.3 Measurement Uncertainty ................................................................................................................ 6 4.4 Test Location ................................................................................................................................... 7 4.5 Test Facility ..................................................................................................................................... 8 4.6 Deviation from Standards ................................................................................................................. 9 4.7 Abnormalities from Standard Conditions .......................................................................................... 9 5 Equipment List ..........................................................................…

Text truncated - open the document above for the full version.

Test Setup Photo 1.1 Field Strength of the Fundamental Signal (15.231(b)) Test Setup 1.2 RF Conducted Test Setup 1.3 Radiated Emissions Test Setup
