2AV9Q-7106VBluetooth Car Audio Player

Before using the Audio Player, please read this manual thoroughly. Bluetooth Car Audio Player User Manual USB/AM/FM/BT Audio Player INT RPT RDM D MIC 1 WARNNING ATTENTION Only use a vehicle that has a 12V 、24V system with a negative ground. Ventilation for the Vehicle The vehicle's interior temperature rises as the vehicle is under the sunshine for a long time. Please check the temperature is low enough before operating the Audio Player. NOTICE The USB drive of the Audio Player supports: ISO/IEC 11172-3/13818-3 L3 and 1/2/2.5 decode standard. MP3 and WMA files of bit rate 32Kbps-320Kbps. USB1.1 and USB2.0, FAT16/FAT32 files. CAUTION: Any nonstandard file or virus might cause this device operating improperly or dysfunction, please confirm the files in the USB device are aligned with standard and not contaminated with virus. Large volume might take your attention away from driving, which could cause a crash resulting in injury or death to you or others. 2 Introduction to the Keys and Knobs on the Panel Power key Press to turn the system on or off. The system will stay at clock mode while the Audio Player is idle. Once the system is turned on, all the back lights are turned on, then the system transfers to operating mode. Mute Key Briefly press to mute the Audio Player. Press it again to cancel MUTE and resume playing. Volume Control and Equalizer Selection Turn the Volume knob to adjust the magnitude of the volume. Press and hold to select Tone mode among BASS→ TRE→BAL→EQ→LOUD. Collaborate with this knob to set the Tone until you are satisfied. INT RPT RDM D MIC 3 Introduction to the Keys and Knobs on the Panel Briefly press to change operating mode among Radio →USB→BT（skip without external device）. Mode Switch Key Display Switch Key Briefly press in operating state to implement the exchange of display mode. In clock display mode, press and hold until the hour number flashes, turn the Volume knob to adjust the flashed value. Then briefly press ,the minute number will flash, turn the Volume knob to adjust the flashed value. Press and hold to save the selected time. Band Switch key Briefly press to change band among FM1→FM2→ FM3→AM1→AM2. Autostore Stations Key Press and Hold to search and store the stations automatically. Briefly press to browse the stations stored in the station list. 4 Introduction to the Keys and Knobs on the Panel External Input Slot Pull the right side of the door to open it; USB device can be inserted into the slot. Please use USB device with standard dimension. Connect any abnormal or big USB devices to the USB port through standard cable. Once an unsupported device is used, it might damage the Audio Player. Up Key/Down Key Radio: Briefly press to search the previous available station automatically. Briefly press to search the next available station automatically. Press and Hold 2S at least to search the previous available station manually. Press and Hold 2S at least to search the next available station manually. MP3: Briefly press to select the previous track. Briefly press to select the next track. Press and Hold 2S at least to rewind within the current track. Press and Hold 2S at least to fast forward within the current track. 5 Introduction to the Keys and Knobs on the Panel In radio state, only radio digit key is available, the MP3 function is prohibited, briefly press the radio digit key to retrieve the stored station. Press and hold the radio digit key, the current available station will be stored to this key. Radio Digit and MP3 Function Composite Keys In the MP3 state, the MP3 function key is activated, their functions are: ：Pause: Briefly press to stop the current track, press it again to resume playing. INT：Briefly press INT to play all tracks in the device for 10S. Press it again to resume playing. RPT：Briefly press RPT to play the current track repeatedly, and then press it again to resume playing all the tracks orderly. D /D ：Exchange of Directory Press D to play tracks in the previous directory. If the current directory is the first one, change to the last directory. Press D to play tracks in the next directory. If the current directory is the last one, change to the first directory. INT RPT RDM D 6 Bluetooth function introduction Bluetooth Function Introduction After the Bluetooth-enabled cell phone has been paired with the in-vehicle Bluetooth system, once there's an incoming call, the Audio Player scrolls the incoming phone number on the screen. During a call, tap the listening mode icon on the cell phone to switch among the in-vehicle speakers, the speaker of the cell phone and the hands-free speaker of the cell phone. Bluetooth music After the Bluetooth-enabled cell phone has been paired with the in-vehicle Bluetooth system, tap the Music name on the cell phone, it will be transferred to the Audio Player and play on it automatically. While the Audio Player is in the Bluetooth Music Mode, press the Up/Down keys on the Audio Player to select the previous or next track on the cell phone. Bluetooth Function Key Turn the cell phone Bluetooth power on, and make sure it is in discoverable mode. When "MV Bluetooth" appears on the search column, tap the found device (MV Bluetooth) to connect it. When the cell phone connects, the Bluetooth status indicator on the Audio Player screen turns to "CON OK", then it turns to "BT" automatically to show that the Audio Player is in Bluetooth mode. Briefly press the "MODE" key to switch among different work modes of the Audio Player. Once you have successfully connected a Bluetooth-enabled cell phone to the in-vehicle Bluetooth system, turn the cell phone Bluetooth power ON, your in-vehicle Bluetooth system automatically reconnects to the cell phone it has used before, but only automatically reconnects to the last paired one. Only one cell phone can be connected to the Bluetooth system at a time. Up Key/Down Key While the Audio Player is in the Bluetooth Music Mode, press the Up Key/Down Key on the Audio Player to sele…

Text truncated - open the document above for the full version.

Shandong Quanhai Automobile Technology Co., Ltd. (April 20. 2020) MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR EUT: Bluetooth Car Audio Player Model: 7106V FCC ID: 2AV9Q-7106V To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the -Schematic -Block diagram -Operation description required to be submitted with this application be permanently withheld from public review. the above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely, Signature Name: Jack Wang Title: Manager Company: Shandong Quanhai Automobile Technology Co., Ltd. Address: No.2 Zhengtong Road, Gaotang County, Shandong Province, China

Shandong Quanhai Automobile Technology Co., Ltd. (April 20. 2020) Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Flux Compliance Service Laboratory to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature Name: Jack Wang Title: Manager Company: Shandong Quanhai Automobile Technology Co., Ltd. Address: No.2 Zhengtong Road, Gaotang County, Shandong Province, China

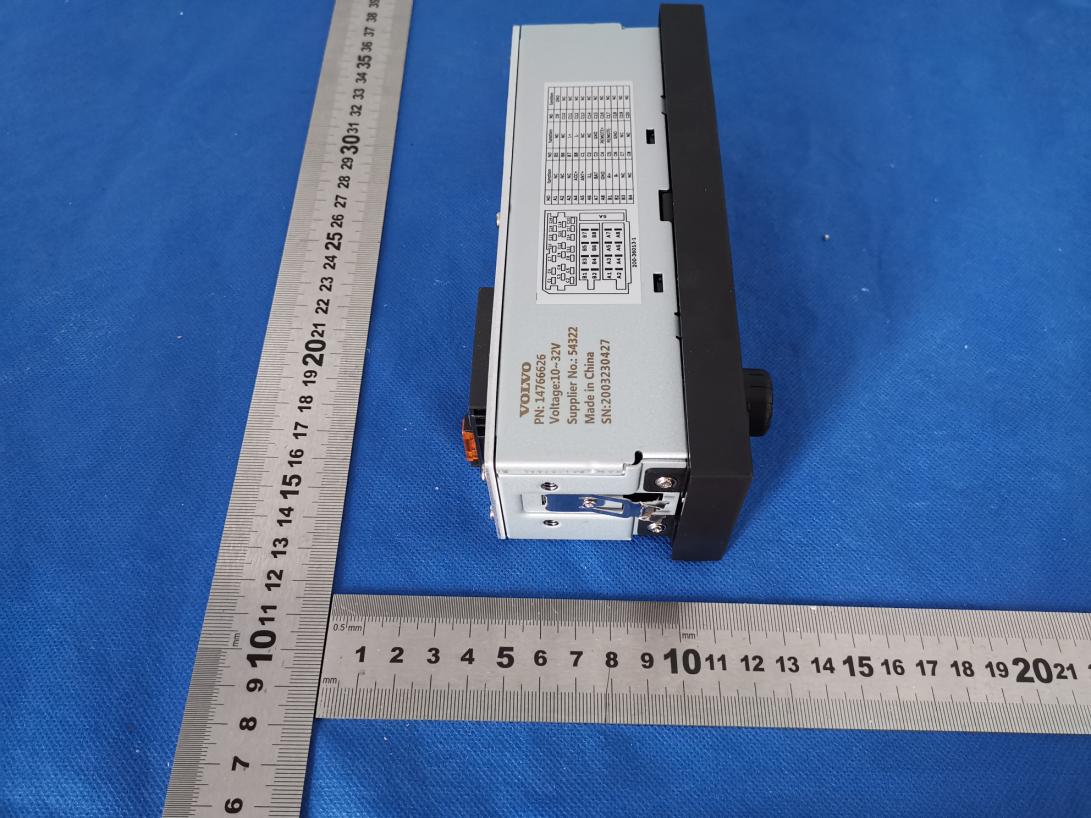

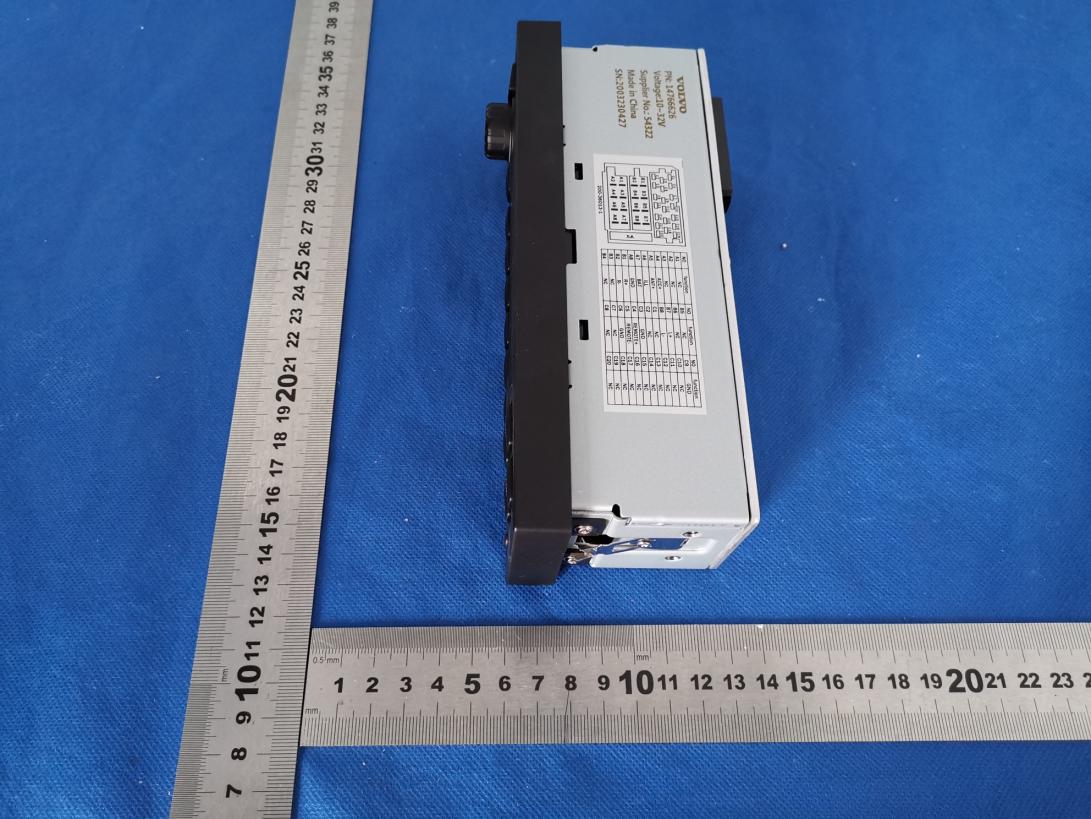

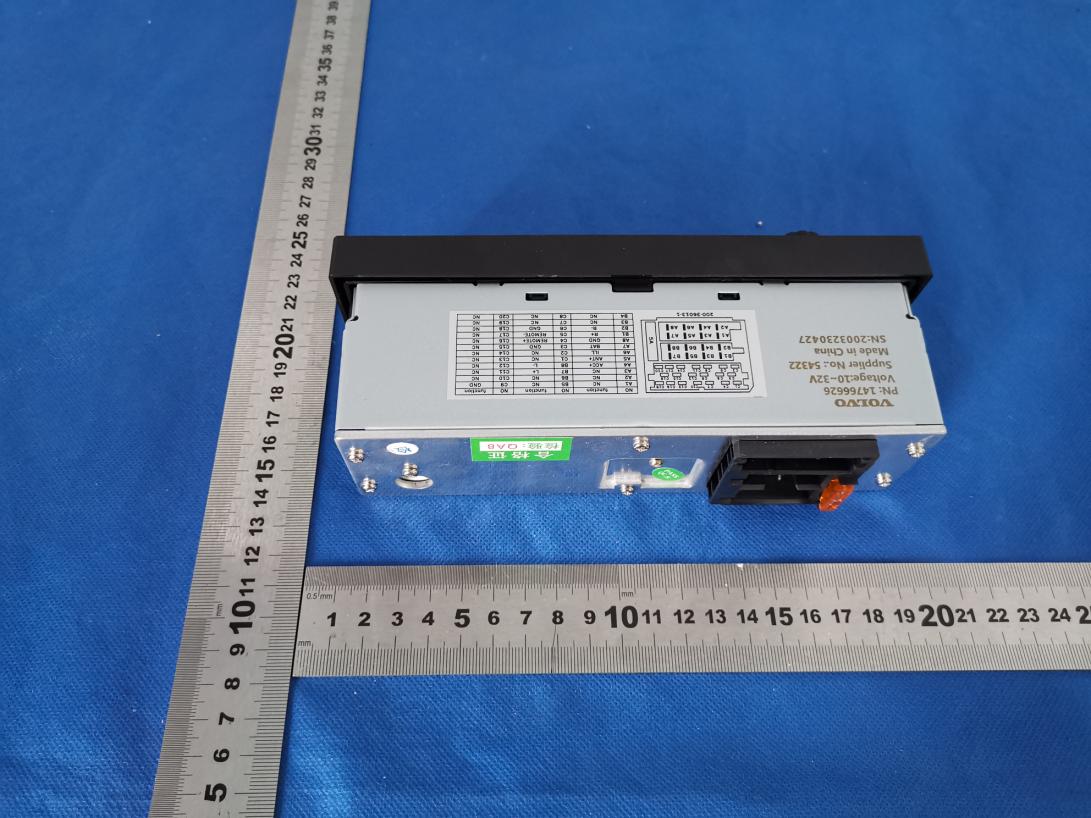

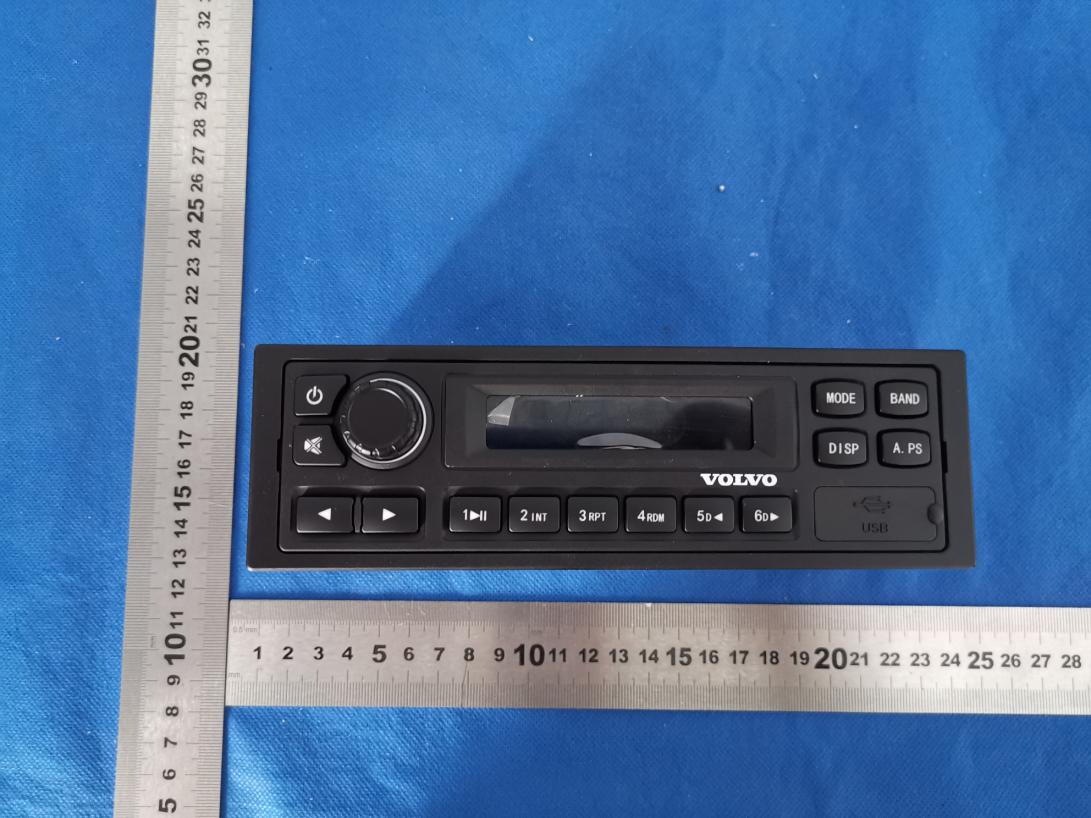

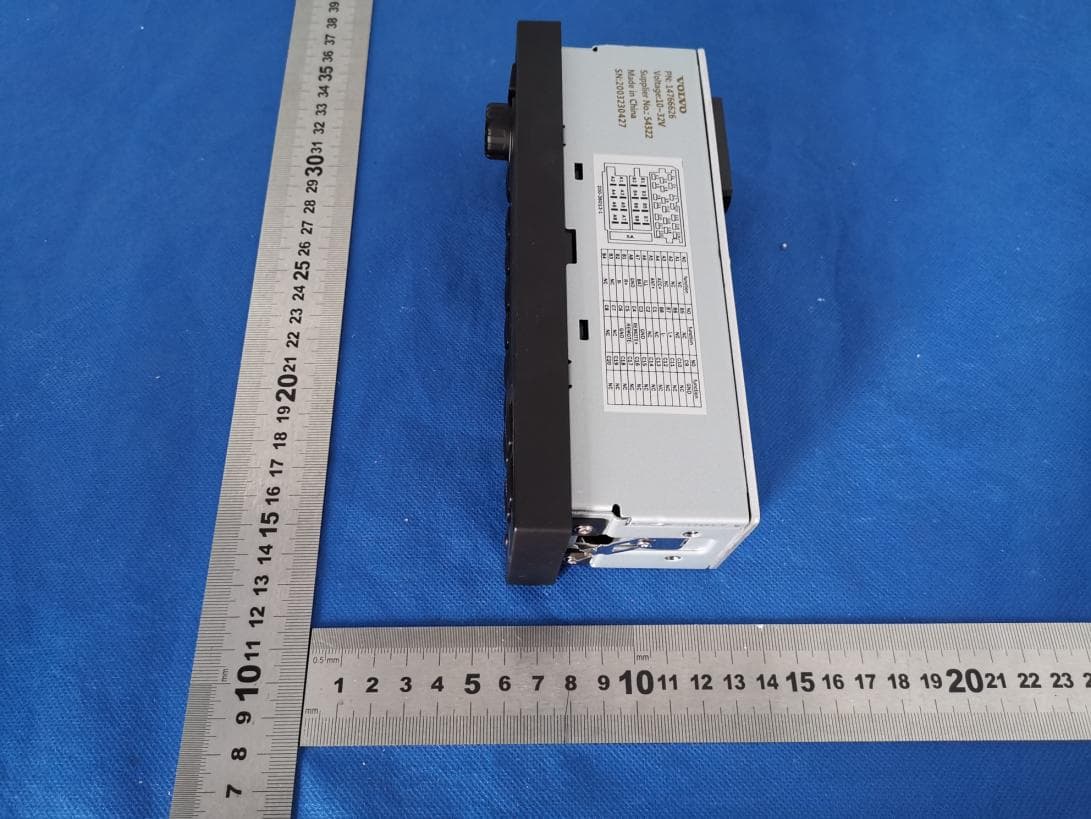

External photos Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Label and Label Location Product Name: Bluetooth Car Audio Player FCC ID: 2AV9Q-7106V This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Manufacture: Shandong Quanhai Automobile Technology Co., Ltd. L*W: 30mm*15mm white font on a Black label

Internal photos Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Antenna Photo 9 Photo 10 Photo 11 Photo 12

FCC Test Report Report No: FCS202004007W01 Issued for Applicant: Shandong Quanhai Automobile Technology Co., Ltd. Address: No.2 Zhengtong Road, Gaotang County, Shandong Province, China Product Name: Bluetooth Car Audio Player Brand Name: N/A Model Name: 7106V Series Model: N/A FCC ID: 2AV9Q-7106V Issued By: Flux Compliance Service Laboratory Add: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com Page 2 of 32 Report No.: FCS202004007W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com TEST RESULT CERTIFICATION Applicant’s Name ................... : Shandong Quanhai Automobile Technology Co., Ltd. Address .................................. : No.2 Zhengtong Road, Gaotang County, Shandong Province, China Manufacture's Name .............. : Shandong Quanhai Automobile Technology Co., Ltd. Address .................................. : No.2 Zhengtong Road, Gaotang County, Shandong Province, China Product Description Product Name ........................ : Bluetooth Car Audio Player Brand Name ......................... : N/A Model Name ........................... : 7106V Series Model .......................... : N/A Test Standards ....................... : FCC Rules and Regulations Part 15 Subpart C, Section 249 Test Procedure ....................... : ANSI C63.10:2013 This device described above has been tested FCS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of FCS, this document may be altered or revised by FCS, personal only, and shall be noted in the revision of the document.. Date of Test ............................... : Date (s) of performance of tests : 16 April. 2020 ~ 22 April. 2020 Date of Issue ............................. : 22 April. 2020 Test Result ................................. : Pass Tested by : (Chris Chen) Reviewed by : (Jack Chen) Approved by : ( Andy yue) Page 3 of 32 Report No.: FCS202004007W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF THE EUT 7 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 10 2.4 EQUIPMENTS LIST 11 3 CONDUCTED EMISSION MEASUREMENT 12 3.1 LIMIT 12 3.2 TEST PROCEDURE 12 3.3 TEST SETUP 13 3.4 TEST RESULTS 13 4. RADIATED EMISSION MEASUREMENT 14 4.1 LIMIT 14 4.2 TEST PROCEDURE 15 4.3 TEST SETUP 16 4.4 TEST RESULTS 17 5. BAND EDGE TEST 23 5.1 LIMIT 23 5.2 TEST PROCEDURE 23 5.3 TEST SETUP 24 5.4 TEST RESULTS 25 6. 20 DB BANDWIDTH TEST 29 6.1 LIMIT 29 6.2 TEST PROCEDURE 29 6.3 TEST SETUP 29 6.4 TEST RESULTS 30 7. ANTENNA REQUIREMENT 32 7.1 STANDARD REQUIREMENT 32 7.2 EUT ANTENNA 32 Page 4 of 32 Report No.: FCS202004007W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com Revision History Rev. Issue Date Effect Page Contents 00 22 April. 2020 All Initial Issue Page 5 of 32 Report No.: FCS202004007W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.249 Meas Guidance v05r02 FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission NA -- 15.205(a), 15.209(a), 15.249(a), 15.249(c) Radiated Spurious Emission PASS -- 15.209 Field strength of fundamental PASS -- 15.249(d) Band Edge Emission PASS -- 15.215(c) 20dB Bandwidth PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1)” N/A” denotes test is not applicable in this Test Report (2) All tests are according to ANSI C63.10-2013 Page 6 of 32 Report No.: FCS202004007W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com 1.1 TEST FACTORY Company Name: Flux Compliance Service Laboratory Address: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Telephone: +86-769-27280901 Fax: +86-769-27280901 FCC Test Firm Registration Number: 514908 Designation number: CN0127 A2LA accreditation number：5545.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.71dB 2 Unwanted Emissions, conducted ±2.988 dB 3 Conducted Emission (9KHz-150KHz) ±4.13 dB 4 Conducted Emission (150KHz-30MHz) ±4.74 dB 5 All emissions,radiated(<1G) 30MHz-1000MHz ±5.2 dB 6 All emissions,radiated (1GHz -18GHz) ±3.66 dB 7 All emissions,radiated (18GHz -40GHz) ±4.31 dB Page 7 of 32 Report No.: FCS202004007W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Bluetooth Car Audio Player Trade Name N/A Model Name 7106V Ser…
