2AVAS-BASXMR1L9.2 Channel Cinema Receiver

Emotiva Audio Corporation * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter ATTN.: Reviewing Engineer FCC ID: 2AVAS-BASXMR1L FRN of applicant: 0029024759 Per section 2.911(d)(7) of the FCC rules, Emotiva Audio Corporation (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Emotiva Audio Corporation Physical U.S. Company Address: 135 Southeast Parkway Court, Franklin, Tennessee, United States Agent contact name/Title : Lonnie Vaughn/VP / CTO Agent Email Address: [email protected] Tel No.: 615 790 6754 FRN No.: 0029024759 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed Signed: Signed: Printed name: Lonnie Vaughn Printed name: Lonnie Vaughn Title: VP / CTO Title: VP / CTO Date: 7/17/2023 Date: 7/17/2023

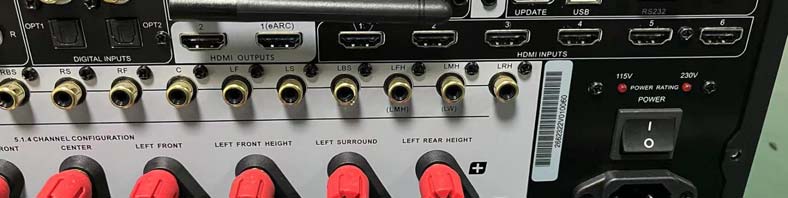

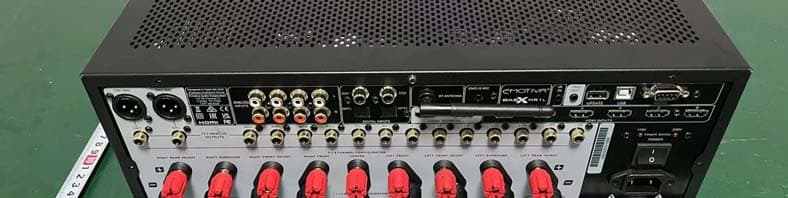

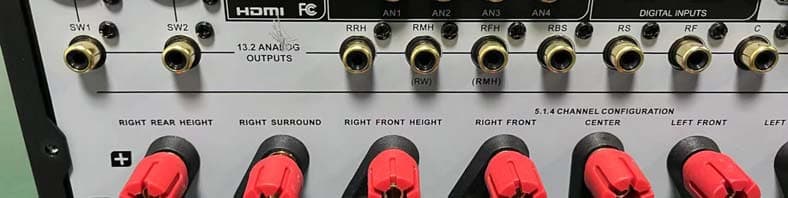

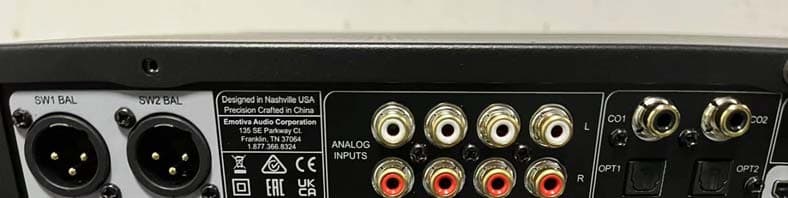

External Photos M/N: BASX MR1L External Photos M/N: BASX MR1L External Photos M/N: BASX MR1L External Photos M/N: BASX MR1L Bluetooth Antenna

label

Internal Photos M/N: BASX MR1L Internal Photos M/N: BASX MR1L Internal Photos M/N: BASX MR1L Internal Photos M/N: BASX MR1L Internal Photos M/N: BASX MR1L Internal Photos M/N: BASX MR1L Internal Photos M/N: BASX MR1L Internal Photos M/N: BASX MR1L Internal Photos M/N: BASX MR1L Internal Photos M/N: BASX MR1L Internal Photos M/N: BASX MR1L Internal Photos M/N: BASX MR1L Internal Photos M/N: BASX MR1L Internal Photos M/N: BASX MR1L Internal Photos M/N: BASX MR1L

FCC ID: 2AVAS-BASXMR1L EST Technology Co. ,Ltd Report No. ESTE-R2307178 Page 1 of 4 FCC 47 CFR MPE REPORT Emotiva Audio Corporation 9.2 Channel Cinema Receiver Model Number: BASX MR1L FCC ID: 2AVAS-BASXMR1L Applicant: Emotiva Audio Corporation Address: 135 Southeast Parkway Court Franklin,TN 37064 USA Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2307178 Date of Test: Jun. 07, ~ Jul. 15, 2023 Date of Report: Jul. 18, 2023 FCC ID: 2AVAS-BASXMR1L EST Technology Co. ,Ltd Report No. ESTE-R2307178 Page 2 of 4 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2AVAS-BASXMR1L EST Technology Co. ,Ltd Report No. ESTE-R2307178 Page 3 of 4 1.2. MPE Calculation Method E (V/m) = d G × P × 30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d × 377 G × P × 30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2AVAS-BASXMR1L EST Technology Co. ,Ltd Report No. ESTE-R2307178 Page 4 of 4 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) GFSK 2402 8.39 6.902 2441 8.56 7.178 2480 8.46 7.015 π /4-DQPSK 2402 6.35 4.315 2441 5.67 3.690 2480 5.8 3.802 8-DPSK 2402 6.92 4.920 2441 6 3.981 2480 6.16 4.130 3. Calculated Result and Limit Mode Peak output power (dBm) Target power （dBm ） MAX Target power （dBm） Antenna gain Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result (dBi) (Linear ) 2.4G Band GFSK 8.56 8±1 9 2.75 1.884 0.00298 1 Complies π/4-DQPSK 6.35 6±1 7 2.75 1.884 0.00188 1 Complies 8-DPSK 6.92 6±1 7 2.75 1.884 0.00188 1 Complies End of Test Report

FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 1 of 91 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Emotiva Audio Corporation 9.2 Channel Cinema Receiver Model Number: BASX MR1L FCC ID: 2AVAS-BASXMR1L Applicant : Emotiva Audio Corporation Address: 135 Southeast Parkway Court Franklin,TN 37064 USA Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2307177 Date of Test: Jun. 07, ~ Jul. 15, 2023 Date of Report: Jul. 18, 2023 FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 2 of 91 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 1.3. Information of RF Cable .................................................................................................................. 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test mode ......................................................................................................................................... 9 2.7. Channel List ................................................................................................................................... 10 2.8. Power Setting of Test Software ...................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 13 3.1. Limit ............................................................................................................................................... 13 3.2. Test Setup ....................................................................................................................................... 13 3.3. Spectrum Analyzer Setting ............................................................................................................. 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ...................................................................................................................................... 13 4. 20 DB BANDWIDTH ....................................................................................................................... 14 4.1. Limit ............................................................................................................................................... 14 4.2. Test Setup ....................................................................................................................................... 14 4.3. Spectrum Analyzer Setting ............................................................................................................. 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ...................................................................................................................................... 14 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 15 5.1. Limit ............................................................................................................................................... 15 5.2. Test Setup ....................................................................................................................................... 15 5.3. Spectrum Analyzer Setting ............................................................................................................. 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ...................................................................................................................................... 15 6. NUMBER OF HOPPING CHANNEL .................................................................................................. 16 6.1. Limit ............................................................................................................................................... 16 6.2. Test Setup ......................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 65 of 91 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 66 of 91 3DH5_Ant1_High_2480 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 67 of 91 Appendix H: Conducted Spurious Emission Test Result Test Mode Antenna Freq(MHz) Freq Range [MHz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 8.43 -41.63 ≤-11.57 PASS 2441 30~26500 7.89 -42.31 ≤-12.11 PASS 2480 30~26500 8.21 -41.9 ≤-11.79 PASS 2DH5 Ant1 2402 30~26500 2.93 -41.99 ≤-17.07 PASS 2441 30~26500 1.72 -42.39 ≤-18.28 PASS 2480 30~26500 3.04 -42.89 ≤-16.96 PASS 3DH5 Ant1 2402 30~26500 4.23 -42.55 ≤-15.77 PASS 2441 30~26500 3.85 -42.64 ≤-16.15 PASS 2480 30~26500 3.94 -42.44 ≤-16.06 PASS FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 68 of 91 Test Graphs DH5_Ant1_2402_30~26500 DH5_Ant1_2441_30~26500 DH5_Ant1_2480_30~26500 FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 69 of 91 2DH5_Ant1_2402_30~26500 2DH5_Ant1_2441_30~26500 2DH5_Ant1_2480_30~26500 FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 70 of 91 3DH5_Ant1_2402_30~26500 3DH5_Ant1_2441_30~26500 3DH5_Ant1_2480_30~26500 FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 71 of 91 14. TEST SETUP PHOTO Conducted Test FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 72 of 91 Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 73 of 91 15. EUT PHOTO External Photos M/N: BASX MR1L FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 74 of 91 External Photos M/N: BASX MR1L FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 75 of 91 External Photos M/N: BASX MR1L FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 76 of 91 External Photos M/N: BASX MR1L Bluetooth Antenna FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 77 of 91 Internal Photos M/N: BASX MR1L FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 78 of 91 Internal Photos M/N: BASX MR1L FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 79 of 91 Internal Photos M/N: BASX MR1L FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 80 of 91 Internal Photos M/N: BASX MR1L FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 81 of 91 Internal Photos M/N: BASX MR1L FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 82 of 91 Internal Photos M/N: BASX MR1L FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 83 of 91 Internal Photos M/N: BASX MR1L FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 84 of 91 Internal Photos M/N: BASX MR1L FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 85 of 91 Internal Photos M/N: BASX MR1L FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 86 of 91 Internal Photos M/N: BASX MR1L FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 87 of 91 Internal Photos M/N: BASX MR1L FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 88 of 91 Internal Photos M/N: BASX MR1L FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 89 of 91 Internal Photos M/N: BASX MR1L FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 90 of 91 Internal Photos M/N: BASX MR1L FCC ID: 2AVAS-BASXMR1L EST Technology Co., Ltd Report No. ESTE-R2307177 Page 91 of 91 Internal Photos M/N: BASX MR1L End of Test Report

東莞市新盛電子有限公司 Dongguan City Xinsheng Electronics Co.,Ltd Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4GHz ANT Center Frequency Horizontal Vertical 2400MHZ 2450MHZ 2500MHZ 2400MHZ 2450MHZ 2500MHZ 2.68 2.64 2.75 -3.93 -4.08 -3.94 MAX. Gain 2.75 Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 100mm Manufacture DONGGUANXINSHENGDIANZI Antenna Photo & Length (mm) 東莞市新盛電子有限公司 Dongguan City Xinsheng Electronics Co.,Ltd Horizontal Analysis Theta=90 水平面分析 frequency 频率(MHz) gain 增益(dBi) efficiency 效率(%) 2400 2.68 73.84 2425 2.74 74.68 2450 2.64 75.53 2475 2.70 74.89 2500 2.75 74.45
