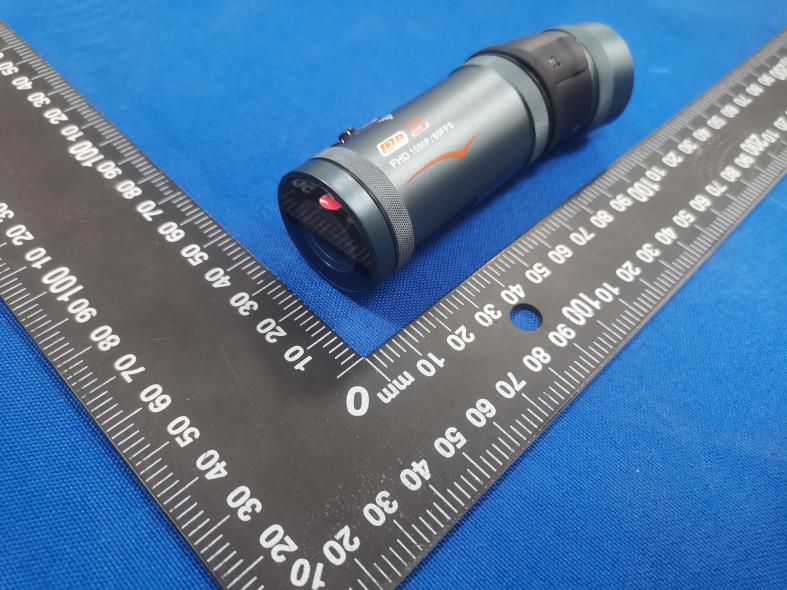

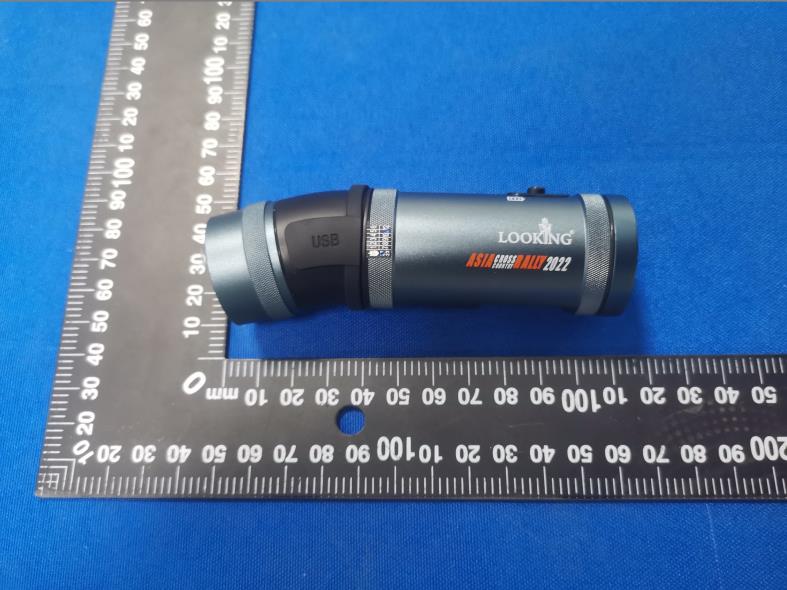

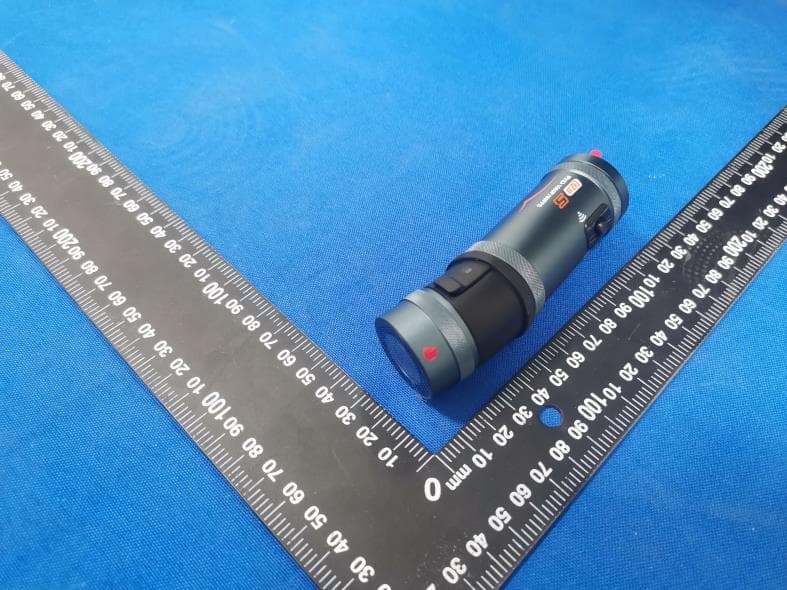

All-in-one portable dual channel motorcycle helmet camera Product Specification Sensor SONY IMX307 Aperture F 1.8 Lens Angle Front: 140° / Rear: 140° Photo JPG Max. 2M Video MP4 (Preset) /TS H.265 Resolution (DUAL) QHD 2K 30fps FHD 1920 X 1080P 60fps (Preset) FHD 1920 X 1080P 30fps Resolution (Single) FHD 1920 X 1080P 60fps Battery 1920 mAh PS：240 minutes working time at full charge. Size / Weight 110 X 40 X 33 mm / 104g Memory card TF card Max. 128G WIFI Built-in MIC Built-in Controller Optional wireless controller to take a photo/lock the file GPS Optional GPS to record speed and route Product Features • Unique patent design in the market • Dual front & rear 2K resolution • SONY IMX307 Starvis night vision sensor • Portable type, easy DIY installation • 4 hours high battery duration (Dual record) • Type-C charging port • TS / MP4 video format options • Fatigue driving vibrating alert • Smart auto-sleep/wake functions to save power • New memory card auto format detection • Wi-Fi connectivity to mobile phone • Multi-uses for outdoor activities Product Structure 1. Key button 2. TF card slot 3. MIC 4. Type-C charging port 5. Reset 6. Charging port waterproof cover Key buttons 1. Long press 3 seconds to turn on/off the power. 2. Short press once can start/stop recording. 3. Quick short press twice to turn on/off the WIFI (stop recording first). 4. Short press 5 times to format the TF card (stop recording and turn off the wifi first. PS：If the machine detects there is no TF card inside or can’t read the new card, the 3 lights will flash quickly and it’s a warning (an error) of no card. Operations Charge the Battery 1. Please charge the camera before use. 2. Please use the USB cable in the box to charge the camera. 3. While charging, the charging light (red light) will remain on, and it will automatically shut off at full charge. PS：During the use, there is a battery low-power alarm (quick flash of green light). If it’s out of the battery, the camera will automatically turn-off. Insert the TF card 1. Open the cover of the TF card slot. 2. Insert a Class 10 or above TF card and the Max. storage is 128G. Please follow the right direction to insert the TF card and cover the card slot. 3. Don’t remove the TF card while recording. 4. Please format the TF card when the first-time use, please use the APP to format it or press 5 times to use the machine to format it. PS：The machine might not detect a new 64G or 128G TF card when the first-time use (you will see the 3 lights flashing quickly), please press 5 times to format the card first. Format the TF card 1. By APP: You can connect the WIFI and go the APP setting page to format the TF card. 2. By pressing the key button: stop the recording first (you will see the white light remains on), then press 5 times the key button and it will vibrate 5 times to format the card. Please check the video to learn the key button operation. Use the Camera 1. Make sure the camera is fully charged and inserted the TF card before use. The TF card must be formatted when the first-time use. 2. Long press the key button 3 seconds to turn on the camera, and it will vibrate once. 3. When the camera is turned on, the recording light (white light) remains on, and it will automatically enter the recording mode. The white light will flash during recording. Short press the key button to stop recording and it will vibrate once to make a reminder, at the same time the white light remains on; press the key button again to restart the recording and it will vibrate to remind again, then the white light flashing resumes. 4. When the camera is turned on, quick short press the key button twice to turn on the WIFI. When the WIFI starts, the blue WIFI indicator light will flash, but if it is not connected to the phone within 1 minute, WIFI will automatically turn off. If the connection with smartphone is successful, the blue WIFI indicator light will remain on. Note: If keep the WIFI on before turning off the camera, then next time the WIFI will be automatically on while turning on the camera. 5. Long press the key button 3 seconds to turn off the camera, and it will vibrate twice. 6. If the camera detects there’s no memory card or card reading error... etc., it will vibrate three times and the 3 lights will flash to have a warning. Low-power Alarm The battery light (green light) shows the camera battery power. Green light remains on：battery power is more than 50%. Green light slow flashes：battery power 30%-50%. Green light quick flashes：battery power is less than 30%. PS：During the use, there is a battery low-power alarm (quick flash of green light). If it’s out of the battery, the camera will be automatically turn-off. Auto-Sleep/Wake 1. In the normal recording mode, when the camera stays static for 3 minutes, it will automatically go to the sleep mode. 2. When the camera detects any movement or shake, it will automatically wake from sleep mode and start recording. 3. The function can be turn on/off in the APP setting page. Set up Please check the video of how to set up the camera. Step 1 Open the main camera holder and put the camera in. Step 2 Assemble the quick release clip with the camera holder. Step 3 Stick the mount on the helmet. Step 4 Assemble the quick release clip with the mount. Step 5 Remember to press the rubber pad tightly to avoid any vibration. Use the APP via WIFI 1. Download the LOOKING CAM APP. 2. When the camera is turned on, short press the key button twice to turn on the WIFI. When the WIFI on, the blue WIFI indicator light will flash, but if it is not connected to the phone within 1 minute, WIFI will automatically turn off. If the connection with the mobile phone is successful, the blue WIFI indicator light will remain on. 3. Turn on the phone general setting pageto find the device WIFI and enter the password to connect it. The WIFI default WIFI name is DB5+SSID****，default password is 12345678. PS. Please don’t change the WIFI name nor the password to avoid …

Text truncated - open the document above for the full version.

FCC ID: 2AVC5-DB5 FCC ID: 2AVC5-DB5

*Label position on the side of the Video Recorder.The size of the MIC logo is 5mm*5mm. Description：Video Recorder Model: DB5 Input：5V2A FCC ID: 2AVC5-DB5 Company Name：Shenzhen Chaoyinsu Electronic Co., Ltd.

FCC ID: 2AVC5-DB5 WIFI Antenna FCC ID: 2AVC5-DB5 FCC ID: 2AVC5-DB5

Page 1 of 2 RFExposureevaluation FCCID:2AVC5-DB5 1.1.ApplicableStandard Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbeoperatedina mannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergylevelinexcessofthe Commission’sguidelines. Accordingto§1.1310and§2.1093RFexposurerequirement KDB447498v06:MobileandPortableDevicesRFExposureProceduresandEquipmentAuthorization Policies 1.2.Requirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1StandaloneSARtest exclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures, standalone1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions, bymeasurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARTestExclusion Thresholdcondition,listedbelow,issatisfied.Thesetestexclusionconditionsarebasedonsource-based time-averagedmaximumconductedoutputpoweroftheRFchannelrequiringevaluation,adjustedfortune-up tolerance,andtheminimumtestseparationdistancerequiredfortheexposureconditions.22Theminimum testseparationdistanceisdeterminedbythesmallestdistancefromtheantennaandradiatingstructuresor outersurfaceofthedevice,accordingtothehostformfactor,exposureconditionsandplatformrequirements, toanypartofthebodyorextremityofauserorbystander(see5)ofsection4.1).ToqualifyforSARtest exclusion,thetestseparationdistancesappliedmustbefullyexplainedandjustifiedbytheoperating configurationsandexposureconditionsofthetransmitterandapplicablehostplatformrequirements,typically intheSARmeasurementorSARanalysisreport,accordingtotherequiredpublishedRFexposureKDB procedures.WhennootherRFexposuretestingorreportingisrequired,astatementofjustificationand compliancemustbeincludedintheequipmentapproval,inlieuoftheSARreport,toqualifyfortheSARtest exclusion.Whenrequired,thedevicespecificconditionsdescribedintheotherpublishedRFexposureKDB proceduresmustbesatisfiedbeforeapplyingtheseSARtestexclusionprovisions;forexample,handheldPTT two-wayradios,handsets,laptops&tabletsetc.23“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)] · [√f(GHz)] ≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: •f(GHz)istheRFchanneltransmitfrequencyinGHz • PoweranddistanceareroundedtothenearestmWandmmbeforecalculation • Theresultisroundedtoonedecimalplaceforcomparison •3.0and7.5arereferredtoasthenumericthresholdsinthestep2below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mmandfor transmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis<5 mm,adistanceof5mmaccordingto5)insection4.1isappliedtodetermineSARtestexclusion. 1.3.Manufacturingtolerance 2.4GHzWIFI(Peak) Frequency (MHz) 11b 241224372462 Target(dBm)8.08.08.0 Tolerance±(dB)1.01.01.0 Frequency (MHz) 11g 241224372462 Target(dBm)6.06.06.0 Tolerance±(dB)1.01.01.0 Frequency (MHz) 11n(HT20) 241224372462 Target(dBm)6.06.06.0 Tolerance±(dB)1.01.01.0 Frequency (MHz) 11n(HT40) 242224372452 Target(dBm)6.06.06.0 Tolerance±(dB)1.01.01.0 Page 2 of 2 2.EvaluationResult EvaluationResults Band/Modef(GHz) Antenna Distance (mm) RFoutputpower (includingtune-up tolerance) SARTest Exclusion Threshold SARTest Exclusion dBmmW 2.4GWIFI2.46259.07.94332.49<3.0Yes 3.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1093fortheuncontrolledRFExposure andSARExclusionThresholdperKDB447498v06. .....................EndofReport.........................

深圳市杰迅通无线技术有限公司 Shenzhen Jiexuntong Wireless Technology Co. , Ltd. 产品技术规格书 SPECIFICATION 产品型号 PARTNO ： LA31H2450-A35 客户料号CUSTOMERPARTNO： 客户确认CUSTOMERAPPROVEDBY： 确认日期APPROVEDDATE： 拟制 Preparedby ：审核 Checkedby ：批准 Approvedby ： 送样日期FormedOn产品版本DocumentVersion (V1.2) 深圳市杰迅通无线技术有限公司 Shenzhen Jiexuntong Wireless Technology Co. , Ltd. 目录 Tableofcontents 规格书版本更改记录Versionrejiggertrackrecord..............................3 1. 概述 Introduction .................................................................. 4 2. 型号 PartNumber ............................................................... 4 3. 外型尺寸及测试板焊盘尺寸 Dimensions.....................4 ～ 5 4.测试电路和匹配电路EvaluationBoardandMatchingCircuits............5 5. 电气性能 ElectricalCharacteristics .......................................... 6 6.特性曲线Characteristiccurve...................................................6 7.方向图RadiationPattern...................................................7～8 8.可靠性试验后允许误差PostDependabilityTolerance...............9 9.可靠性试验DependabilityTest..........................................9～10 10. 回流焊温度 ReflowSolderingStandardCondition ..................... 10 11. 包装尺寸 PackagingandDimensions .................................... 11 产品规格书版本更改记录 Versionrejiggertrackrecor 深圳市杰迅通无线技术有限公司 Shenzhen Jiexuntong Wireless Technology Co. , Ltd. d 版本号 Version 更改记录Rejigger拟制 Prepared 批准 Approve 日期 Date V1.0 首次发行蔡壮陆德龙2015.12.25 V1.1 更改产品尺寸公差值罗昌桅丁志强2017.05.24 V1.2 修正可靠性试验说明内容 8.1~8.4 梁坤荣丁志强2017.11.07 备注： 1、更改产品电性能指标时，版本号需更换（V1.0换为V2.0、V3.0......）； 2、更改产品测试方法（包括可靠性测试条件），或更改使用条件时，当前版本号加系列（V1.0换为V1.1、 V1.2......）。 深圳市杰迅通无线技术有限公司 Shenzhen Jiexuntong Wireless Technology Co. , Ltd. 1. 概述 INTRODUCTION 微波多层陶瓷天线LA系列产品设计用于WLAN、WiFi、蓝牙、PHS，手机 多频天线,FM等小体积SMD片式设计。 MicrowaveMulti-LayerCeramicAntennaLAseriesaredesignedtobeusedin WLAN 、 WiFi 、 Bluetooth 、 PHS 、 Multiple-bandMobilephoneantenna,FM,etcand compactsizeSMDchipdesign. 2. 型号 PartNumber LA31H2450-A35 产品名称，编号A35/ProductName:A35 天线频率/AntennaFrequency: 2450MHz 产品设计结构H型/ViaDesignSeries 产品尺寸/Size：3.2×1.6×1.2 多层结构天线/Multi-layerAntenna 3. 外型尺寸 Dimensions （ Unit ： mm ） 深圳市杰迅通无线技术有限公司 Shenzhen Jiexuntong Wireless Technology Co. , Ltd. 4. 测试电路和匹配电路 EvaluationBoardandMatchingCircuits 1.8n 6.2n 5. 电气性能 ElectricalCharacteristics No.Item（项目）Specifications（特性） 5.1CentralFrequency中心频率(No matching) 2875MHz (带匹配电路测试)AfterMatching2450MHz 5.2BandWidth通带宽度100MHztyp. 5.3PeakGain峰值增益5.19dBi 5.4V.S.W.R驻波比≤2.0 5.5Polarization极化方式Linear线性 5.6AzimuthBeamwidth方位角Omni-directional全向 5.7Impedance阻抗50Ω 深圳市杰迅通无线技术有限公司 Shenzhen Jiexuntong Wireless Technology Co. , Ltd. 6. 特性曲线 Characteristiccurve 7. 方向图 RadiationPattern coordinates ： 深圳市杰迅通无线技术有限公司 Shenzhen Jiexuntong Wireless Technology Co. , Ltd. X-ZPlane Y-ZPlane X-YPlane 深圳市杰迅通无线技术有限公司 Shenzhen Jiexuntong Wireless Technology Co. , Ltd. 3D RadiationPattern Frequency(MHz)240024502500 Avg.Gain(dBi)-0.23-0.36-0.51 PeckGain(dBi)4.985.194.55 Efficiency(%)7071.269 8 可靠性试验后允许误 深圳市杰迅通无线技术有限公司 Shenzhen Jiexuntong Wireless Technology Co. , Ltd. 差 PostDependabilityTolerance 经可靠性试验后允许比起始读数偏差见下表 PostDependabilityTolerance(Refertothetable) No.Item（项目）PostDependabilityTolerance(可靠 性试验后允许附加误差) 8.1 CentralFrequency中心频率 ±5MHz 8.2 BandWidth通带宽度 ±5MHz 8.3 Gain增益 ±0.1dBi 8.4 V.S.W.R(inBW)驻波比 ±0.1 9可靠性试验DependabilityTest 基准条件：温度范围Temperaturerange25±5°C 相对湿度范围RelativeHumidityrange55~75%RH 工作温度OperatingTemperaturerange-40°C~+85°C 9.1耐振动 VibrationResist 在振动频率为10~55Hz振幅为1.5mm沿X.Y.Z方向各振动2小时后测试符合表8.1~8.4规定。 Thedeviceshouldsatisfytheelectricalcharacteristicsspecifiedinparagraph8.1~8.4afterappliedto thevibrationof10to55Hzwithamplitudeof1.5mmfor2hourseachinX,YandZdirections. 9.2耐跌落冲击DropShock 在100cm高度处按X，Y，Z三个面分别自由跌落在木制地板上共3次后测试符合表8.1~8.4规 定。 Thedeviceshouldsatisfytheelectricalcharacteristicsspecifiedinparagraph8.1~8.4afterdropping ontothehardwoodenboardfromtheheightof100cmfor3timeseachfacetofthe3dimensionsofthe device. 9.3耐焊接热SolderHeatProof 能承受经120~150°C的温度预热120秒后，在255°C+10°C的焊锡浸5±0.5秒，或300°C-10°C的 电烙铁焊接3±0.5秒，焊接面无损伤。 Thedeviceshouldbesatisfiedafterpreheatingat120°C~150°Cfor120secondsanddippingin solderingSnat255°C+10°Cfor5±0.5seconds，orelectriciron300°C-10°Cfor3±0.5seconds，without damnify. 9.4结合力试验TensileStrengthofTerminal 在产品电极端子上或表面上应能承受1kg垂直拉力10±1秒。 Thedeviceshouldnotbebrokenaftertensileforceof1.0kgisslowlyappliedtopullaleadpinof thefixeddeviceintheleadaxisdirectionfor10±1seconds. 深圳市杰迅通无线技术有限公司 Shenzhen Jiexuntong Wireless Technology Co. , Ltd. 9.5耐弯曲试验BendingResistTest 将产品按图焊在1.6±0.2mm的PCB板中间，由箭头方向施 力：1mm/S，弯曲距离：1.5mm，保持5±1S，产品金属层无脱落。 WeldtheproducttothecenterpartofthePCBwiththethickness 1.6±0.2mmastheillustrationshows,andkeepexertingforcearrow- wardonitatspeedof:1mm/S,andholdfor5±1Satthepositionof 1.5mmbendingdistance,sofar,anypeelingoffofthe productmetalcoatingshouldnotbedetected. 9.6耐湿热特性MoistureProof 在温度为60±2°C，相对湿度90~95%的恒温湿箱中放置96小时，在常温中恢复1~2小时后测 试，符合表8.1~8.4规定。 Thedeviceshouldsatisfytheelectricalcharacteristicsspecifiedinparagraph8.1~8.4afterexposedto thetemperature60±2°Candtherelativehumidity90~95%RHfor96hoursand1~2hoursrecoverytime undernormalcondition. 9.7高温特性HighTemperatureEndurance 在温度为85±5°C的恒温箱中放置96±2小时，在常温中恢复1~2小时后测试。符合表8.1~8.4 规定。 Thedeviceshouldsatisfytheelectricalcharacteristicsspecifiedinparagraph8.1~8.4afterexposedto temperature85±5°Cfor96±2hoursand1~2hoursrecoverytimeundernormaltemperature. 9.8低温特性LowTemperatureEndurance 在温度为-40°C±5°C低温箱中放置96±2小时后恢复1~2小时测试符合表8.1~8.4规定。 Thedeviceshouldalsosatisfytheelectricalcharacteristicsspecifiedinparagraph8.1~8.4afterexposed tothetemperature-40°C±5°Cfor96±2hoursandto2hoursrecoverytimeundernormaltemperature. 9.9温度循环TemperatureCycleTest 在-40°C温度中保持30分钟，再在+85°C温度中保持30分钟，共循环5次后在常温中恢复1~2 小时后测试符合表8.1~8.4规定。 Thedeviceshouldalsosatisfytheelectricalcharacteristics exposedtothelowtemperature-40°Candhightemperature+85°C to2hoursrecoverytimeundernormaltemperature. specifiedinparagraph8.1~8.4after for30±2mineachby5cyclesand1 10回流焊温度ReflowSolderingStandardCondition 深圳市杰迅通无线技术有限公司 Shenzhen Jiexuntong Wireless Technology Co. , Ltd. 11包装尺寸(3216) PackagingandDimensions 11.1Plasti…

Text truncated - open the document above for the full version.

ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd. 101#,BuildingK&BuildingT,TheSecondIndustrialZone,JiazitangCommunity, FenghuangStreet,GuangmingDistrict,Shenzhen,China FCCPART15SUBPARTCTESTREPORT FCCPART15.247 ReportReferenceNo. ....................... : FCCID. ................................................ : GRCTR221102016-01 2AVC5-DB5 Compiledby (position+printedname+signature) .. : TestingEngineerJimmyWang Supervisedby (position+printedname+signature) .. : ProjectEngineerKelleyZhang Approvedby (position+printedname+signature)..: ManagerSamWang Dateofissue.........................................:Dec.01,2022 TestingLaboratoryName................: ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd. Address.................................................: 101#,BuildingK&BuildingT,TheSecondIndustrialZone,Jiazitang Community,FenghuangStreet,GuangmingDistrict,Shenzhen, China Applicant’sname...............................: ShenzhenChaoyinsuElectronicCo.,Ltd. Address.................................................: No.711,7F,buildingA,HuafengIndustrialParkHangchengAvenue, XixiangStreet,BaoanDistrict，Shenzhen Testspecification..............................: Standard................................................: FCCPart15.247 ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerand sourceofthematerial.ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.takesno responsibilityforandwillnotassumeliabilityfordamagesresultingfromthereader'sinterpretationofthe reproducedmaterialduetoitsplacementandcontext. Testitemdescription ........................ : VideoRecorder TradeMark............................................: / Manufacturer.........................................: ShenzhenChaoyinsuElectronicCo.,Ltd. Model/Typereference.........................: DB5 ListedModels......................................: DB5PRO,DB7 ModulationType..................................:CCK/DSSS/OFDM OperationFrequency..........................:From2412-2462MHz Rating.....................................................: 5.0V2.0A(chargedbyDC5VPowerAdapter)or 3.8V960mAh*2(ByLi-ionrechargeablebattery) Result.....................................................:PASS ReportNo.:GRCTR221102016-01Page 2 of 40 TESTREPORT EquipmentunderTest:VideoRecorder Model/Type:DB5 ListedModels:DB5PRO,DB7 Applicant : ShenzhenChaoyinsuElectronicCo.,Ltd. Address: No.711,7F,buildingA,HuafengIndustrialParkHangcheng Avenue,XixiangStreet,BaoanDistrict，Shenzhen Manufacturer : ShenzhenChaoyinsuElectronicCo.,Ltd. Address: No.711,7F,buildingA,HuafengIndustrialParkHangcheng Avenue,XixiangStreet,BaoanDistrict，Shenzhen TestResult:PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:GRCTR221102016-01Page 3 of 40 Contents 1TESTSTANDARDS..............................................................................................................................4 2SUMMARY.................................................................................................................................................5 2.1GeneralRemarks..........................................................................................................................................5 2.2ProductDescription.....................................................................................................................................5 2.3EquipmentUnderTest.................................................................................................................................5 2.4ShortdescriptionoftheEquipmentunderTest(EUT).............................................................................6 2.5EUToperationmode.....................................................................................................................................6 2.6BlockDiagramofTestSetup.......................................................................................................................6 2.7RelatedSubmittal(s)/Grant(s)...................................................................................................................6 2.8Modifications.................................................................................................................................................6 3TESTENVIRONMENT........................................................................................................................7 3.1Addressofthetestlaboratory....................................................................................................................7 3.2TestFacility...................................................................................................................................................7 3.3Environmentalconditions............................................................................................................................7 3.4TestDescription............................................................................................................................................8 3.5Statementofthemeasurementuncertainty..............................................................................................8 3.6EquipmentsUsedduringtheTest..............................................................................................................9 4TESTCONDITIONSANDRESULTS.......................................................................................10 4.1ACPowerConductedEmission................................................................................................................10 4.2RadiatedEmission......................................................................................................................................13 4.3MaximumConductedOutputPower................…

Text truncated - open the document above for the full version.

ReportNo.:GRCTR221102016-01Page 28 of 40 802.11b802.11g CH11CH01 30MHz-3GHz30MHz-3GHz 3GHz-25GHz3GHz-25GHz ReportNo.:GRCTR221102016-01Page 29 of 40 802.11g CH06CH11 30MHz-3GHz30MHz-3GHz 3GHz-25GHz3GHz-25GHz ReportNo.:GRCTR221102016-01Page 30 of 40 802.11n(HT20) CH01CH06 30MHz-3GHz30MHz-3GHz 3GHz-25GHz3GHz-25GHz ReportNo.:GRCTR221102016-01Page 31 of 40 802.11n(HT20)802.11n(HT40) CH11CH03 30MHz-3GHz30MHz-3GHz 3GHz-25GHz3GHz-25GHz ReportNo.:GRCTR221102016-01Page 32 of 40 802.11n(HT40) CH06CH09 30MHz-3GHz30MHz-3GHz 3GHz-25GHz3GHz-25GHz ReportNo.:GRCTR221102016-01Page 33 of 40 Band-edgeMeasurementsforRFConductedEmissions: 802.11b LeftbandedgeRightbandedge 802.11g LeftbandedgeRightbandedge 802.11n(HT20) LeftbandedgeRightbandedge ReportNo.:GRCTR221102016-01Page 34 of 40 802.11n(HT40) LeftbandedgeRightbandedge ReportNo.:GRCTR221102016-01Page 35 of 40 4.7AntennaRequirement StandardApplicable Forintentionaldevice,accordingtoFCC47CFRSection15.203: Anintentionalradiatorshallbedesignedtoensurethatnoantennaotherthanthatfurnishedbythe responsiblepartyshallbeusedwiththedevice.Theuseofapermanentlyattachedantennaorofanantenna thatusesauniquecouplingtotheintentionalradiator,themanufacturermaydesigntheunitsothatabroken antennacanbereplacedbytheuser,buttheuseofastandardantennajackorelectricalconnectoris prohibited. FCCCFRTitle47Part15SubpartCSection15.247(c)(1)(I): (i)Systemsoperatinginthe2400-2483.5MHzbandthatisusedexclusivelyforfixed.Point-to-pointoperations mayemploytransmittingantennaswithdirectionalgaingreaterthan6dBiprovidedthemaximumconducted outputpoweroftheintentionalradiatorisreducedby1dBforevery3dBthatthedirectionalgainofthe antennaexceeds6dBi. TestResult: Themaximumgainofantennawas5.19dBifor2.4GHzWIFI. Remark:Theantennagainisprovidedbythecustomer,ifthedataprovidedbythecustomerisnotaccurate, ShenzhenGUORENCertificationTechnologyServiceCo.,Ltd.doesnotassumeanyresponsibility. ReportNo.: GRCTR221102016-01Page 36 of 40 5 T e s tS e t u pP h o t o so f t h eE U T ReportNo.: GRCTR221102016-01Page 37 of 40 6 P h o t o so f t h eE U T ReportNo.: GRCTR221102016-01Page 38 of 40 WIFI Antenna ReportNo.: GRCTR221102016-01Page 39 of 40 ReportNo.: GRCTR221102016-01Page 40 of 40 **********************End of Report**********************
