2AVCG-M1Intelligent Neck Massager

CONTENTS English01-14 Deutsch15-29 Italiano30-44 Français45-59 Español60-74 How to connect the Vihealth app Scan the QR code or Search “ViHealth” in App Store and Google Play. Long press the power on button of the massager for 2 seconds and release it after hearing the "beep' 'and Indicator light is blue and always on. Open ViHealth App, it will search your device automatically. Choose and add your device to ViHealth. Select the mode and function you need, adjust the intensity to start the massage. 英语 01 02 03 04 05 06 07 08 09 10 11 12 13 Weight Battery cell Battery capacity Charging voltage Rated power Executive standard Manufacturer 160g Lithium cell 900mAh DC 5V 5W IEC/EN60335-2-32 Lepu Zhixin Medical Technology (TianJin) co., Ltd. 14 15 So verbinden Sie die Vihealth-App？ Scannen Sie den QR-Code oder suchen Sie im App Store und bei Google Play nach „ViHealth“. Drücken Sie die Einschalttaste des Massagegeräts 2 Sekunden lang und lassen Sie sie los, nachdem Sie den Piepton gehört haben und die Kontrollleuchte blau leuchtet und immer leuchtet. Öffnen Sie die ViHealth App, um Ihr Gerät automatisch zu durchsuchen. Wählen Sie Ihr Gerät aus und fügen Sie es zu ViHealth hinzu. Wählen Sie den gewünschten Modus und die gewünschte Funktion aus und stellen Sie die Intensität ein, um die Massage zu starten. 德语 16 Produktdiagramm Elektrode Ladeschnittstelle Schalten HeiztasteTaste zum Verringern der Intensität Mode-Taste Schaltfläche zur Erhöhung der Intensität 17 Betriebsmethode Befeuchten Sie vor dem Gebrauch zuerst die Haut der Halswirbelsäule mit einem feuchten Handtuch und legen Sie das Produkt dann um den Hals. Stellen Sie die Elektrode nahe an die Haut der Halswirbelsäule, stellen Sie die Position des Produkts ein, hosten Sie und stellen Sie die Haut ein geeignete Masseintensität und -modus. Legen Sie das Produkt dann um den Hals, bringen Sie die Elektrode nahe an die Haut der Halswirbelsäule heran, stellen Sie die Position des Produkts ein, hosten Sie und stellen Sie die geeignete Massageintensität und den geeigneten Massagemodus ein. 1. Drücken Sie die Host-Taste " " zwei Sekunden lang, schalten Sie den Host ein (mit dem Summer "Beep" und der Eingabeaufforderung) und wechseln Sie in den Standardmodus mit der Standardstufe (0). Lange Presse Host " " für zwei Sekunden, wenn das Gerät eingeschaltet ist, zwei "Pieptöne" hören und die Produkte ausschalten. 2. Modusauswahl (Akupunkturmodus und Beat-Modus und Massagemo- dus)" "Wenn die Fernbedienung die Modustaste ist, drücken Sie die Modustaste, um den Modus umzuschalten. Es gibt drei Modi. Nach jedem Drücken wird ein Signalton ausgegeben und in den höheren Modus geschaltet. Die drei Modi können im Zyklus umgeschaltet werden (Hinweis: M1-Modus, M2-Modus, M3-Modus). Jedes Mal, wenn ein Modus umgeschaltet wird, kehrt die Intensität zu zurück die Standardeinstellung o. 3. Zahnradauswahl 4. " " auf der Fernbedienung ist die Taste zur Intensitätserhöhung.Nach 4.1. 18 jedem Drücken wird ein Signalton ausgegeben und in den höheren Modus gewechselt. Die Intensität ist in 15 Stufen (0, l, 2 ... 15) unterteilt. Wenn die Intensität auf Stufe 15 liegt, Wenn Sie " " drücken. Bei Stufe 15 wird ein TwoMbeep "-Sound mit der gleichen Intensität gesendet. " " auf der Fernbedienung ist die Taste zum Verringern der Intensität. Nach jedem Drücken wird ein Piepton ausgegeben und in den unteren Modus geschaltet. Die Intensität ist in 15 Stufen (0,1,2 ... 15) unterteilt. Wenn sich die Intelität auf Stufe 0 befindet, werden nach Drücken von " " " zwei Pieptöne mit gleicher Intensität auf Stufe 15" ausgegeben. 4.2. " "on the remote control is the heating button.Press the heating button and start host heating function with a "beep" sound.The two electrode will be not at the tempera tere of 42°C. " " on the remote control is to heating off button.Press the heating off button and stop the heating function with two "beep" sounds. 5.1. 5.2. The host is scheduled for 15minutes.When the host is turned on,it will automatically shut down after 15minutes. 6.1. When the host is turned on, the product will automatically shut down in 3minutes when the products is not put on normally. 6.2. Niederspannungsalarm: Wenn der Host kurz vor der Stromversorgung steht (Batteriespannung beträgt 3,5 V), blinkt das blaue Licht der Anzeige schnell (Frequenz: 3 Mal pro Sekunde). Sie können ein Ende des Micro-USB-Kabels in den Host einführen und das andere Ende in 7.1. Niedrigspannungsalarm & Ladefunktion 7. Timing function 6. Heater selection 5. 19 das Handy-Ladegerät (Ausgang ist 5V 1A / 2A), grünes Licht, das beim Laden blinkt, grünes Licht, das immer leuchtet, wenn es voll ist. Batteriemodell der Fernbedienung: CR2032. Beachten Sie beim Austausch, dass der Pluspol der Batterie nach oben zeigt. Das Produkt wird nach 15 Minuten automatisch ausgeschaltet Betrieb. Es wird empfohlen, es nicht länger als 30 Minuten pro Tag zu verwenden. Das Produkt sollte nach Gebrauch in einem trockenen und belüfteten Flugzeug gelagert werden. Setzen Sie keine anderen Gewichte auf das Produkt. Ziehen Sie nicht am Gummistopfen am USB-Ladeanschluss kann zum Bersten und Herunterfallen führen. 7.2. Tipps 20 Vorsichtsmaßnahmen Bitte verwenden Sie das Produkt niemals mit den folgenden medizinischen elektronischen Geräten: 1. Herzschrittmacher und andere implantierbare medizinische elektronische Geräte; 2. Künstliches Herz und Lunge sowie andere lebenserhaltende medizinische elektronische Geräte; 3. Elektrokardiographen und andere medizinische elektronische Geräte; * Diese medizinischen elektronischen Geräte können Fehlfunktionen verursachen und lebensbedrohlich sein. Wenn der Patient gleichzeitig ein hochfrequentes chirurgisches Gerät und das Produkt auf den Körper auf trägt, kann die Elektrode des Produkts Verbrennungen und Schäden am Produkt verursachen. Wenn das Produkt in der Nähe von (1 M) einem Kurzwellen- oder Mikrowellentherapiegerät verwendet wird, kann die Ausgabe des Produkts instabil sein. Die Elektrode sollte…

Text truncated - open the document above for the full version.

LEPU ZHIXIN MEDICAL TECHNOLOGY (TIANJIN) CO., LTD Agent Authorization Company: LEPU ZHIXIN MEDICAL TECHNOLOGY (TIANJIN) CO., LTD Address: Room 1-301,Building 10,Ligang Zone,Industrial Park,Shuang Gang Town,Jinnan District, Tianjin, China Product Name: Intelligent Neck Massager Trade Mark: Wellue, LEPULSE Model Number(s ): M1, M2, M3, M4, M5, M6, M7, M8, M9, M10 FCC ID: 2AVCG-M1 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-05-29 Name: Haochen Wang Title: Project Engineer Company: LEPU ZHIXIN MEDICAL TECHNOLOGY (TIANJIN) CO., LTD

LEPU ZHIXIN MEDICAL TECHNOLOGY (TIANJIN) CO., LTD Add: Room 1-301,Building 10,Ligang Zone,Industrial Park,Shuang Gang Town,Jinnan District, Tianjin, China Tel: 8615910278152 Date: 2021-05-29 Dear Sir/Madam, We, LEPU ZHIXIN MEDICAL TECHNOLOGY (TIANJIN) CO., LTD Hereby declares the following statement , PCB board, circuit, s tructure and internal of these model(s) are the same, Only model number is different for these models: Product name: Intelligent Neck Massager Models No.: M1, M2, M3, M4, M5, M6, M7, M8, M9, M10 Sincerely, Client’s name / title : Haochen Wang / Project Engineer Contact information / address: Room 1-301,Building 10,Ligang Zone,Industrial Park,Shuang Gang Town,Jinnan District, Tianjin, China Tel: 8615910278152 E-Mail: [email protected]

LEPU ZHIXIN MEDICAL TECHNOLOGY (TIANJIN) CO., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-0 5-29 Subject; Request for Confidentiality FCC ID: 2AVCG-M1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Haochen Wang Title: Project Engineer

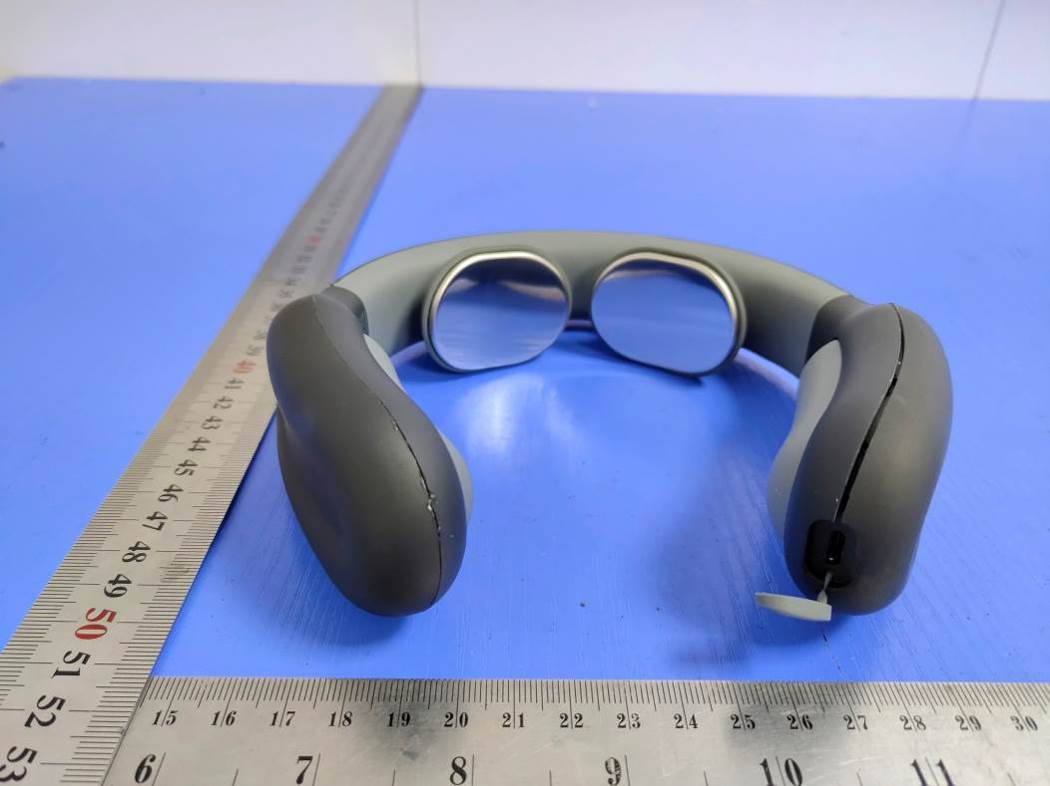

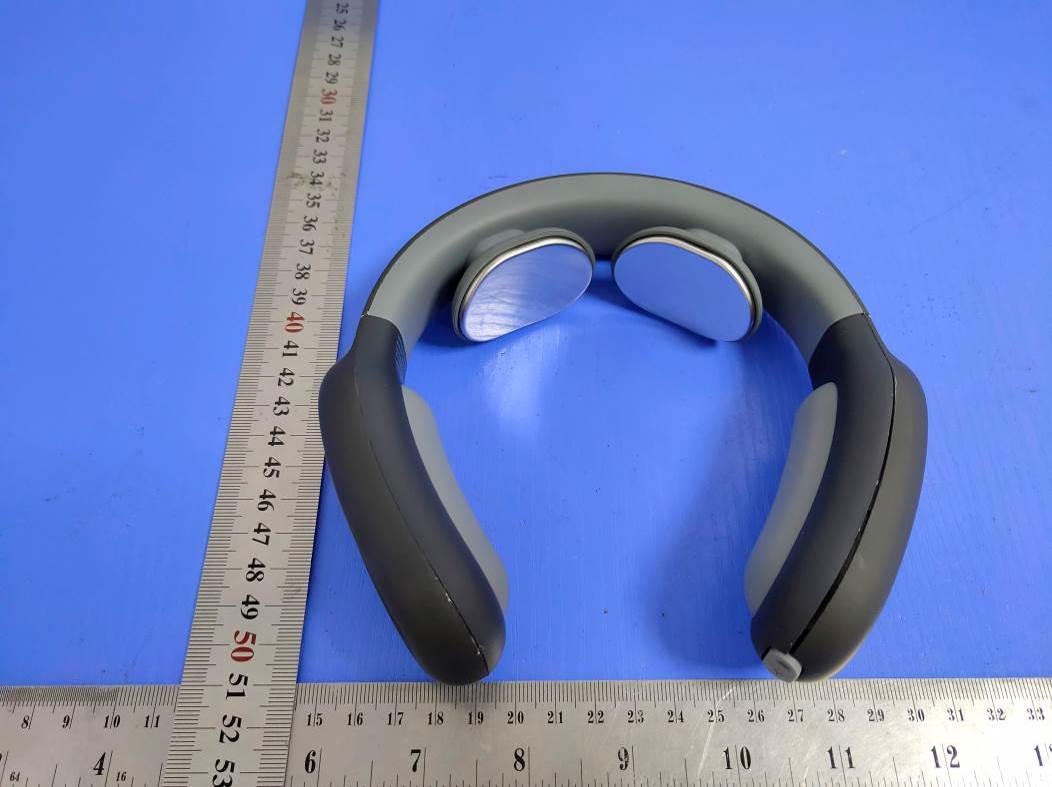

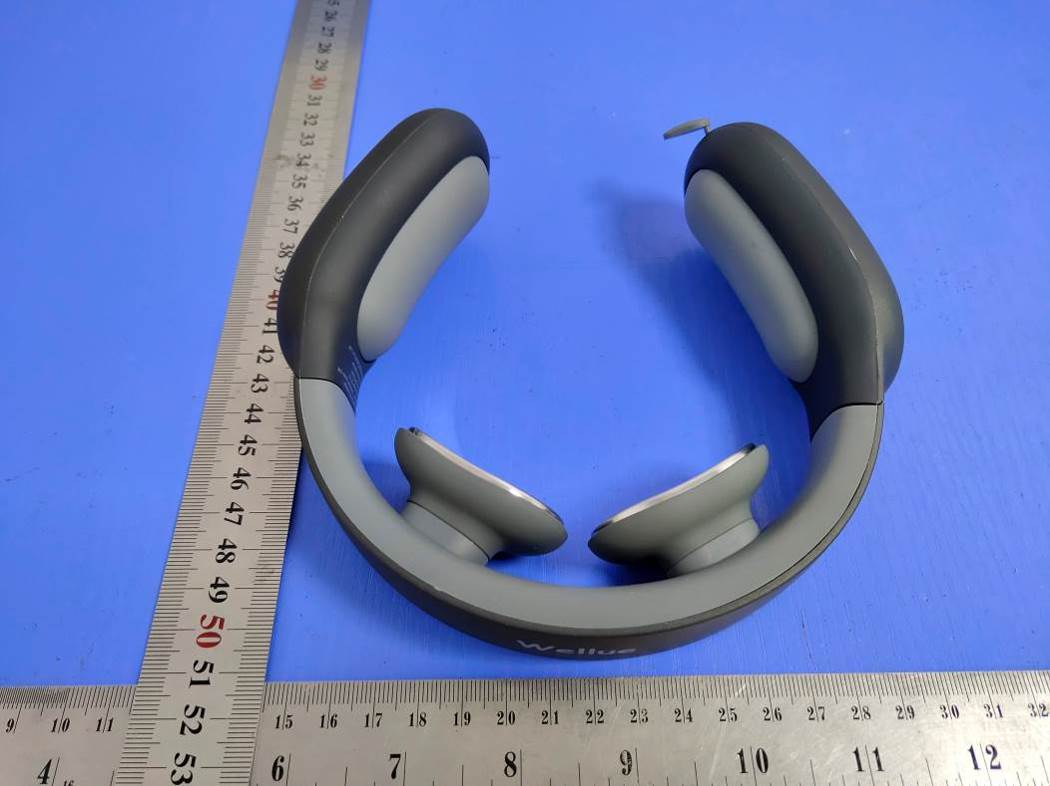

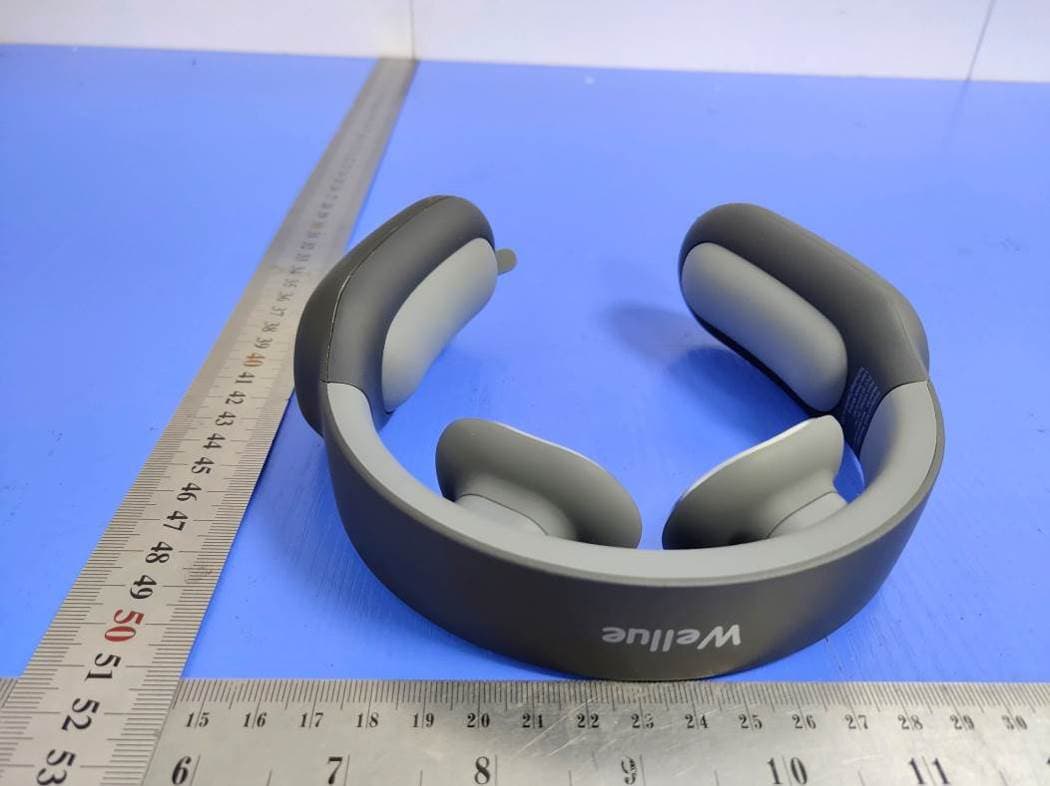

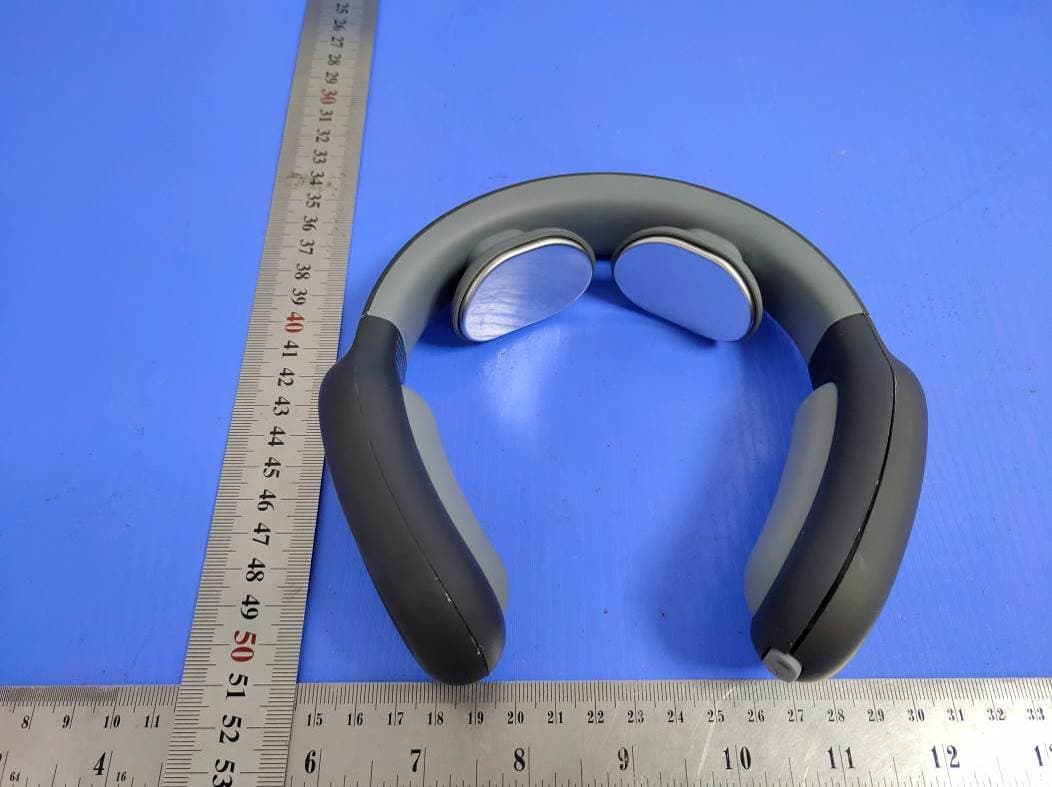

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L2.0cm x 1.0cm) Mater ial: Tagboard Glue: adhesive sticker Font color: Blue Label color: White Label Location Intelligent Neck Massager Model No.: M1 FCC ID: 2AVCG-M1

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 Internal Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 Fig.5 Fig.6 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 5 Fig.9 Fig.10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG‐M1 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AVCG‐M1 Product name : Intelligent Neck Massager Test Model : M1 Additional Model No.: M2, M3, M4, M5, M6, M7, M8, M9, M10 Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional modelsweretested Power Supply : Input: DC 5V, 5W DC 3.7V by Li‐ion Battery(650mAh) Remote control: DC 3V By CR2032 Battery Hardware Version : A22B Software Version : A22B Bluetooth : 2402‐2480MHz Channel Number : 79 channels for Bluetooth V4.2 (DSS) 40 channels for Bluetooth V4.2 (DTS) Channel Spacing : 1MHz for Bluetooth V4.2(DSS) 2MHz for Bluetooth V4.2(DTS) Modulation Type : GFSK , π/4‐DQPSK, 8‐DPSK for Bluetooth V4.2 (DSS) GFSK for Bluetooth V4.2 (DTS) Bluetooth Version : V4.2 Antenna Type : PCB Antenna Antenna Gain : 2dBi Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1‐g head or body and 10‐g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source‐based time‐averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune‐up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two‐way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune‐up tolerance, mW)/ (min. test separaƟon distance, mm)] · [√f (GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where: SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG‐M1 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune‐up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT Classics> Mode Channel Frequency (MHz)Peak Conducted Output Power (dBm) GFSK 0 24021.825 39 24410.906 78 2480‐0.290 π/4DQPSK 0 24024.091 39 24413.212 78 24801.997 8DPSK 0 24024.615 39 24413.772 78 24802.513 <BT LE> Mode Channel Frequency (MHz)Peak Conducted Output Power (dBm) GFSK 0 24021.690 19 24400.788 39 2480‐0.474 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG‐M1 _____________________________________________________________…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 1 of 47 Appendix A RF Test Data for BT V4.2(DSS) (Conducted Measurement) Product Name: Intelligent Neck Massager Trade Mark: Wellue, LEPULSE Test Model: M1 Environmental Conditions Temperature: 24.6  C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Jay Li Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm]Limit [dBm] Verdict GFSK LCH 1.825 21 PASS MCH 0.906 21 PASS HCH -0.290 21 PASS π/4DQPSK LCH 4.091 21 PASS MCH 3.212 21 PASS HCH 1.997 21 PASS 8DPSK LCH 4.615 21 PASS MCH 3.772 21 PASS HCH 2.513 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9523 Not Specified PASS MCH 0.9515 Not Specified PASS HCH 0.9514 Not Specified PASS π/4DQPSK LCH 1.331 Not Specified PASS MCH 1.333 Not Specified PASS HCH 1.332 Not Specified PASS 8DPSK LCH 1.322 Not Specified PASS MCH 1.319 Not Specified PASS HCH 1.322 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.314 0.635 PASS MCH 1.046 0.635 PASS HCH 1.158 0.635 PASS π/4DQPSK LCH 1.184 0.889 PASS MCH 1.218 0.889 PASS HCH 0.958 0.889 PASS 8DPSK LCH 1.104 0.881 PASS MCH 1.108 0.881 PASS HCH 1.050 0.881 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N]Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s]Verdict GFSK DH5 LCH 2.9 106.7 0.309 0.4 PASS DH5 MCH 2.9 106.7 0.309 0.4 PASS DH5 HCH 2.9 106.7 0.309 0.4 PASS π/4DQPSK 2DH5 LCH 2.9 106.7 0.309 0.4 PASS 2DH5 MCH 2.9 106.7 0.309 0.4 PASS 2DH5 HCH 2.9 106.7 0.309 0.4 PASS 8DPSK 3DH5 LCH 2.9 106.7 0.309 0.4 PASS 3DH5 MCH 2.9 106.7 0.309 0.4 PASS 3DH5 HCH 2.9 106.7 0.309 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 1.395 -37.473 -18.605 PASS MCH 0.577 -38.344 -19.423 PASS HCH -0.75 -38.022 -20.750 PASS π/4DQPSK LCH 1.345 -37.493 -18.655 PASS MCH 0.454 -37.839 -19.546 PASS HCH -0.755 -38.386 -20.755 PASS 8DPSK LCH 1.359 -38.427 -18.641 PASS MCH 0.517 -37.408 -19.483 PASS HCH -0.673 -37.708 -20.673 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA Page 29 of 47 π/4DQPSK_MCH_Graphs Pref Puw SHENZHEN LCS CO…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT FOR LEPU ZHIXIN MEDICAL TECHNOLOGY (TIANJIN) CO., LTD Intelligent Neck Massager Test Model: M1 Additional Model No.: Please Refer to Page 6 Prepared for : LEPU ZHIXIN MEDICAL TECHNOLOGY (TIANJIN) CO., LTD Address : Room 1-301,Building 10,Ligang Zone,Industrial Park,Shuang Gang Town,Jinnan District, Tianjin, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 16, 2021 Number of tested samples : 2 Sample No. : 210329164A-1, 210329164A-2 Serial number : Prototype Date of Test : April 16, 2021 ~ May 12, 2021 Date of Report : May 14, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210329164AEA Date of Issue .................................. : May 14, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : LEPU ZHIXIN MEDICAL TECHNOLOGY (TIANJIN) CO., LTD Address .......................................... : Room 1-301,Building 10,Ligang Zone,Industrial Park,Shuang Gang Town,Jinnan District, Tianjin, China Test Specification Standard ........................................ : FCC CFR 47 PART 15 C (15.247) Test Report Form No. .................... : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................. : Intelligent Neck Massager Trade Mark ..................................... : Wellue, LEPULSE Test Model ..................................... : M1 Ratings ........................................... : Input: DC 5V, 5W DC 3.7V by Li-ion Battery(650mAh) Remote control: DC 3V By CR2032 Battery Result .......................................... : Positive Tested by: Compiled by: Approved by: Ray Yang/ Administrators Jin Wang/ Technique principal Gavin Liang / Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210329164AEA May 14, 2021 Date of issue Test Model.............................. : M1 EUT......................................... : Intelligent Neck Massager Applicant............................... : LEPU ZHIXIN MEDICAL TECHNOLOGY (TIANJIN) CO., LTD Address................................... : Room 1-301,Building 10,Ligang Zone,Industrial Park,Shuang Gang Town,Jinnan District, Tianjin, China Telephone............................... : / Fax.......................................... : / Manufacturer......................... : LEPU ZHIXIN MEDICAL TECHNOLOGY (TIANJIN) CO., LTD Address................................... : Room 1-301,Building 10,Ligang Zone,Industrial Park,Shuang Gang Town,Jinnan District, Tianjin, China Telephone............................... : / Fax.......................................... : / Factory................................... : LEPU ZHIXIN MEDICAL TECHNOLOGY (TIANJIN) CO., LTD Address................................... : Room 1-301,Building 10,Ligang Zone,Industrial Park,Shuan g Gang Town,Jinnan District, Tianjin, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 May 14, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVCG-M1 Report No.: LCS210329164AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 36 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION ....................................................................................................... 6 1.1 Description of Device (EUT) ....................................................................................…

Text truncated - open the document above for the full version.
