1 25 3 4 ? 2h ABCDEFGHABCDEFGH Quick Start Guide Charge your Tractive GPS tracker Turn on the Tractive GPS tracker Attach your Tractive GPS tracker to your pet`s collar Download the Tractive GPS app Activate your Tractive GPS tracker Need more information? Visit tractive.com/help Attach the tracker on the magnetic battery side to the charger provided. The LED on the tracker will turn red while the battery is charging. Once the battery is fully charged, the red light will disappear. Pull slightly to remove the tracker from the charging cable. Before first-time use, please charge the tracker at least 2 hours. The tracker is automatically turned on after charging. The power button on the side is used to turn the tracker on and off and to check its LED status. ON/OFF: Press button for 3 seconds . LED Status: Press button for 1 second. LED blinks twice.* a) Remove your pet‘s collar and continue according to the collar width. b1) Collar width: 1.5 cm or less Remove the rubber clip, put the collar through the two rectangular holes on the sides of the rubber clip and fasten the rubber clip on the tracker again. b2) Collar width: 1.6 cm or more Open the rubber clip on one side of the tracker, place the collar in between the rubber clip and the tracker and close the rubber clip again. c) Put the collar back on your pet and you are ready to go! Download the Tractive GPS app from the Apple App Store or the Google Play Store. You can also visit my.tractive.com to track your pet. Happy Tracking! Follow the instructions in the Tractive GPS app or at my.tractive.com to activate your tracker. The 8-character Tracker ID can be found on the back of your tracker. Network connected - GPS available No network - GPS available Network connected - no GPS No network - no GPS b1) b2) EN * Tractive GPS EN ELECTROMAGNETIC COMPATIBILITY Very strong magnetic fields (e.g. transformers) should always be avoided as this may result in variations in the transmission. Failure to follow these instructions may lead to malfunctions or damage to your Tractive GPS device. RISKS FOR CHILDREN AND PEOPLE IN NEED OF CARE The use of this device is not intended for people (including children) with limited physical, sensory or mental abilities or lack of experience and/or lack of knowledge, unless they are supervised by a person responsible for their safety or have been instructed on the use of the device. Note: Some countries, states or regions have laws related to location based tracking of people, animals and objects. It’s the sole responsibility of the owner and user to abide by the law and rules in the area the Tractive GPS device is used. Please switch off the Tractive GPS tracker before boarding a plane. SAFETY ADVICE Important: Although the Tractive GPS device is small in size, it might be too large or heavy for small or injured pets. If you are unsure whether you can use this device with your pet, we highly recommend consulting a pet doctor or veterinarian. BATTERY OPERATION Your Tractive GPS tracker is operated by a rechargeable lithium-ion polymer battery. The battery of the Tractive GPS tracker cannot be replaced and must not be removed. Batteries may not be disassembled, thrown into fire or short-circuited. Never expose the Tractive GPS device to excessive heat such as sunshine, fire or the like! This increases the danger of battery leakage. Only use the USB cable that came with your Tractive GPS device. The use of other cables might overcharge the battery and can lead to fire or explosion. Disregarding these instructions can cause damage and possibly even cause the battery to explode. DISPOSAL Batteries are hazardous waste. For the correct disposal of batteries, appropriate containers are provided at the premises of commercial battery dealers as well as local council waste disposal facilities. If you want to dispose of your Tractive GPS device, follow the current local provisions at the time. Information may be obtained from the local council waste disposal facility. FCC COMPLIANCE STATEMENT The device complies with part 15 of the FCC Rules. The full statement of conformity can be viewed on our website: www.tractive.com/doc FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Product meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies.The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement the SAR limit of USA (FCC) is1.6 W/kg averaged over one gram of this Device TRNJA4 (FCC ID: 2AVE6NJ44A) has been tested against this SAR limit. SAR information on this can be viewed on-line at http://www.fcc.gov/oet/ea/fccid/. Please use the device FCC ID number for search. This device was tested for typical operations 0mm from the body. To maintain compliance with FCC RF exposure requirements, 0mm separation distance should. maintained to the user's bodies NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a par…

Text truncated - open the document above for the full version.

Tractive GmbH Agent Authorization Company:Tractive GmbH Address:Randlstrasse 18a, 4061 Pasching Austria Product Name:Tractive GPS DOG LTE Model Number(s):TRNJA4 Product Description: Tractive GPS DOG LTE We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own.

Tractive GmbH Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 31 Mar 2020 Subject; Request for Confidentiality FCC ID: 2AVE6NJ44A To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Title: Michael Lettner CTO

S19040802703 Model: TRNJA4 ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 S19040802703 Model: TRNJA4 Photo 3 Photo 4 S19040802703 Model: TRNJA4 Photo 5 Photo 6 S19040802703 Model: TRNJA4 Photo 7

Labeel& Label locaation

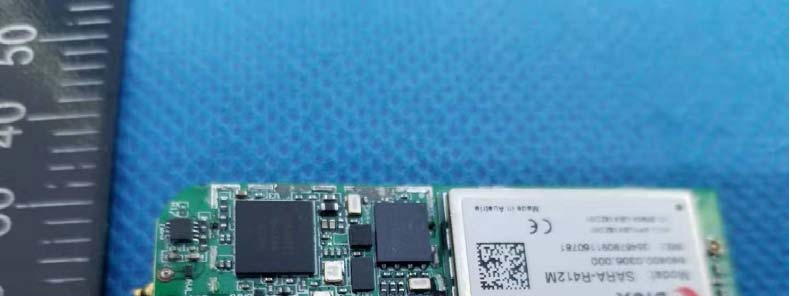

S19040802703 Model: TRNJA4 Photo 8 WIFI /BTAnt 2G/4G Main Ant S19040802703 Model: TRNJA4 Photo 9 Photo 10 S19040802703 Model: TRNJA4 Photo 11 Photo 12 S19040802703 Model: TRNJA4 Photo 13

Page 1 of 132 Report No.: S19040802702001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Tractive GPS DOG LTE Trademark： N/A Model Name： TRNJA4 Family Model： N/A Report No.： S19040802702001 FCC ID： 2AVE6NJ44A Prepared for Tractive GmbH Randlstrasse 18a, 4061 Pasching Austria Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website: http://www.ntek.org.cn Page 2 of 132 Report No.: S19040802702001 TEST RESULT CERTIFICATION Applicant’s name .................. : Tractive GmbH Address .................................. : Randlstrasse 18a, 4061 Pasching Austria Manufacturer's Name ........... : Tractive GmbH Address .................................. : Randlstrasse 18a, 4061 Pasching Austria Product description Product name ......................... : Tractive GPS DOG LTE Trademark ............................ : N/A Model Name ......................... : TRNJA4 Family Model .......................... : N/A Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : Jan. 05, 2020 ~ Jan. 08, 2020 Date of Issue .......................................... : Jan. 14, 2020 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Cheng Jiawen) Approved By (Lab Manager) : (Sam Chen) Page 3 of 132 Report No.: S19040802702001 ※※ Revision History ※※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Jan. 14, 2020 Cheng Jiawen Page 4 of 132 Report No.: S19040802702001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set‐up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E‐Field Probe .......................................................................................... 12 2.3.1. E‐Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measurement variability ................................................................. 25 5.2. SAR measurement uncertainty .............................................................. 25 6. RF Exposure Positions ........................................................................................ 26 6.1. Body Worn Accessory ............................................................................ 26 7. RF Output Power ..........................…

Text truncated - open the document above for the full version.

Page 91 of 132 Report No.: S19040802702001 Page 92 of 132 Report No.: S19040802702001 Page 93 of 132 Report No.: S19040802702001 Page 94 of 132 Report No.: S19040802702001 Page 95 of 132 Report No.: S19040802702001 Page 96 of 132 Report No.: S19040802702001 Page 97 of 132 Report No.: S19040802702001 Page 98 of 132 Report No.: S19040802702001 Page 99 of 132 Report No.: S19040802702001 Page 100 of 132 Report No.: S19040802702001 Page 101 of 132 Report No.: S19040802702001 Page 102 of 132 Report No.: S19040802702001 Page 103 of 132 Report No.: S19040802702001 Page 104 of 132 Report No.: S19040802702001 Page 105 of 132 Report No.: S19040802702001 Page 106 of 132 Report No.: S19040802702001 Page 107 of 132 Report No.: S19040802702001 Page 108 of 132 Report No.: S19040802702001 Page 109 of 132 Report No.: S19040802702001 Page 110 of 132 Report No.: S19040802702001 Page 111 of 132 Report No.: S19040802702001 Page 112 of 132 Report No.: S19040802702001 Page 113 of 132 Report No.: S19040802702001 Page 114 of 132 Report No.: S19040802702001 Page 115 of 132 Report No.: S19040802702001 Page 116 of 132 Report No.: S19040802702001 Page 117 of 132 Report No.: S19040802702001 Page 118 of 132 Report No.: S19040802702001 Page 119 of 132 Report No.: S19040802702001 Page 120 of 132 Report No.: S19040802702001 Page 121 of 132 Report No.: S19040802702001 Page 122 of 132 Report No.: S19040802702001 Page 123 of 132 Report No.: S19040802702001 Page 124 of 132 Report No.: S19040802702001 Page 125 of 132 Report No.: S19040802702001 Page 126 of 132 Report No.: S19040802702001 Page 127 of 132 Report No.: S19040802702001 Page 128 of 132 Report No.: S19040802702001 Page 129 of 132 Report No.: S19040802702001 Page 130 of 132 Report No.: S19040802702001 Page 131 of 132 Report No.: S19040802702001 Page 132 of 132 Report No.: S19040802702001 _____________________________________ END_______________________________________

Report No.: S19040802703003 Version.1.3 Page 1 of 60 FCC RADIO TEST REPORT FCC ID: 2AVE6NJ44A Product: Tractive GPS DOG LTE Trade Mark: N/A Model No.: TRNJA4 Family Model: N/A Report No.: S19040802703003 Issue Date: 09 Jan. 2020 Prepared for Tractive GmbH Randlstrasse 18a, 4061 Pasching Austria Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District Shenzhen, Guangdong, China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website:http://www.ntek.org.cn Report No.: S19040802703003 Version.1.3 Page 2 of 60 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 12 7.1 FIELD STRENGTH OF SPURIOUS RADIATION ...................................................................................... 12 7.2 EFFECTIVE RADIATED POWER AND EFFECTIVE ISOTROPIC RADIATED POWER ........................ 19 7.3 CONDUCTED OUTPUT POWER ................................................................................................................ 23 7.4 FREQUENCY STABILITY ........................................................................................................................... 25 7.5 PEAK-TO-AVERAGE RATIO ...................................................................................................................... 29 7.6 26DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH ..................................................................... 30 7.7 CONDUCTED BAND EDGE ....................................................................................................................... 32 7.8 CONDUCTED SPURIOUS EMISSION AT ANTENNA TERMINAL ......................................................... 33 8 TEST RESULTS .................................................................................................................................................. 34 8.1 CONDUCTED OUTPUT POWER .......................................................................................................................... 34 8.2 PEAK-TO-AVERAGE RAT I O .............................................................................................................................. 35 8.3 OCCUPIED BANDWIDTH ................................................................................................................................... 42 8.4 BAND EDGE ..................................................................................................................................................... 49 8.5 OUT-OF-BAND EMISSIONS ............................................................................................................................... 54 Report No.: S19040802703003 Version.1.3 Page 3 of 60 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Tractive GmbH Address ....................................... : Randlstrasse 18a, 4061 Pasching Austria Manufacturer's Name .................. : Tractive GmbH Address ....................................... : Randlstrasse 18a, 4061 Pasching Austria Product description Product name .............................. : Tractive GPS DOG LTE Model and/or type reference ..... : TRNJA4 Family Model ............................... : N/A Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT 47 CFR Part 2, Part 22H, Part 24E ANSI/TIA-603-E-2016 FCC KDB 971168 D01 Power Meas License Digital Systems v03r01 ANSI C63.26:2015 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK Testing Technology Co., Ltd., this document may be altered or revised by Shenzhen NTEK Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. The test results of this report relate only to the tested sample identified in this report. Date of Test : 18 Dec. 2019 ~ 09 Jan. 2020 Testing Engineer : (Mary Hu) Techn…

Text truncated - open the document above for the full version.

Report No.: S19040802703004 FCC CFR47 PART 22H, 24E, 27 CERTIFICATION TEST REPORT FCC ID: 2AVE6NJ44A Product：Tractive GPS DOG LTE Trade Mark：N/A Model Number：TRNJA4 Family Model：N/A Report No.：S19040802703004 Prepared for Tractive GmbH Randlstrasse 18a, 4061 Pasching Austria Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District Shenzhen, Guangdong, China Tel.: +86-755-6115 9388 Fax.: +86-755-6115 6599 Website:http://www.ntek.org.cn Report No.: S19040802703004 2 / 72 Testing Engineer : (Mary Hu) Technical Manager : (Jason Chen) Authorized Signatory : (Sam Chen) TEST RESULT CERTIFICATION Applicant’s name ................... : Tractive GmbH Address .................................... : Randlstrasse 18a, 4061 Pasching Austria Manufacturer's Name ............. : Tractive GmbH Address .................................... : Randlstrasse 18a, 4061 Pasching Austria Product name ............................. : Tractive GPS DOG LTE Model and/or type reference .. : TRNJA4 Family Model： N/A Standards................................ : FCC CFR 47 Part 22H, Part 24E, Part 27 Test procedure .............................. : ANSI C63.26:2015 ANSI/TIA-603-E-2016 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test .......................................... Date (s) of performance of tests ............ 18 Dec. 2019 ~ 09 Jan. 2020 Date of Issue ......................................... 09 Jan. 2020 Test Result ............................................. Pass Report No.: S19040802703004 3 / 72 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................. 5 1. GENERAL INFORMATION ............................................................................................................................. 5 1.1 PRODUCT DESCRIPTION .................................................................................................................................................. 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) .......................................................................................................................... 6 1.3 TEST METHODOLOGY ....................................................................................................................................................... 6 1.4 TEST FACILITY ..................................................................................................................................................................... 6 MEASUREMENT UNCERTAINTY ............................................................................................................................................ 6 1.5 SPECIAL ACCESSORIES ................................................................................................................................................... 7 1.6 WORST-CASE CONFIGURATION AND MODE .............................................................................................................. 7 2. SYSTEM TEST CONFIGURATION ................................................................................................................ 7 2.1 EUT CONFIGURATION ........................................................................................................................................................ 7 2.2 EUT EXERCISE .................................................................................................................................................................... 7 2.3 CONFIGURATION OF EUT SYSTEM .............................................................................................................................. 7 2.4 TEST SETUP ......................................................................................................................................................................... 8 3.TEST AND MEASUREMENT EQUIPMENT .................................................................................................... 9 4. OUTPUT POWER ......................................................................................................................................... 10 4.1 OUTPUT POWER MEASUREMENT ............................................................................................................................... 10 4.2 Test Results ........................................................................................................................................................................ 12 5. OCCUPIED BANDWIDTH ............................................................................................................................ 15 6. BANDEDGE AND EMISSION MASK ........................................................................................................... 19 7. OUT OF BAND EMISSIONS ........................................................................................................................ 32 7.1 MEASUREMENT METHOD .............................................................................................................................................. 32 7.1 CAT M1 BAND 2 ................................................................................................................................................................. 33 Report No.: S19040802703004 4 / 72 CAT M1 BAND 4 ........................................................................................................................................................................ 34 CAT M1 BAND 5 ...…

Text truncated - open the document above for the full version.

FCC ID: 2AVE6NJ44A IC:25970-NJ44A RADIATED SPURIOUS EMISSION

FCC ID:2AVE6NJ44A IC:25970-NJ44A Test Positions Front Side (Separation distance of 0mm) Back Side (Separation distance of 0mm) END
