2AVEIJD-TURBOHEATTurboheat

ET12 Series Product User Manual 1 ET12 Series Product User Manual Specifications Heating System BrandTurbo Heat ET12 Carbon Nanotube (CNT) Film Type-C Output Power Bank, Supports QC / PD Fast-Charging Protocols 12V (backward compatible with 5V/9V) 10W/18W/30W Product Series Heating Material Temperature Levels Input Voltage Rated Power Type-C Power Connector 30+Wash Cycles Run Time(10,000 mAh) High: 2H Medium: 4H High: 8H Compatible Power Source High: 50°C / 122°F (Red) Medium: 45°C / 113°F (Yellow) Low: 40°C / 104°F (Green) ConnectionInstructions · Take the Type-C power connector out of the garment pocket. Plug it into a compatible Type-C power bank to establish the connection. Power Requirements · Use a power bank with Type-C output. The product is compatible with most Type-C power banks supporting QC/PD fast-charging protocols. · The product supports a maximum heating power of 30W. For optimal Turbo Heat performance, use a power bank providing either: 9V/2A (18W) or 12V/2.5A (30W) output. Power Operation Power On (Heating Active) · Connect the Type-C plug to a compatible power bank. The device powers on automatically and starts heating. Default setting: High mode 50°C/122°F(Red light). Standby (Powered, Heating Off) · Long press the button for 2 seconds to stop heating and enter standby mode. The light turns off, but the device remains powered. · Short press the button to resume heating. The device returns to High mode 50°C/122°F(Red light). Power Off (Fully Powered Down) · Disconnect the Type-C plug from the power bank. The device powers off immediately and stops heating. The light turns off. Temperature Adjustment · After powering on, the device defaults to High mode 50°C/122°F(Red light). · Short press the controller button to switch the temperature modes: High: 50°C / 122°F (Red light) → Medium: 45°C / 113°F (Yellow light)→ Low: 40°C / 104°F (Green light) → High: 50°C / 122°F (Red light)... · Long press the button for 2 seconds to turn off heating. The light turns off, and the device enters standby mode. 2 Take full control of your Turbo Heat device with the official app, unlocking personalized settings and smart features. Download the App: Scan the QR code below or search“Turbo Heat”on App Store(iOS) or Google Play (Android) to download and install. App Mode Turbo Mode： Maximizes heating performance for an enhanced experience, with reduced runtime. Sport Mode: Monitors activity levels and calorie expenditure in real time, adjusting temperature intelligently. Eco Moede: Balances power consumption and heating performance to extend runtime.。 ET12 Series Product User Manual Turbo Heat App Instructions Sign Up/Log In: When opening the app for the first time, select the preferred language and follow the on-screen prompts to register or log in. Pair the Device: Power on the Turbo Heat product, open the app, and follow the guided steps in the device search section to complete pairing. Access Instructions: The app includes detailed operating guidance. If any steps are skipped, reinstall the app or revisit the instructions within the app at any time. 3 Washing & Care Preparation · Disconnect the power supply and remove the power bank before washing. (Do not immerse or wash the power bank.) · Return the Type-C connector to the garment pocket to prevent abrasion or wire entanglement during washing. Washing · The product is machine washable. · Use household mild detergent. · Do not wash with hot water; maximum water temperature: 40°C/104°F. · Do not bleach or dry clean. Drying · Air dry naturally or tumble dry at low temperature (<65°C/149°F). · Do not iron or dry at high temperatures. · Ensure the product is completely dry before use. 40 Troubleshooting Controller light flashes purple, turns off unexpectedly, or does not light · This may indicate a device error or circuit protection has been triggered. Try the following steps: Disconnect the power and wait approximately 5 minutes, then reconnect the power bank. · If the issue persists, the power bank may be incompatible. Use a compatible Type-C power bank and reconnect. · If other heating devices are being used simultaneously, over-temperature protection may have been triggered. · Turn off all other devices, wait 5 minutes, and reconnect the power bank. · Ensure the product is completely dry. If moisture is present, allow the device to dry fully before powering on. Unable to Power On · This may be caused by a loose or improper connection between the power bank and the Type-C connector. · Check that the power bank is securely connected to the Type-C connector. · If the issue persists, use a compatible power bank and wait approximately 5 minutes before reconnecting. Insufficient Heating · This may occur if the power bank does not provide sufficient output or if fast-charging mode has not been activated. Check that the power bank’s fast-charging mode is enabled. (Most power banks indicate fast charging with a green or blue light.) · If the issue persists, ensure the power bank supports 18W or 30W output to achieve optimal Turbo Heat performance. App Unable to Find or Connect to Device · Reconnect the device by unplugging and reinserting the power, then restart the app. · If the device cannot be found, confirm in the phone’s system settings that Bluetooth and location permissions are enabled for the Turbo Heat app. ET12 Series Product User Manual Precautions · Not intended for users with reduced temperature sensitivity, children, or persons requiring assistance. · Stop use immediately if discomfort occurs. Seek medical advice if necessary. · This product is covered by a 2-year warranty. Do not disassemble, modify, or repair, as this will void the warranty. · Avoid exposing the product to high temperatures or open flames to prevent damage or safety hazards. · Use only as intended. Do not use for purposes other than the original design. For unresolved issues or other inquiries, contact after-sales service. 4 ET12 Series Product User Manual FCC ID: …

Text truncated - open the document above for the full version.

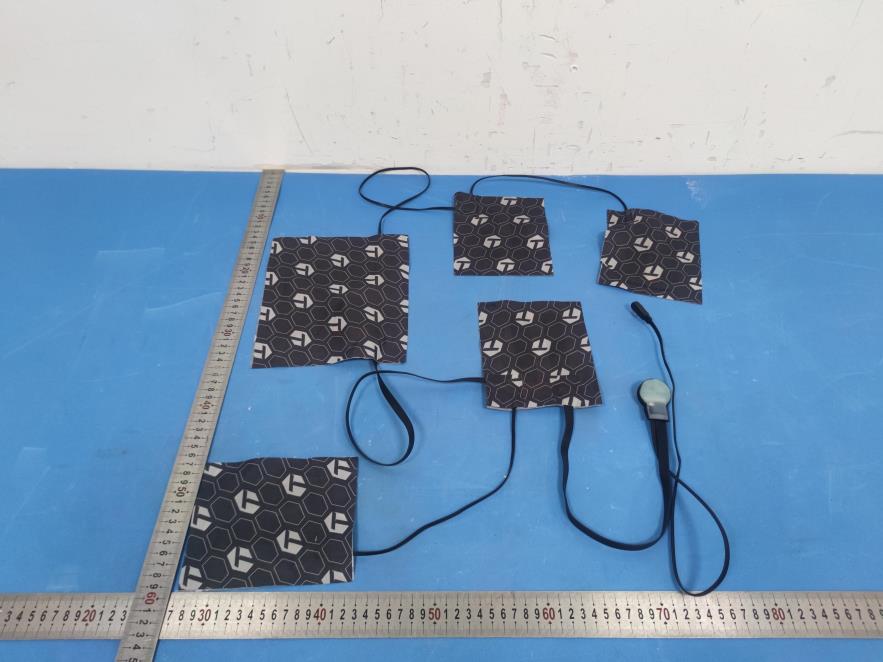

Compliance Certification Services (Kunshan) Inc. Page: 1 of 4 External Photos for KSCR2505000974AT Test Model No.: ET12 Series Compliance Certification Services (Kunshan) Inc. Page: 2 of 4 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 4 Compliance Certification Services (Kunshan) Inc. Page: 4 of 4

Compliance Certification Services (Kunshan) Inc. Page: 1 of 3 Internal Photos for KSCR2505000974AT Test Model No.: ET12 Series Compliance Certification Services (Kunshan) Inc. Page: 2 of 3 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 3

Report No.: KSCR25050097402 Page: 1 of 9 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 1 Cover Page RF Exposure Evaluation Report Application No.: KSCR2505000974AT FCC ID: 2AVEIJD-TURBOHEAT Applicant: Suzhou Jernano Carbon Co.,Ltd Address of Applicant: NO.398 Ruoshui Road, Suzhou Industrial Park, Suzhou, China 215123 Manufacturer: Suzhou Jernano Carbon Co.,Ltd Address of Manufacturer: NO.398 Ruoshui Road, Suzhou Industrial Park, Suzhou, China 215123 Factory: Suzhou Jernano Carbon Co.,Ltd Address of Factory: NO.398 Ruoshui Road, Suzhou Industrial Park, Suzhou, China 215123 Equipment Under Test (EUT): EUT Name: Turboheat Model No.: ET12 Series Standard(s) : FCC Rules 47 CFR §2.1093 KDB 447498 D04 interim General RF Exposure Guidance v01 Date of Receipt: 2025-05-15 Date of Test: 2025-12-05 to 2025-12-08 Date of Issue: 2025-12-23 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: KSCR250500097402 Page: 2 of 9 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 Revision Record Version Description Date Remark 00 Original 2025-12-23 / Authorized for issue by: Tested By Kass_Gao/Project Engineer Approved By Terry Hou /Reviewer Report No.: KSCR250500097402 Page: 3 of 9 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 2 Contents Page 1 Cover Page .................................................................................................................................. 1 2 Contents ...................................................................................................................................... 3 3 General Information..................................................................................................................... 4 3.1 General Description of E.U.T. ................................................................................................ 4 3.2 Technical Specifications ........................................................................................................ 4 3.3 Test Location ........................................................................................................................ 5 3.4 Test Facility ........................................................................................................................... 5 4 FCC Radiofrequency radiation exposure limits ......................................................................... 6 4.1 Blanket 1 mW Blanket Exemption .......................................................................................... 6 4.2 MPE-based Exemption .......................................................................................................... 6 4.3 SAR-based Exemption .......................................................................................................... 7 5 Asurement and Calculation ......................................................................................................... 9 5.1 Maximum transmit power ...................................................................................................... 9 5.2 RF Exposure Calculation ....................................................................................................... 9 Report No.: KSCR250500097402 Page: 4 of 9 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3 General Information 3.1 General Description of E.U.T. Power supply: DC 5V 3.2 Technical Specifications BLE Operation Frequency: 2402MHz to 2480MHz Modulation Type: GFSK Number of Channels: 40 Channel Spacing: 2MHz Antenna Type: PCB Antenna Antenna Gain: 2.58 dBi (Provided by the manufacturer) Antenna Number: 1 Report No.: KSCR250500097402 Page: 5 of 9 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3.3 Test Location All tests were performed at: Compliance Certification Services (Kunshan) Inc. No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China. Tel: +86 512 5735 5888 Fax: +86 512 5737 0818 No tests were sub-contracted. Note: 1.SGS is not responsible for wrong test results due to incorrect information (e.g. max. clock frequency, highest internal frequency, antenna gain, cable loss, etc ) is provided by the applicant. (if applicable). 2.SGS is not responsible for the authenticity, integrity and the validity of the conclusion based on results of the data provided by applicant. (if applicable). 3. Sample source: sent by customer. 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA Compliance Certification Services (Kunshan) Inc. is accredited by the American Association for Laboratory Accreditation (A2LA). Certificate No. 2541.01. • FCC Compliance Certification Services (Kunshan) Inc. has been recognized as an accredited testing laboratory. Designation Number: CN1172. • ISED Compliance Certification Services (Kunshan) Inc. has been recognized by Innovation, Science and Economic Development Canada (ISED) as an accredited testing laboratory. Company Number: 2324E • VCCI The 3m and 10m Semi-anechoic chamber and Shielded Room of Compliance Certification Services (Kunshan) Inc. has been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: R-20134, R-11600, C-11707, T-11499, G-10216 respectively. Report No.: KSCR250500097402 Page: 6 of 9 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 4 FCC Radiofrequency radiation exposure limits Test exemptions apply for devices used in general population/uncontrolled exposure environments, according to the SAR-based, or MPE-based exemption thresholds. 4.1 Blanket 1 mW Blanket Exemption The 1 mW Blanket Exemption of §1.1307(b)(3)(i)(A) applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power of no more than 1 mW, regardless of separation distance. The 1-mW blanket exemption applies at separation distances less than 0.5 cm, including where there is no separation. This exemption shall not be used in conjunction with other exemption criteria other than those for multiple RF sources in paragraph §1.1307(b)(3)(ii)(A…

Text truncated - open the document above for the full version.

BluetoothAntenna specification&Testreport YichipMicroelectronics ©2014 TestCcompanyTATechnology(Shanghai)Co.,Ltd. TestAddress Building1,No.400,FangchunRoad,China(Shanghai)PilotFreeTradeZone TestDate2020/7/24 TestInstrument Keysight E5071B antennadesignspecification Antennadimensionsasblowpictureshow:thematerialisFR4andthethicknessis 1.6mmofPCB. GianandEfficiency Frequency (MHz) Efficiency(%)Gain(dBi) 230034.81-0.14 232038.900.50 234038.951.16 236040.111.28 238039.281.80 240041.772.20 242049.712.34 244050.232.58 246045.912.45 248042.462.09 250041.102.01 252035.580.96 254032.430.44 3Dand1DRadiationPatterns Total P o w e r ( d B m ) -15 10 -10 -5 0 5 X Y Z Azimuth = 0.0 Elevation = 0.0 Roll = 0.0 Cut1 P o w e r ( d B m ) Angle (? Scale: 1/div Min: -5 Max: 5 0 180 30 210 60 240 90270 120 300 150 330 Cut2 P o w e r ( d B m ) Angle (? Scale: 2/div Min: -16 Max: 4 0 180 30 210 60 240 90270 120 300 150 330 Cut3 P o w e r ( d B m ) Angle (? Scale: 2/div Min: -6 Max: 6 0 180 30 210 60 240 90270 120 300 150 330

Report No.: KSCR250500097401 Page: 1 of 59 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 TEST REPORT Application No.: KSCR2505000974AT FCC ID: 2AVEIJD-TURBOHEAT Applicant: Suzhou Jernano Carbon Co.,Ltd Address of Applicant: NO.398 Ruoshui Road, Suzhou Industrial Park, Suzhou, China 215123 Manufacturer: Suzhou Jernano Carbon Co.,Ltd Address of Manufacturer: NO.398 Ruoshui Road, Suzhou Industrial Park, Suzhou, China 215123 Factory: Suzhou Jernano Carbon Co.,Ltd Address of Factory: NO.398 Ruoshui Road, Suzhou Industrial Park, Suzhou, China 215123 Equipment Under Test (EUT): EUT Name: Turboheat Model No.: ET12 Series Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2025-05-15 Date of Test: 2025-12-05 to 2025-12-08 Date of Issue: 2025-12-23 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: KSCR250500097401 Page: 2 of 59 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 Revision Record Version Description Date Remark 00 Original 2025-12-23 / Authorized for issue by: Tested By Kass_Gao/Project Engineer Approved By Terry Hou /Reviewer Report No.: KSCR250500097401 Page: 3 of 59 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Custo mer Declar ation Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2020) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Radiated Emissions which fall in the restricted bands ANSI C63.10 (2020) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Below 1GHz ANSI C63.10 (2020) Section 6.4,6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Above 1GHz ANSI C63.10 (2020) Section 6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Conducted Peak Output Power ANSI C63.10 (2020) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Minimum 6dB Bandwidth ANSI C63.10 (2020) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Power Spectrum Density ANSI C63.10 (2020) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement ANSI C63.10 (2020) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions ANSI C63.10 (2020) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Report No.: KSCR250500097401 Page: 4 of 59 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 Test Summary .................................................................................................................................... 3 3 Contents ............................................................................................................................................ 4 4 General Information........................................................................................................................... 5 4.1 Details of E.U.T. .......................................................................................................................... 5 4.2 Power level setting using in test................................................................................................... 5 4.3 Description of Support Units ........................................................................................................ 5 4.4 Measurement Uncertainty ........................................................................................................... 6 4.5 Test Location .............................................................................................................................. 7 4.6 Test Facility ................................................................................................................................. 7 4.7 Deviation from Standards ............................................................................................................ 7 4.8 Abnormalities from Standard Conditions ...................................................................................... 7 5 Equipment List .................................................................................................................................. 8 6 Radio Spectrum Technical Requirement .......................................................................................... 9 6.1 Antenna Requirement ................................................................................................................. 9 7 Radio Spectrum Matter Test Results ...............................................................................................10 7.1 Conducted Emissions at AC Power Line (150kHz-30MHz) .........................................................10 7.2 Radiated Emissions which fall in the restricted bands .................................................................14 7.3 Radiated Spurious Emissions Below 1GHz .................................................................................21 7.4 Radiated Spurious Emissions Above 1GHz ................................................................................25 7.5 Conducted Peak Output Power ..................................................................................................33 7.6 Minimum 6dB Bandwidth ............................................................................................................35 7.7 Power Spectrum Density ............................................................................................................36 7.8 Conducted Band Edges Measurement .......................................................................................37 7.9 Conducted Spurious Emissions ...............................................…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Page: 1 of 3 Appendix Photographs of Test Setup for KSCR2505000974AT Test Model No.: ET12 Series Compliance Certification Services (Kunshan) Inc. Page: 2 of 3 Test Setup Photo Conducted Emissions at AC Power Line (150kHz-30MHz) Radiated Spurious Emissions Below 1GHz Compliance Certification Services (Kunshan) Inc. Page: 3 of 3 Radiated Spurious Emissions Above 1GHz RF Conducted
