2AVF3-ELI0980G-1Intelligent 3-Pk Solar Wall Lights

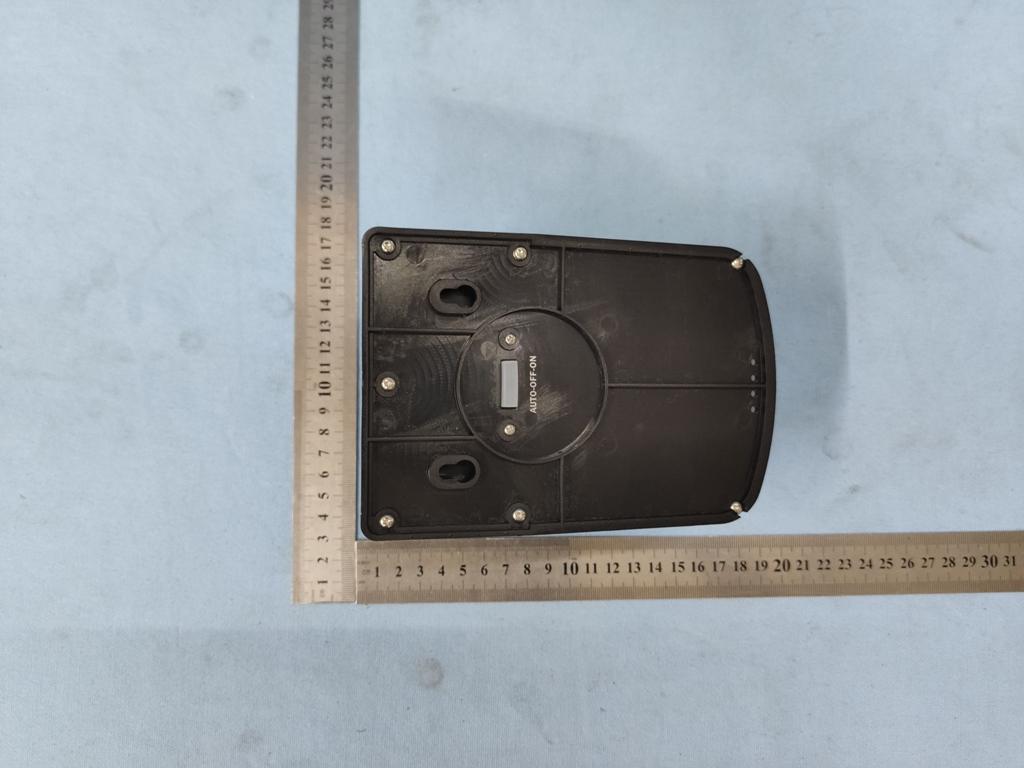

Manual Before installation Note: Remove all packaging materials from the product. The included mounting material (screws and wall plugs ) is suitable for ordinary solid concrete or masonry construction. Check which mounting material is suitable for your chosen mounting surface. If necessary, seek expert advice. Installation Note:For best effect,the security light should be installed at a height of 0.5-1.6m above ground level. Installing the wall light  Drill two mounting holes on the wall using an appropriately sized drill bit for mount screws  After inserting the anchor, install the screws and reserve a small screw head outside.  Align the two holes at the back of the lamp with the two screws.  Note:if the mounting surface requires the use of wall plugs(e.g.brick or concrete)or pre-drilling(e.g. hard wood),first mark and drill pilot holes in the wall using the wall bracket as a template.  Ensure that the solar panel is angled so that it receives the maximum amount of sun exposure. Operation The switch has three gears. Auto: Induction mode, lights up for 30 seconds after detecting the induction Off: off mode, the light does not work On: long light mode, continuous lighting FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

TEST RITE INT'L CO.,LTD DATE : 2019-12-30 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AVF3-ELI0980G-1 Product Name: Intelligent 3-Pk Solar Wall Lights Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name: Xingrong Zhang Title: Engineer Company: TEST RITE INT'L CO.,LTD

DATE : 2019-12-30 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Jason Wu of Global United Technology Services Co., Ltd.and No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with TEST RITE INT'L CO.,LTD and 3F, No.1-2 HuangDu Square, No.3008, Yitian Road, Futian District, Shenzhen, China Signature: Name: Xingrong Zhang Title: Engineer Company: TEST RITE INT'L CO.,LTD

Size: 7x4cm Item No: S-8084 Batch Code: 2019/11 Made in China FCC ID: 2AVF3-ELI0980G-1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label location:

Global United Technology Services Co., Ltd. Report No.: GTS201912000193F01 Authorized Signature: Robinson Lo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 18 Cover Page Test Report Applicant: TEST RITE INT'L CO.,LTD Address of Applicant: 3F, No.1-2 HuangDu Square, No.3008, Yitian Road, Futian District, Shenzhen, China Manufacturer/Factory: Ningbo Fiercer Leopard Electrical Appliance Co.,Ltd Address of Manufacturer/Factory: No.1&2 Wanghai Road(Wanghai Industrial Area) Xidian town 315611 Ninghai,Ningbo, China Equipment Under Test (EUT) Product Name: Intelligent 3-Pk Solar Wall Lights Model No.: ELI0980G-Wall light FCC ID: 2AVF3-ELI0980G-1 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.231 Date of sample receipt: December 18, 2019 Date of Test: December 19-30, 2019 Date of report issued: December 30, 2019 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS201912000193F01 Global United Technology Services Co., Ltd. No.123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 18 2 Version Version No. Date Description 01 December 30, 2019 Original Prepared By: Date: December 30, 2019 Project Engineer Check By: Date: December 30, 2019 Reviewer Report No.: GTS201912000193F01 Global United Technology Services Co., Ltd. No.123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 18 3 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 4.1 MEASUREMENT UNCERTAINTY ............................................................................................................ 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 6 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 6 5.4 TEST FACILITY .................................................................................................................................... 6 5.5 TEST LOCATION ................................................................................................................................. 6 5.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 6 6 TEST INSTRUMENTS LIST ..................................................................................................................... 7 7 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1 ANTENNA REQUIREMENT .................................................................................................................... 9 7.2 RADIATED EMISSION METHOD ........................................................................................................... 10 7.2.1 Field Strength of The Fundamental Signal ................................................................................ 11 7.2.2 Spurious Emissions ................................................................................................................... 12 7.3 20DB OCCUPY BANDWIDTH .............................................................................................................. 16 7.4 DWELL TIME ..................................................................................................................................... 17 8 TEST SETUP PHOTO ............................................................................................................................ 18 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 18 Report No.: GTS201912000193F01 Global United Technology Services Co., Ltd. No.123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 18 4 Test Summary Test Item Section in CFR 47 Result Antenna Requirement 15.203 Pass Conduction Emission 15.207 N/A Field strength of the Fundamental Signal 15.231 (b) Pass Spurious Emissions 15.231 (b)/15.209 Pass 20dB Bandwidth 15.231 (c) Pass Dwell Time 15.231 (a)(2) Pass Pass: The EUT complies with the essential requirements in the standard. N/A: Not applicable. 4.1 Measurement Uncertainty Test Item Frequency Range Measurement Uncertainty Notes Radiated Emission 30MHz-200MHz 3.8039dB (1) Radiated Emission 200MHz-1GHz 3.9679dB (1) Radiated Emission 1GHz-18GHz 4.29dB (1) Radiated Emis…

Text truncated - open the document above for the full version.

Radiated Emission
