2AVFC-CPAA-70DMultimedia Car players

Difference description FCC ID: 2AVFC-CPAA-70D Model: CPAA-70D,VRCPAA-7D,VRCPAA-106,HDHU 14+,MPHU-3,NA6605 The Multimedia Car players manufactured by T Dongguan Flysonic Electronics Co., Ltd needs to apply for FCC certification. The applied models are as above. They are the same except for the model name, even the principle of the circuit, the electrical structure and all key components related to safety and electromagnetic compatibility are the same. The difference does not affect electromagnetic compatibility and safety. Company: Name: Brella Xiong Company: Dongguan Flysonic Electronics Co., Ltd Address: Nengda Road #5, Tianliao Industrial Area, Shipai Town, Dongugan City, Guangdong Province, China Phone: 18080639419 Fax: 0769-83863889 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 1/8/2020 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AVFC-CPAA-70D CPAA-70D,VRCPAA-7D,VRCPAA-106,HDHU 14+,MPHU- 3,NA6605 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Brella Xiong Company: Dongguan Flysonic Electronics Co., Ltd Address: Nengda Road #5, Tianliao Industrial Area, Shipai Town, Dongugan City, Guangdong Province, China Phone: 18080639419 Fax: 0769-83863889 E-Mail: [email protected]

Dongguan Flysonic Electronics Co., Ltd Nengda Road #5, Tianliao Industrial Area, Shipai Town, Dongugan City, Guangdong Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 1/10/2020 To whom it may concern: We, Dongguan Flysonic Electronics Co., Ltd, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AVFC-CPAA-70D including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Betty Xiong Manager Dongguan Flysonic Electronics Co., Ltd

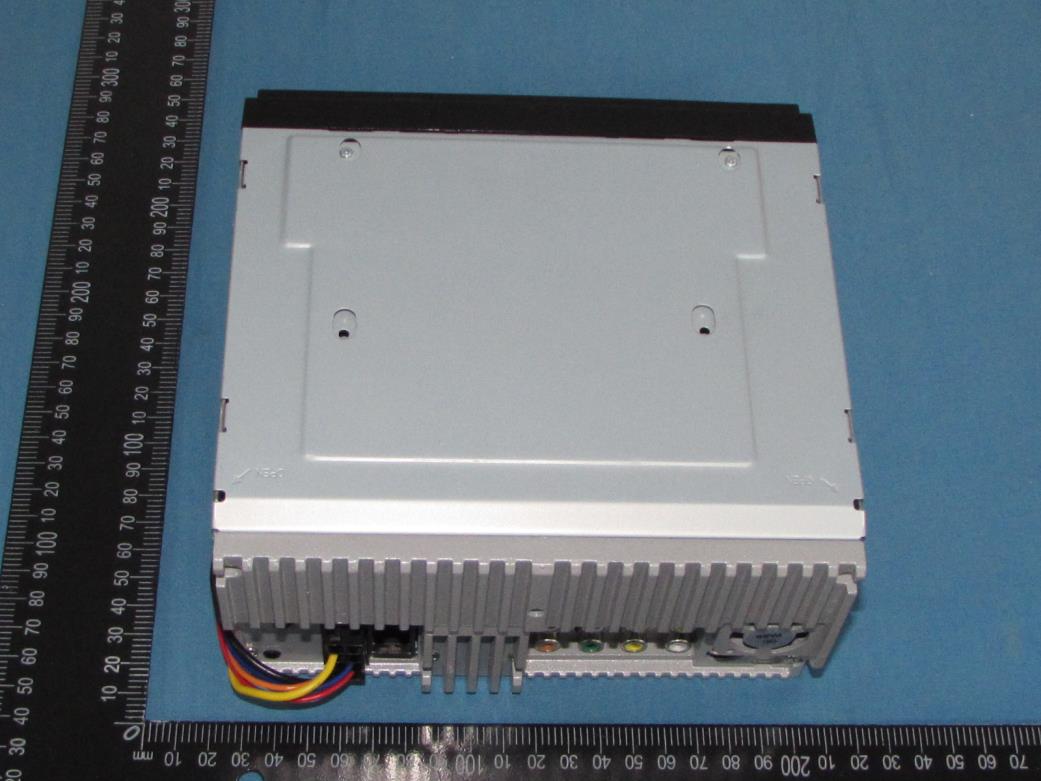

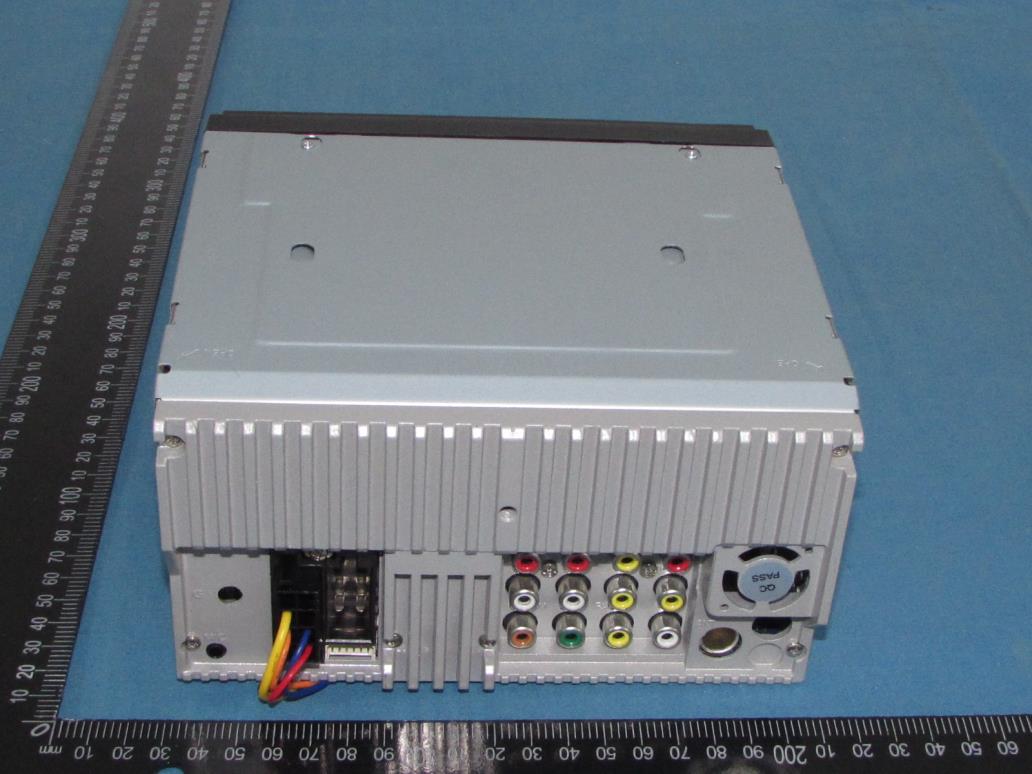

Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D This report shall not be reproduced except in full, without the written approval of Shenzhen HUAK Testing Technology Co., Ltd. Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D This report shall not be reproduced except in full, without the written approval of Shenzhen HUAK Testing Technology Co., Ltd. Page 2 of 4 Fig.3 Fig.4 Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D This report shall not be reproduced except in full, without the written approval of Shenzhen HUAK Testing Technology Co., Ltd. Page 3 of 4 Fig.5 Fig.6 Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D This report shall not be reproduced except in full, without the written approval of Shenzhen HUAK Testing Technology Co., Ltd. Page 4 of 4 Fig.7

Label & Label Location Size: 50mm(L)*30mm(W) FCC ID: 2AVFC-CPAA-70D This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D This report shall not be reproduced except in full, without the written approval of Shenzhen HUAK Testing Technology Co., Ltd. Page 1 of 7 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D This report shall not be reproduced except in full, without the written approval of Shenzhen HUAK Testing Technology Co., Ltd. Page 2 of 7 Fig.3 Fig.4 Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D This report shall not be reproduced except in full, without the written approval of Shenzhen HUAK Testing Technology Co., Ltd. Page 3 of 7 Fig.5 Fig.6 Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D This report shall not be reproduced except in full, without the written approval of Shenzhen HUAK Testing Technology Co., Ltd. Page 4 of 7 Fig.7 Fig.8 Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D This report shall not be reproduced except in full, without the written approval of Shenzhen HUAK Testing Technology Co., Ltd. Page 5 of 7 Fig.9 Fig.10 Bluetooth Antenna Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D This report shall not be reproduced except in full, without the written approval of Shenzhen HUAK Testing Technology Co., Ltd. Page 6 of 7 Fig.11 Fig.12 Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D This report shall not be reproduced except in full, without the written approval of Shenzhen HUAK Testing Technology Co., Ltd. Page 7 of 7 Fig.13

Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D This report shall not be reproduced except in full, without the written approval of Shenzhen HUAK Testing Technology Co., Ltd. Page 1 of 5 Maximum Permissible Exposure Report Product Information EUT : Multimedia Car players Model Number : CPAA-70D,VRCPAA-7D,VRCPAA-106,HDHU 14+,MPHU-3,NA6605 Model Difference Declaration : All the same except for the model name Test Model : CPAA-70D Power Supply : DC 16V by DC Source Hardware version : NA6605_Vr3.2_2019_06_27 Software version : V1.0 Bluetooth Bluetooth Version : V2.1 +EDR Frequency Range : 2402-2480MHz Channel Number : 79 Channels Modulation Technology : GFSK, π/4-DQPSK, 8-DPSK Data Rates : 1~3Mbps Antenna Type And Gain : Internal Antenna 0.0dBi Note: Antenna position refer to EUT Photos. 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D This report shall not be reproduced except in full, without the written approval of Shenzhen HUAK Testing Technology Co., Ltd. Page 2 of 5 3. Method and Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D This report shall not be reproduced except in full, without the written approval of Shenzhen HUAK Testing Technology Co., Ltd. Page 3 of 5 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information This Product can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna Description Antenna type and antenna number Operate frequency band Maximum antenna gain Antenna 1 BT Antenna Internal Antenna 2400 MHz – 2500 MHz 0.0 dBi Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D This report shall not be reproduced except in full, without the written approval of Shenzhen HUAK Testing Technology Co., Ltd. Page 4 of 5 6. Conducted Power Bluetooth(BDR+EDR) Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK 00 2402 2.364 39 2441 3.282 78 2480 3.937 π/4-DQPSK 00 2402 3.437 39 2441 4.24 78 2480 4.875 8-DPSK 00 2402 3.748 39 2441 4.619 78 2480 5.256 7. Manufacturing Tolerance Bluetooth(BDR+EDR) GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 2.0 3.0 3.5 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3.0 4.0 4.5 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3.5 4.5 5.0 Tolerance ±(dB) 1.0 1.0 1.0 Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D This report shall not be reproduced except in full, without the written approval of Shenzhen HUAK Testing Technology Co., Ltd. Page 5 of 5 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum…

Text truncated - open the document above for the full version.

Report No.: HK1912203252-E Page 1 of 35 FCC TEST REPORT Test report On Behalf of Dongguan Flysonic Electronics Co., Ltd For Multimedia Car players Model No: CPAA-70D,VRCPAA-7D,VRCPAA-106,HDHU 14+,MPHU-3,NA6605 FCC ID: 2AVFC-CPAA-70D Prepared for : Dongguan Flysonic Electronics Co., Ltd Nengda Road #5, Tianliao Industrial Area, Shipai Town, Dongugan City, Guangdong Province, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: December 21, 2019~ December 26, 2019 Date of Report: December 30, 2019 Report Number: HK1912203252-E Report No.: HK1912203252-E Page 2 of 35 TEST RESULT CERTIFICATION Applicant’s name ................. : Dongguan Flysonic Electronics Co., Ltd Address .................................. : Nengda Road #5, Tianliao Industrial Area, Shipai Town, Dongugan City, Guangdong Province, China Manufacture's Name ............ : Dongguan Flysonic Electronics Co., Ltd Address .................................. : Nengda Road #5, Tianliao Industrial Area, Shipai Town, Dongugan City, Guangdong Province, China Product description Trade Mark ............................. : Power Acoustik , Soundstream, Nakamichi Product name ........................... : Multimedia Car players Model No ................................ : CPAA-70D,VRCPAA-7D,VRCPAA-106,HDHU 14+,MPHU-3,NA6605 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................. ........... : Date (s) of performance of tests ........... : December 21, 2019~ December 26, 2019 Date of Issue ......................................... : December 30, 2019 Test Result ............................................ : PASS Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Report No.: HK1912203252-E Page 3 of 35 Revision History Revision Issue Date Revisions Revised By 00 December 30, 2019 Initial Issue Jason Zhou Report No.: HK1912203252-E Page 4 of 35 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ................................................................................................................ 5 1.1. Description of Device (EUT) ................................................................................................................... 5 1.2 Support equipment List ................................................................................................................................ 5 1.3 External I/O Cable ........................................................................................................................................ 5 1.4 Description of Test Facility .......................................................................................................................... 5 1.5 Statement of the Measurement Uncertainty ............................................................................................. 6 1.6 Measurement Uncertainty ........................................................................................................................... 6 1.7 Description of Test Modes .......................................................................................................................... 6 2. TEST METHODOLOGY/ ..................................................................................................................... 7 2.1 EUT Configuration ........................................................................................................................................ 7 2.2 EUT Exercise ................................................................................................................................................ 7 2.3 General Test Procedures ............................................................................................................................ 7 2.4. Test Sample ................................................................................................................................................. 7 3. SYSTEM TEST CONFIGURATION .................................................................................................. 8 3.1 Justification .................................................................................................................................................... 8 3.2 EUT Exercise Software ............................................................................................................................... 8 3.3 Special Accessories ..................................................................................................................................... 8 3.4 Block Diagram/Schematics ......................................................................................................................... 8 3.5 Equipment Modifications ............................................................................................................................. 8 3.6 Test Setup ..................................................................................................................................................... 8 4. SUMMARY OF TEST RESULTS ....................................................................................................... 9 5. SUMMARY OF TEST EQUIPMENT ............................................................................................... 10 6. MEASUREMENT RESULTS .......................................................…

Text truncated - open the document above for the full version.

Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 1 of 45 Appendix A RF Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: Multimedia Car players Trade Mark: Power Acoustik , Soundstream, Nakamichi Test Model: CPAA-70D FCC ID: 2AVFC-CPAA-70D Environmental Conditions Temperature: 22.7 C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: Gary Qian Supervised by: Eden Hu A.1 20 dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit(MHz) Verdict GFSK LCH 0.850 Not Specified PASS GFSK MCH 0.922 Not Specified PASS GFSK HCH 0.938 Not Specified PASS π/4DQPSK LCH 1.22 Not Specified PASS π/4DQPSK MCH 1.199 Not Specified PASS π/4DQPSK HCH 1.223 Not Specified PASS 8DPSK LCH 1.241 Not Specified PASS 8DPSK MCH 1.317 Not Specified PASS 8DPSK HCH 1.229 Not Specified PASS Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 2 of 45 Test Graph Graphs GFSK/LCH GFSK/MCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 3 of 45 GFSK/HCH π/4DQPSK/LCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 4 of 45 π/4DQPSK/MCH π/4DQPSK/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 5 of 45 8DPSK/LCH 8DPSK/MCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 6 of 45 8DPSK/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 7 of 45 A.2 Dwell Time Mode Packet Chann el Burst Width [s/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdic t GFSK DH5 LCH 0.002910 106.7 0.310468 0.4 PASS GFSK DH5 MCH 0.002912 106.7 0.310741 0.4 PASS GFSK DH5 HCH 0.002909 106.7 0.310417 0.4 PASS π/4DQPSK 2DH5 LCH 0.002914 106.7 0.310935 0.4 PASS π/4DQPSK 2DH5 MCH 0.002917 106.7 0.311205 0.4 PASS π/4DQPSK 2DH5 HCH 0.002914 106.7 0.310933 0.4 PASS 8DPSK 3DH5 LCH 0.002914 106.7 0.310926 0.4 PASS 8DPSK 3DH5 MCH 0.002914 106.7 0.310965 0.4 PASS 8DPSK 3DH5 HCH 0.002914 106.7 0.310972 0.4 PASS Test Graph Graphs GFSK_DH5/LCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 8 of 45 GFSK_DH5/MCH GFSK_DH5/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 9 of 45 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 10 of 45 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 11 of 45 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 12 of 45 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.001 0.567 PASS GFSK MCH 1.000 0.615 PASS GFSK HCH 1.001 0.625 PASS π/4DQPSK LCH 0.997 0.813 PASS π/4DQPSK MCH 0.999 0.799 PASS π/4DQPSK HCH 0.997 0.815 PASS 8DPSK LCH 1.000 0.827 PASS 8DPSK MCH 0.999 0.878 PASS 8DPSK HCH 0.999 0.819 PASS Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 13 of 45 Test Graph Graphs GFSK/LCH GFSK/MCH GFSK/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 14 of 45 π/4DQPSK/LCH π/4DQPSK/MCH π/4DQPSK/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 15 of 45 8DPSK/LCH 8DPSK/MCH 8DPSK/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 16 of 45 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel[N] Limit[N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graph Graphs GFSK/Hop Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 17 of 45 π/4DQPSK/Hop 8DPSK/Hop Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 18 of 45 A.5 Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 2.364 21 PASS GFSK MCH 3.282 21 PASS GFSK HCH 3.937 21 PASS π/4DQPSK LCH 3.437 21 PASS π/4DQPSK MCH 4.240 21 PASS π/4DQPSK HCH 4.875 21 PASS 8DPSK LCH 3.748 21 PASS 8DPSK MCH 4.619 21 PASS 8DPSK HCH 5.256 21 PASS Test Graph Graphs GFSK/LCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 19 of 45 GFSK/MCH GFSK/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 20 of 45 π/4DQPSK/LCH π/4DQPSK/MCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 21 of 45 π/4DQPSK/HCH 8DPSK/LCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 22 of 45 8DPSK/MCH 8DPSK/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 23 of 45 A.6 Band-edge for RF Conducted Emissions Type Carrier Frequency(MHz ) Frequency(MHz ) Carrier Frequency Power [dBm] Bandedge Peak(dBm) Upper limit(dBm) Conclusion 1DH5 2402 2398.778 2.407 -48.13 -17.593 Pass 1DH5 2480 2484.714 3.811 -53.592 -16.189 Pass 2DH5 2402 2400 2.273 -48.36 -17.727 Pass 2DH5 2480 2484.004 3.798 -50.604 -16.202 Pass 3DH5 2402 2397.984 1.784 -48.334 -18.216 Pass 3DH5 2480 2483.5 2.401 -54.95 -17.599 Pass 1DH5-Hopping 2402 2399.76 2.509 -49.449 -17.491 Pass 1DH5-Hopping 2480 2483.5 3.575 -56.48 -16.425 Pass 2DH5-Hopping 2402 2397.99 2.678 -47.741 -17.322 Pass 2DH5-Hopping 2480 2483.5 3.773 -59.44 -16.227 Pass 3DH5-Hopping 2402 2399.76 2.748 -49.486 -17.252 Pass 3DH5-Hopping 2480 2483.5 3.45 -58.51 -16.55 Pass Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 24 of 45 Test Graph Graphs GFSK/LCH/No Hop GFSK/H…

Text truncated - open the document above for the full version.

Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 1 of 45 Appendix A RF Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: Multimedia Car players Trade Mark: Power Acoustik , Soundstream, Nakamichi Test Model: CPAA-70D FCC ID: 2AVFC-CPAA-70D Environmental Conditions Temperature: 22.7 C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: Gary Qian Supervised by: Eden Hu A.1 20 dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit(MHz) Verdict GFSK LCH 0.850 Not Specified PASS GFSK MCH 0.922 Not Specified PASS GFSK HCH 0.938 Not Specified PASS π/4DQPSK LCH 1.22 Not Specified PASS π/4DQPSK MCH 1.199 Not Specified PASS π/4DQPSK HCH 1.223 Not Specified PASS 8DPSK LCH 1.241 Not Specified PASS 8DPSK MCH 1.317 Not Specified PASS 8DPSK HCH 1.229 Not Specified PASS Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 2 of 45 Test Graph Graphs GFSK/LCH GFSK/MCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 3 of 45 GFSK/HCH π/4DQPSK/LCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 4 of 45 π/4DQPSK/MCH π/4DQPSK/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 5 of 45 8DPSK/LCH 8DPSK/MCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 6 of 45 8DPSK/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 7 of 45 A.2 Dwell Time Mode Packet Chann el Burst Width [s/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdic t GFSK DH5 LCH 0.002910 106.7 0.310468 0.4 PASS GFSK DH5 MCH 0.002912 106.7 0.310741 0.4 PASS GFSK DH5 HCH 0.002909 106.7 0.310417 0.4 PASS π/4DQPSK 2DH5 LCH 0.002914 106.7 0.310935 0.4 PASS π/4DQPSK 2DH5 MCH 0.002917 106.7 0.311205 0.4 PASS π/4DQPSK 2DH5 HCH 0.002914 106.7 0.310933 0.4 PASS 8DPSK 3DH5 LCH 0.002914 106.7 0.310926 0.4 PASS 8DPSK 3DH5 MCH 0.002914 106.7 0.310965 0.4 PASS 8DPSK 3DH5 HCH 0.002914 106.7 0.310972 0.4 PASS Test Graph Graphs GFSK_DH5/LCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 8 of 45 GFSK_DH5/MCH GFSK_DH5/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 9 of 45 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 10 of 45 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 11 of 45 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 12 of 45 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.001 0.567 PASS GFSK MCH 1.000 0.615 PASS GFSK HCH 1.001 0.625 PASS π/4DQPSK LCH 0.997 0.813 PASS π/4DQPSK MCH 0.999 0.799 PASS π/4DQPSK HCH 0.997 0.815 PASS 8DPSK LCH 1.000 0.827 PASS 8DPSK MCH 0.999 0.878 PASS 8DPSK HCH 0.999 0.819 PASS Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 13 of 45 Test Graph Graphs GFSK/LCH GFSK/MCH GFSK/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 14 of 45 π/4DQPSK/LCH π/4DQPSK/MCH π/4DQPSK/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 15 of 45 8DPSK/LCH 8DPSK/MCH 8DPSK/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 16 of 45 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel[N] Limit[N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graph Graphs GFSK/Hop Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 17 of 45 π/4DQPSK/Hop 8DPSK/Hop Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 18 of 45 A.5 Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 2.364 21 PASS GFSK MCH 3.282 21 PASS GFSK HCH 3.937 21 PASS π/4DQPSK LCH 3.437 21 PASS π/4DQPSK MCH 4.240 21 PASS π/4DQPSK HCH 4.875 21 PASS 8DPSK LCH 3.748 21 PASS 8DPSK MCH 4.619 21 PASS 8DPSK HCH 5.256 21 PASS Test Graph Graphs GFSK/LCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 19 of 45 GFSK/MCH GFSK/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 20 of 45 π/4DQPSK/LCH π/4DQPSK/MCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 21 of 45 π/4DQPSK/HCH 8DPSK/LCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 22 of 45 8DPSK/MCH 8DPSK/HCH Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 23 of 45 A.6 Band-edge for RF Conducted Emissions Type Carrier Frequency(MHz ) Frequency(MHz ) Carrier Frequency Power [dBm] Bandedge Peak(dBm) Upper limit(dBm) Conclusion 1DH5 2402 2398.778 2.407 -48.13 -17.593 Pass 1DH5 2480 2484.714 3.811 -53.592 -16.189 Pass 2DH5 2402 2400 2.273 -48.36 -17.727 Pass 2DH5 2480 2484.004 3.798 -50.604 -16.202 Pass 3DH5 2402 2397.984 1.784 -48.334 -18.216 Pass 3DH5 2480 2483.5 2.401 -54.95 -17.599 Pass 1DH5-Hopping 2402 2399.76 2.509 -49.449 -17.491 Pass 1DH5-Hopping 2480 2483.5 3.575 -56.48 -16.425 Pass 2DH5-Hopping 2402 2397.99 2.678 -47.741 -17.322 Pass 2DH5-Hopping 2480 2483.5 3.773 -59.44 -16.227 Pass 3DH5-Hopping 2402 2399.76 2.748 -49.486 -17.252 Pass 3DH5-Hopping 2480 2483.5 3.45 -58.51 -16.55 Pass Shenzhen HUAK Testing Technology Co., Ltd. FCC ID: 2AVFC-CPAA-70D Report No.: HK1912203252-E Page 24 of 45 Test Graph …

Text truncated - open the document above for the full version.
