2AVFF-24461Bluetooth Speaker With Wireless Output

1. Wireless Charging Pad 2. Volume + / Next Track 3. Power Button 4. Volume - /Previous Track 5. Indicator light / Micro Phone 6. Indicator light 7. Micro-USB Input 8. Audio input Port Spec: Bluetooth Version: V5.0 Bluetooth Frequency: 2.402GHZ2.483GHZ Bluetooth Range: Less than 10m Battery Capacity: 800mAh Micro USB input: 5V/2A Wireless Output: 5V/1A, 5W Playback time: 2hrs in max volume Fully charging time from 0% to 100%: about 2hrs Charging the Speaker: *Please fully charged the speaker for the first time using Please charge the speaker by using the provided cable connecting to a power source. Please connect the cable to the micro-USB input 7. Indicator light 6 will illuminate red when charging, and will turn off once it is fully charged. Charging Mobile Phones via Wireless Charging Pad *Ensure that your phone supports wireless charging function. Connect the provided charging cable to a power source and the micro USB input 7, once connected, the indicator light 5 will illuminate blue to indicate it is standby for charging, Place the phone on the wireless charging pad, indicator light 5 will illuminate red to indicate it is charging. Instruction of the Bluetooth Speaker 1. Turn on the speaker by holding Power Button 3, Indicator light 6 will flash blue when it is in paring mode. 2. Make sure the Bluetooth function of your device is turned on. Select paring name “XXXX” to pair with the speaker, once it is paired, indicator light 6 will illuminate Blue . * Holding button 2 (+) to switch to the next track, click button 2 (+) to increase the volume * Holding button 4 (-) to switch to the previous track, click button 4 (-) to decrease the volume. * Click button 3 to pause or resume a track, holding button 3 to turn off the speaker. Indicator light 6 will keep breath in blue when playing music. Make Phone Calls via the Speaker * Click button 3 to answer a coming call, click again to hang up. * Holding button 3 to reject a coming call. * Double click button 3 to re-dial the recently number. FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. FCC ID: 2AVFF-24461

ANHUI LIGHT INDUSTRIES INTERNATIONAL CO., LTD. Agent Authorization Company: ANHUI LIGHT INDUSTRIES INTERNATIONAL CO., LTD. Address: ALIC CENTER 8 TIANDA ROAD HEFEI, ANHUI, CHINA, 230088 Product Name: Bluetooth Speaker With Wireless Output Trade Mark: N/A Model Number(s): 24461 FCC ID: 2AVFF-24461 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2002-05-06 Name: BO JIN Title: General Manager Company: ANHUI LIGHT INDUSTRIES INTERNATIONAL CO., LTD.

ANHUI LIGHT INDUSTRIES INTERNATIONAL CO., LTD. ALIC CENTER 8 TIANDA ROAD HEFEI, ANHUI, CHINA, 230088 Tel: 0551-62299559 E-mail: [email protected] Series Models Description Date: 2020/05/06 To: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA FCC ID: 2AVFF-24461 Dear Sir/Madam, We, ANHUI LIGHT INDUSTRIES INTERNATIONAL CO., LTD. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only color and model number is different for these model: Product name: Bluetooth Speaker With Wireless Output Model no.: 24461, 24460, 24462 Sincerely, Name: BO JIN / General Manager Company: ANHUI LIGHT INDUSTRIES INTERNATIONAL CO., LTD. Address: ALIC CENTER 8 TIANDA ROAD HEFEI, ANHUI, CHINA, 230088 Phone: 0551-62299559 E-Mail: [email protected]

ANHUI LIGHT INDUSTRIES INTERNATIONAL CO., LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-05-06 Subject; Request for Confidentiality FCC ID: 2AVFF-24461 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: BO JIN Title: General Manager

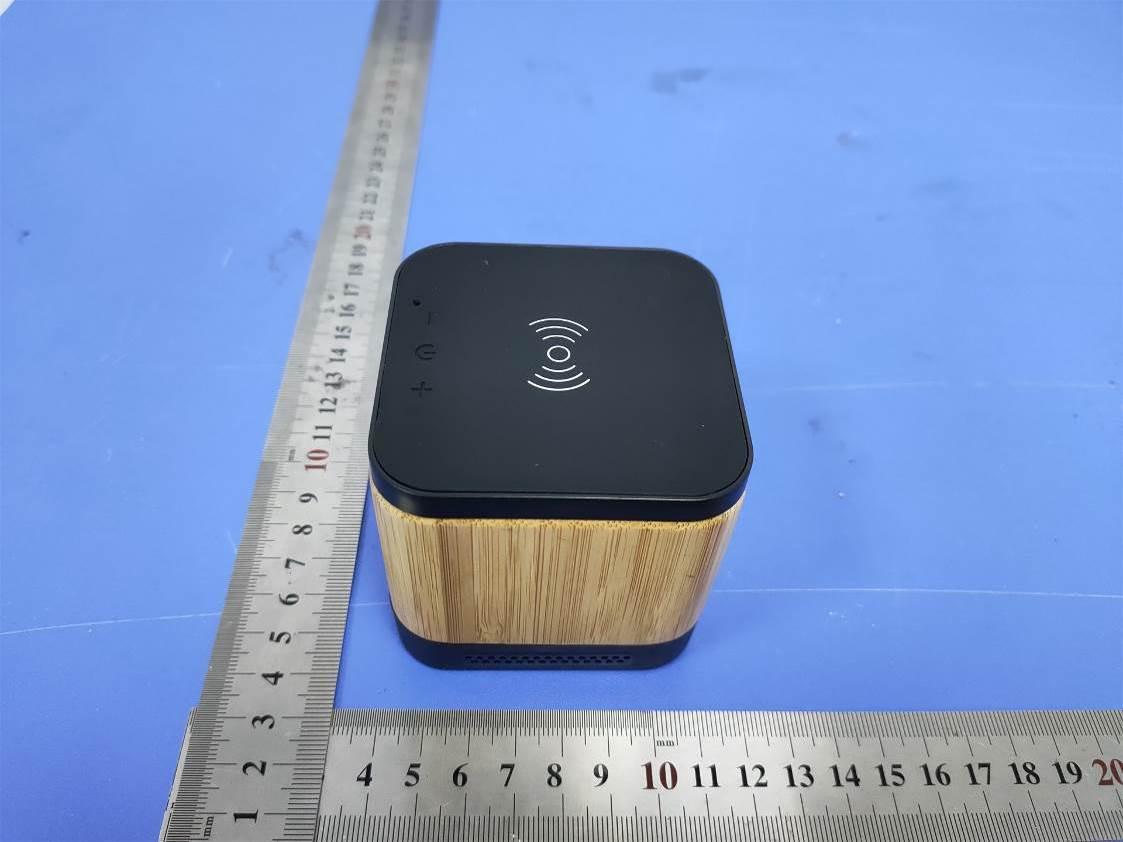

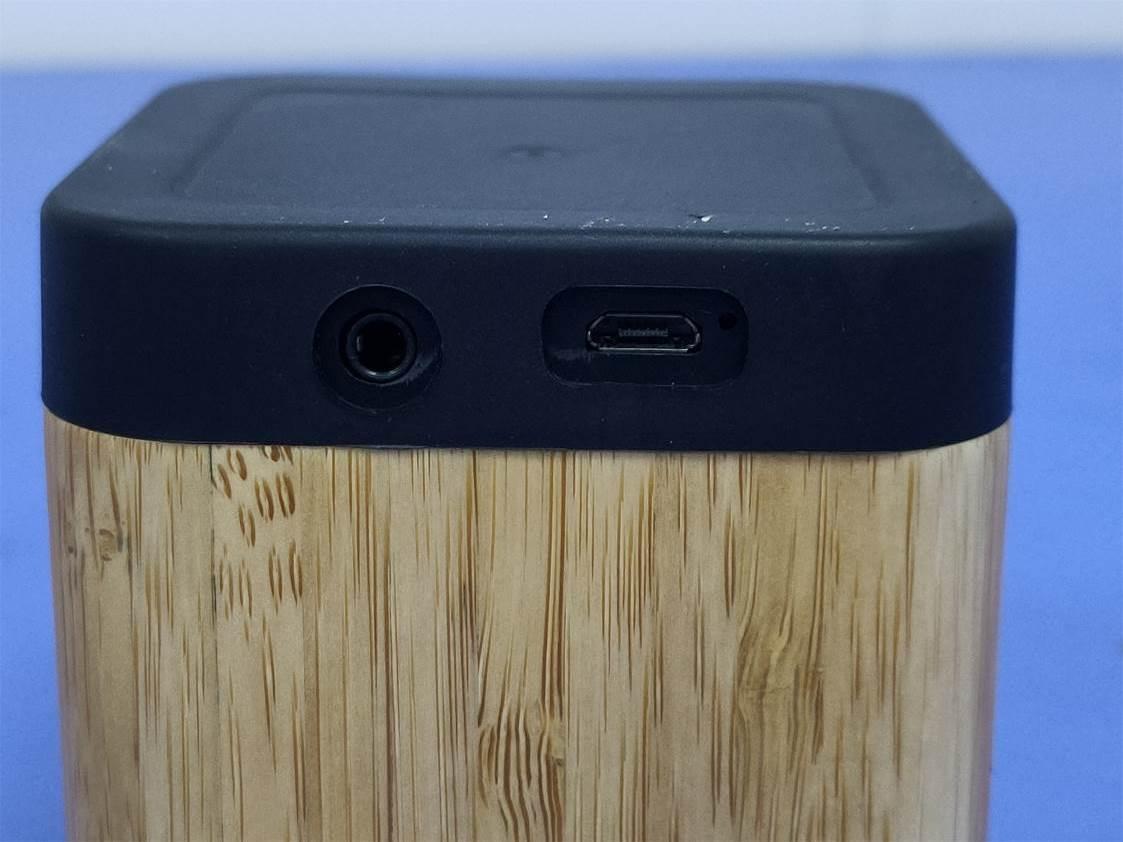

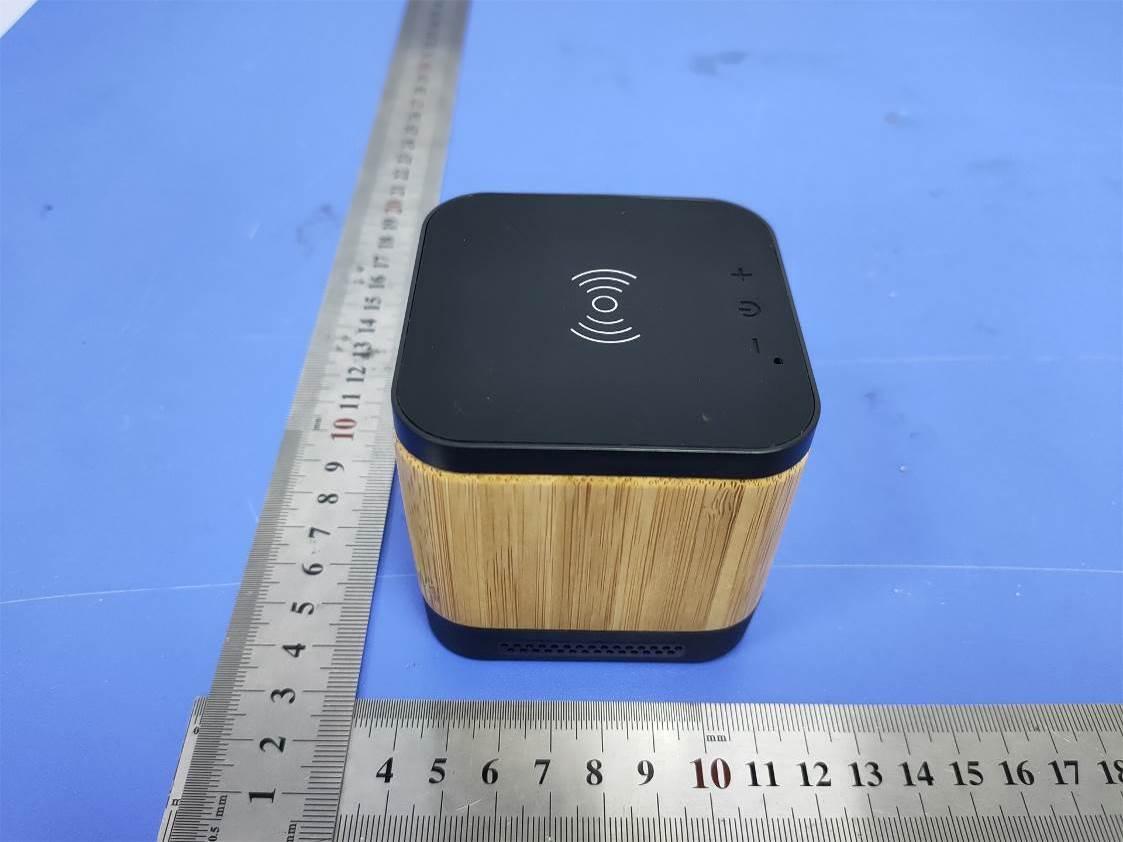

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AVFF-24461 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 External Photos of the EUT Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AVFF-24461 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AVFF-24461 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AVFF-24461 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVFF-24461 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 3.5cm*W: 3.0cm Label Location Bluetooth Speaker With Wireless Output Model No.: 24461 FCC ID : 2AVFF-24461 Input: DC 3.7V by Rechargeable Li-ion Battery(800mAh, 2.96Wh) Micro USB input: 5V/2A Wireless Output: 5V/1A, 5W This device complies with part 15 and part 18 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made In China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVFF-24461 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 Internal Photos of the EUT Fig. 1 Fig. 2 Coil Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVFF-24461 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVFF-24461 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVFF-24461 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 Fig. 7 Fig. 8 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVFF-24461 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 5 Fig. 9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVFF-24461 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 10 RF Exposure Evaluation Report 1. Product Information FCC ID: 2AVFF-24461 Product Name Bluetooth Speaker With Wireless Output Model Number 24461 Additional Model No. 24460, 24462 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power Supply DC 3.7V by Rechargeable Li-ion Battery(800mAh, 2.96Wh) Micro USB input: 5V/2A Wireless Output: 5V/1A, 5W Modulation Type CW (Continuous Wave) Frequency Range 110 KHz - 205 KHz Operation Frequency 128.0 KHz Antenna Type Coil Antenna Hardware version v1.0 Software version v003 Accessories iPhone X Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Per KDB 680106 D01 Section 3. RF Exposure Requirements; 1) Consumer wireless power transfer devices approved under Part 18 in some cases have to demonstrate compliance with RF exposure requirements. The potential for exposure must be assessed according to the operating configurations of the wireless system and the exposure conditions of users and bystanders. RF exposure must be evaluated with the client device(s) being charged by the primary at maximum output power. The RF exposure requirements must be determined in conjunction with the device operating characteristics, according to the mobile and portable exposure requirements in Section 2.1091 and Section 2.1093 of the rules. SAR and MPE limits do not cover the frequency range for wireless power transfer applications which operate below 100 kHz and 300 kHz respectively; therefore, RF exposure compliance needs to be determined with respect to 1.1307 (c) and (d) of the FCC rules. 2) Based on the design and implementation of the power transfer application, it must be clearly identified if mobile or portable RF exposure conditions apply. Devices that are installed to provide separation of at least 20 cm from users and bystanders may qualify for mobile exposure conditions. For some conditions where users and bystanders may be exposed at closer than 20 cm, section 2.1091(d) (4) of the rules may apply. 3) For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVFF-24461 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 10 assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. 4) Portable exposure conditions from 100 kHz to 6 GHz are determined with respect to SAR requirements. Existing SAR systems and test procedures are generally intended for measurements above 100 MHz. While numerical modeling can be an alternative, the constraints of substantial computational resources at low frequencies could introduce further limitations. Under these circumstances, including operations below 100 kHz, the Commission may consider a combination of analytical analysis, field strength, radiated and conducted power measurements, in conjunction with some limited numerical modeling to assess compliance. 5) Depending on the operating frequency, existing SAR and MPE measurement procedures may be adapted to evaluate wireless power transfer devices for compliance with respect to mobile or portable exposure conditions. If the grantee or its test lab have any questions regarding RF exposure evaluation they should contact the FCC Laboratory with sufficient system operating configuration details to determine if RF exposure evaluation is necessary and, if required, how to apply specific test procedures. Below 100 MHz, when SAR testing is required and the device is operating at close proximity to persons, information on device design, implementation, operating configurations, exposure conditions of users and bystanders are needed to determine the evaluation and testing requirements. In addition, the influence of nearby objects may also need consideration according to the wireless power transfer system implementation; for example, the effects of placing the device, its coils or radiating elements on or near metallic surfaces 3. Evaluation Limit 3.1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 680106 D01 RF Exposure Wireless Charging Apps v03: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices FCC CFR 47 part 18.107:Indusial, Scientific, and Medical Equipment 3.2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1,500 / / f/300 6 1,500-100,000 / / 5 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVFF-24461 Report No.: LCS191203024AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 23 FCC TEST REPORT For ANHUI LIGHT INDUSTRIES INTERNATIONAL CO., LTD. Bluetooth Speaker With Wireless Output Test Model: 24461 Additional Model No.: Please refer to page 6 Prepared for : ANHUI LIGHT INDUSTRIES INTERNATIONAL CO., LTD. Address : ALIC CENTER 8 TIANDA ROAD HEFEI, ANHUI, CHINA, 230088 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 02, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : April 02, 2020 ~ April 11, 2020 Date of Report : April 16, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVFF-24461 Report No.: LCS191203024AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 23 FCC TEST REPORT FCC CFR 47 PART 18 Report Reference No. ................ : LCS191203024AEB Date Of Issue ................................. : April 16, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : ANHUI LIGHT INDUSTRIES INTERNATIONAL CO., LTD. Address .......................................... : ALIC CENTER 8 TIANDA ROAD HEFEI, ANHUI, CHINA, 230088 Test Specification Standard ......................................... : FCC CFR 47 PART 18 Test Report Form No. .................... : LCSEMC-1.0 TRF Originator................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Bluetooth Speaker With Wireless Output Trade Mark ..................................... : N/A Test Model ...................................... : 24461 Power Supply ................................. : DC 3.7V by Rechargeable Li-ion Battery(800mAh) Micro USB input: 5V/2A Wireless Output: 5V/1A, 5W Result ........................................... : Positive Compiled by: Supervised by: Approved by: Vera Deng/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVFF-24461 Report No.: LCS191203024AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 23 FCC TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS191203024AEB April 16, 2020 Date of issue Test Model.............................. : 24461 EUT......................................... : Bluetooth Speaker With Wireless Output Applicant............................... : ANHUI LIGHT INDUSTRIES INTERNATIONAL CO., LTD. Address.................................. : ALIC CENTER 8 TIANDA ROAD HEFEI, ANHUI, CHINA, 230088 Telephone............................... : / Fax.......................................... : / Manufacturer........................ : ANHUI LIGHT INDUSTRIES INTERNATIONAL CO., LTD. Address................................... : ALIC CENTER 8 TIANDA ROAD HEFEI, ANHUI, CHINA, 230088 Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVFF-24461 Report No.: LCS191203024AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 23 Revision History Revision Issue Date Revisions Revised By 000 April 16, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVFF-24461 Report No.: LCS191203024AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 23 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................. 6 1.1 Description of Device (EUT) ...................................................................................................... 6 1.2 Support equipment List ............................................................................................................... 6 1.3 External I/O Cable ....................................................................................................................... 6 1.4 Description of Test Facility ....................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVFF-24461 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Appendix A Photographs of Test Setup Conducted Emission-AC adapter charge mode Radiated Emission below 30MHz-AC adapter charge mode SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVFF-24461 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Radiated Emission below 30MHz-1G adapter charge mode
