2AVFH-CSTN001LPWA Gateway

Coordinator (CST-N001) Manual 25 th Aug 2019 US Representative Contacts Company name : Corners Global Address : 3949 Eden St, Philadelphia, PA 19114 Contact Name : Adel Ebeid Contents 1. OVERVIEW ...................................................................................................................................................................... 3 2. INSTALLATION ............................................................................................................................................................... 4 2.1 CONNECTION GUIDE .................................................................................................................................................................................. 4 2.2 FIRST-TIME POWER ON ............................................................................................................................................................................. 4 3. FCC STATEMENT ............................................................................................................................................................ 5 1. OVERVIEW - CST-N001 controls up to 64 LoRa-based devices (CST-G001) and swiftly forwards sensing information received from CST-G001 to the server in case of an emergency. - The server should communicate evacuation information to CST-N001 through emergency evacuation algorithms, and CST-N001 should quickly communicate evacuation information received from the server to all CST-G001 so that casualties can be minimized through evacuation announcement and announcement. Parameter Description Processor ARM926EJ-S Flash Memory 8 MB SDRAM 32 MB Operating System Embedded Linux Configuration Telnet, SSH Protocols TCP, UDP, Telnet, ICMP, DHCP, TFTP, FTP Network Static IP, DHCP Data Encryption Network (AES 128 bits) LAN Ports 10/100 Mbps, Auto MDI/MDIX Connector RJ-45 RF LoRa TM long range modem,900MHz Antenna 2 dBm Input Power AC 120V Adapter (Output : DC 12V / 1 A ) Ethernet LAN 10/100Mbps Operation Temperature -40 ~ 85 LED (Ready) Blink LED Dimensions 75.8(W) x 83.6(L) x 28.4(H)mm Weight 210 g 2. INSTALLATION This chapter explains how to install CST-N001. It deals with LAN connection guides 2.1 Connection Guide In order to connect CST-N001 to network, you need to use RJ-45 Ethernet port. It supports both 10Mbps and 100Mbps Ethernet connection (auto-sensing). Since WAN/LAN port supports MDIX, it automatically detects any kind of cable. (Cross or direct LAN cable) Plug one end of the LAN cable to CST-N001 and the other end to a hub, switch, or any other network device. 2.2 First-Time Power On First of all, please make sure that the power input you supply to the module is corresponding with the CST-N001 model that you have. If an appropriate power input has been successfully supplied, CST-N001 will power on and start booting. Although there is no power LED to check the status, you can check by LEDs on the RJ-45 Ethernet port. An IP address is required to access web interface in CST-N001 or telnet command-line configuration tool. By factory default, a static IP address is assigned to CST-N001. After the initial connection, you can either manually assign a different IP address or set CST-N001 to automatically get an IP address from a DHCP server. While this depends on your network environment and policy, it is strongly recommended that a user assigns CST-N001 with a unique static IP. 3. FCC Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two condition: (1)This Device may not cause harmful, and (2)This device must accept any interface received, including interface that may cause undesired operation. Any changes or modifications (including the antenna) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Model : CST-N001 Procuct : LPWA Gateway Manufacturer : Corners Co.Ltd Power : AC120V, 60Hz 1A FCC ID : 2AVFH-CSTN001

Corners Co.Ltd 806, 26, Sangwon 1-gil, Seongdong-gu, Seoul, Republic of Korea Date: December 27, 2019 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Hyeon-Su, Jang of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Hyeon-Su, Jang of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; Corners Co.Ltd 806, 26, Sangwon 1-gil, Seongdong-gu, Seoul, Republic of Korea g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Tony Kim/ Representative Corners Co.Ltd REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Corners Co.Ltd 806, 26, Sangwon 1-gil, Seongdong-gu, Seoul, Republic of Korea Date: December 27, 2019 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AVFH-CSTN001 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT Exhibit Type File Name Part List Part List_ CST-N001.pdf Schematics Diagram(s) Schematics_ CST-N001.pdf Block diagram Block diagram_CST-N001.pdf Operation description Operation description_ CST-N001.pdf And the above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Tony Kim/ Representative Corners Co.Ltd

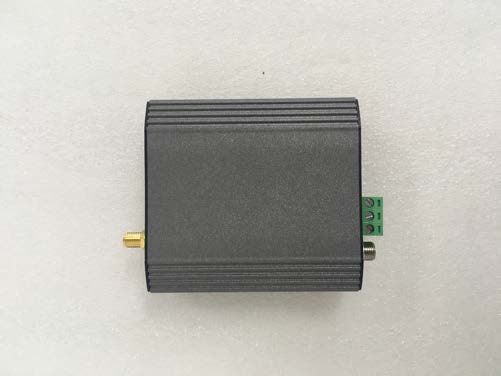

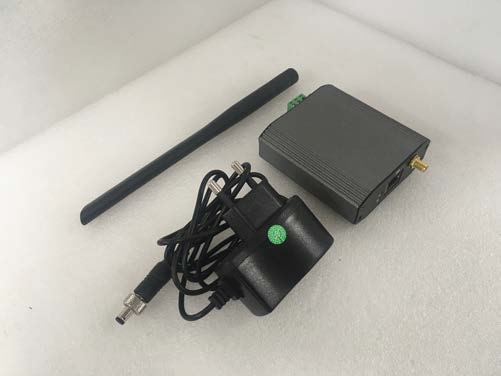

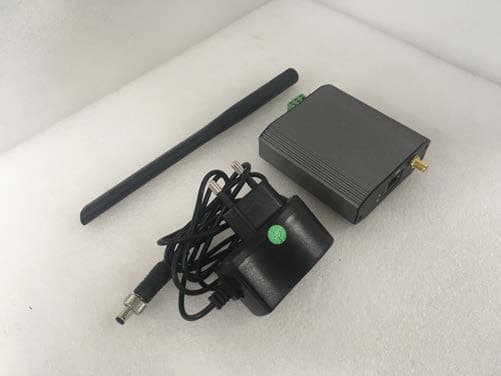

External photos FCC ID: 2AVFH-CSTN001 Page 1 of 2 External photos FCC ID: 2AVFH-CSTN001 Page 2 of 2

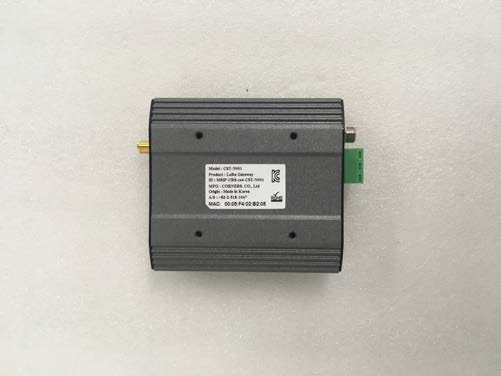

Label photo The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a Prominent location in the User’s Manual. FCC ID: 2AVFH-CSTN001 Page 1 of 1

Internal photos Dipole Antenna FCC ID: 2AVFH-CSTN001 Page 1 of 1

KES Co., Ltd. C-3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel : + 8 2-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Report No.: KES-RF-19T0197-R1 Page (2 ) of (27) Revision history Revision Date of issue Te s t r e p o rt No. Description - 2019.12.27 KES-RF-19T0197 Initial - 2020.01.03 KES-RF-19T0197-R1 Added Field strength of fundamental test This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-0 6 Rev. 7 KES A4 KES Co., Ltd. C-3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel : + 8 2-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Report No.: KES-RF-19T0197-R1 Page (3 ) of (27) TABLE OF CONTENTS 1. General information ................................................................................................................................................... 4 1.1. EUT description ........................................................................................................................................ 4 1.2. Test configuration ...................................................................................................................................... 4 1.3. Information about derivative model .......................................................................................................... 4 1.4. Accessory information............................................................................................................................... 4 1.5. Software and Firmware description ........................................................................................................... 4 1.6. Measurement results explanation example ................................................................................................ 5 1.7. Measurement Uncertainty ......................................................................................................................... 5 1.8. Frequency/channel operations ................................................................................................................... 5 2. Summary of tests ........................................................................................................................................................ 6 3. Test results .................................................................................................................................................................. 7 3.1. 20 ㏈ bandwidth ...................................................................................................................................... 7 3.2. Field strength of fundamental & Radiated spurious emission & Out-of-band emission ......................... 10 3.3. AC conducted emissions ......................................................................................................................... 24 Appendix A. Measurement equipment ......................................................................................................................... 26 Appendix B. Test setup photos ..................................................................................................................................... 27 This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-0 6 Rev. 7 KES A4 KES Co., Ltd. C-3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel : + 8 2-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Report No.: KES-RF-19T0197-R1 Page (4 ) of (27) 1. General information Applicant: Corners Co.Ltd Applicant address: 806, 26, Sangwon 1-gil, Seongdong-gu, Seoul, Republic of Korea Test site: KES Co., Ltd. Test site address: 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea 473-21, Gayeo-ro, Yeoju-si, Gyeonggi-do, Korea Test Facility FCC Accreditation Designation No.: KR0100, Registration No.: 444148 FCC rule part(s): 15.249 FCC ID: 2 AV F H-CSTN001 Test device serial No.: Production Pre-production Engineering 1.1. EUT description Equipment under test LPWA Gateway Frequency range 917.3 ㎒ ~ 923.3 ㎒ (125 kHz, 250 kHz) Model: CST-N001 Modulation technique GFSK Number of channels 31ch : 917.3 ㎒ ~923.3 ㎒ (125 kHz, 250 kHz) Antenna type Dipole antenna : 2 ㏈i Power source AC 120V Adapter (Output : DC 12V / 1A ) 1.2. Test configuration The Corners Co.Ltd LPWA Gateway FCC ID: 2 AV F H-CSTN001 was tested per the guidance of ANSI C63.10-2013 was used to reference the appropriate EUT setup for radiated spurious emissions testing and AC line conducted testing. 1.3. Information about derivative model N/A 1.4. Accessory information Applicant Equipment Manufacturer Model Power source - - - - - 1.5. Software and Firmware description The software and firmware installed in the EUT is 116 This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP-7081-0 6 Rev. 7 KES A4 KES Co., Ltd. C-3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel : + 8 2-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Report No.: KES-RF-19T0197-R1 Page (5 ) of (27) 1.6. Measurement results explanation example For all conducted test items : The offset level is set in the spectrum analyzer to compensate the RF cable loss and attenuator factor between EUT conducted output port and spectrum analyzer. With the offset compensation, the spectrum analyzer reading level is exactly the EUT R…
