2AVGH-RTADM001RFID Dashboard

M.A.E. ELETTRONICA S.R.L.
RFID Dashboard - FCC ID 2AVGH-RTADM001 - M.A.E. ELETTRONICA S.R.L.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Apr 04, 2022
Application Purpose
Original Equipment
Date of Application
Apr 04, 2022
Equipment Note
RFID Dashboard
Frequency Range
0.13442000 - 0.13442000
Company
M.A.E. ELETTRONICA S.R.L.
Country
Italy

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

DASHBOARD USER MANUAL FOR RTADM001 -1900 MODEL Pag. 1/5 MAE-DEX-RTADM001-1900-User Manual-00-220228 Via Presolana 31 e 33, Medolago (Bg) – Italy –  +39 (0)35 49.33.122  +39 (0)35 49.33.114 Filled In: Checked: Approved: Claudia Gravalini E. Locatelli F.Gravalini DASHBOARD for RTADM001 -1900 Model User Manual DASHBOARD USER MANUAL FOR RTADM001 -1900 MODEL Pag. 2/5 MAE-DEX-RTADM001-1900-User Manual-00-220228 Via Presolana 31 e 33, Medolago (Bg) – Italy –  +39 (0)35 49.33.122  +39 (0)35 49.33.114 1. COMPONENT LAYOUT – COMPLETE VIEW: DASHBOARD USER MANUAL FOR RTADM001 -1900 MODEL Pag. 3/5 MAE-DEX-RTADM001-1900-User Manual-00-220228 Via Presolana 31 e 33, Medolago (Bg) – Italy –  +39 (0)35 49.33.122  +39 (0)35 49.33.114 2. IMMOBILIZER SYSTEM: Key electronic codes are stored inside instrument panel control unit, which serves as Immobilizer. The transponder contained inside each key is powered by the antenna inside the key switch. Instrument panel control unit reads the electronic code stored inside the key and compares it to the codes enabled for engine start, then it communicates to engine control unit - through the CAN line - whether engine starting can be enabled. Key electronic codes are stored inside instrument panel control unit, which serves as Immobilizer. The transponder contained inside each key (A) is powered by the antenna inside the key switch (B). Instrument panel control unit (C) reads the electronic code stored inside the key and compares it to the codes enabled for engine start, then it communicates to engine control unit - through the CAN line - whether engine starting can be enabled. The activations must be performed only with key turned to ON, engine off and battery voltage ≥ 11.0V. DASHBOARD USER MANUAL FOR RTADM001 -1900 MODEL Pag. 4/5 MAE-DEX-RTADM001-1900-User Manual-00-220228 Via Presolana 31 e 33, Medolago (Bg) – Italy –  +39 (0)35 49.33.122  +39 (0)35 49.33.114 3. NOTES Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment This device model RTADM001 is listed under FCC ID: 2AVGH-RTADM001; IC: 25794-RTADM001 RF Radiation Exposure statement This device complies with FCC and ISED radiation exposure limits for uncontrolled environment. The antenna should be installed and operated with minimum distance of 20 cm between the radiator and your body. Cet appareil est conforme aux limites d'exposition aux rayonnements de l’ISED pour un environnement non contrôlé. L'antenne doit être installé de façon à garder une distance minimale de 20 centimètres entre la source de rayonnements et votre corps. Canada: This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’emetteur/recepteur exempt de licence contenu dans le present appareil est conforme aux CNR d’Innovation, Sciences et Developpement economique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisee aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. ICES-003 Class B Notice -Avis NMB-003 Classe B: This Class B digital device complies with Canadian ICES-003 Cet appareil numerique classe B est conforme à la norme Canadien NMB-003. CAN ICES-3(B) /NMB-3(B) FCC USA: This device complies with Part 15 of the FCC rules subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept all interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. DASHBOARD USER MANUAL FOR RTADM001 -1900 MODEL Pag. 5/5 MAE-DEX-RTADM001-1900-User Manual-00-220228 Via Presolana 31 e 33, Medolago (Bg) – Italy –  +39 (0)35 49.33.122  +39 (0)35 49.33.114 — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help Canadian Representative Company Name: Ducati Canada Company Number 1 : 23452 Company Address: 777 Bayly Ave. City: Ajax Province/State: ON Postal Code: L1S7G7 Country: Canada Contact Name: Steven Hicks Phone Number: +1 705 878 2231 Email: [email protected]

External Photos

EXTERNAL PHOTOS Figure 1: Top view Figure 2: Left view Figure 3: Right view Figure 4: Front view Figure 5: Rear view Figure 6: Bottom view

ID Label/Location Info

1900-RTADM001 ANNEX D – MARKING 1/1 Ref: 1900-RTADM001-DEX-ANNEX-01-220228 Revisione Release: Causa Revisione Cause of Release: Data Date: Emissione Filled in: Approvazione Approved: 00 Prima emission First emission 15.02.2022 Claudia Gravalini (Commercial) Ilenia Locatelli (RQ) 01 Modificato DCS di riferimento DCS reference modified Modificata Certification Label Certification Label modified 28.02.2022 Claudia Gravalini (Commercial) Ilenia Locatelli (RQ) Annex D: Marking Adhesive label on lower side of enclosure of each component (for further details see 1900-DCS-05-220228) LABEL ID: DATAMATRIX LABEL: CERTIFICATION LABEL: BATCH (WEEK – YEAR) DUCATI PROJECT CODE MAE PART NUMBER HARDWARE – BOOT RELEASE SOFTWARE RELEASE

Internal Photos

INTERNAL PHOTOS Figure 1: Top view Figure 2: Bottom view

RF Exposure Info

ONE WORLD  OUR APPROVAL www.nemko.com KDB 447498 D01 General RF Exposure Guidance v06 (October 23, 2015) 1. Declaration of RF exposure compliance for exemption from routine evaluation limits FCC ID: 2AVGH-RTADM001 Model number: RTADM001 Manufacturer: M.A.E. ELETTRONICA S.R.L. 4.3.1. Standalone SAR test exclusion considerations: A portable device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that the RF source's radiating structure(s) is/are within 20 centimetres of the body of the user. Under §2.1093(c)(1) is stated that: Evaluation of compliance with the exposure limits in § 1.1310 is necessary for portable devices having single RF sources with more than an available maximum time-averaged power of 1 mW, more than the ERP listed in Table 1 to § 1.1307(b)(3)(i)(C), or more than the Pth in the following formula, whichever is greater. The following formula shall only be used in conjunction with portable devices not exempt by § 1.1307(b)(3)(i)(C) at distances from 0.5 centimetres to 20 centimetres and frequencies from 0.3 GHz to 6 GHz: d = the minimum separation distance (cm) in any direction from any part of the device antenna(s) or radiating structure(s) to the body of the device user. f = is the lower operating frequency [GHz] Remark: If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). CALCULATION According to ANSI C63.10-2013, §9.5: EIRP = E Meas + 20*Log(d Meas ) − 104.7 = -40.55 dBm = 0.00009 mW Where: EIRP is the equivalent isotropically radiated power, in dBm E Meas is the field strength of the emission at the measurement distance, in dBμV/m = 44.15 dBμV/m (see test report n° 460958-2TRFWL, §3.4) d Meas is the measurement distance, in m = 10 m (see test report n° 460958-2TRFWL, §3.4) Maximum Output Power < 1 mW According to § 2.1093(c)(1), the product exempts from the SAR test requirements. FCC SAR Exemption per KDB 447498 ONE WORLD  OUR APPROVAL www.nemko.com 2. Attestation ATTESTATION: I attest that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned departmental standard(s), and that the radio equipment identified in this application has been subject to all applicable test conditions specified in the departmental standards and all of the requirements of the standards have been met. Signature: Date: March 11, 2022 Name: Oscar Frau

Test Report

TEST REPORT Electromagnetic Compatibility Report Reference No. .............. : 460958-2TRFEMC Date of issue .............................. : 2022-03-11 Test Report Verdict .................... : PASS Testing Laboratory ................... : Nemko S.p.A. Address ...................................... : Via Del Carroccio, 4 City ............................................ : 20853 Biassono (MB) Country ...................................... : Italy Testing location .......................... : Described at clause 1.4 Customer name ........................ : M.A.E. ELETTRONICA S.R.L. Customer information ................. : Via Presolana, 31/33 – 24030 Medolago (Bg) – Italy Reference standards ................ : FCC CFR 47 Part 15 Subpart B Standard application .................. : Full application Equipment under test .............. : Dashboard Trademark(s) ............................. : Manufacturer .............................. : M.A.E. ELETTRONICA S.R.L. Model/Type reference ................ : Described at clause 4.1 Tests performed by .................... : P. Barbieri Report approved by .................... : D. Guarnone Report n° 460958-2TRFEMC page 2 / 20 CONTENTS 1. GENERAL INFORMATION .............................................................................................. 3 1.1 Project history ......................................................................................................................................... 3 1.2 Symbol used in the report ....................................................................................................................... 3 1.3 Date of sample(s) reception and tests .................................................................................................... 3 1.4 Testing location ....................................................................................................................................... 4 1.5 Environmental conditions ....................................................................................................................... 4 1.6 Measurement uncertainty and assessment of conformity ..................................................................... 4 1.7 Instruments calibration table .................................................................................................................. 6 2. PRODUCT STANDARDS, TEST METHODS AND TECHNICAL PROCEDURES .......... 7 2.1 Standard(s) applied.................................................................................................................................. 7 2.2 Test method(s) applied ............................................................................................................................ 7 2.3 Nemko technical procedures ................................................................................................................... 7 3. SUMMARY OF TEST RESULTS AND VERDICTS ......................................................... 8 3.1 Measurement of electromagnetic disturbances emitted by the equipment under test ........................ 8 4. EQUIPMENT UNDER TEST ............................................................................................ 9 4.1 EUT Identification .................................................................................................................................... 9 4.2 EUT Power Supply .................................................................................................................................. 10 4.3 EUT Information declared by the Customer 1 ....................................................................................... 10 4.4 EUT Operation Modes ........................................................................................................................... 10 4.5 EUT Configuration Modes...................................................................................................................... 10 4.6 EUT Input/Output Ports ......................................................................................................................... 11 4.7 EUT and Equipment Used During Test .................................................................................................. 11 4.8 EUT Electric/Block Diagram ................................................................................................................... 12 4.9 Information about radio module(s) ....................................................................................................... 12 5 TEST RESULTS ............................................................................................................. 13 5.1 Radiated Emission ................................................................................................................................. 13 6 EUT PHOTOS ................................................................................................................ 19 Report n° 460958-2TRFEMC page 3 / 20 1. GENERAL INFORMATION 1.1 Project history Report number Modification to the report / comments Date 460958-2TRFEMC First release 2022-03-11 -- -- -- -- -- -- -- -- -- 1.2 Symbol used in the report ☒ ................................................... : The crossed square indicates that the listed condition, standard or equipment is applicable for this report. ☐ ................................................... : The empty square indicates that the listed condition, standard or equipment is not applicable for this report. NP (Not performed) ........................ : Test case not performed according to customer request N (Not applicable) .......................... : Test case does not apply to the test object P (Pass) ......................................... : Test object does meet the requirement F (Fail) ........................................... : Test object does not meet the requirement ☐ Comma (,) / ☒ Dot (.) ............... : Symbol used as decimal separator througho…

Text truncated - open the document above for the full version.

Test Report

Choose Scandinavian trust RADIO TEST REPORT – 460958-2TRFWL Type of assessment: Final product testing Applicant: M.A.E. ELETTRONICA S.R.L. Via Presolana, 31/33 – 24030 Medolago (Bg) – Italy Product: RFID Dashboard Model: RTADM001 FCC ID: IC Registration number: 2AVGH-RTADM001 25794-RTADM001 Specifications:  FCC 47 CFR Part 15 Subpart C  RSS-210, Issue 10, Amendment (April 2020), Section 7.2 Date of issue: March 11, 2022 P. Barbieri Tested by Signature D. Guarnone Reviewed by Signature Report reference ID: 460958-2TRFWL Page 2 of 31 Lab locations Company name Nemko Spa Address Via del Carroccio, 4 City Biassono Province MB Postal code 20853 Country Italy Telephone +39 039 220 12 01 Facsimile +39 039 220 12 21 Website www.nemko.com Site number 682159 and 9109A (10 m semi anechoic chamber) Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Spa ISO/IEC 17025 accreditation. Copyright notification Nemko Spa authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Spa accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Report reference ID: 460958-2TRFWL Page 3 of 31 Table of contents Table of contents .......................................................................................................................................................................................................... 3 Section 1. Report summary ................................................................................................................................................................................. 4 1.1 Test specifications .................................................................................................................................................................................................... 4 1.2 Test methods ............................................................................................................................................................................................................ 4 1.3 Statement of compliance ......................................................................................................................................................................................... 4 1.4 Exclusions ................................................................................................................................................................................................................. 4 1.5 Test report revision history ...................................................................................................................................................................................... 4 Section 2. Summary of test results ....................................................................................................................................................................... 5 2.1 FCC Part 15 Subpart C, general requirements test results ........................................................................................................................................ 5 2.2 IC RSS-GEN, Issue 5, test results ............................................................................................................................................................................... 5 2.3 IC RSS-210, Issue 10, test results .............................................................................................................................................................................. 5 Section 3. Equipment under test (EUT) details ..................................................................................................................................................... 6 3.1 Applicant/Manufacture ............................................................................................................................................................................................ 6 3.2 Sample information .................................................................................................................................................................................................. 6 3.3 EUT information ....................................................................................................................................................................................................... 6 3.4 Technical information .............................................................................................................................................................................................. 6 3.5 Product description and theory of operation ........................................................................................................................................................... 7 3.6 EUT exercise details .................................................................................................................................................................................................. 7 3.7 EUT interface ports................................................................................................................................................................................................... 7 3.8 Support equipment ....................................................................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

ONE WORLDOURAPPROVAL Setup photos 460958-2TRFWL Date of issue: March 11, 2022 Applicant: M.A.E. ELETTRONICA S.R.L. Via Presolana, 31/33 – 24030 Medolago (Bg) – Italy Product name: RFID Dashboard Model: RTADM001 FCC ID: IC Registration number: 2AVGH-RTADM001 25794-RTADM001 Report reference ID: 460958-2TRFWL Page 2 of 7 Section 1. Setup photos 1.1 Radiated emissions set-up for frequencies below 30 MHz Report reference ID: 460958-2TRFWL Page 3 of 7 1.2 Radiated emissions set-up for frequencies above 30 MHz and below 1 GHz Report reference ID: 460958-2TRFWL Page 4 of 7 1.3 Radiated emissions set-up for frequencies above 1 GHz Report reference ID: 460958-2TRFWL Page 5 of 7 Section 2. Setup photos 2.1 EUT Report reference ID: 460958-2TRFWL Page 6 of 7 Report reference ID: 460958-2TRFWL Page 7 of 7 Section 3. Setup photos 3.1 Antenna

Contact Information

Applicant

Claudia Gravalini(Project Manager)
[email protected]0039 0354933115Fax: 0039 0354933114

Test Firm

Nemko S.p.A.Roberto Giampaglia
[email protected]+39 039 220 12 01Fax: +39 039 220 12 21

Technical Specifications

#Rule PartsFrequency RangePower Output
115C0.13442 MHz - 0.13442 MHz-
Confidentiality
Long Term

Other Applications from M.A.E. ELETTRONICA S.R.L.

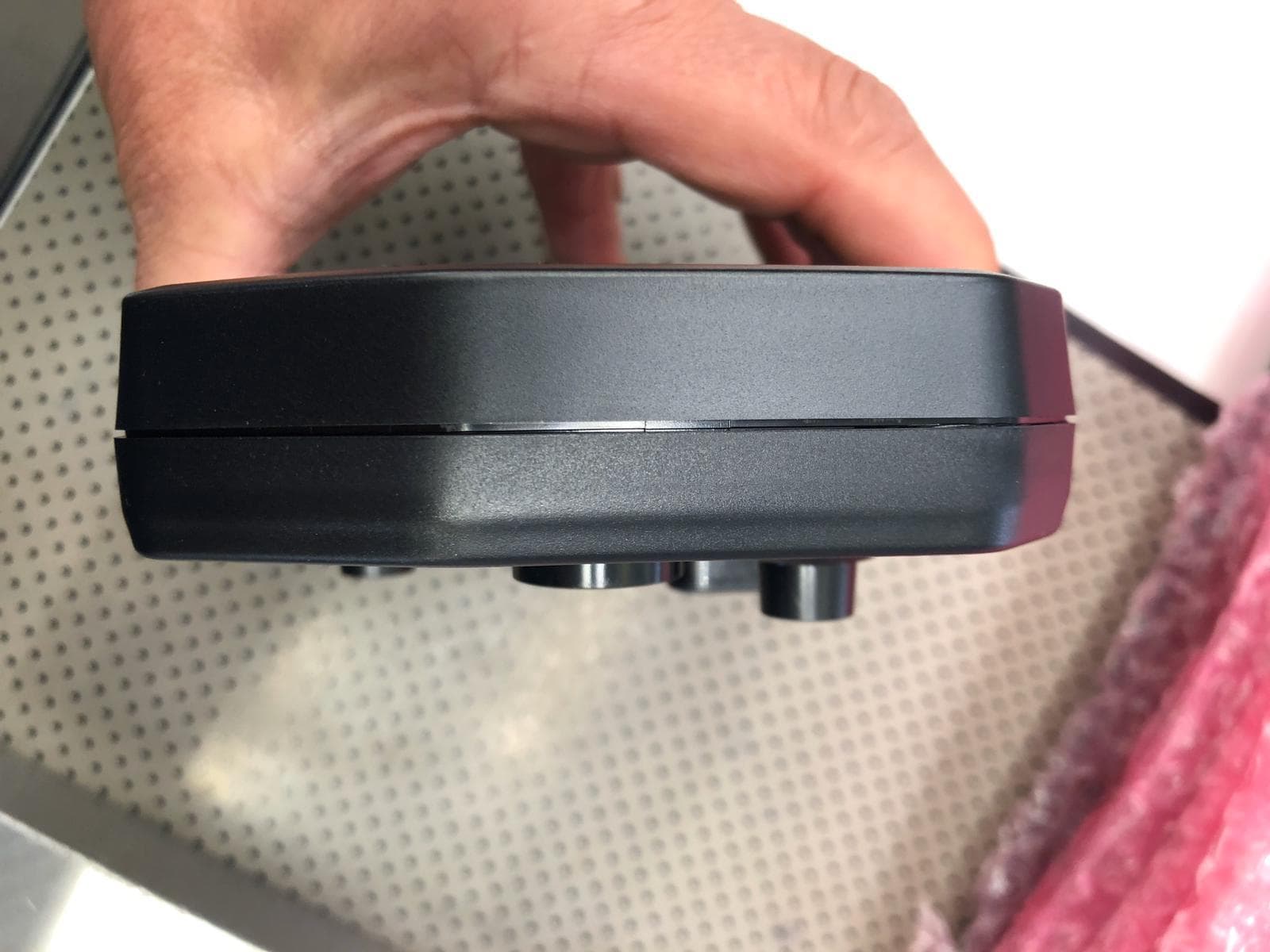

RFID Dashboard - FCC ID 2AVGH-DSBV4HTG - M.A.E. ELETTRONICA S.R.L.
