2AVHB-C068Wi-Fi Smart Infrared Universal Remote Control

Wi-Fi Smart Infrared U... Product Description APP Connection Steps APP Connection Steps Wi-Fi Smart Infrared U... Users can design and implement intelligent application scenarios for general appliances in the home by adding a universal remote control. Only works with the IR device. Technical Specifications Wi-Fi Smart Infrared Universal Remote Control Get it on Available on the App Store 『』 Model: C068 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Boaz Smart Co., Ltd No. 41, Heping Rd., Tanzi Dist., Taichung City 427, Taiwan (R.O.C.) Date: 2020-05-21 FCC ID: 2AVHB-C068 Dear Sir/Madam, We, Boaz Smart Co., Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, and internal of these model(s) are the same, The color and model number is different for these models: Product name: Wi-Fi Smart Infrared Universal Remote Control Model no.: C068,UFO-R1,UFO-R2,UFO-R3,UFO-R4,C096 Additionally, there are two different types of structures and external appearance with the same PCB board. Sincerely, Name / Title: Allen Chen/General Manager Company: Boaz Smart Co., Ltd Address: No. 41, Heping Rd., Tanzi Dist., Taichung City 427, Taiwan (R.O.C.) Phone: +886-4-25357755 Fax: +886-4-25357722 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020/05/21 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AVHB-C068 C068,UFO-R1,UFO-R2,UFO-R3,UFO-R4,C096 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name / Title: Allen Chen/General Manager Company: Boaz Smart Co., Ltd Address: No. 41, Heping Rd., Tanzi Dist., Taichung City 427, Taiwan (R.O.C.) Phone: +886-4-25357755 Fax: +886-4-25357722 E-Mail: [email protected]

Boaz Smart Co., Ltd No. 41, Heping Rd., Tanzi Dist., Taichung City 427, Taiwan (R.O.C.) Date: May. 21, 2020 FCC ID: 2AVHB-C068 Model Number: C068 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Boaz Smart Co., Ltd declare that this EUT (FCC ID: 2AVHB-C068) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： Allen Chen/ General Manager Company: Boaz Smart Co., Ltd Address: No. 41, Heping Rd., Tanzi Dist., Taichung City 427, Taiwan(R.O.C.) Phone: +886-4-25357755 Fax: +886-4-25357722 E-Mail: [email protected]

Boaz Smart Co., Ltd No. 41, Heping Rd., Tanzi Dist., Taichung City 427, Taiwan (R.O.C.) Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 05/21/2020 To whom it may concern: We, Boaz Smart Co., Ltd the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AVHB-C068 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Allen Chen/ General Manager Company: Boaz Smart Co., Ltd Address: No. 41, Heping Rd., Tanzi Dist., Taichung City 427, Taiwan(R.O.C.) Phone: +886-4-25357755 Fax: +886-4-25357722 E-Mail: [email protected]

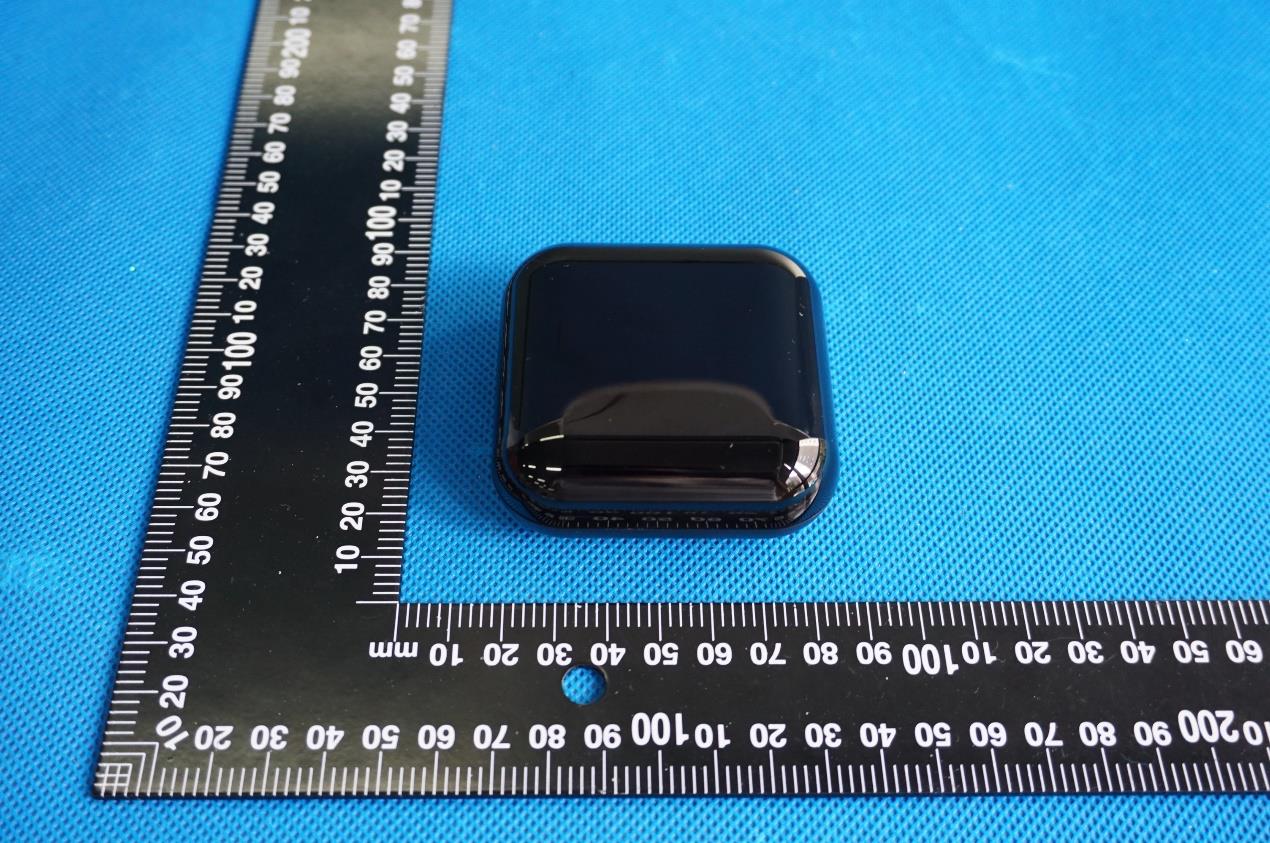

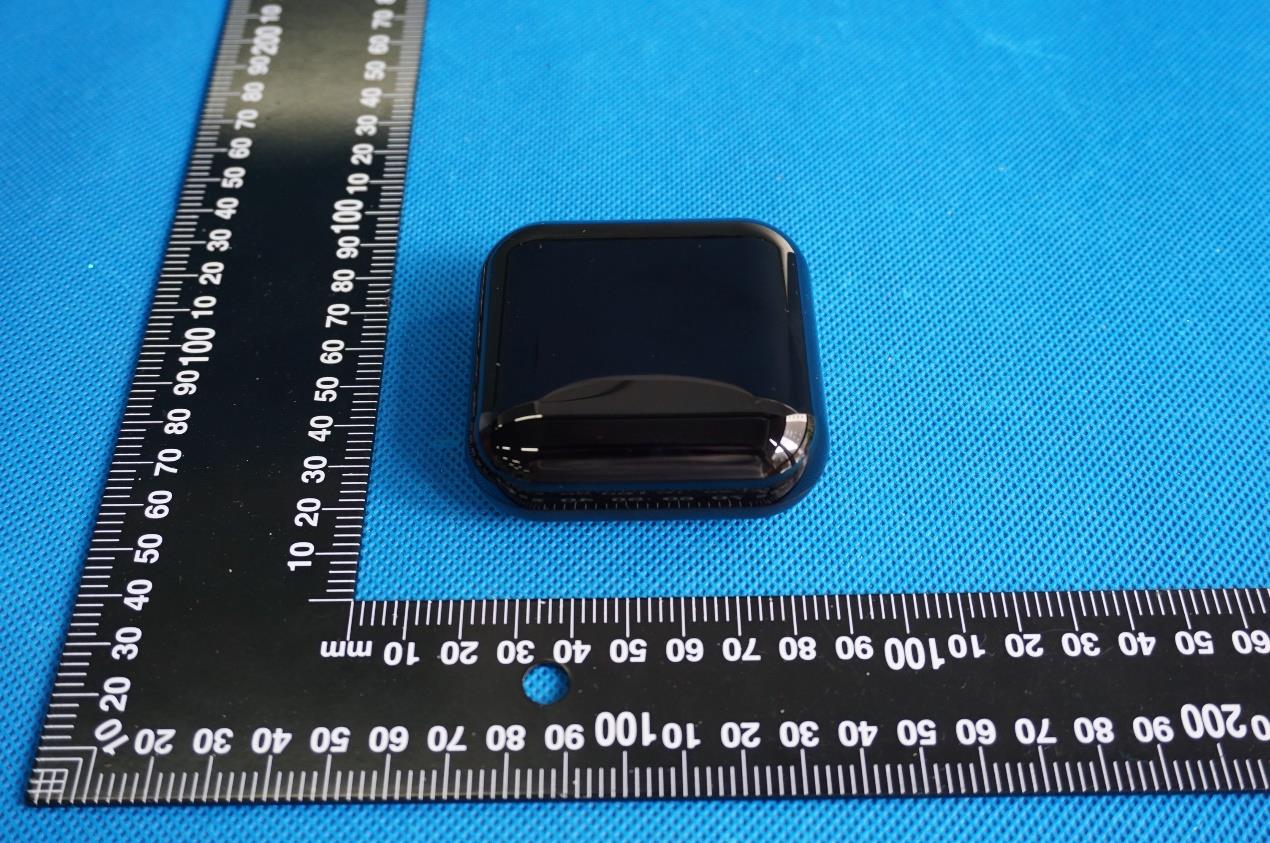

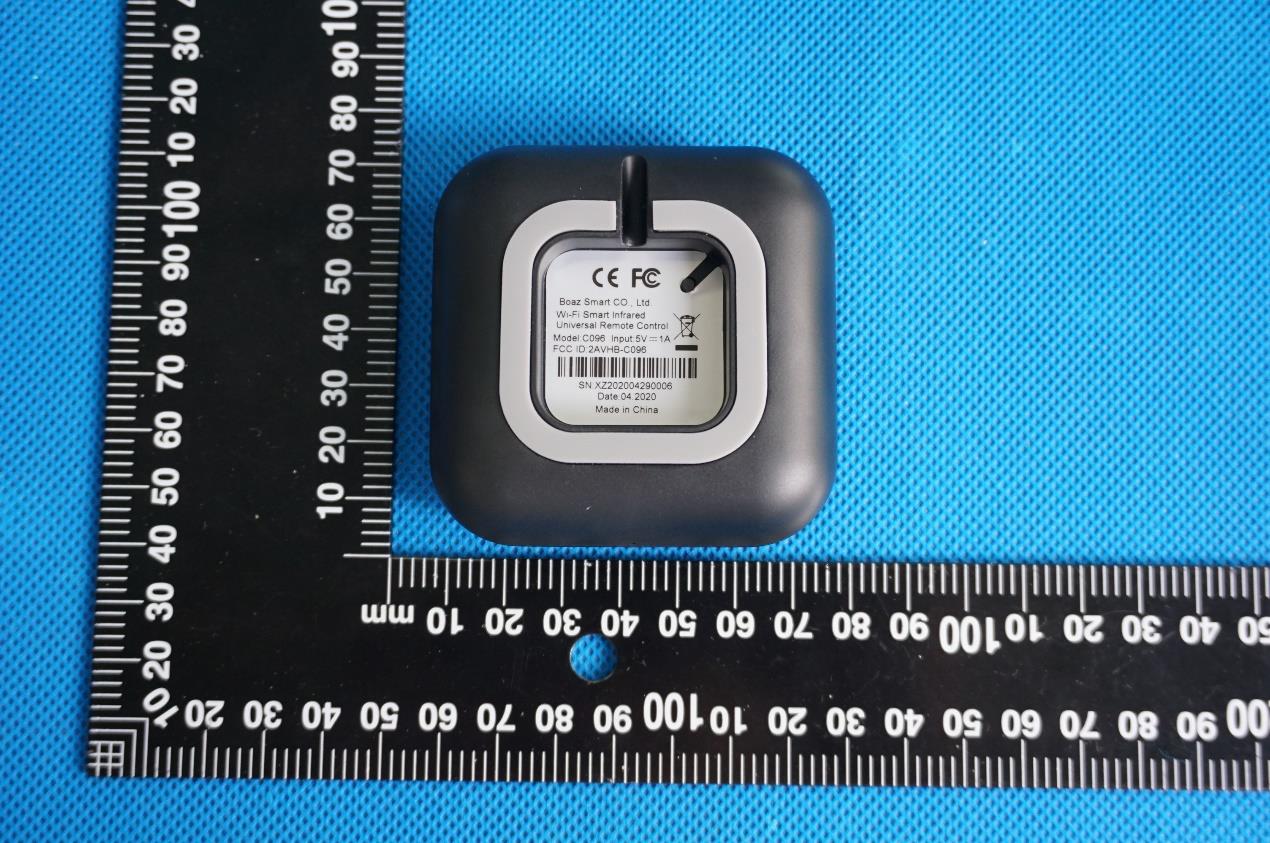

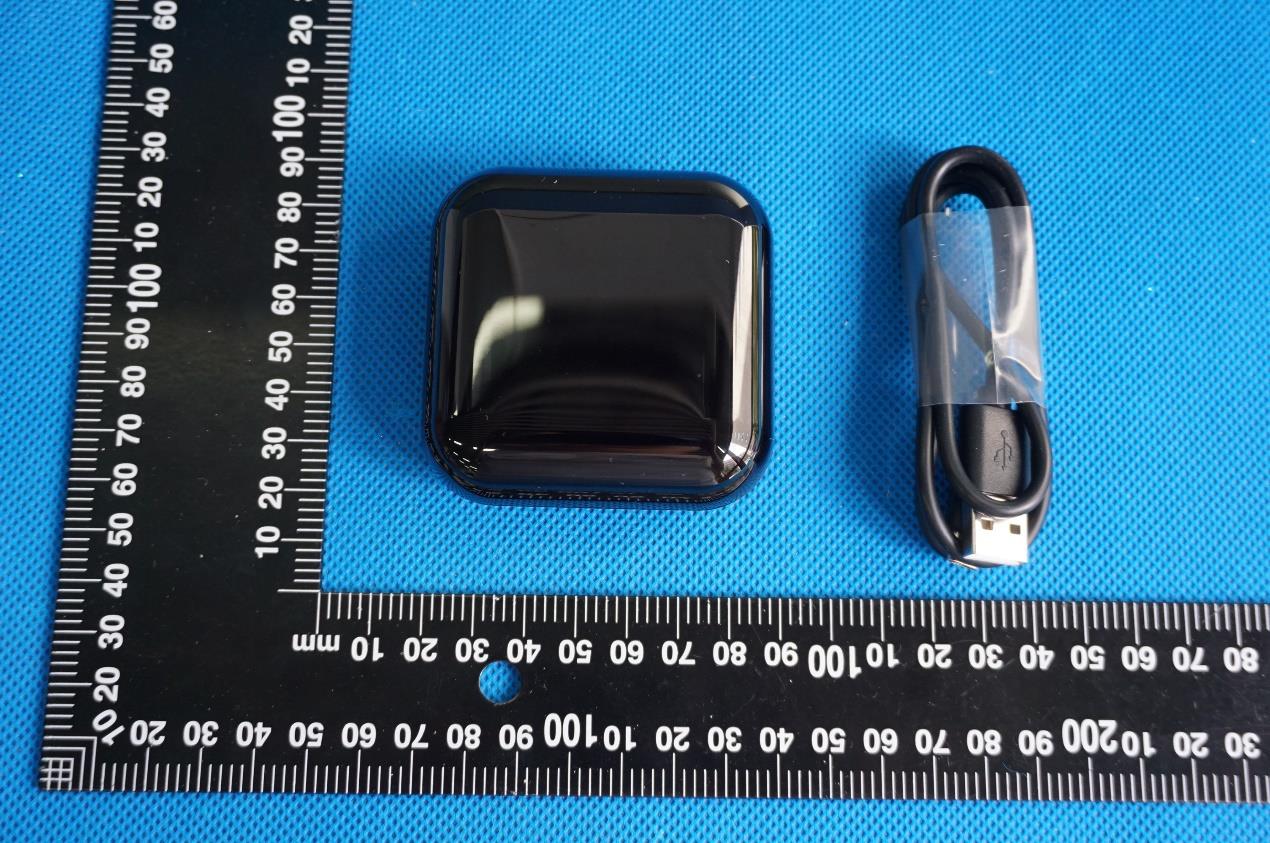

GTS202005000074 Product Name: Wi-Fi Smart Infrared Universal Remote Control Test Model No.: C068 EUT Constructional Details External Photo Fig.1 Fig.2 GTS202005000074 Fig.3 Fig.4 GTS202005000074 Fig.5 Fig.6 GTS202005000074 Fig.7 Fig.8 GTS202005000074 Fig.9 Fig.10 GTS202005000074 Fig.11 Fig.12

FCC ID: 2AVHB-C068

GTS202005000074 Product Name: Wi-Fi Smart Infrared Universal Remote Control Test Model No.: C068 EUT Constructional Details Internal Photo Fig.1 Fig.2 GTS202005000074 Fig.3 Fig.4

RF Exposure evaluation FCC ID: 2AVHB-C068 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information C068 can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna Identification in Internal photos Antenna type and antenna number Operate frequency band Maximum antenna gain Antenna WIFI 2.4G PFC Antenna 2.4GHz – 2.5 GHz 2.0 dBi 5. Conducted power [2.4GHz WLAN] Mode Channel Frequency Peak Conducted Output Power (dBm) IEEE 802.11b 1 2412 11.26 6 2437 10.32 11 2462 11.05 IEEE 802.11g 1 2412 12.28 6 2437 11.79 11 2462 12.37 IEEE 802.11n HT20 1 2412 11.79 6 2437 10.63 11 2462 11.86 6. Manufacturing Tolerance 2.4GHz WLAN Frequency (MHz) IEEE 802.11b (Peak) 2412 2437 2462 Target (dBm) 11.0 10.0 11.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) IEEE 802.11g (Peak) 2412 2437 2462 Target (dBm) 12.0 11.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) IEEE 802.11n HT20 (Peak) 2412 2437 2462 Target (dBm) 12.0 11.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 7. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of WIFI antenna is 0dBi, the gain of BT antenna is 0dBi.the RF power density can be obtained. 2.4GHz WLAN Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW IEEE 802.11b 12.00 15.8489 2.00 1.5849 0.0050 1.0000 IEEE 802.11g 13.00 19.9526 2.00 1.5849 0.0063 1.0000 IEEE 802.11n HT20 13.00 19.9526 2.00 1.5849 0.0063 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. Output power was adjust to duty cycle at 100% if measured duty cycle less than 98%; 3. MPE evaluate distance is 20cm from user manual provide by manufacturer. 8. Summary simultaneous transmission results The sample only support one WIFI modular and one antenna, no need consider simultaneous transmission; 9. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

Global United Technology Services Co., Ltd. Report No.: GTS202005000074F01 Authorized Signature: Robinson Lo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 42 TEST REPORT Applicant: Boaz Smart Co., Ltd Address of Applicant: No. 41, Heping Rd., Tanzi Dist., Taichung City 427, Taiwan (R.O.C.) Manufacturer: Hangzhou Xizhi Electronics Co., Ltd. Address of Manufacturer: The second floor,Building 3, No. 8 Yuyang Road, Lushan Subdistrict, Fuyang, Hangzhou, Zhejiang Equipment Under Test (EUT) Product Name: Wi-Fi Smart Infrared Universal Remote Control Model No.: C068,UFO-R1,UFO-R2,UFO-R3,UFO-R4,C096 Trade Mark: N/A FCC ID: 2AVHB-C068 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: Nov.10,2019 Date of Test: May.08,2020- May.20,2020 Date of report issued: May.20,2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202005000074F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 42 2 Version Version No. Date Description 00 May.20,2020 Original Tested/ Prepared By: Date: May.20,2020 Project Engineer Check By: Date: May.20,2020 Reviewer Report No.: GTS202005000074F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 42 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ................................................................................................................... 11 7.3 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 14 7.4 CHANNEL BANDWIDTH ...................................................................................................................... 15 7.5 POWER SPECTRAL DENSITY ............................................................................................................. 19 7.6 BAND EDGES .................................................................................................................................... 22 7.6.1 Conducted Emission Method ..................................................................................................... 22 7.6.2 Radiated Emission Method ........................................................................................................ 25 7.7 SPURIOUS EMISSION ......................................................................................................................... 28 7.7.1 Conducted Emission Method ..................................................................................................... 28 7.7.2 Radiated Emission Method ........................................................................................................ 34 8 TEST SETUP PHOTO ............................................................................................................................ 42 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 42 Report No.: GTS202005000074F01 Gl…

Text truncated - open the document above for the full version.

GTS202005000074 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 2 Product Name: Wi-Fi Smart Infrared Universal Remote Control Test Model No.: C068 Test Setup Photo Radiated Emission GTS202005000074 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 2 Conducted Emission ------End------
