2AVHP-VPIXEL-SVPIXEL Phantom Wireless audio and video transceiver system

VPIXEL Phantom Wireless audio and video transceiver system User Quick Guide 2 1. Equipment List Check list according to your device category Name Parts list and quantity Standard Deluxe Vpixel_S 1 2 Vpixel_R 1 1 Transmitter HDMI adaptor 1 2 Transmitter VGA adaptor / 1 Transmitter DP adaptor / 1 Transmitter mini DP adaptor / 1 Receiver HDMI adaptor 1 1 Receiver VGA adaptor / 1 Power Adaptor 1 1 Battery 2 3 USB power cord 2 3 3 2. Devices Details Picture2-1Main device Picture2-2 Battery indicate light adaptor Infrared window Lock key (Vpixel_S Configuration only ) Power connector battery connector (Host-side) Battery charge connector Battery power button Power indicator light Battery connector (battery side) Switch key (Vpixel_S Configuration only ) 4 3. Instruction of Usage 3.1. Install the adaptor Select the corresponding adaptor according to the connection port requirement, and install the adaptor to the Vpixel_S and Vpixel_R respectively. Picture3-1Install the connector 3.2. Connect Device 1. The Vpixel_S connects to the display output interface of computer(or others single source), Vpixel_R connect to the input interface of display device. Comments： 1.No mixed use of Vpixel_S adaptor and Vpixel_R adaptor，Vpixel_S adaptor is circle in orange，Vpixel_R adaptor is circle in blue. 2. Via choosing different adaptors to match HDMI、VGA、DP or Mini DP interface. 5 Picture3-2connect computer 2. Vpixel_S via Lightning Digital AV Adapter connect lightning interface，achieving wireless display to iPhone or iPad devices.（Lightning Digital AV Adapter is Apple's official accessory，it needs an extra purchase.） Picture3-3connect iPhone 6 3.3. Connect power source 1. Supply power to Vpixel_S and Vpixel_R via installing battery, and the battery can be used by multiple stacking because of its modular design. Picture3-4 install battery 2. Battery needs to be taked out and to be charged. Also, it can be multiple stacking charged. There is no charging while the battery is working. Picture3-5 battery charging 7 3. Connecting to the power adapter, it can supply power to the Vpixel_S and Vpixel_R as well. Picture 3-6connect power adaptor 3.4. Boot and Usage After power on the battery or connecting the power adapter, the Vpixel_S and the Vpixel_R will boot automatically. The boot screen and the searching screen will be displayed by the display terminal until the connection is accomplished. If the panel indicator light is green, it means the connection is complete and it starts to operate normally. After the end of use, unplug the battery directly or disconnect the adapter power to power off. Comment: The power supply capacity of the USB interface equipment such as projector/hd can't meet the demand of VPIXEL phantom main equipment, so please do not connect the power cord to the USB interface, and use the power adapter to meet the requirement of power supply. 8 4. More functions 4.1. Lock and Switch screen The lock screen function can be enabled by pressing the lock screen button when the equipment works normally. At the same time, "Locked Screen" will be shown on the display screen. To restore the normal display by pressing the lock button again. This product supports the multi-user scenarios that a Vpixel_R works with the several Vpixel_S. Under this circumstance, the connection of one of the Vpixel_S and the Vpixel_R is normal while the other Vpixel_S are in a waiting state. It only needs to press the "switch key" of the Vpixel_S and the display terminal will switch to the signal source image which is connected to the Vpixel_S. It supports up to 8 Vpixel_S. 4.2. Hibernate and Awake The Vpixel_R will be in a hibernate status if there is no signal access after 15 minutes and the Vpixel_R indicator light will be off, the HDMI output will be closed. When the Vpixel_R is in a hibernate status, only the wireless module keeps working. If any Vpixel_S or mobile connecting is detected, the Vpixel_R will be awake from the hibernate and restore to the normal state. 9 4.3. Match All the products are matched in set in our factory. It needs a matching operation only if you purchase a launcher separately or need to change the match status of the products. You can accomplish the matching operation by following the procedures below. Starting up and execute the matching. First aim the Vpixel_S infrared window at the Vpixel_R infrared window, and long press the "switch key" for 3 seconds. Then it will goes into a matching status if the blue lights of the Vpixel_S and the Vpixel_R flicker simultaneously. The Vpixel_S and Vpixel_R panel indicator lights turn into green, it means the match is successful and the signal source image will be shown on the display terminal screen. 4.4. Connect with Android phones VPIXEL Phantom wireless audio and video transceiver system supports android smart phones and tablets. Turn on the mobile phone or tablet which needs to be projected, find the wireless display options, turn on the wireless display switch, search for VPIXEL phantom Vpixel_R and connect. The mobile phone screen will synchronize displayed on a display device. Vpixel_R name will be shown in the lower left corner of the searching or locked interface, and it can be checked by switching the lock screen key. 10 Picture4-1connect to android phone Comments: 1. The Android version must be above 4.4 and it must have a Miracast function and support 5G Wi-Fi frequency range. 2. If the effect of the mobile projection screen is not good enough, please disconnect all automatic Wi-Fi and try again. 11 There are differences names of wireless display function between the different mobile phones. The common names such as: Multi-screen interaction, Miracast, WIFI Display, WLAN Display, Wireless Display, Allshare Display, Allshare Cast, WIFI direct connect, Share screen, Media output、Screen Mirror, etc. Attachment: Common mobile phone brand wireless display function set path (for reference) No. Mobile brand Reference Path 1 HUAWEI Pull-down Menu-switch-…

Text truncated - open the document above for the full version.

C5266091_X10_Ed.1 1/1 CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-03-05> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AVHP-VPIXEL-S Vpixel_S For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. C5266091_X10_Ed.1 1/1 Sincerely, (Signed) Name / Title: Yan Nie / General manager Company: Xi'an VANXVM Electronics Technology Co.Ltd. Address: Room 302, 3rd Floor, No. 4 Workshop, 3G Smart Terminal Industrial Park, No. 8 Tangyannan Road, Xi'an,Shaanxi, 710065 China Phone: +86 029-81114919 Fax: +86 029-81114919 E-Mail: Tequila<[email protected]>

Xi’an VANXVM Electronics Technology Co.Ltd. Room 302, 3rd Floor, No. 4 Workshop, 3G Smart Terminal Industrial Park, No. 8 Tangyannan Road, Xi'an,Shaanxi, 710065 China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 05/3/2020 To whom it may concern: We, Xi’an VANXVM Electronics Technology Co. Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AVHP-VPIXEL-S including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: Yan Nie / General manager Company: Xi'an VANXVM Electronics Technology Co.Ltd. Address: Room 302, 3rd Floor, No. 4 Workshop, 3G Smart Terminal Industrial Park, No. 8 Tangyannan Road, Xi'an,Shaanxi, 710065 China Phone: +86 029-81114919 Fax: +86 029-81114919 E-Mail: Tequila<[email protected]>

Xi’an VANXVM Electronics Technology Co.Ltd. Room 302, 3rd Floor, No. 4 Workshop, 3G Smart Terminal Industrial Park, No. 8 Tangyannan Road, Xi'an,Shaanxi, 710065 China UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: 2AVHP-VPIXEL-S (1) DFS Device: Master Client with Radar detection capability N/A Client without radar detection capability, (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 5180-5240 Yes No Yes No Yes No Yes No 5745-5825 Yes No Yes No Yes No Yes No (3) Country code selection ability Yes No If yes, pls explain how it was implemented: (4) Meet 15.202 requirement Yes No pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. Apply Does not apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Yan Nie / General manager Company: Xi'an VANXVM Electronics Technology Co.Ltd. Address: Room 302, 3rd Floor, No. 4 Workshop, 3G Smart Terminal Industrial Park, No. 8 Tangyannan Road, Xi'an,Shaanxi, 710065 China Phone: +86 029-81114919 Fax: +86 029-81114919 E-Mail: [email protected]

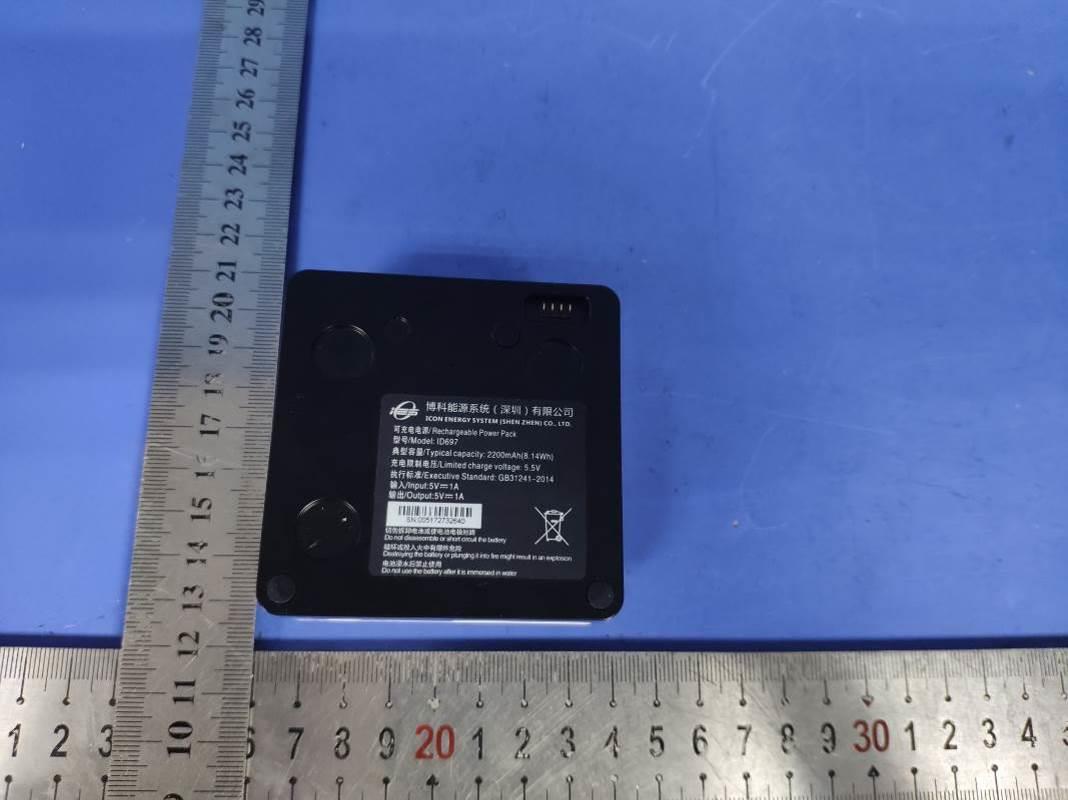

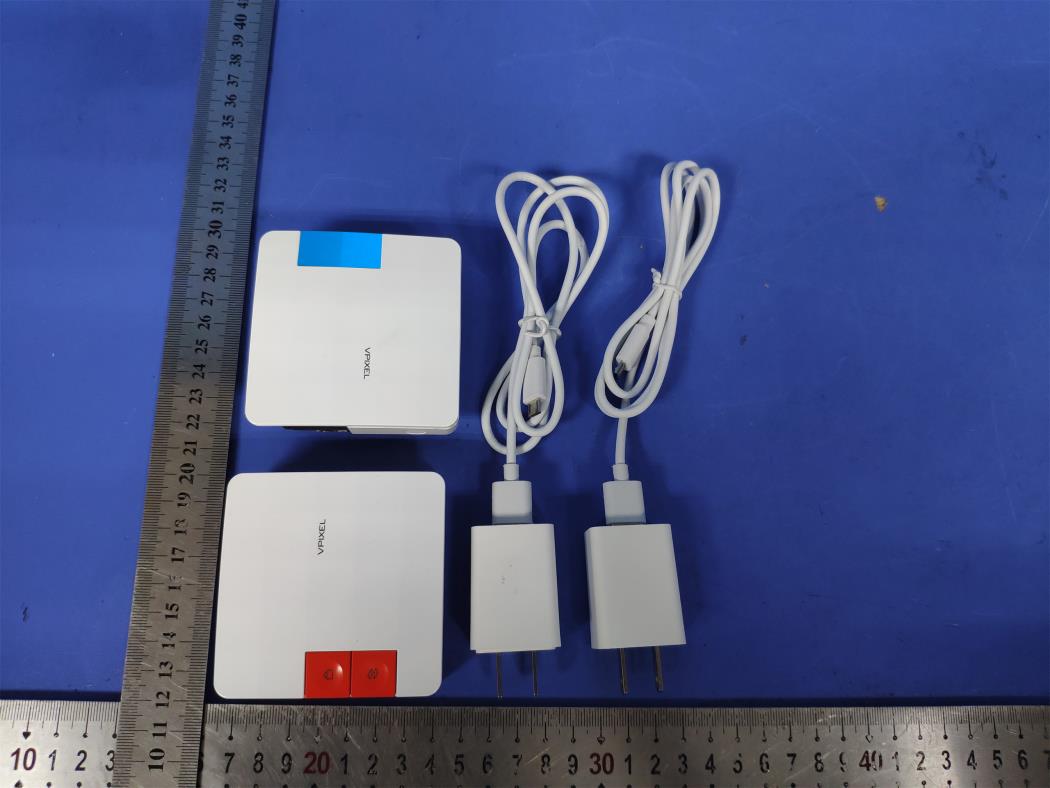

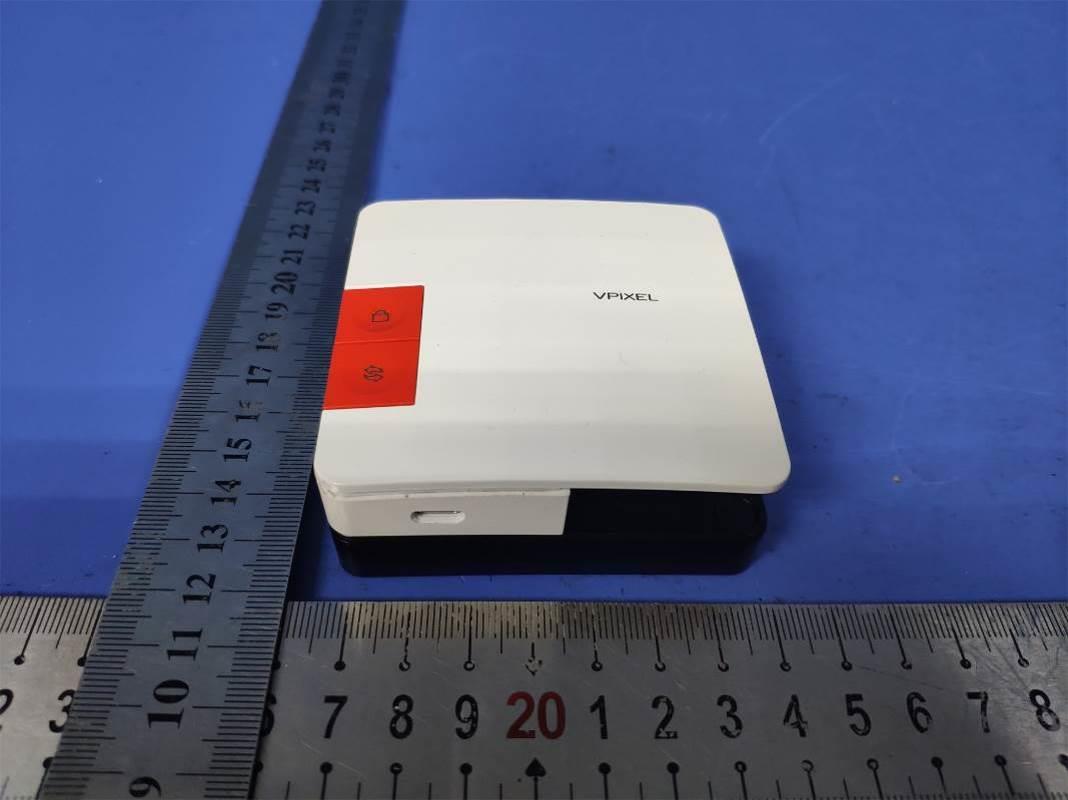

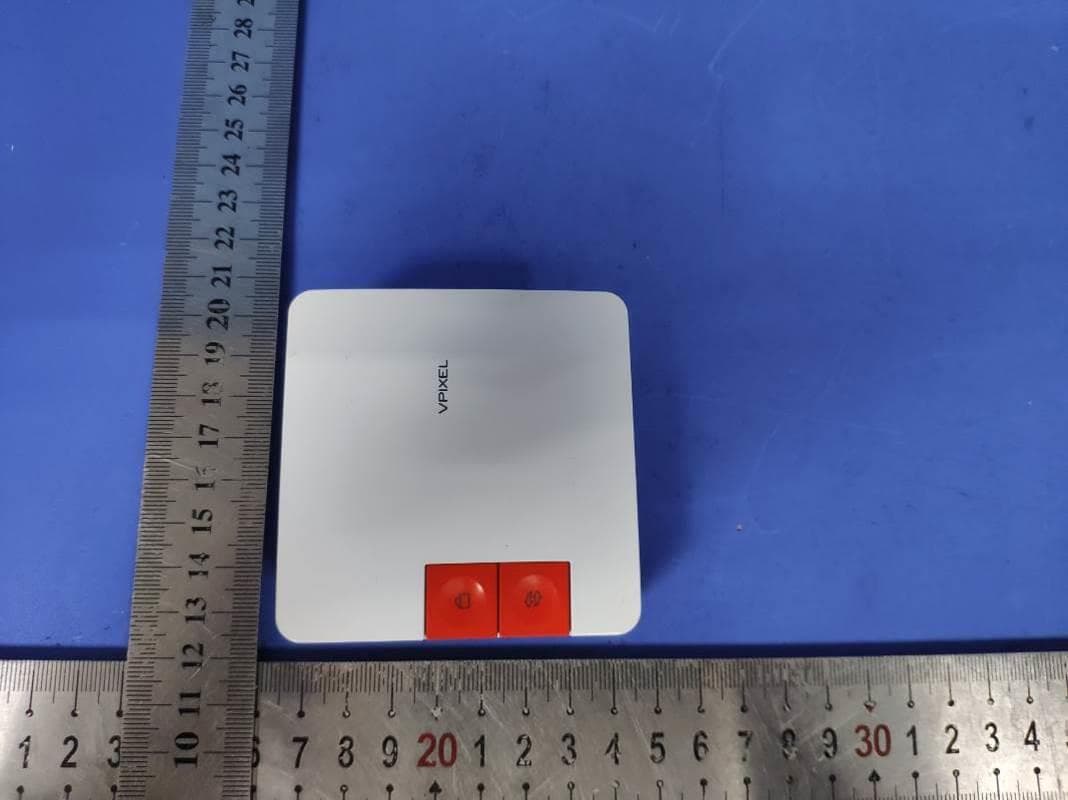

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 External Photos of the EUT Fig. 1 Fig. 2 Auxiliary equipment EUT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 25mm*W: 25mm Label Location VPIXEL Phantom Wireless audio and video transceiver system Model No.: Vpixel_S FCC ID : 2AVHP-VPIXEL-S Input: 5V1A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 7 Internal Photos of the EUT Fig. 1 Fig. 2 Antenna 1 Antenna 0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 7 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 7 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 7 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 7 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 7 Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 7 Fig. 13

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVHP-VPIXEL-S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 Maximum Permissible Exposure Report 1. Product Information FCC ID 2AVHP-VPIXEL-S Product Name VPIXEL Phantom Wireless audio and video transceiver system Test Model Vpixel_S Power Supply Input:5V1A Output: 5V1A For AC Adapter Modulation Type IEEE 802.11a/n: OFDM Antenna Type Internal Antenna Antenna Gain Antenna 0: Internal Antenna; 3dBi Antenna 1: Internal Antenna; 3dBi Hardware Version HS1A Software Version AS010V1-S-V1.1.7 Frequency Range 5180 – 5240 MHz / 5745 – 5825 MHz Channel Number 4 channels for 20MHz bandwidth (5180 – 5240 MHz) 5 channels for 20MHz bandwidth (5745 – 5825 MHz) Exposure Category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method and Limit Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVHP-VPIXEL-S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information ZJ-MWIR-RGB can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna 0 Internal Antenna 5000 MHz – 6000 MHz 3dBi WLAN Antenna Antenna 1 Internal Antenna 5000 MHz – 6000 MHz 3dBi WLAN Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVHP-VPIXEL-S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 6.Conducted Power Results [5.2GWIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) Max Conducted Power(dBm) ANT 0 ANT 1 11A 36 5180 6.69 5.99 40 5200 6.73 6.6 48 5240 6.83 5.54 11N20 SISO 36 5180 6.82 6.83 40 5200 6.43 6.35 48 5240 6.73 6.04 [5.8WIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) Max Conducted Power(dBm) ANT 0 ANT 1 11A 149 5745 6.87 5.64 157 5785 7.25 5.96 165 5825 6.17 6.29 11N20 SISO 149 5745 7.33 6.54 157 5785 6.72 6.55 165 5825 6.54 6.7 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVHP-VPIXEL-S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 7.Manufacturing Tolerance <5.2GWLAN Ant0> 11A (Average) Channel Channel 36 Channel 40 Channel 48 Target (dBm) 7.0 7.0 7.0 Tolerance ±(dB) 1.0 1.0 1.0 11N20 SISO (Average) Channel Channel 36 Channel 40 Channel 48 Target (dBm) 7.0 7.0 7.0 Tolerance ±(dB) 1.0 1.0 1.0 <5.2GWLAN Ant1> 11A (Average) Channel Channel 36 Channel 40 Channel 48 Target (dBm) 6.0 6.0 5.0 Tolerance ±(dB) 1.…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEA Page 1 of 31 Appendix A RF Test Data for 5.2G WLAN (Conducted Measurement) Product Name: VPIXEL Phantom Wireless audio and video transceiver system Trade Mark: VANXVM Test Model: Vpixel_S Environmental Conditions Temperature: 23.2  C Relative Humidity: 52.9% ATM Pressure: 100.0 kPa Test Engineer: JK Zhou Supervised by: Wang Chuang A.1 Duty Cycle Ant0 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5200 100 0.00 0.01 11N20 SISO 5200 100 0.00 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEA Page 2 of 31 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEA Page 3 of 31 Ant1 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5200 100 0.00 0.01 11N20 SISO 5200 100 0.00 0.01 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEA Page 4 of 31 A.2 Maximum Conduct Output Power Ant0 Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor( dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 36 5180 6.69 0 6.69 30 Pass 40 5200 6.73 0 6.73 Pass 48 5240 6.83 0 6.83 Pass 11N20 SISO 36 5180 6.82 0 6.82 30 Pass 40 5200 6.43 0 6.43 Pass 48 5240 6.73 0 6.73 Pass Ant1 Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor( dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 36 5180 5.99 0 5.99 30 Pass 40 5200 6.6 0 6.60 Pass 48 5240 5.54 0 5.54 Pass 11N20 SISO 36 5180 6.83 0 6.83 30 Pass 40 5200 6.35 0 6.35 Pass 48 5240 6.04 0 6.04 Pass Ant0+ Ant1 Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor( dB) Report Conducted Power(dBm) Limit (dBm) Verdict ANT0 ANT1 SUM ANT0 ANT1 SUM 11N20 SISO 36 5180 6.82 6.83 9.84 0 6.82 6.83 9.84 29.99 Pass 40 5200 6.43 6.35 9.40 0 6.43 6.35 9.40 Pass 48 5240 6.73 6.04 9.41 0 6.73 6.04 9.41 Pass Directional gain=3dBi+10 log (2) = 6.01dBi > 6dBi, So the Conducted Power limit shall be reduced to 30-(6.01-6) = 29.99 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEA Page 5 of 31 A.3 Power Spectral Density Ant0 Test Mode Channel Frequency (MHz) Power Density (dBm/MHz) Duty Cycle Factor(d B) Report Power Density (dBm/MHz) Limit (dBm/MHz) Verdict 11A 36 5180 -0.41 0 -0.41 17.0 Pass 40 5200 -3.27 0 -3.27 Pass 48 5240 -5.12 0 -5.12 Pass 11N20 SISO 36 5180 -2.07 0 -2.07 17.0 Pass 40 5200 -1.24 0 -1.24 Pass 48 5240 -2.44 0 -2.44 Pass Power Spectral Density IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEA Page 6 of 31 IEEE 802.11na / Channel 40 / 5200MHz IEEE 802.11na / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEA Page 7 of 31 Power Spectral Density IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEA Page 8 of 31 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEA Page 9 of 31 Ant1 Test Mode Channel Frequency (MHz) Power Density (dBm/MHz) Duty Cycle Factor(dB) Report Power Density (dBm/MHz) Limit (dBm/MHz) Verdict 11A 36 5180 -4.42 0 -4.42 17.0 Pass 40 5200 -4.10 0 -4.10 Pass 48 5240 -5.46 0 -5.46 Pass 11N20 SISO 36 5180 -4.13 0 -4.13 17.0 Pass 40 5200 -5.27 0 -5.27 Pass 48 5240 -5.06 0 -5.06 Pass Power Spectral Density IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEA Page 10 of 31 IEEE 802.11na / Channel 40 / 5200MHz IEEE 802.11na / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEA Page 11 of 31 Power Spectral Density IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEA Page 12 of 31 IEEE 802.11n20 / Channel 48 / 5240MHz Ant0+Ant1 Test Mode Channel Frequen cy (MHz) Power Density (dBm/MHz) Duty Cycle Facto r(dB) Report Power Density (dBm/MHz) Limit (dBm/ MHz) Verdict Ant0 Ant1 sum Ant0 Ant1 sum 11N20 SISO 36 5180 -2.07 -4.13 0.03 0 -2.07 -4.13 0.03 16.99 Pass 40 5200 -1.24 -5.27 0.21 0 -1.24 -5.27 0.21 Pass 48 5240 -2.44 -5.06 -0.55 0 -2.44 -5.06 -0.55 Pass Directional gain=3dBi+10 log (2) = 6.01dBi > 6dBi, So the Conducted Power limit shall be reduced to 17-(6.01-6) = 16.99 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEA Page 13 of 31 A.4 Emission Bandwidth Ant0 Test Mode Channel Frequency (MHz) 26dB Bandwidth (MHz) Limit (MHz) Verdict 11A 36 5180 20.06 No Limit Pass 40 5200 20.23 Pass 48 5240 20.23 Pass 11N20 SISO 36 5180 19.67 No Limit Pass 40 5200 19.77 Pass 48 5240 20.01 Pass 26dB Bandwidth IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEA Page 14 of 31 IEEE 802.11a / Channel 40 / 5200MHz IEEE 802.11a / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEA Page 15 of 31 26dB Bandwidth IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEA Page 16 of 31 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEA Page 17 of 31 Ant1 Test Mode Channel Frequency (MHz) 26dB Bandwidth (MHz) Limit (MHz) Ve…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEB Page 1 of 31 Appendix B RF Test Data for 5.8G WLAN (Conducted Measurement) Product Name: VPIXEL Phantom Wireless audio and video transceiver system Trade Mark: VANXVM Test Model: Vpixel_S Environmental Conditions Temperature: 23.2  C Relative Humidity: 52.9% ATM Pressure: 100.0 kPa Test Engineer: JK Zhou Supervised by: Wang Chuang B.1 Duty Cycle Ant0 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5785 100 0.00 0.01 11N20 SISO 5785 100 0.00 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEB Page 2 of 31 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEB Page 3 of 31 Ant1 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5785 100 0.00 0.01 11N20 SISO 5785 100 0.00 0.01 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEB Page 4 of 31 B.2 Maximum Conduct Output Power Ant0 Test Mode Channe l Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor(dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 149 5745 6.87 0 6.87 30.0 Pass 157 5785 7.25 0 7.25 Pass 165 5825 6.17 0 6.17 Pass 11N20 SISO 149 5745 7.33 0 7.33 30.0 Pass 157 5785 6.72 0 6.72 Pass 165 5825 6.54 0 6.54 Pass Ant1 Test Mode Channe l Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor(dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 149 5745 5.64 0 5.64 30.0 Pass 157 5785 5.96 0 5.96 Pass 165 5825 6.29 0 6.29 Pass 11N20 SISO 149 5745 6.54 0 6.54 30.0 Pass 157 5785 6.55 0 6.55 Pass 165 5825 6.7 0 6.7 Pass Ant0+Ant1 Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor( dB) Report Conducted Power(dBm) Limit (dBm) Verdict ANT0 ANT1 SUM ANT0 ANT1 SUM 11N20 SISO 149 5745 7.33 6.54 9.96 0 7.33 6.54 9.96 29.99 Pass 157 5785 6.72 6.55 9.65 0 6.72 6.55 9.65 Pass 165 5825 6.54 6.7 9.63 0 6.54 6.7 9.63 Pass Directional gain=3dBi+10 log (2) = 6.01dBi > 6dBi, So the Conducted Power limit shall be reduced to 30-(6.01-6) = 29.99 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEB Page 5 of 31 B.3 Power Spectral Density Ant0 Test Mode Channel Frequency (MHz) Power Density (dBm/300KHz) Duty Cycle Factor (dB) RBW Factor (dB) Report Power Density (dBm/500KHz) Limit (dBm/500KHz) Verdict 11A 149 5745 -5.31 0 2.218 -3.09 30.0 Pass 157 5785 -6.32 0 2.218 -4.10 Pass 165 5825 -8.81 0 2.218 -6.59 Pass 11N20 SISO 149 5745 -6.26 0 2.218 -4.04 30.0 Pass 157 5785 -6.17 0 2.218 -3.96 Pass 165 5825 -6.51 0 2.218 -4.29 Pass Power Spectral Density IEEE 802.11a / Channel 149 / 5745MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEB Page 6 of 31 IEEE 802.11na / Channel 157 / 5785MHz IEEE 802.11na / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEB Page 7 of 31 Power Spectral Density IEEE 802.11n20 / Channel 149 / 5745MHz IEEE 802.11n20 / Channel 157 / 5785MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S Report No.: LCS190702071AEB Page 8 of 31 IEEE 802.11n20 / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVHP-VPIXEL-S…

Text truncated - open the document above for the full version.
