2AVHR-MS-W10Bonsai Bluetooth Speaker Lamp with Wireless Charging Pad

User Guide（English） Bonsai Bluetooth Speaker Lamp with Wireless Charging Pad Introduction Thank you for choosing our product! Tree of Light is a LED night lamp with multiple uses. You can control the brightness with simple touch or slide. At the base of the lamp, you can wirelessly charge your favourite devices. Also it can connect to your smartphone, tablet or computer to give you fantastic music experience through BT (BT function apply to specific model).With all these functions compiled in one single body, it becomes a must have for every household and office. Packaging Contents • Tree of Light x1 • Charging Adaptor x1 • User Guide x1 Specification Model Name: Tree of Light Wireless Charging: 5V, 1A Brightness: 200Lumens Output Voltage: 5V Max Output Current: 800mA Conversion Rate: 70%~75% BT Chipset: Realtek RTL876ATV BT Frequency: 2.4GHZ BT Profile: A2DP, AVRCP Precautions Please read all safety instructions and warnings thoroughly before using this product. Improper use of this product may result in damage to this or attached products. 1. Do not disassemble the product or attempt to fix it. 2. Kindly use an original charging cable provided. 3. Do not attempt to replace any part of this product or battery inside. 4. Do not crush, puncture, dispose of in fire, short the contacts or expose the product to water or other liquids. 5. Do not store or use the product in a high-temperature environment, including intense sunlight or heat. 6. Avoid drops, bumps, abrasions and impacts. 7. If there is any reason to believe that there is damage to the product, discontinue use immediately. 8. If y ou find that the product is too hot, is emitting an odour, or is deformed, punctured or exhibits any suspicious or abnormal behaviour, discontinue use immediately and contact our customer service. 9. The product is not suitable using for Children. Working Conditons Indoor Use only Temperature: -40°C~40°C/ -40°F~104°F Humidity: 40%~60% English Thank you for choosing our product! Shining Tree is a LED night lamp with multiple uses. Model Name: Shining Tree • Shining Tree x1 Table of Features Appearance & Interface Description MS-W10 1. Charge-In Port 2. LED Light 3. Wireless Charging Pad 4. LED Brightness Controller 5. Wireless Charging Indicator Light BT c S Metallic design Fast charging NFC English Operation Instructions MS-W10 1. Plugging in AC Adapter 2. Turning the LED Light On/Off • Light on automatically when plugging in. • Long Touch the LED Brightness Controller to turn on or off the light. • Short touch for switching three gears of brightness 3. Wireless Charging • Place your QI Wireless Charging enabled smartphone over the Wireless Charging Pad. • The indicator light on pad will change into blue, and it will be off automatically in 10 secs 4. Charging Position English Appearance & Interface Description MS-W10 1. Play/Pause(long press for BT) 2. LED Light 3. Wireless Charging Pad(apply to B2) 4. LED Brightness Controller 5. Charge-In port 6. Charging Indicator Light 7. Volume－/Next Song 8. Volume＋/Previous Song 9. NFC（Special model only) 10. Bluetooth Indicator 9 10 English Appearance & Interface Description MS-W10 1. Plugging in AC Adapter 2. Turning the LED Light On/Off • Light on automatically when plugging in. • Touch the LED Brightness Controller again to turn off the light. • Touch the LED Brightness Controller for 3 seconds to activate Auto-Sleep mode and light off within 30 mins. 3. Brightness control • Slide your finger over the LED Brightness Controller to dim or brighten the LED light. 4. Wireless Charging (apply for partial models) • Place your QI Wireless Charging enabled smartphone over the Wireless Charging Pad. • Then begin to charge. • The indicator light on pad will change from yellow into ice blue. 5. Paring Tree of Light • Press “Power Button” until the Bluetooth indicator flashes with “Disconnected” notification sound or certain sound. • Turn on the BT function of your devices and scan “HomeTree” out. • Pair to “HomeTree” with “Connect” notification sound or certain sound. • To control the volume and playback via paired device or top pad of Tree of Light. • Quick click “＋” or “－” to control volume. Long press“＋” for next song and “－” for previous song. The blue indicator light will be off if Tree of Light not in use for a long time. English FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ϋϋ Reorient or relocate the receiving antenna. ϋϋ Increase the separation between the equipment and receiver. ϋϋConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. ϋϋ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, an d (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Statement This device complies with Part 18 of the FCC Rules. This equipment generates uses and can radiate radio frequency energy and, if not …

Text truncated - open the document above for the full version.

Shenzhen Relight Technology Co.,Ltd Agent Authorization Company: Shenzhen Relight Technology Co.,Ltd Address: 6th Floor, Building A, Guancheng Low Carbon Industrial Park, Gongming Town, Guangming New District, Shenzhen, China Product Name: Bonsai Bluetooth Speaker Lamp with Wireless Charging Pad Model Number(s ): MS-W10 Product Description: Bonsai Bluetooth Speaker Lamp with Wireless Charging Pad We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan. 06, 2020 Name: KEVIN ZONG Title: QC MANAGER Company: Shenzhen Relight Technology Co.,Ltd

< Shenzhen Relight Technology Co.,Ltd > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Date: Jan. 06, 2020 Subject; Request for Long Term Confidentiality FCC ID: 2AVHR-MS-W10 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: KEVIN ZONG Title: QC MANAGER

Letter of Declaration Company: Shenzhen Relight Technology Co.,Ltd Address: 6th Floor, Building A, Guancheng Low Carbon Industrial Park, Gongming Town, Guangming New District, Shenzhen, China Product Name: Bonsai Bluetooth Speaker Lamp with Wireless Charging Pad Model Number: MS-W10 FCC Identifier: 2AVHR-MS-W10 Compliant with KDB680106 D01 RF Exposure Wireless Charging Apps v03 section 5,b： (1) Power transfer frequency is less than 1 MHz. -The device operate in the frequency range 125KHz (2) O utput power from each primary coil is less than or equal to 15 watts. -The maximum output power of the primary coil is 5W (3) T he transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. -The transfer system including a charging system with only single primary coils is to detect and allow only (4) Cl ient device is placed directly in contact with the transmitter. -The EUT is placed directly in contact with the transmitter (5) M obile exposure conditions only (portable exposure conditions are not covered by this exclusion). -The EUT is Mobile exposure conditions only. (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. - The EUT meet the conditions. Name: KEVIN ZONG Date: Jan. 06, 2020 Signature of applicant:

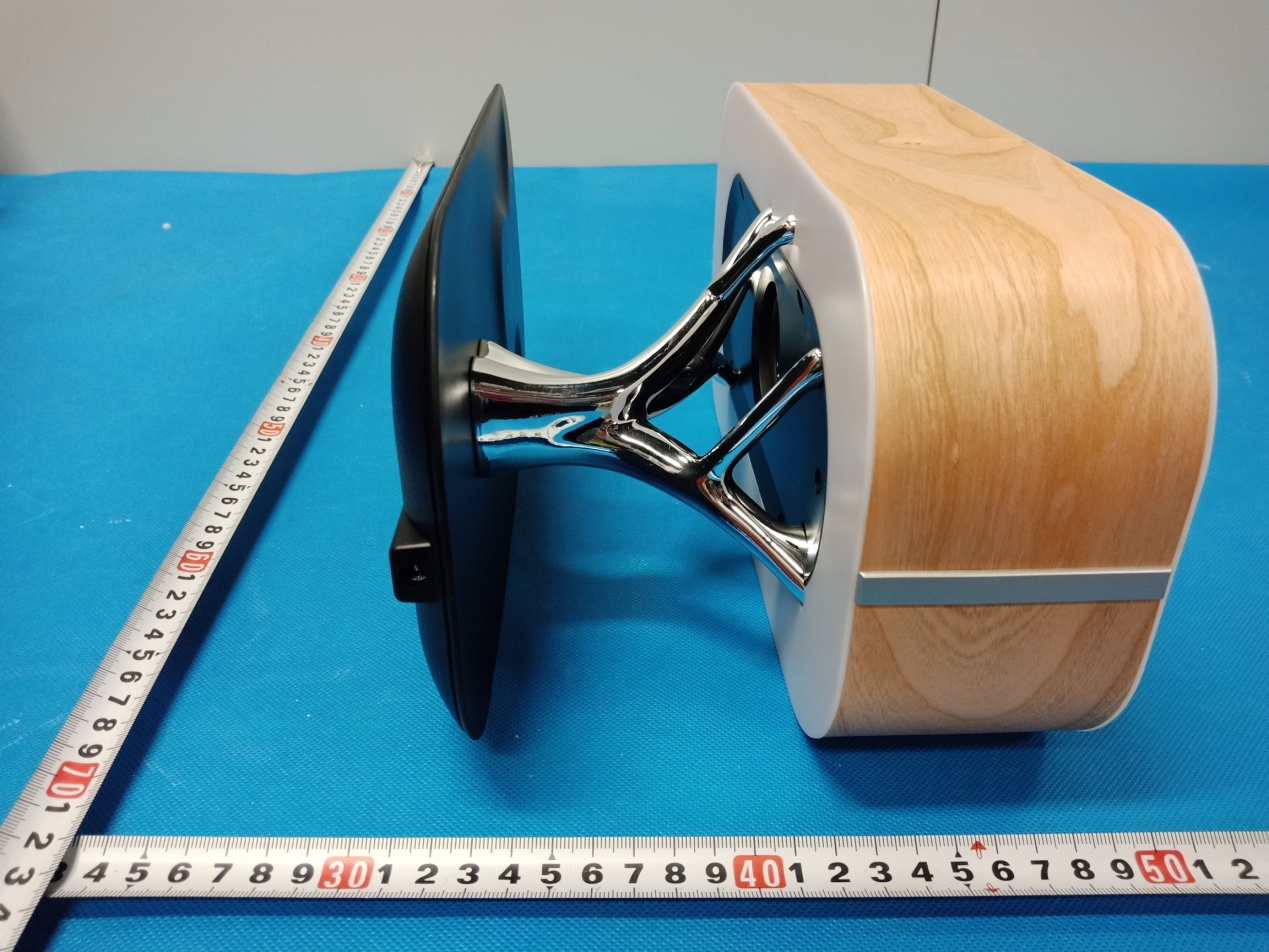

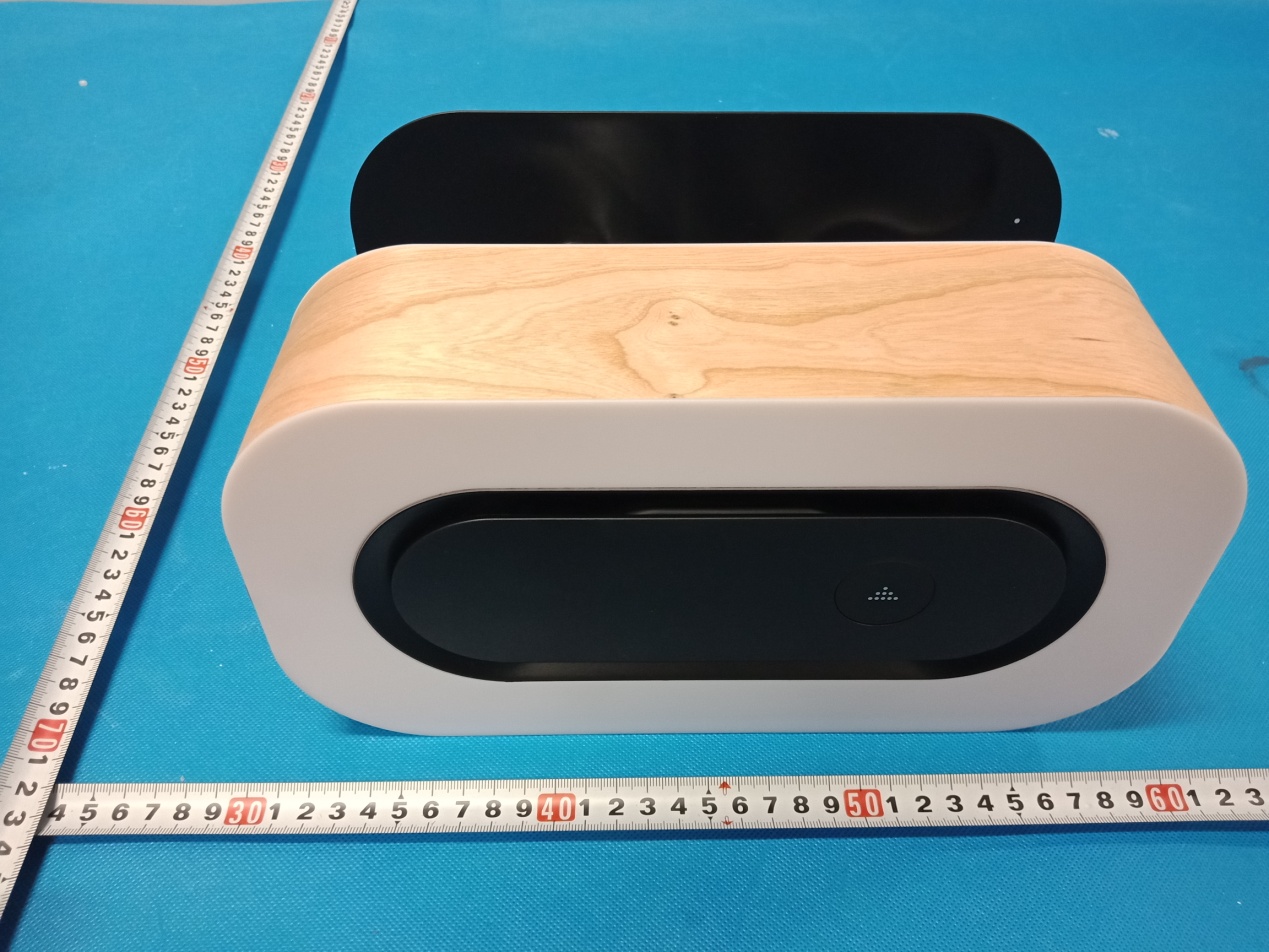

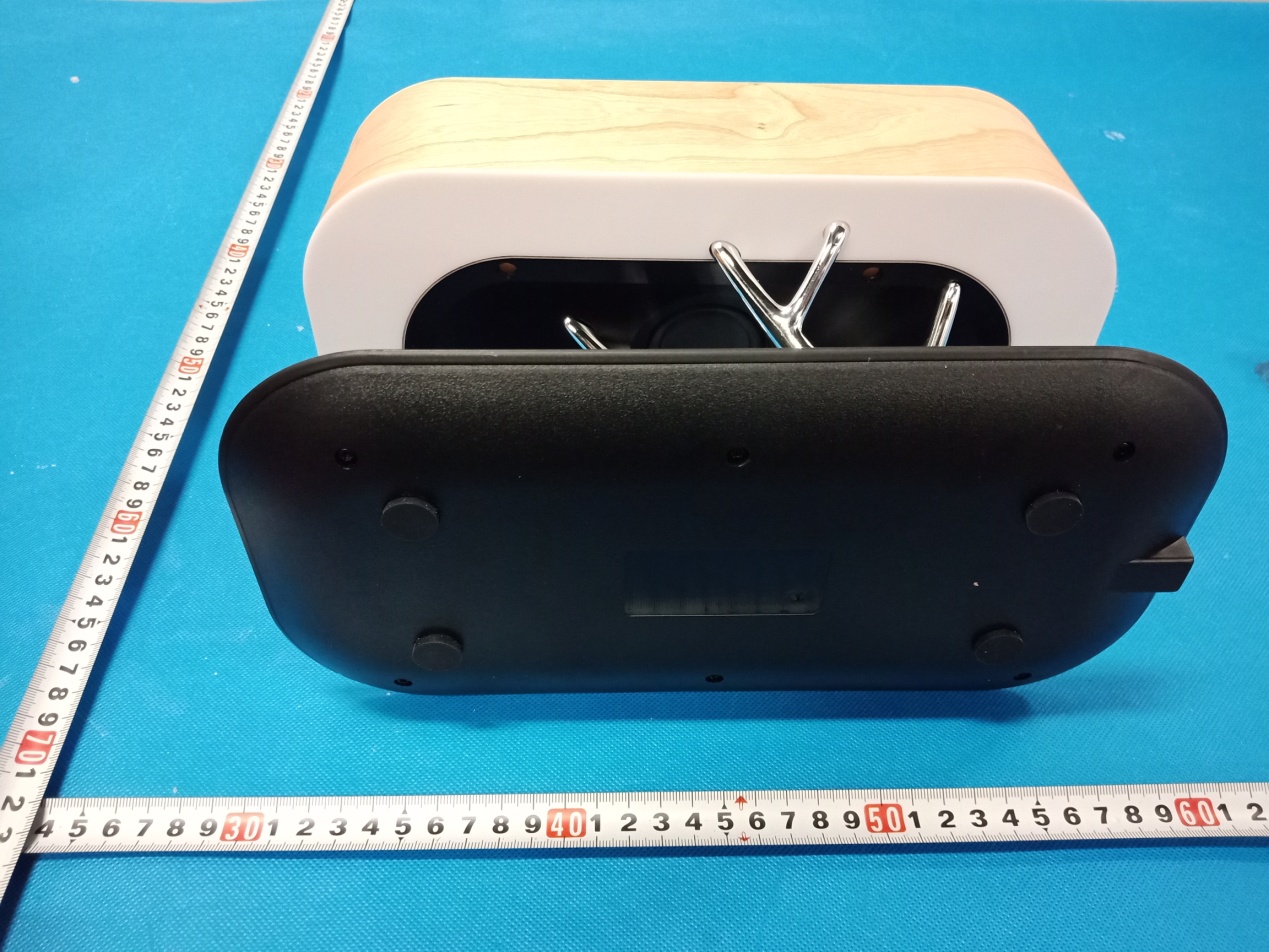

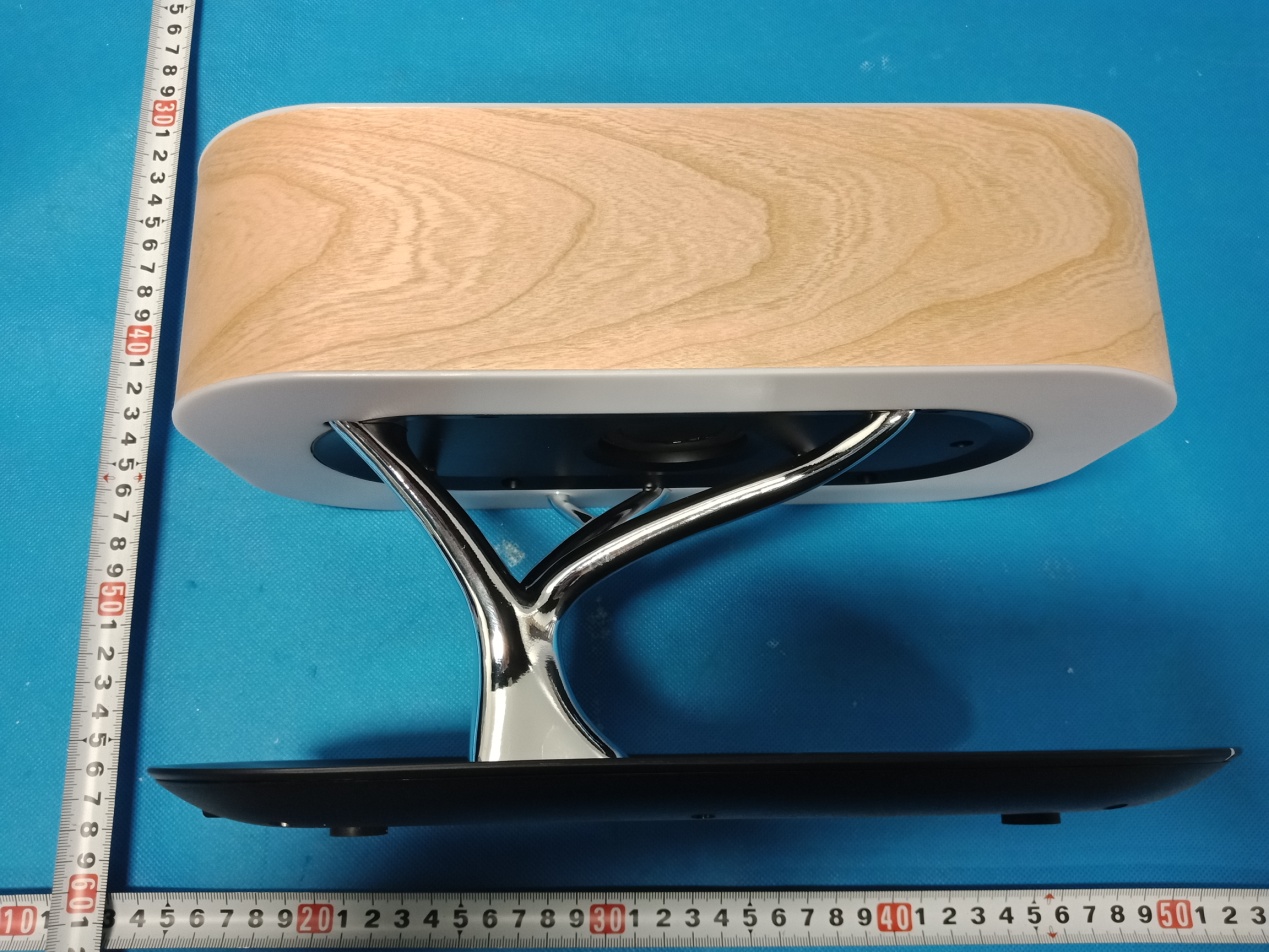

Annex A External Photos Report No.: HK1912253318‐1E/2E Page 1 of 4 Report No.: HK1912253318‐1E/2E Page 2 of 4 Report No.: HK1912253318‐1E/2E Page 3 of 4 Report No.: HK1912253318‐1E/2E Page 4 of 4

FCC ID LABEL: Label Location FCC ID: 2AVHR-MS-W10 Product name: Bonsai Bluetooth Speaker Lamp with Wireless Charging Pad Model No.: MS-W10 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Width: 2cm Long: 4cm

Annex B Internal Photo Report No.: HK1912253318‐1E/2E Page 1 of 7 Report No.: HK1912253318‐1E/2E Page 2 of 7 BT Antenna Report No.: HK1912253318‐1E/2E Page 3 of 7 125 KHz Antenna Report No.: HK1912253318‐1E/2E Page 4 of 7 Report No.: HK1912253318‐1E/2E Page 5 of 7 Report No.: HK1912253318‐1E/2E Page 6 of 7 Report No.: HK1912253318‐1E/2E Page 7 of 7

Page 1 of 8 Report No.: HK1912253318-3E FCC TEST REPORT Test report On Behalf of Shenzhen Relight Technology Co.,Ltd For Bonsai Bluetooth Speaker Lamp with Wireless Charging Pad Model No.: MS-W10 FCC ID: 2AVHR-MS-W10 Prepared for : Shenzhen Relight Technology Co.,Ltd 6th Floor, Building A, Guancheng Low Carbon Industrial Park, Gongming Town, Guangming New District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Dec. 25, 2019 ~Dec. 31, 2019 Date of Report: Dec. 31, 2019 Report Number: HK1912253318-3E Page 2 of 8 Report No.: HK1912253318-3E Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Channel List Channel Frequency (KHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 01 125 The EUT antenna is Coil Antenna. No antenna other than that furnished by the responsible party shall be used with the device. 2. SUMMARY OF TEST RESULTS 2.1 Test procedures according to the technical standards: FCC KDB680106 D01 RF Exposure Wireless Charging Apps v03 FCC CFR 47 Standard Section Test Item Judgment Remark FCC CFR 47 part1, 1.1310 KDB680106 D01v03 (3)(3) Electric Field Strength (E) (V/m) PASS Magnetic Field Strength (H) (A/m) PASS 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 All emissions,radiated(<30M)(9KHz-30MHz) ±2.45dB 2 Temperature ±0.5°C 3 Humidity ±2% Page 3 of 8 Report No.: HK1912253318-3E 2.3 Test Instruments Description Brand Model No. Frequency Range Calibrated Date Calibrated Until Broadband Field Meter NARDA NBM-550 - Dec. 26, 2019 Dec. 25,2020 Magnetic Field Meter NARDA ELT-400 1 – 400kHz Dec. 26, 2019 Dec. 25,2020 Magnetic Probe NARDA HF-3061 300kHz – 30MHz Dec. 26, 2019 Dec. 25,2020 Magnetic Probe NARDA HF-0191 27 – 1000MHz Dec. 26, 2019 Dec. 25,2020 Broadband Field Meter NARDA NBM-550 - Dec. 26, 2019 Dec. 25,2020 Electric Field Meter COMBINOVA EFM 200 5Hz – 400kHz Dec. 26, 2019 Dec. 25,2020 E-Field Probe NARDA EF-0391 100kHz – 3GHz Dec. 26, 2019 Dec. 25,2020 E-Field Probe NARDA EF-6091 100MHz – 60GHz Dec. 26, 2019 Dec. 25,2020 NOTE: 1. The calibration interval of the above test instruments is 12 months . Page 4 of 8 Report No.: HK1912253318-3E 3. MAXIMUM PERMISSIBLE EXPOSURE 3.1 MAXIMUM PERMISSIBLE EXPOSURE Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180 / f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310, 680106 D01 RF Exposure Wireless Charging Apps v03 Note 3: Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. Page 5 of 8 Report No.: HK1912253318-3E 4. TEST PROCEDURE a. For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of (H-field & E- field strengths for all sides is 15cm, H-field strengths of top side is 20cm). E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. 4.1 TEST SETUP 4.2 RESULT OF MAXIMUM PERMISSIBLE EXPOSURE Page 6 of 8 Report No.: HK1912253318-3E For Full load mode: E-Field Strength at 15cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E Limits Test (V/m) 0.125 1.32 1.23 1.27 1.34 1.23 614 H-Field Strength at 15cm from the edges surrounding the EUT (A/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E Limits Test (A/m) 0.125 0.25 0.34 0.27 0.38 0.26 1.63 For Half Load mode: E-Field Strength at 15cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E Limits Test (V/m) 0.125 1.28 1.26 1.39 1.28 1.29 614 H-Field Strength at 15cm from the edges surrounding the EUT (A/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E Limits Test (A/m) 0.125 0.33 0.28 0.24 0.35 0.27 1.63 Page 7 of 8 Report No.: HK1912253318-3E For No load mode: E-Field Strength at 15 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E Limits Test (V/m) 0.125 1.15 1.27 1.22 1.24 1.15 614 H-Field Strength at 15cm from the edges surrounding the EUT (A/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E Limits Test (A/m) 0.125 0.19 0.26 0.24 0.27 0.13 1.63 Remark: According KDB 680106 D01 RF Exposure Wireless Charging App v03, section 5, b). The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surfa…

Text truncated - open the document above for the full version.

Page 1 of 17 Report No.: HK1912253318-2E FCC TEST REPORT Test report On Behalf of Shenzhen Relight Technology Co.,Ltd For Bonsai Bluetooth Speaker Lamp with Wireless Charging Pad Model No.: MS-W10 FCC ID: 2AVHR-MS-W10 Prepared for : Shenzhen Relight Technology Co.,Ltd 6th floor, building A, Guancheng low carbon industrial park, Gongming town, Guangming new district, Shenzhen, China. Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Dec. 25, 2019 ~Dec. 31, 2019 Date of Report: Dec. 31, 2019 Report Number: HK1912253318-2E Page 2 of 17 Report No.: HK1912253318-2E TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Relight Technology Co.,Ltd Address ................................. : 6th floor, building A, Guancheng low carbon industrial park, Gongming town, Guangming new district, Shenzhen, China. Manufacture's Name ............ : Shenzhen Relight Technology Co.,Ltd Address ................................. : 6th floor, building A, Guancheng low carbon industrial park, Gongming town, Guangming new district, Shenzhen, China. Product description Trade Mark: MESUN Product name ........................... : Bonsai Bluetooth Speaker Lamp with Wireless Charging Pad Model and/or type reference : MS-W10 Standards ............................. : FCC CFR 47 PART 18 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Dec. 25, 2019 ~Dec. 31, 2019 Date of Issue ........................................... : Dec. 31, 2019 Test Result ............................................... : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 17 Report No.: HK1912253318-2E Table of Contents Page 1 . TEST SUMMARY 4 1.1 TEST PROCEDURES AND RESULTS 4 1.2 TEST FACILITY 4 1.3 MEASUREMENT UNCERTAINTY 4 2. GENERAL INFORMATION 5 2.1 General Description of EUT 5 2.2. Carrier Frequency of Channels 6 2.3 Operation of EUT during testing 6 2.4 Description of Test Setup 6 2.5 Measurement Instruments List 7 3. CONDUCTED EMISSION TEST 8 3.1 Block Diagram of Test Setup 错误！未定义书签。 3.2 Conducted Power Line Emission Limit 错误！未定义书签。 3.3 Test Procedure 错误！未定义书签。 3.4 Test Result 错误！未定义书签。 4. Radiated Spurious Emission Measurement 11 4.1 Block Diagram of Test Setup 11 4.2 Test Result 13 5. PHOTOGRAPH OF TEST 16 5.1 Radiated Emission 16 5.2 Conducted Emission 17 6. PHOTOGRAPH OF TEST 17 Page 4 of 17 Report No.: HK1912253318-2E 1. TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS DESCRIPTION OF TEST Section number RESULT CONDUCTED EMISSIONS TEST §18.307 COMPLIANT RADIATED EMISSION TEST §18.305 COMPLIANT 1.2 TEST FACILITY Test Firm : Shenzhen HUAK Testing Technology Co., Ltd. Address 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China 1.3 MEASUREMENT UNCERTAINTY Measurement Uncertainty Conducted Emission Expanded Uncertainty = 2.23dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.08dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz) = 4.42dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.06dB, k=2 Page 5 of 17 Report No.: HK1912253318-2E 2. GENERAL INFORMATION 2.1 General Description of EUT Equipment Bonsai Bluetooth Speaker Lamp with Wireless Charging Pad Model Name MS-W10 Serial No. N/A Model Difference N/A Trade Mark MESUN FCC ID 2AVHR-MS-W10 Antenna Type Coil Antenna Antenna Gain 0dBi BT Operation frequency 125KHz Number of Channels 1 Modulation Type ASK Power Source Input: DC 5V from Micro USB Wireless Output: DC5V Power Rating Input: DC 5V from Micro USB Wireless Output: DC5V Page 6 of 17 Report No.: HK1912253318-2E 2.2. Carrier Frequency of Channels Operation Frequency each of channel Channel Frequency 1 125KHz 2.3 Operation of EUT during testing Operating Mode The mode is used: Transmitting mode 2.4 Description of Test Setup Operation of EUT during testing AC Main ● Mobile phones information Model: S6 Input: 5VDC ● Adapter information Model: SAW30-050-3500U Input: AC100-240V, 50/60Hz, 0.8A Output: DC5V, 3.5 A The sample was placed 0.8m height above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. The worst case is X position Adapter EUT Mobile phones Page 7 of 17 Report No.: HK1912253318-2E 2.5 Measurement Instruments List Item Equipment Manufacturer Model No.Serial No. Last Cal. Cal. Interval 1. L.I.S.N. Artificial Mains Network R&S ENV216 HKE-002 Dec. 26, 2019 1 Year 2. Receiver R&S ESCI 7 HKE-010 Dec. 26, 2019 1 Year 3. RF automatic control unit Tonscend JS0806-2 HKE-060 Dec. 26, 2019 1 Year 4. Spectrum analyzer R&S FSP40 HKE-025 Dec. 26, 2019 1 Year 5. Spectrum analyzer Agilent N9020A HKE-048 Dec. 26, 2019 1 Year 6. Preamplifier Schwarzbeck BBV 9743HKE-006 Dec. 26, 2019 1 Year 7. EMI Test Receiver Rohde & Schwarz ESCI 7 HKE-010 Dec. 26, 2019 1 Year 8. Bilog Broadband Antenna Schwarzbeck VULB9163 HKE-012 Dec. 26, 2019 1 Year 9. Loop Antenna Schwarzbeck FMZB 1519 B HKE-014 Dec. 2…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
