2AVIGBR0012Remote Control

User Manual Remote Control ERF2*36H*, supporting Wireless Communication. It’s main functions: Keyboard operation; ERF2*36H* Components ERF2*36H* mainly consists of one PCB (printed circuit board) which contains a MCU&BT chip. ERF2*36H* contains an implementation of bluetooth technology, with integrating a bluetooth chip and a printed antenna. ERF2*36H* is controlled byXF2472C. It will operate at infrared mode before paired with the host. The bluetooth technology this remote control used accords with Bluetooth 4.2 Low Energy standard. It operates in the 2.4GHz ISM band, and the frequency band is 2402 ~ 2480MHz. There are 40 channels numbered 0~39. The bandwidth of each channel separation is 2MHz. FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ⚫ Reorient or relocate the receiving antenna. ⚫ Increase the separation between the equipment and receiver. ⚫ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ⚫ Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for uncontrolled environment. ISED Regulatory Compliance Statements： This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with the ISED portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.

<Hisense Visual Technology Co., Ltd. > < Hisense Visual Technology Co., Ltd. > < No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, China > Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA <2023/03/28> Attestation Statement according to 2.911(d)(5)(i) and 2.911(d)(5)(ii) FCC ID: < 2AVIGBR0012 > TO WHOM IT MAY CONCERN: Hereby we certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Further we certify that, as of the date of the filing of the application, < Hisense Visual Technology Co., Ltd. > is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, _______________ (signature & company stamp) < Hisense Visual Technology Co., Ltd. > <FRN: 0029081098 > < No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, China > < Yansong Li > < +86 15610007698 > < [email protected] >

<Hisense Visual Technology Co., Ltd. > < Hisense Visual Technology Co., Ltd. > < No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, China > Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA <2023/03/28> Attestation Statement according to 2.911(d)(7) FCC ID: < 2AVIGBR0012 > TO WHOM IT MAY CONCERN: We, < Hisense Visual Technology Co., Ltd. > designate FCC US Agent, LLC, to act as U.S. agent for service of process. FCC US Agent, LLC hereby acknowledges the obligation of the U.S. agent for service of process. Further < Hisense Visual Technology Co., Ltd. > accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Sincerely _______________ (signature & company stamp) < Hisense Visual Technology Co., Ltd. > < FRN: 0029081098 > < No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, China > < Yansong Li > < +86 15610007698 > _______________ (signature & company stamp) FCC US Agent, LLC 0033402884 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Tim Payne 708-571-3148 [email protected] < [email protected] >

Declaration of model difference The main difference of ERF2*36H, ERF2*36H******, ERF2C36H and ERF2C36H(0011) models applied for this application are the equipment color, Key definition, sales area and salesman, which do not affect the material, electromagnetic compatibility and safety electrical performance of the product, the”*” is one or more any uppercase alphanumeric character or blank, representing different parameters and functions. (Signed) Name: Yansong Li Company: Hisense Visual Technology Co., Ltd. Address: No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, China Phone: +86 15610007698 Fax: E-Mail: [email protected] Date：2023/03/29

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 <2023/03/28> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b) (4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AVIGBR0012 ERF2*36H, ERF2*36H****** For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos 180 days Internal Photos 180 days Block Diagram Schematics Test Setup Photos 180 days User’s Manual 180 days Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name: Yansong Li Company: Hisense Visual Technology Co., Ltd. Address: No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, China Phone: +86 15610007698 Fax: E-Mail: [email protected]

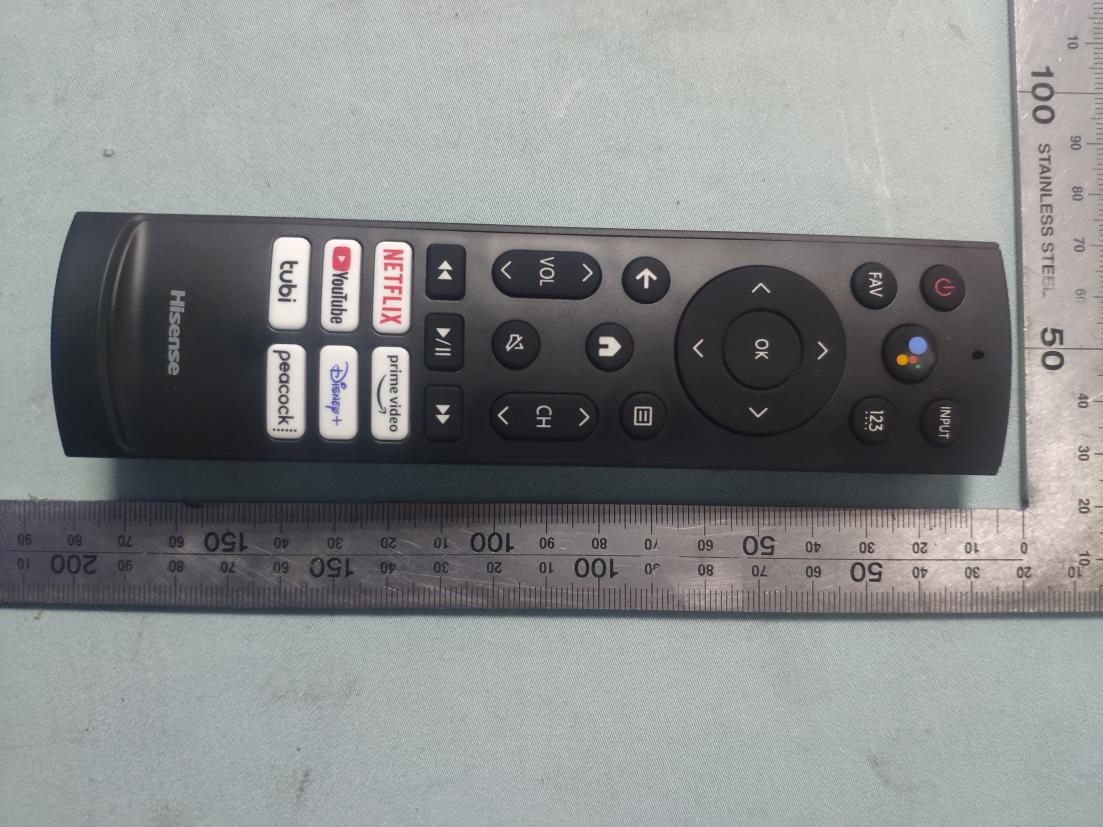

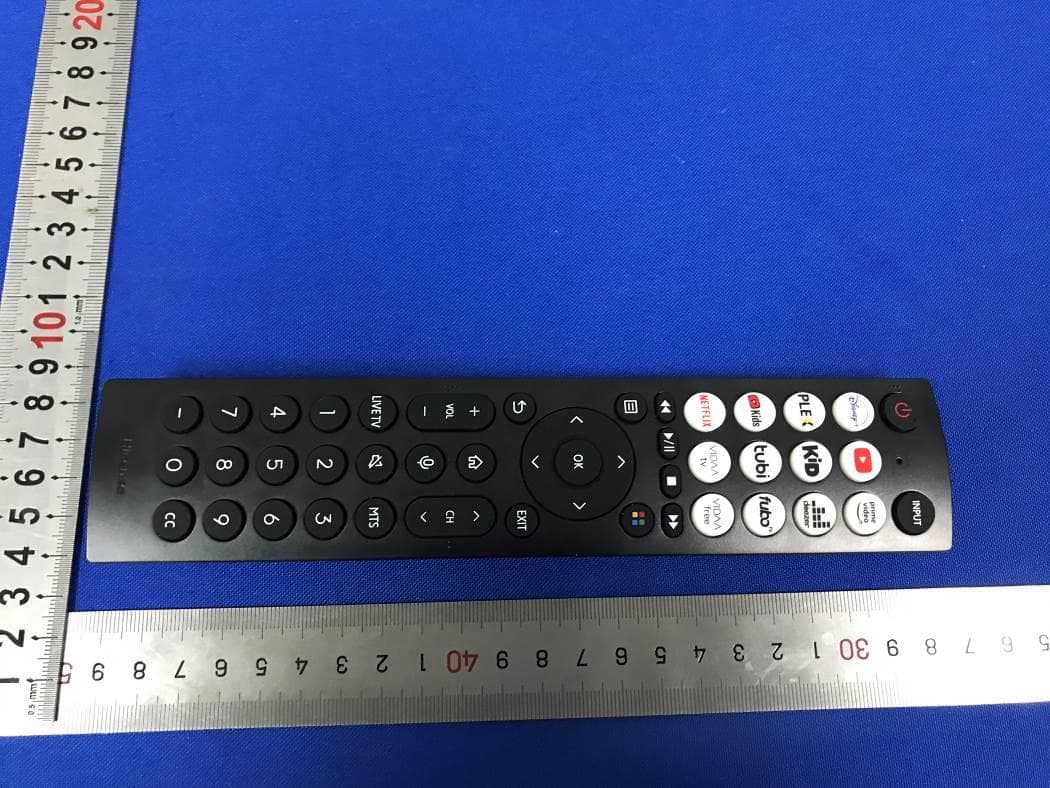

Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B23030603-1E01 QR-4-106-20 RevA0 Page 58 of 69 13. Photos of the EUT ERF2C36H ERF2C36H Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B23030603-1E01 QR-4-106-20 RevA0 Page 59 of 69 ERF2C36H ERF2C36H Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B23030603-1E01 QR-4-106-20 RevA0 Page 60 of 69 ERF2C36H ERF2C36H

HVIN: ERF2C36H HVIN: ERF2C36H(0011)

Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B23030603-1E01 QR-4-106-20 RevA0 Page 64 of 69 ERF2C36H ERF2C36H Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B23030603-1E01 QR-4-106-20 RevA0 Page 65 of 69 ERF2C36H ERF2C36H Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B23030603-1E01 QR-4-106-20 RevA0 Page 66 of 69 BT Antenna: 2402MHz-2480MHz ERF2C36H ERF2C36H Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B23030603-1E01 QR-4-106-20 RevA0 Page 67 of 69 ERF2C36H ERF2C36H

SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std. 1528-2013 RSS-102 Issue 5 IEC/IEEE 62209-1528:2020 For Remote Controller FCC ID: 2AVIGBR0012 IC: 25780-2AVIGBR0012 FCC Model: ERF2*36H, ERF2*36H****** IC Model: ERF2C36H, ERF2C36H(0011) Report Number: 4790781926-SAR-1 Issue Date: Mar. 21, 2023 Prepared for Hisense Visual Technology Co., Ltd. No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi-Tech Development Zone Dongguan, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4790781926-SAR-1 Page 2 of 22 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0036 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 Mar. 21, 2023 Initial Issue \ 1. The Measurement result for the sample received is<Pass> according to < IEEE Std. 1528- 2013> < RSS-102 Issue 5> when <Accuracy Method> decision rule is applied. 2. This report is only published to and used by the applicant, and it is not for evidence purpose in China. REPORT NO.: 4790781926-SAR-1 Page 3 of 22 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0036 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Table of Contents 1. Attestation of Test Results ......................................................................................................... 4 2. Test Specification, Methods and Procedures ............................................................................ 6 3. Facilities and Accreditation ........................................................................................................ 7 4. SAR Measurement System & Test Equipment .......................................................................... 8 4.1. SAR Measurement System ........................................................................................................ 8 4.2. SAR Scan Procedures ............................................................................................................... 9 4.3. Test Equipment ........................................................................................................................ 11 5. Measurement Uncertainty ......................................................................................................... 12 5.1. Uncertainty budget list (30MHz to 3GHz). ................................................................................ 12 5.2. Uncertainty budget list (3GHz to 6GHz). .................................................................................. 13 6. Device Under Test (DUT) Information ...................................................................................... 14 6.1. DUT Description ...................................................................................................................... 14 6.2. Wireless Technology................................................................................................................ 14 6.3. Antenna Gain ........................................................................................................................... 14 7. Conducted Output Power Measurement and tune-up tolerance ............................................ 15 7.1. Power measurement result Bluetooth ...................................................................................... 15 7.2. Duty cycle ................................................................................................................................ 15 8. RF Exposure Conditions ........................................................................................................... 16 9. Dielectric Property Measurements & System Check .............................................................. 18 9.1. Dielectric Property Measurements ........................................................................................... 18 9.2. System Check.......................................................................................................................... 19 10. Measured and Reported (Scaled) SAR Results ....................................................................... 20 10.1. SAR Test Results of Bluetooth ............................................................................................. 20 11. Simultaneous Transmission SAR Analysis ............................................................................. 21 Appendixes .......................................................................................................................................... 22 4790781926-SAR-1 App A Photo ........................................................................................................ 22 4790781926-SAR-1 App B Highest Test Plots .................................................................................... 22 4790781926-SAR-1 App C System Check Plots ................................................................................. 22 4790781926-SAR-1 App D Cal. Certificates ........................................................................................ 22 REPORT NO.: 4790781926-SAR-1 Page 4 of 22 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0036 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. Attestation of Test Results Applicant Name Hisense Visual Technology Co., Ltd. Address No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, China Manufacturer Hi…

Text truncated - open the document above for the full version.

. Measurement Report for Device, , , UID 0 -, Channel 0 (2450.0MHz) Device under Test Properties Model, Manufacturer Dimensions [mm] IMEI DUT Type Device, 50.0 x 10.0 x 8.0 Phone Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL , , 0-- 2450.0, 0 8.18 1.76 39.0 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date ELI V8.0 (20deg probe tilt) - 2178 HSL600-10000 Charge: xxxx, 2023-Mar- 15 EX3DV4 - SN7733, 2022-08-02 DAE4 Sn1739, 2022-07-29 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 80.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 10.0 5.0 x 5.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid Yes Yes Grading Ratio 1.5 1.5 MAIA N/A N/A Surface Detection VMS + 6p VMS + 6p Scan Method Measured Measured Measurement Results Area Scan Zoom Scan Date 2023-03-15, 10:33 2023-03-15, 10:41 psSAR1g [W/kg] 13.7 14.1 psSAR10g [W/kg] 6.39 6.56 Power Drift [dB] 0.00 -0.00 Power Scaling Disabled Disabled Scaling Factor [dB] TSL Correction No correction No correction M2/M1 [%] 80.1 Dist 3dB Peak [mm] 9.8 Warning(s) / Error(s) Details Area Scan Zoom Scan Warning(s) Error(s)

BLE 1M 39CH Back Edge 0mm . Measurement Report for Device, BACK, ISM 2.4 GHz Band, UID 10030 CAA, Channel 78 (2480.0MHz) Device under Test Properties Model, Manufacturer Dimensions [mm] IMEI DUT Type Device, 250.0 x 30.0 x 20.0 Phone Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL BACK, 0.00 ISM 2.4 GHz Band Bluetooth, 10030-CAA 2480.0, 78 8.18 1.78 39.7 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date ELI V8.0 (20deg probe tilt) - 2178 HSL600-10000 Charge: xxxx, 2023-Mar- 15 EX3DV4 - SN7733, 2022-08-02 DAE4 Sn1739, 2022-07-29 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 60.0 x 280.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 10.0 5.0 x 5.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid Yes Yes Grading Ratio 1.5 1.5 MAIA Y Y Surface Detection VMS + 6p VMS + 6p Scan Method Measured Measured Measurement Results Area Scan Zoom Scan Date 2023-03-15, 19:52 2023-03-15, 19:59 psSAR1g [W/kg] 0.015 0.015 psSAR10g [W/kg] 0.007 0.006 Power Drift [dB] -0.04 -0.09 Power Scaling Disabled Disabled Scaling Factor [dB] TSL Correction No correction No correction M2/M1 [%] 79.0 Dist 3dB Peak [mm] > 15.0 Warning(s) / Error(s) Details Area Scan Zoom Scan Warning(s) Error(s)

R（Ω）X（jΩ）R（Ω）X（jΩ）R（Ω）X（jΩ） 56.400.96059.220.855 2.82-0.11 Annual Verification Result Measure Date -24.288-21.44-11.7% 16-Dec-22 Return loss(dB) Dipole2450 Head TSL Target ValueMeasure ValueDifference Impedance

ERF2C36H天线规格 Antenna size： NO details SPC remark 1 Frequency band 2400-2500MHz 2 directivity Omnidirectional antenna 3 Input impedance 50 Ohm Nominal 4 Return Loss -14dB(max) 5 VSWR 2（max） 6 Polarization mode Linear Polarization 7 Gain -0.28dBi(max) 8 Efficiency 39.9%（max） Test instrument： E5071 Network Analyzer Frequency /MHz 2402 2440 2480 VSWR 1.5286 1.2027 1.1412 Return Loss /dB -14.791 -20.107 -20.635 3D pattern： OTA Test system：RayZone1800, Qingdao Hisense Mobile Communication Technology,Inc. Address: No.399, Song Ling Road, Qingdao,China 3D Pattern-2400MHz 3D Pattern-2440MHz 3D Pattern-2480MHz Freq Efficiency_dB Gain Directivity Efficiency_Pcent 2400 -4.375130909 -0.353733295 4.021397614 36.516312 2410 -4.373706242 -0.353616653 4.120089589 36.52829284 2420 -4.654130742 -0.42766405 4.226466692 34.24419219 2430 -4.671968344 -0.528949998 4.143018346 34.10383085 2440 -4.336131066 -0.47116122 3.864969846 36.84570693 2450 -4.186849915 -0.316880409 3.869969506 38.13423236 2460 -4.053766001 -0.4149344 3.638831601 39.32089549 2470 -3.986293803 -0.383138764 3.773155039 39.93655689 2480 -4.027395962 -0.282768452 4.050164414 39.56037537 2490 -4.07238659 -0.30754527 4.379931859 39.15266613 2500 -4.079045708 -0.454471365 4.533517072 39.09267862

Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B23030603-1E01 QR-4-106-20 RevA0 Page 1 of 64 FCC AND IC CERTIFICATION TEST REPORT Report No.: DDT-B23030603-1E01 Issued By: Tianjin Dongdian Testing Service Co., Ltd. Address: Building D-1, No. 19, Weisi Road, Microelectronics Industrial Park Development Area, Tianjin, China. Tel: +86-22-58038033, E-mail: [email protected], http://www.ddttest.com Applicant : Hisense Visual Technology Co., Ltd. Address : No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, China Equipment under Test : Remote Control FCC Model No. : ERF2*36H, ERF2*36H****** IC Model No. : ERF2C36H, ERF2C36H(0011) Trade Mark : Hisense FCC ID : 2AVIGBR0012 IC : 25780-2AVIGBR0012 Manufacturer : Hisense Visual Technology Co., Ltd. Address : No. 218, Qianwangang Road, Economy & Technology Development Zone, Qingdao, China Inspection & Testing Services Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B23030603-1E01 QR-4-106-20 RevA0 Page 2 of 69 TABLE OF CONTENTS Test report declares.......................................................................................................3 1. Summary of Test Results ............................................................................................. 6 2. General Test Information .............................................................................................. 7 2.1. Description of EUT ........................................................................................................ 7 2.2. Accessories of EUT ...................................................................................................... 7 2.3. Assistant equipment used for test ................................................................................. 7 2.4. Block diagram of EUT configuration for test ................................................................. 8 2.5. Deviations of test standard ........................................................................................... 8 2.6. Test environment conditions ......................................................................................... 9 2.7. Test laboratory .............................................................................................................. 9 2.8. Measurement uncertainty ........................................................................................... 10 3. Equipment Used During Test ...................................................................................... 11 4. 6 dB Bandwidth and 99% Bandwidth .......................................................................... 12 4.1. Block diagram of test setup ........................................................................................ 12 4.2. Limits .......................................................................................................................... 12 4.3. Test procedure ............................................................................................................ 12 4.4. Test result ................................................................................................................... 13 4.5. Original test data ......................................................................................................... 13 5. Maximum Peak Output Power .................................................................................... 17 5.1. Block diagram of test setup ........................................................................................ 17 5.2. Limits .......................................................................................................................... 17 5.3. Test procedure ............................................................................................................ 17 5.4. Test result ................................................................................................................... 17 5.5. Original test data ......................................................................................................... 18 6. Power Spectral Density .............................................................................................. 20 6.1. Block diagram of test setup ........................................................................................ 20 6.2. Limits .......................................................................................................................... 20 6.3. Test procedure ............................................................................................................ 20 6.4. Test result ................................................................................................................... 21 6.5. Original test data ......................................................................................................... 21 7. Band Edge Compliance (Conducted Method)............................................................. 23 7.1. Block diagram of test setup ........................................................................................ 23 7.2. Limits .......................................................................................................................... 23 7.3. Test procedure ............................................................................................................ 23 7.4. Test result ................................................................................................................... 24 7.5. Original test data ......................................................................................................... 24 8. Radiated Emission ...................................................................................................... 27 Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B23030603-1E01 QR-4-106-20 RevA0 Page 3 of 69 8.1. Block diagram of test setup ........................................................................................ 27…

Text truncated - open the document above for the full version.

Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B23030603-1E01 Page 56 of 64 12. Test Setup Photograph Tianjin Dongdian Testing Service Co., Ltd. Report No.: DDT-B23030603-1E01 Page 57 of 64

1 | P a g e Appendix A Photo Sample Front view Rear view Test position Top Edge(0mm) Left Edge(0mm) 2 | P a g e Back Edge(0mm) Front Edge(0mm)
