Product Basic Specifications Brand name: meitu Product name: MeituEve Product model: MS1901 Color: Aurora white Material: PC / silicone / metal Operating temperature: 0°C- 40°C Machine size: 580mm x 420.5mm x 601mm Rated voltage: 12V Execution standards: GB4706.1-2005, GB4706.15-2008 Xiamen Meitu Mobile Technology Co., Ltd. Address: Room 112A, Pioneer Building, Pioneer Park, Torch High-tech Industrial Development Zone, Xiamen Manufacturer: Kingtronics Corporation of Elec. & Mech. Technology (Zhangzhou) Co., Ltd. Address: No. 20, Longchi Avenue, Longchi Industrial Park, Taiwanese Investment Zone, Zhangzhou, Fujian Province Customer Services: 400-990-9696. Website: www.meitu.com © 2019 All Rights Reserved, Xiamen Meitu Mobile Technology Co., Ltd. Safety Precautions The following precautions are to ensure proper use of this device and prevent personal injury and property damage to users and others. Please strictly follow these precautions. When analyzing, please keep your eyes closed so as not to damage your eyesight; Please keep the detection camera and luminaire clean. Otherwise, the performance of the product may be adversely affected; Only use the original Meitu power adapter provided with this product. Otherwise, power related issues or damage to the device may occur; When in use, please keep the power adapter tightly plugged into the power socket and ensure that it may be easily plugged and unplugged; It is recommended that you store this device in a dry, shaded, and cool place when it is not in use for long periods of time. To avoid damage, please avoid contact with hard objects; Do not store this product and its accessories in a humid Environment for long periods of time. This may adversely affect the performance of this product; The power cord may break if the power adapter is used incorrectly. Stop using this device, if the power cord is twisted and cannot be restored, or if the power cord or the power connector is damaged, deformed, or broken； Please keep this device away any open flame sources; Do not immerse this device into or rinse with water; Please store this device in a place that is out of the reach of children; Do not disassemble, repair, or rebuild this device without authorization. Those who should not use this product Due to the strong magnet inside, please do not use this product if you fall within any of the following categories (including but not limited to): had a pacemaker surgery; are suffering from or have suffered from retinal detachment; have metal or other implants on the face due to fractures, plastic surgery, etc.; have had a sequelae of the head or eye injury due to traffic accidents, etc.; are advised by doctors to stay away from strong magnets for any other medical reason. For more safety precautions and usage procedures, please scan the QR code below. 1 . 2 . 3 . 4 . 5 . 6 . 7 . 8 . 9 . 10. Scope of Warranty I. Starting from the date of purchase, a one-year warranty service is provided upon presentation of invoice, shopping list, and warranty card. During the warranty period, if any issues with the device arise as a result of product quality, you will be entitled to free repair and maintenance services. II. The following conditions are not covered under warranty: Products not purchased from the website (www.meitu.com) or Meitu's flagship store on Tmall, or products that are not authorized for sale (without valid serial numbers); Products on which the warranty period has expired; Products with damage caused by unauthorized dismantling or repair; Products with burnt circuit boards due to human error, such as immersion in liquid or impact from fall; Products with damage caused by improper installation, use, maintenance, or storage; A warranty certificate that does not match the product model, or a warranty certificate that has been altered; Products with damage caused by unforeseeable circumstances. For any issues during use, you may call Meitu Customer Services at: 400-990-9696. 1 . 2 . 3 . 4 . 5 . 6 . 7 . Product Model Product warranty Product Batch Number S/N User Information Sales Party Information Name Phone Number Address Invoice Number Purchase Date Name (with official seal) Address Phone Number Product Introduction MeituEve main device status iOS Power on: the lights on both sides keep on for 3 seconds To be connected: the lights on both sides breathe Connected successfully: the lights on both sides keep on Connection interrupted: the lights on both sides breathe (App prompts that the connection is interrupted) Power off: the lights on both sides are off Package Contents Your package contains the following items: Please only use original Meitu accessories. Accessories are available at Meitu service centers or on the Meitu website. Meitu official website: http://eve.meitu.com/ Product Introduction MeituEve is an intelligent skin analyzer independently developed by Meitu. It provides an accurate, safe, and personalized skin analysis experience for each user. CMIIT ID of this product model can be queried at the bottom of the device. Lens Hood Tablet StandUser Guide MeituEve Main Device Power Adapter MeituEve Installation Instructions I. Installation Steps Open the package and place MeituEve main device on the table (do not touch the color card on the back of the chin support). Remove the hood from the package and attach it to the front of the main device. The device is in the correct position when the “meitu” logo on the hood is parallel to the table top. Connect the power cord to the back of the MeituEve main device to keep the device charged. II. Power and Connection Short press the Power Key on the back of the main device to turn it on. The “meitu” logo on the side of the main device lights up, and there is a prompt tone, indicating that the MeituEve main device is power-on. Open App Store on iPad to search for "MeituEve", then click to download and install the APP. Open the MeituEve APP on the iPad and log in with the store account and password. …

Text truncated - open the document above for the full version.

2020-01-03 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, Name: Jiang Hongmei Title:Manager Company: Shanghai Meitu Comprehensive Health Management Limited Company

2020-01-03 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appointShenzhen STS Test Services Co., Ltd.,1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road,Fuyong Street, Bao’an District, Shenzhen, Guangdong,China(Name of Agent company name andaddress) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonourbehalf,Iack nowledgethatallresponsibilityforcomplyingwiththetermsandconditionsforcertification,stillres ideswith S h a n g h a i M e i t u C o m p r e h e n s i v e H e a l t h M a n a g e m e n t L i m i t e d C o m p a n y R o o m 3 1 1 4 , N o . 2 6 , G u o d i n g R o a d , Y a n g p u D i s t r i c t , S h a n g h a i , C h i n a (Applicant Nameandaddress) Sincerely, Name: Jiang Hongmei Title:Manager Company: Shanghai Meitu Comprehensive Health Management Limited Company

2020-01-03 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:__ 2AVIV-MS1902 ___ Product Name:___ meitueve ___ Model name: MS1902 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description  SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Sincerely, Name: Jiang Hongmei Title: Manager Company: Shanghai Meitu Comprehensive Health Management Limited Company

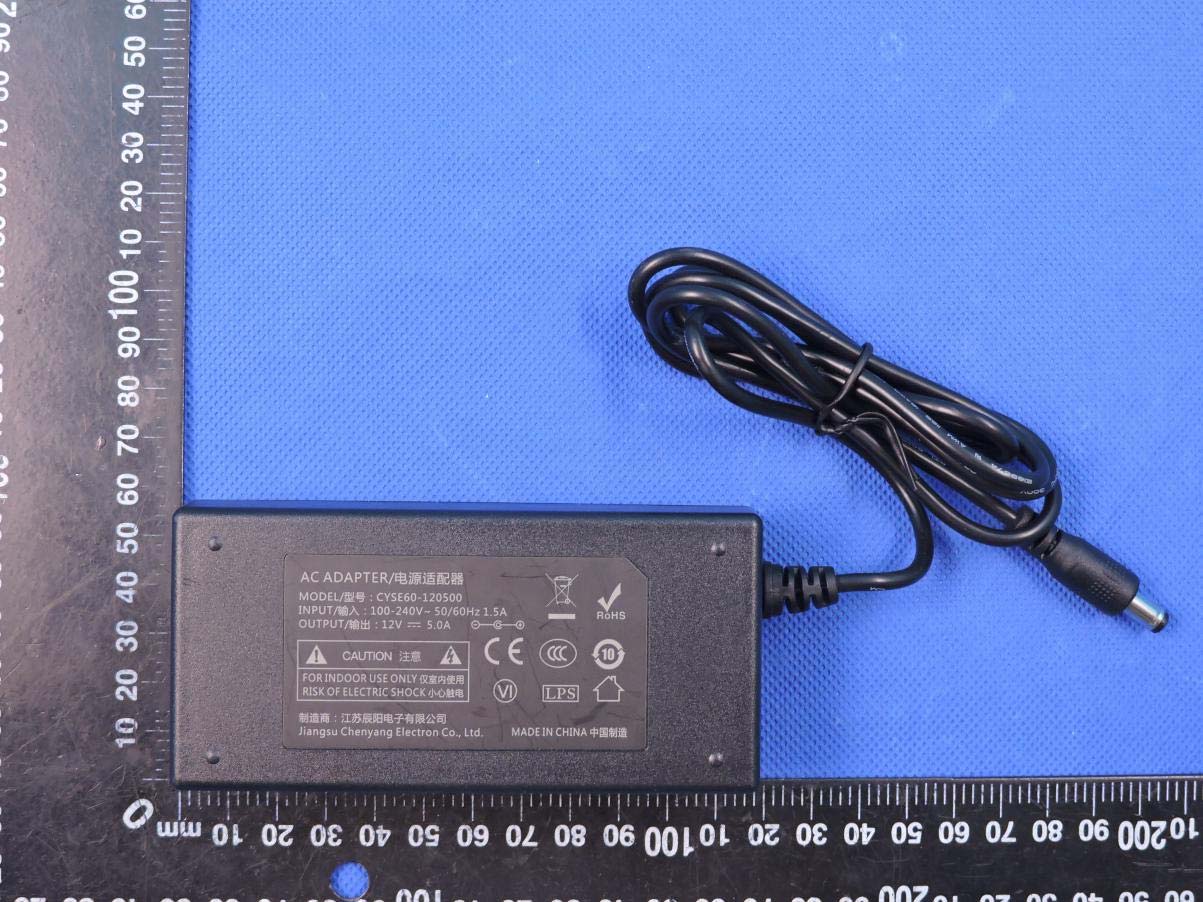

Page 1 of 5 Report No.: STS1912036 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: MS1902 Photo 1 Photo 2 Photo 3 FCC ID:2AVIV-MS1902 Page 2 of 5 Report No.: STS1912036 Photo 4 Page 3 of 5 Report No.: STS1912036 Photo 5 Photo 6 Page 4 of 5 Report No.: STS1912036 Photo 7 Photo 8 Page 5 of 5 Report No.: STS1912036 Photo 9

FCCLabel meitueve Modelname:MS1902 FCCID:2AVIV-MS1902 Thisdevicecomplieswithpart15oftheFCCRules.Operation issubjecttothefollowingtwoconditions:(1)Thisdevicemay notcauseharmfulinterference,and(2)thisdevicemust acceptanyinterferencereceived,includinginterferencethat maycauseundesiredoperation. 30mm*20mm used stickers

Page 1 of 11 Report No.: STS1912036 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: MS1902 Photo 1 Photo 2 Antenna Antenna FCC ID:2AVIV-MS1902 Page 2 of 11 Report No.: STS1912036 Photo 3 Photo 4 Page 3 of 11 Report No.: STS1912036 Photo 5 Photo 6 Page 4 of 11 Report No.: STS1912036 Photo 7 Photo 8 Page 5 of 11 Report No.: STS1912036 Photo 9 Photo 10 Page 6 of 11 Report No.: STS1912036 Photo 11 Photo 12 Page 7 of 11 Report No.: STS1912036 Photo 13 Photo 14 Page 8 of 11 Report No.: STS1912036 Photo 15 Photo 16 Page 9 of 11 Report No.: STS1912036 Photo 17 Photo 18 Page 10 of 11 Report No.: STS1912036 Photo 19 Photo 20 Page 11 of 11 Report No.: STS1912036 Photo 21 Photo 22

RF Exposure Report FCC ID: 2AVIV-MS1902 RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) F= Frequency in MHz Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. BLE5.0 Mode 2402-2480MHz Detector PEAK GFSK 1±1dBm ANT Gain (G) Antenna gain :-2dBi (gain of antenna in linear scale=0.63) GFSK0.632402 21.58490.00020 1 Power Density (mW/cm²) Limit (mW/cm²) ANT Gain(gain of antenna in linear scale) Protocol Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) 2.4G WIFI Mode 802.11b/g/n20:2412-2462MHz 802.11n40:2422-2452MHz Detector PEAK 802.11b 15±1dBm 802.11g 16±1dBm 802.11n20 19±1dBm 802.11n40 19±1dBm ANT Gain (G) Antenna number: 2 Antenna A gain : -2dBi Antenna B gain : -2dBi MIMO technology Directional gain=1.01dBi (gain of antenna in linear scale=1.26) 802.11 b1.262437 1639.81070.00998 1 802.11 g1.262437 1750.11870.01257 1 802.11 n201.262437 20########0.02508 1 802.11 n401.262422 20########0.02508 1 Power Density (mW/cm²) Limit (mW/cm²) ANT Gain(gain of antenna in linear scale) Protocol Channel Frequenc y (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) 5G WIFI ANT Gain (G) Mode IEEE 802.11a/ n/ac(HT20) 5.180GHz-5.240GHz IEEE 802.11n/ac(HT40) 5.190GHz-5.230GHz IEEE 802.11ac(HT80) 5.210GHz Detector PEAK 802.11a/n/ac(HT20) 13±1dBm 802.11 n/ac(HT40) 13±1dBm 802.11 ac(HT80) 13±1dBm ANT Gain (G) Antenna number: 2 Antenna A gain : -2dBi Antenna B gain : -2dBi MIMO technology Directional gain=1.01dBi (gain of antenna in linear scale=1.26) 802.11 a/n/ac(HT20) 1.265180 1425.11890.00630 1 802.11 n/ac(HT40) 1.265230 1425.11890.00630 1 802.11 ac(HT80) 1.265210 1425.11890.00630 1 Power Density (mW/cm²) Limit (mW/cm²) ANT Gain(gain of antenna in linear scale) Protocol Channel Frequenc y (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) 5G WIFI ANT Gain (G) Mode IEEE 802.11a/ n/ac(HT20) 5.745GHz-5.825GHz IEEE 802.11n/ac(HT40) 5.755GHz-5.795GHz IEEE 802.11ac(HT80) 5.775GHz Detector PEAK 802.11a/n/ac(HT20) 17±1dBm 802.11 n/ac(HT40) 15±1dBm 802.11 ac(HT80) 17±1dBm ANT Gain (G) Antenna number: 2 Antenna A gain : -2dBi Antenna B gain : -2dBi MIMO technology Directional gain=1.01dBi (gain of antenna in linear scale=1.26) 802.11 a/n/ac(HT20) 1.265745 1863.09570.01582 1 802.11 n/ac(HT40) 1.265755 1639.81070.00998 1 802.11 ac(HT80) 1.265775 1863.09570.01582 1 Power Density (mW/cm²) Limit (mW/cm²) ANT Gain(gain of antenna in linear scale) Protocol Channel Frequenc y (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW)

Thedistancebetweentheedgeoftheantennaandthefrontofthedeviceis21.5cm,thewidthoftheantennais1cm,andthe actualeffectivedistanceis20.5cm Antenna edge Humanbodyedge Distancefromantennatothe fronttopofthedeviceis20cm Highest point of front edgeofhumanface Antennahorizontal projectionheight 8cm 21.6cm Verticalview Antennahorizontalprojectionheight Thedistancebetweentheright side of the groove of the chin support seat and the ruler is 0.6cm 0.6cm Built-in magnet in support seat, rulerisattracted bymagnet 0.6cm mindistancefromantennatothe humanbodyofthedeviceis20.6cm EUT’sfronttoptothe frontbottomandthe grooveofthechin supportseatisbevel EUT’sfrontbottom frontbottom

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No:STS1912036W03 Issued for Shanghai Meitu Comprehensive Health Management Limited Company Room 3114, No.26, Guoding Road, Yangpu District, Shanghai, China Product Name: meitueve Brand Name: meitu Model Name: MS1902 Series Model: N/A FCC ID: 2AVIV-MS1902 Test Standard: FCC Part 15.407 S T L A B S Page 2 of 52 Report No.: STS1912036W03 TEST RESULT CERTIFICATION Applicant’s Name ................. : Shanghai Meitu Comprehensive Health Management Limited Company Address ................................. : Room 3114, No.26, Guoding Road, Yangpu District, Shanghai, China Manufacture's Name ............ : Kingtronics Corporation Of Elec.& Mech. Technology (Zhangzhou) Co., Ltd. Address ................................. : No.20 Longchi Road, Longchi Industrial Park, Zhangzhou Taiwanese Investment Zone, Fujian, China Product Description Product Name ........................ : meitueve Brand Name ......................... : meitu Model Name .......................... : MS1902 Series Model .......................... : N/A Test Standards ..................... : FCC Part15.407 Test Procedure ..............................ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date of receipt of test item ...................... : 10 Dec. 2019 Date (s) of performance of tests ............. : 10 Dec. 2019 ~ 20 Dec. 2019 Date of Issue ........................................... : 20 Dec. 2019 Test Result ............................................... : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sunday Hu) Authorized Signatory: (Vita Li) Page 3 of 52 Report No.: STS1912036W03 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 6
1.1 TEST FACTORY 7
1.2 MEASUREMENT UNCERTAINTY 7
2 . GENERAL INFORMATION 8
2.1 GENERAL DESCRIPTION OF THE EUT 8
2.2 DESCRIPTION OF TEST MODES 11
2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12
2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 13
2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 14
3 . EMC EMISSION TEST 15
3.1 CONDUCTED EMISSION MEASUREMENT 15
3.2 RADIATED EMISSION AND ( BANDEDGE) MEASUREMENT 19
4. CONDUCTED SPURIOUS EMISSIONS AND BANDEDGE 34
4.1 LIMIT 34
4.2 TEST PROCEDURE 34
4.3 DEVIATION FROM STANDARD 34
4.4 TEST SETUP 35
4.5 EUT OPERATION CONDITIONS 35
4.6 TEST RESULTS 35
5. POWER SPECTRAL DENSITY TEST 36
5.1 LIMIT 36
5.2 TEST PROCEDURE 36
5.3 DEVIATION FROM STANDARD 37
5.4 TEST SETUP 37
5.5 EUT OPERATION CONDITIONS 37
5.6 TEST RESULTS 37
6. BANDWIDTH MEASUREMENT 39
6.1 EMISSION BANDWIDTH (EBW) 26 BANDWID PROCEDURES / LIMIT 39
6.2 OCCUPIED BANDWIDTH ( 99%) TEST APPLIED PROCEDURES / LIMIT 41
6.3 MINIMUM EMISSION BANDWIDTH(6 DB) PROCEDURES / LIMIT 43
7. MAXIMUM CONDUCTED OUTPUT POWER 45
7.1 LIMIT 45
7.2 TEST PROCEDURE 45
7.3 DEVIATION FROM STANDARD 45
Page 4 of 52 Report No.: STS1912036W03 Table of Contents Page 7.4 TEST SETUP 45
7.5 EUT OPERATION CONDITIONS 45
7.6 TEST RESULTS 46
8. AUTOMATICALLY DISCONTINUE TRANSMISSION 50
8.1 LIMIT OF AUTOMATICALLY DISCONTINUE TRANSMISSION 50
8.2 TEST RESULT OF AUTOMATICALLY DISCONTINUE TRANSMISSION 50
9. ANTENNA REQUIREMENT 51
9.1 STANDARD REQUIREMENT 51
9.2 EUT ANTENNA 51
APPENDIX - PHOTOS OF TEST SETUP 52
Page 5 of 52 Report No.: STS1912036W03 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 20 Dec. 2019 STS1912036W03 ALL Initial Issue Page 6 of 52 Report No.: STS1912036W03 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: § 15.407,KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 FCC Part 15.407 FCC standard Test Item Results 15.207 AC Conducted Emission PASS § 15.407 (2) (26 dB) / § 15.407 (e) (6 dB)/ § 15.407 (a) (99%) 26dB/6dB &99% Bandwidth PASS 15.407(a) (1).(2).(3).(4).(5) Maximum Conducted Output Power PASS 15.407(b)& 15.209 Radiated Emission And (bandedge Emissions) Measurement PASS 15.407(b)7 Conducted Emission And (bandedge Emissions) Measurement PASS 15.407(a) (1).(2).(3).(4).(5) Power Spectral Density PASS 15.407(c) Automatically Discontinue Transmission PASS 15.203/15.204 Antenna Requirement PASS NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 52 Report No.: STS1912036W03 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±6.7dB 4 All emissions, radiated 1G-6GHz ±5.5dB 5 All emissions, radiated>6G ±5.8dB 6 Conducted Emission (9KHz-150KHz) ±4.43dB 7 Conduct…

Text truncated - open the document above for the full version.

Page 1 of 10 Report No.: STS1912036W03 Conducted Spurious&Band edge Note: Antenna A Power> Antenna B Power, Both antenna A and B have been test, Only show the worst data of Antenna A WLAN-52 WLAN-52 W52_11a20_Lower_Conducted Spurious W52_11a20_Middle_Conducted Spurious W52_11a20_Higher_Conducted Spurious W52_11a20_Lower_Band edge W52_11a20_Higher_Band edge W52_11n20_Lower_Conducted Spurious Page 2 of 10 Report No.: STS1912036W03 WLAN-52 WLAN-52 W52_11n20_Middle_Conducted Spurious W52_11n20_Higher_Conducted Spurious W52_11n20_Lower_Band edge W52_11n20_Higher_Band edge W52_11n40_Lower_Conducted Spurious W52_11n40_Higher_Conducted Spurious Page 3 of 10 Report No.: STS1912036W03 WLAN-52 WLAN-52 W52_11n40_Lower_Band edge W52_11n40_Higher_Band edge W52_11ac20_Lower_Conducted Spurious W52_11ac20_Middle_Conducted Spurious W52_11ac20_Higher_Conducted Spurious W52_11ac20_Lower_Band edge Page 4 of 10 Report No.: STS1912036W03 WLAN-52 WLAN-52 W52_11ac20_Higher_Band edge W52_11ac40_Lower_Conducted Spurious W52_11ac40_Higher_Conducted Spurious W52_11ac40_Lower_Band edge W52_11ac40_Higher_Band edge W52_11ac80_CH42(5210MHz)_Conducted Spurious Page 5 of 10 Report No.: STS1912036W03 WLAN-52 WLAN-52 W52_11ac80_CH42(5210MHz)_Band edge_left W52_11ac80_CH42(5210MHz)_Band edge_Right Page 6 of 10 Report No.: STS1912036W03 WLAN-58 WLAN-58 W58_11a20_Lower_Conducted Spurious W58_11a20_Middle_Conducted Spurious W58_11a20_Higher_Conducted Spurious W58_11a20_Lower_Band edge W58_11a20_Higher_Band edge W58_11n20_Lower_Conducted Spurious Page 7 of 10 Report No.: STS1912036W03 WLAN-58 WLAN-58 W58_11n20_Middle_Conducted Spurious W58_11n20_Higher_Conducted Spurious W58_11n20_Lower_Band edge W58_11n20_Higher_Band edge W58_11n40_Lower_Conducted Spurious W58_11n40_Higher_Conducted Spurious Page 8 of 10 Report No.: STS1912036W03 WLAN-58 WLAN-58 W58_11n40_Lower_Band edge W58_11n40_Higher_Band edge W58_11ac20_Lower_Conducted Spurious W58_11ac20_Middle_Conducted Spurious W58_11ac20_Higher_Conducted Spurious W58_11ac20_Lower_Band edge Page 9 of 10 Report No.: STS1912036W03 WLAN-58 WLAN-58 W58_11ac20_Higher_Band edge W58_11ac40_Lower_Conducted Spurious W58_11ac40_Higher_Conducted Spurious W58_11ac40_Lower_Band edge W58_11ac40_Higher_Band edge W58_11ac80_Spurious_30M26BWG_5775M Page 10 of 10 Report No.: STS1912036W03 WLAN-58 WLAN-58 W58_11ac80_Band edge_Left W58_11ac80_Band edge_Right

Page 1 of 6 Report No.: STS1912036W03 Power Spectrum Density- Antenna A WLAN-52 WLAN-52 W52_11a20_Lower_Power Spectrum DensityW52_11a20_Middle_Power Spectrum Density W52_11a20_Higher_Power Spectrum DensityW52_11n20_Lower_Power Spectrum Density W52_11n20_Middle_Power Spectrum DensityW52_11n20_Higher_Power Spectrum Density Page 2 of 6 Report No.: STS1912036W03 WLAN-52 WLAN-52 W52_11n40_Lower_Power Spectrum DensityW52_11n40_Higher_Power Spectrum Density W52_11ac20_Lower_Power Spectrum DensityW52_11ac20_Middle_Power Spectrum Density W52_11ac20_Higher_Power Spectrum Density W52_11ac40_Lower_Power Spectrum Density Page 3 of 6 Report No.: STS1912036W03 WLAN-52 WLAN-52 W52_11ac40_Higher_Power Spectrum Density W52_11ac80_CH42(5210MHz)_Power Spectrum Density Page 4 of 6 Report No.: STS1912036W03 WLAN-58 WLAN-58 W58_11a20_Lower_Power Spectrum DensityW58_11a20_Middle_Power Spectrum Density W58_11a20_Higher_Power Spectrum DensityW58_11n20_Lower_Power Spectrum Density W58_11n20_Middle_Power Spectrum DensityW58_11n20_Higher_Power Spectrum Density Page 5 of 6 Report No.: STS1912036W03 WLAN-58 WLAN-58 W58_11n40_Lower_Power Spectrum DensityW58_11n40_Higher_Power Spectrum Density W58_11ac20_Lower_Power Spectrum DensityW58_11ac20_Middle_Power Spectrum Density W58_11ac20_Higher_Power Spectrum Density W58_11ac40_Lower_Power Spectrum Density Page 6 of 6 Report No.: STS1912036W03 WLAN-58 WLAN-58 W58_11ac40_Higher_Power Spectrum Density W58_11ac80_Power Density_5775M

Page 1 of 6 Report No.: STS1912036W03 Power Spectrum Density-Antenna B WLAN-52 WLAN-52 W52_11a20_Lower_Power Spectrum DensityW52_11a20_Middle_Power Spectrum Density W52_11a20_Higher_Power Spectrum DensityW52_11n20_Lower_Power Spectrum Density W52_11n20_Middle_Power Spectrum DensityW52_11n20_Higher_Power Spectrum Density Page 2 of 6 Report No.: STS1912036W03 WLAN-52 WLAN-52 W52_11n40_Lower_Power Spectrum DensityW52_11n40_Higher_Power Spectrum Density W52_11ac20_Lower_Power Spectrum DensityW52_11ac20_Middle_Power Spectrum Density W52_11ac20_Higher_Power Spectrum Density W52_11ac40_Lower_Power Spectrum Density Page 3 of 6 Report No.: STS1912036W03 WLAN-52 WLAN-52 W52_11ac40_Higher_Power Spectrum Density W52_11ac80_CH42(5210MHz)_Power Spectrum Density Page 4 of 6 Report No.: STS1912036W03 WLAN-58 WLAN-58 W58_11a20_Lower_Power Spectrum DensityW58_11a20_Middle_Power Spectrum Density W58_11a20_Higher_Power Spectrum DensityW58_11n20_Lower_Power Spectrum Density W58_11n20_Middle_Power Spectrum DensityW58_11n20_Higher_Power Spectrum Density Page 5 of 6 Report No.: STS1912036W03 WLAN-58 WLAN-58 W58_11n40_Lower_Power Spectrum DensityW58_11n40_Higher_Power Spectrum Density W58_11ac20_Lower_Power Spectrum DensityW58_11ac20_Middle_Power Spectrum Density W58_11ac20_Higher_Power Spectrum Density W58_11ac40_Lower_Power Spectrum Density Page 6 of 6 Report No.: STS1912036W03 WLAN-58 WLAN-58 W58_11ac40_Higher_Power Spectrum Density W58_11ac80_Power Density_5775M

Page 1 of 6 Report No.: STS1912036W03 26BW and 99% Note: Antenna A Power> Antenna B Power, Both antenna A and B have been test, Only show the worst data of Antenna A WLAN-52 WLAN-52 W52_11a20_Lower_26BW and 99% W52_11a20_Middle_26BW and 99% W52_11a20_Higher_26BW and 99% W52_11n20_Lower_26BW and 99% W52_11n20_Middle_26BW and 99% W52_11n20_Higher_26BW and 99% Page 2 of 6 Report No.: STS1912036W03 WLAN-52 WLAN-52 W52_11n40_Lower_26BW and 99% W52_11n40_Higher_26BW and 99% W52_11ac20_Lower_26BW and 99% W52_11ac20_Middle_26BW and 99% W52_11ac20_Higher_26BW and 99% W52_11ac40_Lower_26BW and 99% Page 3 of 6 Report No.: STS1912036W03 WLAN-52 WLAN-52 W52_11ac40_Higher_26BW and 99% W52_11ac80_CH42(5210MHz)_26BW and 99% Page 4 of 6 Report No.: STS1912036W03 WLAN-58 WLAN-58 W58_11a20_Lower_26BW and 99% W58_11a20_Middle_26BW and 99% W58_11a20_Higher_26BW and 99% W58_11n20_Lower_26BW and 99% W58_11n20_Middle_26BW and 99% W58_11n20_Higher_26BW and 99% Page 5 of 6 Report No.: STS1912036W03 WLAN-58 WLAN-58 W58_11n40_Lower_26BW and 99% W58_11n40_Higher_26BW and 99% W58_11ac20_Lower_26BW and 99% W58_11ac20_Middle_26BW and 99% W58_11ac20_Higher_26BW and 99% W58_11ac40_Lower_26BW and 99% Page 6 of 6 Report No.: STS1912036W03 WLAN-58 WLAN-58 W58_11ac40_Higher_26BW and 99% W58_11ac80_26BW_99%_Bandwidth_5775M

Page 1 of 3 Report No.: STS1912036W03 6BW Note: Antenna A Power> Antenna B Power, Both antenna A and B have been test, Only show the worst data of Antenna A WLAN-58 WLAN-58 W58_11a20_Lower_6BW W58_11a20_Middle_6BW W58_11a20_Higher_6BW W58_11n20_Lower_6BW W58_11n20_Middle_6BW W58_11n20_Higher_6BW Page 2 of 3 Report No.: STS1912036W03 WLAN-58 WLAN-58 W58_11n40_Lower_6BW W58_11n40_Higher_6BW W58_11ac20_Lower_6BW W58_11ac20_Middle_6BW W58_11ac20_Higher_6BW W58_11ac40_Lower_6BW Page 3 of 3 Report No.: STS1912036W03 WLAN-58 WLAN-58 W58_11ac40_Higher_6BW W58_11ac80_-6_Bandwidth_5775M
