2AVIZ-H001ANC Headset

Trulyway Electronic Development Co.,Ltd

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Jun 09, 2020
Application Purpose: Original Equipment
Date of Application: Jun 09, 2020
Equipment Note: ANC Headset
Frequency Range: 2402.00000000 - 2480.00000000
Company: Trulyway Electronic Development Co.,Ltd
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

ANC Headset H001 T.S. Pioneer I Solution:CSR8635 Version:5.0 Protocol:HSP/HFP/A2DP/AVRCP Music Playback Time (ANC off): 25- 30 hours Talk Time (ANC off):25-30 hours Range:10meters Frequency Range: 20Hz-20kHz Speaker Impedance: 32Ω Charging Time:1.5-2 hours Battery Capacity:3.7V/500mAh Specifications Features 1. ANC Active Noise Cancelation: feedforward and feedback noise cancelling, effective noise reduction. 2. Wireless Stereo:Support wireless devices and support stereo music. 3. Handsfree: CVC voice calling. 4. Auto-reconnect: Auto-reconnect after power on if connected before. 5. Compatibility: Compatible to most of wireless devices in the market. 6. Rotatable,Retractable: suitable for most of head style of people, comfortable wearing. 7. Long standby time: Powerful battery life. ※Please read carefully the manual before using and keep it as a record Know Your Headset ①②③④⑤⑥⑦⑧ ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ User Manual ANC ON/OFF ANC Indicator 3.5mm Audio Port Type-C Charging Port VOL- / Previous Song MFB (Multi-Function Button) VOL+ / Next Song Indicator Package Content 1. Wireless headset 2. User manual 3. USB to Type-C Charging cable 4. 3.5mm audio cable Headset Pair with Smart Phone CMCC 12:20 Bluetooth Bluetooth Device Name: T.S. Pioneer I ①②③ Power onPairingANC on Press and hold the MFB" " 5 sec until the red and blue light flash in turns. Headset pairs with smart phone, Voice prompt: "Your device is connected", the light remains blue. Slide the switch to the top to turn on the ANC, the light remains green. Scalable, to fit different types of head, make sure to wear comfortable Scalable Product Instruction Power off: In the state of power-on, press and hold the MFB" " at least 3 sec, the red light will flash once and with the voice prompt of "power off ". Paring: In the state of power-off, press and hold the MFB" " at least 5 sec until the red and blue light flash in turns, then you will hear the voice prompt "Pairing", then you can connect with your phone. Pairing status: Voice prompt: "Pairing", red light and blue light flash in turns. Connected: Voice prompt: "Your device is connected", blue light flashes slowly. Disconnected: Voice prompt: "Your device is disconnected ", blue light flashes twice every second. Last number redial: Press MFB" " twice when headset is standby, it will redial the last number. Answer/end phone calls: Press MFB" " once to answer the phone call. Press MFB" " once to end the phone call. Reject the phone calls: Press MFB" " twice to reject the phone call. Play/pause: Press MFB" " once to play/pause the music. Previous song/next song: While listening to the music, press and hold " " button to skip to the previous song. Press and hold " " button to skip to the next song. Attention Lower battery warning/Power off: When the headset is low battery, the right LED indicator will flash red continuously with the voice prompt "low battery" every 3 minutes. When the battery runs out, the headset will power off. Indicator: When charging, the light remains red. When full-charged, The indicator light will change from red to blue. Noise Cancelling: Slide the switch to the top to turn on the ANC, the light remains green. Slide the switch to the bottom to turn off ANC, the green light is off. ※The headset will power off if there is no connection within 5 minutes. 1. When use the audio cable to connect this headset with the device, the function of this wireless headset is same as the wired type. The ANC button is still working while all other buttons become disabled. 2. If headset doesn't work, please check if the battery is exhausted, please charge it fully first. 3. To guarantee the battery life, please power off the headset if not in using. Please charge the headset with the equipped cable. 4. Please charge the headset if not in using for long time. 5. Please don't change the built-in battery by yourself. 6. Please don't put the headset under wet or rainy place. 7. Please don't expose the headset under the blazing sun or over 45°C, not mention to fire to avoid battery accident. 8. Please don't twist the headset in reverse direction. 9. Please don't disassemble the headset if unprofessional. 10. When headset is not using state, please turn off the ANC switch to avoid loss of power. Volume up/volume down: While playing the music, short press " " button to reduce the volume. Short press " " button to increase the volume. 头戴式无线降噪耳机芯片方案:CSR8635 蓝牙版本:5.0 支持协议:HSP/HFP/A2DP/AVRCP 音乐播放时间(ANC关闭): 25-30小时通话时间(ANC关闭):25-30 小时传输距离:10米频响范围: 20Hz-20kHz 喇叭: 32Ω 充电时间:1.5-2小时电池容量:3.7V/500mAh 规格参数产品特点 1.ANC主动降噪：前馈+反馈混合降噪，有效减缓周围环境的噪声。 2.无线立体声：支持无线设备并支持立体声音乐。 3.免提功能：CVC高清语音通话。 4.自动重新连接：如果之前已连接，则开机后自动重新连接。 5.超强的兼容性：兼容市场上的大多数无线设备。 6.舒适佩戴：耳机可旋转和伸缩，适合不同用戶的头型，佩戴舒适且稳固。 7.超⻓待机：超⻓续航。 ※请在使用前仔细阅读本说明书，并保存备用。耳机图示 ①②③④⑤⑥⑦⑧ ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ 说明书主动降噪开关主动降噪指示灯 3.5mm音频口 Type-C充电…

Text truncated - open the document above for the full version.

Attestation Statements

Trulyway Electronic Development Co., Ltd 4th Floor, A Building, No. 268 of Baoshi East Road, Baoan District, Shenzhen, Guangdong, China Statement Product: ANC Headset Model: H001 Additional Model: T.S. Pioneer I, H1 Trademark: N/A We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2020/06/05 Name: Paul Xu Company Name: Trulyway Electronic Development Co., Ltd Address: 4th Floor, A Building, No. 268 of Baoshi East Road, Baoan District, Shenzhen, Guangdong, China Tel / Fax: +86-0755-85273779/+86-0755-85273779 E-Mail: [email protected]

Cover Letter(s)

Trulyway Electronic Development Co., Ltd 2020-06-05 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Tongce Testing Lab. / 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Trulyway Electronic Development Co., Ltd / 4th Floor, A Building, No. 268 of Baoshi East Road, Baoan District, Shenzhen, Guangdong, China (Applicant Name and address) <Signature> Name: Paul Xu Title: N/A Applicant Company: Trulyway Electronic Development Co., Ltd

Cover Letter(s)

Trulyway Electronic Development Co., Ltd 2020-06-05 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AVIZ-H001 Product Name: ANC Headset Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Paul Xu Title: N/A Company: Trulyway Electronic Development Co., Ltd

External Photos

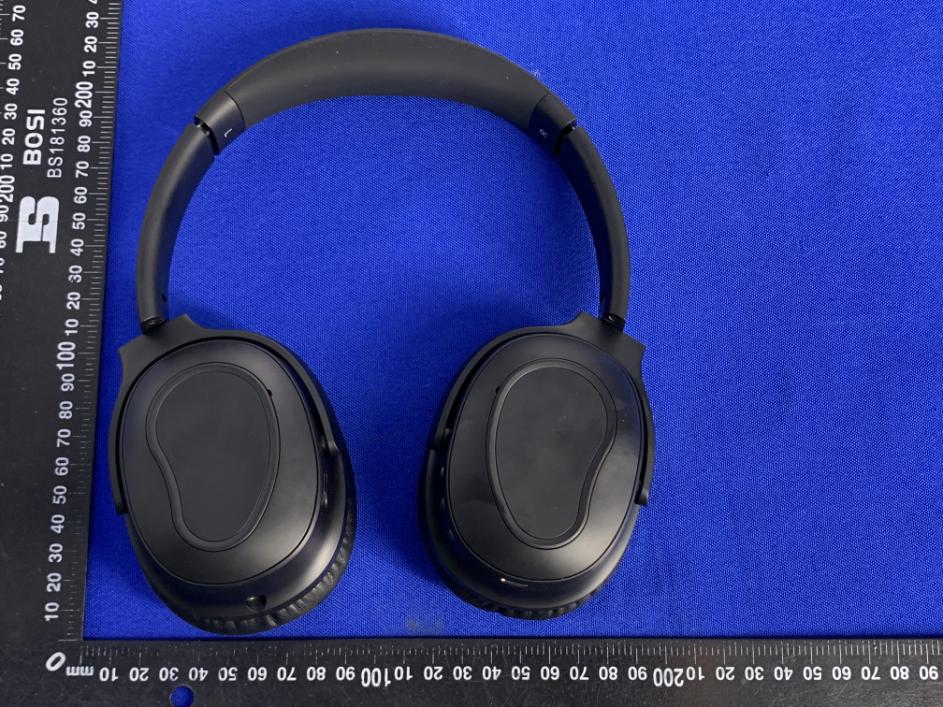

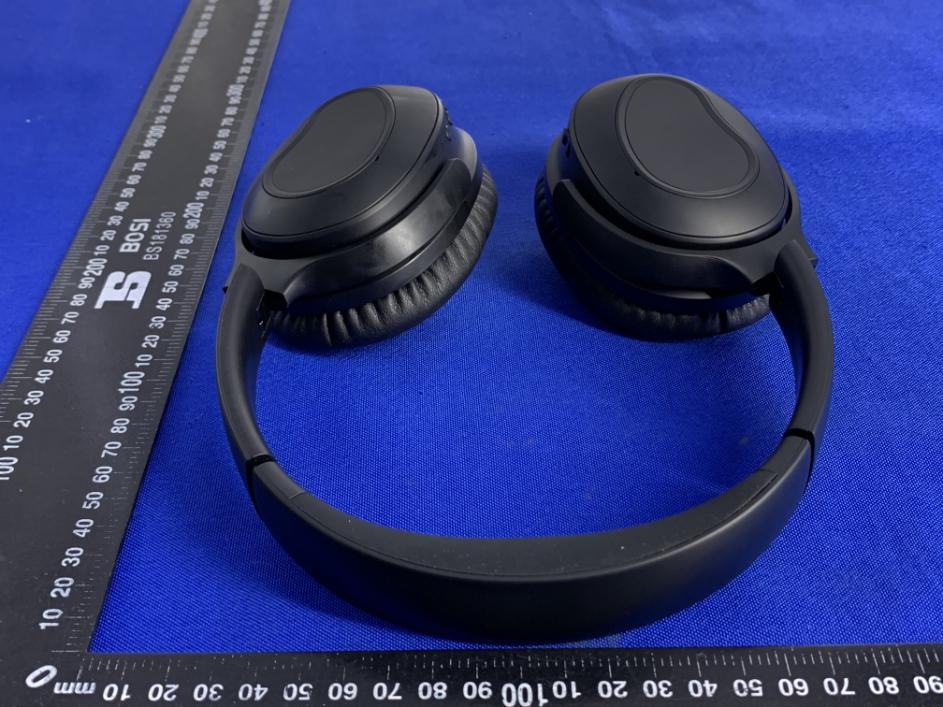

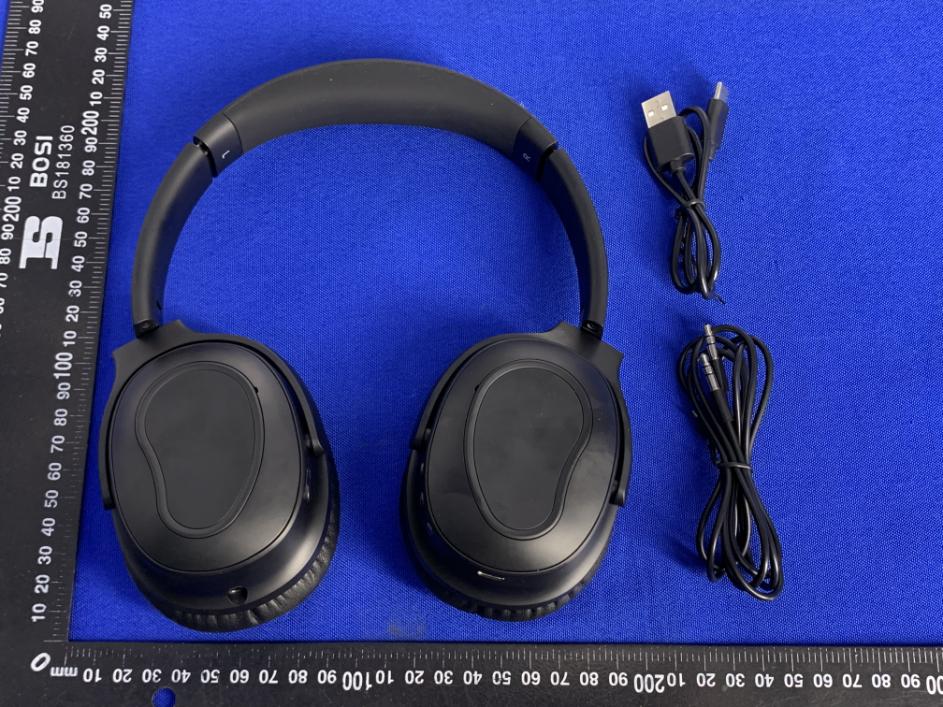

Page 1 of 4 Appendix B: Photographs of EUT Product: ANC Headset Model: H001 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

ID Label/Location Info

Label Artwork and Location Model: H001 Label: Size: L*W=30*20mm ANC Headset Model: H001 FCC ID: 2AVIZ-H001 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Location

Internal Photos

Page 1 of 5 Appendix B: Photographs of EUT Product: ANC Headset Model: H001 Internal Photos Antenna Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5

RF Exposure Info

RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison For BDR+EDR: Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 78 2.480 3.96 4±1 5 3.16 5 1.0 3.0 For BLE: Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 39 2.480 5.15 5±1 6 3.98 5 1.25 3.0 Result: Base on the calculation value, No SAR measurement is required.

Test Report

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AVIZ-H001 Product: ANC Headset Model No.: H001 Additional Model No.: T.S. Pioneer I, H1 Trade Mark: N/A Report No.: TCT200522E005 Issued Date: Jun. 04, 2020 Issued for: Trulyway Electronic Development Co., Ltd 4th Floor, A Building, No. 268 of Baoshi East Road, Baoan District, Shenzhen, Guangdong, China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200522E005 Page 2 of 65 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 6 4.1. Test environment and mode ................................................................................. 6 4.2. Description of Support Units ................................................................................ 6 5. Facilities and Accreditations .................................................................. 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty ..................................................................................... 7 6. Test Results and Measurement Data ..................................................... 8 6.1. Antenna requirement ............................................................................................ 8 6.2. Conducted Emission ............................................................................................. 9 6.3. Conducted Output Power ................................................................................... 13 6.4. 20dB Occupy Bandwidth .................................................................................... 18 6.5. Carrier Frequencies Separation ......................................................................... 23 6.6. Hopping Channel Number .................................................................................. 28 6.7. Dwell Time ............................................................................................................ 31 6.8. Pseudorandom Frequency Hopping Sequence ................................................ 36 6.9. Conducted Band Edge Measurement ................................................................ 37 6.10. Conducted Spurious Emission Measurement ................................................. 41 6.11. Radiated Spurious Emission Measurement .................................................... 45 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT200522E005 Page 3 of 65 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: ANC Headset Model No.: H001 Additional Model No.: T.S. Pioneer I, H1 Trade Mark: N/A Applicant: Trulyway Electronic Development Co., Ltd Address: 4th Floor, A Building, No. 268 of Baoshi East Road, Baoan District, Shenzhen, Guangdong, China Manufacturer: Trulyway Electronic Development Co., Ltd Address: 4th Floor, A Building, No. 268 of Baoshi East Road, Baoan District, Shenzhen, Guangdong, China Date of Test: May 23, 2020 – Jun. 03, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Jun. 03, 2020 Kevin Huang Reviewed By: Date: Jun. 04, 2020 Beryl Zhao Approved By: Date: Jun. 04, 2020 Tomsin Report No.: TCT200522E005 Page 4 of 65 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna Requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(1) PASS 20dB Occupied Bandwidth §15.247 (a)(1) PASS Carrier Frequencies Separation §15.247 (a)(1) PASS Hopping Channel Number §15.247 (a)(1) PASS Dwell Time §15.247 (a)(1) PASS Radiated Emission §15.205/§15.209 PASS Band Edge §15.247(d) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT200522E005 Page 5 of 65 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: ANC Headset Model No.: H001 Additional Model No.: T.S. Pioneer I, H1 Trade Mark: N/A Bluetooth Version: V5.0 (This report is for BDR + EDR) Operation Frequency: 2402MHz~2480MHz Transfer Rate: 1/2/3 Mbits/s Number …

Text truncated - open the document above for the full version.

Test Setup Photos

Page 1 of 2 Appendix A: Photographs of Test Setup Product: ANC Headset Model: H001 Radiated Emission Page 2 of 2 Conducted Emission
