2AVJJ616R616R Remote controller

❶ Press and hold for 2 Seconds with Remote controller(push button) until it show 1 LED lights (Low heat). ❷ Tap ( click once) click or push the push button to select your desired temperature ❸ Press and hold the push button on the remote controller for 2 seconds the Indicator lights will turn off. 1. Check remote controller battery level: ❶ Click the push button on the remote controller. ❷ The indicator light will flash briefly to indicate remaining charge: 2. Charging your wristband remote controller ❶ Push wristband remote controller onto charging stand. ❷ Connect with USB charging cable. ❸ Connect USB charging cable to an adaptor, and plug into a power outlet. 1. When the remote control charge reaches 30%, one of the LEDs will stop flashing (the other two LEDs flash alternately.) 2. When the remote control charge reaches 60%, the two LEDs stop flashing (one LED will remain flashing.) Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Matsum Inc DBA: Venture Heated Clothing Date: 21 Jan 2020 TO:​Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2AVJJ616R To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou branch and Kobe Jian in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Matsum Inc DBA: Venture Heated Clothing. This authorization is valid until further written notice from the applicant. Name (Printed): Edward Chen Title: General Manager Signature: On behalf of Company: Matsum Inc DBA: Venture Heated Clothing

Matsum Inc DBA: Venture Heated Clothing To: ​SGS North America Inc. ​620 Old Peachtree Road ​SUITE 100 ​Suwanee, Georgia ​United States From:​Matsum Inc DBA: Venture Heated Clothing ​3621 Serpentine Drive 牧Los Alamitos ​California牧United States牧90720 ​ Regarding: ​Confidentiality Request regarding application for FCC ID: 2AVJJ616R LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Name (Printed): Edward Chen Title: General Manager Signature: On behalf of Company: Matsum Inc DBA: Venture Heated Clothing

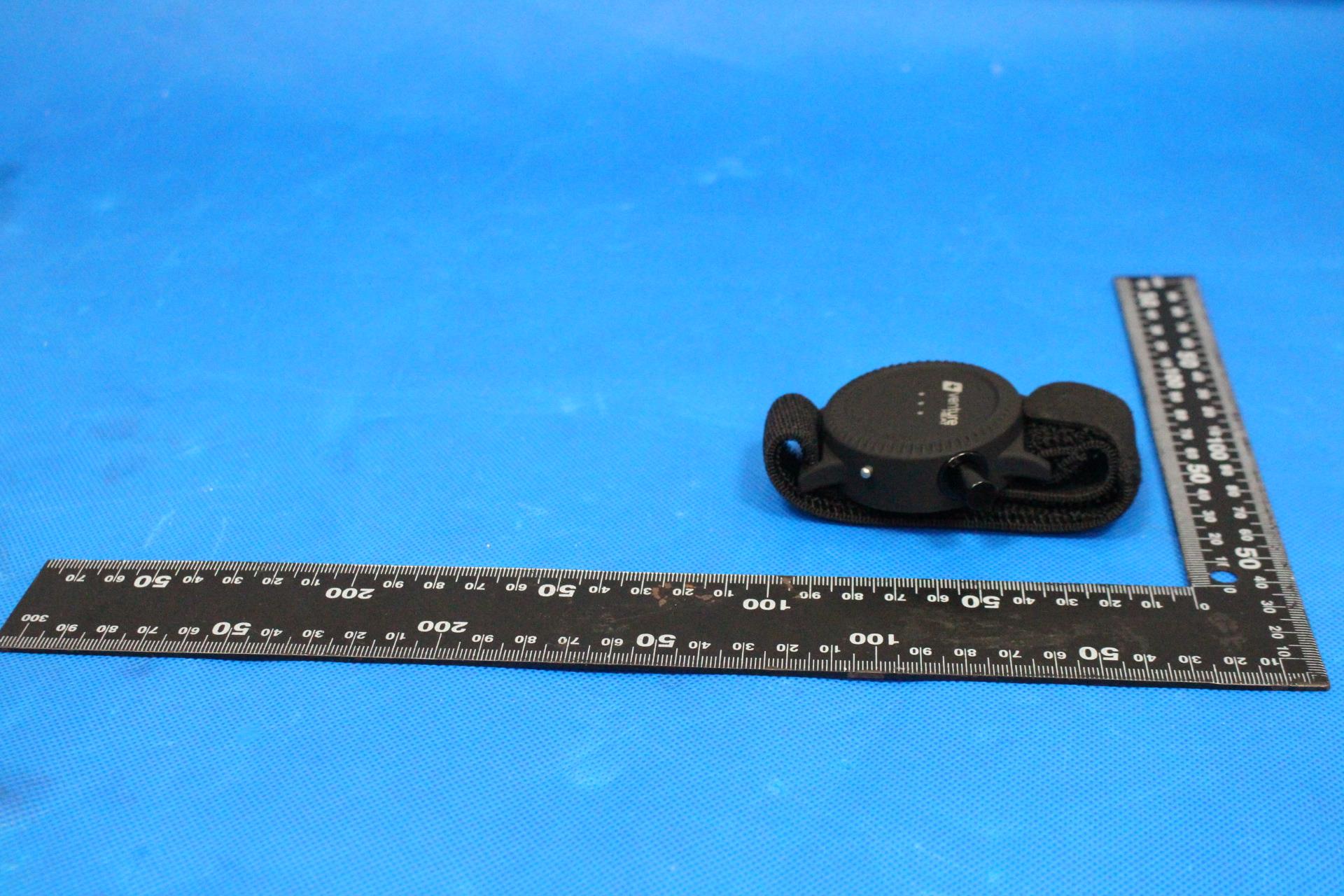

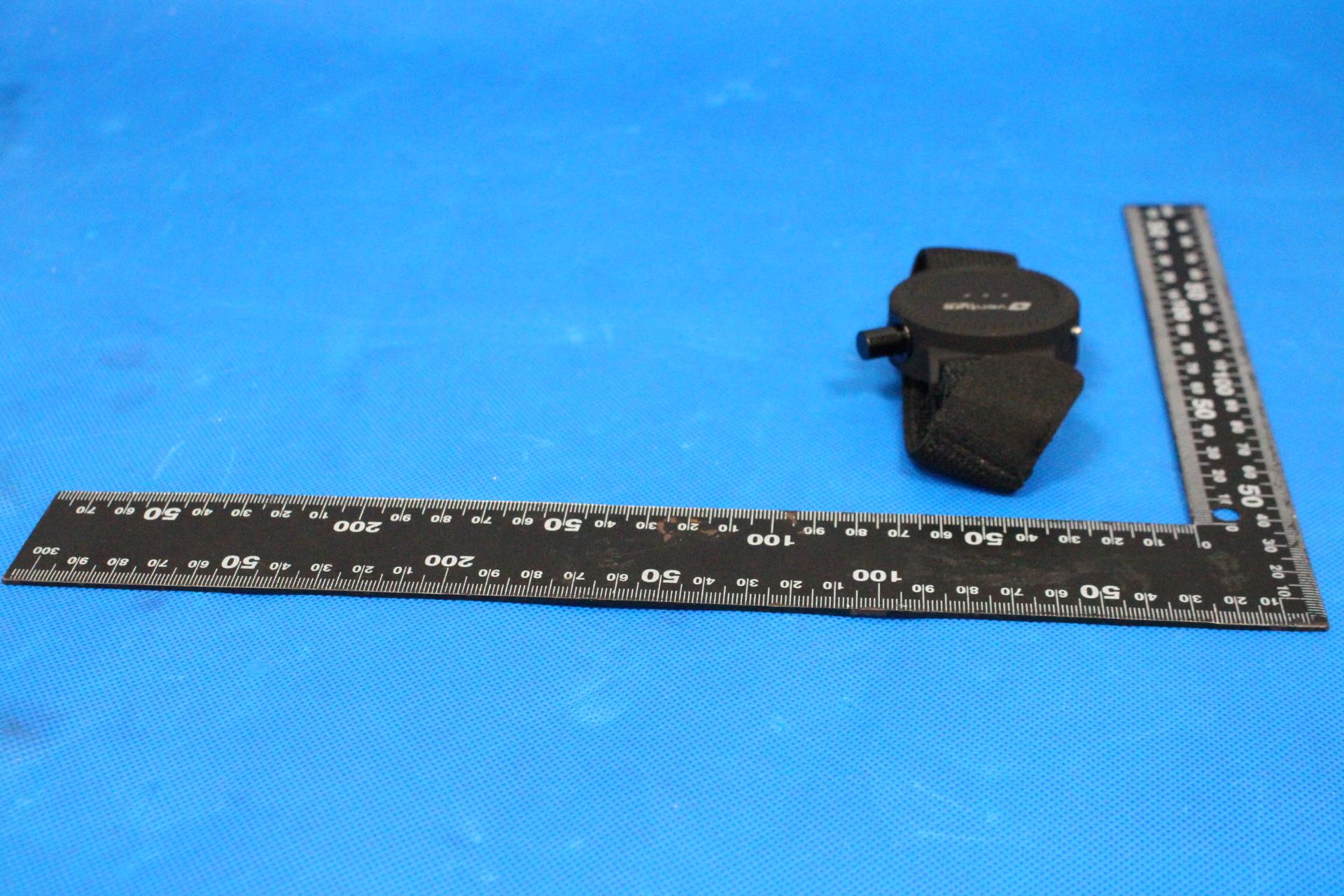

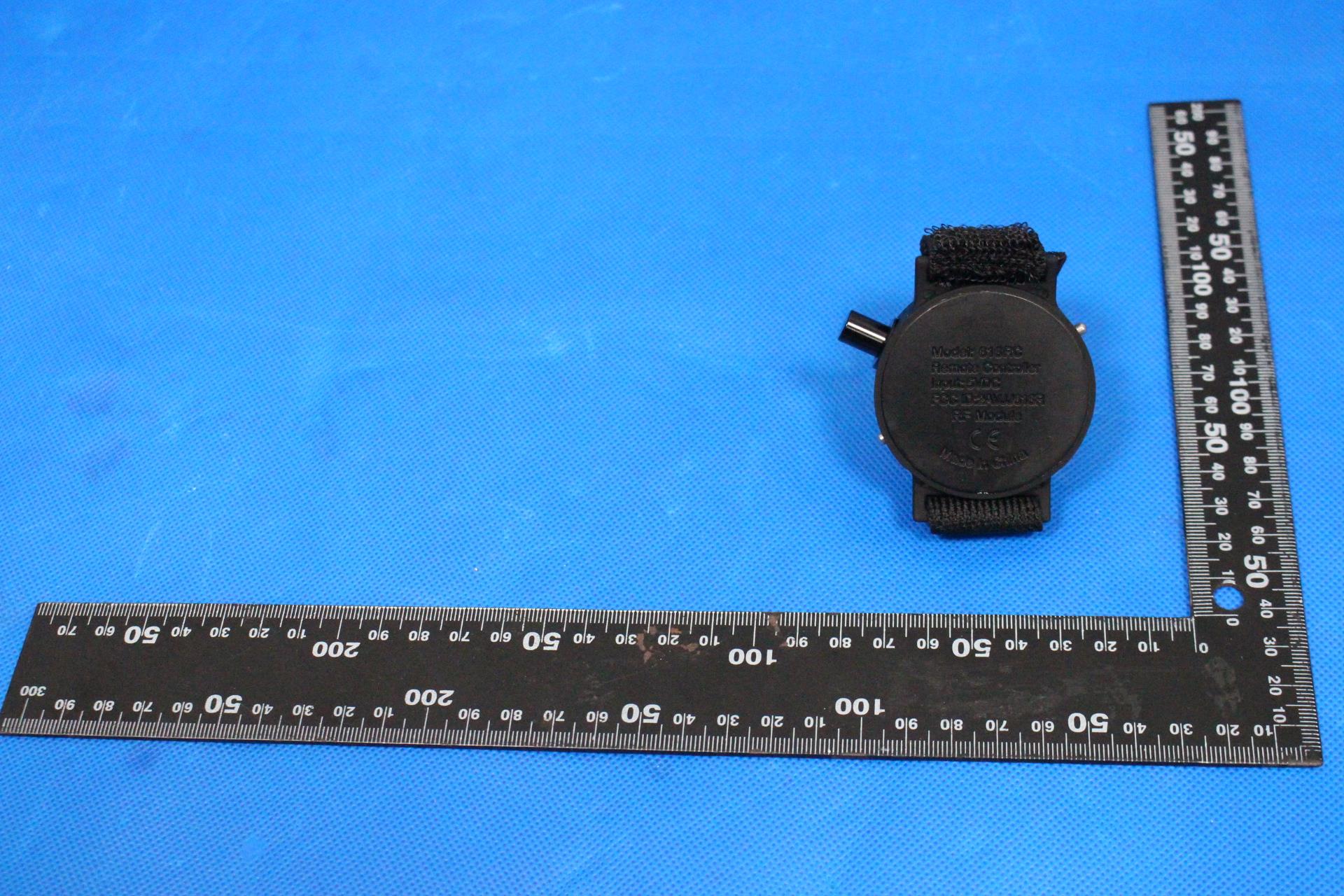

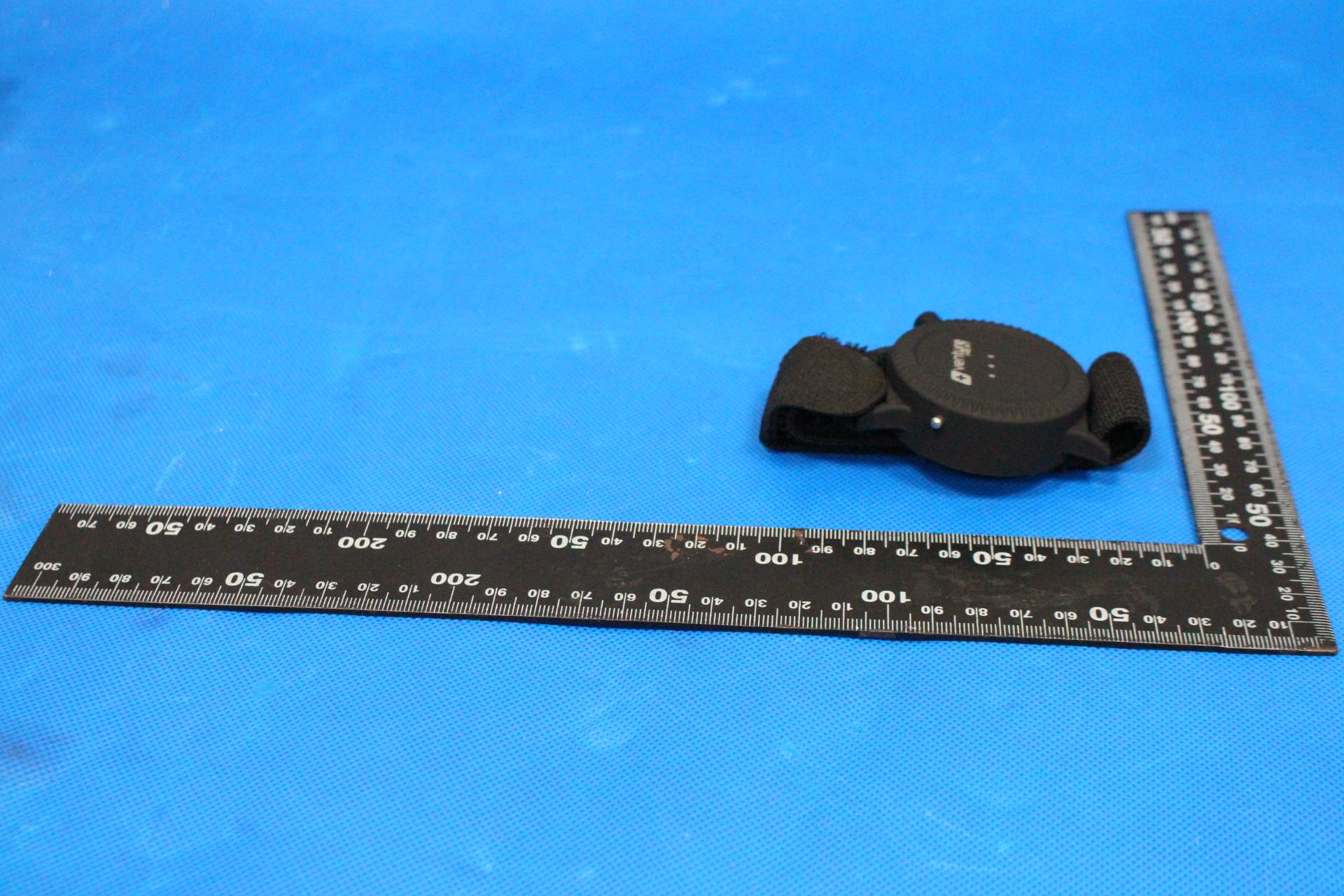

External Photo

Internal Photo

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200101036401 Page: 1 of 23 FCC ID: 2AVJJ616R Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZEM2001010364CR Applicant: Matsum Inc DBA Venture Heated Clothing Address of Applicant: 3621 Serpentine Drive, Los Alamitos, CA 90720, USA Manufacturer: MEC Addheat Co.,Ltd. Address of Manufacturer: No.2-1, Alley 1, Ln.116, Zhuang-jing Rd.East Dist. Tainan City, Taiwan Factory: MEC Addheat (Kaiping) Co.,Ltd. Address of Factory: Building 7, West Block, NO.1, West Lake Second Road, Cuishanhu New District, Kai Ping City, Guangdong, China 529300 Equipment Under Test (EUT): FCC ID: 2AVJJ616R EUT Name: 616RC Model No.: 616R Remote controller Standard(s): 47 CFR Part 15, Subpart C 15.209 Date of Receipt: 2020-01-21 Date of Test: 2020-02-24 to 2020-03-06 Date of Issue: 2020-03-10 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200101036401 Page: 2 of 23 Revision Record Version Chapter Date Modifier Remark 01 2020-03-10 Original Authorized for issue by: Tested By 2020-02-24 to 2020-03-06 Curry_Wu /Project Engineer Date Checked By 2020-03-10 Ricky_Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200101036401 Page: 3 of 23 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C N/A 47 CFR Part 15, Subpart C 15.203 Pass Radio Spectrum Matter Part Item Standard Method Requirement Result 20dB Bandwidth 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.9 47 CFR Part 15, Subpart C 15.215 Pass Field Strength of the Fundamental Signal 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.5 47 CFR Part 15, Subpart C 15.209 Pass Radiated Emissions (9kHz-30MHz) 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.4&6.5 47 CFR Part 15, Subpart C 15.209 Pass Radiated Emissions (30MHz-1GHz) 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.4&6.5 47 CFR Part 15, Subpart C 15.209 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200101036401 Page: 4 of 23 3 Contents Page 1 Cover Page .................................................................................................................................................... 1 2 Test Summary ............................................................................................................................................... 3 3 Contents ........................................................................................................................................................ 4 4 General Information ..................................................................................................................................... 5 4.1 Details of E.U.T. ..................................................................................................................................... 5 4.2 Description of Support Units .................................................................................................................. 5 4.3 Measurement Uncertainty ...................................................................................................................... 5 4.4 Test Location ......................................................................................................................................... 6 4.5 Test Facility ............................................................................................................................................ 7 4.6 Deviation from Standards ...................................................................................................................... 8 4.7 Abnormalities from Standard Conditions ............................................................................................... 8 5 Equipment List .............................................................................................................................................. 9 6 Radio Spectrum Technical Requirement ................................................................................................. 11 6.1 Antenna Requirement .......................................................................................................................... 11 6.1.1 Test Requirement: ........................................................................................................................... 11 6.1.2 Conclusion ....................................................................................................................................... 11 7 Radio Spectrum Matter Test Results ........................................................................................................ 12 7.1 20dB Bandwidth ................................................................................................................................... 12 7.1.1 E.U.T. Operation .............................................................................................................................. 12 7.1.2 Test Setup Diagram ......................................................................................................................... 12 7.1.3 Measurement Procedure and Data ................................................................................................ 13 7.2 Field Strength of the Fundamental Signal ........................................................................................... 14 7.2.1 E.U.T. Operation .............................................................................................................................. 14 7.2.2 Test Setup Diagram ......................................................................................................................... 14 7.2.3 Measurement Procedure and Data .......................…

Text truncated - open the document above for the full version.

Test Setup Photo 1.1 Radiated Emissions (9kHz-30MHz) Test Setup 1.2 Radiated Emissions (30MHz-1GHz) Test Setup
