2AVJY-P104002SELPIC Handy Printer

SELPIC Handy Printer FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. ISED Statement ‐ English: This device complies with Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES‐3(B) /NMB‐3(B). ‐ French: Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélec triquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement. This radio transmitter (ISED certification number: 25739-P104002) has been approved by Industry Canada to operate with the antenna types listed with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Le présent émetteur radio (ISED certification number: 25739-P104002) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal. Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.

GOCHIPSET (SHENZHEN) LIMITED Add: RM 2511, BLDG 4, TianAnYunGu Industrial Park Bantian ST, Longgang DIST, Shenzhen, China Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA <2020-08-14> Dear Sir/Madam, We, GOCHIPSET (SHENZHEN) LIMITED Hereby declares the following statement for FCC, PCB board, circuit, structure and internal of these models are the same, Only models number are different for these models: Product Name: SELPIC Handy Printer FCC ID: 2AVJY-P104002 Model Number(s): P1, P2, P3, P4, P5, P6, P7, P8, P9 Sincerely, Name: Chunpeng Li/Hardware Manager Company: GOCHIPSET (SHENZHEN) LIMITED Address: RM 2511, BLDG 4, TianAnYunGu Industrial Park Bantian ST, Longgang DIST, Shenzhen, China Phone: 13424318033 Fax: 0755-36886277 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-08-14> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Models name 2AVJY-P104002 P1, P2, P3, P4, P5, P6, P7, P8, P9 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Chunpeng Li/Hardware Manager Company: GOCHIPSET (SHENZHEN) LIMITED Address: RM 2511, BLDG 4, TianAnYunGu Industrial Park Bantian ST, Longgang DIST, Shenzhen, China Phone: 13424318033 Fax: 0755-36886277 E-Mail: [email protected]

GOCHIPSET (SHENZHEN) LIMITED Add: RM 2511, BLDG 4, TianAnYunGu Industrial Park Bantian ST, Longgang DIST, Shenzhen, China Date: <2020-08-14> FCC ID: 2AVJY-P104002 Model Number: P1, P2, P3, P4, P5, P6, P7, P8, P9 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, GOCHIPSET (SHENZHEN) LIMITED, declare that this EUT (FCC ID: 2AVJY-P104002) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name: Chunpeng Li/Hardware Manager Company: GOCHIPSET (SHENZHEN) LIMITED Address: RM 2511, BLDG 4, TianAnYunGu Industrial Park Bantian ST, Longgang DIST, Shenzhen, China Phone: 13424318033 Fax: 0755-36886277 E-Mail: [email protected]

GOCHIPSET (SHENZHEN) LIMITED Add: RM 2511, BLDG 4, TianAnYunGu Industrial Park Bantian ST, Longgang DIST, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/08/14 To whom it may concern: We, GOCHIPSET (SHENZHEN) LIMITED the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AVJY-P104002 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Chunpeng Li/Hardware Manager Company: GOCHIPSET (SHENZHEN) LIMITED Address: RM 2511, BLDG 4, TianAnYunGu Industrial Park Bantian ST, Longgang DIST, Shenzhen, China Phone: 13424318033 Fax: 0755-36886277 E-Mail: [email protected]

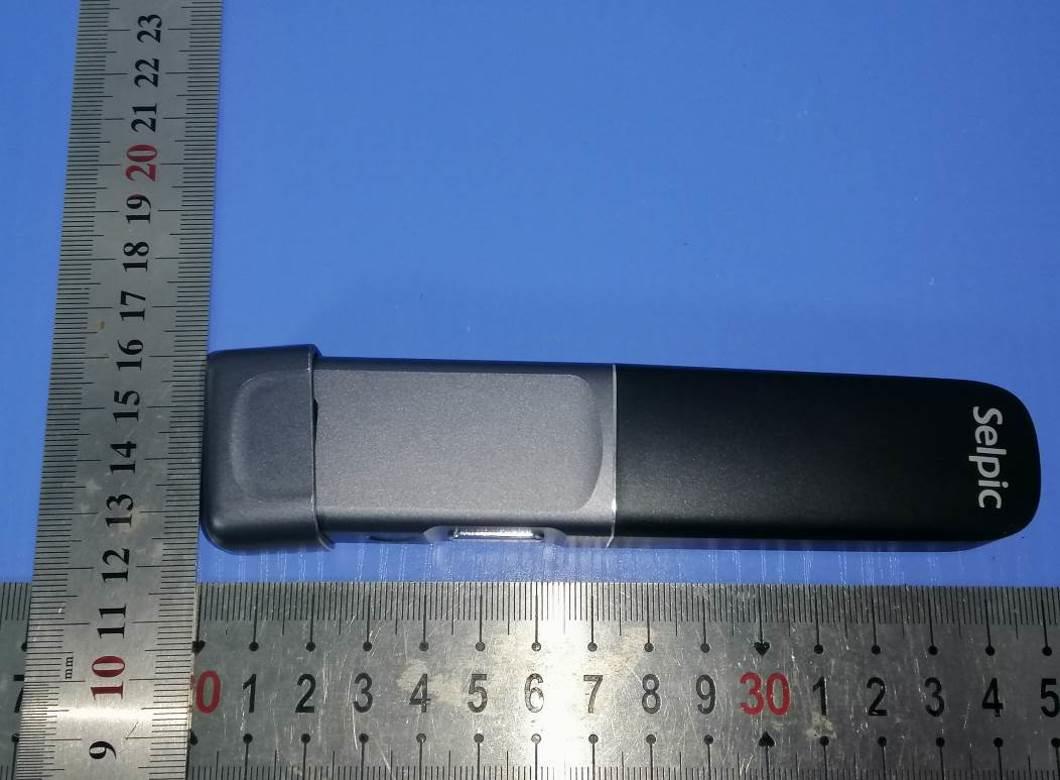

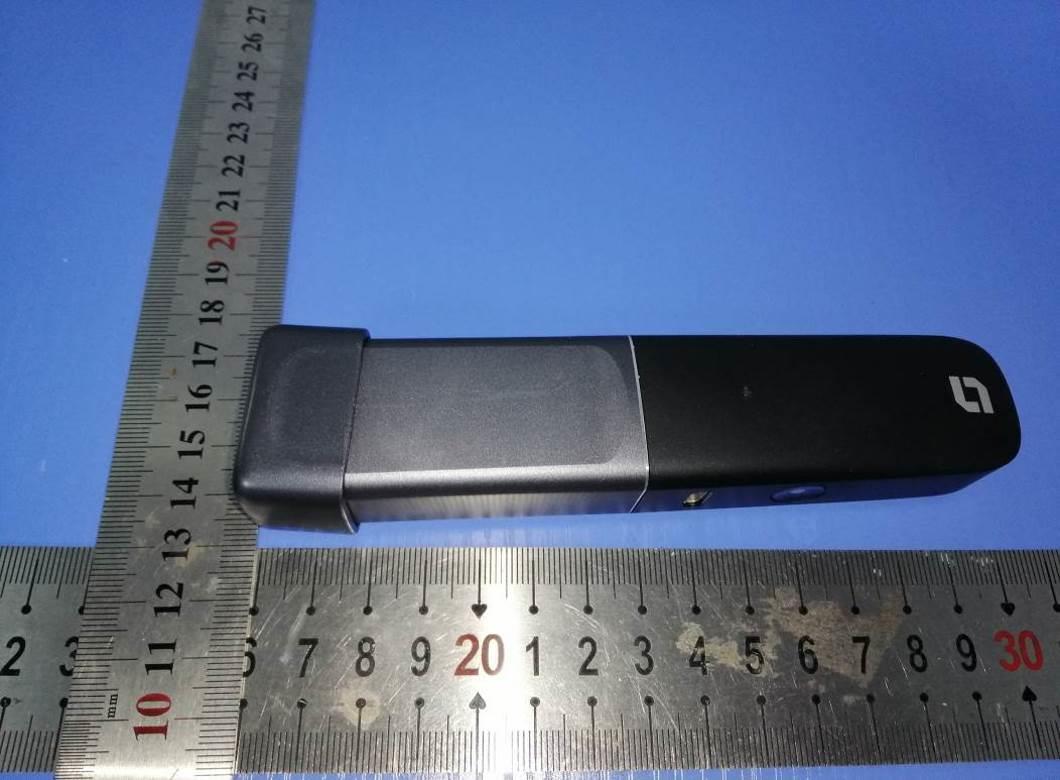

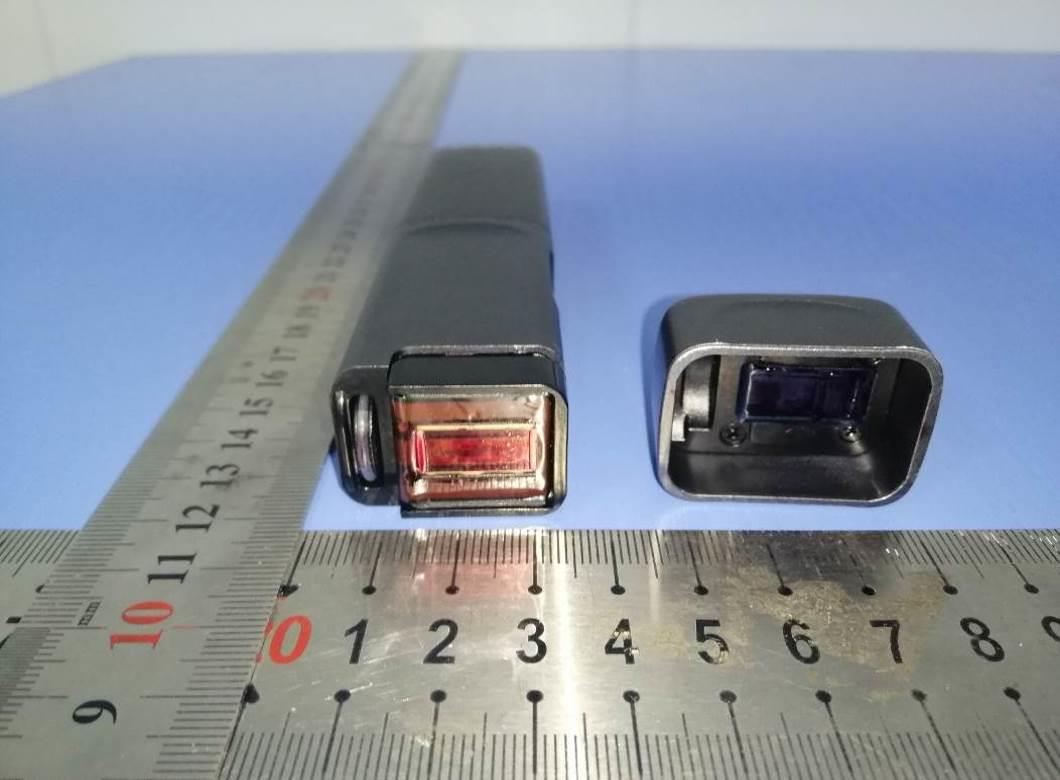

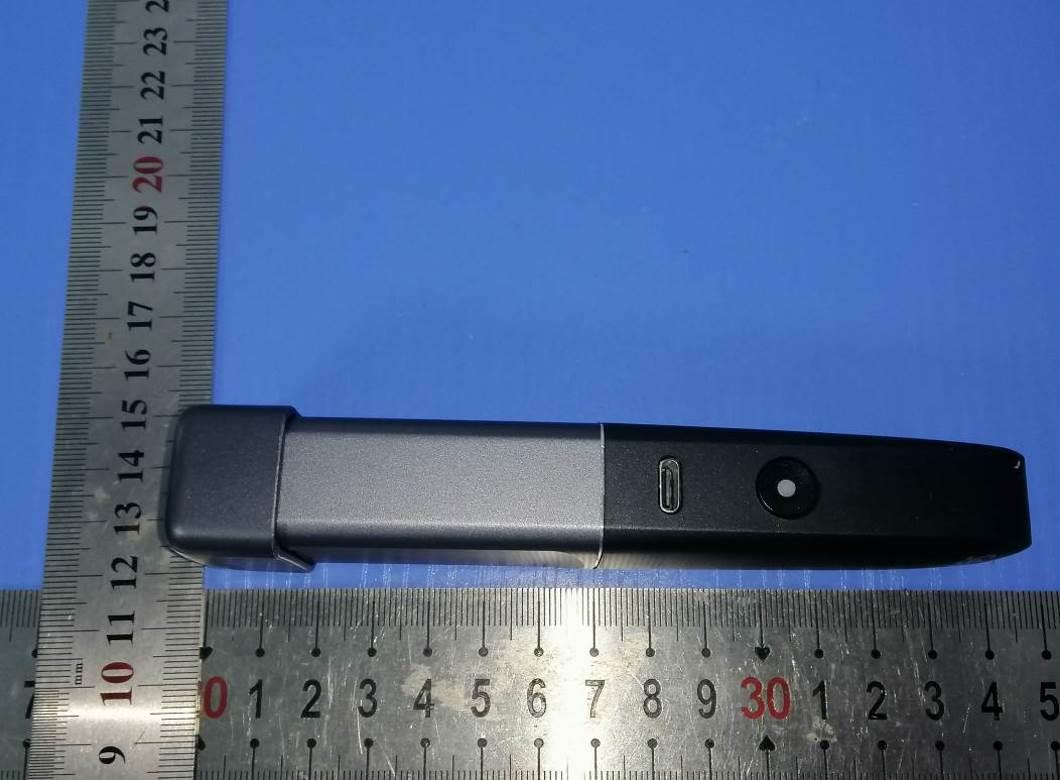

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location SELPIC Handy Printer Model No.: P1 FCC ID: 2AVJY-P104002 IC: 25739-P104002 HVIN: P1 SELPIC Handy Printer Model No.: P2 FCC ID: 2AVJY-P104002 IC: 25739-P104002 HVIN: P2 SELPIC Handy Printer Model No.: P3 FCC ID: 2AVJY-P104002 IC: 25739-P104002 HVIN: P3 SELPIC Handy Printer Model No.: P4 FCC ID: 2AVJY-P104002 IC: 25739-P104002 HVIN: P4 SELPIC Handy Printer Model No.: P5 FCC ID: 2AVJY-P104002 IC: 25739-P104002 HVIN: P5 SELPIC Handy Printer Model No.: P6 FCC ID: 2AVJY-P104002 IC: 25739-P104002 HVIN: P6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 1 Size: L3.0cm*W2.0cm Label Location SELPIC Handy Printer Model No.: P8 FCC ID: 2AVJY-P104002 IC: 25739-P104002 HVIN: P8 SELPIC Handy Printer Model No.: P7 FCC ID: 2AVJY-P104002 IC: 25739-P104002 HVIN: P7 SELPIC Handy Printer Model No.: P9 FCC ID: 2AVJY-P104002 IC: 25739-P104002 HVIN: P9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 6 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 6 Fig.3 Fig.4 BT/WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 6 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 6 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 6 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 6 of 6 Fig.11 Fig.12

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVJY-P104002 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AVJY-P104002 Product name SELPIC Handy Printer Model number P1 Power supply Input: 12V DC 7.4V by battery(210mAh) Operation frequency Bluetooth: 2402MHz-2480MHz WIFI: 2412MHz-2462MHz Modulation Type GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V4.2 (DSS) GFSK for Bluetooth V4.2 (DTS) IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Channel Number 79 Channels for Bluetooth 4.2 (DSS) 40 channels for Bluetooth 4.2 (DTS) 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 20MHz bandwidth (2422MHz ~2452MHz) Antenna Type PCB Antenna Antenna Gain 2.0 dBi(Max.) Hardware version P1_MB_V3.0 Software version P1_MB_V12 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Protable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVJY-P104002 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results [BT Max Conducted Power] Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 0.420 39 2441 -0.844 78 2480 -0.720 π/4DQPSK 0 2402 -1.257 39 2441 -0.707 78 2480 1.328 8DPSK 0 2402 -0.781 39 2441 1.460 78 2480 1.547 [BLE Max Conducted Power] Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -1.790 19 2440 -1.066 39 2480 -0.943 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVJY-P104002 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 [2.4GWIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Peak Conducted Power(dBm) IEEE 802.11b 1 2412 5.43 6 2437 5.46 11 2462 5.51 IEEE 802.11g 1 2412 5.54 6 2437 5.62 11 2462 5.76 IEEE 802.11n HT20 1 2412 5.45 6 2437 5.81 11 2462 5.90 IEEE 802.11n HT40 3 2422 5.11 6 2437 5.13 9 2452 5.15 5. Manufacturing tolerance BT GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 -1.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 -1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 BLE BT LE (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -1.0 -1.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 1 of 16 Appendix B RF Test Data for BT LE (Conducted Measurement) Product Name: SELPIC Handy Printer Trade Mark: SELPIC Test Model (HVIN): P1 Environmental Conditions Temperature: 23.2  C Relative Humidity: 54.5% ATM Pressure: 100.0 kPa Test Engineer: Qu Xin Supervised by: Li Huan B.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 2 of 16 B.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH -1.790 30 PASS BT LE MCH -1.066 30 PASS BT LE HCH -0.943 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 3 of 16 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 4 of 16 B.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -16.772 8 PASS BT LE MCH -16.254 8 PASS BT LE HCH -16.276 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 5 of 16 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 6 of 16 B.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6488 ≥0.5 PASS BT LE MCH 0.6571 ≥0.5 PASS BT LE HCH 0.6489 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 7 of 16 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 8 of 16 B.5 Occupied Bandwidth Mode Channel Occupied Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 1.0237 ≥0.5 PASS BT LE MCH 1.0259 ≥0.5 PASS BT LE HCH 1.0243 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 9 of 16 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 10 of 16 B.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH -2.314 -36.374 -22.314 PASS BT LE MCH -1.674 -37.103 -21.674 PASS BT LE HCH -1.523 -36.110 -21.523 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 11 of 16 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 12 of 16 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 13 of 16 B.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH -2.974 -49.918 -22.97 PASS BT LE HCH -1.929 -48.521 -21.93 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 14 of 16 B.8 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -42.65 2.0 0 54.58 PEAK 74 PASS Ant1 2310.0 -53.50 2.0 0 43.73 AV 54 PASS Ant1 2390.0 -42.91 2.0 0 54.32 PEAK 74 PASS Ant1 2390.0 -52.89 2.0 0 44.34 AV 54 PASS 2480 Ant1 2483.5 -41.82 2.0 0 55.41 PEAK 74 PASS Ant1 2483.5 -51.87 2.0 0 45.36 AV 54 PASS Ant1 2500.0 -41.01 2.0 0 56.22 PEAK 74 PASS Ant1 2500.0 -52.44 2.0 0 44.79 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 15 of 16 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 16 of 16 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 1 of 53 Appendix C RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: SELPIC Handy Printer Trade Mark: SELPIC Test Model (HVIN): P1 Environmental Conditions Temperature: 23.2  C Relative Humidity: 54.5% ATM Pressure: 100.0 kPa Test Engineer: Qu Xin Supervised by: Li Huan C.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 2 of 53 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 3 of 53 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 4 of 53 C.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 5.43 30 PASS MCH 5.46 30 PASS HCH 5.51 30 PASS 11G LCH 5.54 30 PASS MCH 5.62 30 PASS HCH 5.76 30 PASS 11N20SISO LCH 5.45 30 PASS MCH 5.81 30 PASS HCH 5.90 30 PASS 11N40SISO LCH 5.11 30 PASS MCH 5.13 30 PASS HCH 5.15 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 5 of 53 C.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -21.870 8 PASS MCH -21.584 8 PASS HCH -19.333 8 PASS 11G LCH -27.889 8 PASS MCH -27.271 8 PASS HCH -27.595 8 PASS 11N20SISO LCH -25.582 8 PASS MCH -26.492 8 PASS HCH -27.721 8 PASS 11N40SISO LCH -27.412 8 PASS MCH -27.242 8 PASS HCH -29.955 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 6 of 53 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 7 of 53 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 8 of 53 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 9 of 53 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 10 of 53 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 11 of 53 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 12 of 53 C.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 10.09 ≥0.5 PASS MCH 10.04 ≥0.5 PASS HCH 10.08 ≥0.5 PASS 11G LCH 16.50 ≥0.5 PASS MCH 16.51 ≥0.5 PASS HCH 16.49 ≥0.5 PASS 11N20SISO LCH 16.60 ≥0.5 PASS MCH 17.62 ≥0.5 PASS HCH 17.65 ≥0.5 PASS 11N40SISO LCH 36.51 ≥0.5 PASS MCH 36.51 ≥0.5 PASS HCH 36.50 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 13 of 53 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 14 of 53 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 15 of 53 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 16 of 53 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 17 of 53 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 18 of 53 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 19 of 53 C.5 Occupied Bandwidth Mode Channel Occupied Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 13.095 ≥0.5 PASS MCH 13.078 ≥0.5 PASS HCH 13.119 ≥0.5 PASS 11G LCH 16.778 ≥0.5 PASS MCH 16.795 ≥0.5 PASS HCH 16.776 ≥0.5 PASS 11N20SISO LCH 17.615 ≥0.5 PASS MCH 17.590 ≥0.5 PASS HCH 17.611 ≥0.5 PASS 11N40SISO LCH 36.535 ≥0.5 PASS MCH 36.434 ≥0.5 PASS HCH 36.530 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 20 of 53 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 21 of 53 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 22 of 53 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 23 of 53 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 24 of 53 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 25 of 53 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 26 of 53 C.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH -0.5 -38.607 -20.500 PASS MCH -0.99 -38.210 -20.990 PASS HCH -0.209 -37.293 -20.209 PASS 11G LCH -6.79 -38.316 -26.790 PASS MCH -7.356 -37.938 -27.356 PASS HCH -6.43 -37.599 -26.430 PASS 11N20 SISO LCH -6.867 -38.469 -26.867 PASS MCH -7.223 -38.144 -27.223 PASS HCH -6.489 -38.731 -26.489 PASS 11N40 SISO LCH -10.564 -37.537 -30.564 PASS MCH -10.927 -36.885 -30.927 PASS HCH -9.945 -37.726 -29.945 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 27 of 53 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 28 of 53 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 IC: 25739-P104002 Page 29 of 53 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 Report No.: LCS200616070AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 33 FCC TEST REPORT For GOCHIPSET (SHENZHEN) LIMITED SELPIC Handy Printer Test Model: P1 Additional Models No. : Please Refer To Page 6 Prepared for : GOCHIPSET (SHENZHEN) LIMITED Address : RM 2511, BLDG 4, TianAnYunGu Industrial Park Bantian ST, Longgang DIST, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 17, 2020 Number of tested samples : 1 Sample number : 200616070A Serial number : Prototype Date of Test : June 17, 2020 ~ July 01, 2020 Date of Report : July 03, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVJY-P104002 Report No.: LCS200616070AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 33 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200616070AEB Date of Issue .................................. : July 03, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, …

Text truncated - open the document above for the full version.
