2AVKK-TXA069Wireless network card

11AC Dual-band Wireless PCI-E Adapter User Manual Version 1.0 | 6/11/2015 11AC Dual-band Wireless PCI-E Adapter Table of Contents Chapter 1 Product Introduction ................................................................................................ 1 1.1 Product Overview ............................................................................................................ 1 1.2 Product Features ............................................................................................................. 1 1.3 Security Warning .............................................................................................................. 1 1.4 LED’s Description ............................................................................................................ 1 1.5 Package Contents ........................................................................................................... 2 Chapter 2 Installation Guide ...................................................................................................... 3 Chapter 3 Connect Wireless Network ..................................................................................... 6 Appendix: Technical Specifications ....................................................................................... 8 11AC Dual-band Wireless PCI-E Adapter Chapter 1 Product Introduction Congratulations on your purchasing of the 11AC Dual-band Wireless PCI-E Adapter. Before you install and use this product, please read this manual carefully for full exploiting the functions of this product . 1.1 Product Overview The product is a highly integrated and cost-effective Wireless Adapter that provides PCI Express interface, and full compliance with IEEE 802.11ac and IEEE 802.11a/b/g/n standards. Wireless transmission rates can reach up to 867Mbps. Using the Wireless Desktop PCI-E Adapter not only can you connect your desktop computer to a high-speed Wi-Fi network and experience faster files transmission and high-speed Internet browsing from further distances across your home than that in previous-generation Wireless G technology, but also you can enjoy high performance wireless viewing HD multimedia and real-time online war game when the PCI-E Adapter work in 11AC 5G mode. This Desktop PCI-E Adapter is the best choice for the desktop computer users who want to enjoy a better wireless performance and high-speed Wi-Fi network. 1.2 Product Features  Complies with IEEE 802.11ac, IEEE 802.11n and IEEE 802.11a/b/g standards  Supports PCI-E 1.1 X1 bus  Supports 20MHz/40MHz/80MHz bandwidth  Supports IEEE802.11e QoS Enhancement (WMM)  Supports IEEE802.11h TPC  Supports WAPI certified  Supports Cisco CCS  Supports multiple BSSID 1.3 Security Warning  Please install and use this product until you complete to read this user manual.  In order to guarantee the product to work correctly, please pay attention to the waterproofing and damp proofing.  Prevent some harmful substances (such as acid, alkali, etc).  Please do not use this product placed directly in the sun or other sources of heat.  If a failure occurs, please contact our customer service dept, do not open this product by yourself. 1.4 LED’s Description In the front of the wireless card, there is a status indicator. It will flash while a normal data communication. 11AC Dual-band Wireless PCI-E Adapter 1.5 Package Contents  11AC Dual-band Wireless PCI-E Adapter  Use CD-ROM  Warranty card 11AC Dual-band Wireless PCI-E Adapter Chapter 2 Installation Guide This section will teach you the process of installing the network adapter software package with including software CD. Take Windows XP Operating system as an example, installation steps for other operating systems are similar. 1. Please plug the wireless card into the computer's PCI-E Interface. 2. The “Found New hardware Wizard” dialog is coming here, we recommend you to select “Cancel” button, you can also click “Next”, Manual installation. (Figure 1) Figure 1 3. Before device installation, please install the software from the CD,Click on the “Setup” link to begin the installation. (Figure 2) Figure 2 4. The Setup Program will detect automatically the install drivers and correct software by itself. The customer is according to "drive to install a guide to carry on to gradually install". (Figure 3, 4, 5 and 6) 11AC Dual-band Wireless PCI-E Adapter Figure 3 Figure 4 11AC Dual-band Wireless PCI-E Adapter Figure 5 Figure 6 5. Click on “Finish”. The setup is already done. (Figure 7) Figure 7 11AC Dual-band Wireless PCI-E Adapter Chapter 3 Connect Wireless Network This section will teach you how to use Windows Built-in Wireless Configuration to connect to the wireless network. Please refer to the following steps: 1. Right click “Local Area Connect” icon in the Task bar, and select “View Available Wireless Networks”.(Figure 8) Figure 8 2. The screen displayed, the currently scanned wireless networks. If the one you want to connect has not been scanned, click “Refresh Network List” to update the network list. Select the wireless network you want to connect, and click “Connect” or double click this wireless network then click “Connect”.(Figure 9) Figure 9 11AC Dual-band Wireless PCI-E Adapter 3. The Wireless Network Connection box will appear. Enter the Network Key and click Connect.(Figure 10) Figure 10 4. When it shows “Connected” as the picture below, then you can enjoy wireless access to Internet now.(Figure 11) Figure 11 11AC Dual-band Wireless PCI-E Adapter Appendix: Technical Specifications Standards and Protocols IEEE 802.11AC, IEEE 802.11n, IEEE 802.11b, IEEE 802.11g, IEEE 802.11a PCI Bus PCI EXPRESS X1 Sensitivity @PER 5G_11ac HT80M_MCS9:-51dBm @10% PER HT40M_MCS7: -62dBm @10% PER HT20M_MCS7: -65dBm @10% PER 11N_2.4G HT40M_MCS7: -62dBm @10% PER HT20M_MCS7: -65dBm @10% PER OFDM_54M:-68dBm@10% PER 11b_11M:-81dBm@10% PER Transmit Power 20dBm (max) Antenna 2*5dBi removable omnidirectional antennas Transmission Rate 802.11…

Text truncated - open the document above for the full version.

Dongguan Tianxia Zhilian Industrial Co., LTD NO.10, South Industrial Zone Road, Humen Town, Dongguan City, Guangdong Province, China Tel: +86 173 8880 9330 E-mail: [email protected] Date: 2020/01/16 Dear Sir/Madam, We, Dongguan Tianxia Zhilian Industrial Co., LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Wireless network card Model no.: TXA069, TXA049, TXA081, TXA105, TXA076, TXA083 Sincerely, Name: Sheron Lou Company: Dongguan Tianxia Zhilian Industrial Co., LTD Address: NO.10, South Industrial Zone Road, Humen Town, Dongguan City, Guangdong Province, China Phone: +86 173 8880 9330 Fax: +86 0755-82591330 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020/01/16 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AVKK-TXA069 TXA069, TXA049, TXA081, TXA105, TXA076, TXA083 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Sheron Lou Company: Dongguan Tianxia Zhilian Industrial Co., LTD Address: NO.10, South Industrial Zone Road, Humen Town, Dongguan City, Guangdong Province, China Phone: +86 173 8880 9330 Fax: +86 0755-82591330 E-Mail: [email protected]

Dongguan Tianxia Zhilian Industrial Co., LTD NO.10, South Industrial Zone Road, Humen Town, Dongguan City, Guangdong Province, China Tel: +86 173 8880 9330 E-mail: [email protected] Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 1/16/2020 To whom it may concern: We, Dongguan Tianxia Zhilian Industrial Co., LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AVKK-TXA069 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Sheron Lou Company: Dongguan Tianxia Zhilian Industrial Co., LTD Address: NO.10, South Industrial Zone Road, Humen Town, Dongguan City, Guangdong Province, China Phone: +86 173 8880 9330 Fax: +86 0755-82591330 E-Mail: [email protected]

Dongguan Tianxia Zhilian Industrial Co., LTD NO.10, South Industrial Zone Road, Humen Town, Dongguan City, Guangdong Province, China Limited Module Approval Request Letter 2020/01/16 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subjects: Limited Module Approval Request Letter The Device,FCC ID: 2AVKK-TXA069, is seeking FCC authorization as a modular transmitter. The EUT meets the requirement for modular approval as detailed in FCC Public Notice DA 00-1407. Compliance to each of the requirement is described below: (a) The radio elements must have the radio frequency circuitry be shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. Yes. (b) The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates or over-modulation. Yes. (c) The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. The modular without power regulator, the power must by PCI card slot (integrated in RTL8812AE). (d) The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. The modular has a External antenna which comply with the antenna requirement of Section 15.203. (e) The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not be inside another device during testing. The modular was tested in a standalone configuration apart from host units. (f) The module shall comply with the Category I equipment labeling requirements and CFR § 15.212(a)(1)(vi). The modular has its own FCC ID number. (g) The module shall comply with any applicable FCC RF exposure requirement which are based on the intended use/configurations. Yes, RF cexposure evaluation performed at 20cm. (h) The modular transmitter complies with all applicable FCC rules. Instructions for maintaining compliance are given in the user instructions. Yes If you have any questions, please feel free to contact us at the address shown below Sincerely, Name: Sheron Lou Company: Dongguan Tianxia Zhilian Industrial Co., LTD Address: NO.10, South Industrial Zone Road, Humen Town, Dongguan City, Guangdong Province, China Phone: +86 173 8880 9330 Fax: +86 0755-82591330 E-Mail: [email protected]

Dongguan Tianxia Zhilian Industrial Co., LTD NO.10, South Industrial Zone Road, Humen Town, Dongguan City, Guangdong Province, China Tel: +86 173 8880 9330 E-mail: [email protected] UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID：2AVKK-TXA069 (1) DFS Device:  Master  Client with Radar detection capability ■ N/A  Client without radar detection capability, (2) Active / Passive Scanning ,adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode Capability Access point Capability 5745-5825  Yes  No  Yes  No  Yes  No  Yes  No 5755-5795  Yes  No  Yes  No  Yes  No  Yes  No 5775-5775  Yes  No  Yes  No  Yes  No  Yes  No 5180-5240  Yes  No  Yes  No  Yes  No  Yes  No 5190-5230  Yes  No  Yes  No  Yes  No  Yes  No 5210-5210  Yes  No  Yes  No  Yes  No  Yes  No (3) Country code selection ability  Yes  No If yes, pls explain how it was implemented: (4) Meet 15.202 requirement  Yes  No pls check below :  A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices  A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non- DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer.  Apply  Does not apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) Sincerely, Name: Sheron Lou Company: Dongguan Tianxia Zhilian Industrial Co., LTD Address: NO.10, South Industrial Zone Road, Humen Town, Dongguan City, Guangdong Province, China Phone: +86 173 8880 9330 Fax: +86 0755-82591330 E-Mail: [email protected]

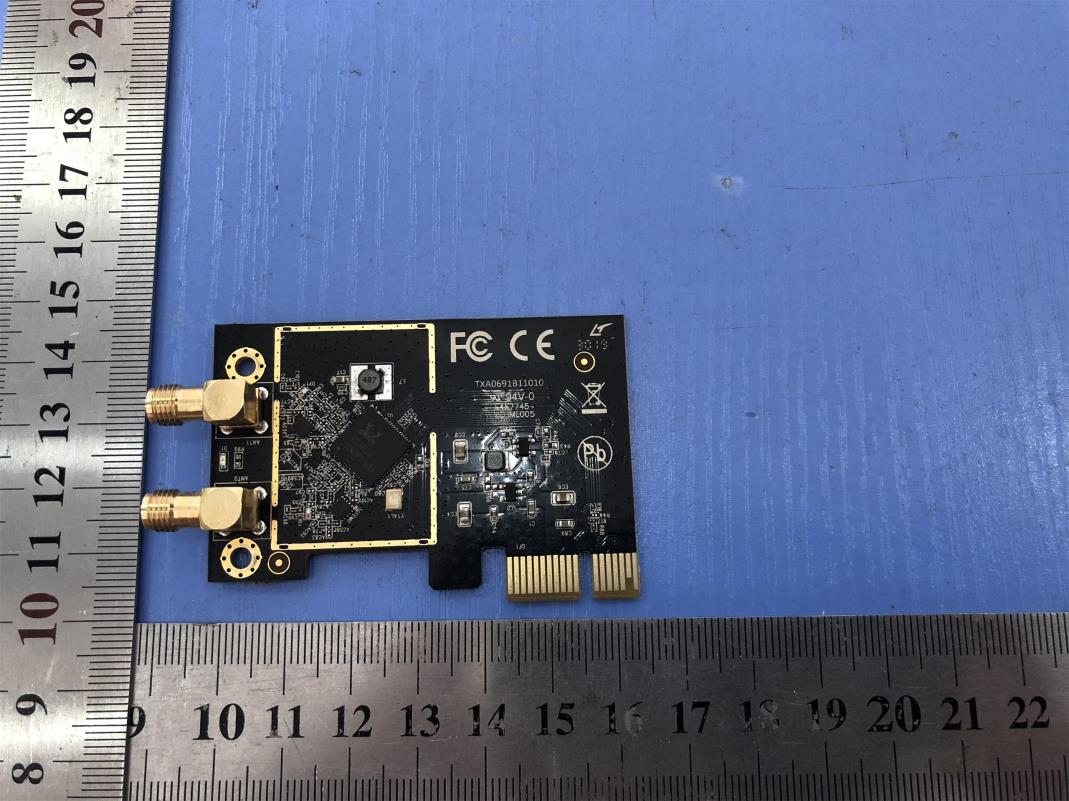

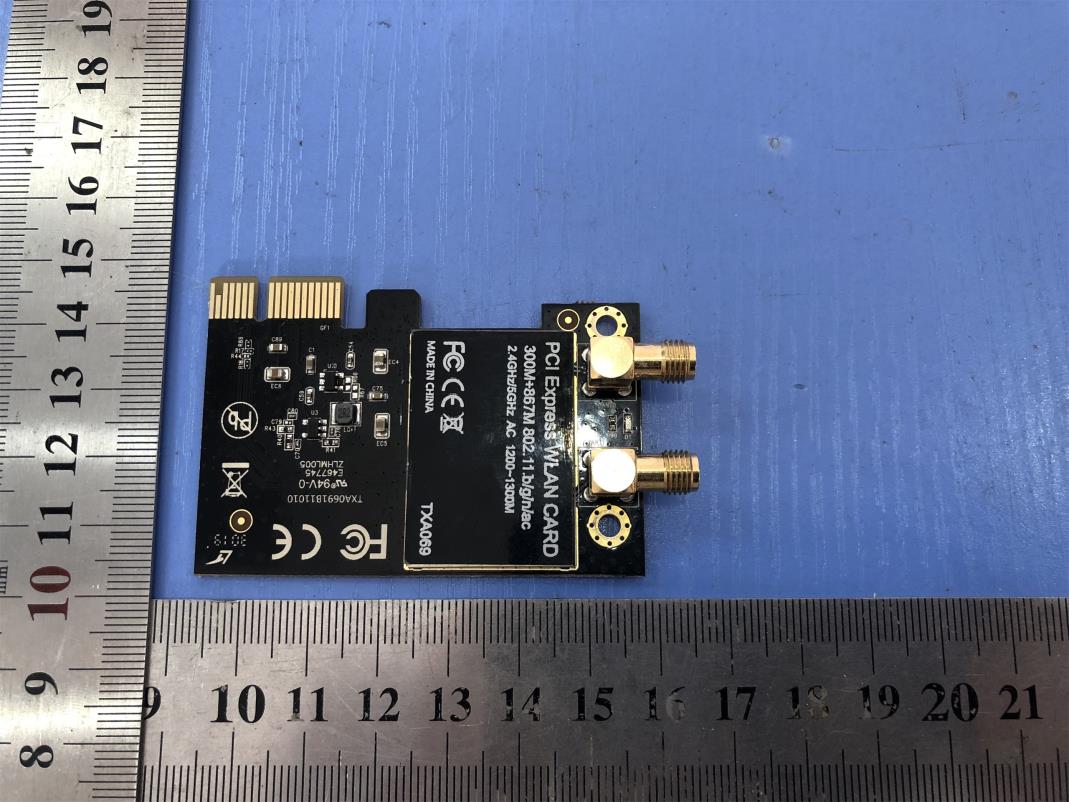

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 External Photos of the EUT Fig. 1 Fig. 2 WIFI Antenna0 port Antenna WIFI Antenna1 port Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 2.0cm*W: 1.5cm Label Location DIEWU Model: TXA069 FCCID: 2AVKK-TXA069

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 Internal Photos of the EUT Fig. 1 Fig. 2 WIFI Antenna0 port Antenna WIFI Antenna1 port Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVKK-TXA069 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 Maximum Permissible Exposure Report 1. Product Information FCC ID : 2AVKK-TXA069 EUT : Wireless network card Test Model : TXA069 Power Supply : DC 3.3V Hardware Version : B/C Software Version : 00003700-MP_Kit_RTL11ac_8812AE_PCIE_v57.17_20150909 WIFI(2.4G Band) : Frequency Range : 2412MHz-2462MHz Channel Spacing : 5MHz Channel Number : 11 channels for 20MHz bandwidth(2412MHz~2462MHz) 7 channels for 40MHz bandwidth(2422MHz~2452MHz) Modulation Type : 802.11b: DSSS(CCK,DQPSK,DBPSK); 802.11g/n: OFDM(64QAM, 16QAM, QPSK, BPSK) WIFI(5.2G Band) : Frequency Range : 5180MHz-5240MHz Channel Number : 4 channels for 20MHz bandwidth(5180MHz-5240MHz) 2 channels for 40MHz bandwidth(5190MHz~5230MHz) 1 channels for 80MHz bandwidth(5210MHz) Modulation Type : 802.11a/n/ac: OFDM(64QAM, 16QAM, QPSK, BPSK) WIFI(5.8G Band) : Frequency Range : 5745MHz-5825MHz Channel Number : 5 channels for 20MHz bandwidth(5745MHz-5825MHz) 2 channels for 40MHz bandwidth(5755MHz~5795MHz) 1 channels for 80MHz bandwidth(5775MHz) Modulation Type : 802.11a/n/ac: OFDM(64QAM, 16QAM, QPSK, BPSK) Antenna Description : External Antenna, 5dBi(Max.) for WIFI antenna0 , 5dBi(Max.) for WIFI antenna1 Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Mobile Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVKK-TXA069 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498 D01 General RF Exposure Guidance v06 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVKK-TXA069 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Netbox Duo can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna Identification in Internal photos Antenna type and antenna number Operate frequency band Maximum antenna gain Ant_0 WIFI External Antenna 2412MHz-2462MHz; 5180MHz-5240MHz; 5745MHz-5825MHz 5.0dBi(Max.) Ant_1 WIFI External Antenna 2412MHz-2462MHz; 5180MHz-5240MHz; 5745MHz-5825MHz 5.0dBi(Max.) 6. Measurement Results 6.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. Ant_0 Modulation Type Max. Tune Up Out…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 Report No.: LCS191231026AEB Page 1 of 71 Appendix B RF Test Data for 5.2G WLAN (Conducted Measurement) Product Name: Wireless network card Trade Mark: DIEWU Test Model: TXA069 Environmental Conditions Temperature: 23.9 C Relative Humidity: 52.6% ATM Pressure: 100.0 kPa Test Engineer: DiamonB.Lu Supervised by: Li Huan B.1 Duty Cycle Ant_0 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5200 100 0.00 0.01 11N20 5200 100 0.00 0.01 11N40 5190 100 0.00 0.01 11AC20 5200 100 0.00 0.01 11AC40 5190 100 0.00 0.01 11AC80 5210 100 0.00 0.01 Ant_1 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5200 100 0.00 0.01 11N20 5200 100 0.00 0.01 11N40 5190 100 0.00 0.01 11AC20 5200 100 0.00 0.01 11AC40 5190 100 0.00 0.01 11AC80 5210 100 0.00 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 Report No.: LCS191231026AEB Page 2 of 71 On Time and Duty Cycle_Ant_0 IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 Report No.: LCS191231026AEB Page 3 of 71 IEEE 802.11n HT40 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 Report No.: LCS191231026AEB Page 4 of 71 IEEE 802.11 AC40 IEEE 802.11AC80 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 Report No.: LCS191231026AEB Page 5 of 71 On Time and Duty Cycle_Ant_1 IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 Report No.: LCS191231026AEB Page 6 of 71 IEEE 802.11n HT40 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 Report No.: LCS191231026AEB Page 7 of 71 IEEE 802.11 AC40 IEEE 802.11AC80 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 Report No.: LCS191231026AEB Page 8 of 71 B.2 Maximum Conduct Output Power Ant_0 Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor (dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 36 5180 12.67 0 12.67 30 Pass 40 5200 11.77 0 11.77 Pass 48 5240 11.84 0 11.84 Pass 11N20 36 5180 11.42 0 11.42 30 Pass 40 5200 10.99 0 10.99 Pass 48 5240 11.82 0 11.82 Pass 11N40 38 5190 9.48 0 9.48 30 Pass 46 5230 11.23 0 11.23 Pass 11AC20 36 5180 10.09 0 10.09 30 Pass 40 5200 10.49 0 10.49 Pass 48 5240 10.9 0 10.9 Pass 11AC40 38 5190 10.36 0 10.36 30 Pass 46 5230 10.08 0 10.08 Pass 11AC80 42 5210 11.82 0 11.82 30 Pass Ant_1 Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor (dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 36 5180 10.8 0 10.8 30 Pass 40 5200 11.6 0 11.6 Pass 48 5240 11.83 0 11.83 Pass 11N20 36 5180 10.6 0 10.6 30 Pass 40 5200 10.82 0 10.82 Pass 48 5240 11.7 0 11.7 Pass 11N40 38 5190 10.46 0 10.46 30 Pass 46 5230 11.17 0 11.17 Pass 11AC20 36 5180 10.61 0 10.61 30 Pass 40 5200 10.87 0 10.87 Pass 48 5240 11.26 0 11.26 Pass 11AC40 38 5190 10.44 0 10.44 30 Pass 46 5230 10.14 0 10.14 Pass 11AC80 42 5210 10.3 0 10.3 30 Pass SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 Report No.: LCS191231026AEB Page 9 of 71 Combined Ant_0 and Ant_1 Test Mode Channel Frequency (MHz) Report Conducted Power (dBm) Limit (dBm) Ant_0 Ant_1 Sum 11N20 36 5180 11.42 10.6 14.04 27.99 40 5200 10.99 10.82 13.92 48 5240 11.82 11.7 14.77 11N40 38 5190 9.48 10.46 13.01 27.99 46 5230 11.23 11.17 14.21 11AC20 36 5180 10.09 10.61 13.37 27.99 40 5200 10.49 10.87 13.69 48 5240 10.9 11.26 14.09 11AC40 38 5190 10.36 10.44 13.41 27.99 46 5230 10.08 10.14 13.12 11AC80 42 5210 11.82 10.3 14.14 27.99 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 Report No.: LCS191231026AEB Page 10 of 71 B.3 Power Spectral Density Ant_0 Test Mode Channel Frequency (MHz) Power Density (dBm/MHz) Duty Cycle Factor(dB) Report Power Density (dBm/MHz) Limit (dBm/MHz) Verdict 11A 36 5180 1.61 0 1.61 17 Pass 40 5200 0.58 0 0.58 Pass 48 5240 0.82 0 0.82 Pass 11N20 36 5180 1.23 0 1.23 17 Pass 40 5200 0.84 0 0.84 Pass 48 5240 1.93 0 1.93 Pass 11N40 38 5190 -4.02 0 -4.02 17 Pass 46 5230 -2.48 0 -2.48 Pass 11AC20 36 5180 -0.80 0 -0.80 17 Pass 40 5200 -0.50 0 -0.50 Pass 48 5240 0.14 0 0.14 Pass 11AC40 38 5190 -2.99 0 -2.99 17 Pass 46 5230 -3.81 0 -3.81 Pass 11AC80 42 5210 -3.83 0 -3.83 17 Pass Ant_1 Test Mode Channel Frequency (MHz) Power Density (dBm/MHz) Duty Cycle Factor(dB) Report Power Density (dBm/MHz) Limit (dBm/MHz) Verdict 11A 36 5180 -0.19 0 -0.19 17 Pass 40 5200 0.68 0 0.68 Pass 48 5240 1.15 0 1.15 Pass 11N20 36 5180 0.69 0 0.69 17 Pass 40 5200 1.13 0 1.13 Pass 48 5240 2.17 0 2.17 Pass 11N40 38 5190 -3.05 0 -3.05 17 Pass 46 5230 -2.69 0 -2.69 Pass 11AC20 36 5180 0.34 0 0.34 17 Pass 40 5200 0.69 0 0.69 Pass 48 5240 1.44 0 1.44 Pass 11AC40 38 5190 -3.29 0 -3.29 17 Pass 46 5230 -3.40 0 -3.40 Pass 11AC80 42 5210 -5.09 0 -5.09 17 Pass Combined Ant_0 and Ant_1 Test Mode Channel Frequency (MHz) Report Power Density (dBm/MHz) Limit (dBm/MHz) Ant_0 Ant_1 Sum 11N20 36 5180 1.23 0.69 3.98 14.99 40 5200 0.84 1.13 4.00 48 5240 1.93 2.17 5.06 11N40 38 5190 -4.02 -3.05 -0.50 14.99 46 5230 -2.48 -2.69 0.43 11AC20 36 5180 -0.80 0.34 2.82 14.99 40 5200 -0.50 0.69 3.15 48 5240 0.14 1.44 3.85 11AC40 38 5190 -2.99 -3.29 -0.13 14.99 46 5230 -3.81 -3.40 -0.59 11AC80 42 5210 -3.83 -5.09 -1.40 14.99 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 Report No.: LCS191231026AEB Page 11 of 71 Power Spectral Density_Ant_0 IEEE 802.11a / Channel 36 / 5180MHz_Ant_0 IEEE 802.11a / Channel 40 / 5200MHz_Ant_0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 Report No.: LCS191231026AEB Page 12 of 71 IEEE 802.11a / Channel 48 / 5240MHz_Ant_0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 Report No.: LCS191231026AEB Page 13 of 71 Power Spectral Density_Ant_0 IEEE 802.11n20 / Channel 36 / 5180MHz_Ant_0 IEEE 802.11n20 / Channel 40 / 5200MHz_Ant_0 SHENZHEN LCS COMPLIANCE TESTING LA…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVKK-TXA069 Report No.: LCS191231026AEC Page 1 of 70 Appendix C RF Test Data for 5.8G WLAN (Conducted Measurement) Product Name: Wireless network card Trade Mark: DIEWU Test Model: TXA069 Environmental Conditions Temperature: 23.4C Relative Humidity: 53.7% ATM Pressure: 100.0 kPa Test Engineer: DiamonC.Lu Supervised by: Li Huan C.1 Duty Cycle Ant_0 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5785 100 0.00 0.01 11N20 5785 100 0.00 0.01 11N40 5755 100 0.00 0.01 11AC20 5785 100 0.00 0.01 11AC40 5755 100 0.00 0.01 11AC80 5775 100 0.00 0.01 Ant_1 Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5785 100 0.00 0.01 11N20 5785 100 0.00 0.01 11N40 5755 100 0.00 0.01 11AC20 5785 100 0.00 0.01 11A…

Text truncated - open the document above for the full version.
