2AVMA-NBY230Wireless speaker

NBY230 specification Basic parameter ⚫ Bluetooth version: V5.3 supports protocol A2DP, AVRCP, HSP, HFP, AVTDP to receive stereo audio signals, through the protocol can control the audio transmitter up \ down, volume up \ down, playback \ pause and other operations; Support Bluetooth hands-free voice communication, callback, reject calls and other functions ⚫ Wireless transmission range: ≧10m ⚫ Bluetooth operating frequency: 2.402GHz-2.480GHz ⚫ Audio signal-to-noise ratio: ≧90Db ⚫ Frequency response: 100HZ-20KHZ ⚫ Battery specification: built-in lithium battery 3.7V, 500mAh+MOS protection ⚫ Speaker specifications: φ52mm, 4Ω5W*1 ⚫ Charging voltage/current: 5V/1A ⚫ Charging time: about 2h ⚫ Playing time: about 1.5-3h ⚫ Main machine size: diameter 87mm * height 58mm ⚫ Main unit net weight: about 205g Functional characteristics ◆ Support Bluetooth hands-free calling ◆ Bluetooth mode no connection, 10 minutes automatic shutdown ◆ Using advanced wireless Bluetooth decoding chip, support all wireless device connection ◆ Support FM radio, you can directly search the radio station in the listening area; THE FREQUENCY BAND IS 87.5HZ- 108MHZ ◆ High-power full-range speakers: powerful bass, strong dynamics; The vocals are sweet and soft; Strong sense of high and low depth ◆ Support 64G large-capacity TF card music playback ◆ Support 3.5mm headphone head AUX audio input playback: provide you with computer audio function, can be directly connected to desktop computer, laptop, tablet and TV Bluetooth pairing to play music ◆ Built-in large-capacity lithium battery, easy to carry; Support charging and discharging functions ◆ It adopts TYPEC high-current charging base ◆ Bluetooth playback volume is synchronized with the phone ◆ TWS couplet play ◆ 360︒surround playback ◆ 360︒degrees a variety of RGB light effect mode selection ◆ Detect low battery power and automatically shut down to protect battery life; Functional indication 1、 on off keying/playsuspend： 1、When long pressing for 3s: power on \ off function; 2、In music mode (Bluetooth, TF card, AUX): short press to play\pause function; 2、When connected to the phone in Bluetooth mode: double-click to call back the function; When a call is called, short press to answer the call hands-free, long press to reject the call function, and then short press after answering the call to hang up the phone function; In FM mode: Short press for automatic search/stop search 3、Mode key/TWS key : 1、Short press in music mode to switch TF card, AUX, FM, BT mode; 2、Power on Bluetooth mode and long press this button to turn on/off TWS couplet； 3、RGB light effect keys: 1、This machine has a variety of built-in RGB lighting effect modes, short press this key to stream light dazzling, breathing, gradient, two-color dazzling, single color rotation change, monochrome change, red solid light, blue solid light, green constant light, spectrum monochrome color change flash a total of 10 kinds of lighting effects; Long press to turn on\off the light effect; (radio mode automatically turns off the light effect) 4、 Volume down/previous track: 1、Long press in music mode for volume reduction function, short press for previous song function; 2、FM mode time press for the volume reduction function, short press for the previous station function; 5、 Volume Plus/Next Track: 1、Long press in music mode for volume plus function, short press for the next song function; 2、Long press in FM mode for volume plus function, short press for next station function; 6、 TF card input interface: when the TF card is inserted, it can decode the audio playback in MP3\WAV format, and the maximum support is 64G capacity; Unplug separately to automatically switch BT mode; 7、LED light indicates the hole： ⚫ Charging status: solid red light ⚫ Charging complete: The red light goes off ⚫ Power on standby state: blue light flash; When playing music: blue light flashes slowly; Bluetooth pairing successful: no play/playback pause status: blue light is solid 8、Bluetooth call hole: It is better to get close to this hole when making Bluetooth calls; 9、Charging interface: DC 5V/1~2A TYPEC input; 10、 AUX audio input: automatically switch AUX mode after plugging in the 3.5mm headphone audio cable, and automatically return to BT mode when unplugged separately; Remark：1. Since the RGB lamp will cause the signal to dry FM when it is lit, the software will automatically turn off the lighting effect when switching to FM to achieve a better radio effect (the charging cable or AUX cable must be plugged in as an antenna when FM); 2.TF card support system formats: FAT16, FAT32; FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harm full interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, …

Text truncated - open the document above for the full version.

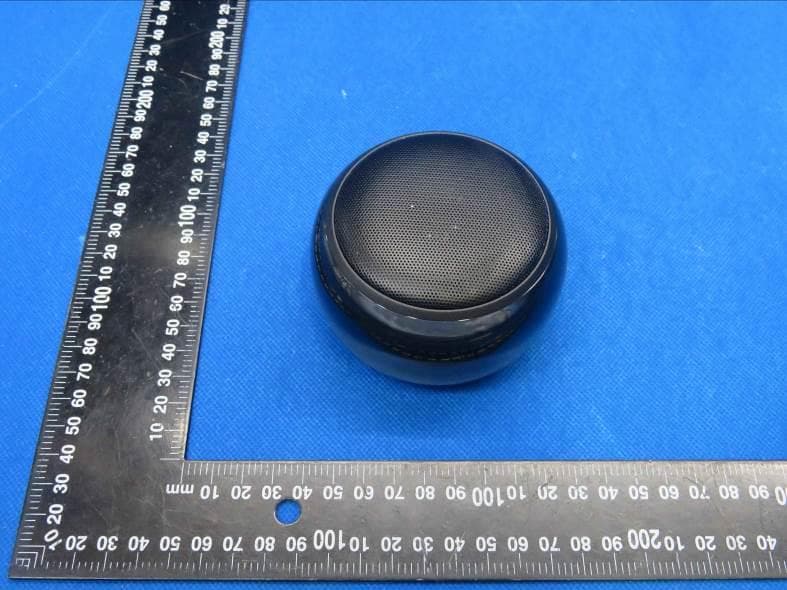

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202307263 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Wireless speaker Model No.: NBY230 EUT Constructional Details External Photo Report No.: HTT202307263 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202307263 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

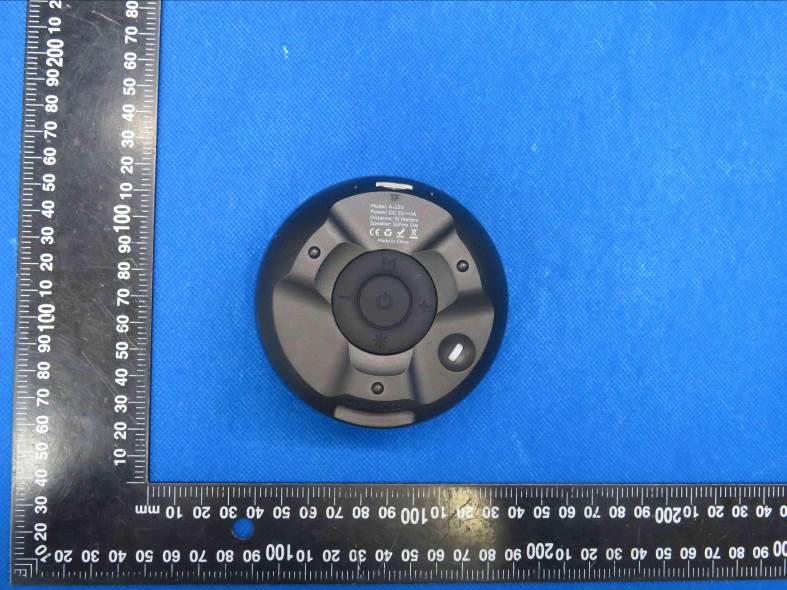

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2AVMA-NBY230

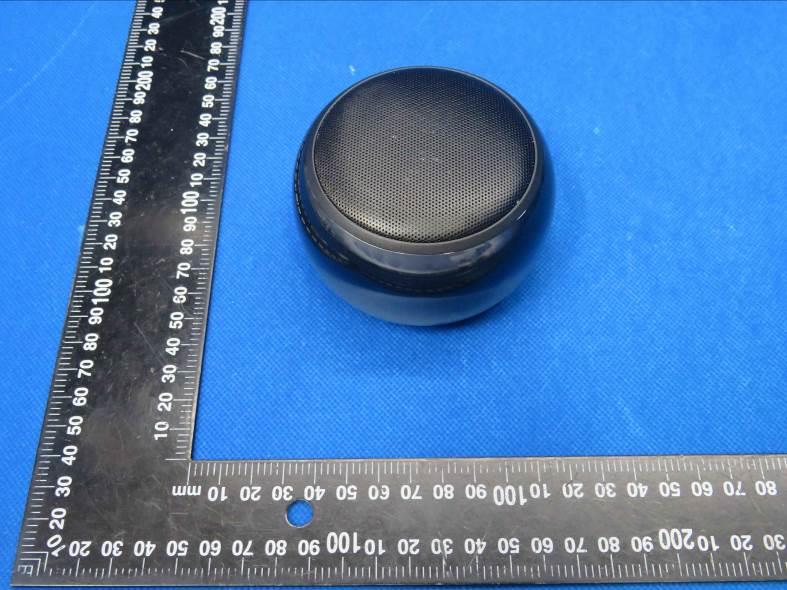

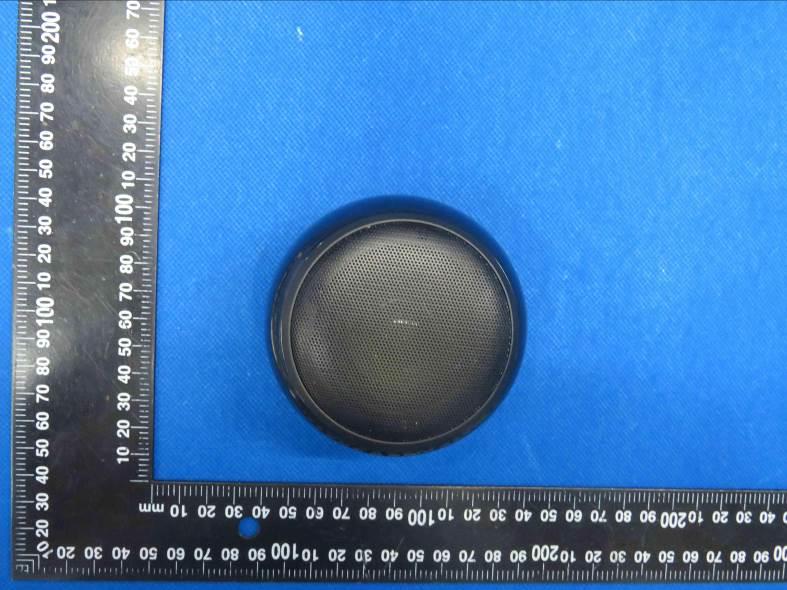

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202307263 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Wireless speaker Model No.: NBY230 EUT Constructional Details Internal Photo Report No.: HTT202307263 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202307263 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

RF Exposure evaluation FCC ID: 2AVMA-NBY230 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -5.0 -5.0 -5.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -5.0 -4.0 -4.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 -3 0.5012 0.1569<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

Inverted F Antenna Specification Summary ITEM ANT SPEC 2.4G ANTModel Name Horizontal Vertical 2400MHz 2400MHz2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 -0.58dBi MAX. Gain Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm 38.20mmAntenna Length Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) 2400MHz 2400MHz2500MHz Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency Gain(dBi) (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency Gain(dBi) (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202307263F01 This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 42 TEST Report Applicant: Dongguan Xianghe Xin Industrial Co., Ltd Address of Applicant: The third floor of Building A, Chang yin ke chuang Park, No.10, Binnong First Road, Meitang, Huangjiang Town, Dongguan city Manufacturer : Dongguan Xianghe Xin Industrial Co., Ltd Address of Manufacturer : The third floor of Building A, Chang yin ke chuang Park, No.10, Binnong First Road, Meitang, Huangjiang Town, Dongguan city Equipment Under Test (EUT) Product Name: Wireless speaker Model No.: NBY230 Series model: NBY235, NBY233, NBY232, NBY236, NBY223, NBY225, NBY8898, NBY6680, NBY8892, NBY8893A, NBY8896, NBY6690L, NBY8890L, NBY380, NBY382, NBY227, NBY226, NBY222, NBY220, NBY221, NBY219, NBY217, NBY217L, NBY218, NBY218L, NBY270, NBY300, NBY301, NBY302, NBY303, NBY305, NBY306, NBY307, NBY308, NBY309, NBY310 Trade Mark: N/A FCC ID: 2AVMA-NBY230 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: Jul.14,2023 Date of Test: Jul.14,2023~Jul.18,2023 Date of report issued: Jul.18,2023 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: HTT202307263F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 42 1. Version Version No. Date Description 00 Jul.18,2023 Original Tested/ Prepared By Date: Jul.18,2023 Project Engineer Check By: Date: Jul.18,2023 Reviewer Approved By : Date: Jul.18,2023 Authorized Signature Report No.: HTT202307263F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 42 2. Contents Page 1. VERSION ........................................................................................................................................................ 2 2. CONTENTS .................................................................................................................................................... 3 3. TEST SUMMARY ........................................................................................................................................... 4 4. GENERAL INFORMATION ............................................................................................................................ 5 4.1. GENERAL DESCRIPTION OF EUT ................................................................................................................ 5 4.2. TEST MODE ............................................................................................................................................... 7 4.3. DESCRIPTION OF SUPPORT UNITS .............................................................................................................. 7 4.4. DEVIATION FROM STANDARDS .................................................................................................................... 7 4.5. ABNORMALITIES FROM STANDARD CONDITIONS ........................................................................................... 7 4.6. TEST FACILITY ........................................................................................................................................... 7 4.7. TEST LOCATION ......................................................................................................................................... 7 4.8. ADDITIONAL INSTRUCTIONS ........................................................................................................................ 7 5. TEST INSTRUMENTS LIST ........................................................................................................................... 8 6. TEST RESULTS AND MEASUREMENT DATA ........................................................................................... 9 6.1. CONDUCTED EMISSIONS ............................................................................................................................ 9 6.2. CONDUCTED PEAK OUTPUT POWER ......................................................................................................... 12 6.3. 20DB EMISSION BANDWIDTH .................................................................................................................... 13 6.4. FREQUENCIES SEPARATION ..................................................................................................................... 16 6.5. HOPPING CHANNEL NUMBER .................................................................................................................... 18 6.6. DWELL TIME ............................................................................................................................................ 20 6.7. BAND EDGE ............................................................................................................................................. 24 6.7.1. Conducted Emission Method ......................................................................................................... 24 6.7.2. Radiated Emission Method ............................................................................................................ 27 6.8. SPURIOUS EMISSION ................................................................................................................................ 29 6.8.1. Conducted Emission Method .....................................................................…
